Flagstaff 228BH



(2008-2016; usurped by the SE version: 228BHSE)

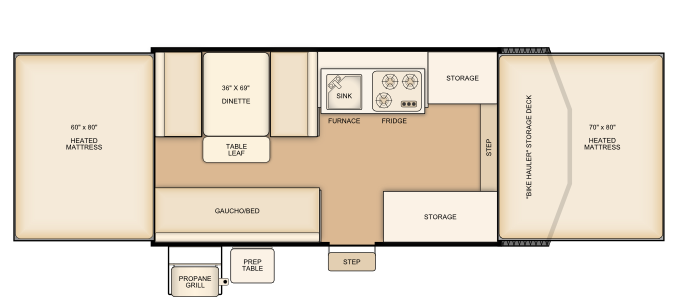

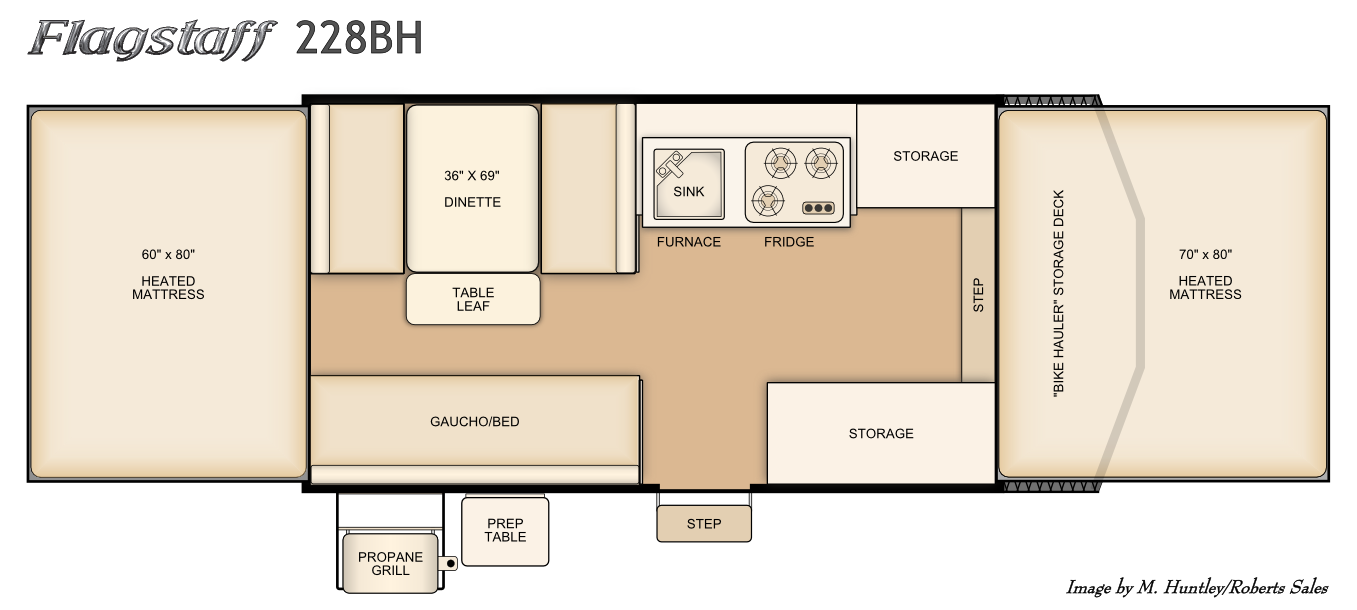

Flagstaff 228BH floorplan

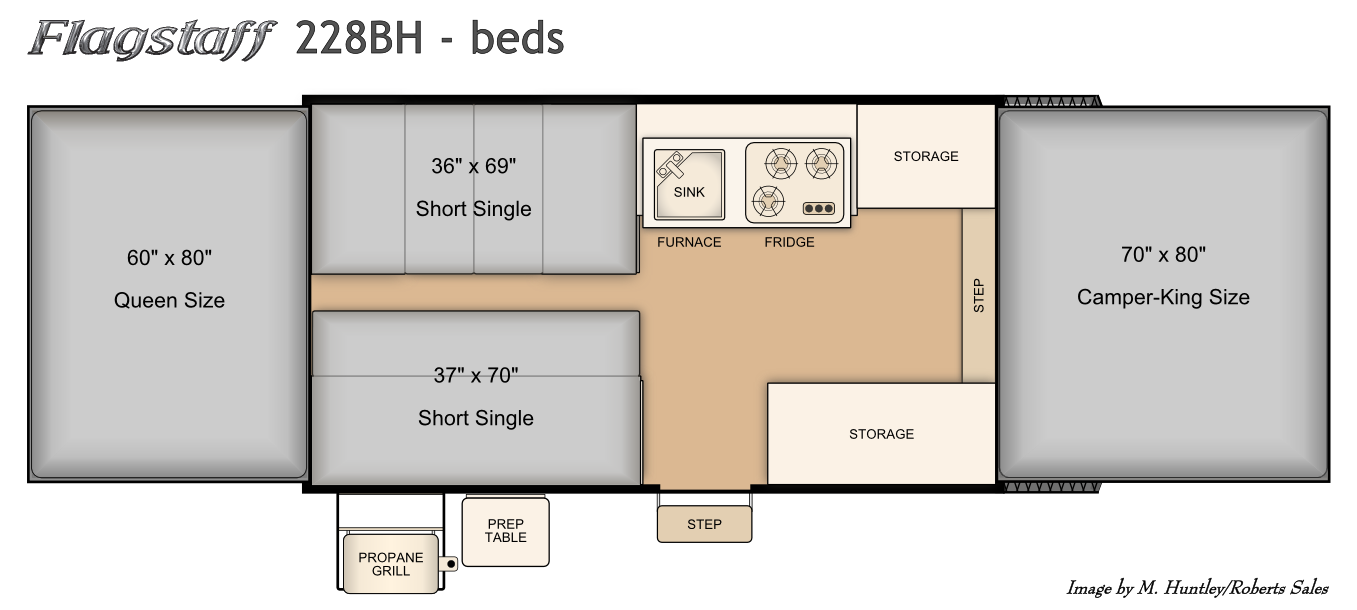

Bed Layout for this model

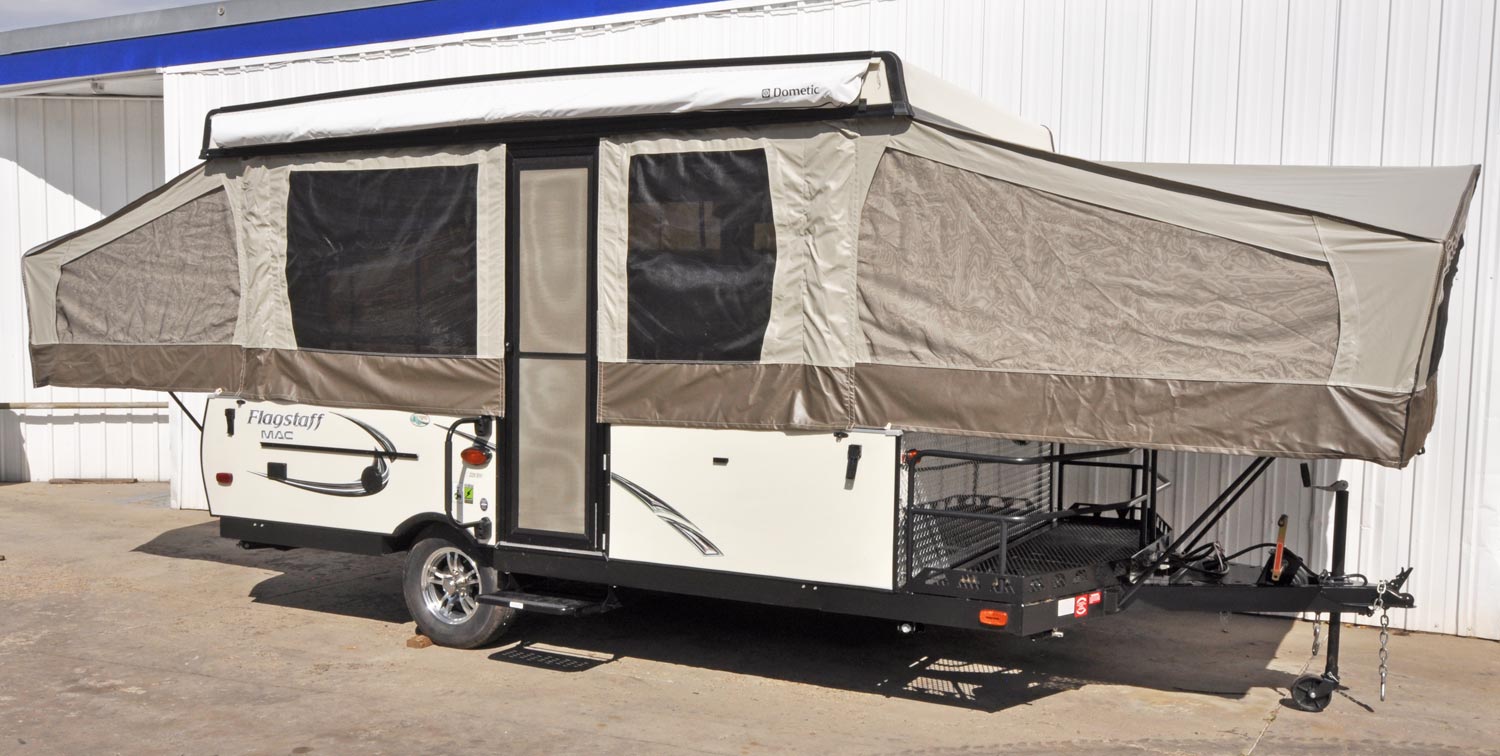

2016 Flagstaff 228BH exterior view

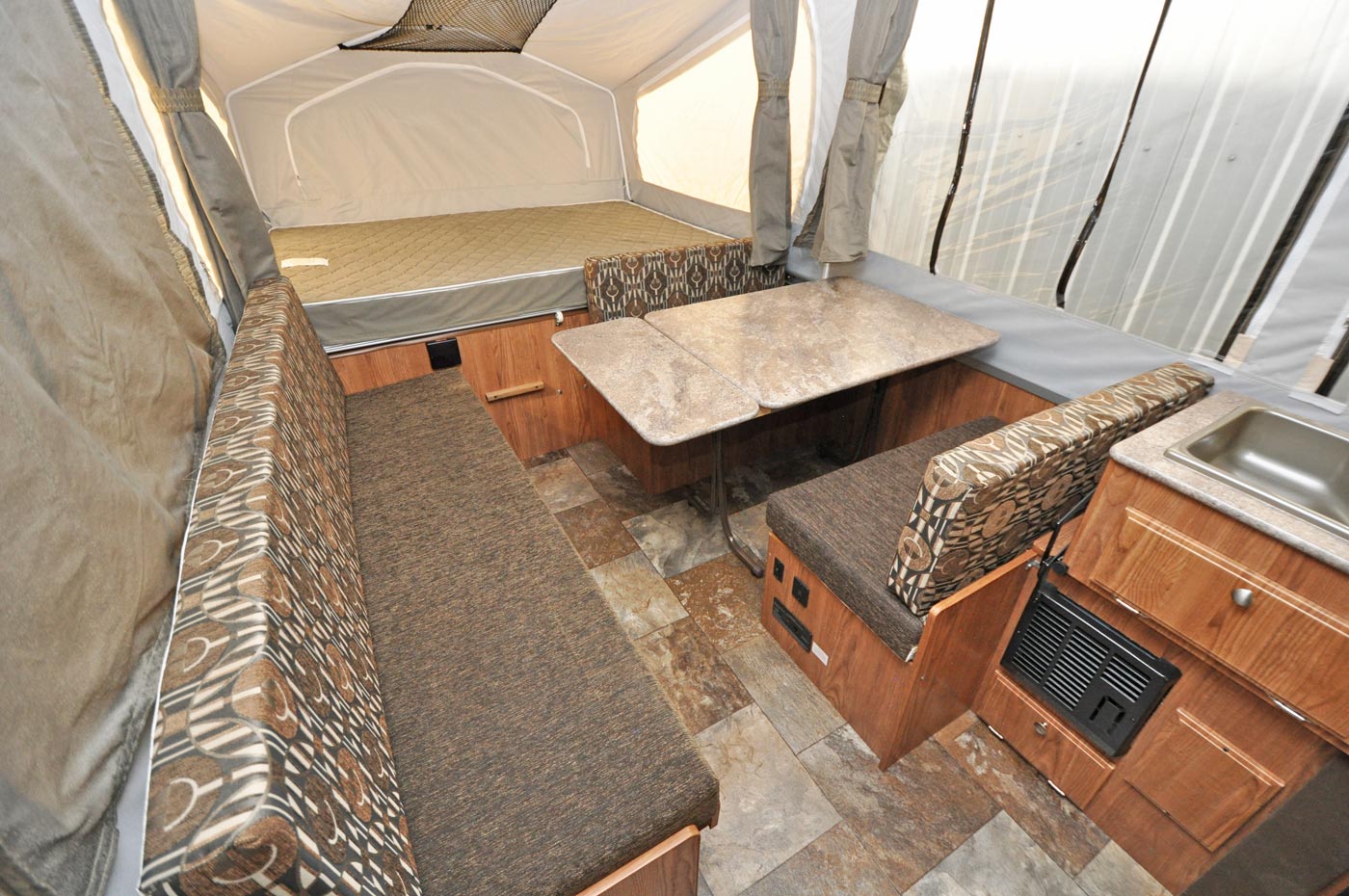

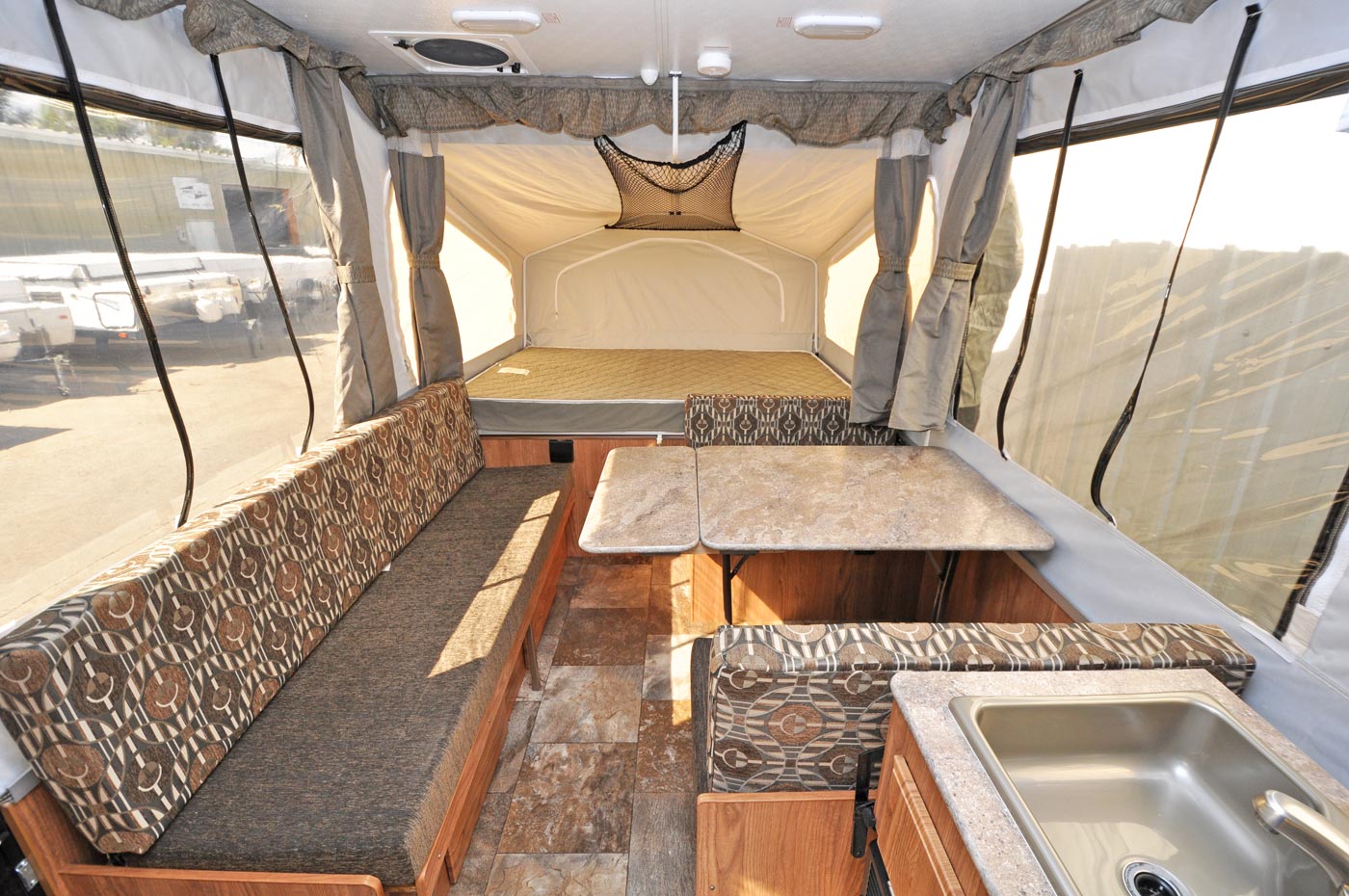

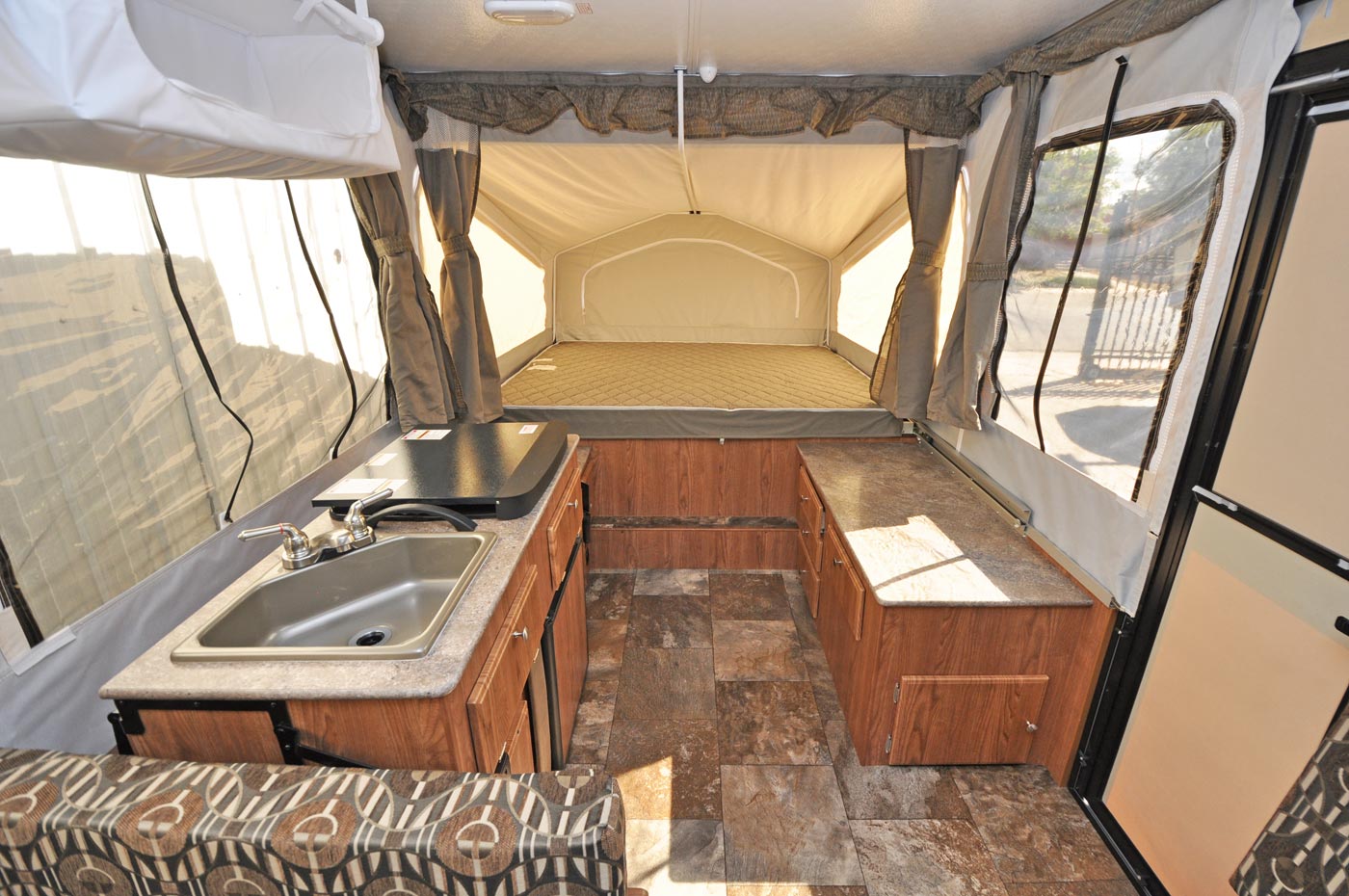

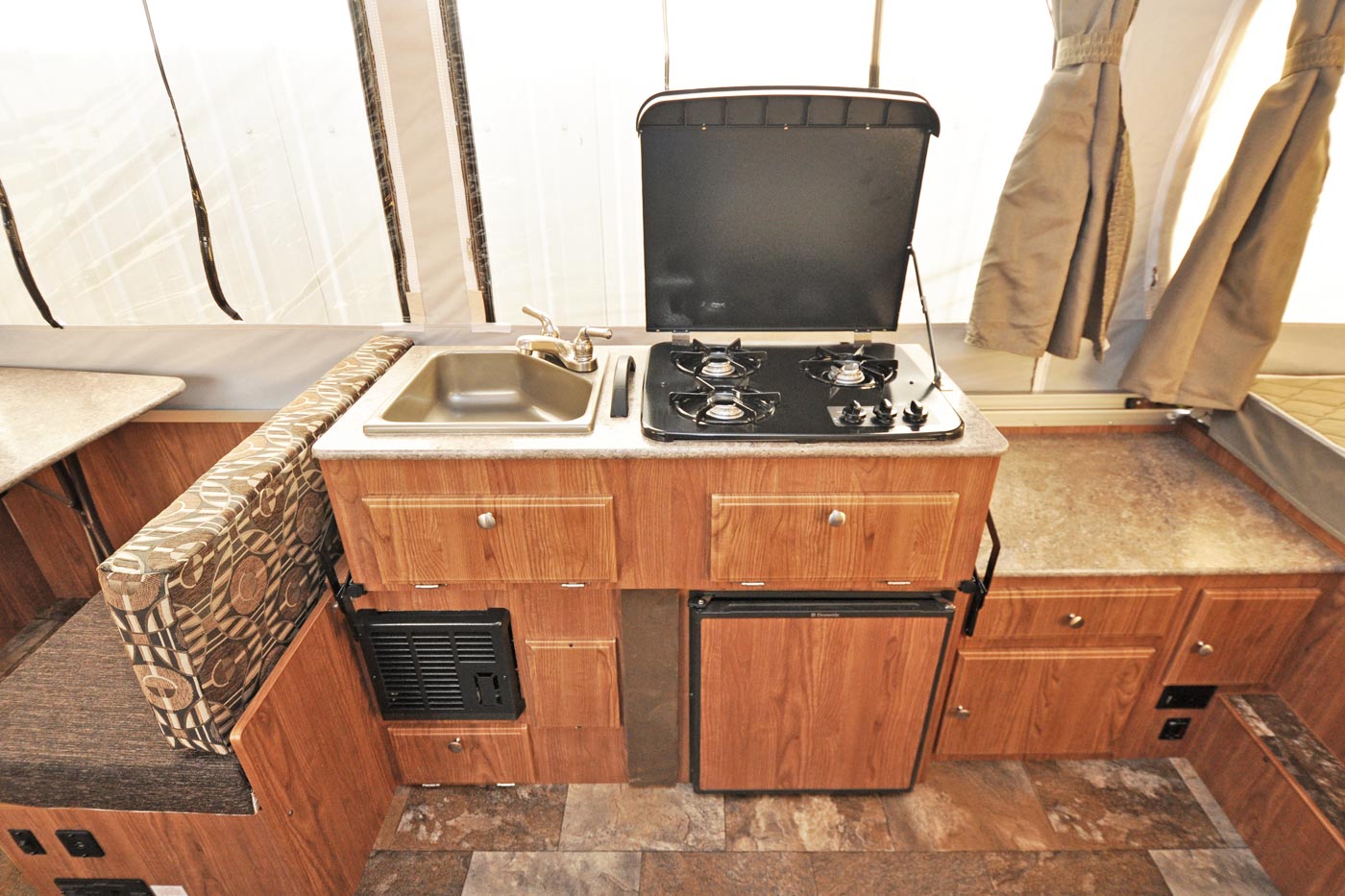

2016 Flagstaff 228BH front view 2016 Flagstaff 228BH rear view 2016 Flagstaff 228BH galley 2016 Flagstaff 228BH dinette

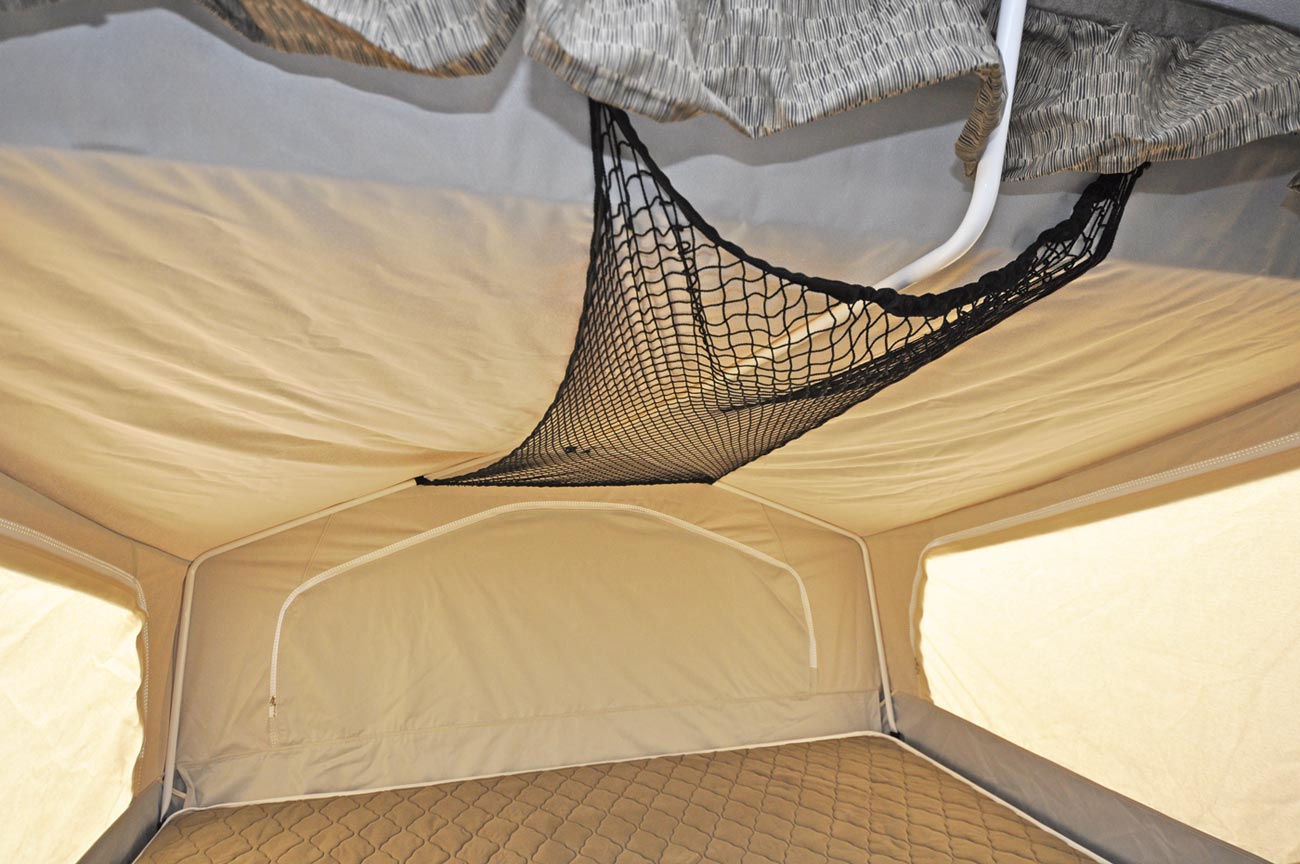

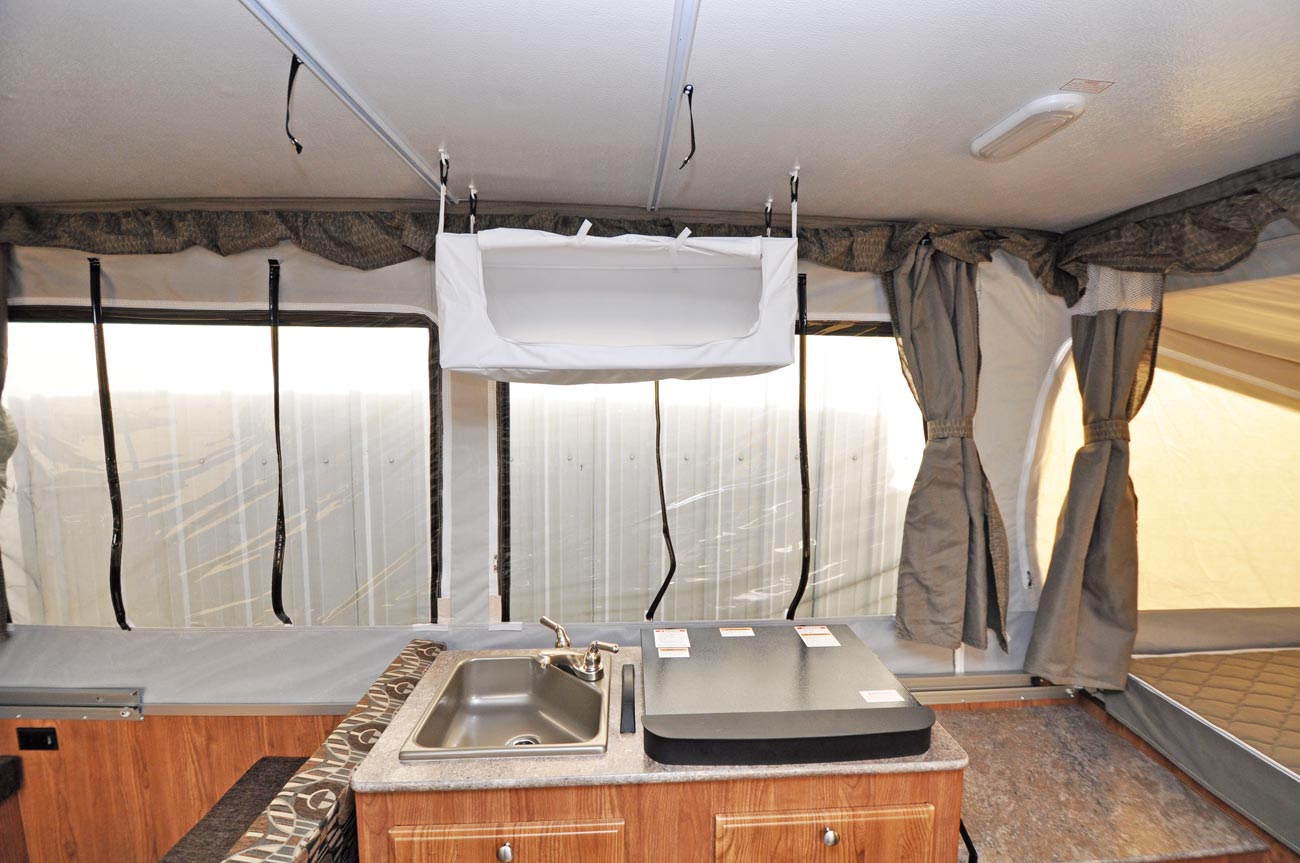

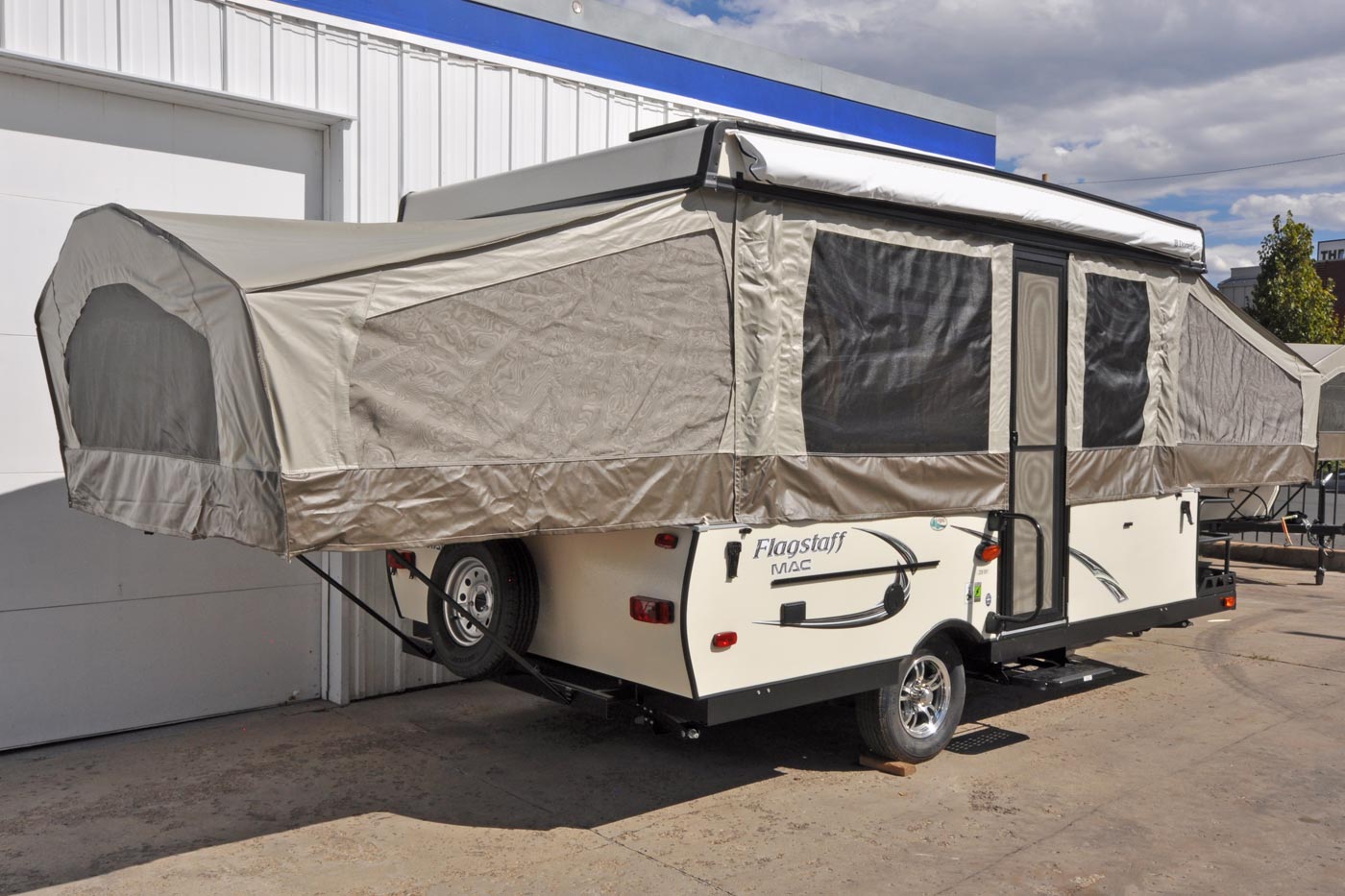

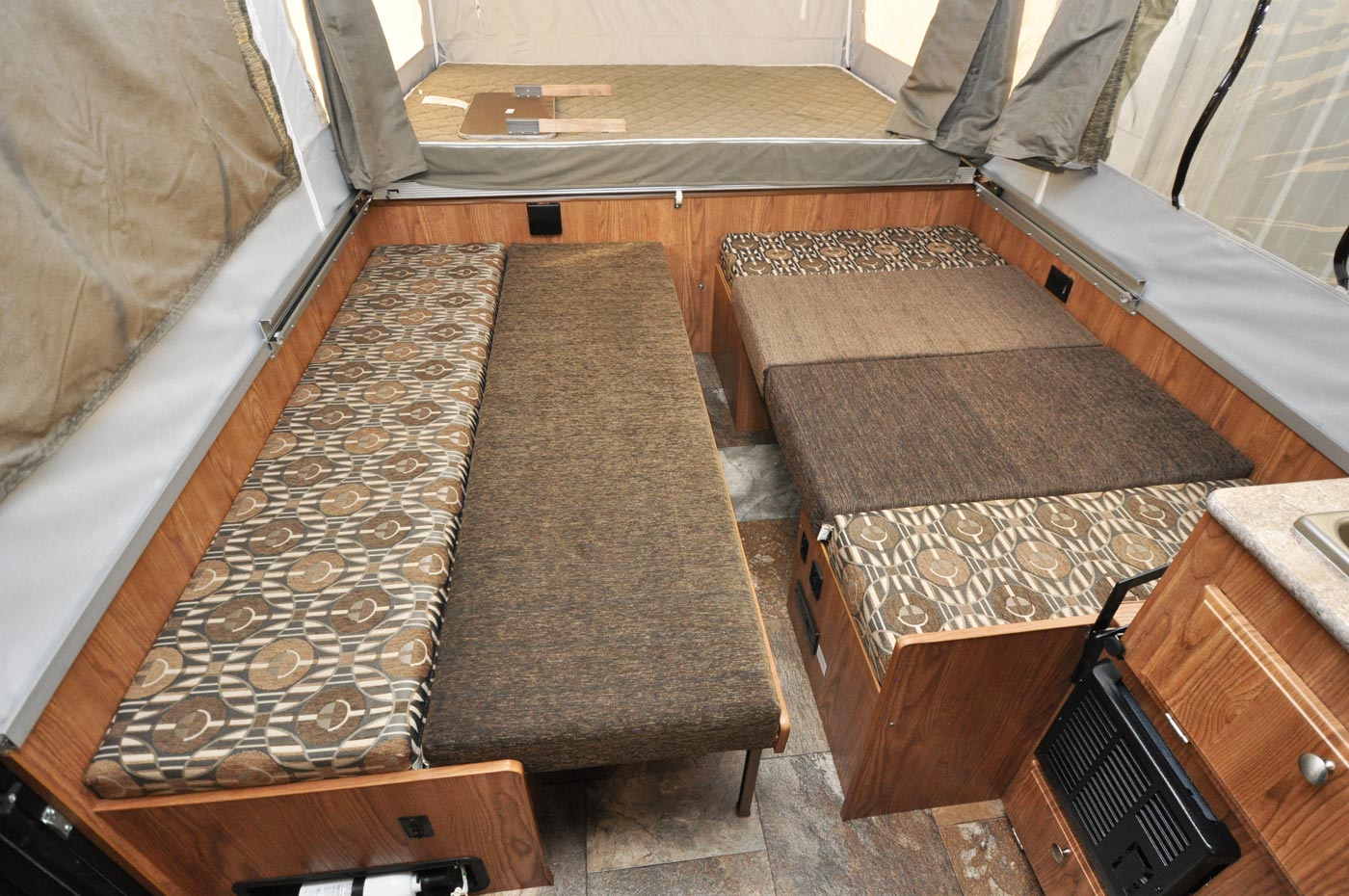

2016 Flagstaff 228BH gaucho and dinette as a bed 2016 Flagstaff 228BH overhead cabinet 2016 Flagstaff 228BH bunk-end storage net 2016 Flagstaff 228BH exterior rear view

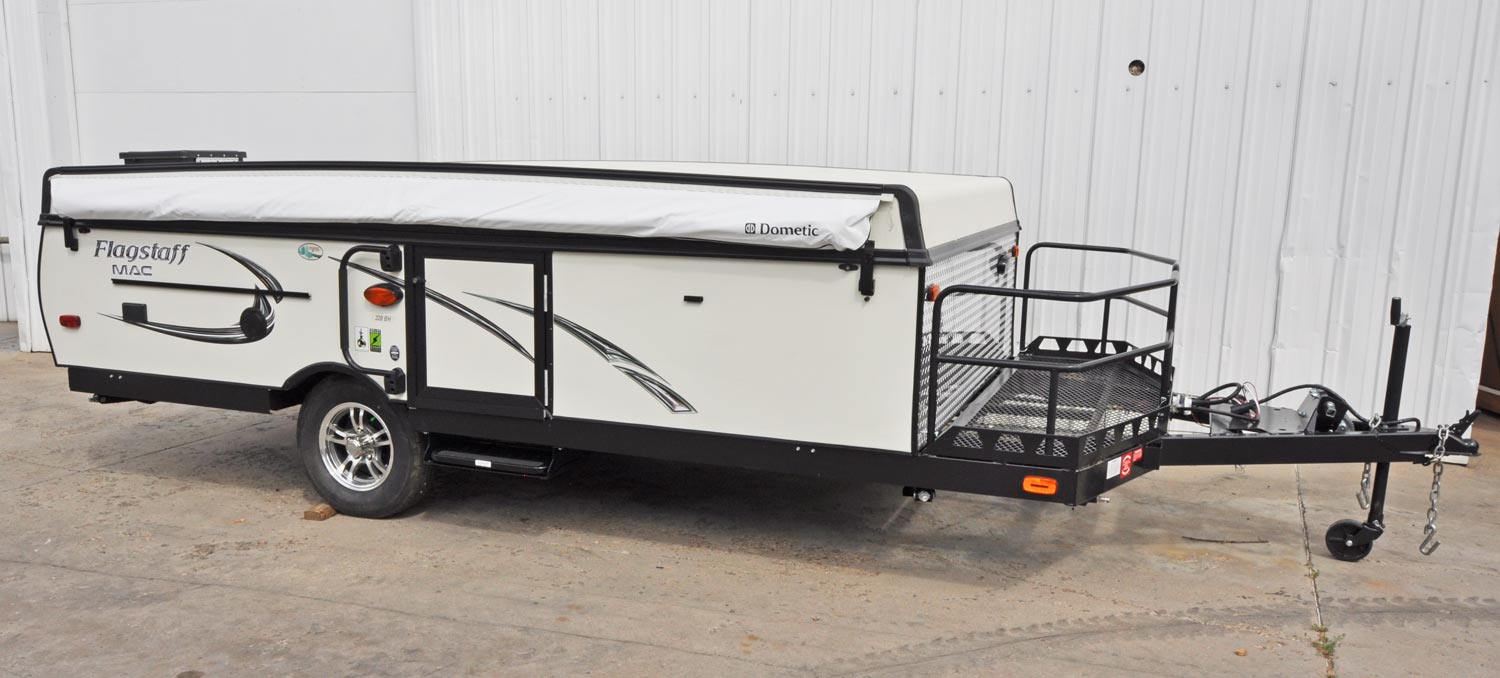

2016 Flagstaff 228BH exterior folded down (2016 model year shown)

For 228BHs equipped with the optional hot water package, the layout on the exterior of the camper has the water heater to the left of the fridge vent and the exterior shower to the right of the fridge vent like this:

2016 Flagstaff 228BH back-side layout

Wheel-well note: as with all 228 variants (and several others like the 206ST, 206STSE, and the 207), part of the wheel-well protrudes into the dinette leg-room space. This is covered by a wood box. In the 228BH it looks like this:

2016 Flagstaff 228BH wheel-well issue

Highlights

  • The dinette and gaucho area together help with meals and game time!
  • A full walkway from end to end makes getting to the beds easy
  • Lots of storage space--including the BH "Bike Hauler" storage deck

Specifications

  • Box Size: 12'
  • Open Length: 23' 10"
  • Travel Length: 18' 8"
  • Travel Width: 7' 6"
  • Dry Weight: 2280 lbs (brief weight explanation)
  • Hitch Weight: 376 lbs
  • GVWR: 3357 lbs
  • Coupler size: 2"
  • Sleeps: 8
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 69" x 36"
    4. 70" x 37"

Features

  • 2' metal storage deck on the front
  • 6-gallon water heater with automatic ignition and exterior shower fixture

...as well as these features standard with the MAC series:

  • Dometic 1.9 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • Overhead cabinet
  • Group 27 battery pack
  • 110V heated 3.5" foam mattresses
  • Privacy curtains
  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • Awning
  • 20# propane tank
  • 13" steel wheels
  • Spare tire
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 228BH w/shower - Identical layout but with interior shower cassette/toilet option.
  • 228D - The slide-out version of the 228 layout, minus the Bike Hauler deck.
  • 228 - Identical interior but with no Bike Hauler deck.
  • 228BHSE - Same camper but in the Sports Enthusiast series.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities should be considered estimates and may vary based on how individual campers are outfitted.
