Flagstaff HW27SC



(2007-2019)

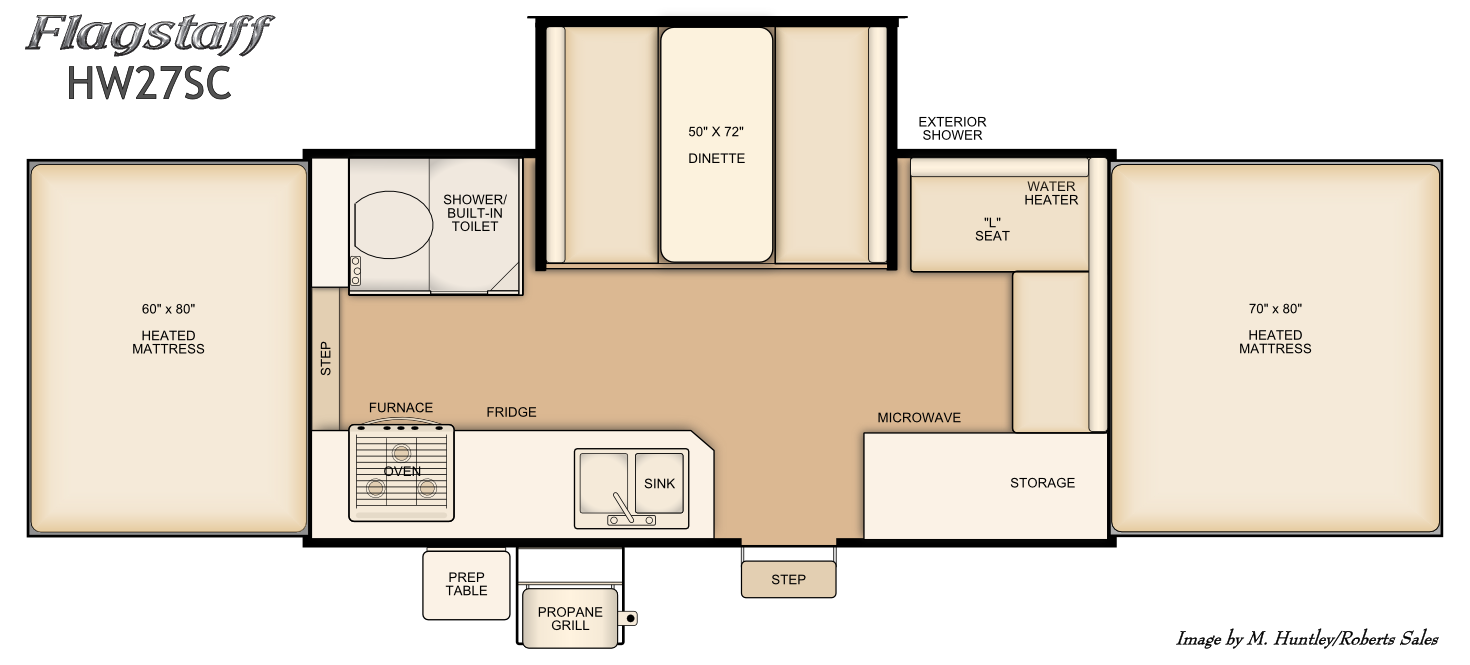

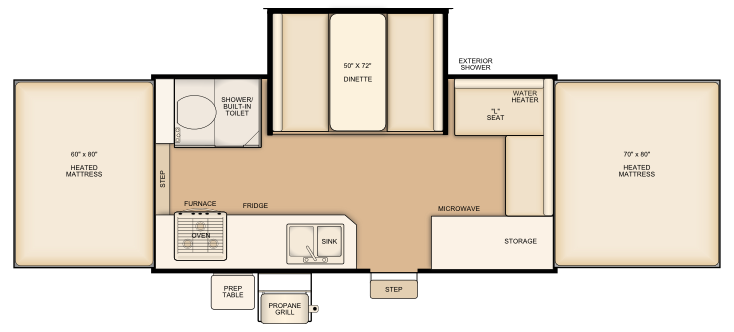

Flagstaff HW27SC floorplan

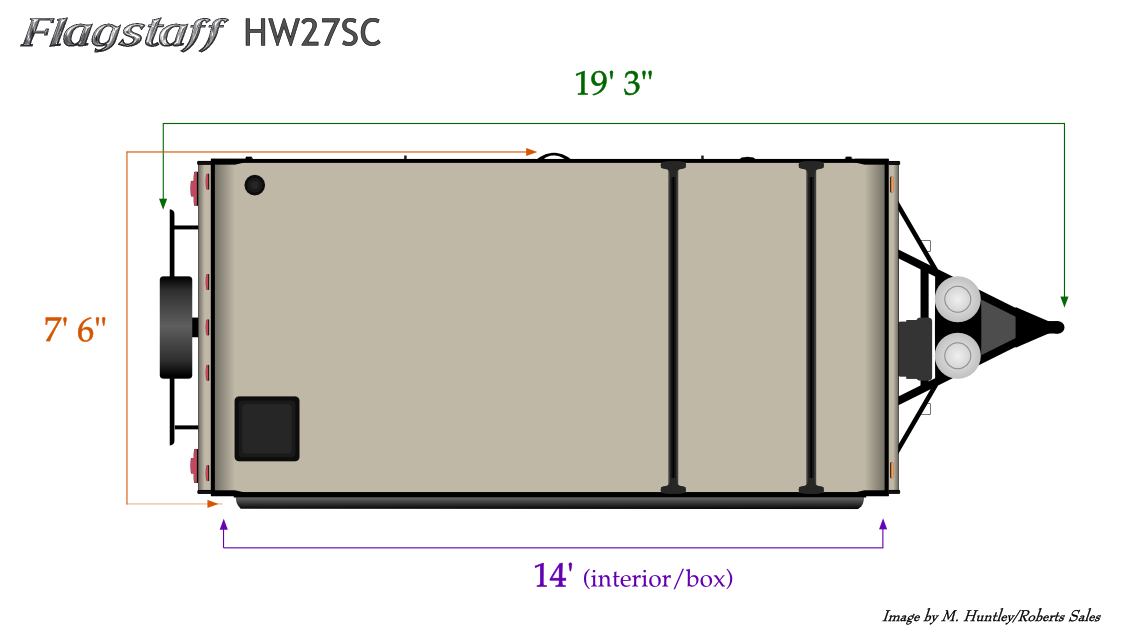

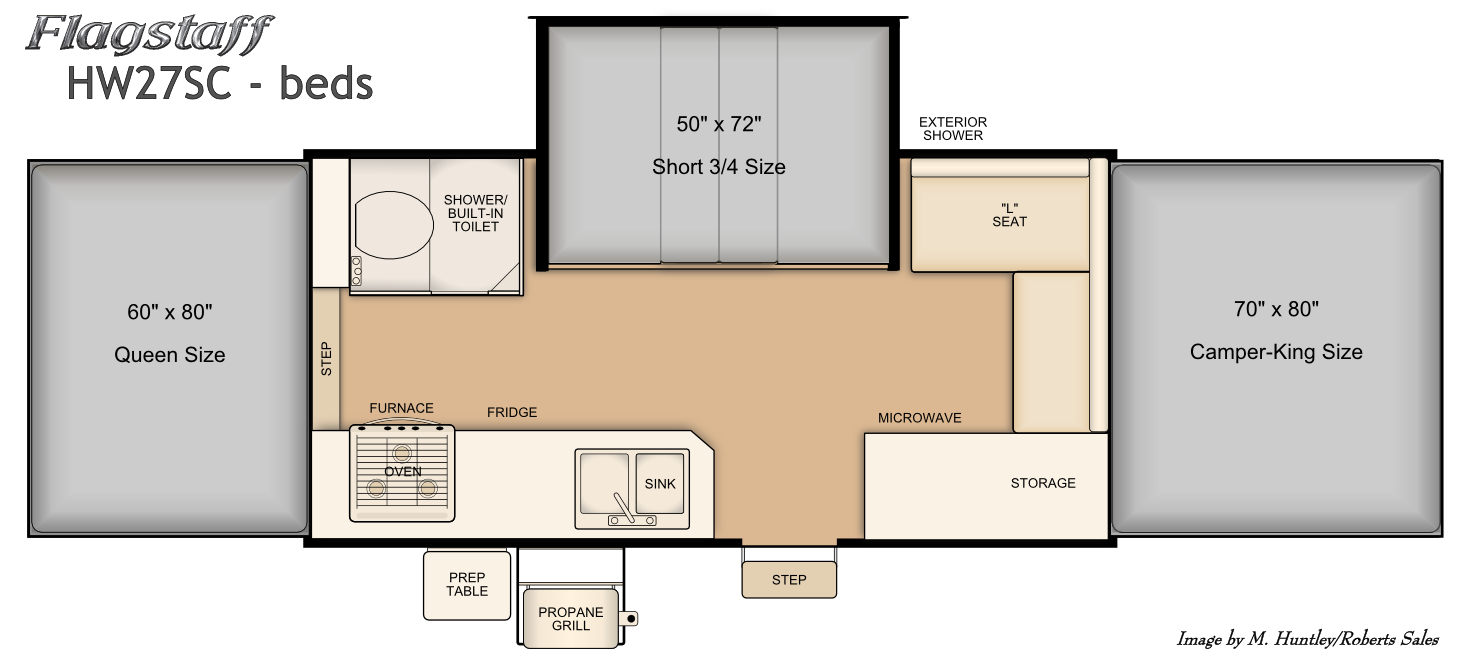

Bed Layout for this model Flagstaff HW27SC travel length and width

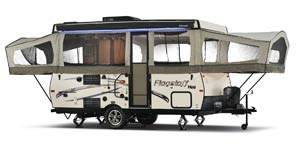

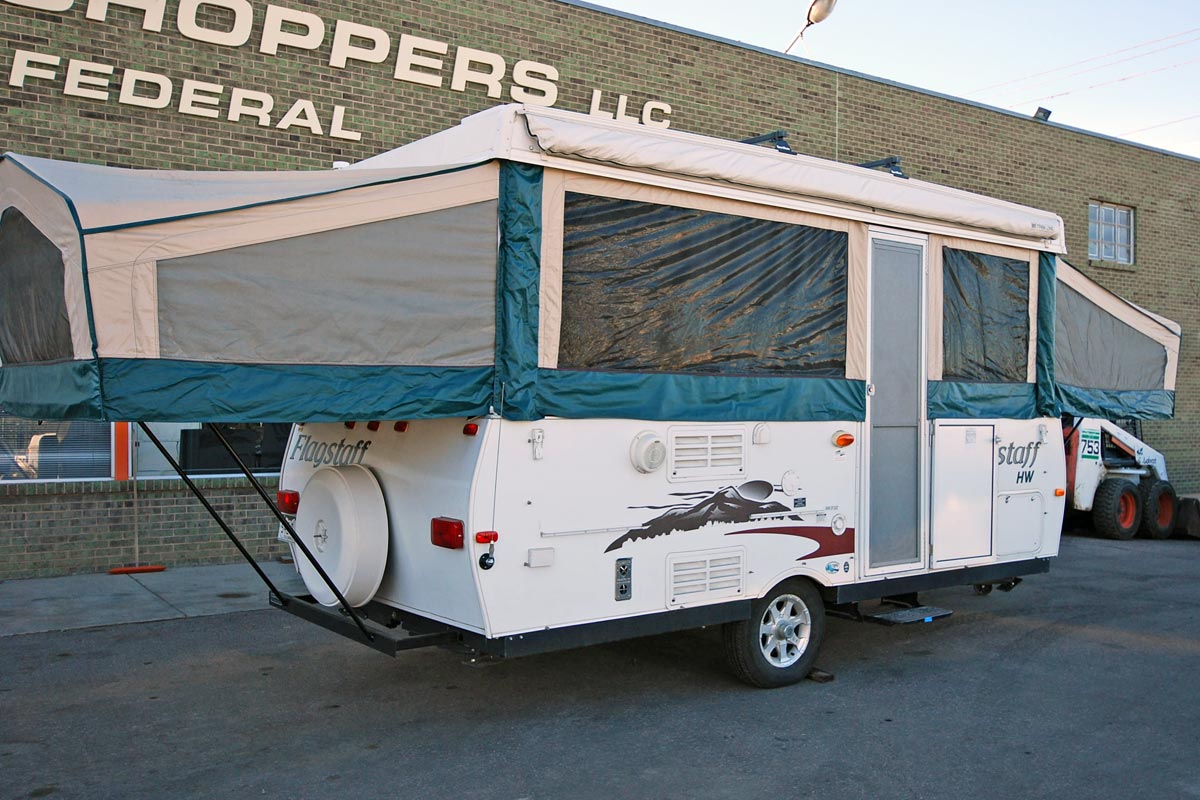

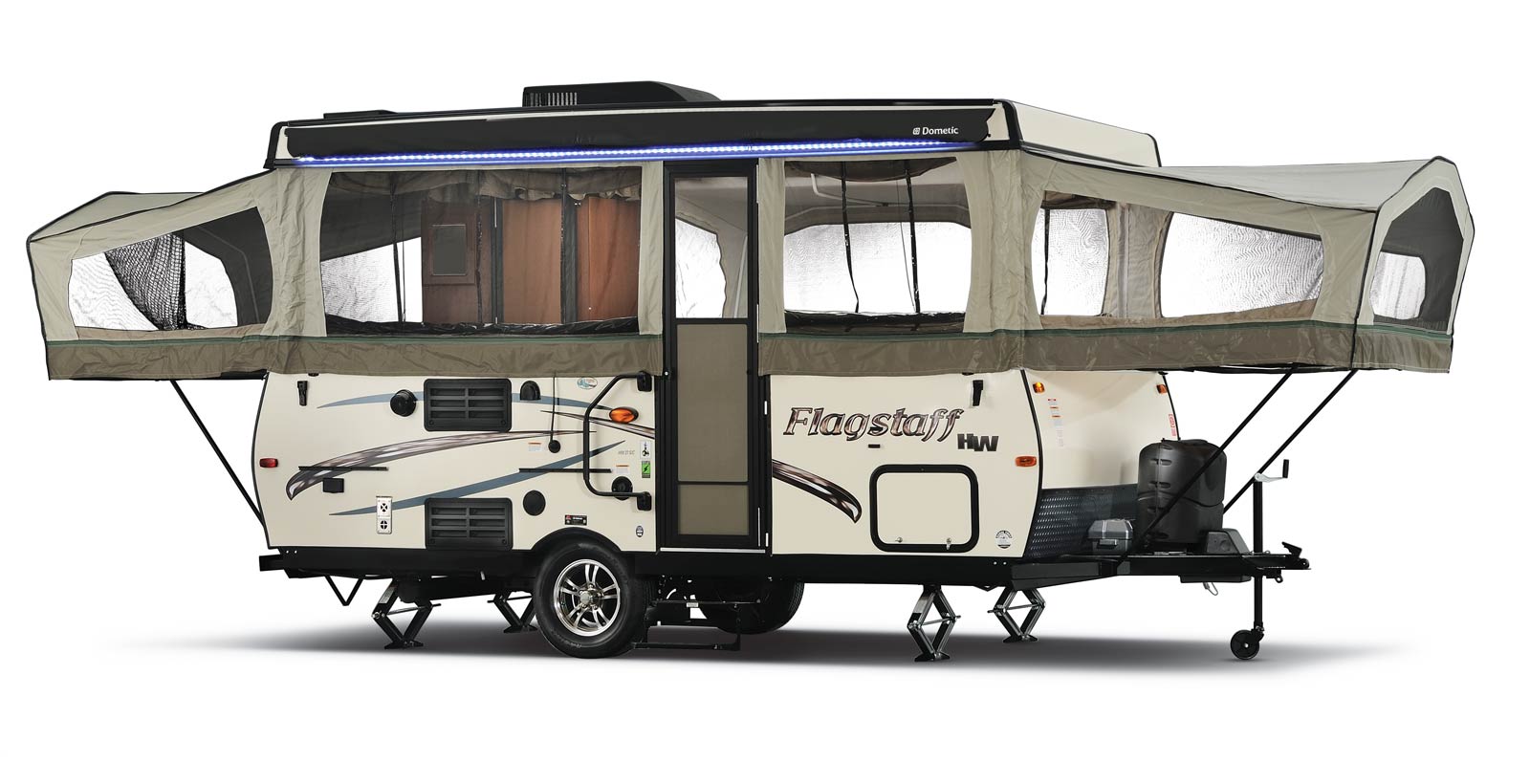

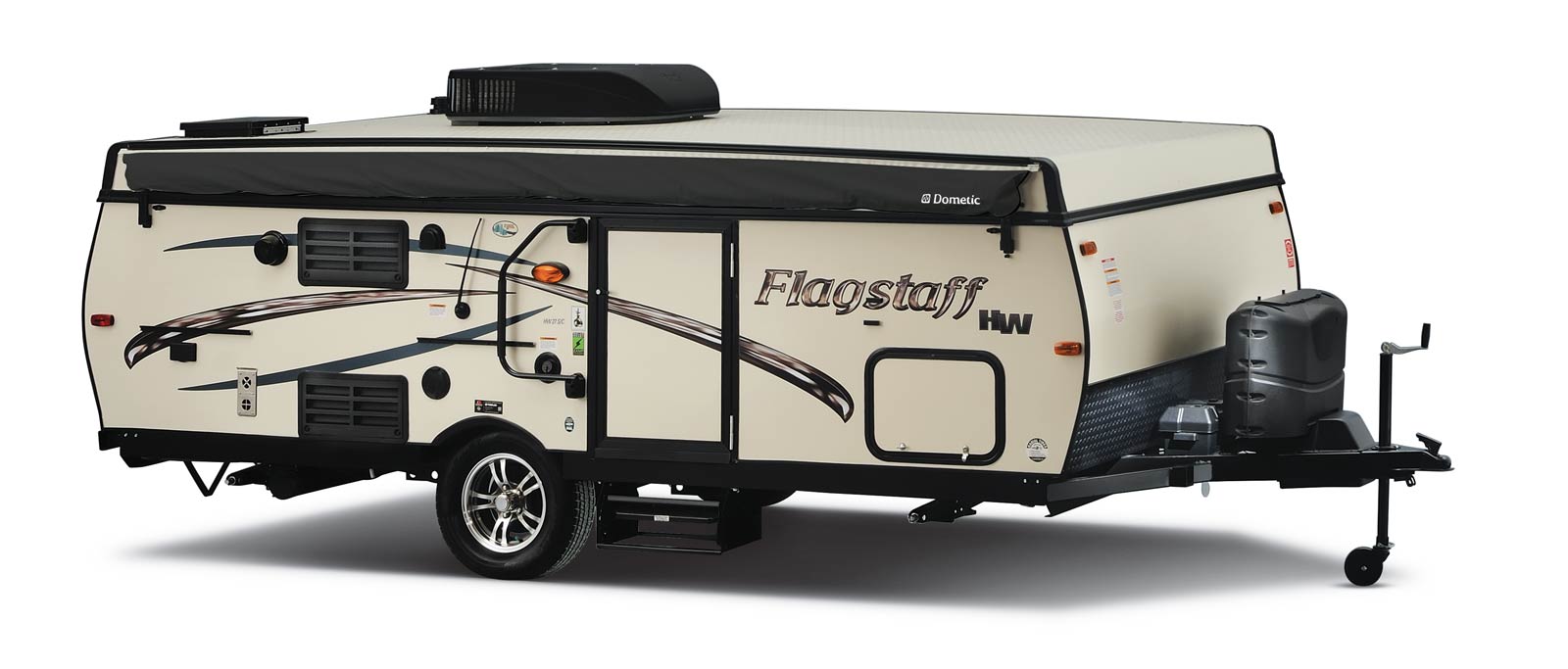

2016 Flagstaff HW27SC exterior open 2016 Flagstaff HW27SC exterior when down

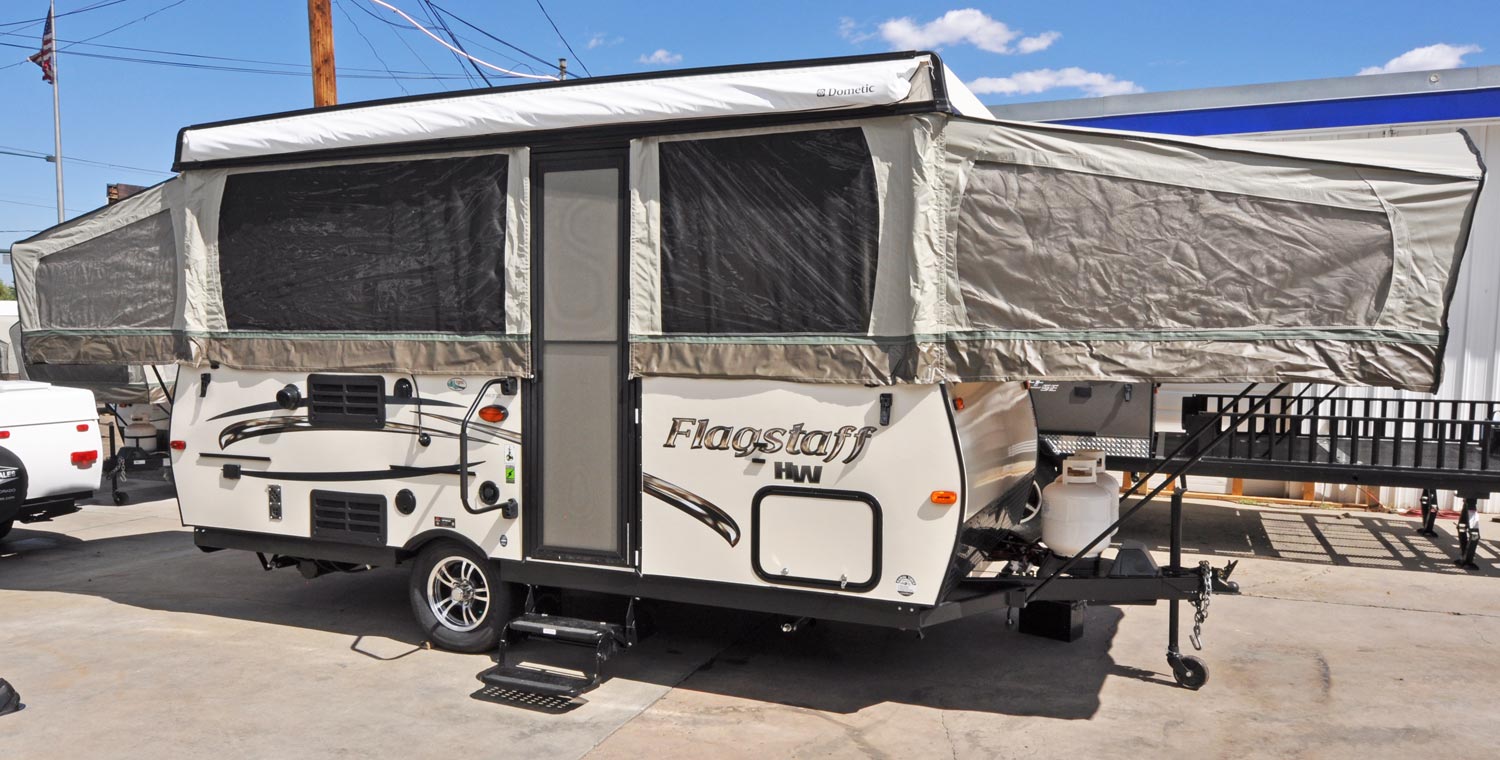

2016 Flagstaff HW27SC exterior

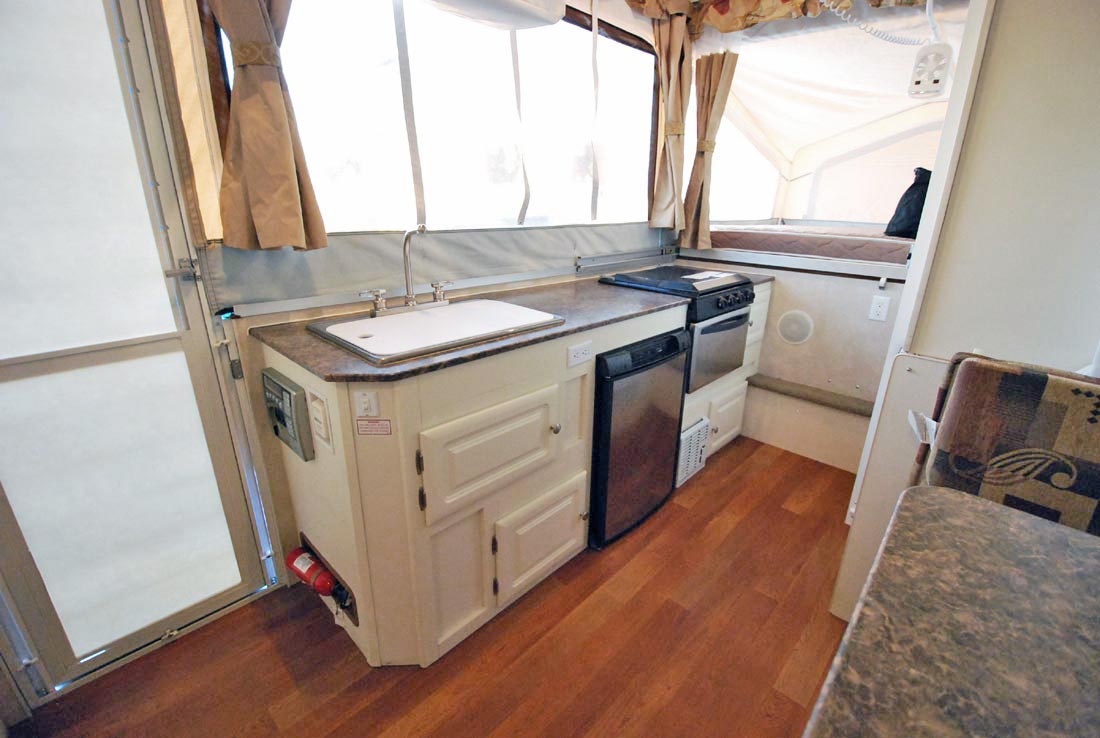

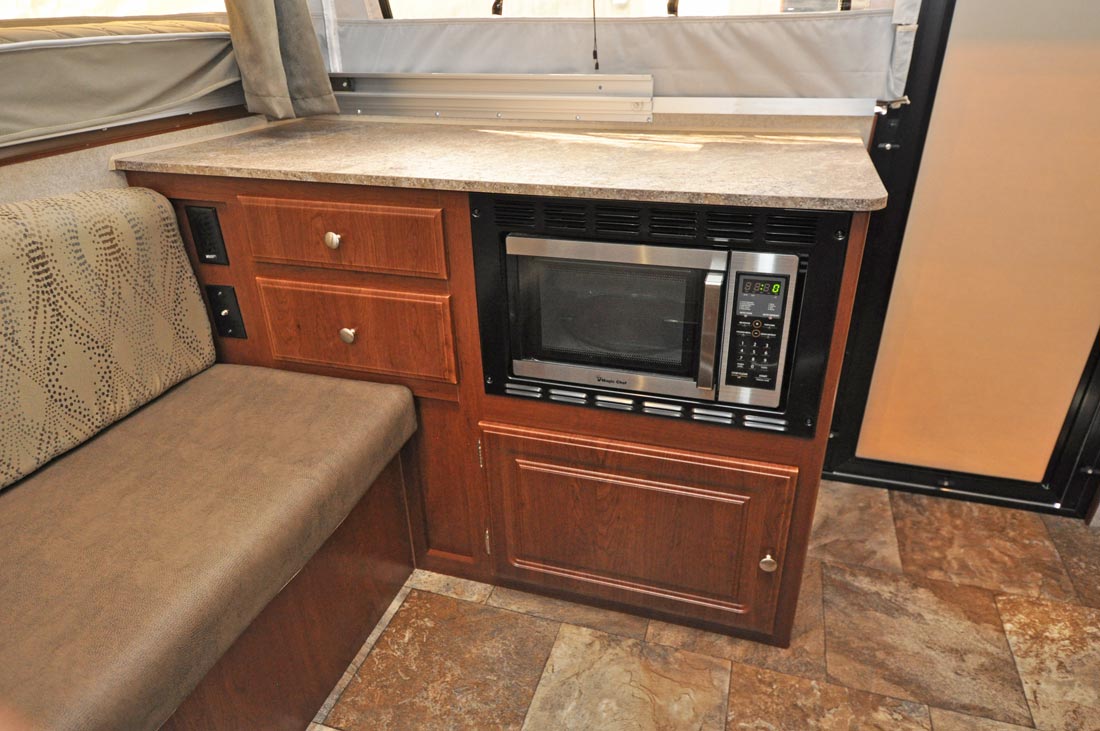

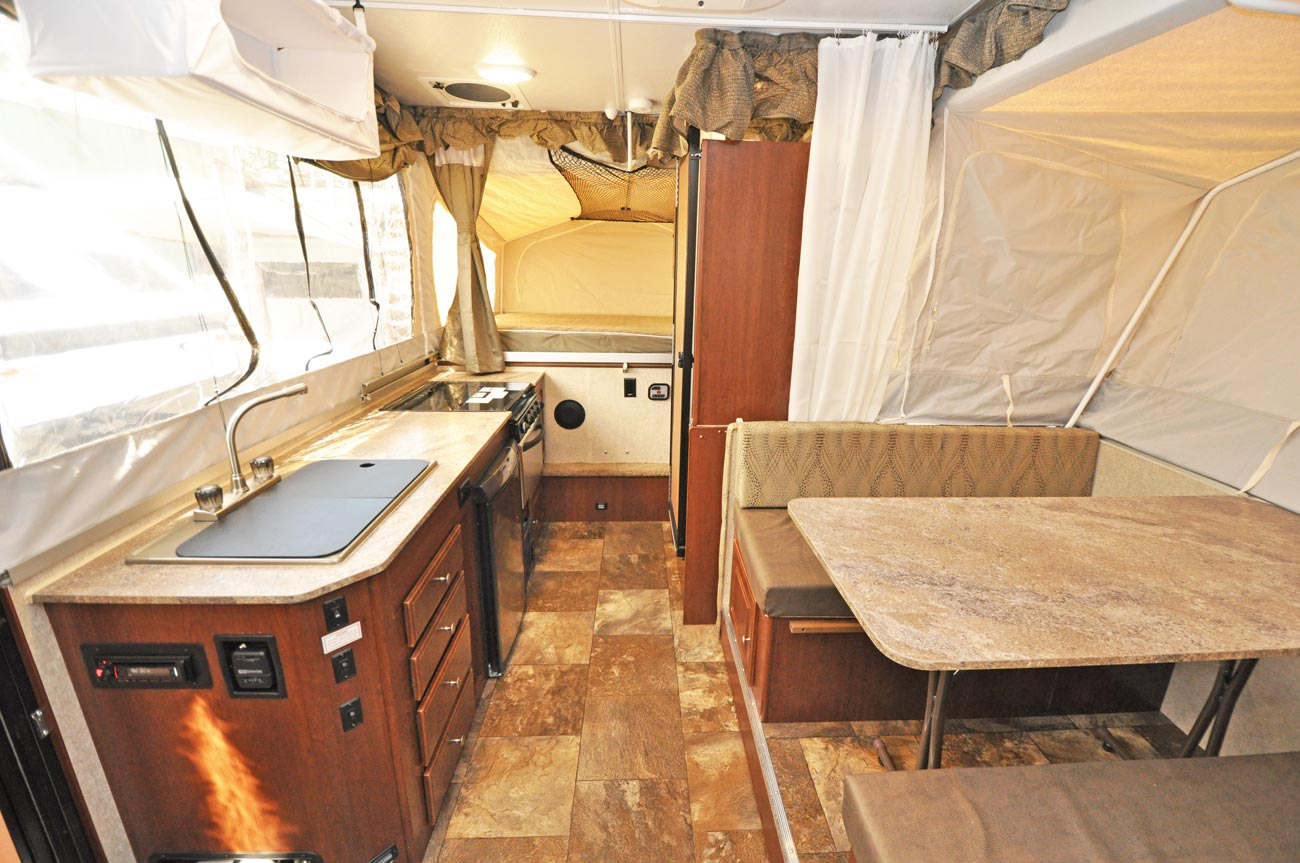

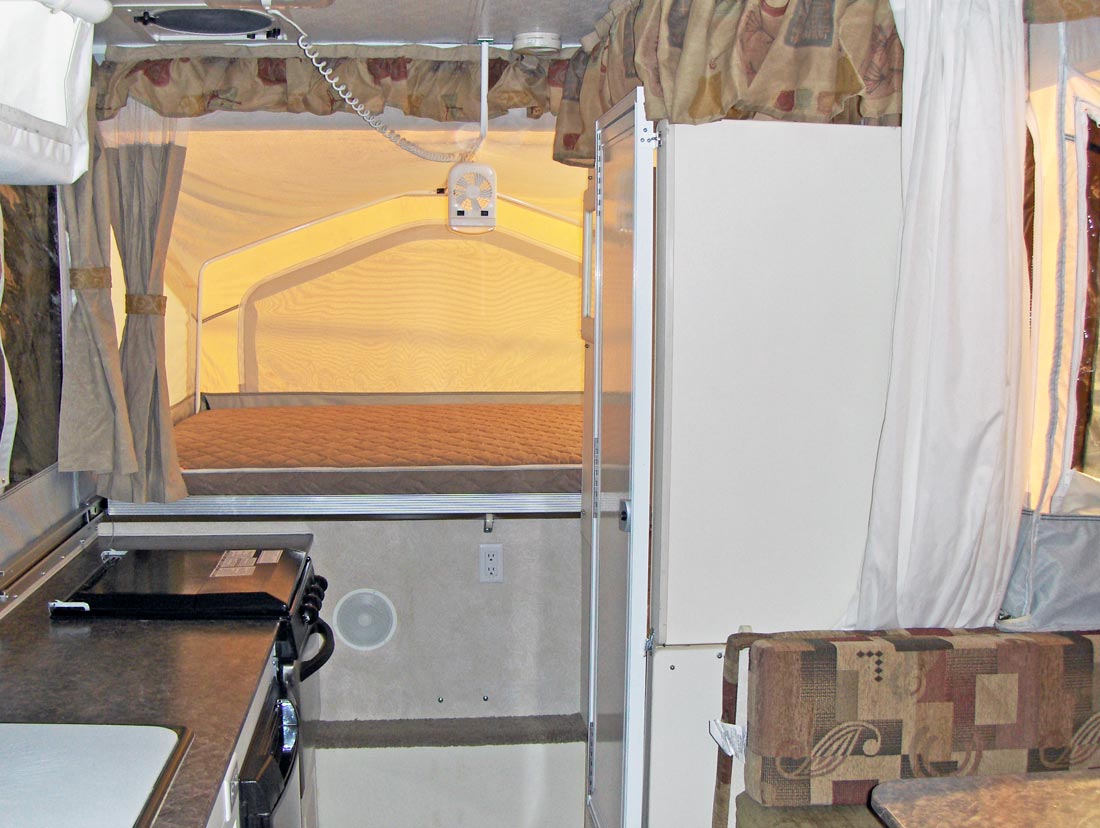

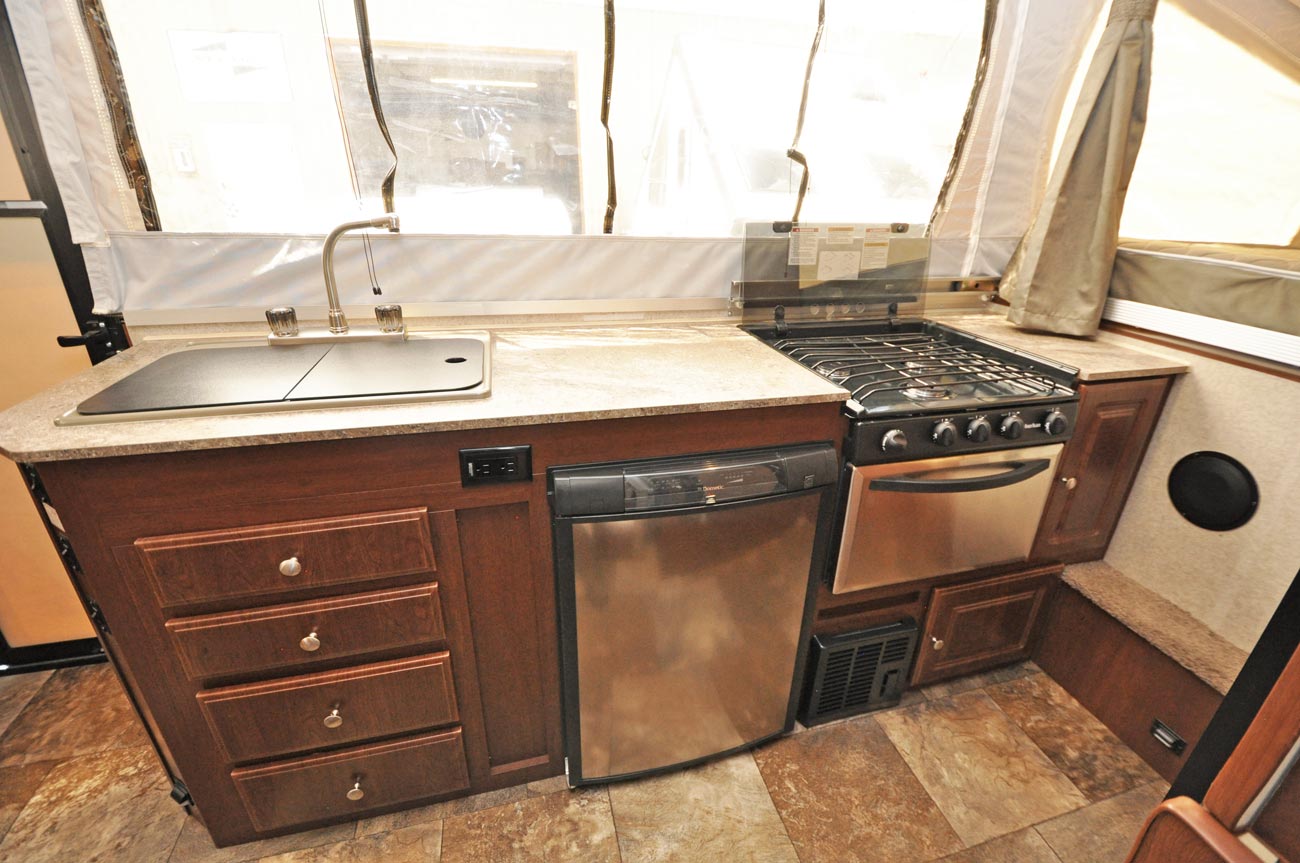

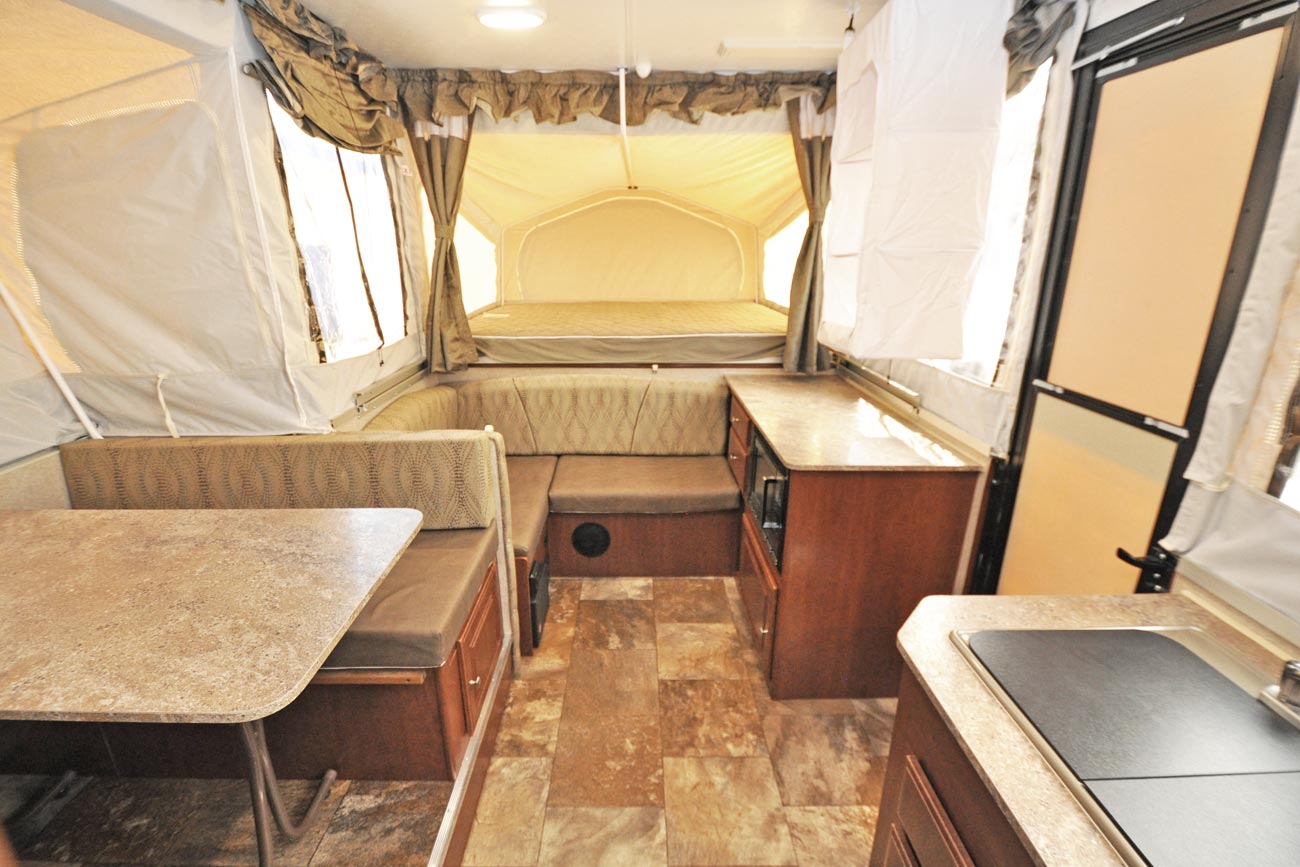

2016 Flagstaff HW27SC front view 2016 Flagstaff HW27SC rear view 2016 Flagstaff HW27SC galley 2016 Flagstaff HW27SC microwave

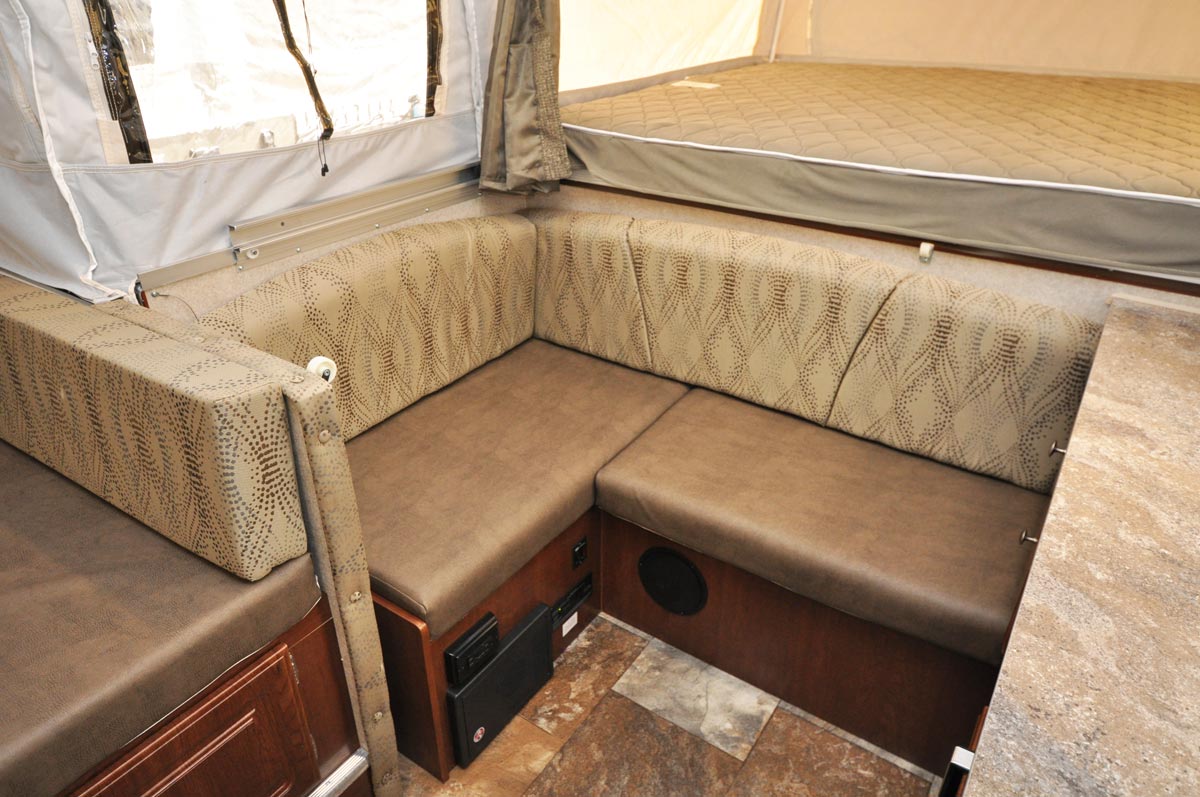

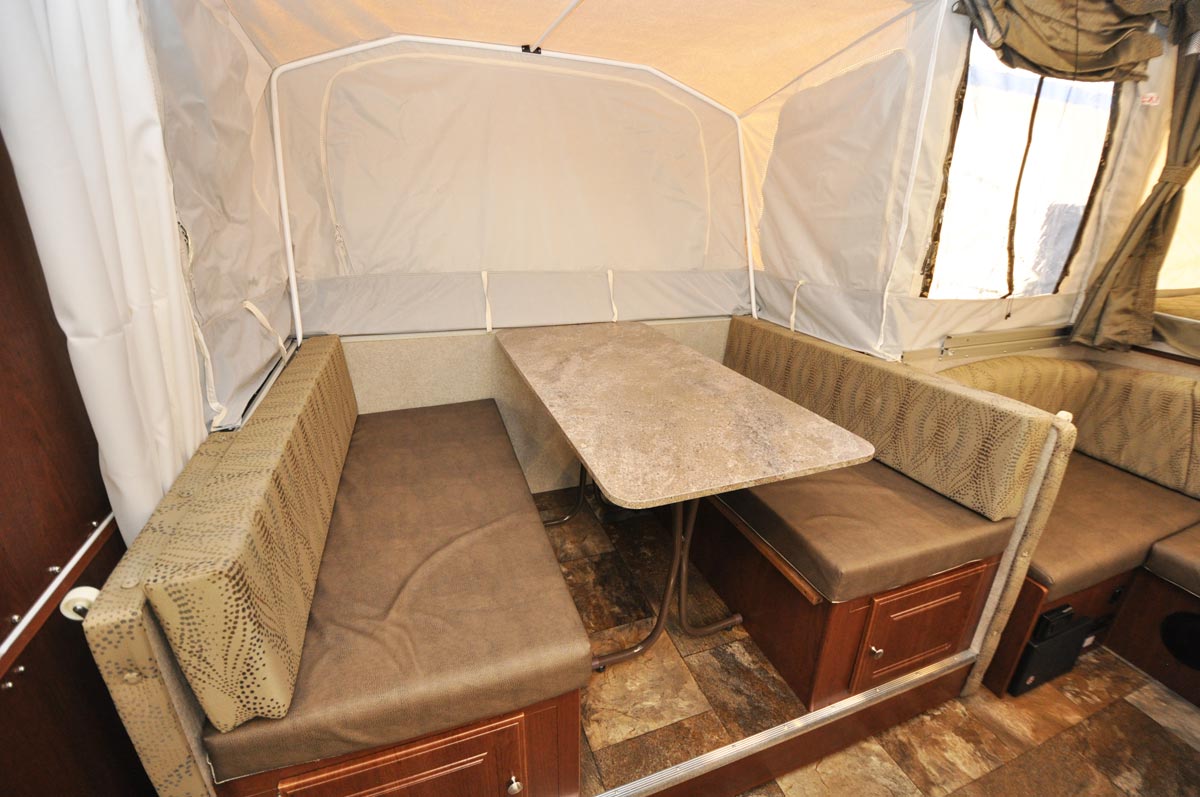

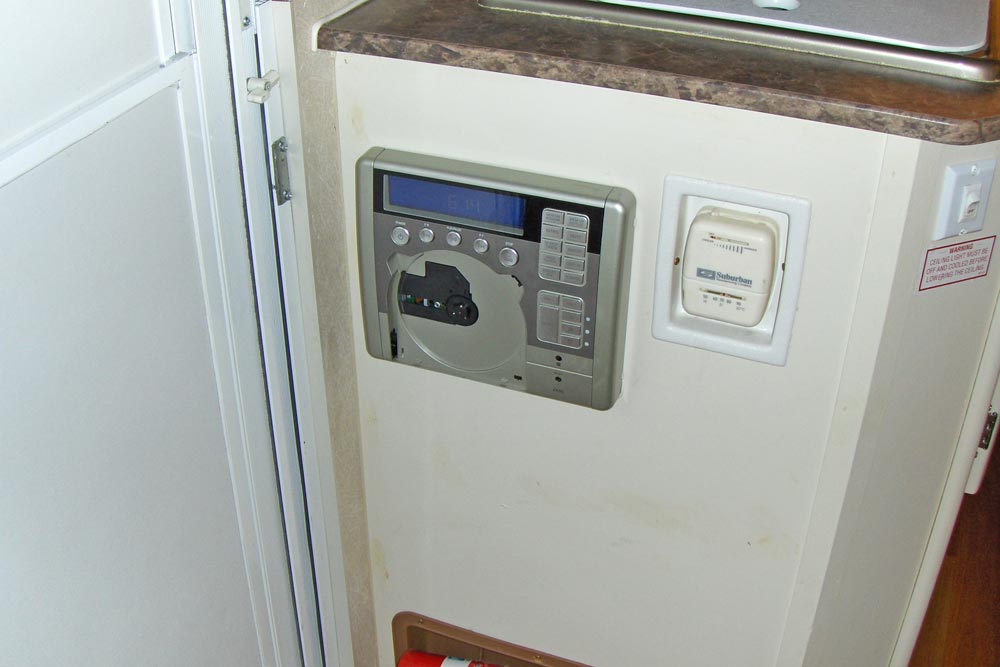

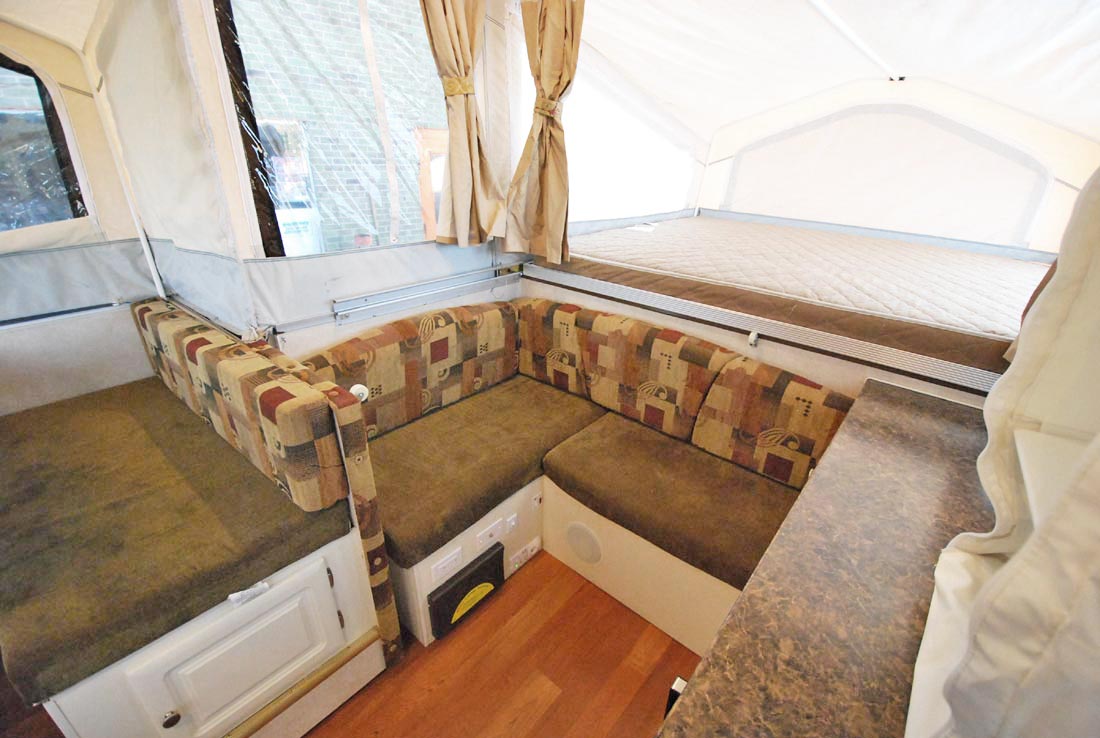

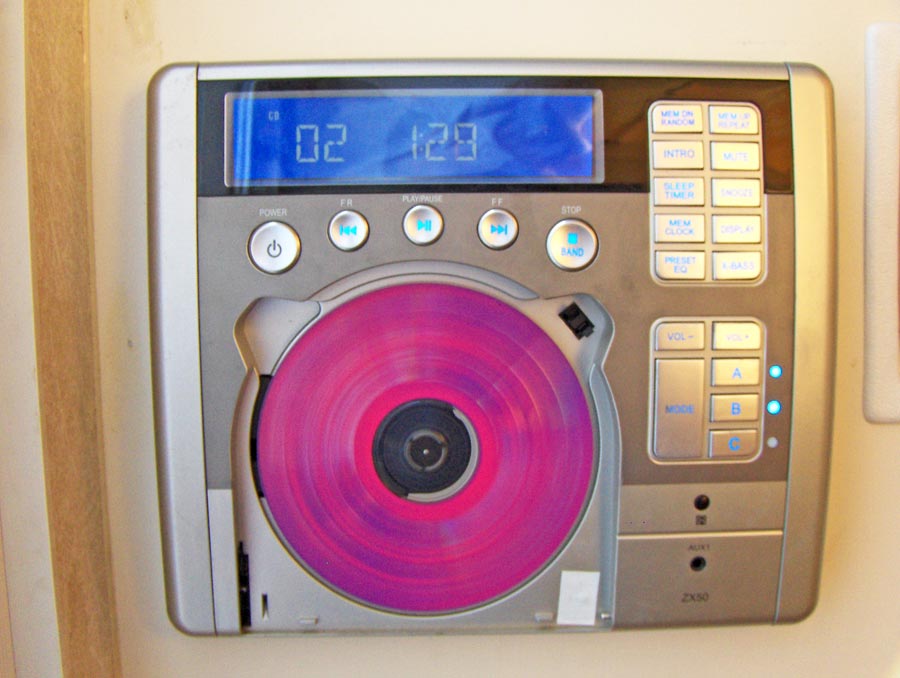

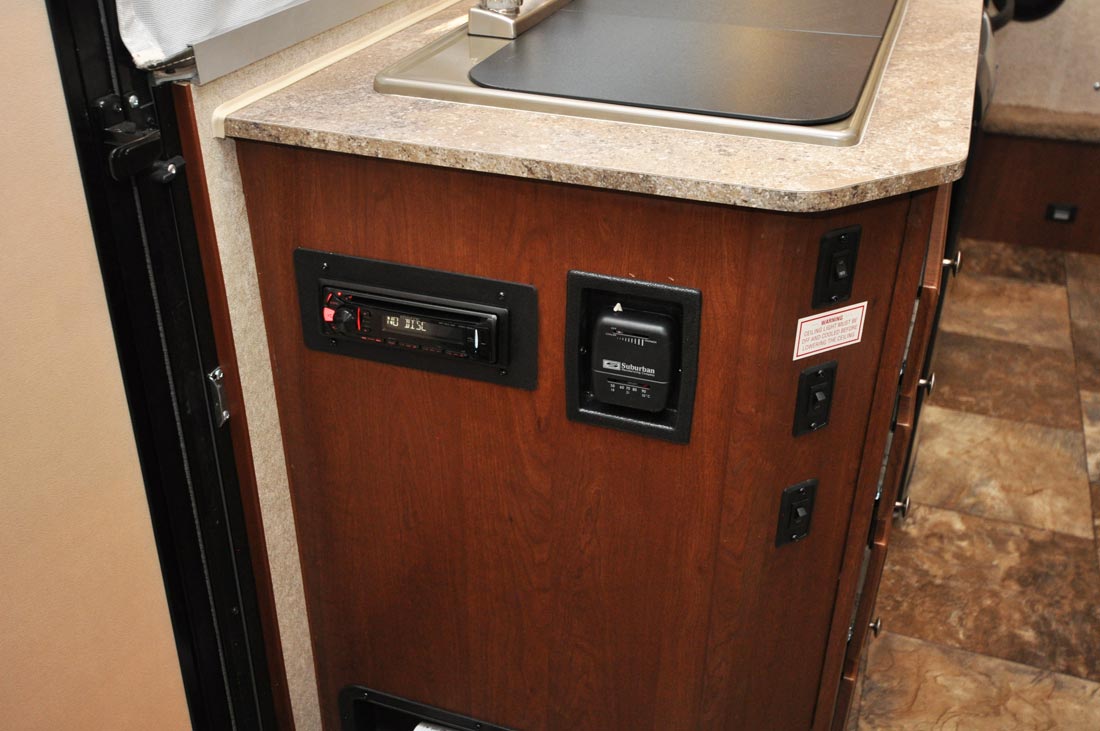

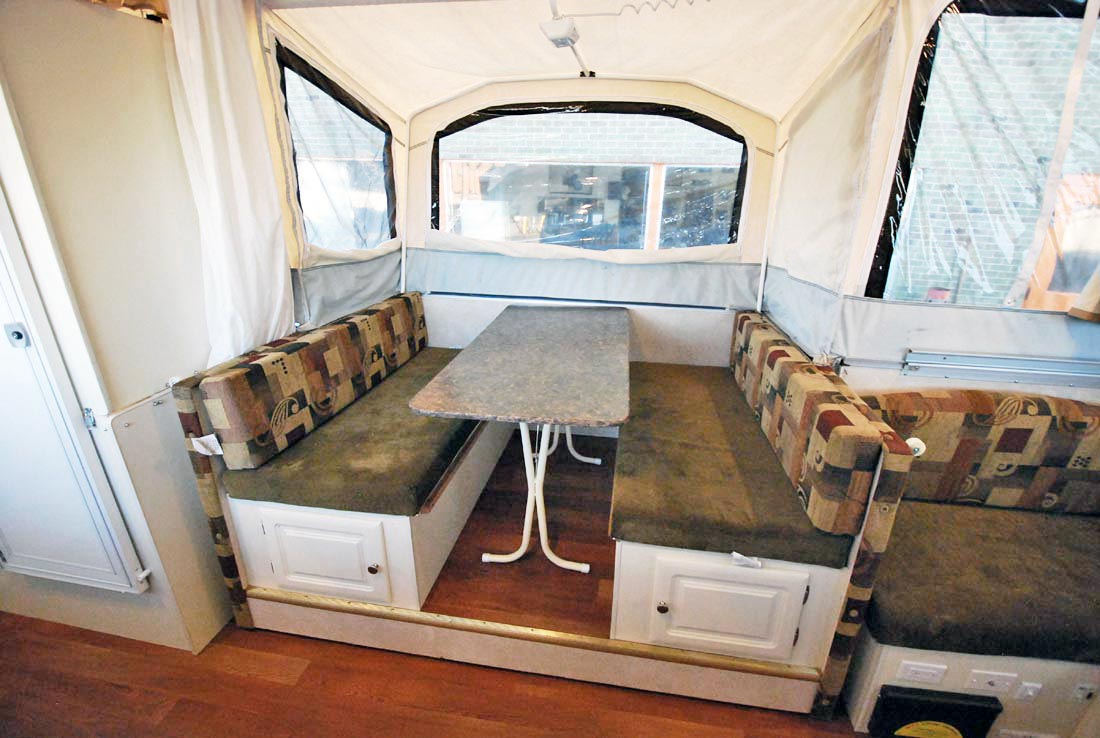

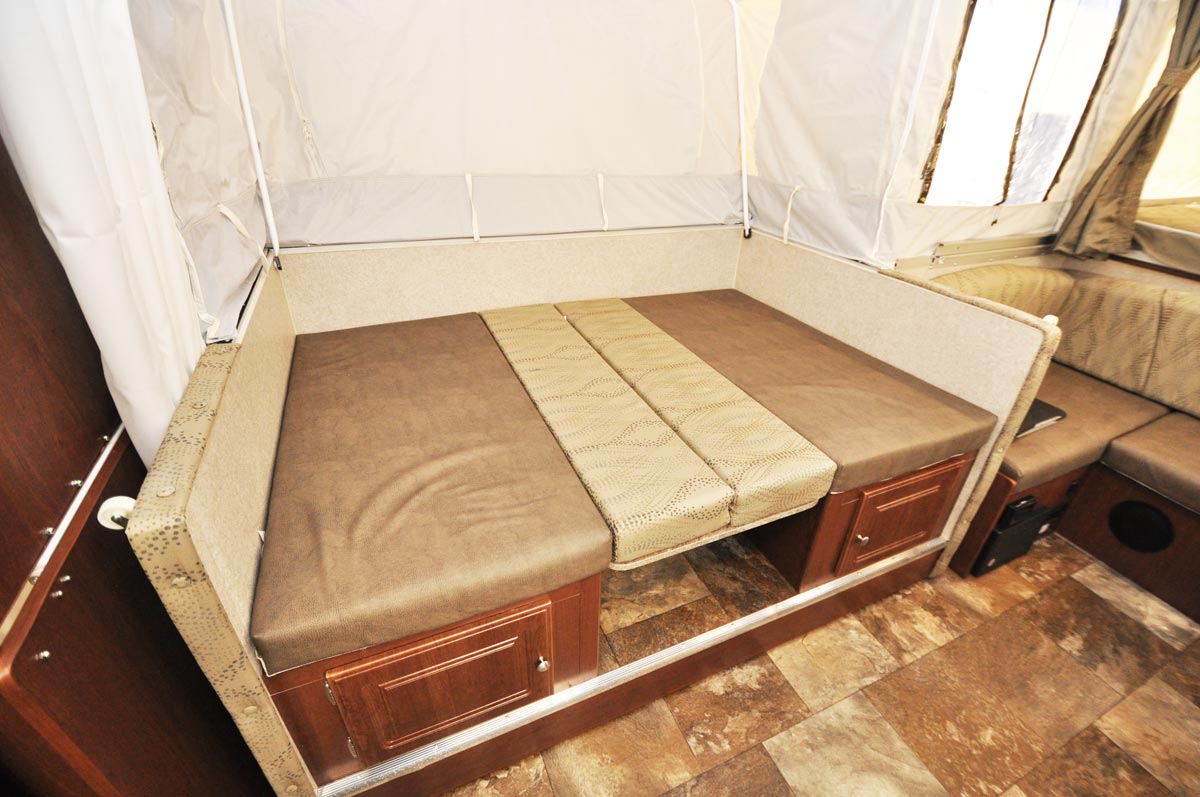

2016 Flagstaff HW27SC dinette 2016 Flagstaff HW27SC dinette as a bed 2016 Flagstaff HW27SC seat 2016 Flagstaff HW27SC radio and thermostat

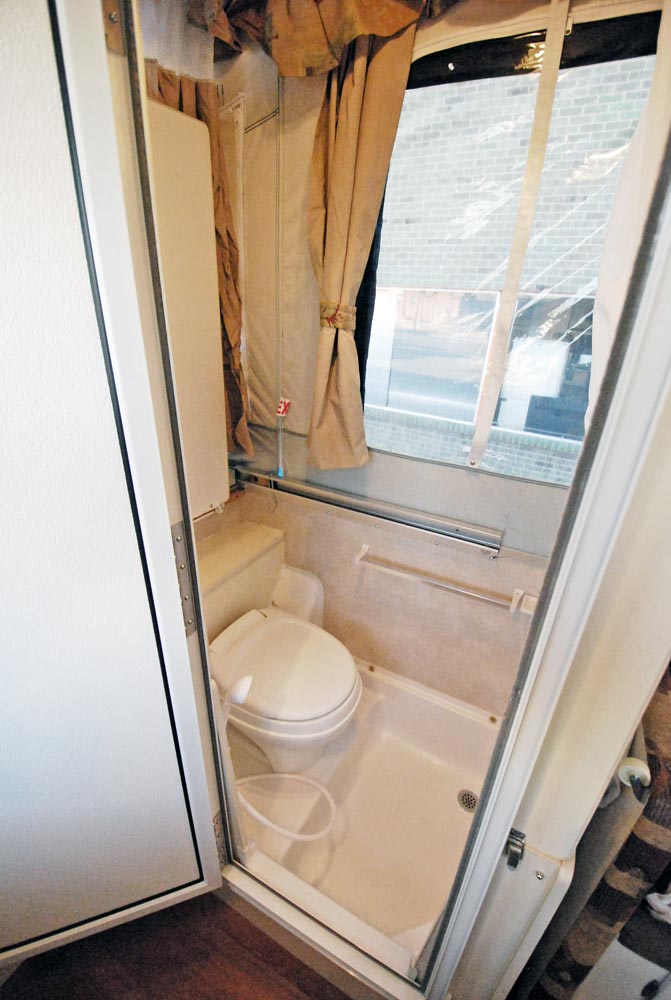

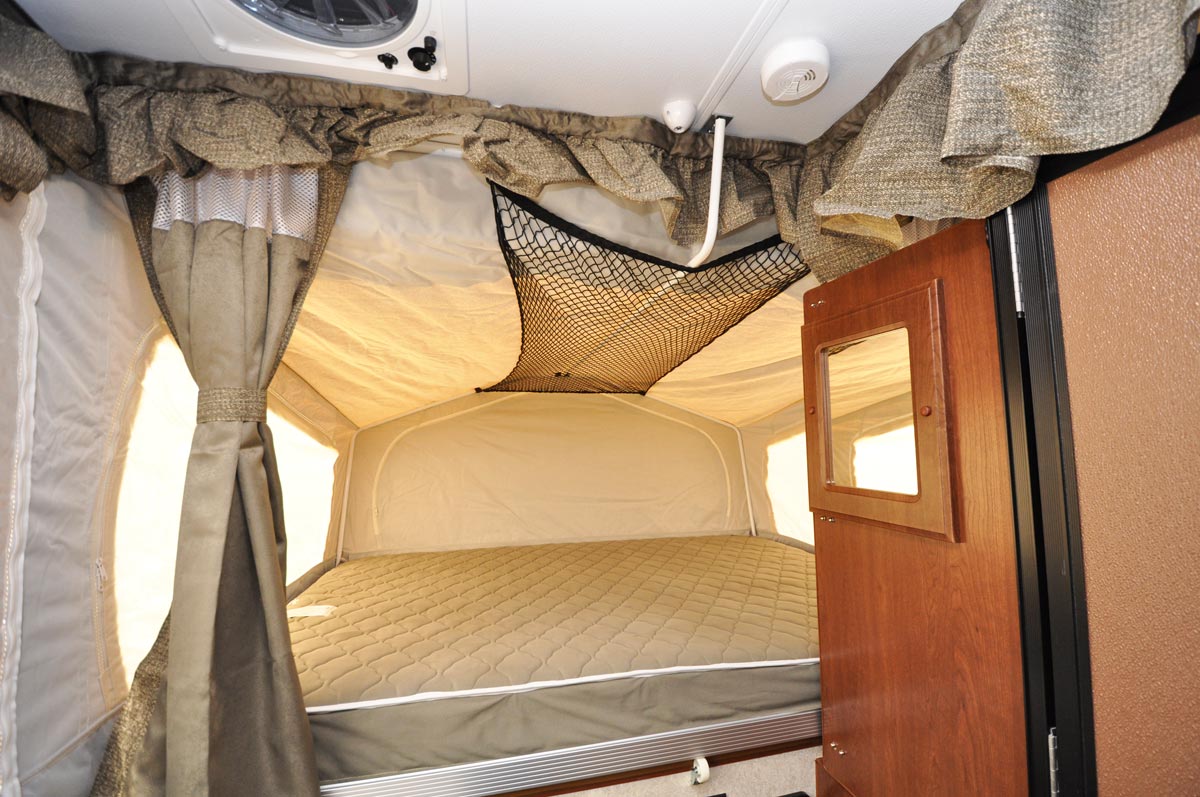

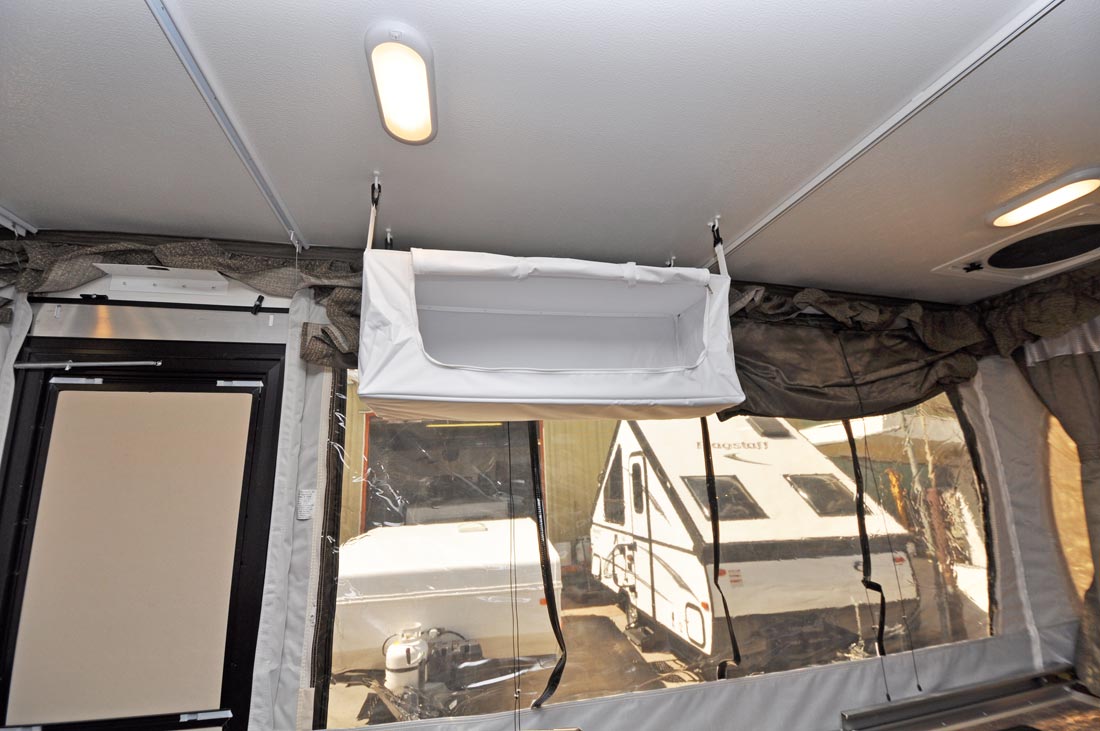

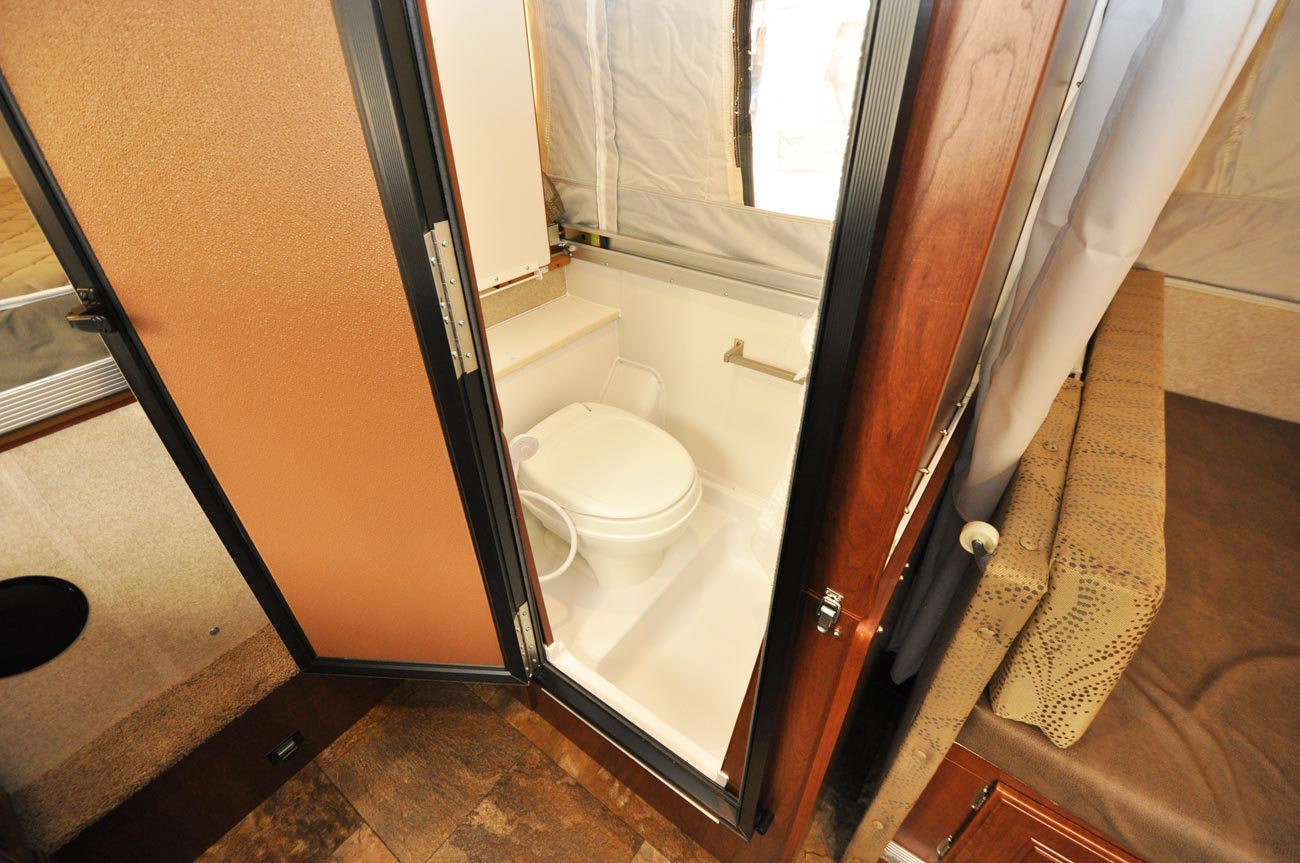

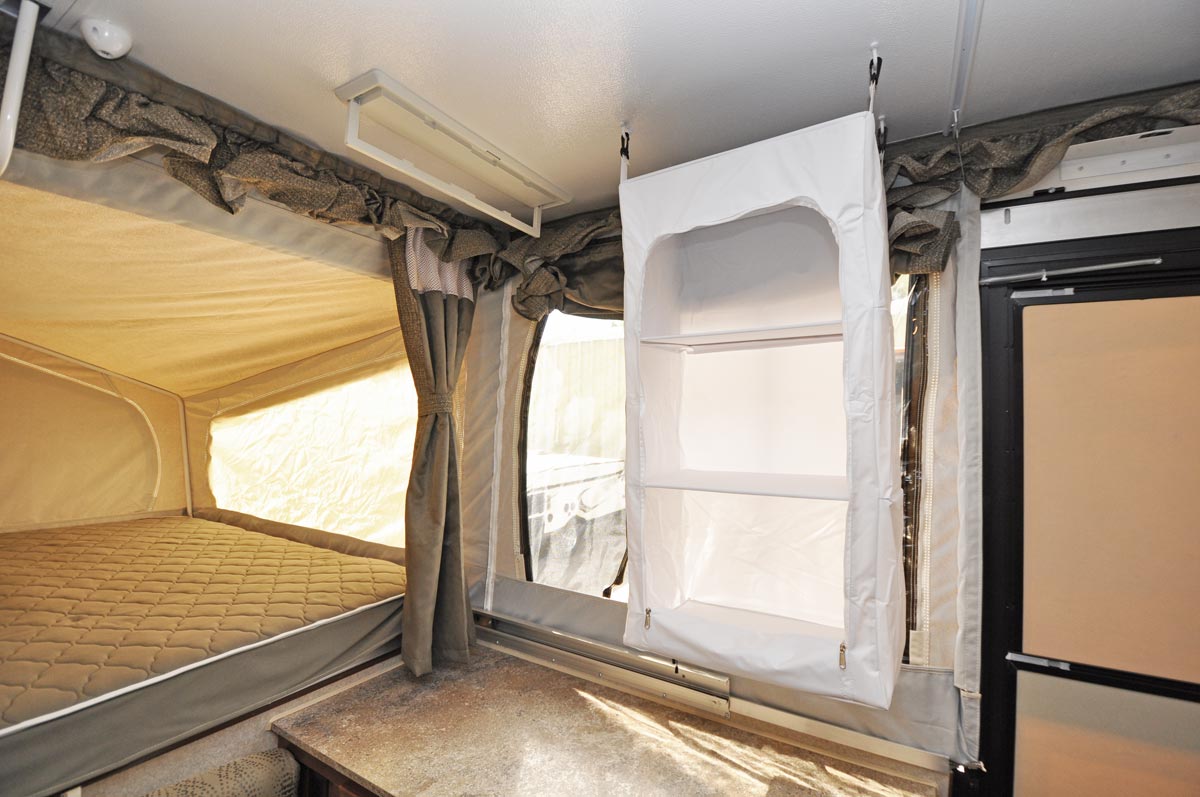

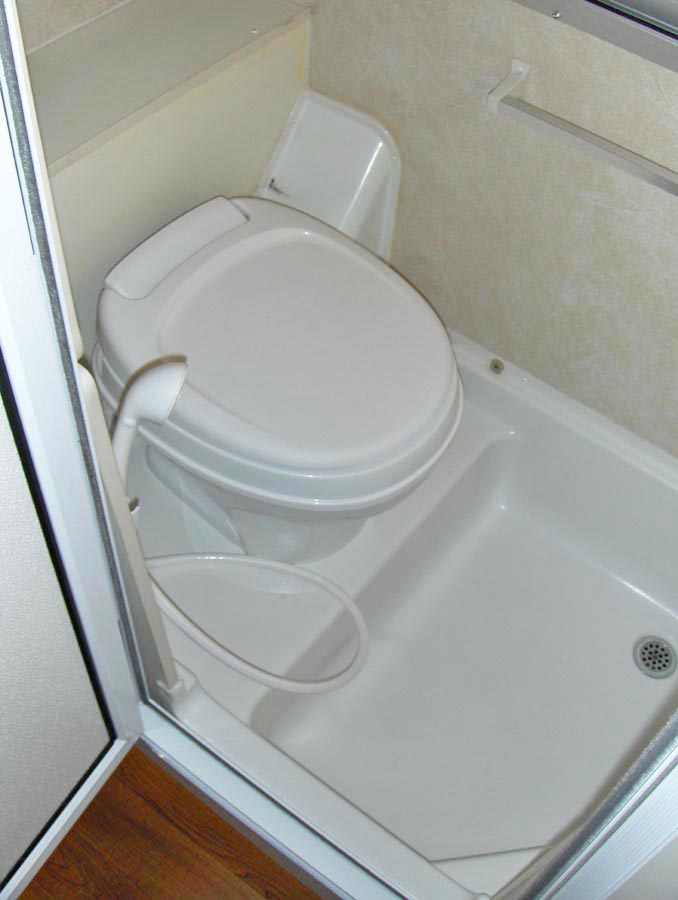

2016 Flagstaff HW27SC overhead cabinet 2016 Flagstaff HW27SC overhead shelf unit and clothes rack 2016 Flagstaff HW27SC toilet and interior shower area 2016 Flagstaff HW27SC storage net and outer shower wall

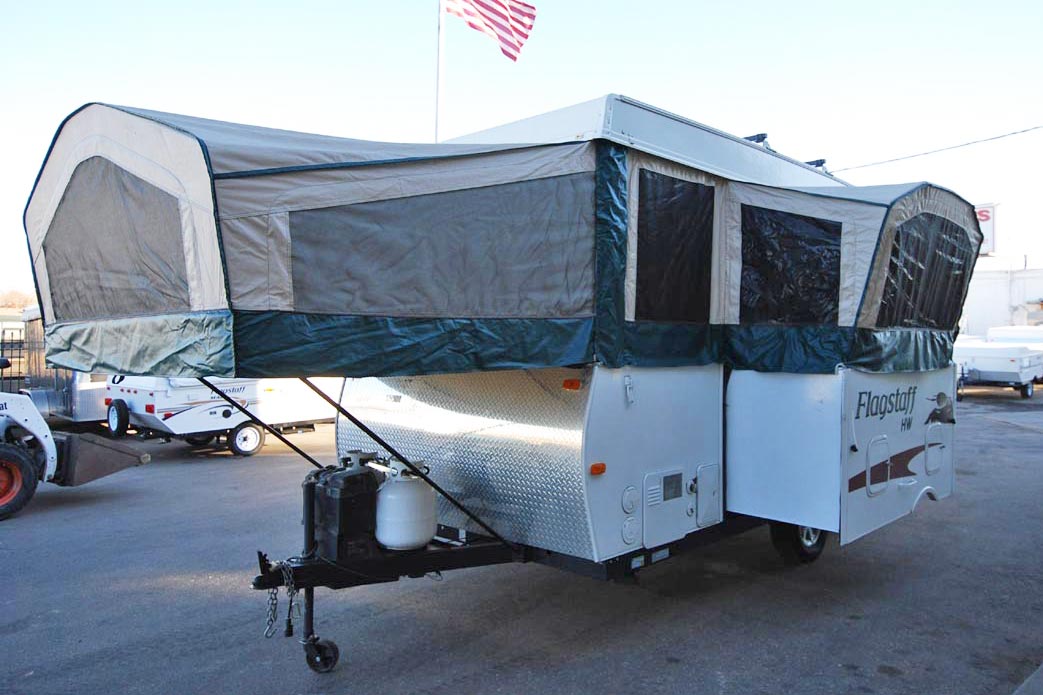

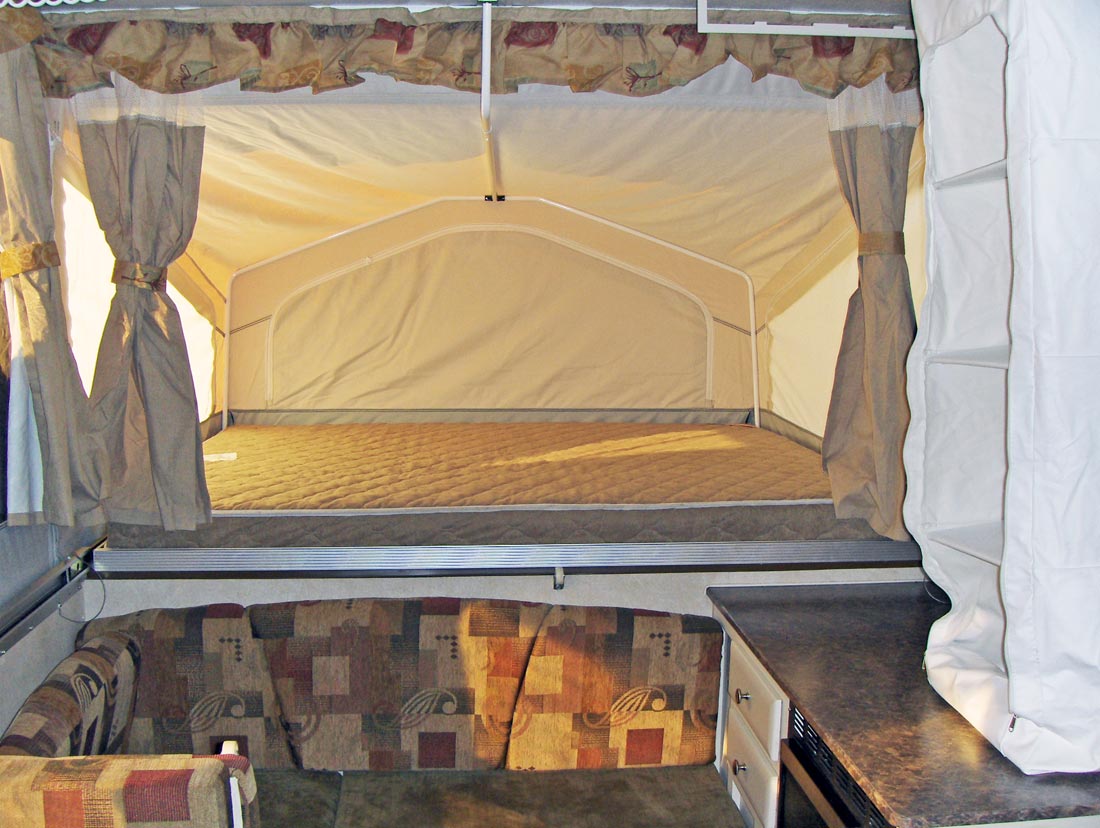

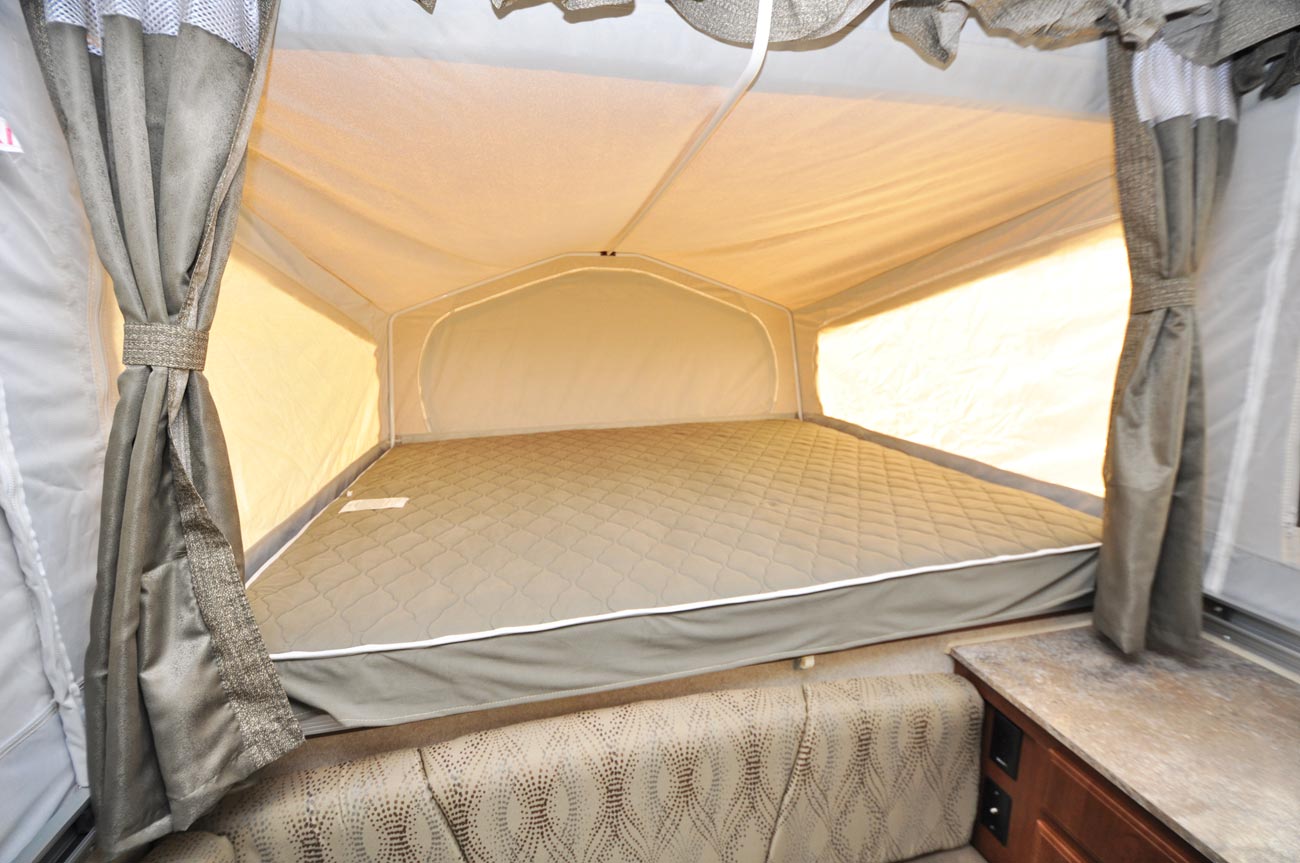

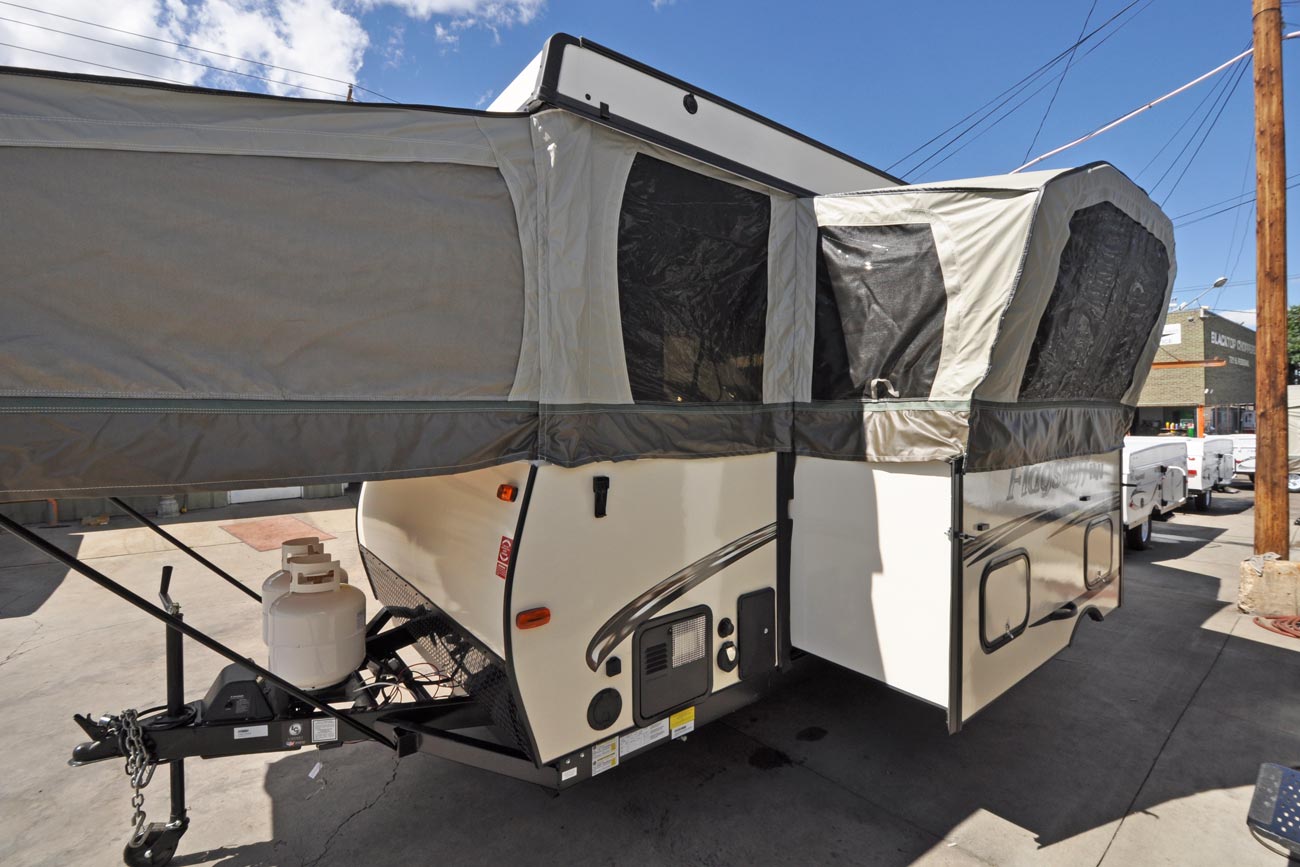

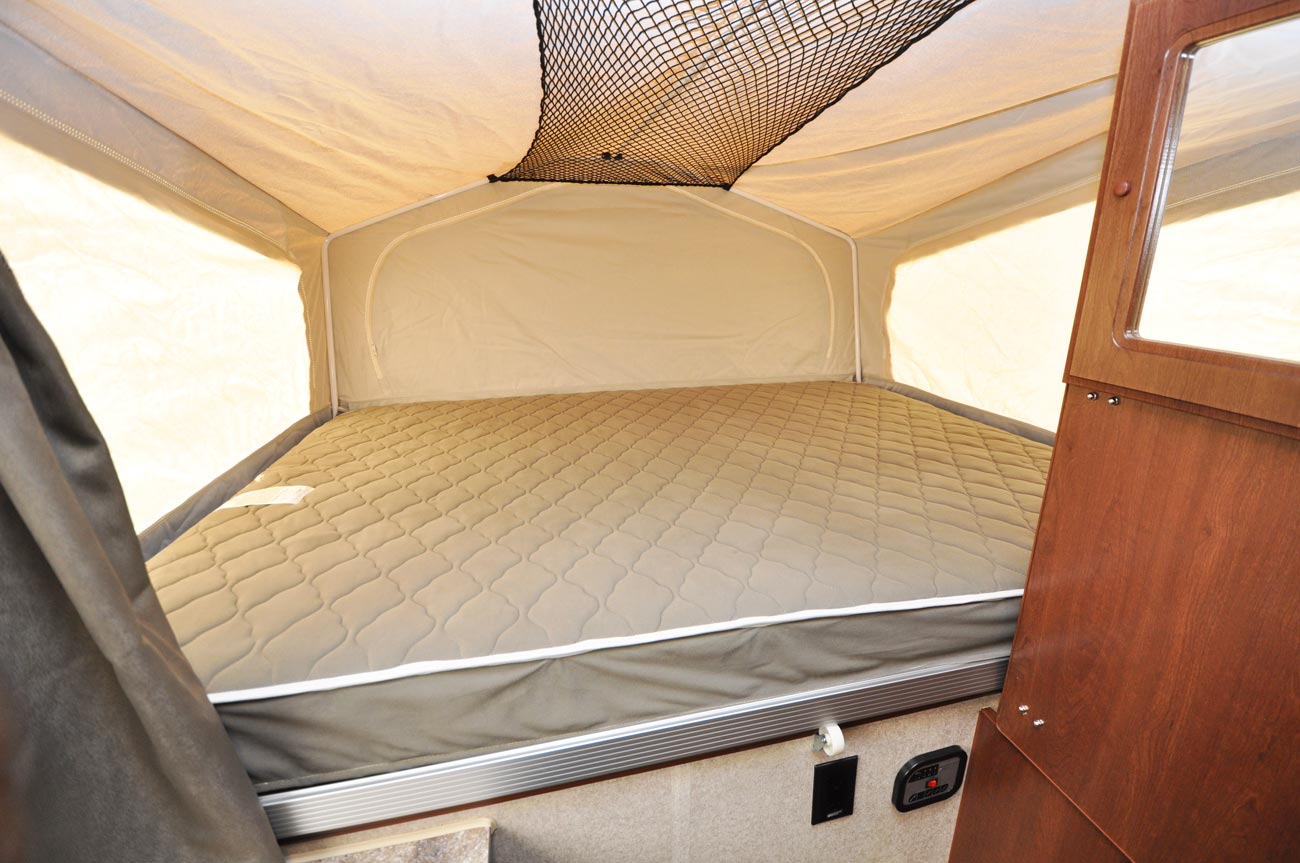

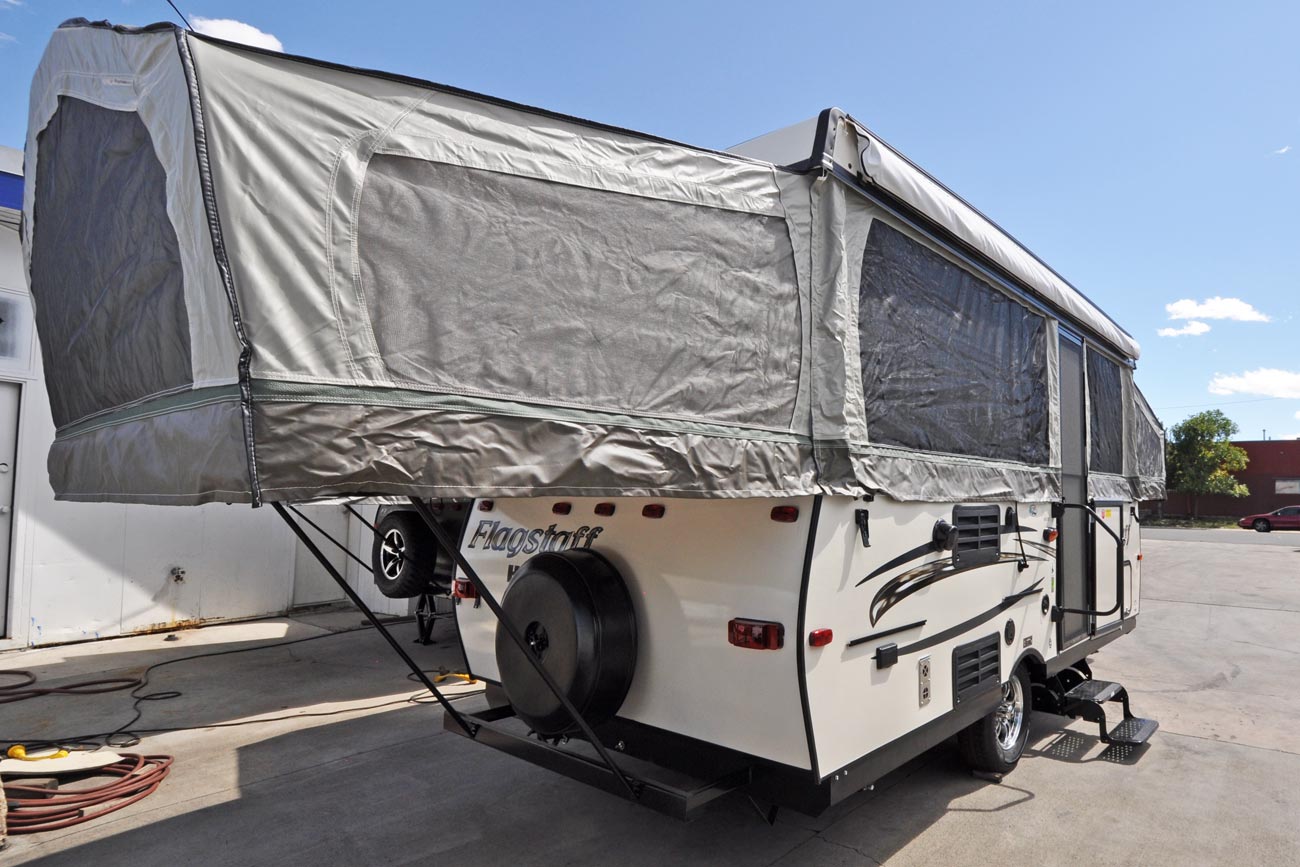

2016 Flagstaff HW27SC rear bed 2016 Flagstaff HW27SC front "Camper King" bed 2016 Flagstaff HW27SC exterior back end 2016 Flagstaff HW27SC exterior shower

(2016 model year shown --[why an older model?])

Highlights

  • A 14' High Wall interior with lots of space. Our most popular High Wall tent camper.
  • An excellent single-axle alternative to the double-axle HW29SC

Specifications

  • Box Size: 14'
  • Open Length: 25' 9"
  • Travel Length: 19' 3 "
  • Travel Width: 7' 6"
  • Dry Weight: 3249 lbs (brief weight explanation)
  • Hitch Weight: 296 lbs
  • GVWR: 3796 lbs
  • Coupler size: 2"
  • Sleeps: 6
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"

Features

  • Interior shower with residential-style toilet (High Wall tent campers have hard sides on the shower area but a shower curtain is still required to control water)

...as well as these features standard with the High Wall series:

  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Double-pan sink
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Residential-style toilet
  • 12-gallon gray water storage tank
  • 12-gallon black water storage tank
  • Overhead cabinet
  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • Two 20# propane tanks with automatic regulator
  • 14" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • HW27KS - The only other 14' High Wall (without an 8 1/2' deck that is), the KS has a "kitchen slide" but no extra seat.
  • HW29SC - Similar layout but with 2' extra space inside; instead of a seat the HW29SC has a small couch that makes a fourth bed.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
