Flagstaff BR28TSC (with extra seat)

(2012-2015; preceded by the BR28TSC (without seat), succeeded by the 28TSCSE)

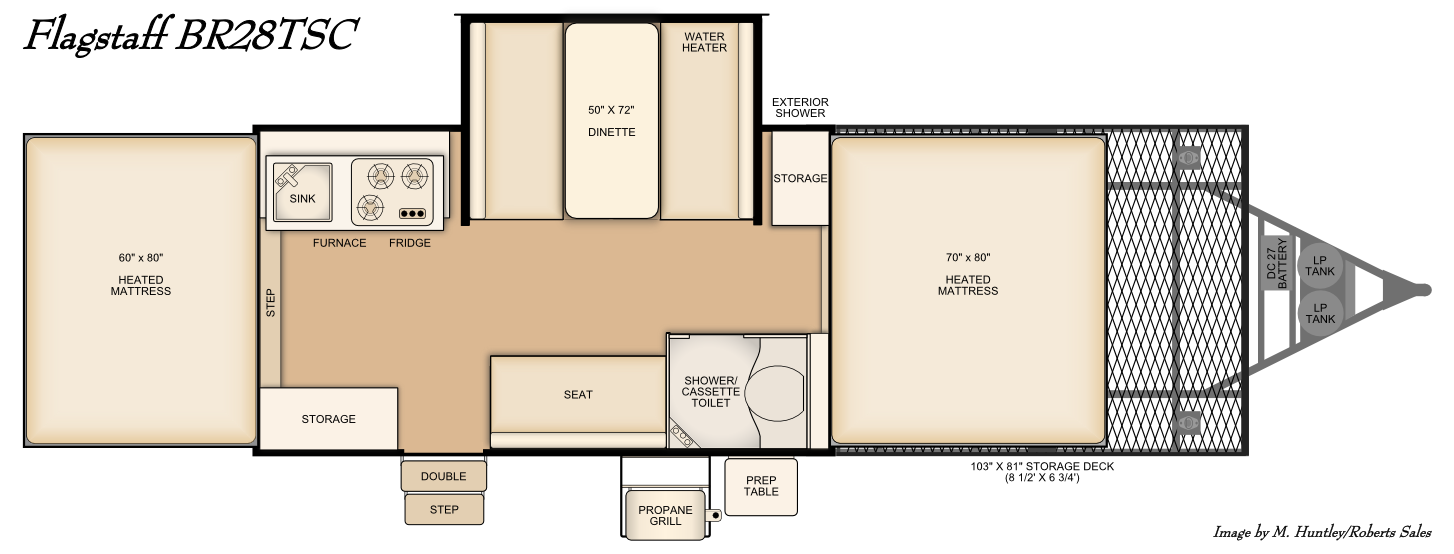

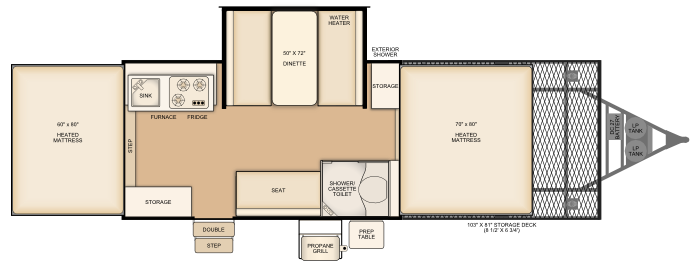

BR28TSC floorplan

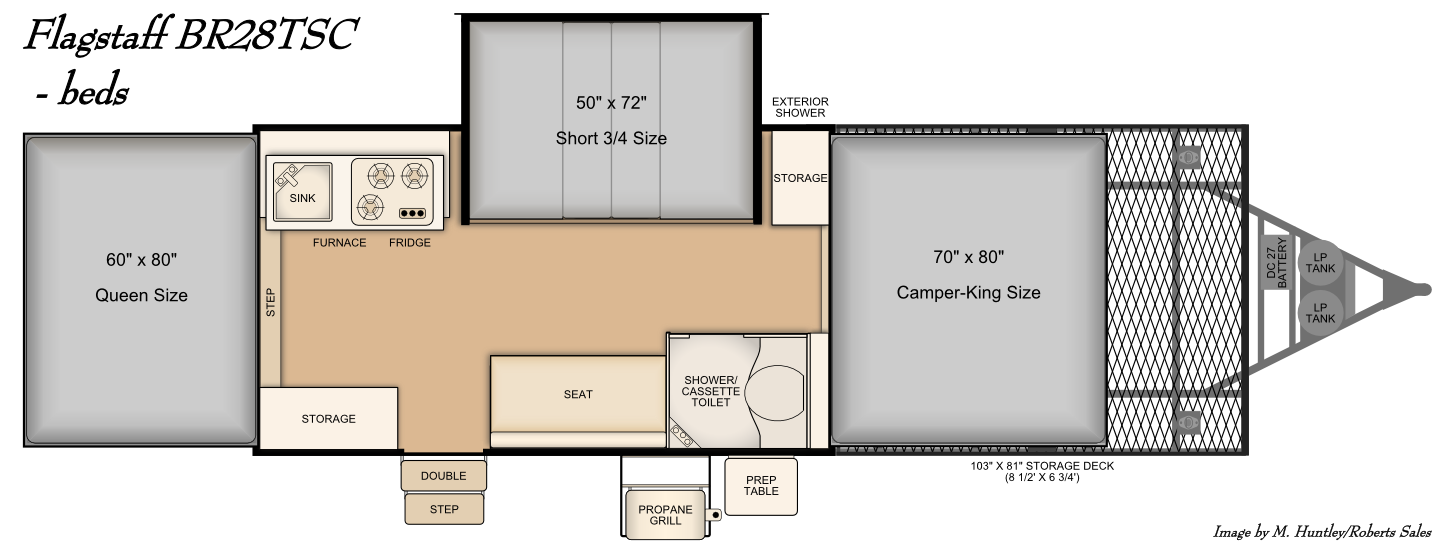

Bed Layout for this model


  • The only Flagstaff MAC pop-up with an 8 1/2' toy hauler storage deck
  • Double-axle for increased stability and cargo capacity


  • Box Size: 12'
  • Open Length: 30' 8"
  • Travel Length: 26'
  • Trailer Width: 85" (7' 1")
  • Dry Weight: 2975 lbs
  • Hitch Weight: 219 lbs
  • GVWR: 5292
  • Coupler size: 2 5/16"
  • Sleeps: 6
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"


  • 8 1/2' metal deck on the front for hauling ATVs, dirt bikes, tools, firewood, generator, etc.
  • Tandem axles

...as well as these features standard with the Back Road series:

  • Dometic 1.9 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Overhead cabinet
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • Heated mattresses
  • Privacy curtains
  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • Two 20# propane tanks with automatic regulator
  • 15" aluminum wheels
  • Spare tire
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Model

  • BR23SC - Almost all of the same amenities (no seat, but otherwise the same) but with a 4 1/2' Toy Hauler deck instead of the 8 1/2' deck here. Also, the dinette is 8" shorter.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted.
