Flagstaff HW25FS

(2012-2013)

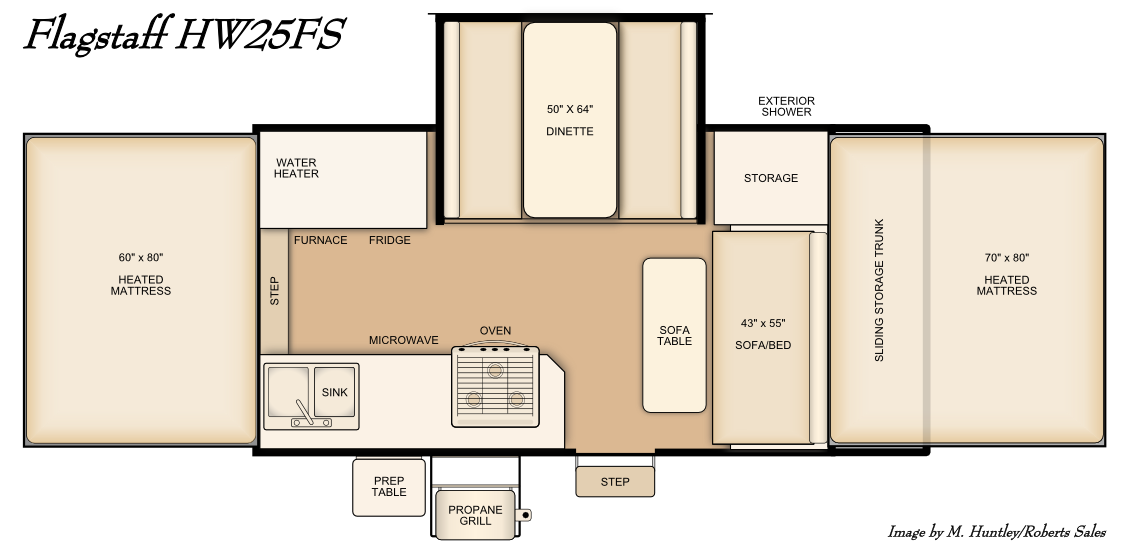

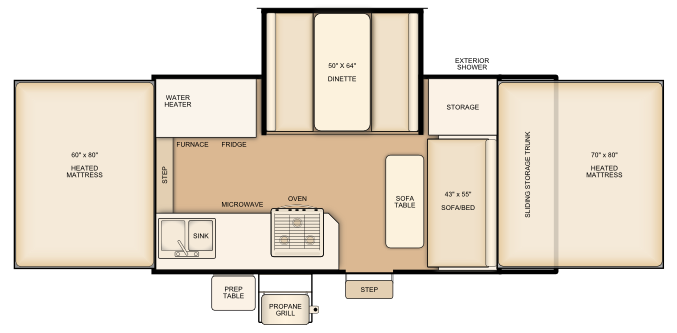

HW25FS floorplan

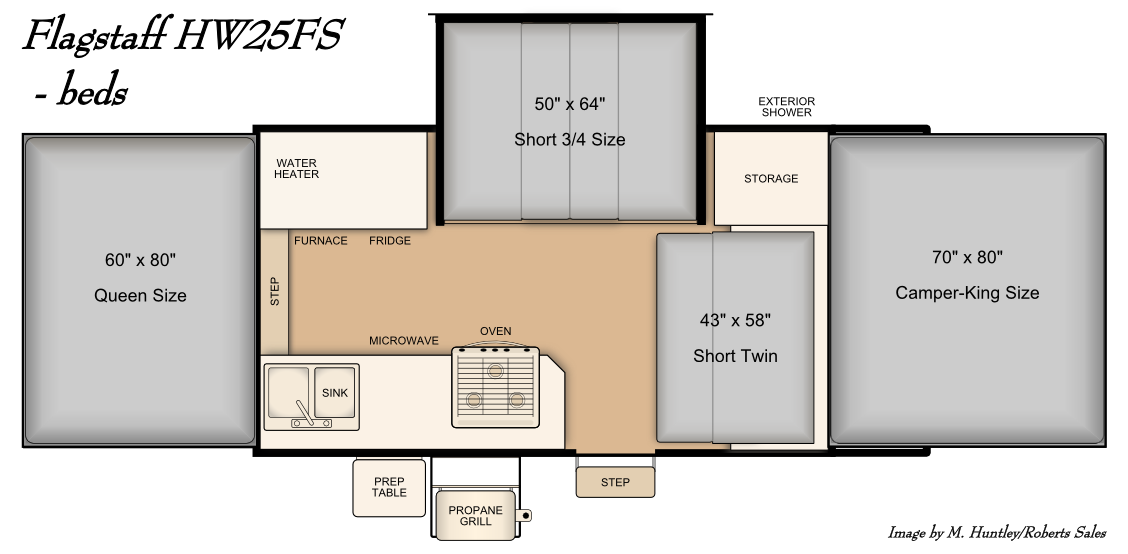

Bed Layout for this model

Highlights

  • The only 12' High Wall--only 2800 lbs!
  • The only High Wall unit with a storage trunk
  • Four beds (technically--the sofa/bed is only 4 1/2' long...)

Specifications

  • Box Size: 12'
  • Open Length: 23' 9"
  • Travel Length: 19' 1"
  • Trailer Width: 85" (7' 1")
  • Dry Weight: 2773 lbs
  • Hitch Weight: 315 lbs
  • GVWR: 3815 lbs
  • Sleeps: 8 (sort of--more at Not All Dinettes Are Created Equal)
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 64" x 50"
    4. 43" x 58"

Comparable Models

  • HW27SC and HW27KS - The HW27SC and HW27KS have 14' interiors but without a storage trunk, so the frames are essentially the same.
  • HW29SC - The HW29SC has a 16' box, so 4 extra feet of interior space, but it shares the HW25FS's front sofa; they are the only 4-bed High Wall units.

Weights and capacities are estimates and may vary based on how individual campers are outfitted.
