Flagstaff T12SDTH

(2012, 2013)

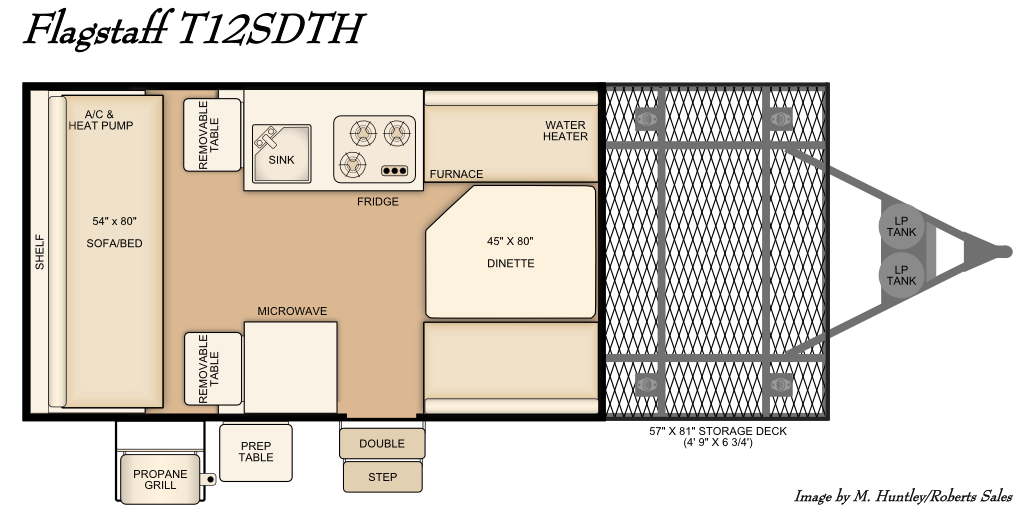

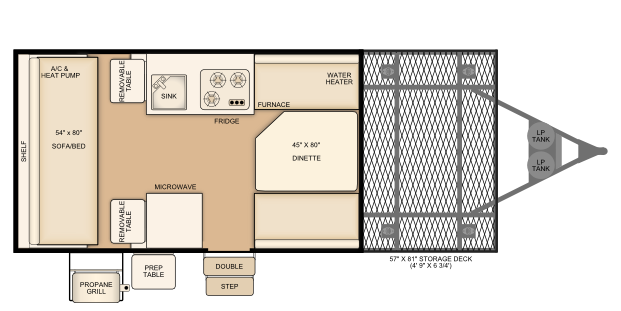

T12SDTH floorplan

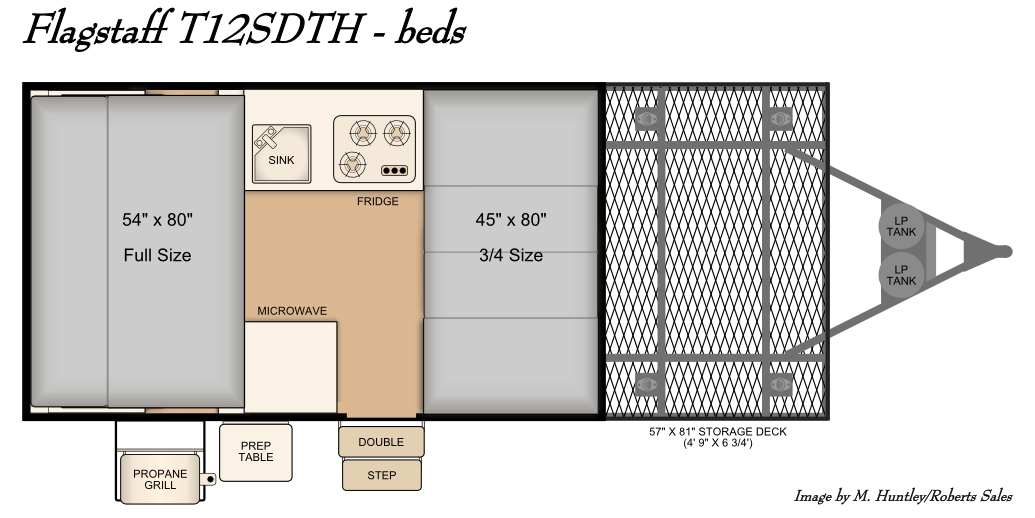

Bed Layout for this model


  • One of two T-Series models with a 57" metal deck for ATVs, bikes, or extra cargo. (The other is the T12RBTH)
  • The only T-Series with a sofa/bed.


  • Box Size: 12'
  • Travel Length: 22' 1"
  • Trailer Width: 85" (7' 1")
  • Dry Weight: 2152 lbs
  • Hitch Weight: 349 lbs
  • GVWR: 3830 lbs
  • Sleeps: 4
  • Beds:
    1. 80" x 54"
    2. 80" x 45"

Comparable Models

  • T12DDST - A wrap-around dinette replaces the rear sofa; the fron tdinette is the same. An enclosed storage trunk replaces the Toy Hauler storage deck on the front.
  • T12RBTH - A mattress bunk replaces the sofa/bed; the front dinette is exactly the same. A smaller Bike Hauler storage deck is used instead of the Toy Hauler deck on the front.

Weights and capacities are estimates and may vary based on how individual campers are outfitted.
