Flagstaff 206ST


(1999-2016; usurped by the SE version: 206STSE)

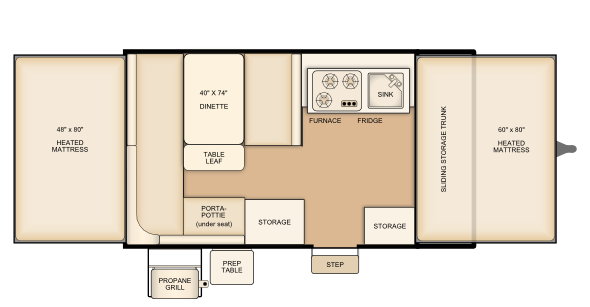

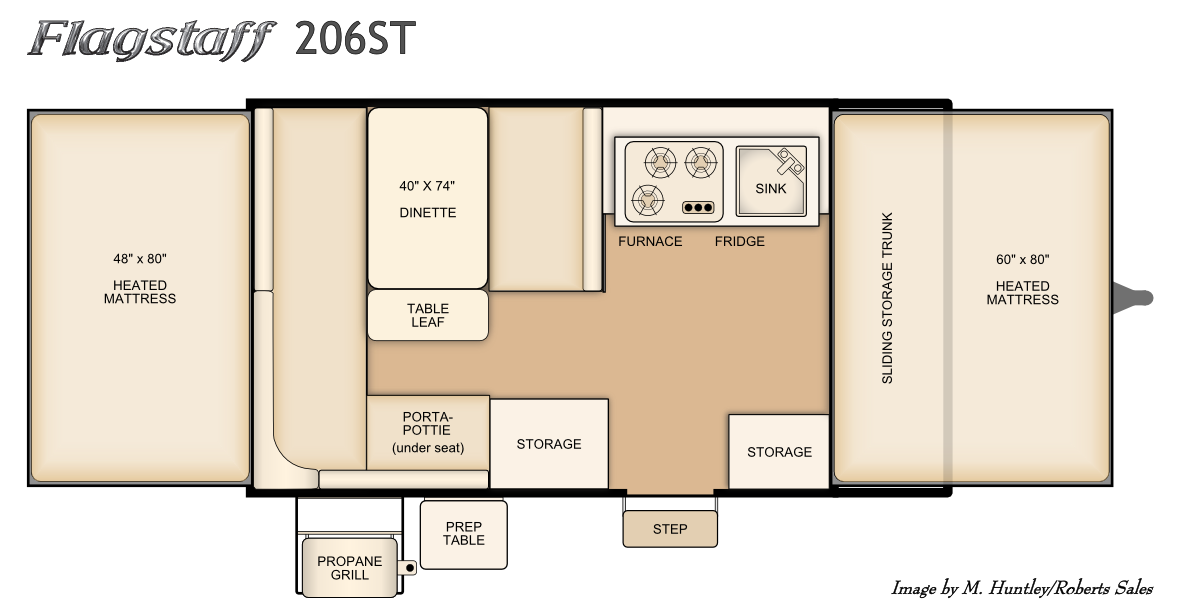

Flagstaff 206ST floorplan

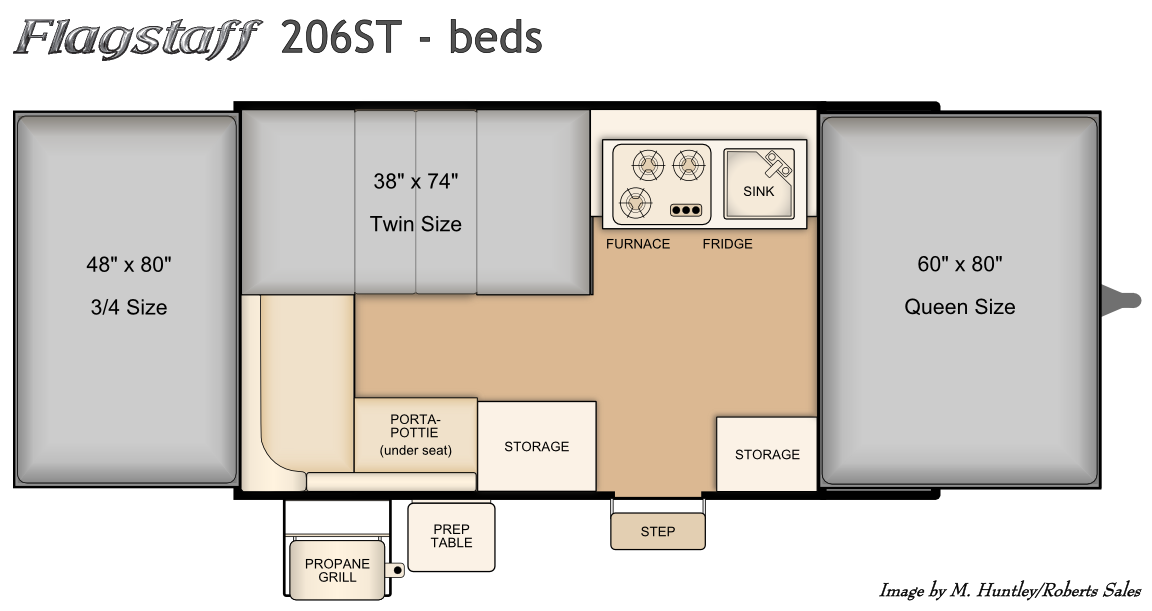

Bed Layout for this model

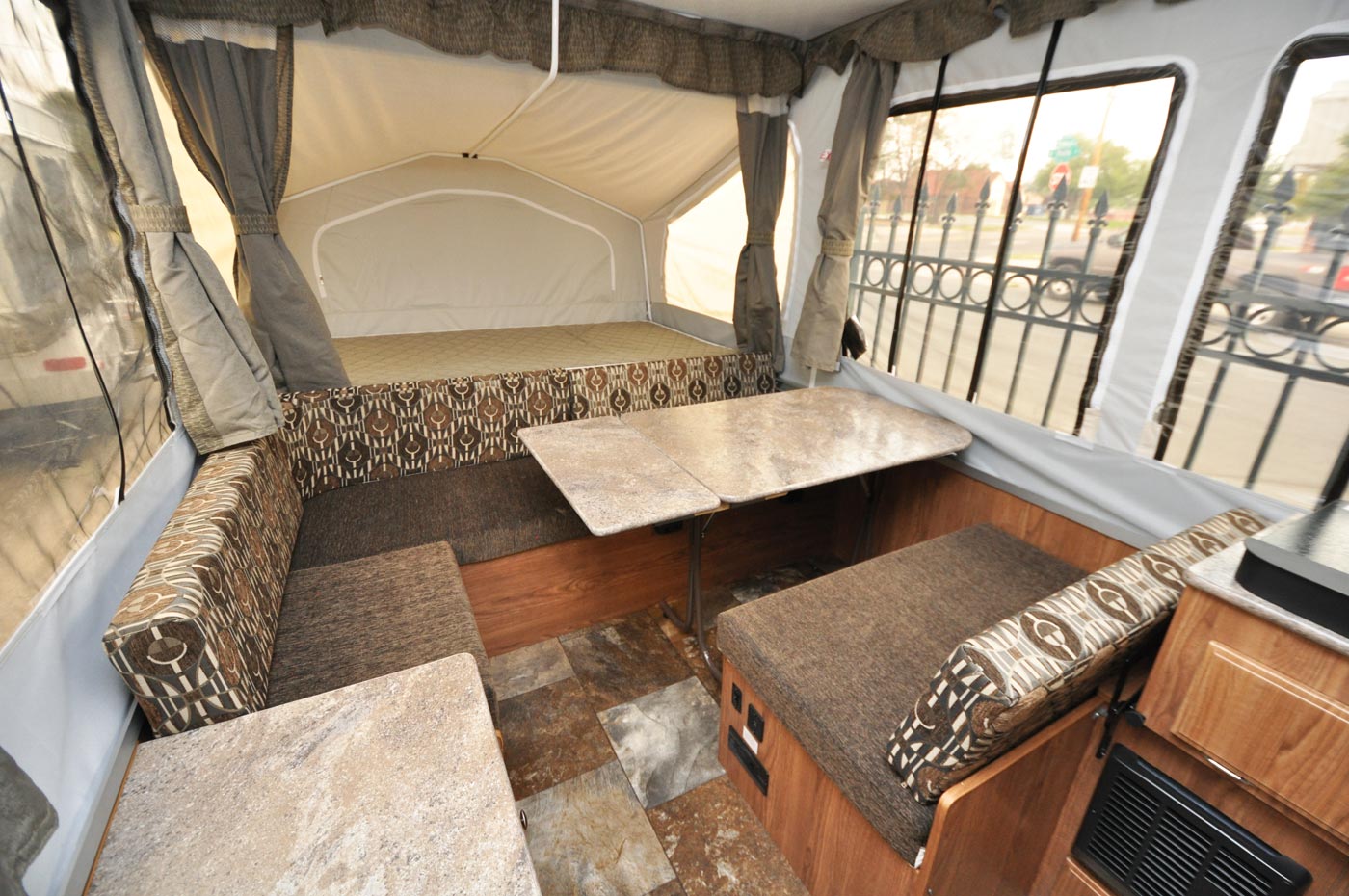

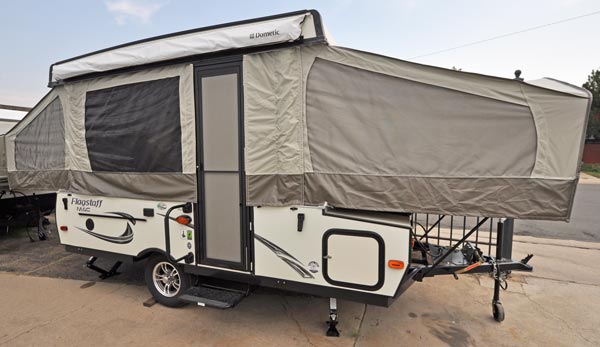

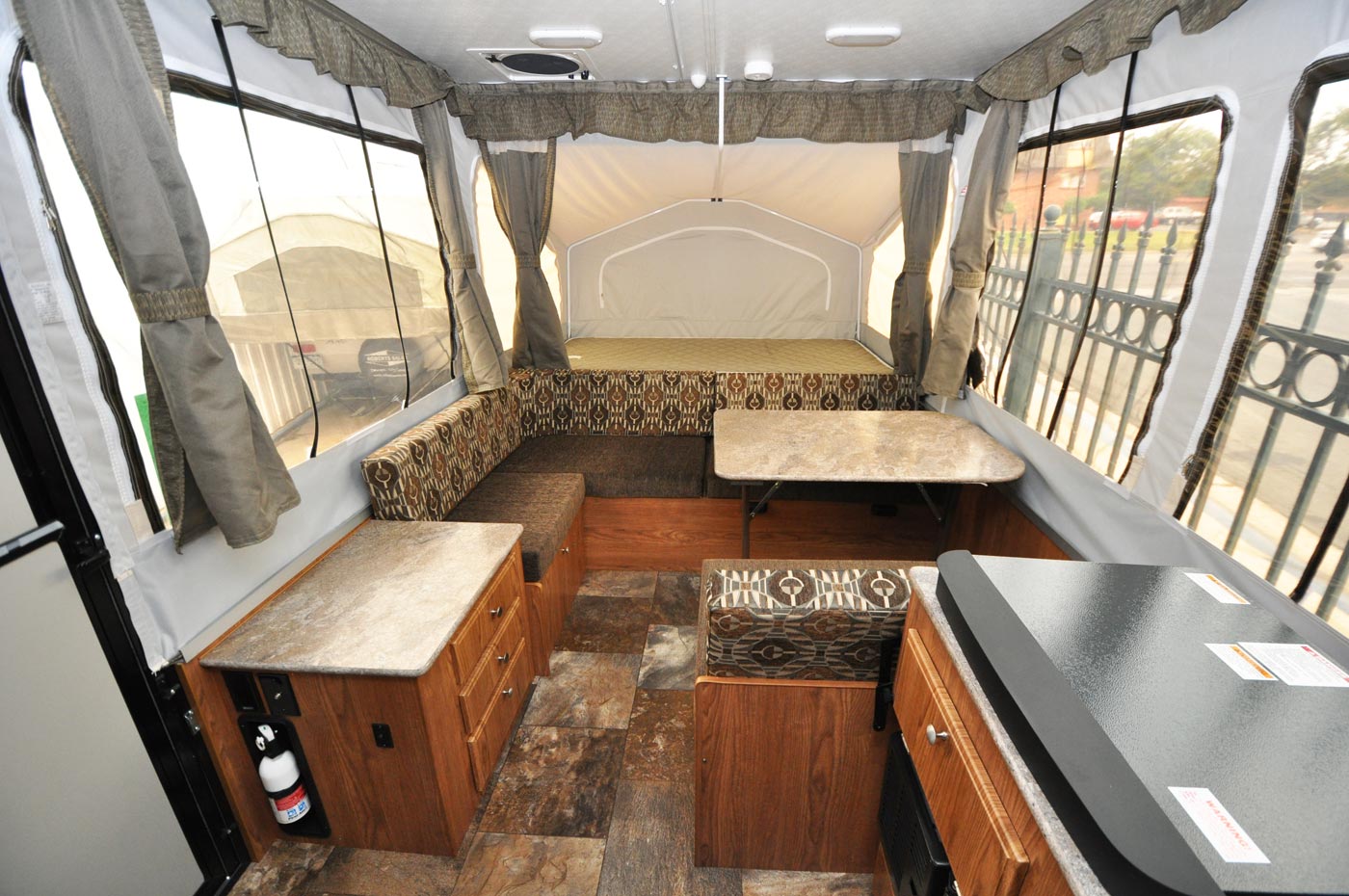

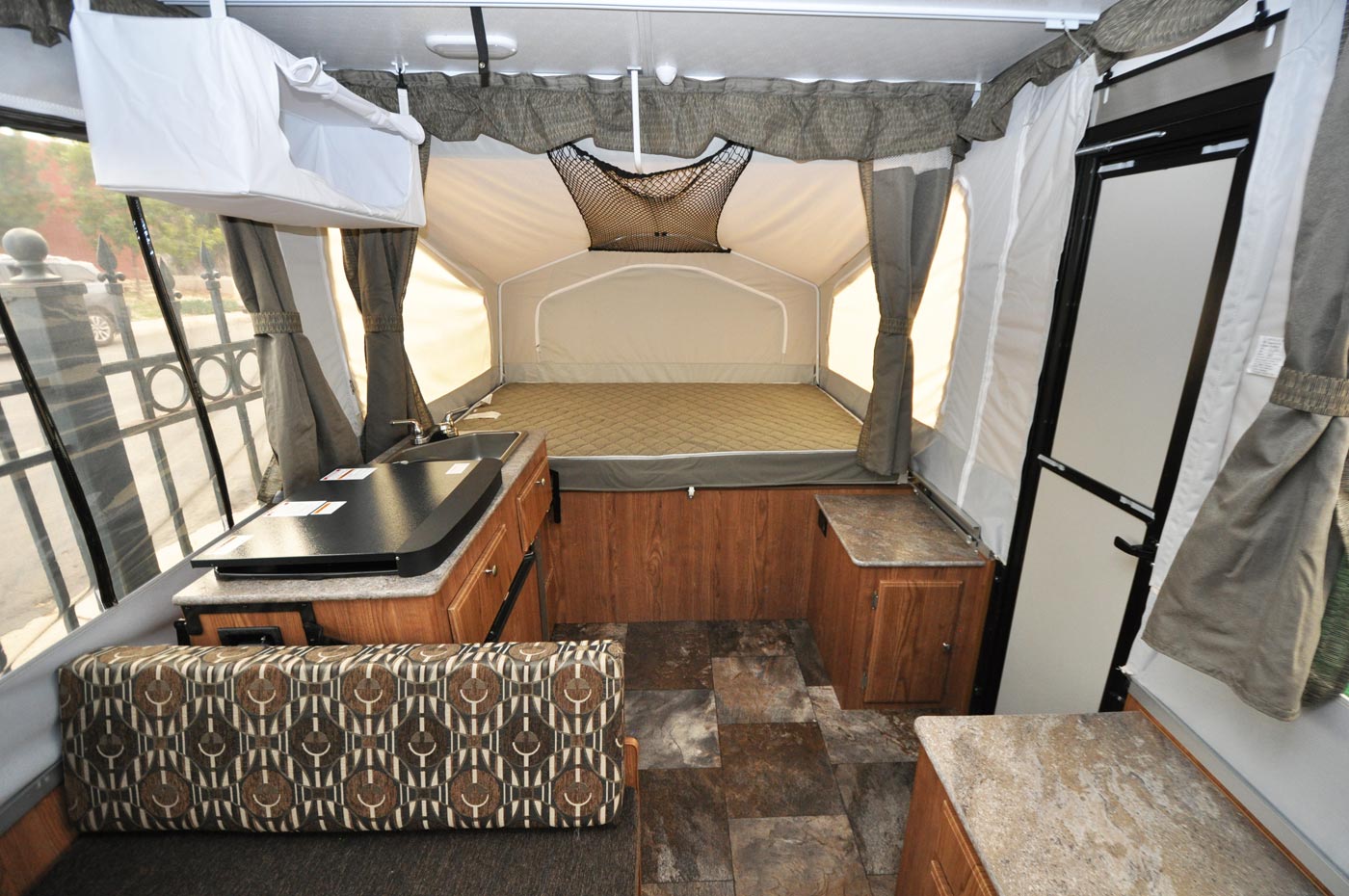

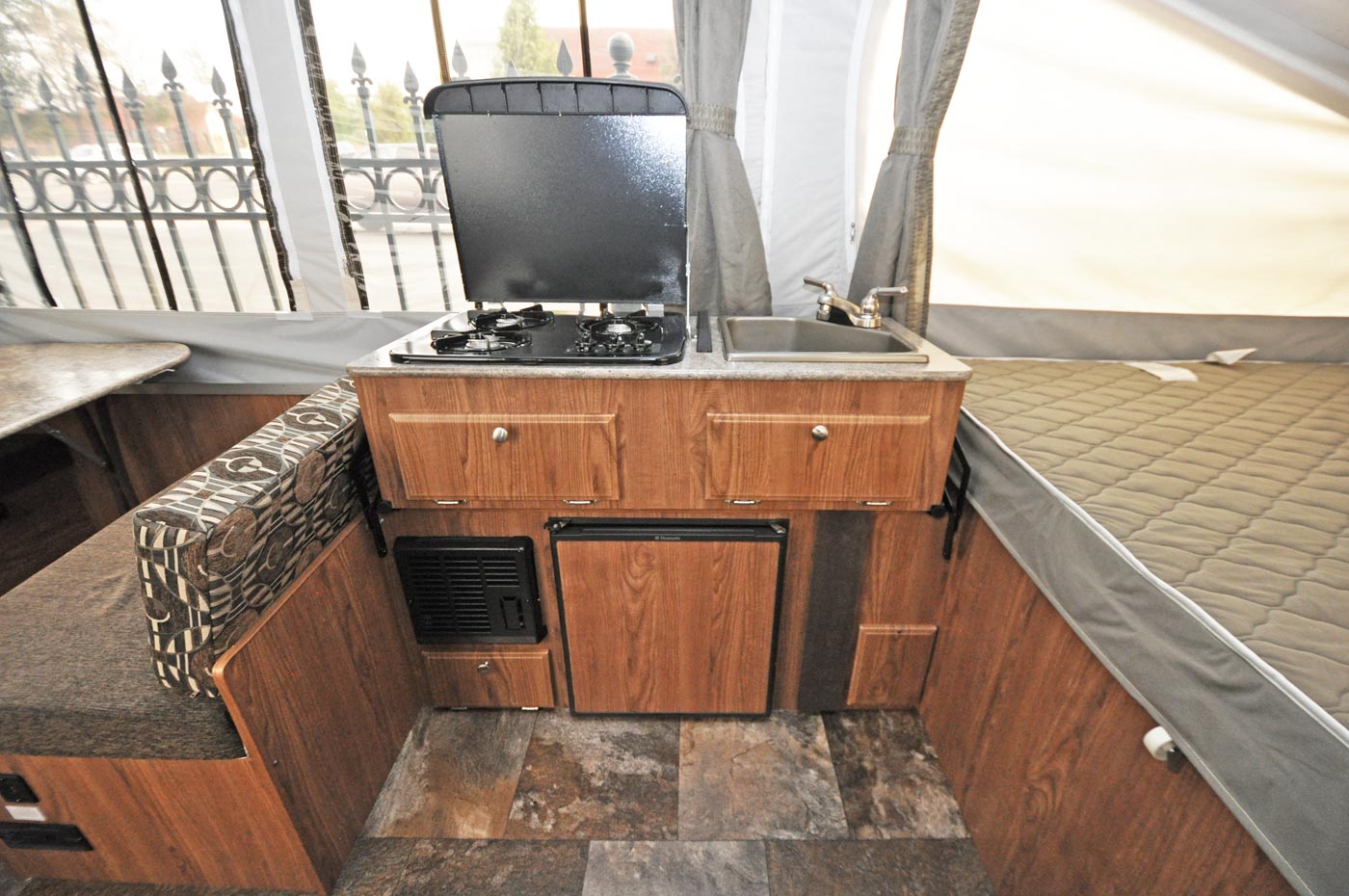

front view rear view galley dinette

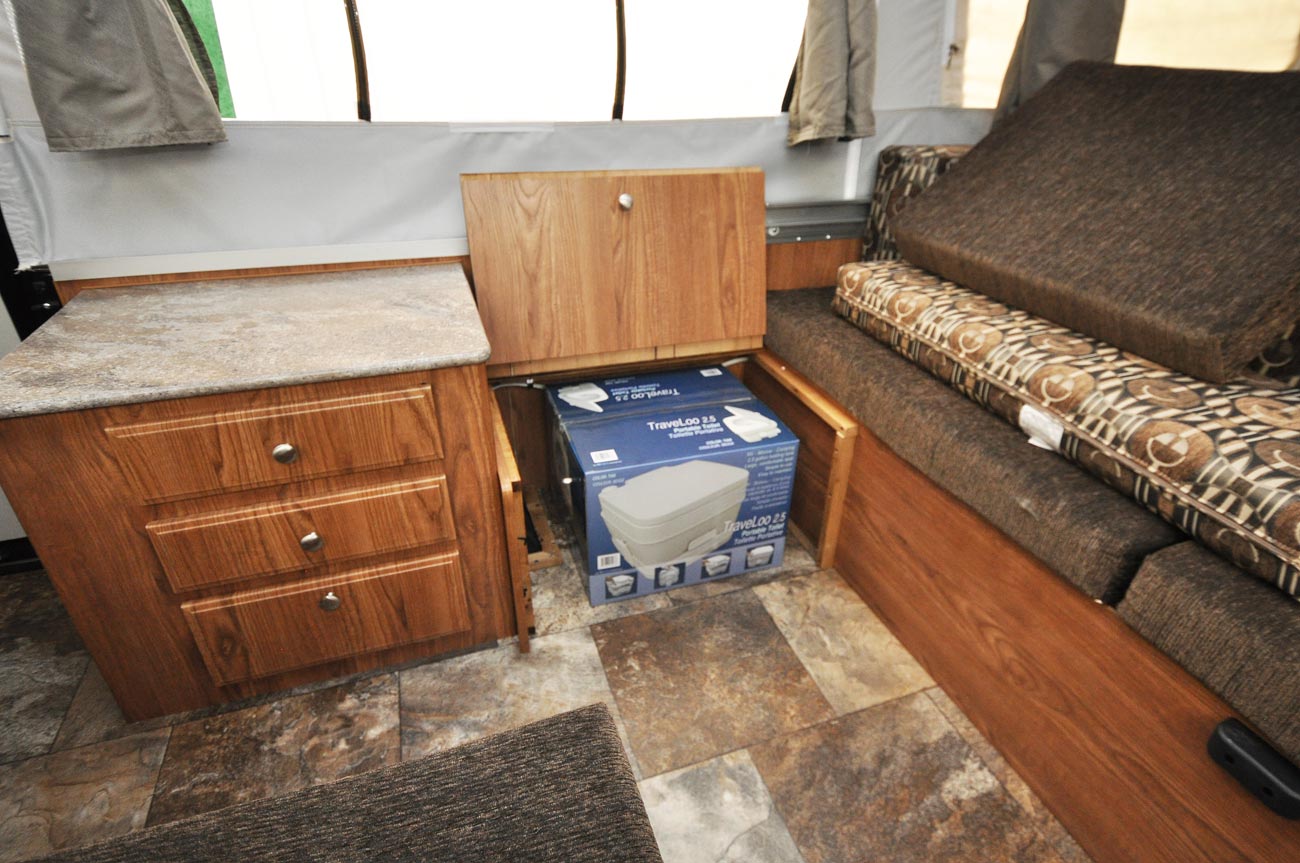

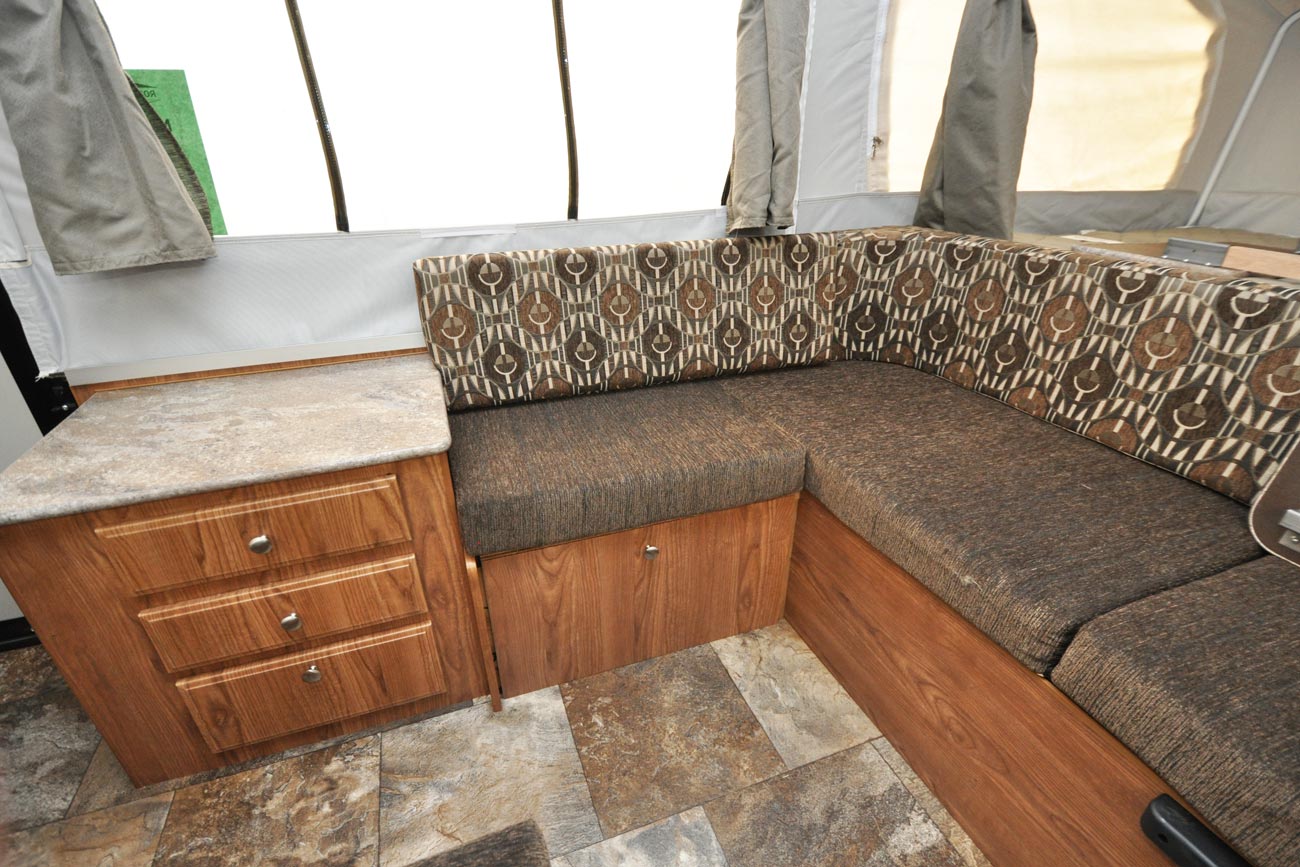

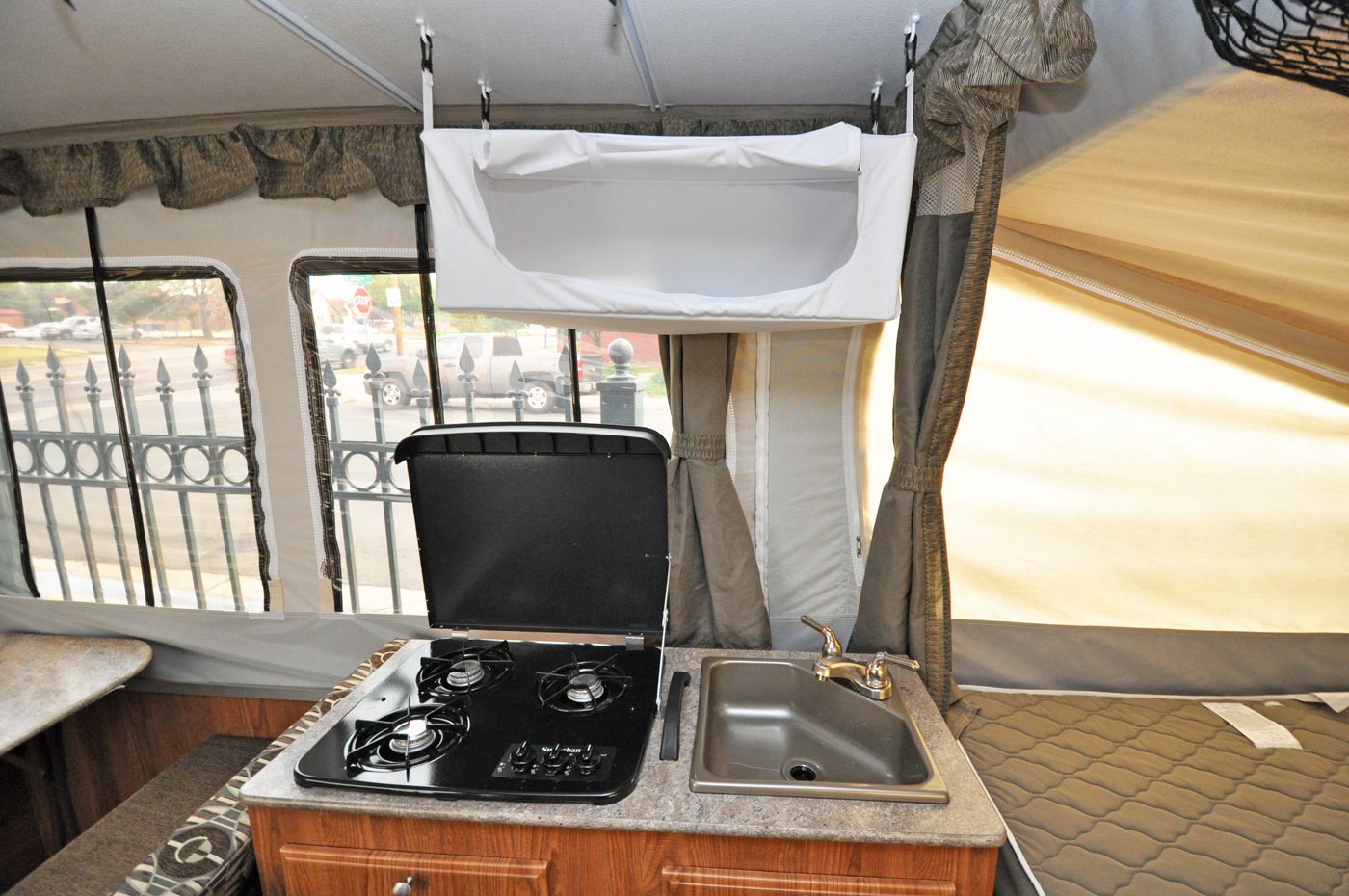

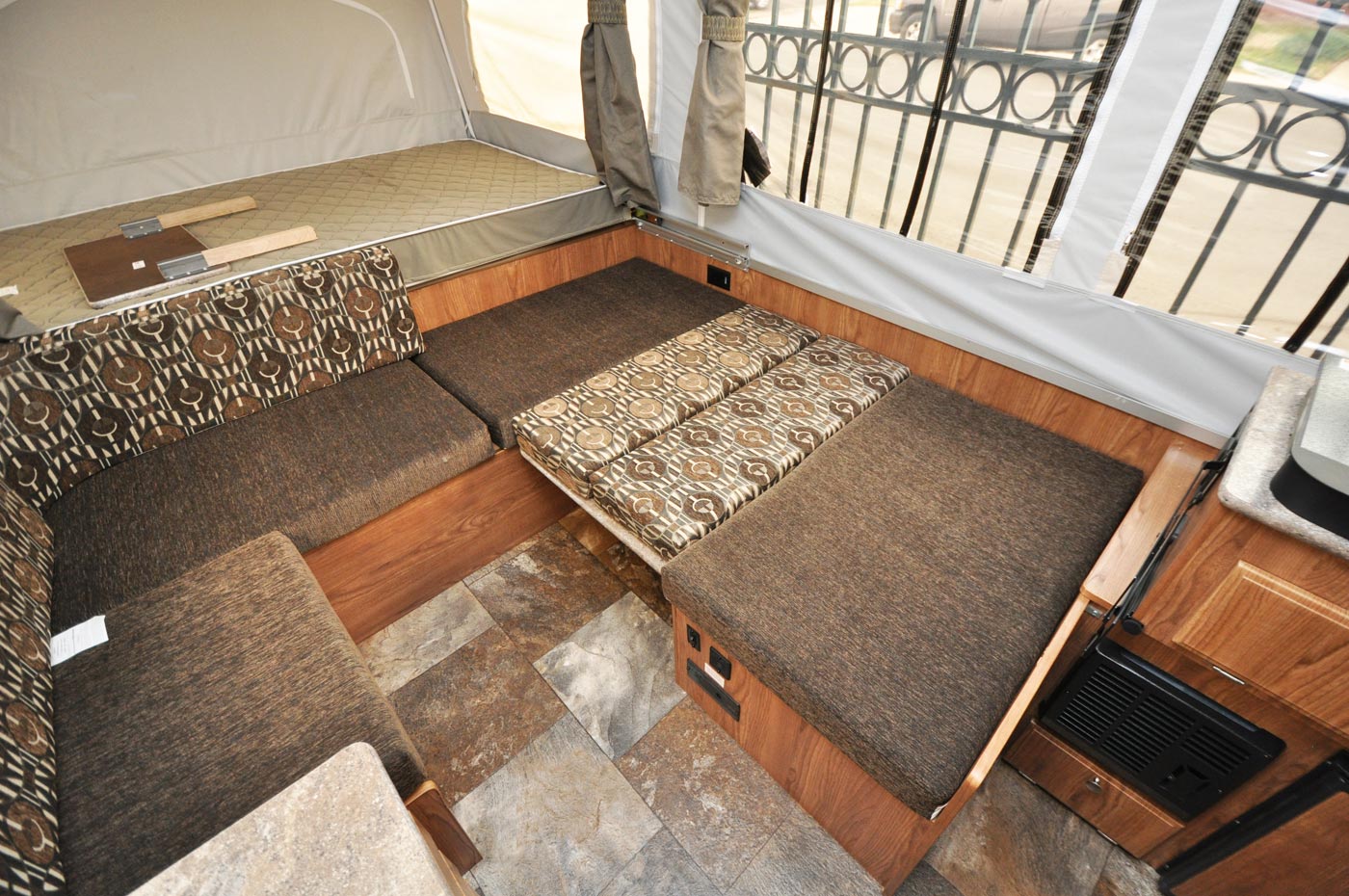

dinette as a bed j-dinette portable toilet under j-dinette overhead cabinet

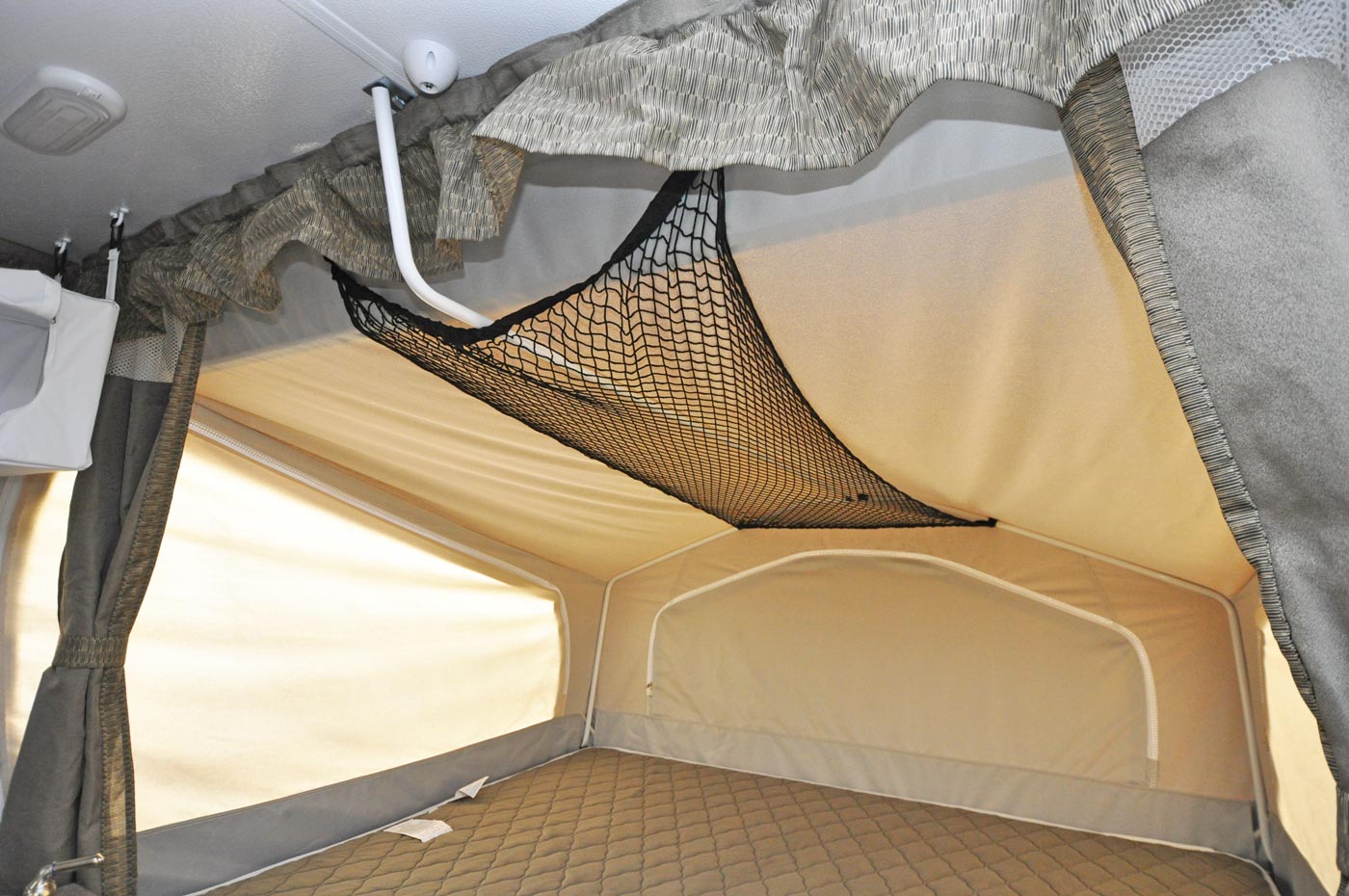

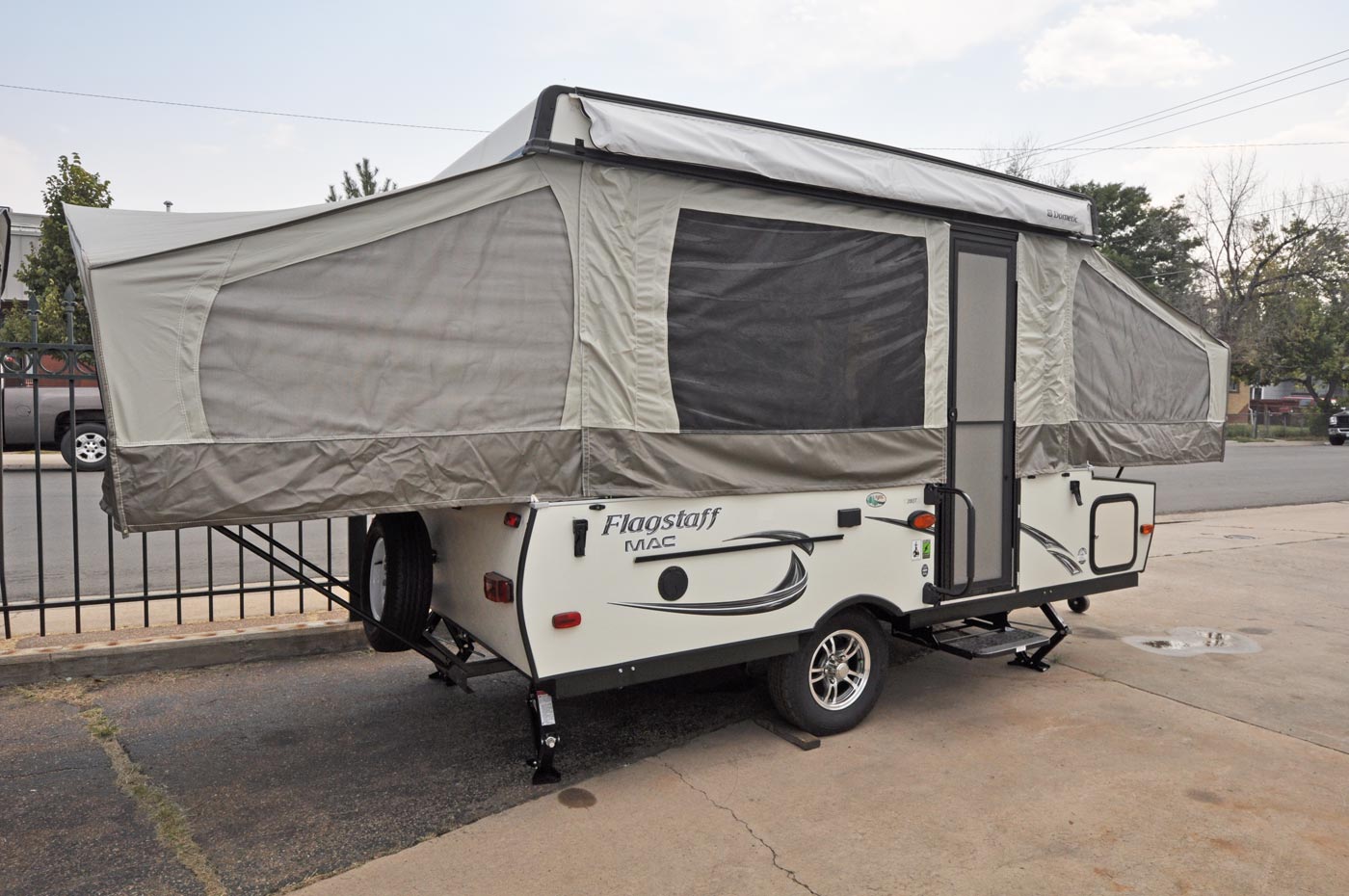

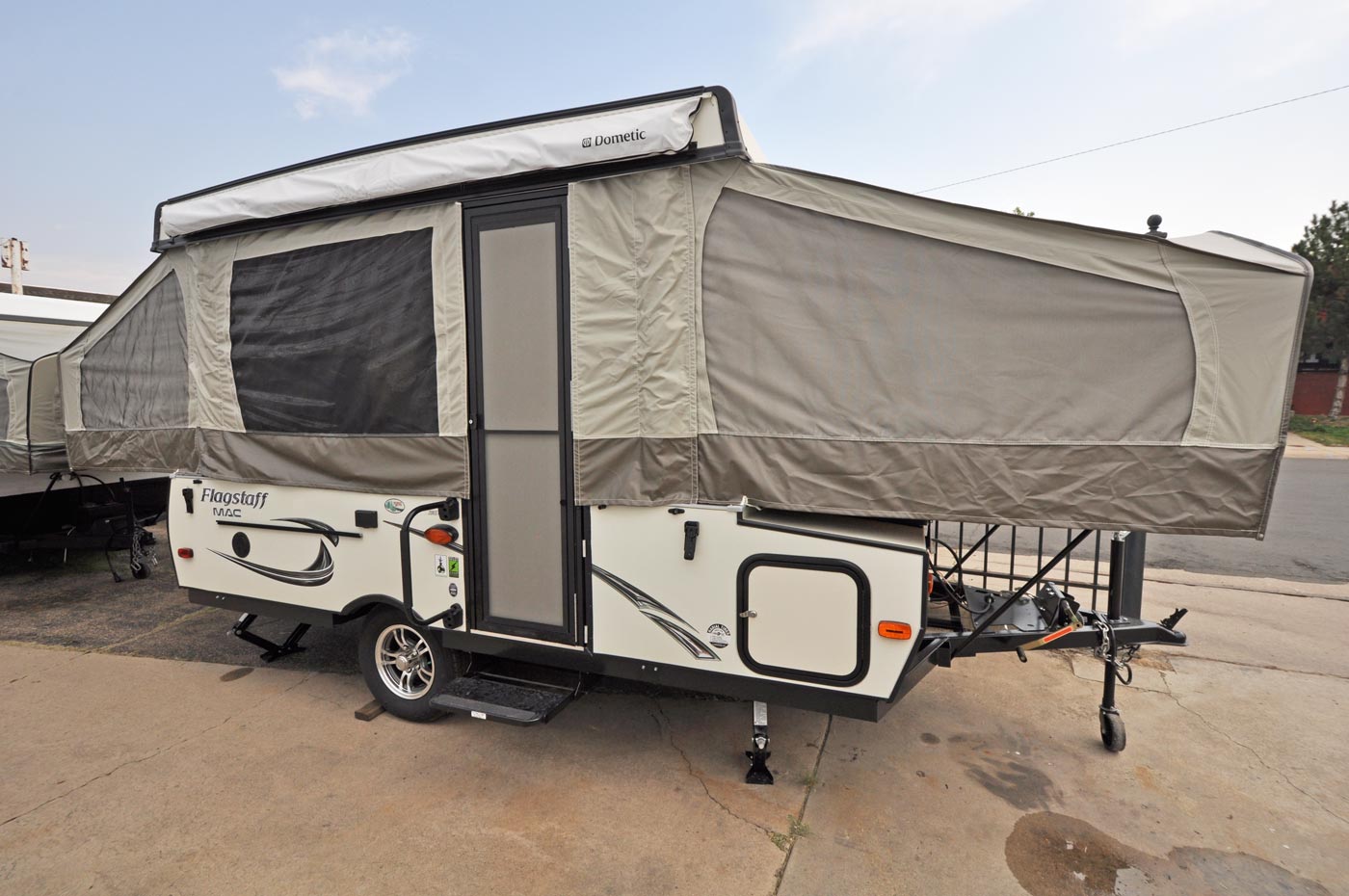

storage net exterior back-view (2016 model shown)

Wheel-well note: as with the 206STSE (and several others like the 228 variants and the 207), part of the wheel-well protrudes into the dinette leg-room space. This is covered by a wood box. In the 206ST it looks like this:

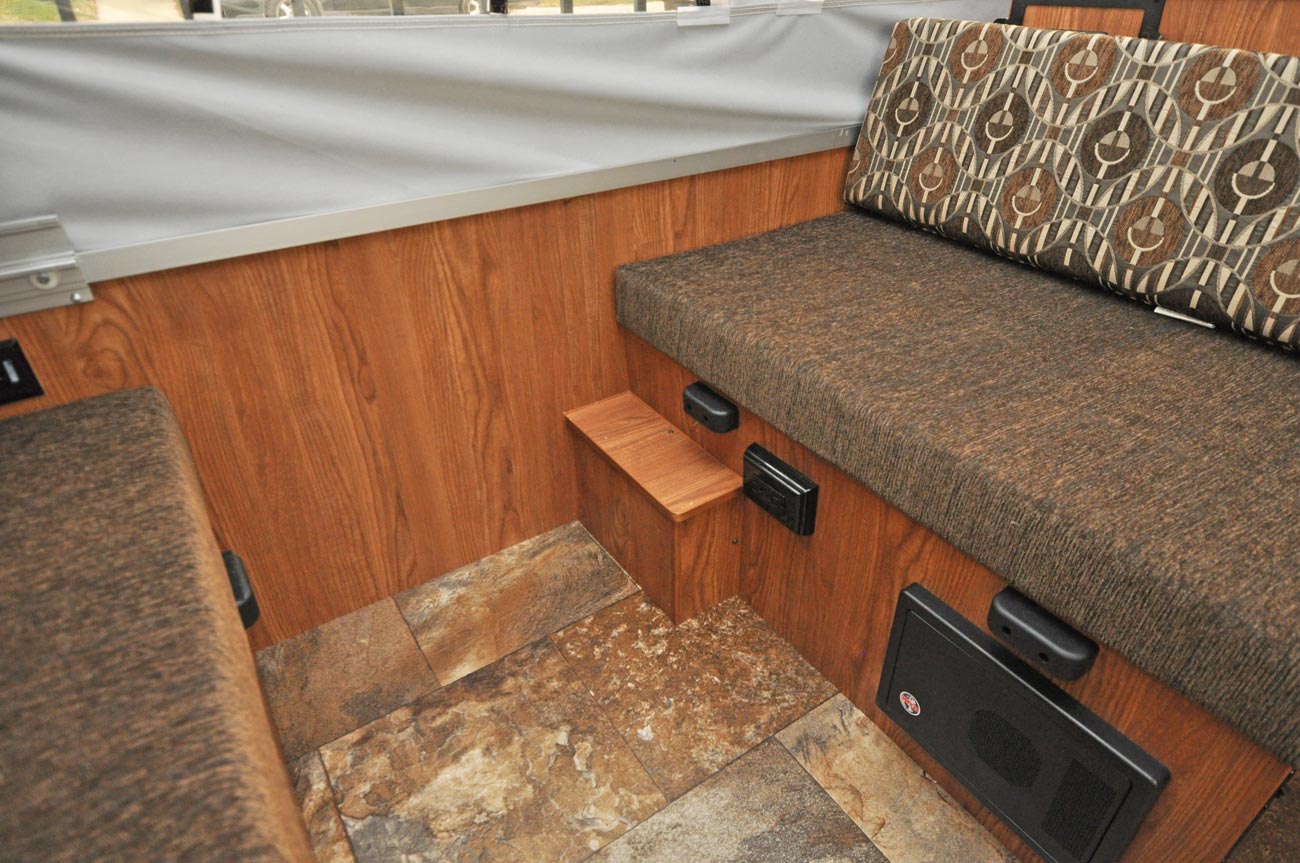

2016 Flagstaff 206ST wheel-well issue (2016 model shown)

Storage trunk note : the floor plan above (with sliding storage trunk) illustrates a cold-water version of the 206ST. If the optional hot water package (water heater, exterior shower, hot/cold water at the sink) is added to the 206ST, the sliding storage tray is replaced by open storage (no tray) and about 1/3 of the storage trunk is taken by the 6-gallon water heater:

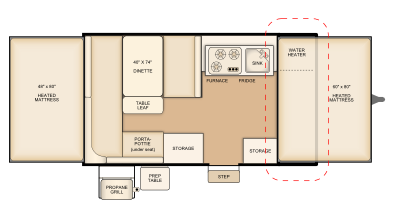

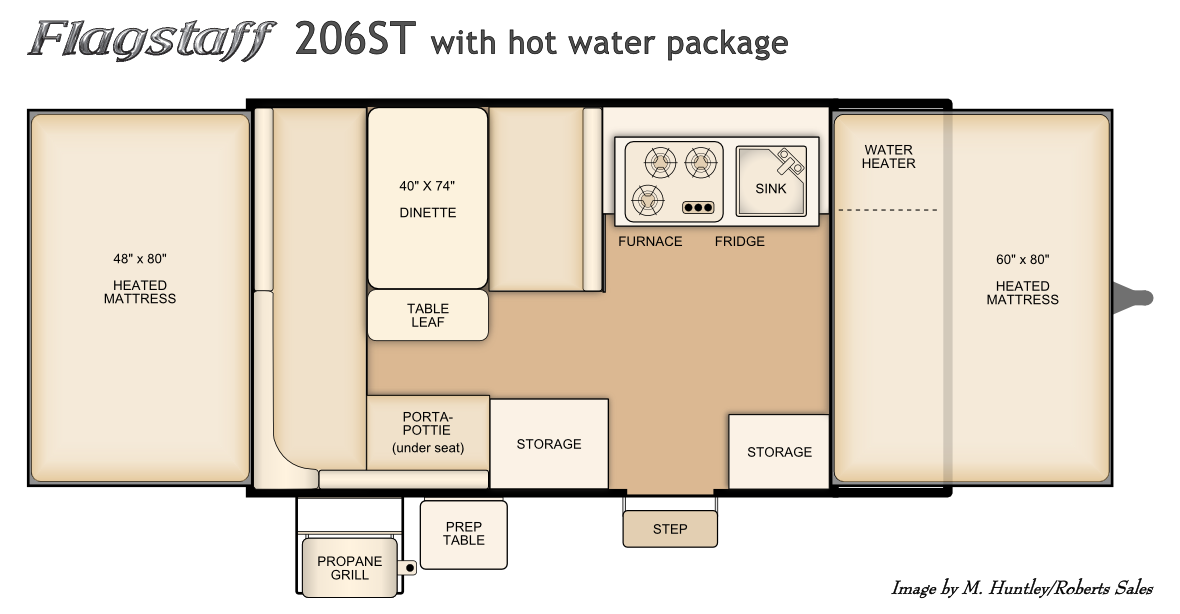

206ST with hot water package (and no sliding storage trunk)


  • The only MAC Series camper with an enclosed storage trunk
  • A great balance of seating, floor space, and storage in a light 1867 lb. package


  • Box Size: 10'
  • Open Length: 20' 4"
  • Travel Length: 17' 1"
  • Travel Width: 7' 6"
  • Dry Weight: 2062 lbs (brief weight explanation)
  • Hitch Weight: 242 lbs
  • GVWR: 2973 lbs
  • Coupler size: 2"
  • Sleeps: 6
  • Beds:
    1. 80" x 60"
    2. 80" x 48"
    3. 74" x 38"


  • Front storage trunk with sliding tray*

...as well as these features standard with the MAC series:

  • Dometic 1.9 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • Overhead cabinet
  • Group 27 battery pack
  • 110V heated 3.5" foam mattresses
  • Privacy curtains
  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • Awning
  • 20# propane tank
  • 13" steel wheels
  • Spare tire
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 206LTD - Similar side-dinette layout but without the "J-dinette"; also no storage trunk and is in the LTD Series.
  • 206LT - Similar side-dinette layout but without the "J-dinette"; also no storage trunk.
  • 206STSE - Same camper but in the Sports Enthusiast series.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

*If the optional hot water package is installed on the 206ST, the sliding storage tray is removed from the storage trunk (the water heater takes up about 1/3 of the storage trunk) Back

Weights and capacities should be considered estimates and may vary based on how individual campers are outfitted.

Back to MAC Series

Top of Page

Older Photos

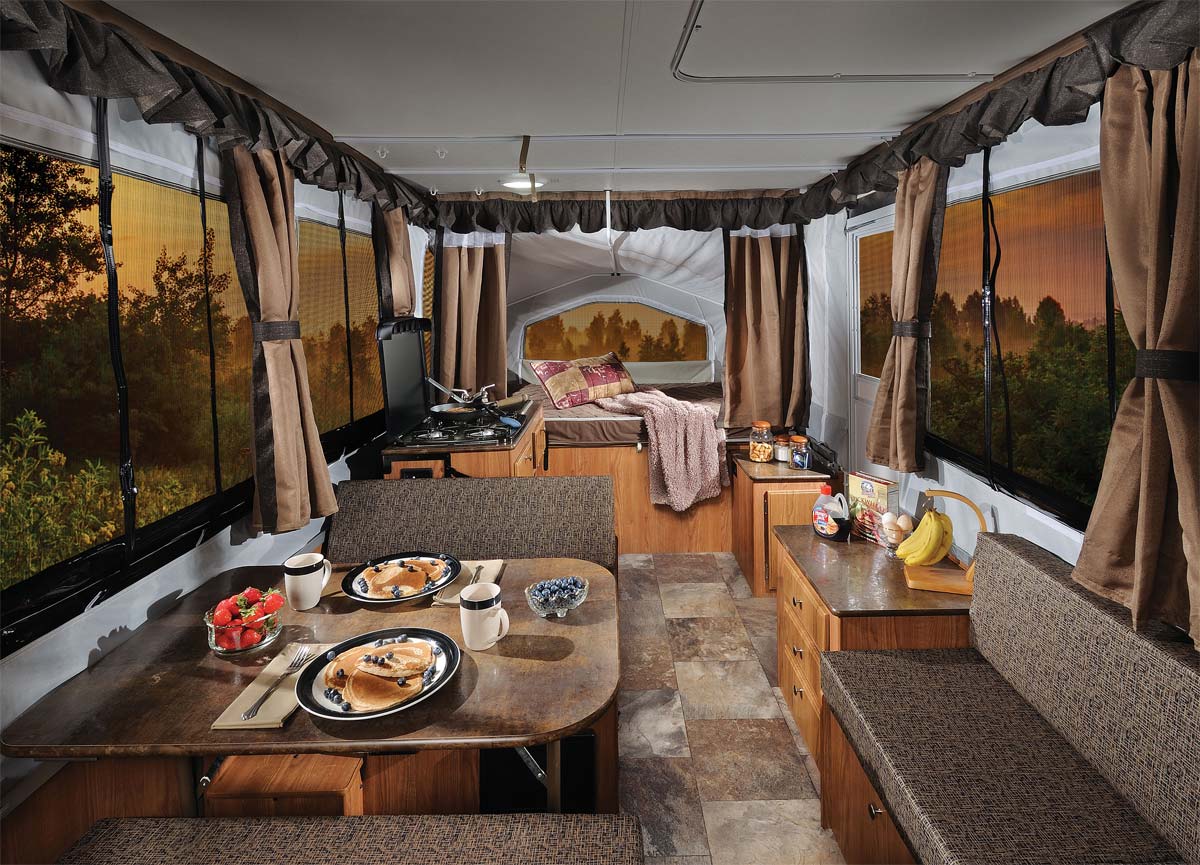

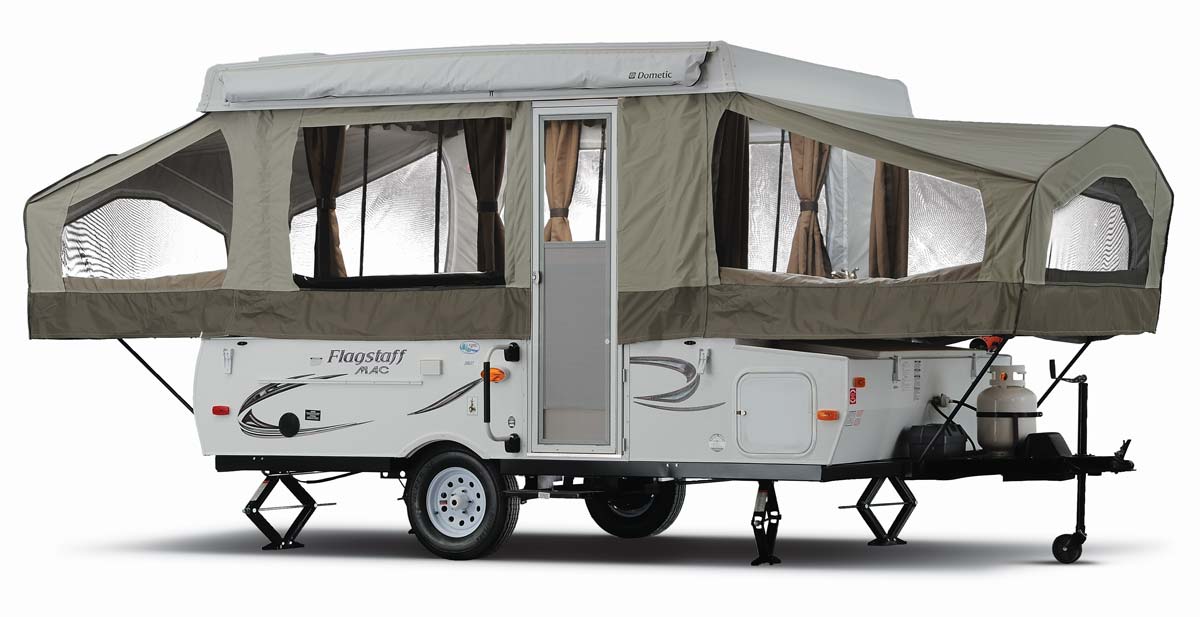

2015 open 2015 interior (2015 model shown)

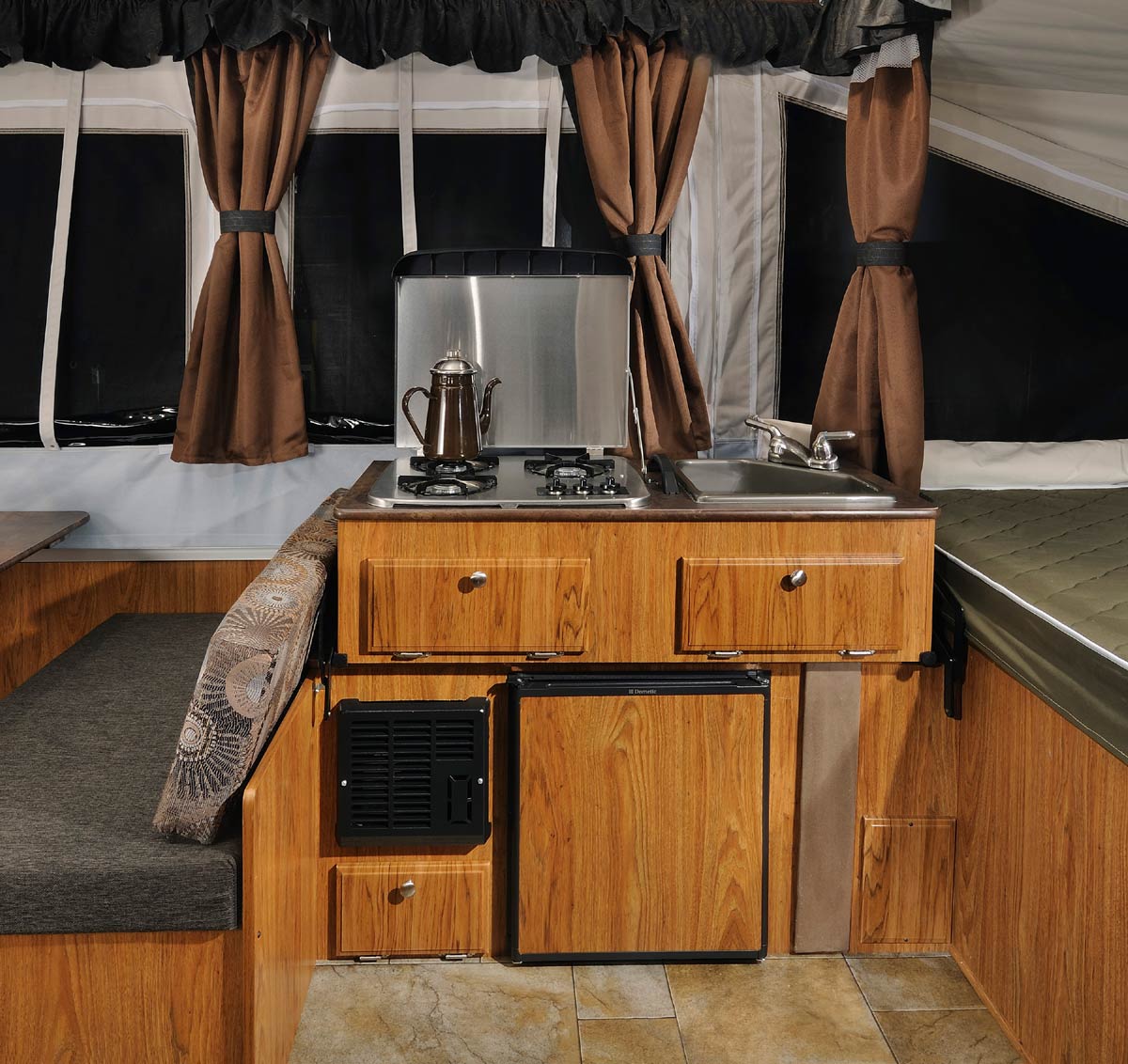

2013 Flagstaff 206ST galley (2013 206ST galley)

206ST exterior 206ST front view 206ST rear view 206ST galley

206ST dinette 206ST dinette bed 206ST porta-pottie area 206ST porta-pottie

206ST powered roof vent 206ST 3/4 view 206ST sliding storage tray (2012 206ST shown)
