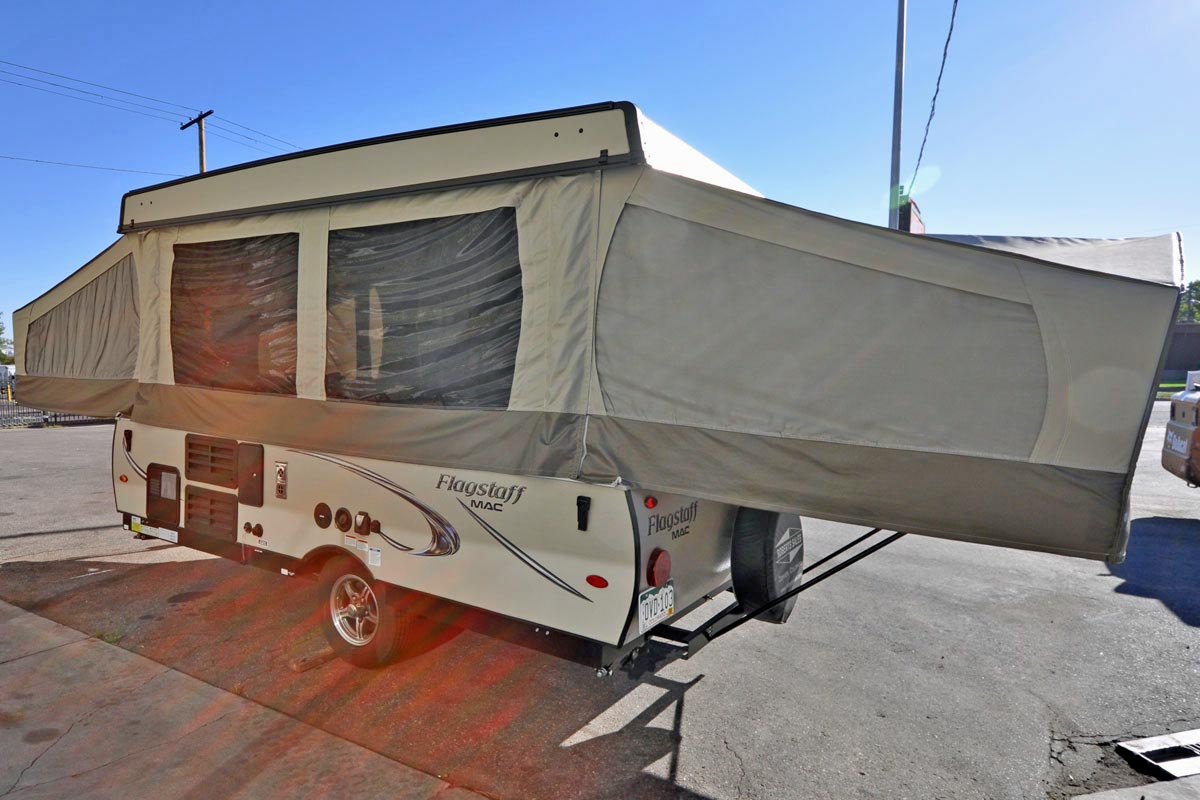

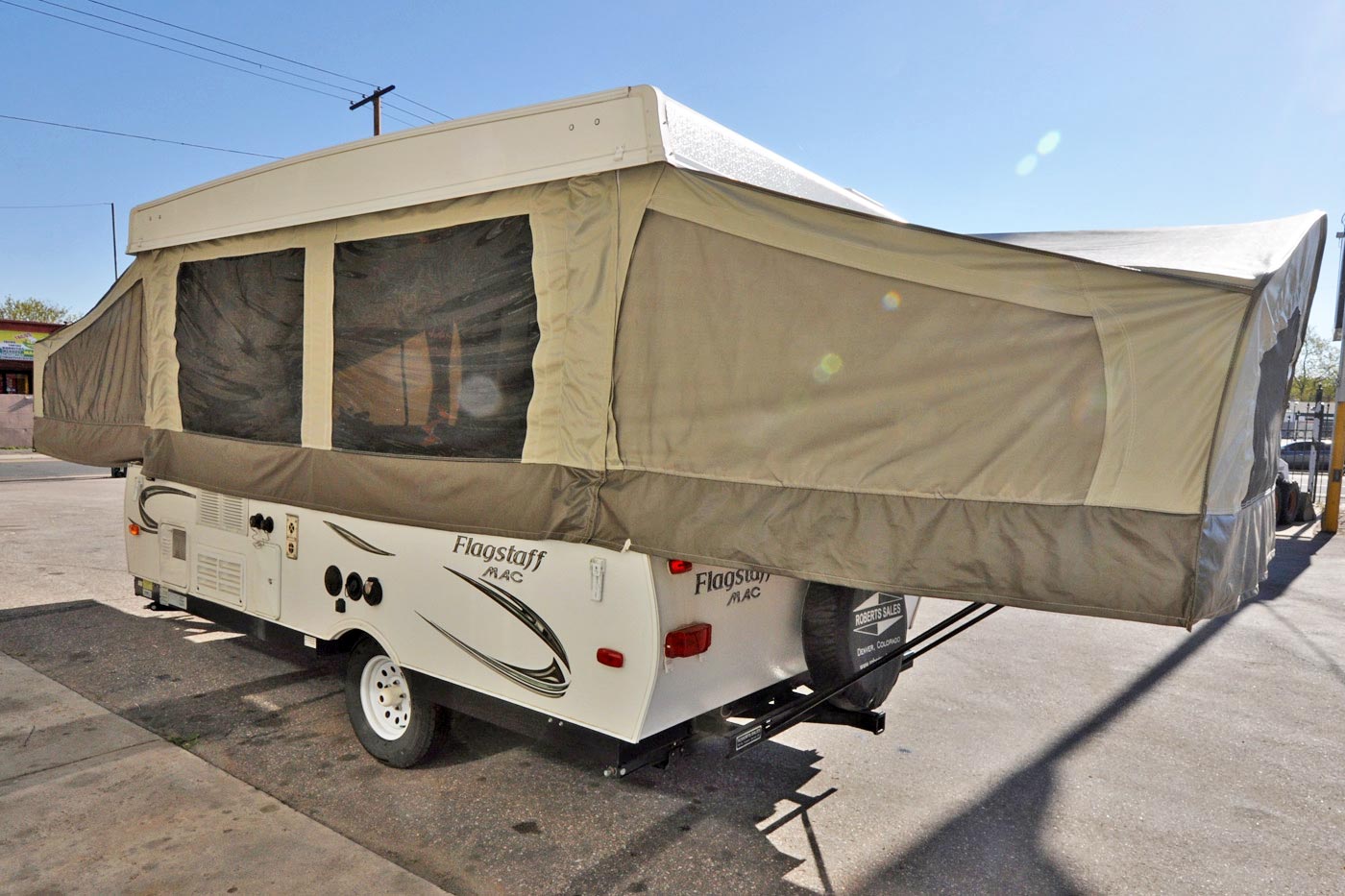

Flagstaff 228

(1998-2020)

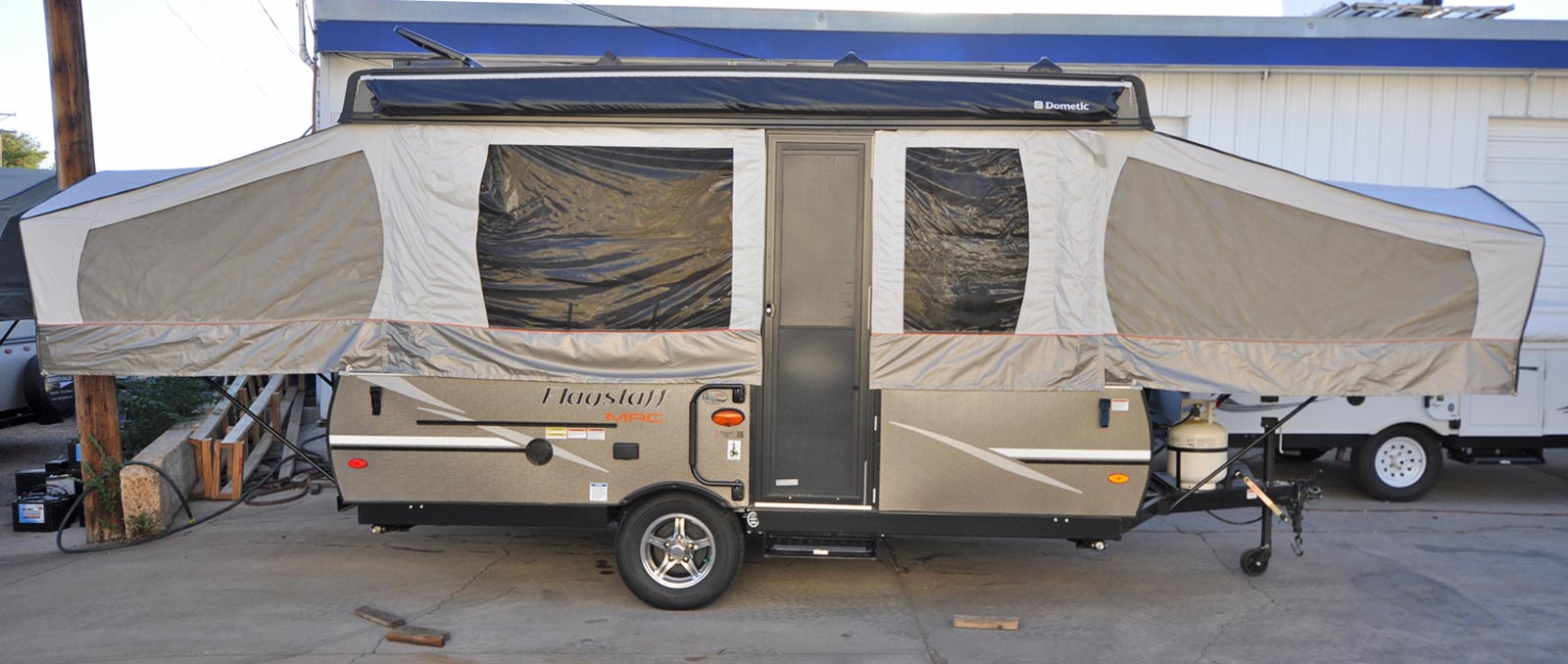

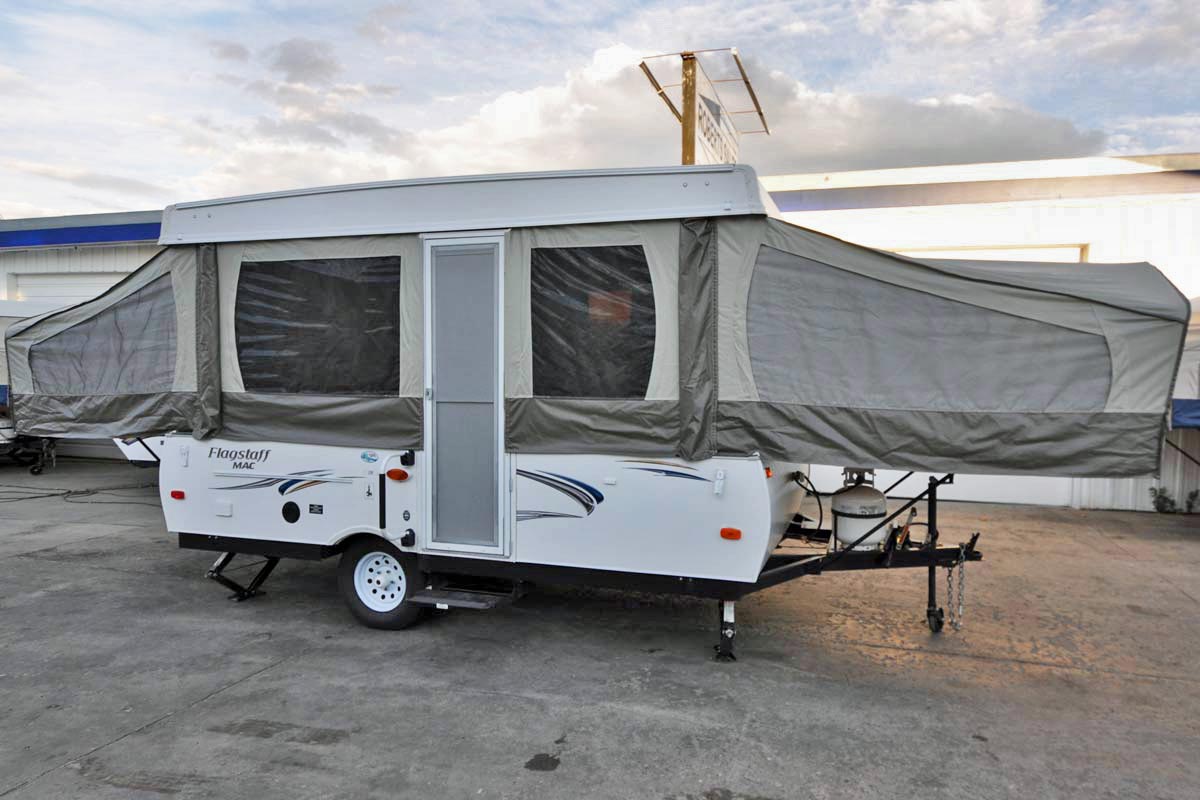

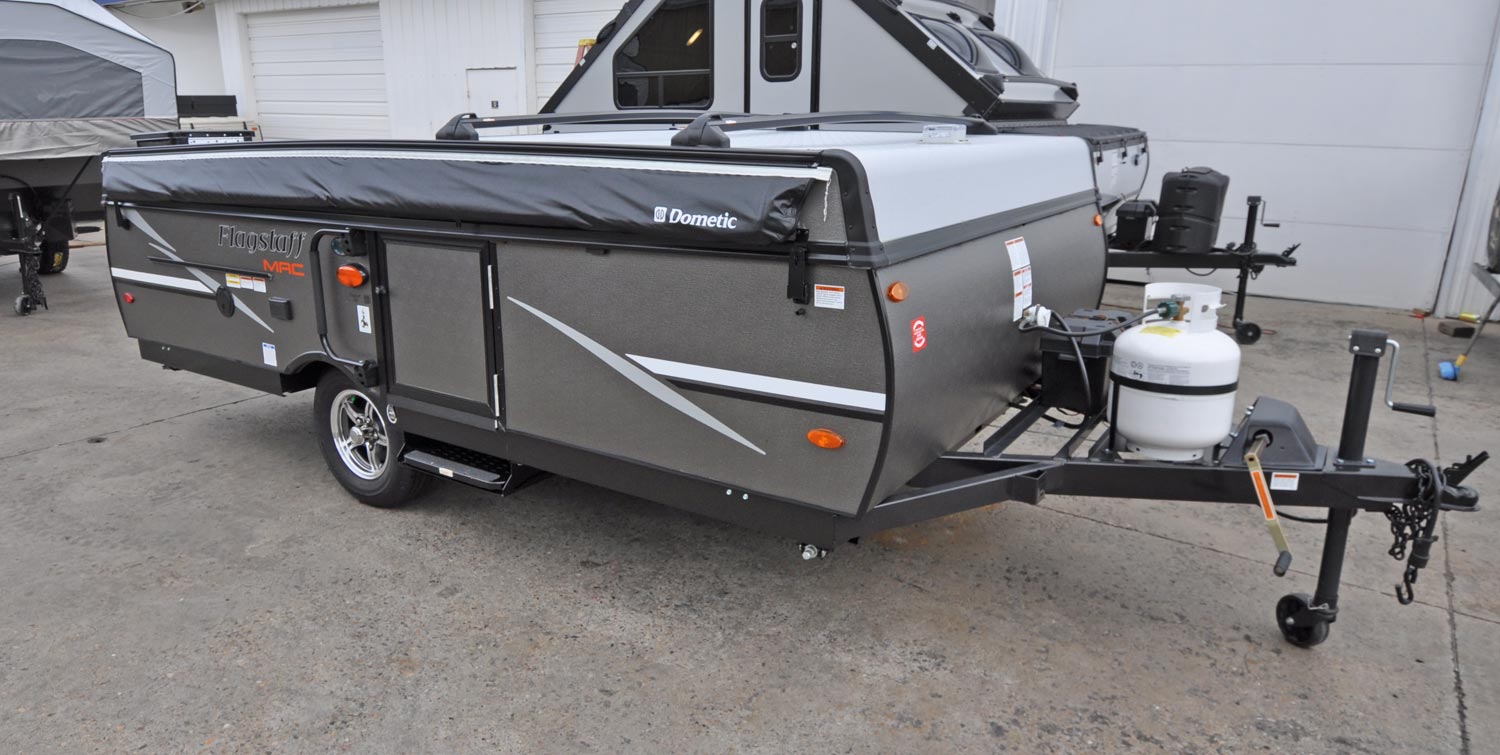

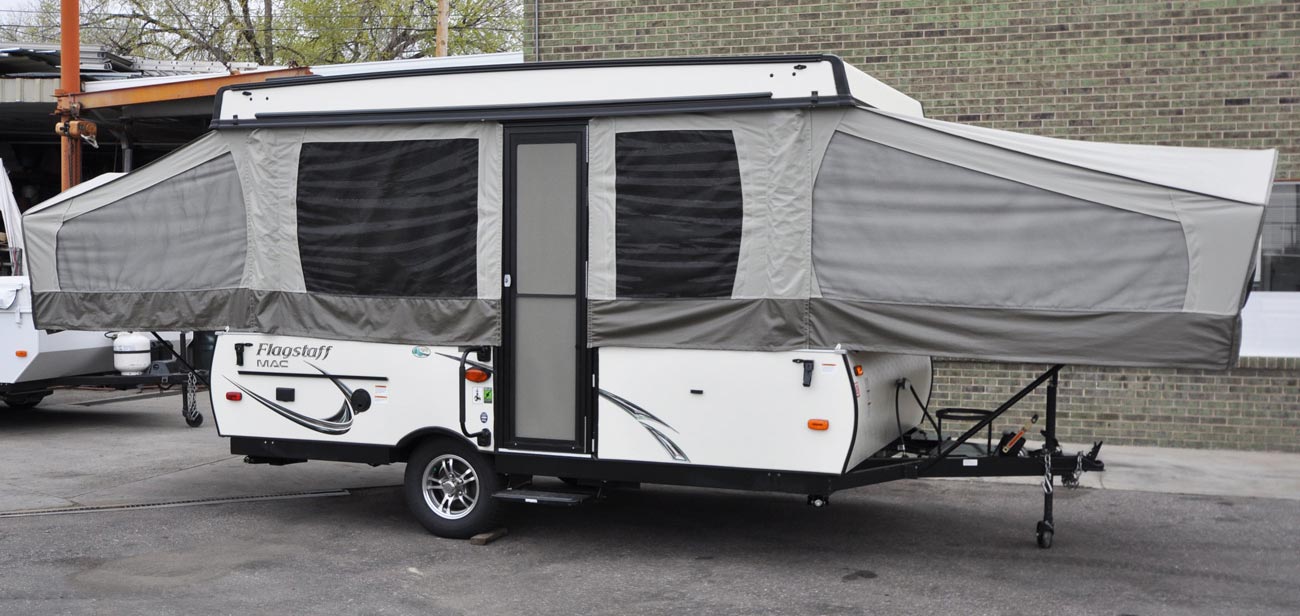

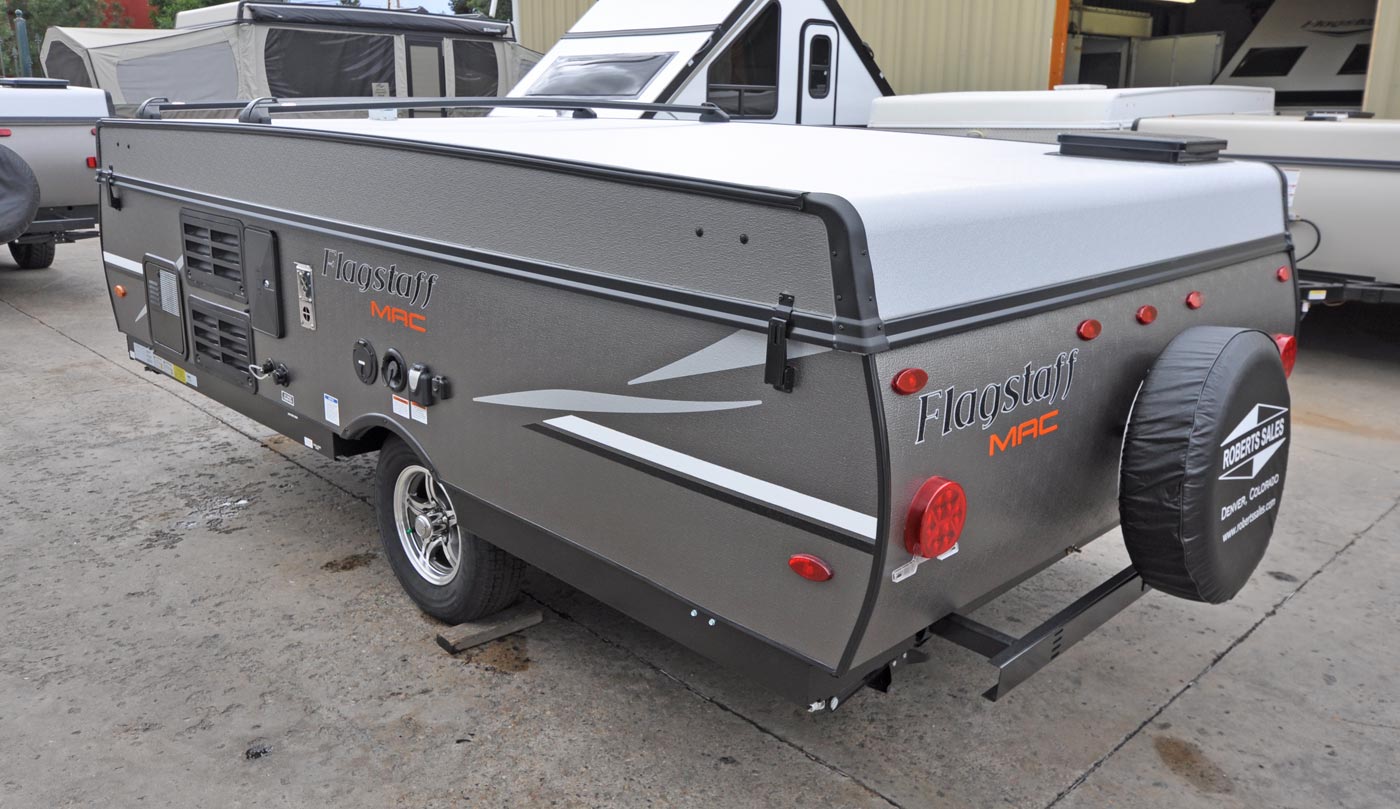

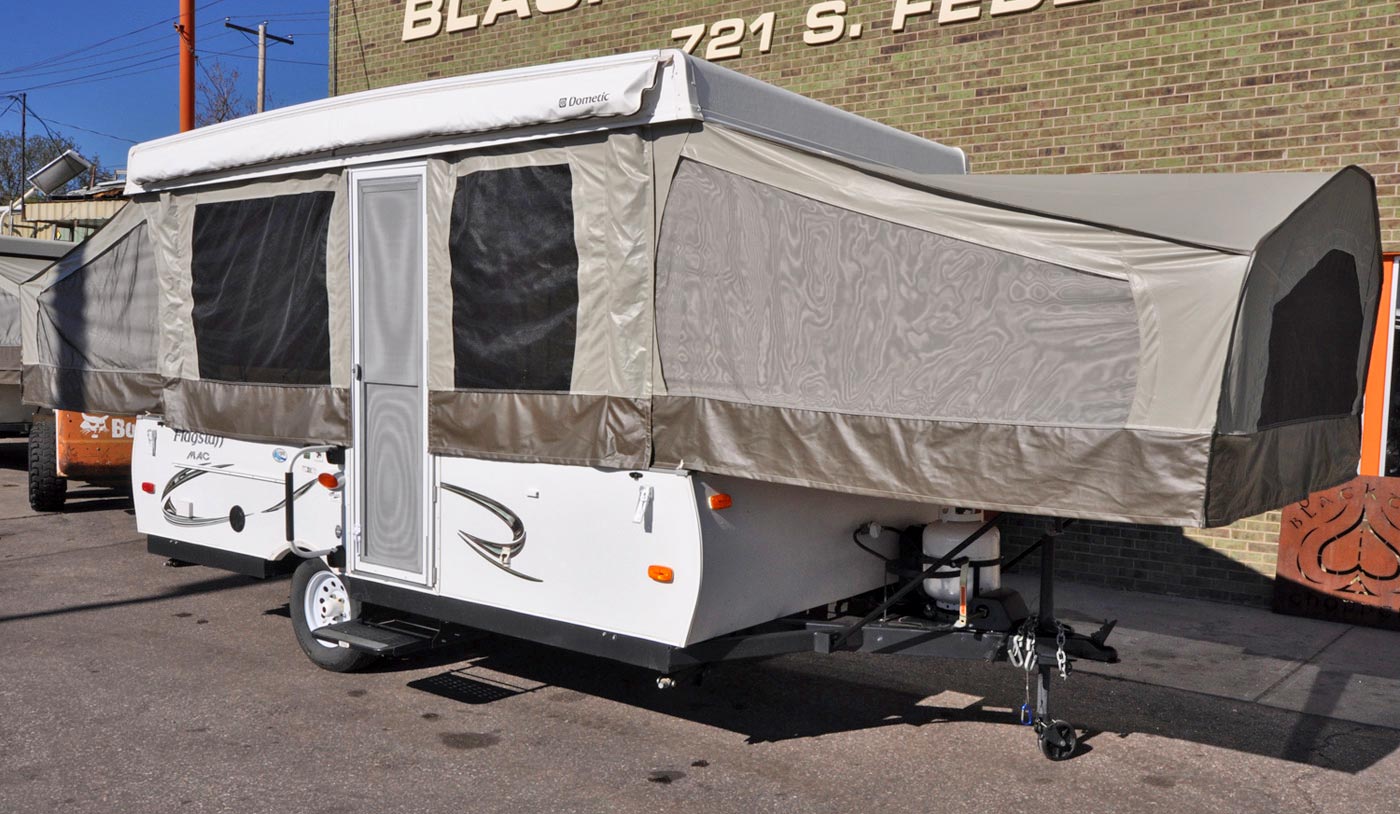

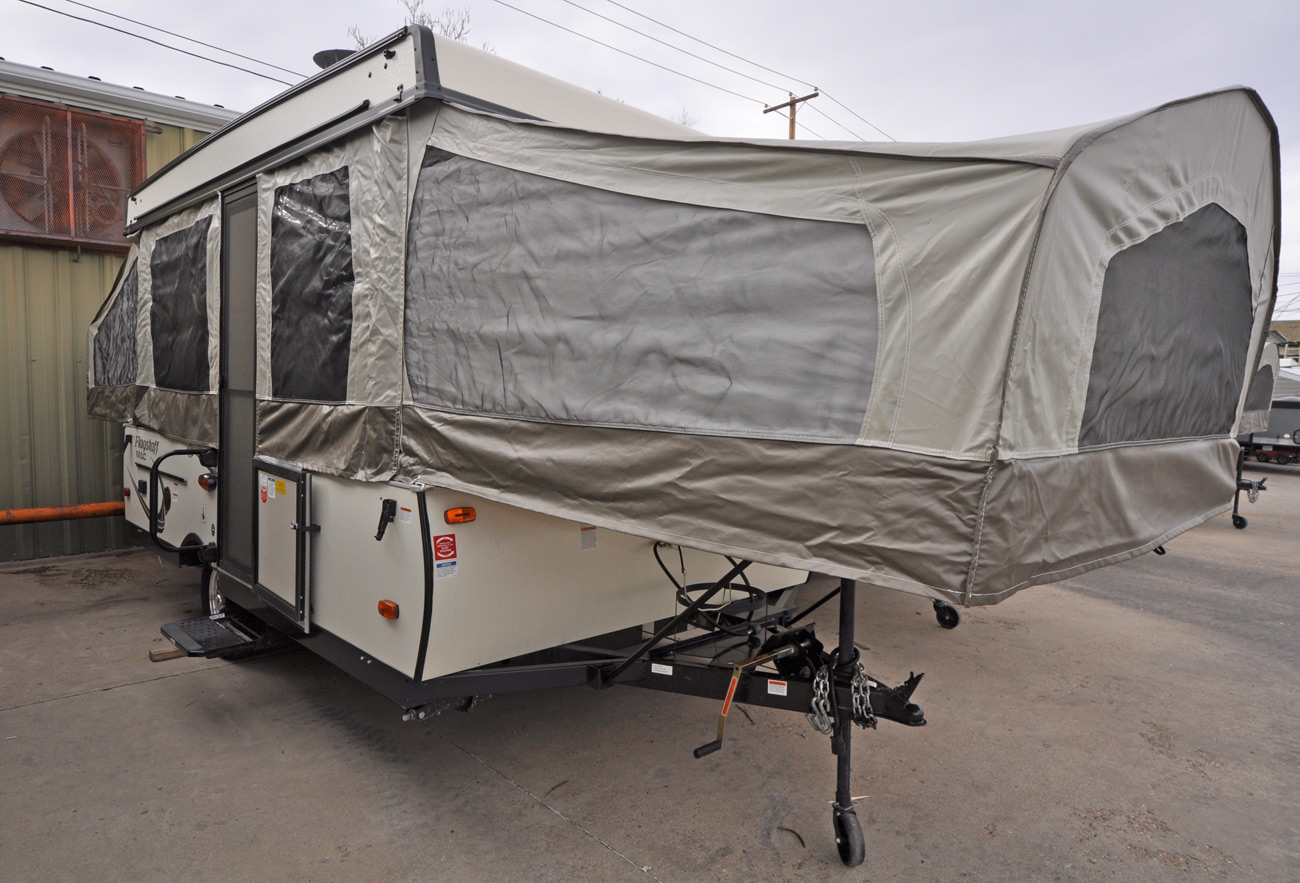

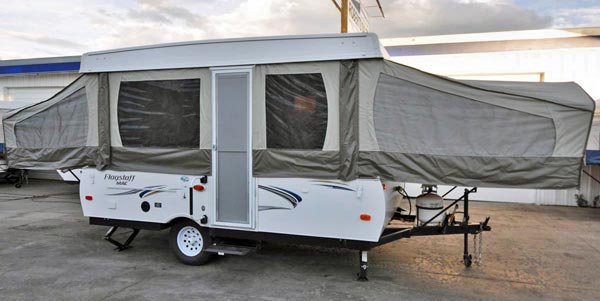

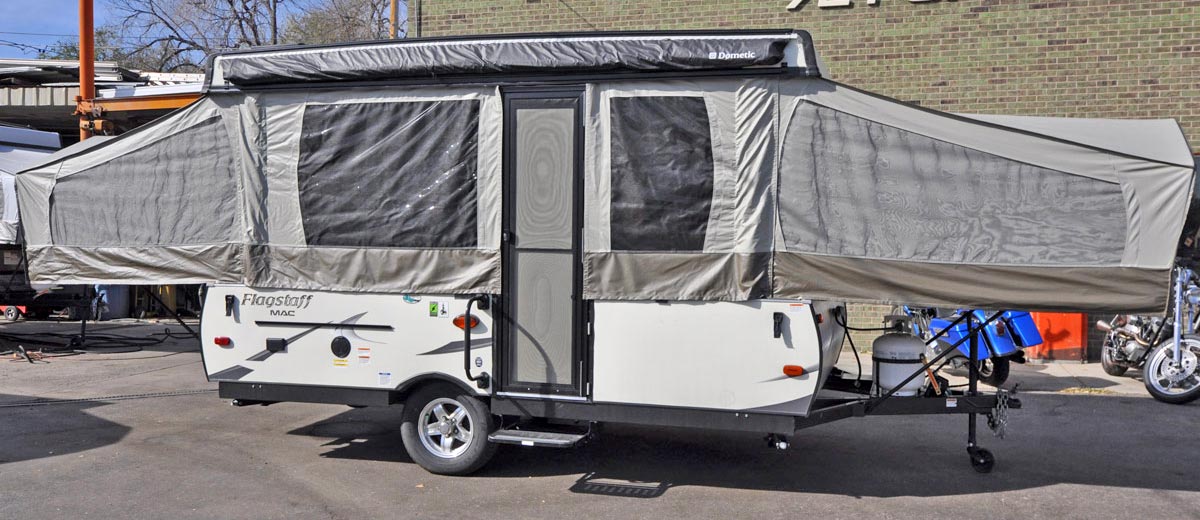

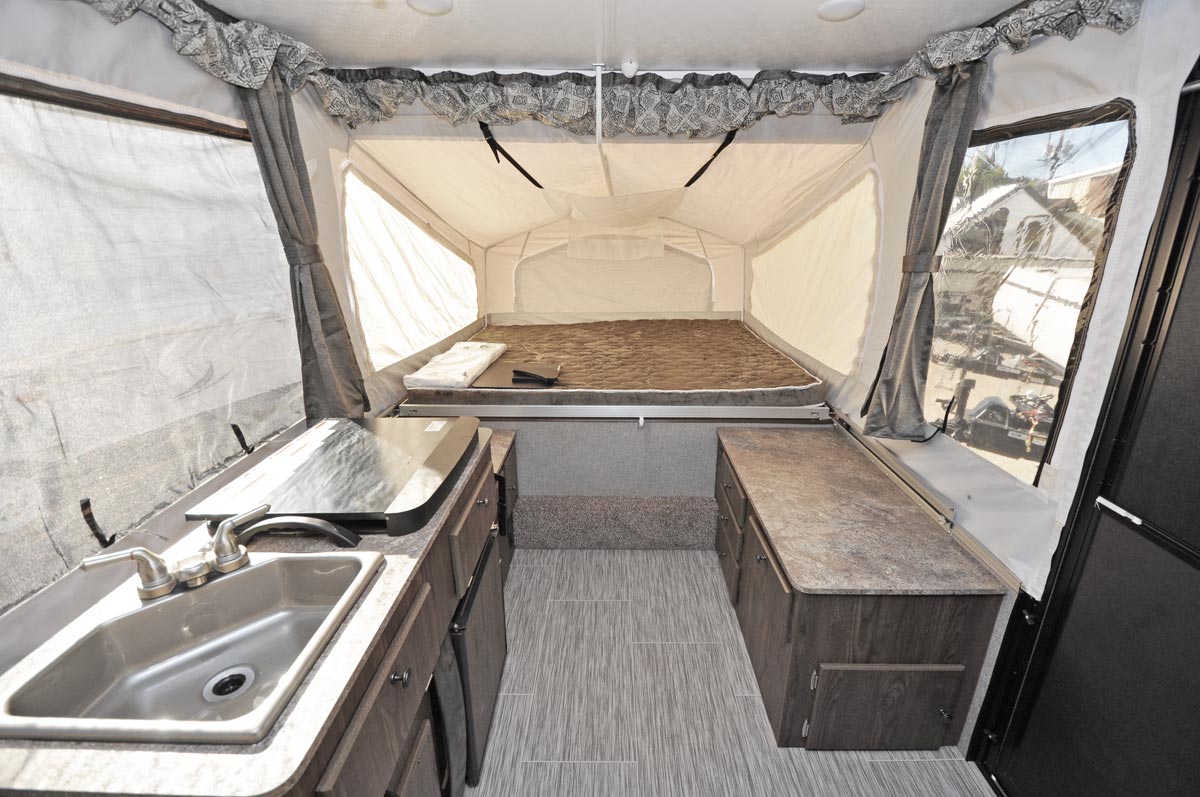

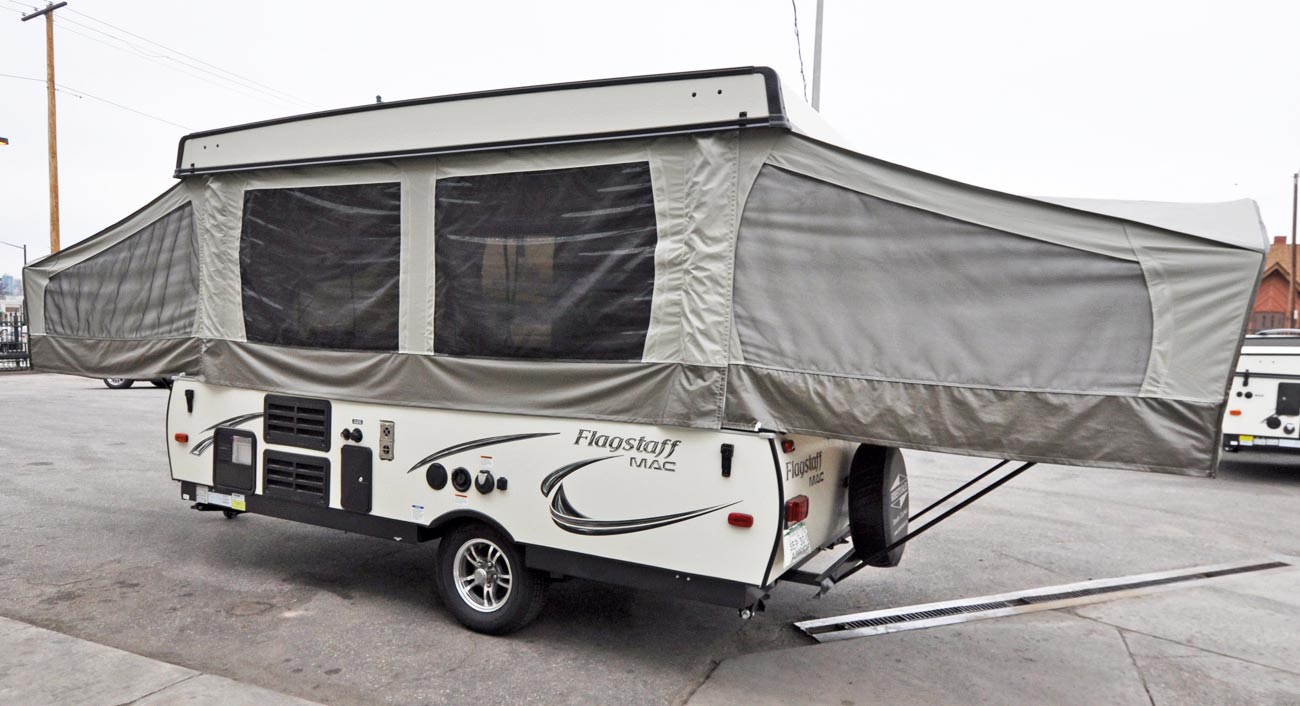

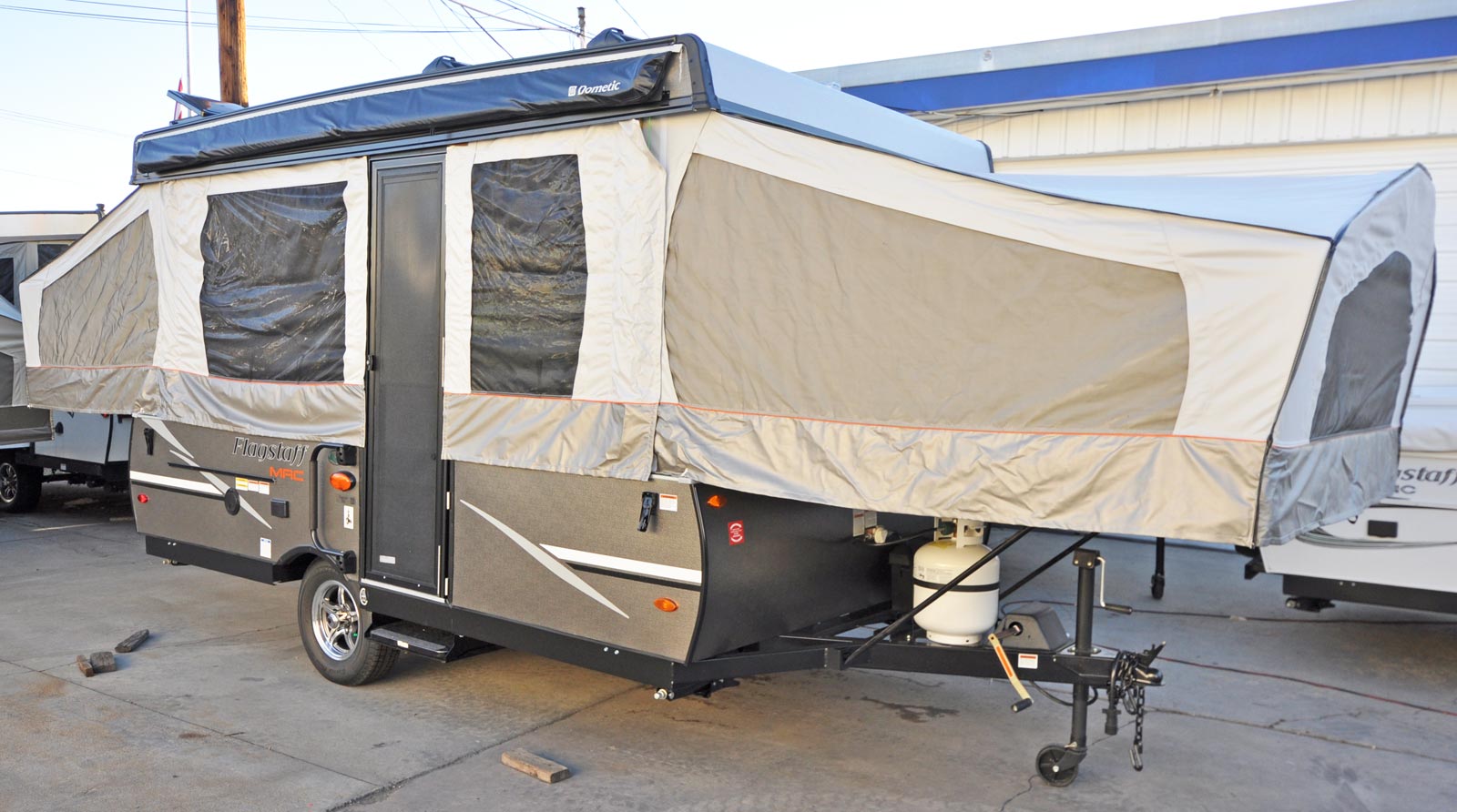

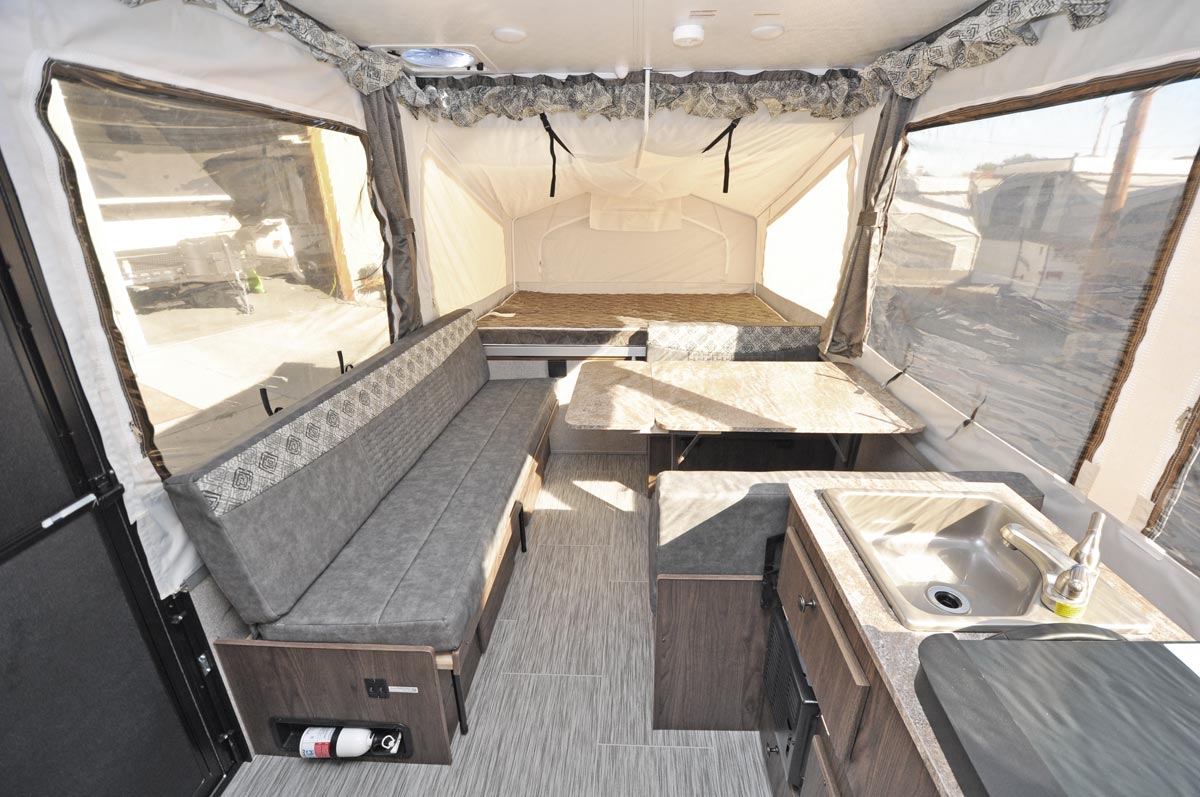

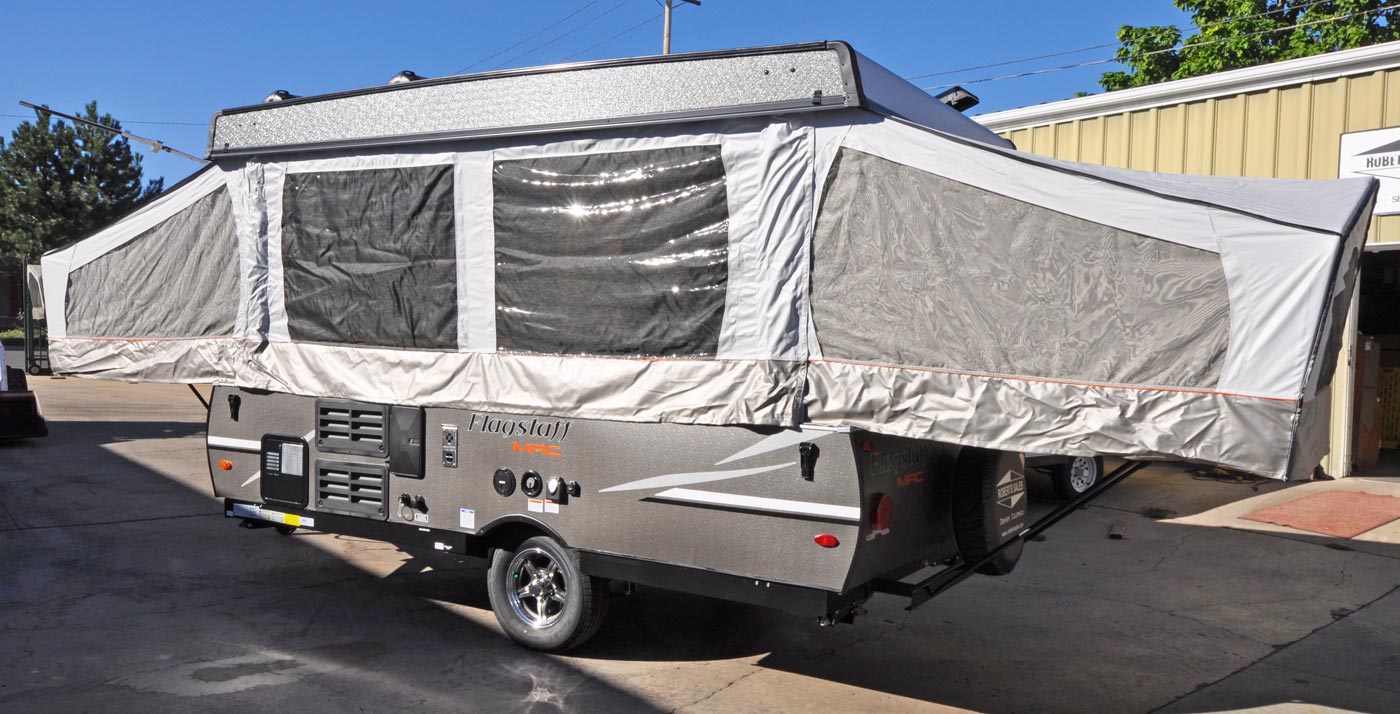

(2019 model year shown)

Highlights

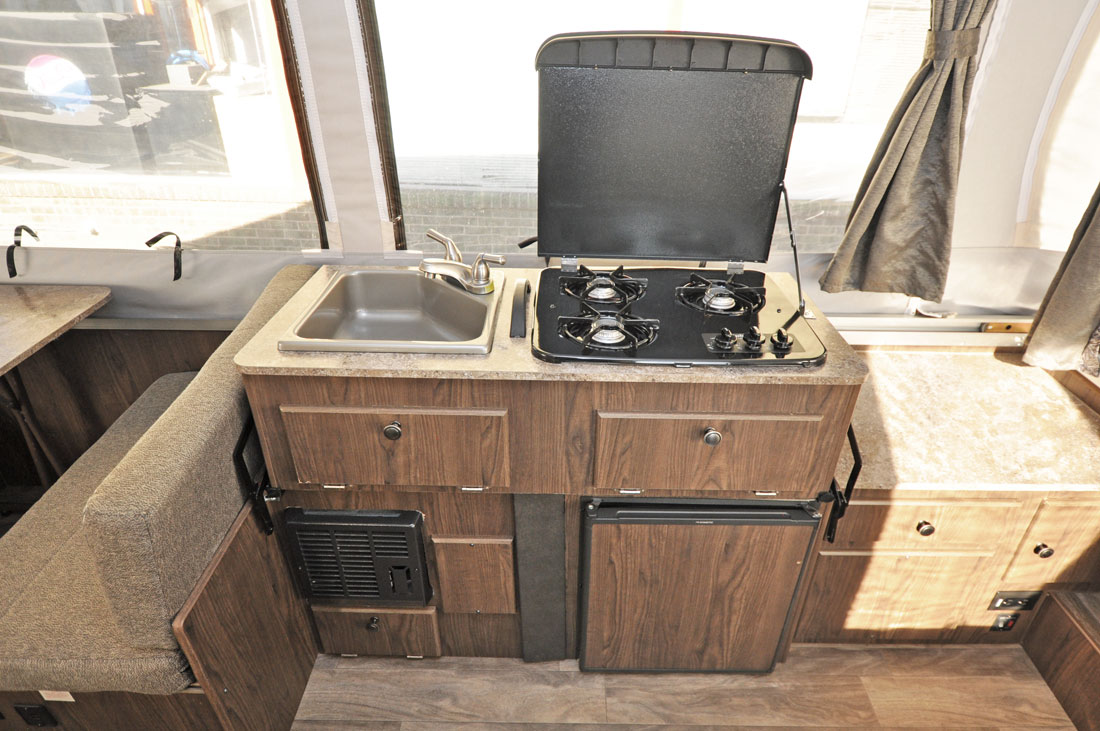

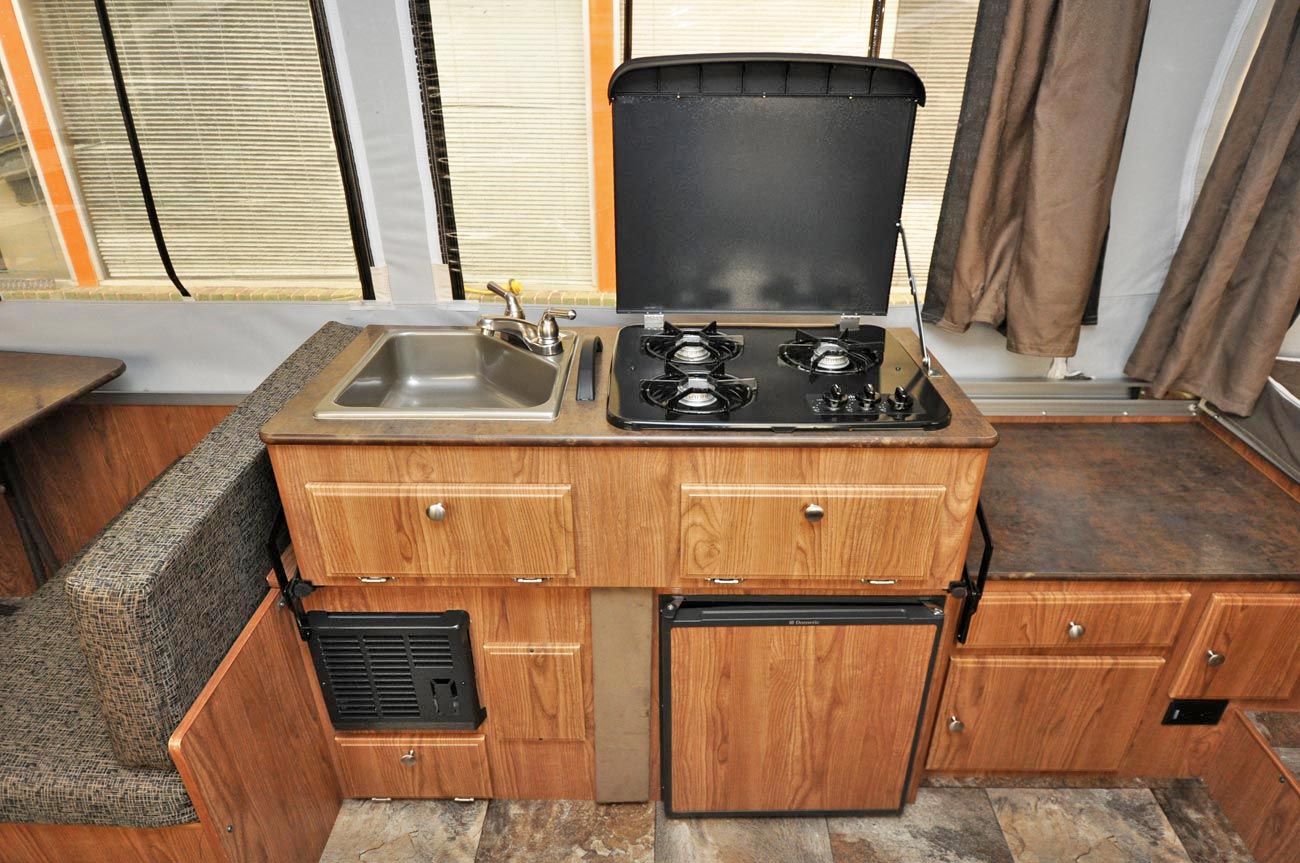

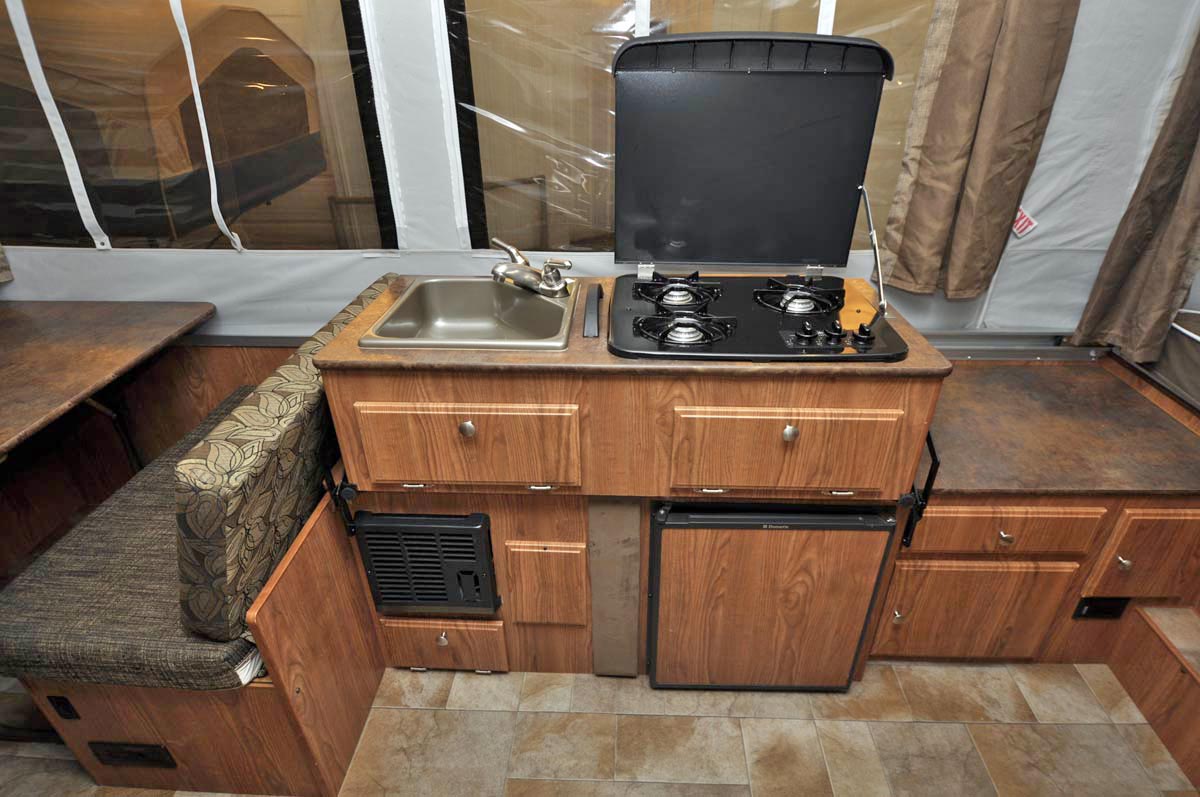

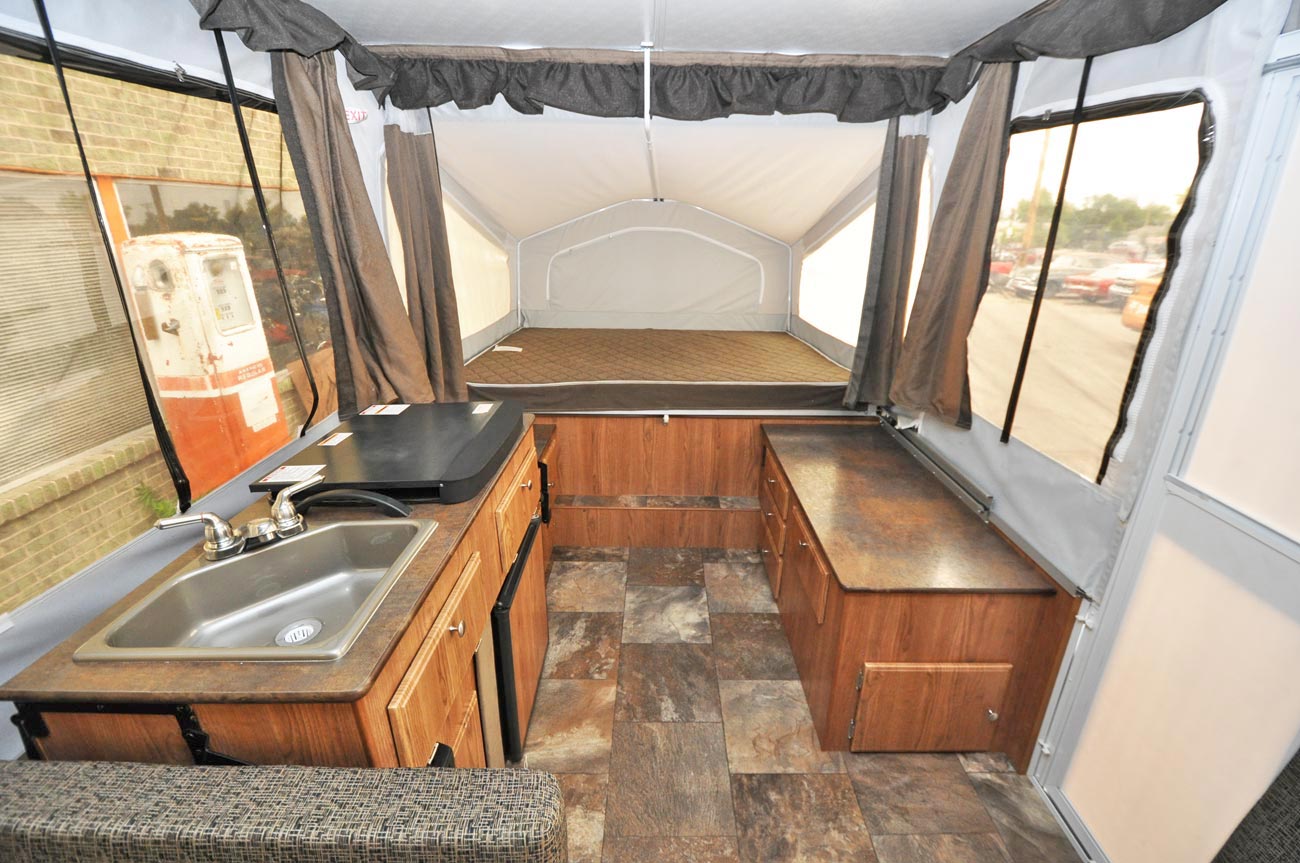

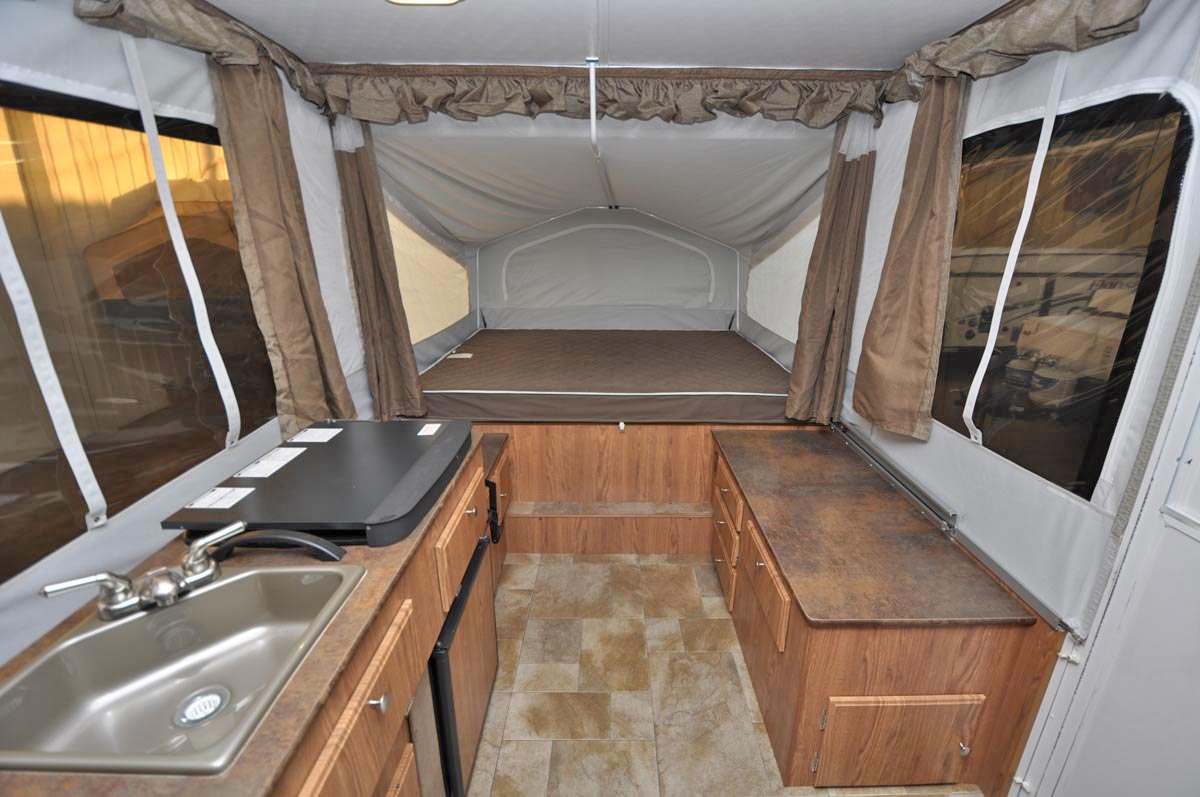

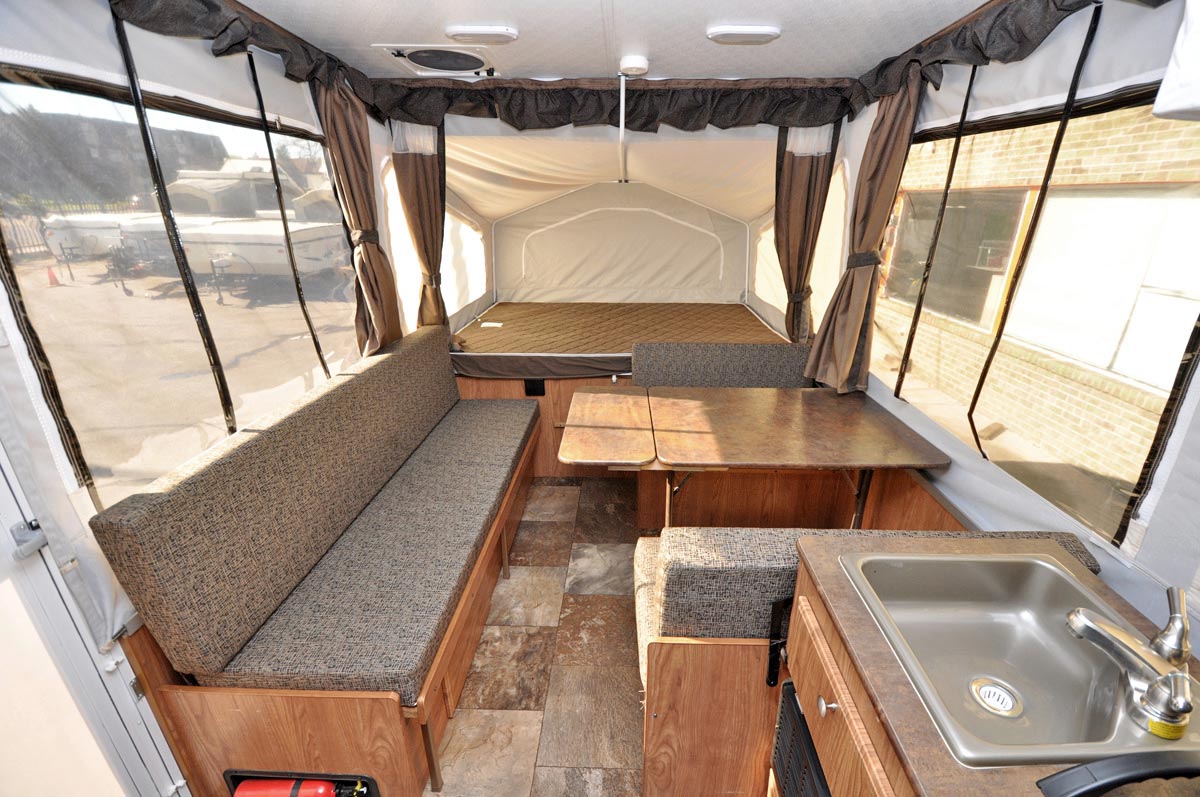

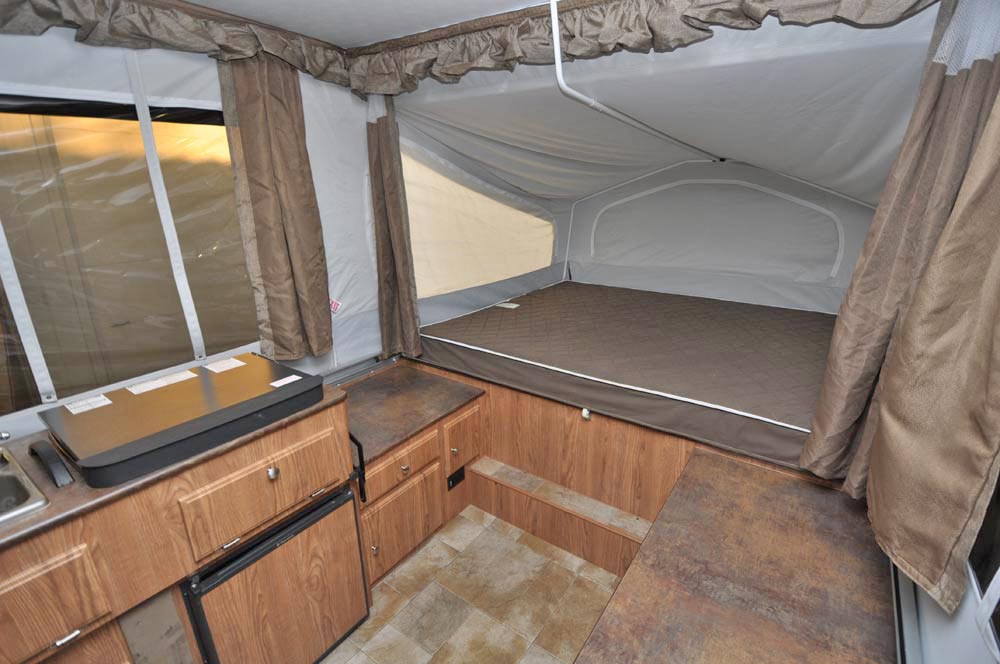

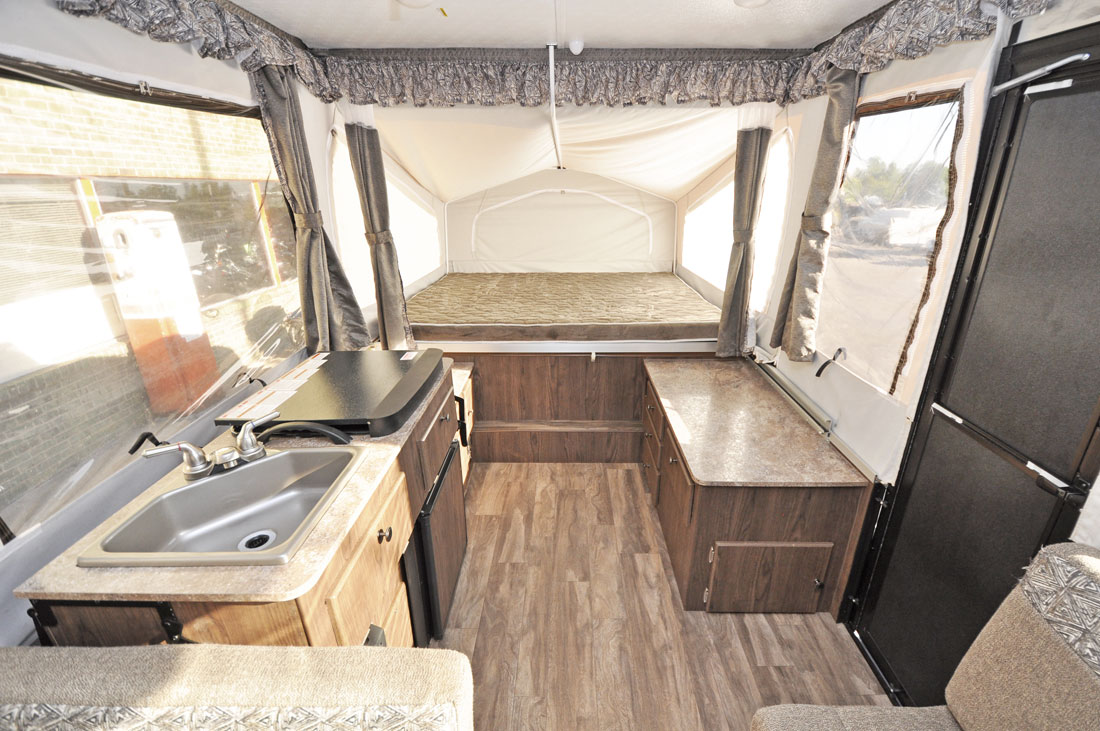

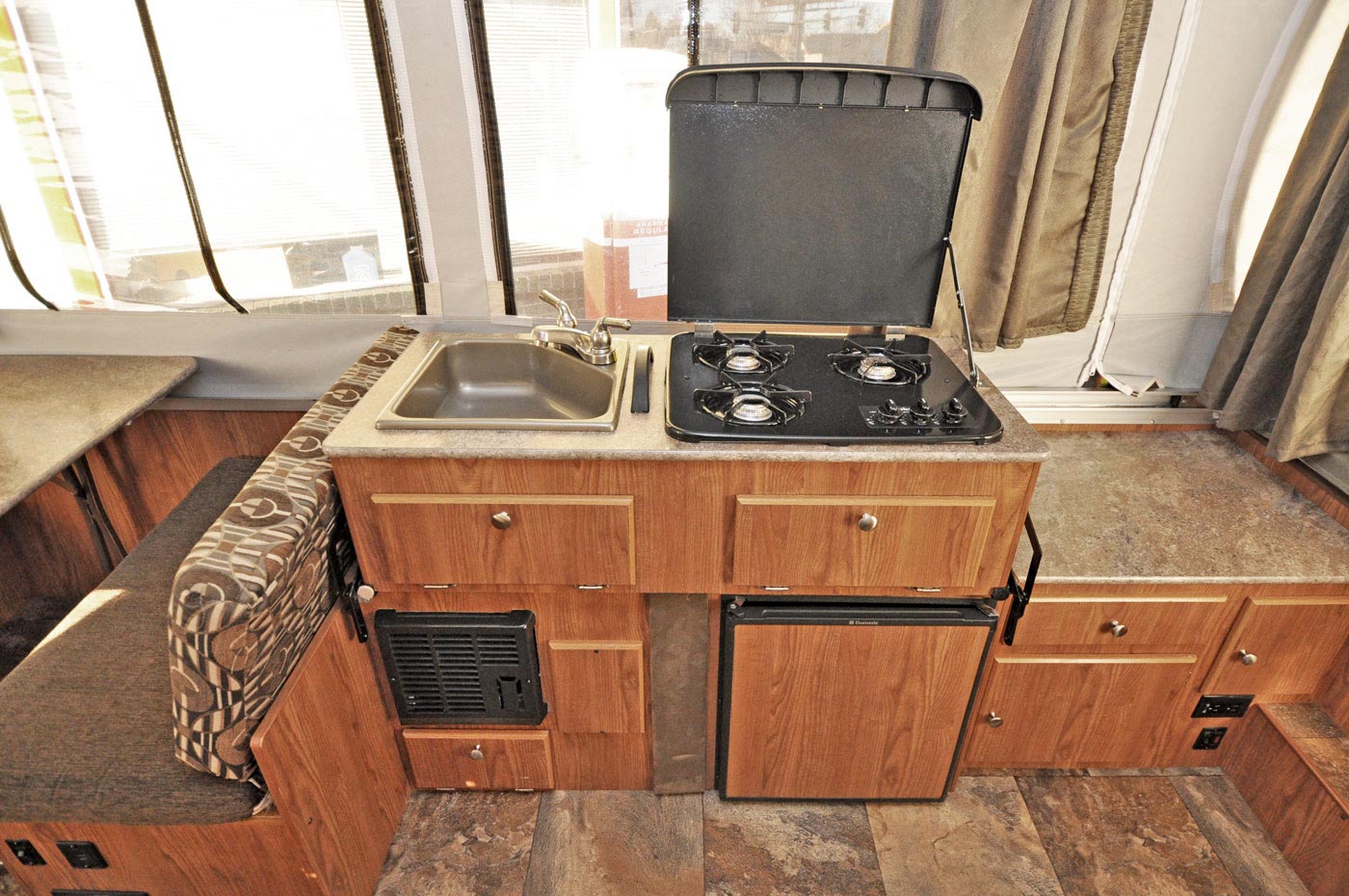

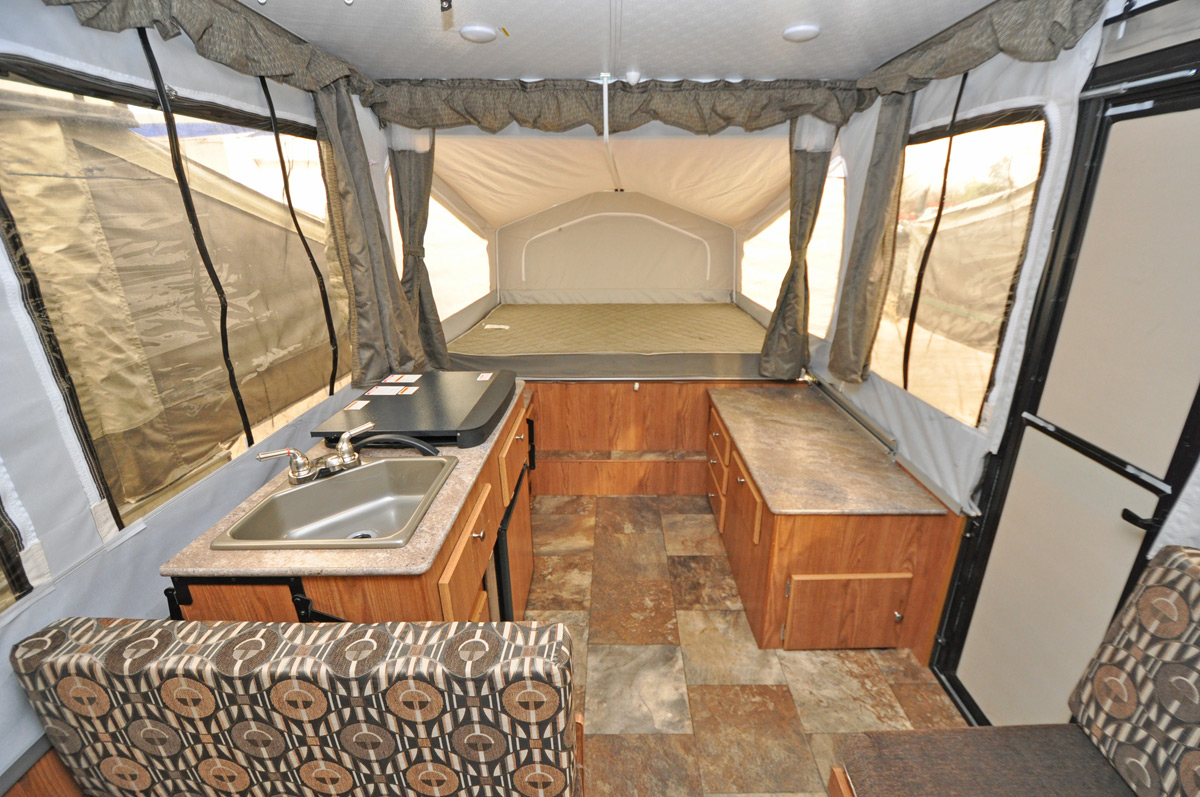

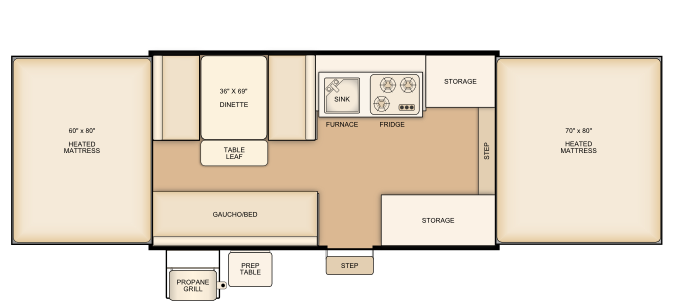

Four beds with a large dinette/sitting area and open galley area

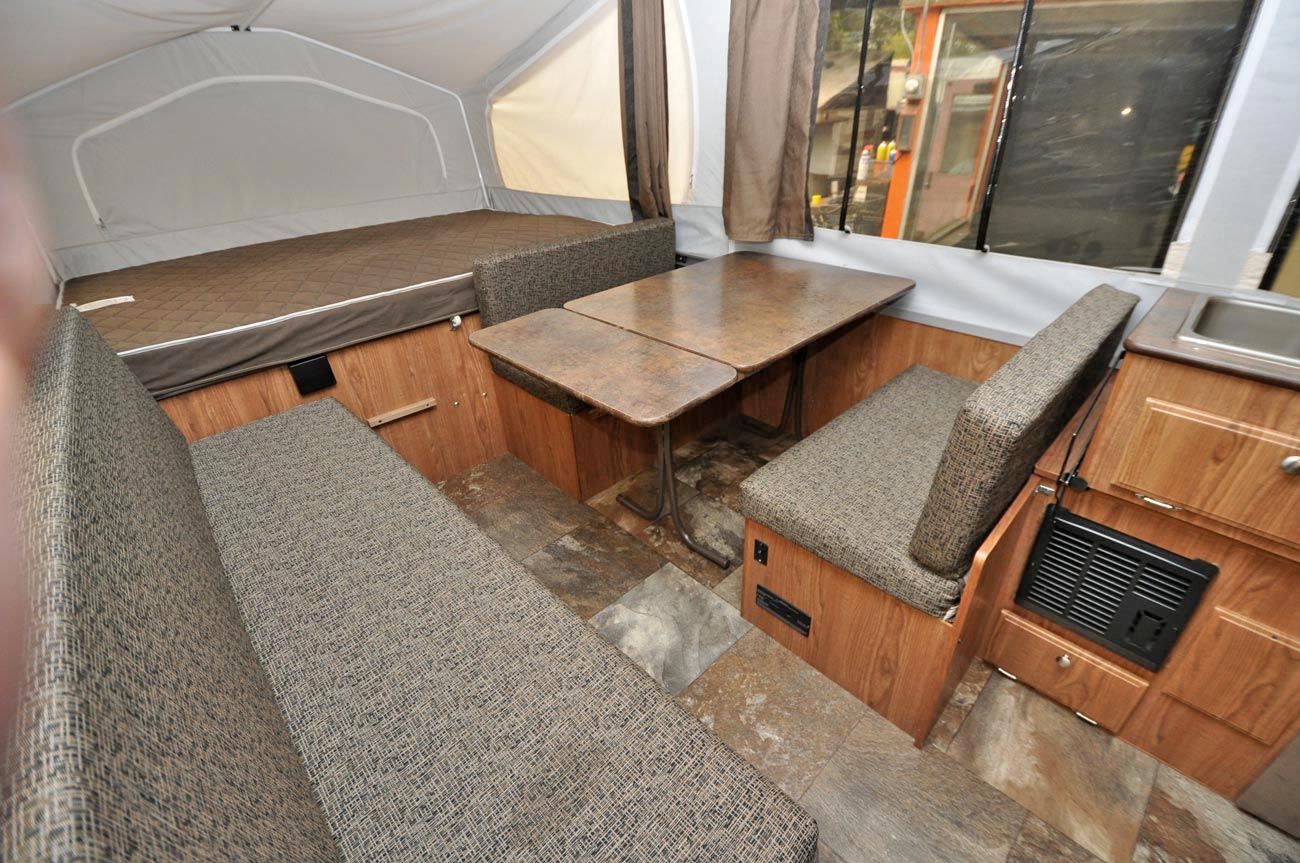

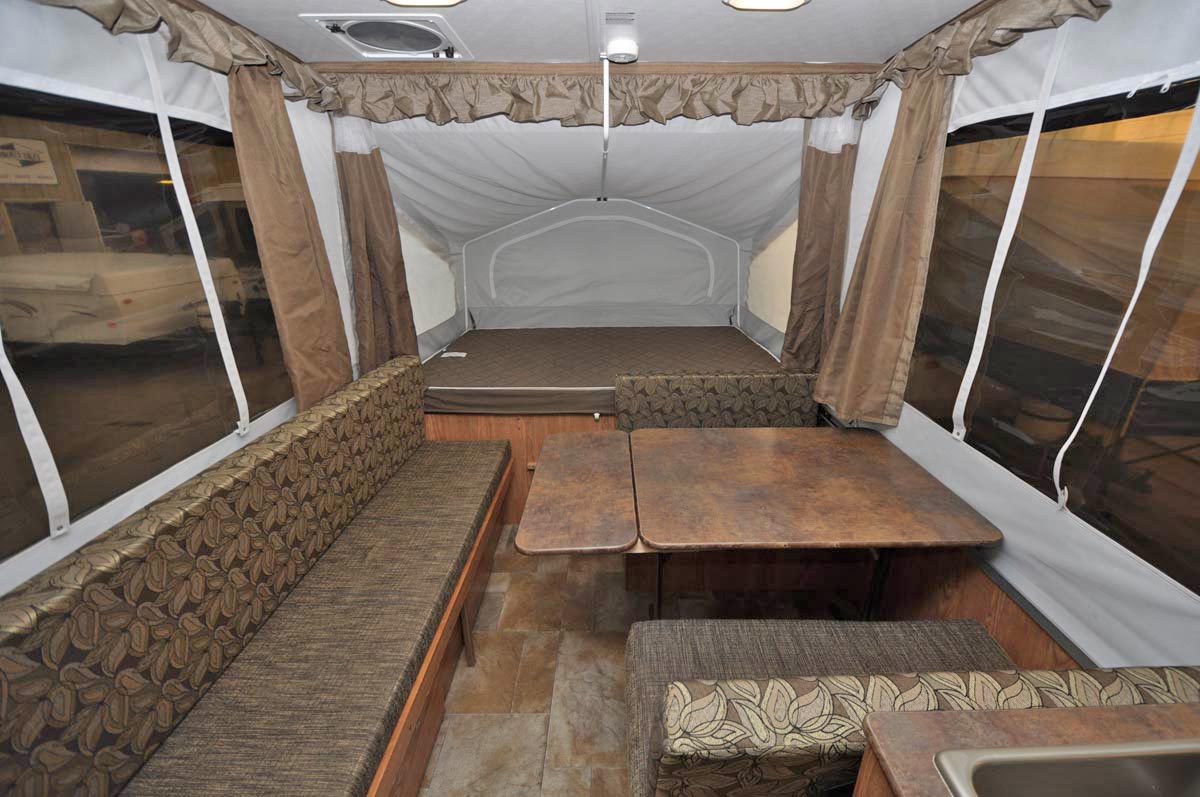

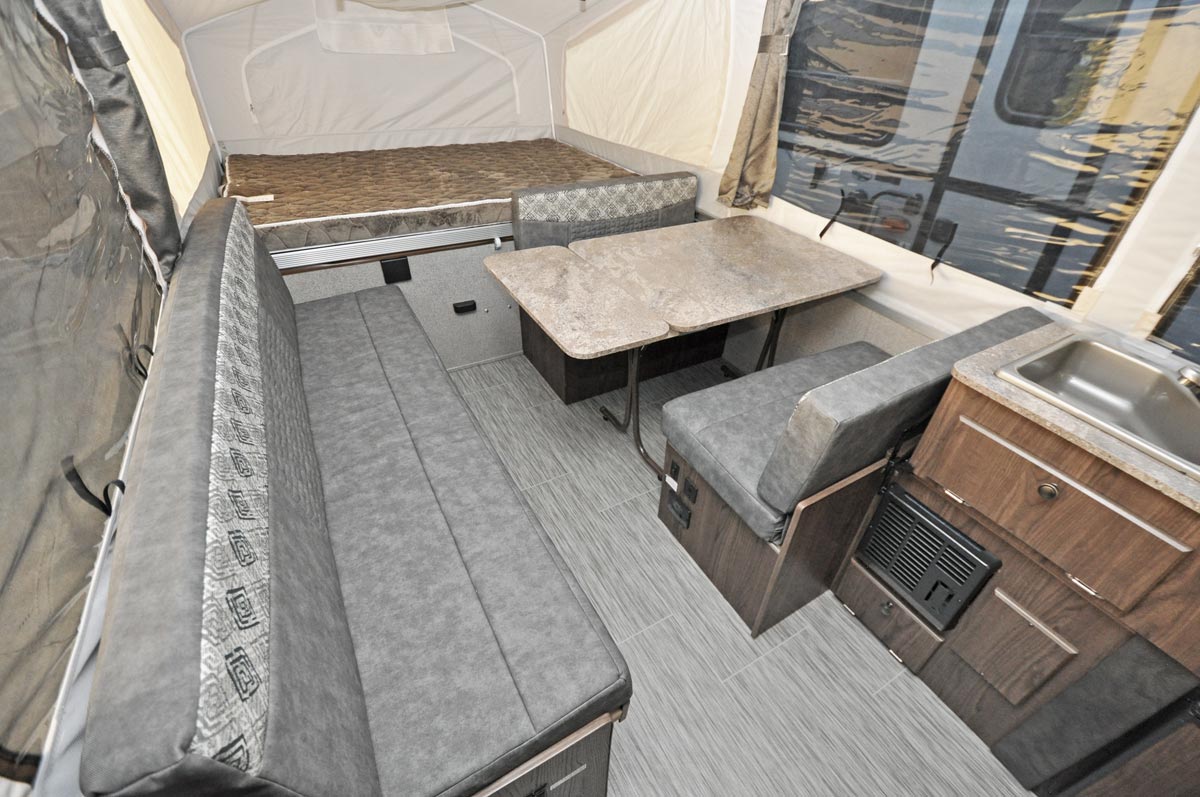

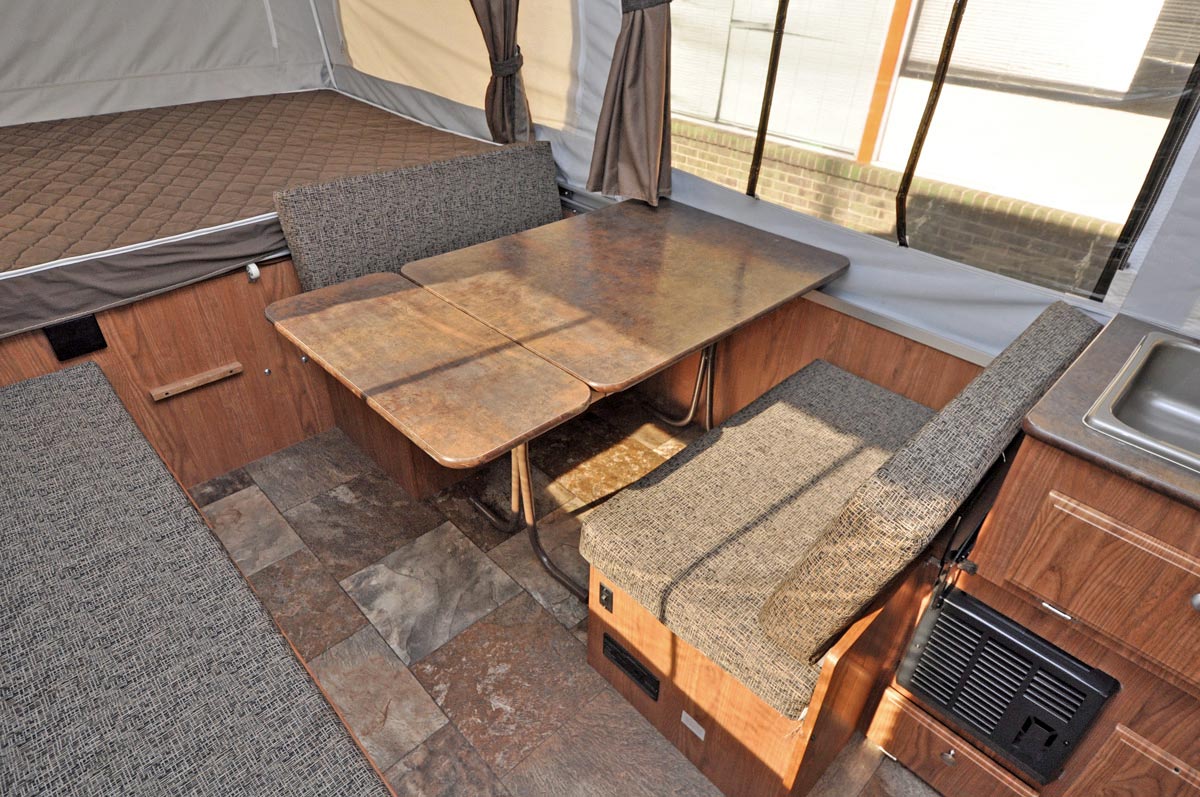

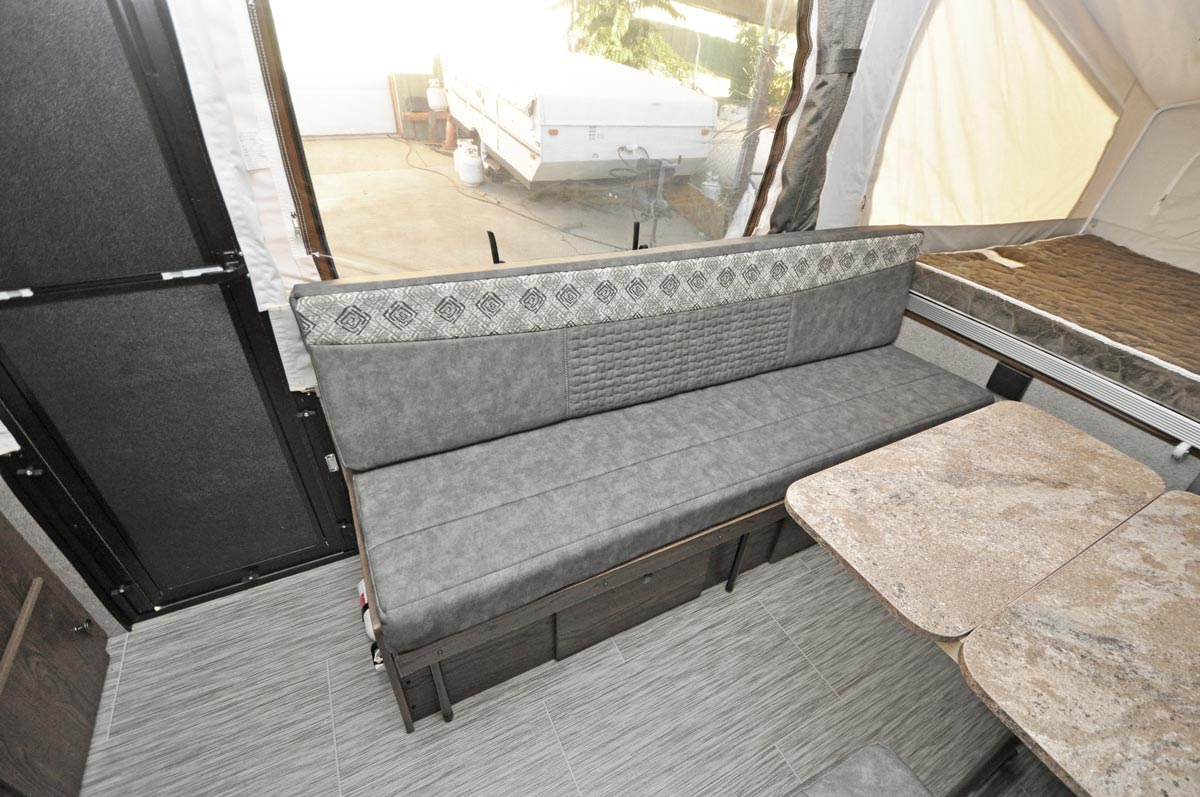

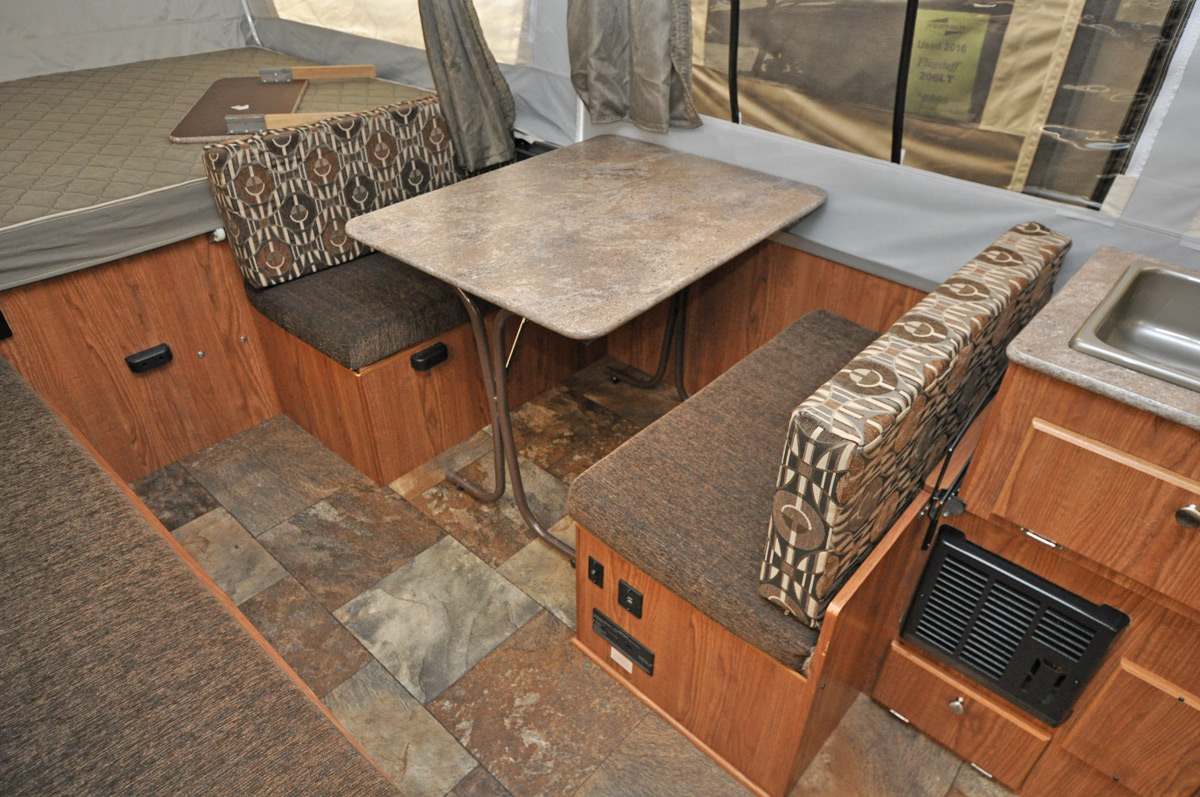

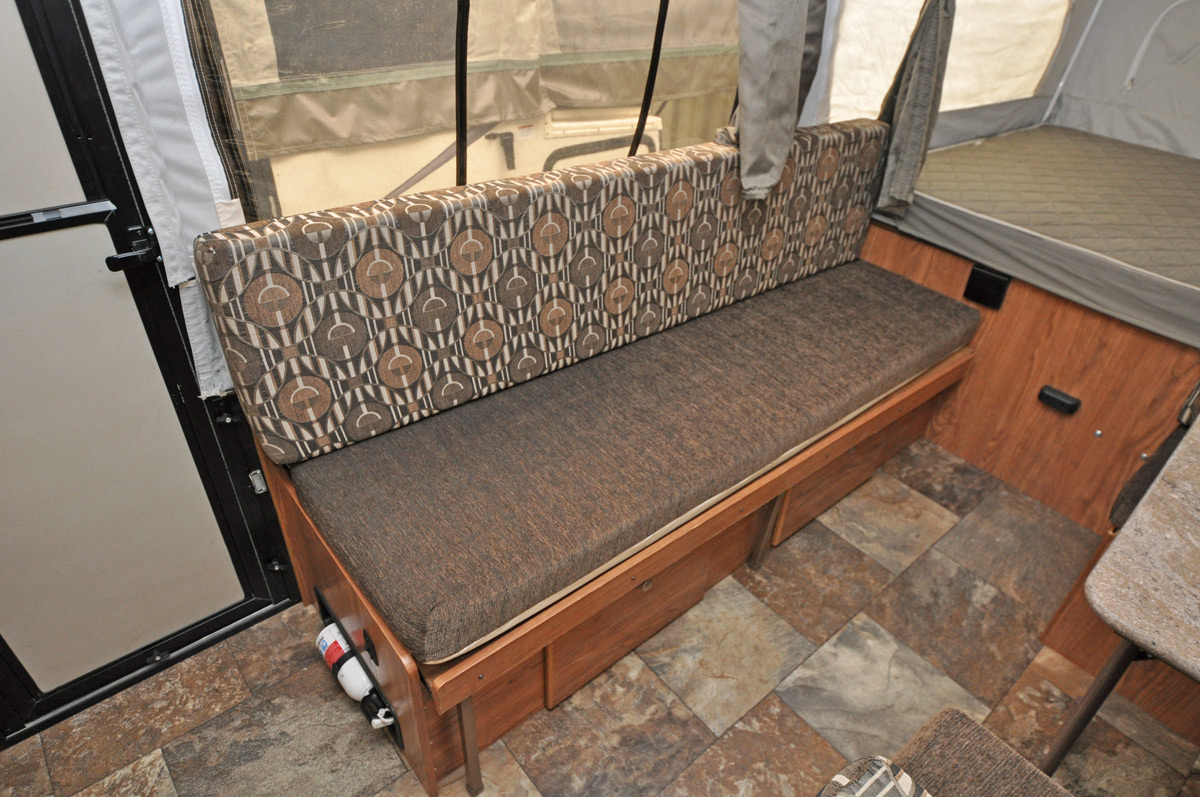

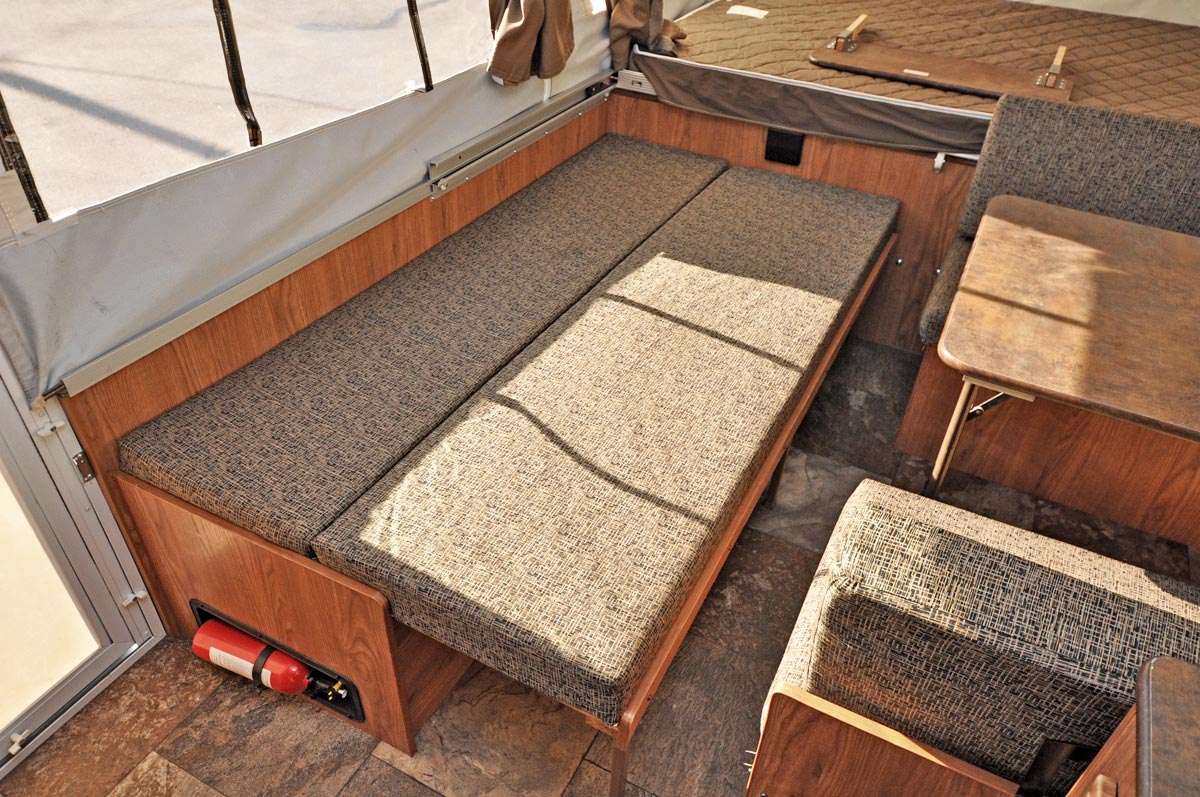

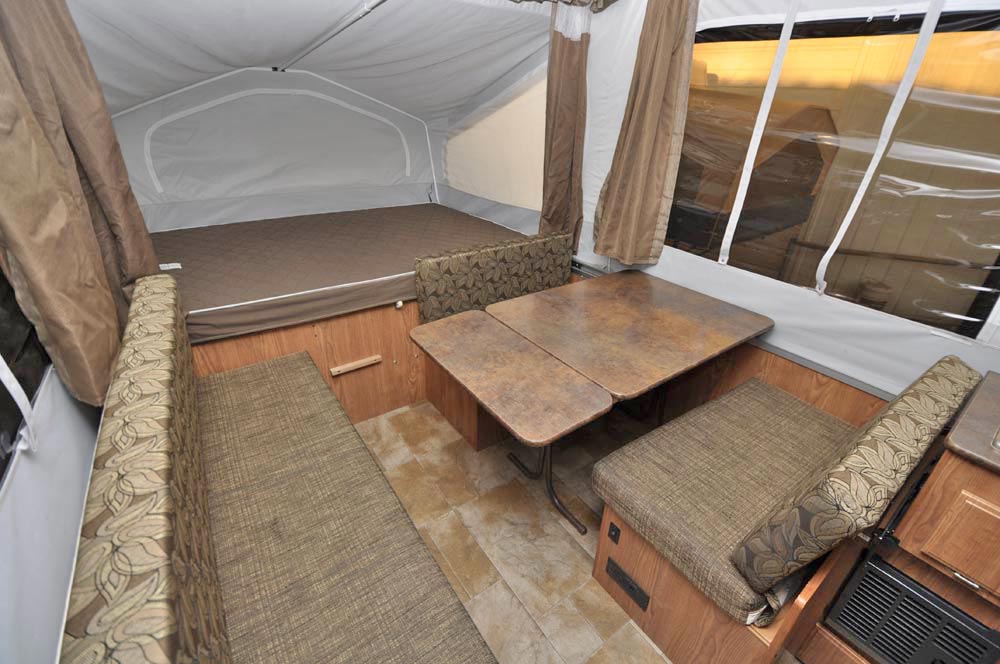

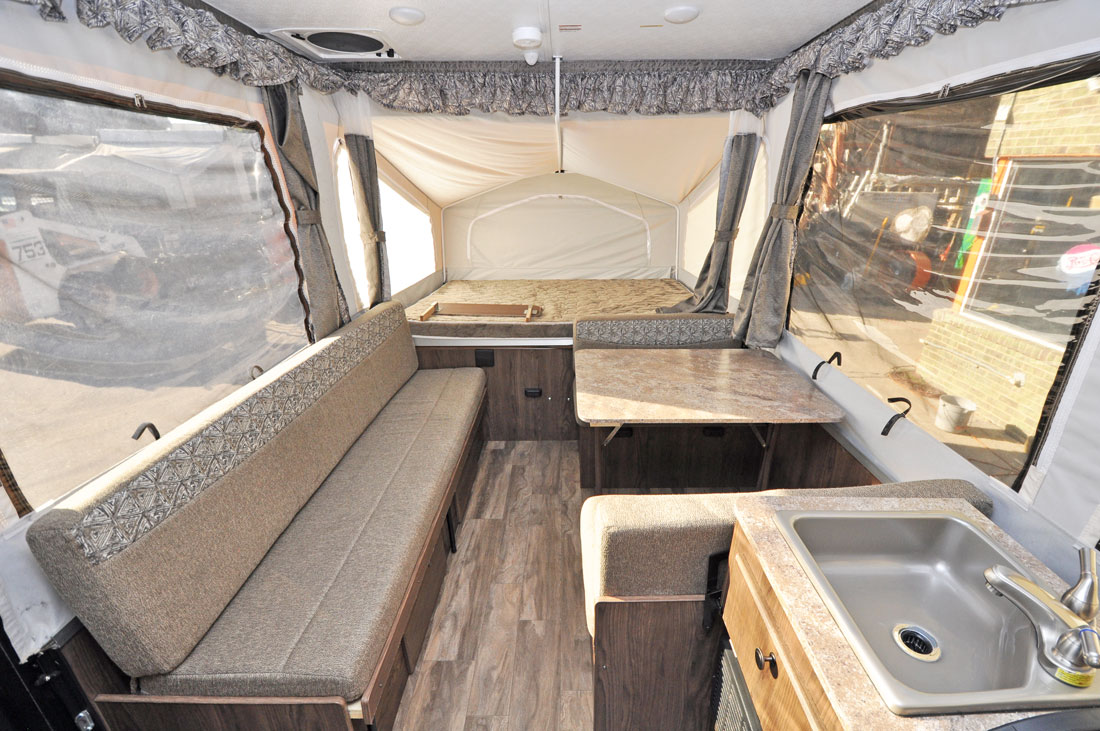

The dinette and gaucho together are great for shared meals and game time

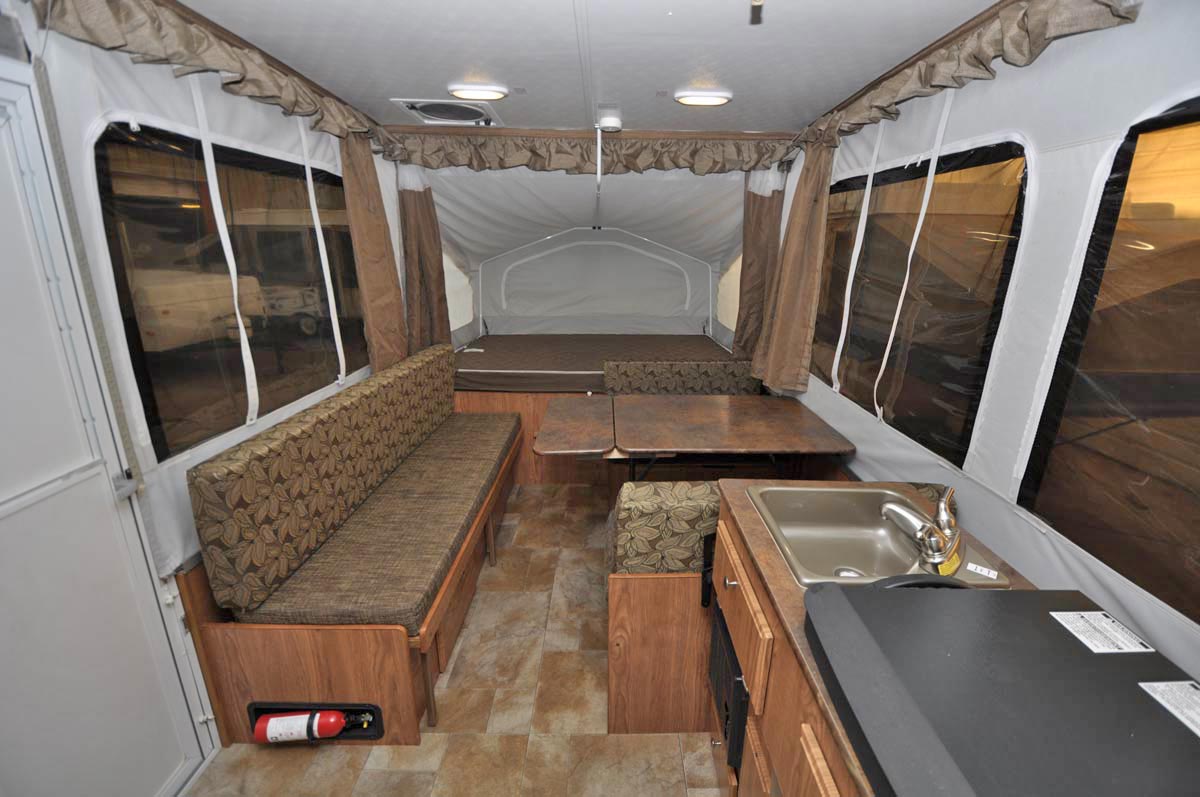

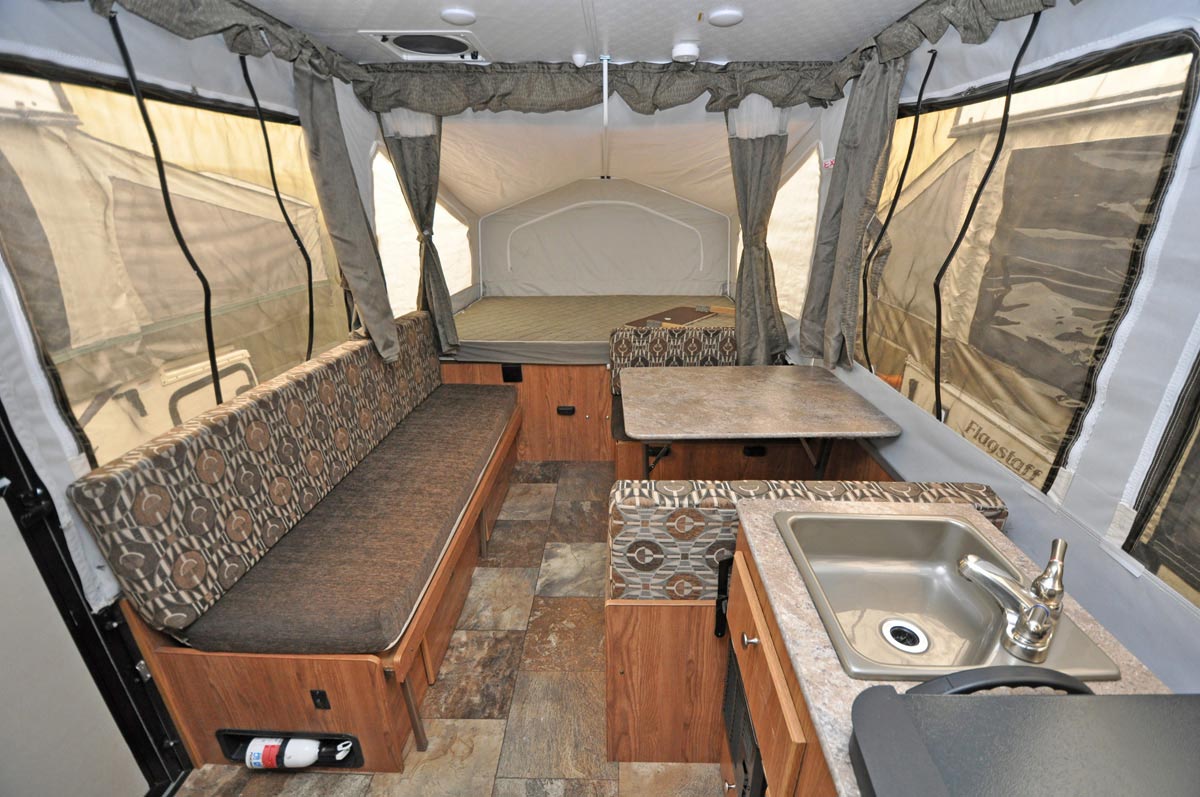

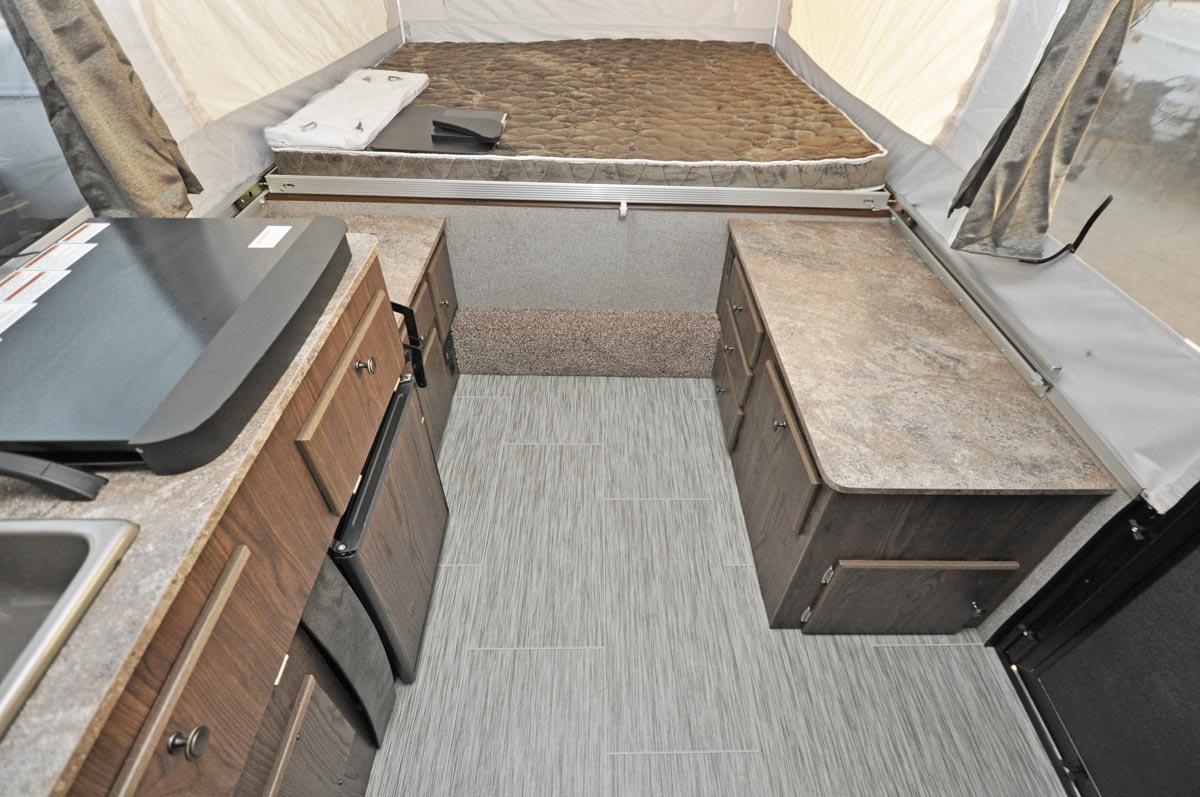

The full walkway from end to end makes getting to the end beds easy

Specifications

Box Size: 12'
Open Length: 23' 10"
Travel Length: brochure says 17' 2 "; actual (with spare tire) - 17' 3 "
Travel Width: 7' 6'
Dry Weight: 2278 lbs (brief weight explanation)
Hitch Weight: 289 lbs
GVWR: 3289 lbs
Coupler size: 2"
Sleeps: 8

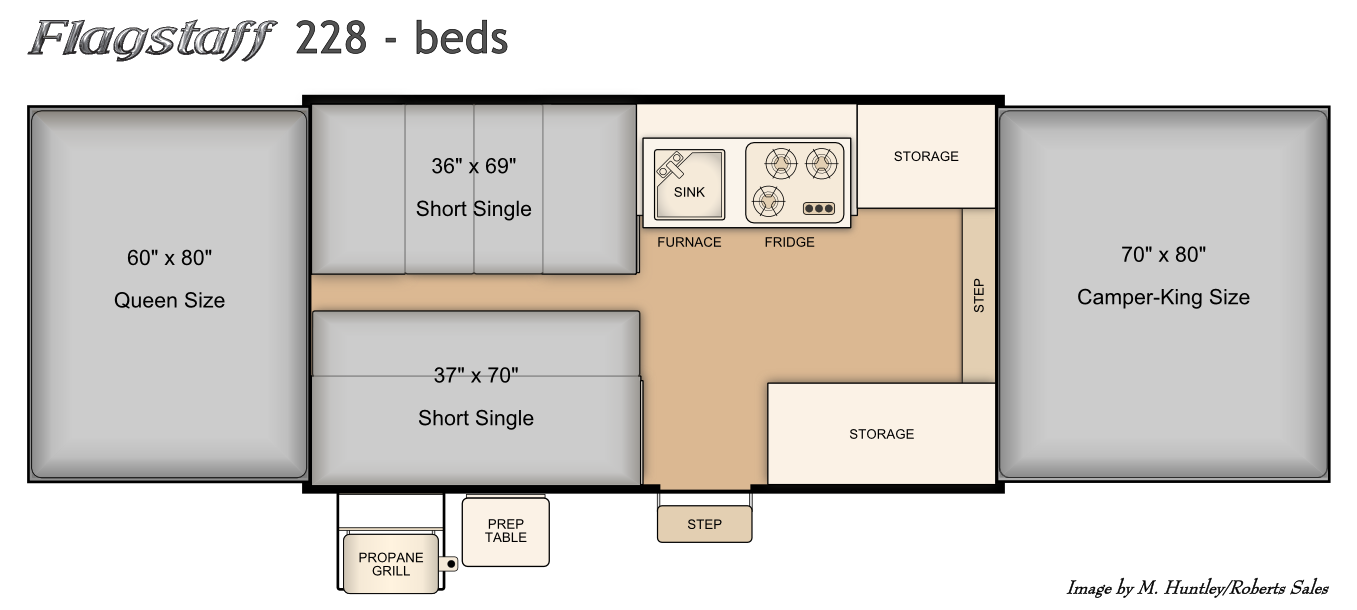

Beds:
1. 80" x 70"
2. 80" x 60"
3. 69" x 36"
4. 70" x 37"

Features

6-gallon water heater with automatic ignition and exterior shower fixture

...as well as these features standard with the MAC series:

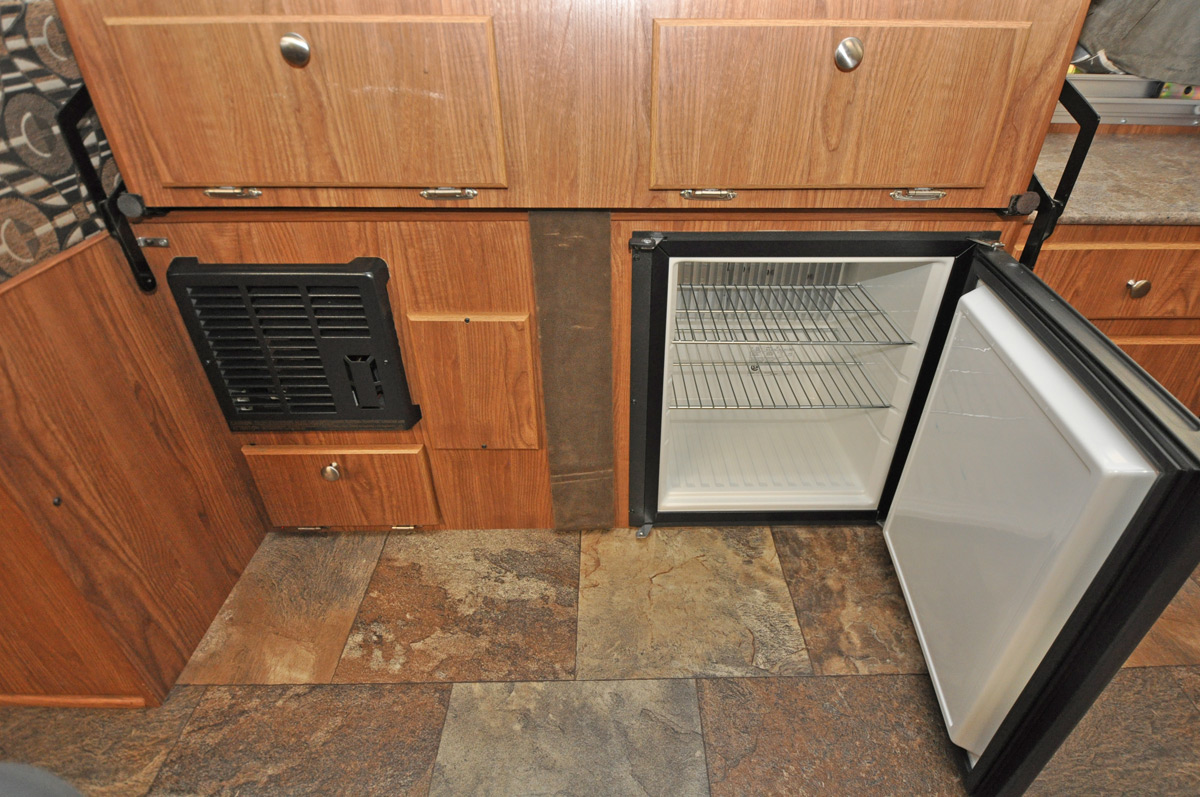

Dometic 1.9 cu. ft. 3-way refrigerator
Suburban 19,000 BTU furnace with automatic ignition

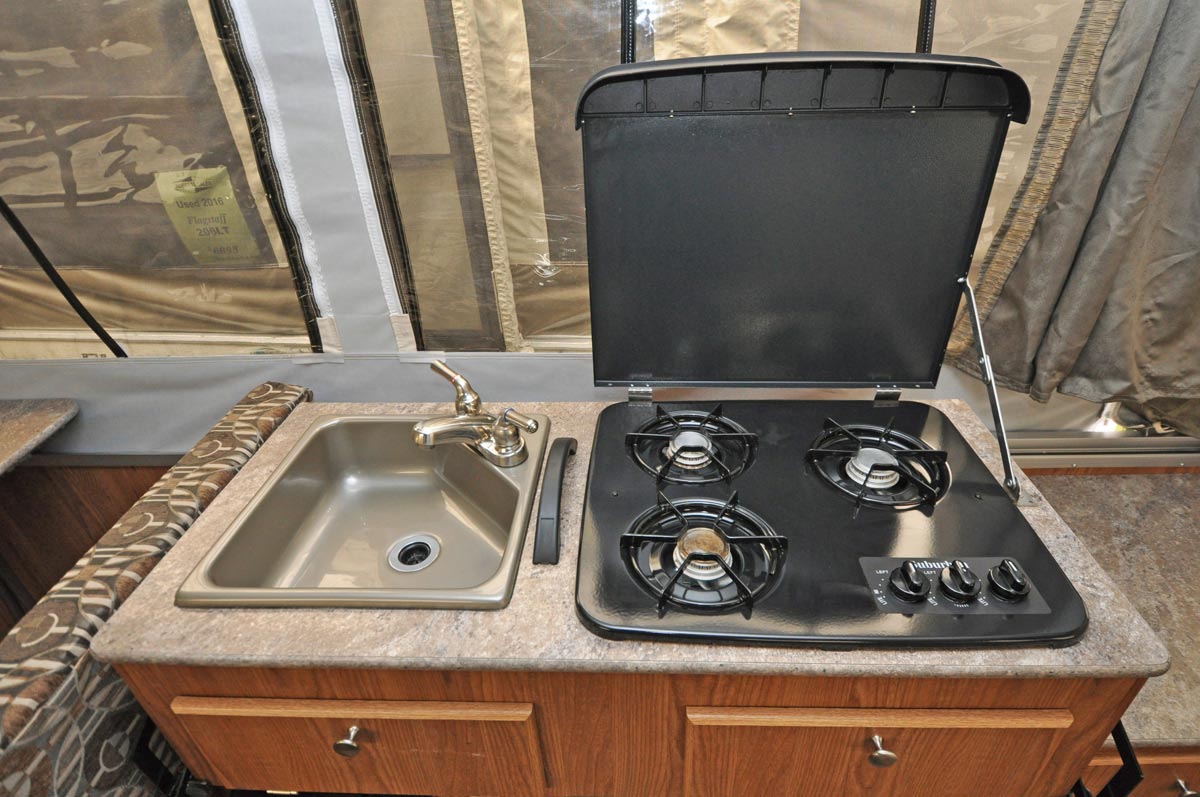

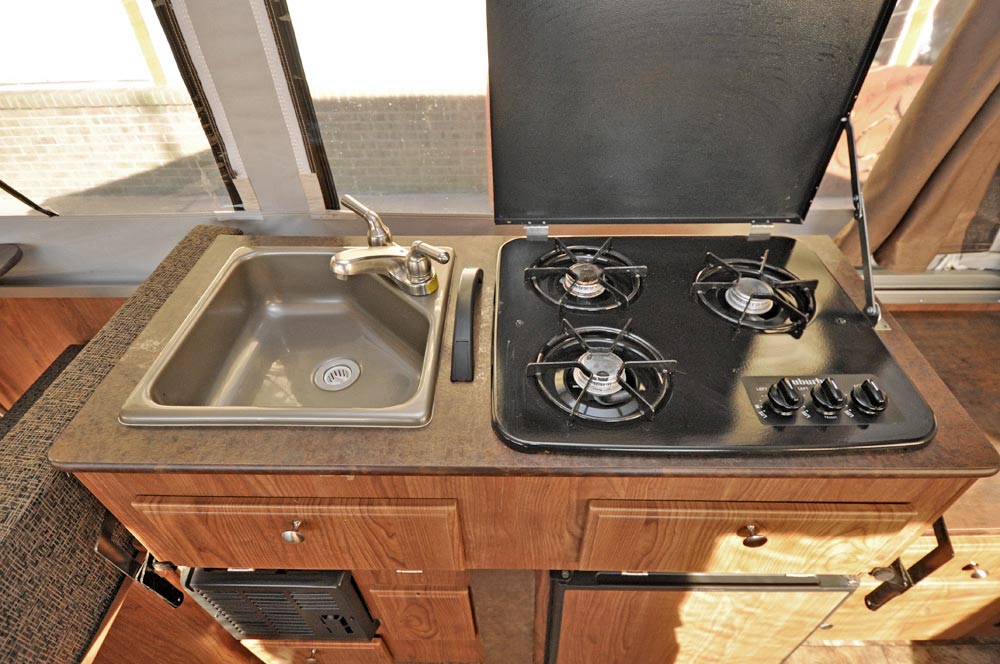

Interior 3-burner stove
Exterior propane grill
20-gallon water tank

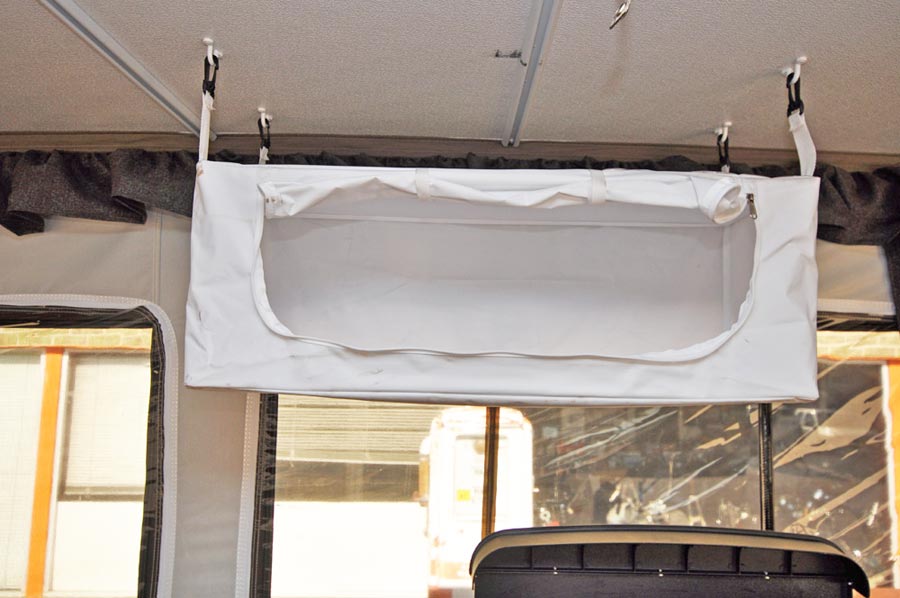

Overhead cabinet
Group 27 battery pack
110V heated 3.5" foam mattresses
Privacy curtains

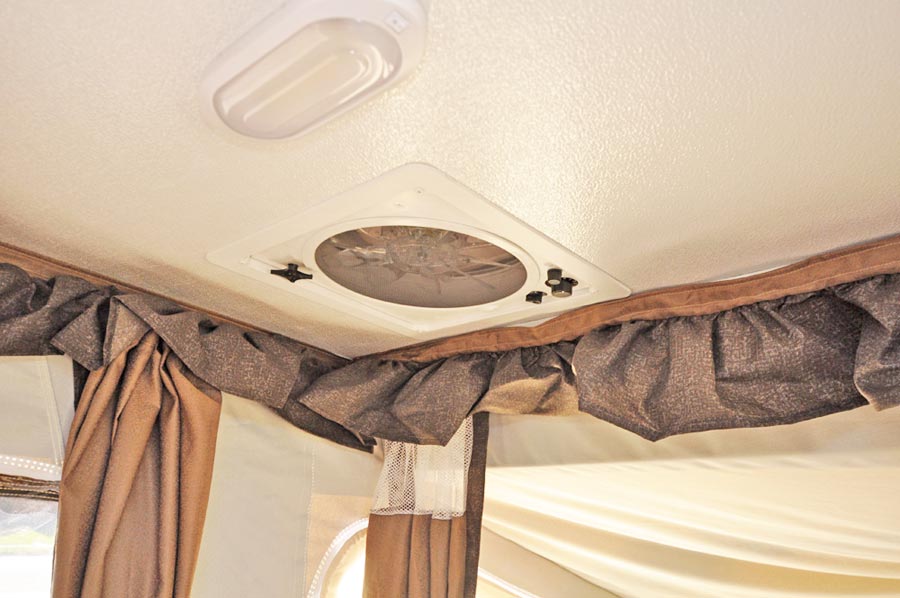

Powered roof vent
Prep table (hangs outside next to the grill)
1-piece door
Awning
20# propane tank
13" aluminum wheels

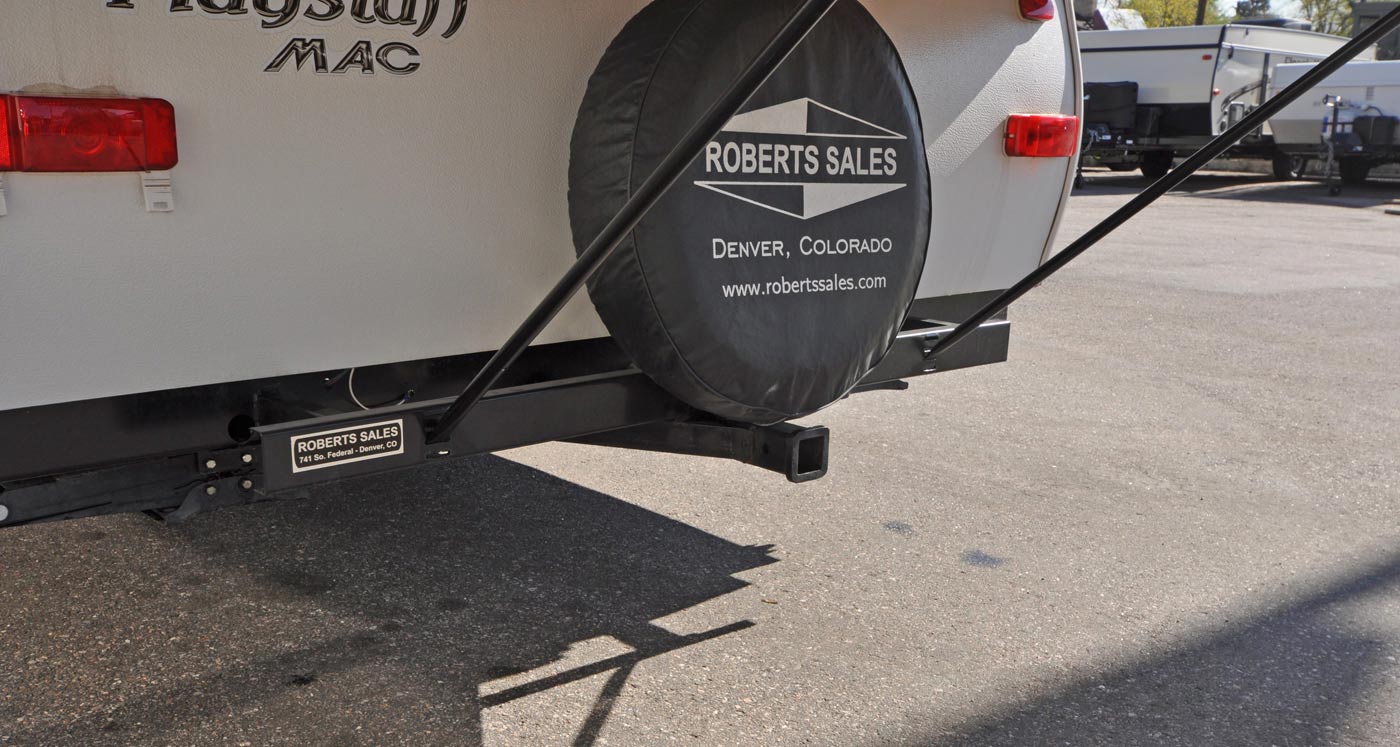

Spare tire (with a steel wheel)
Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

228 w/shower - Identical layout but with an interior shower/cassette toilet.
228BHSE - Identical interior layout but with a Bike Hauler front storage deck and Sports Enthusiast 15" wheels and tires, stereo, and gray exterior.
228D - The slide-out version of the 228 layout.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
