Flagstaff 620ST

(2000-2013)

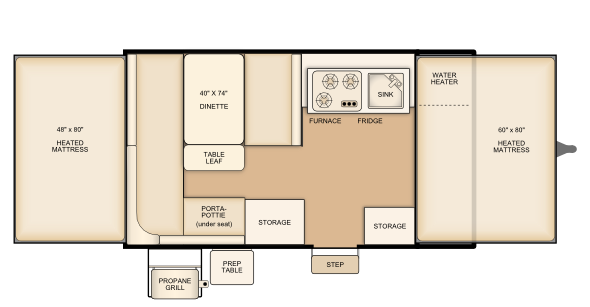

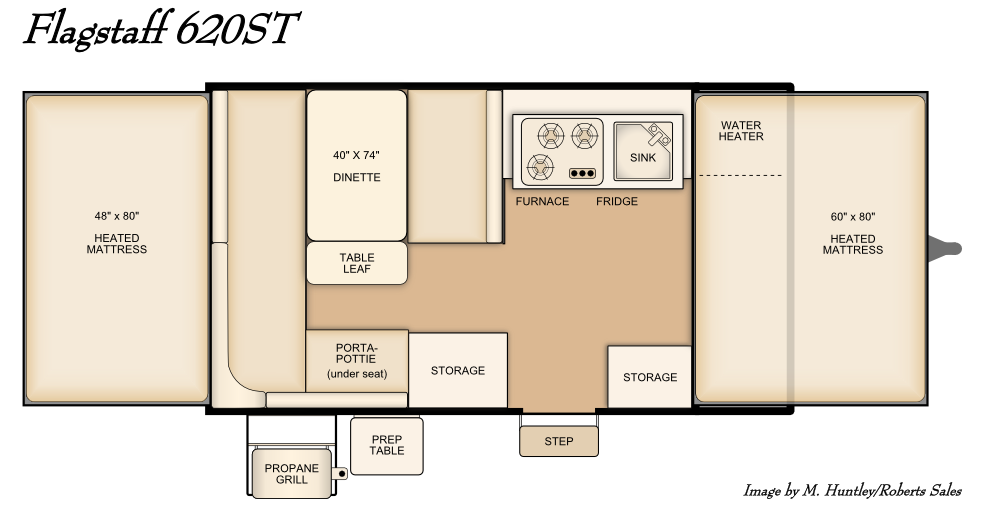

620ST floorplan

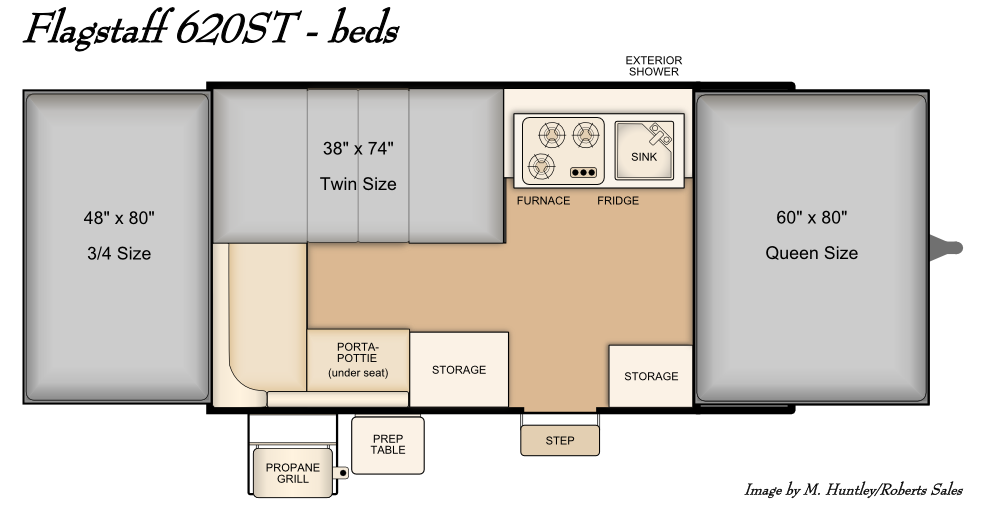

Bed Layout for this model

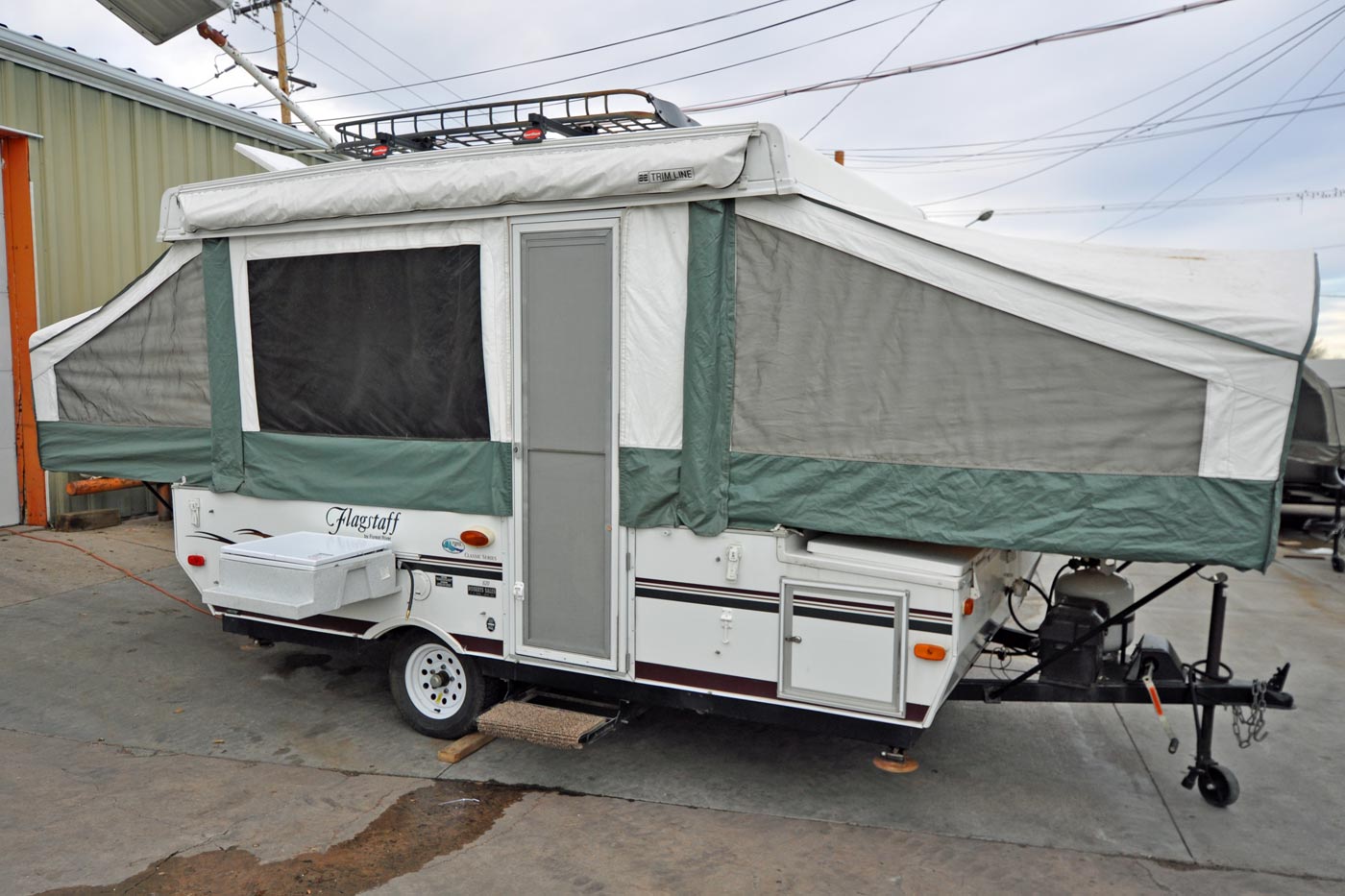

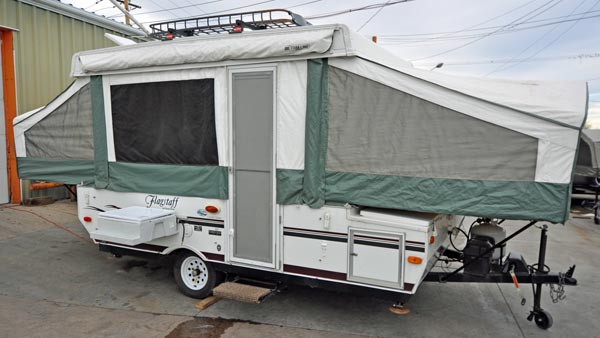

2006 Flagstaff 620ST exterior

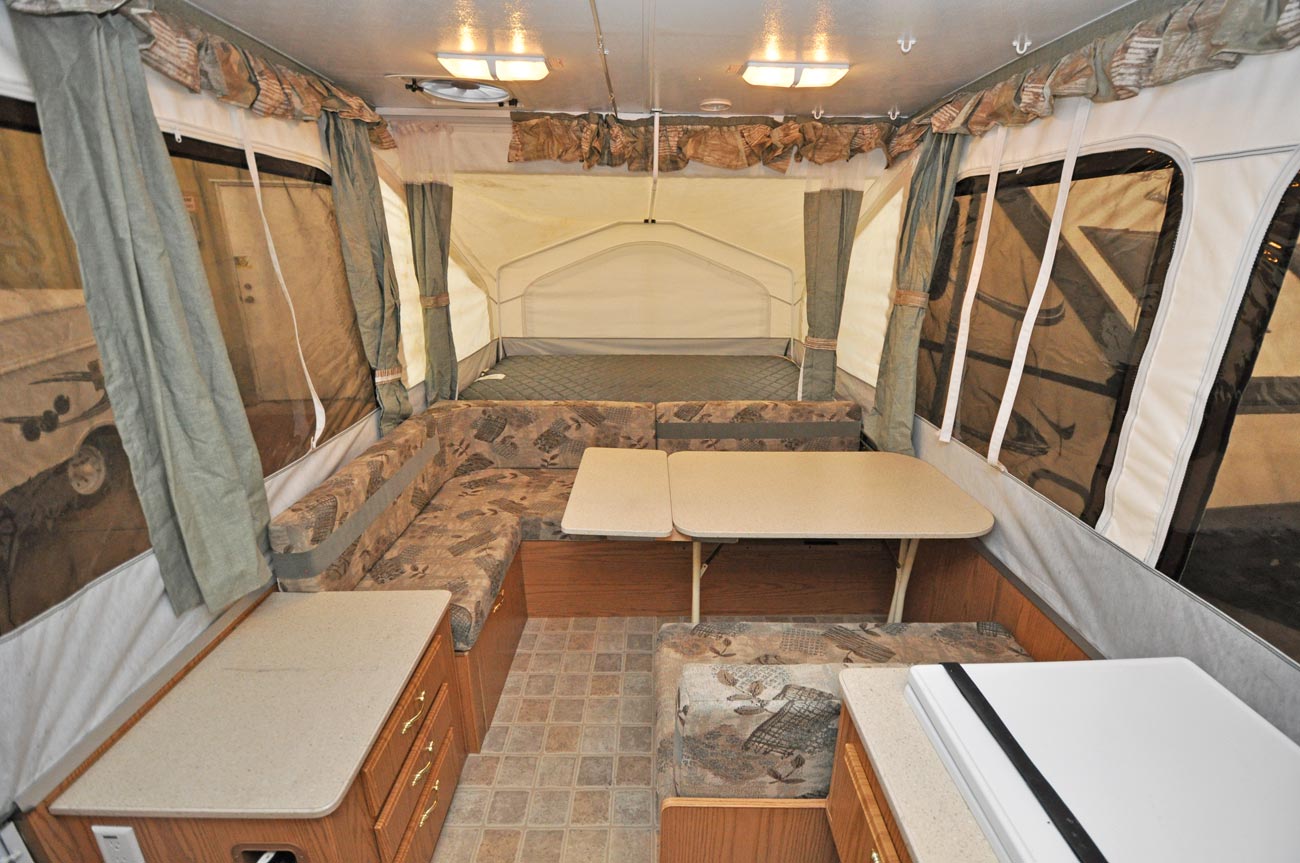

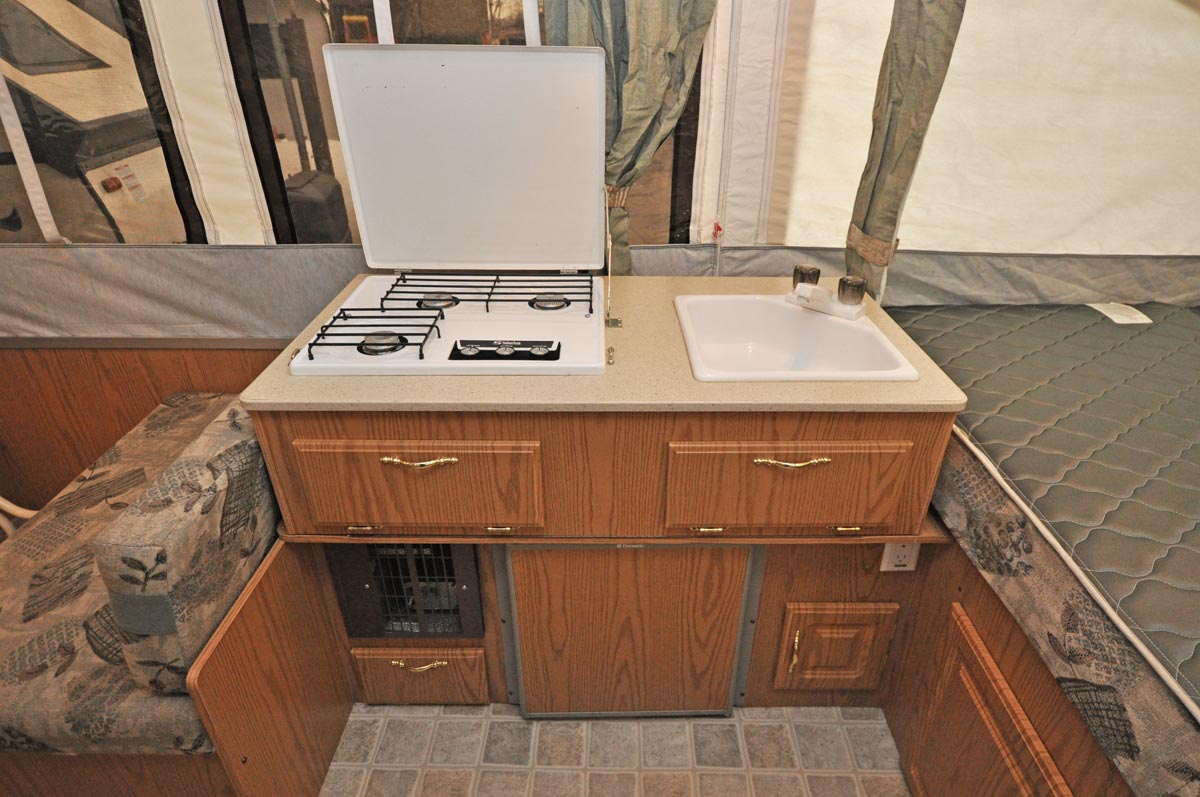

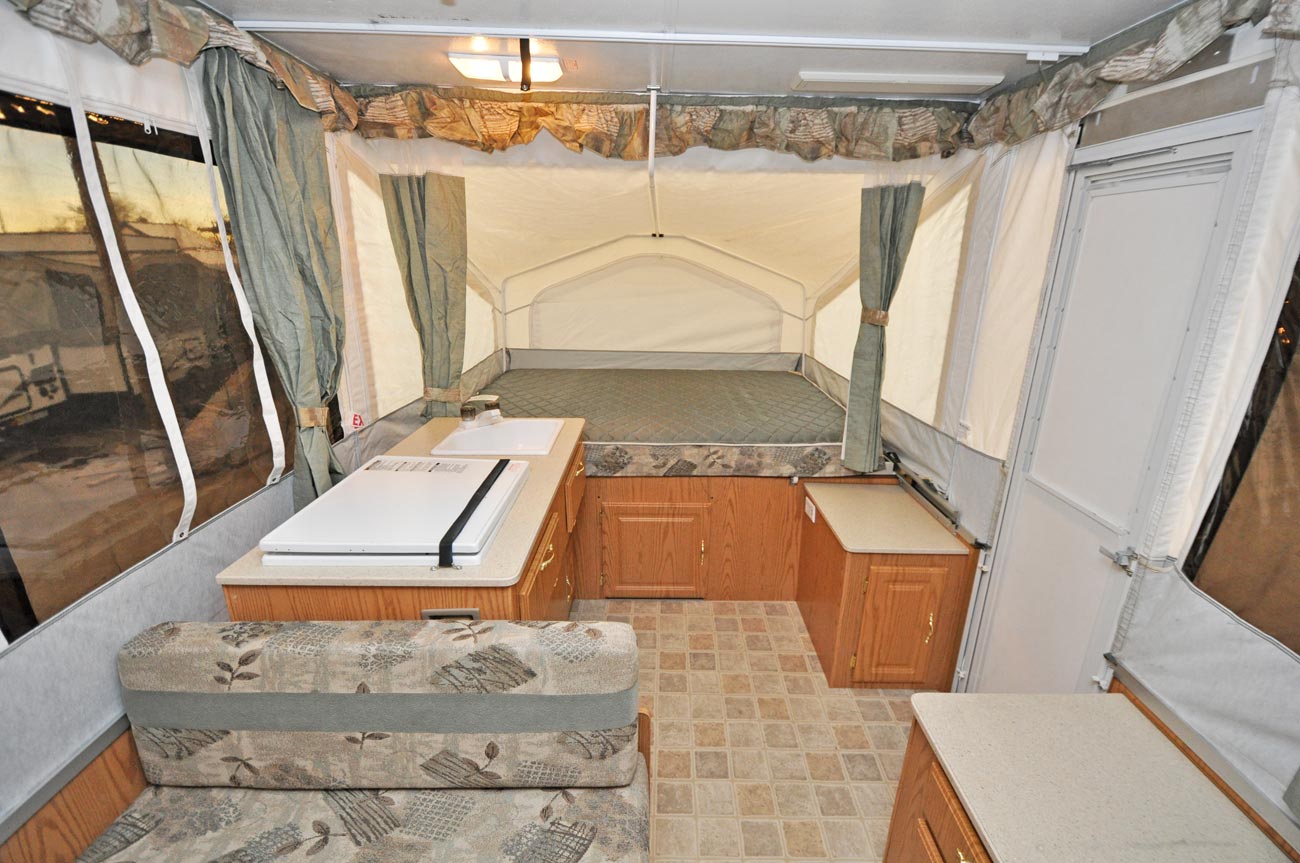

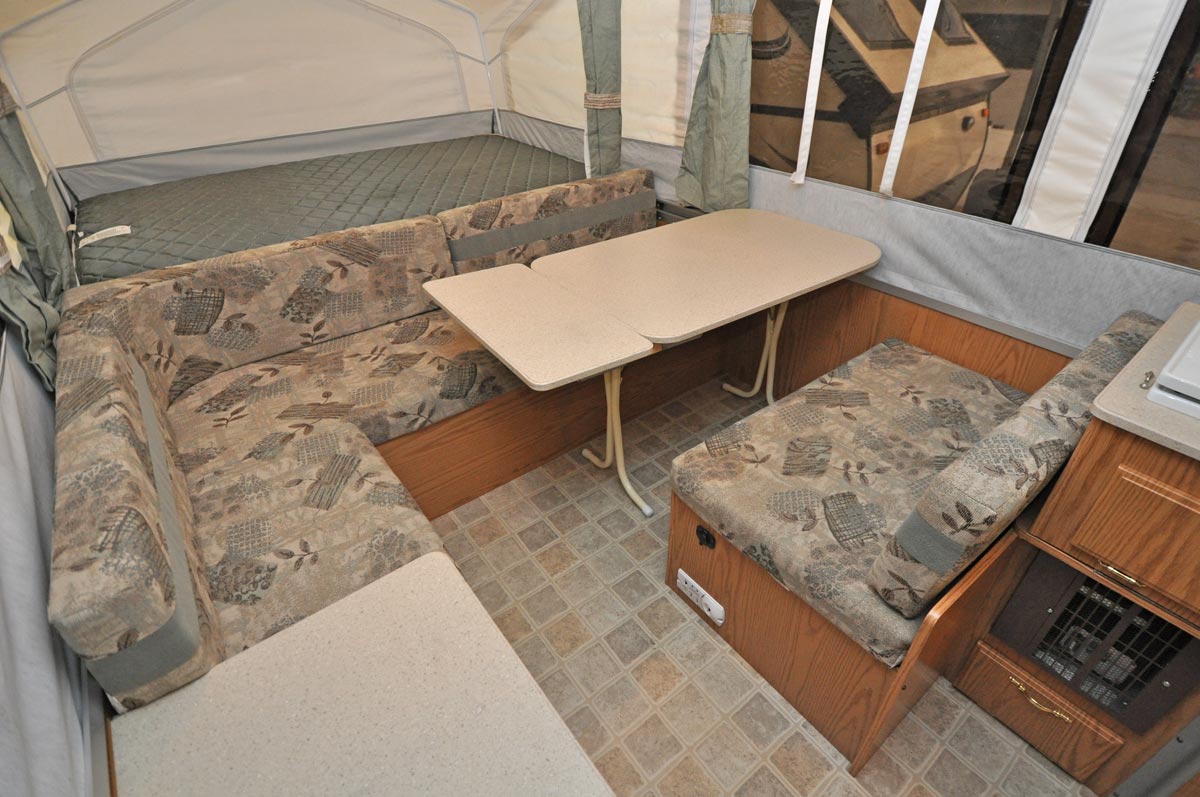

2006 Flagstaff 620ST front view 2006 Flagstaff 620ST rear view 2006 Flagstaff 620ST galley 2006 Flagstaff 620ST dinette

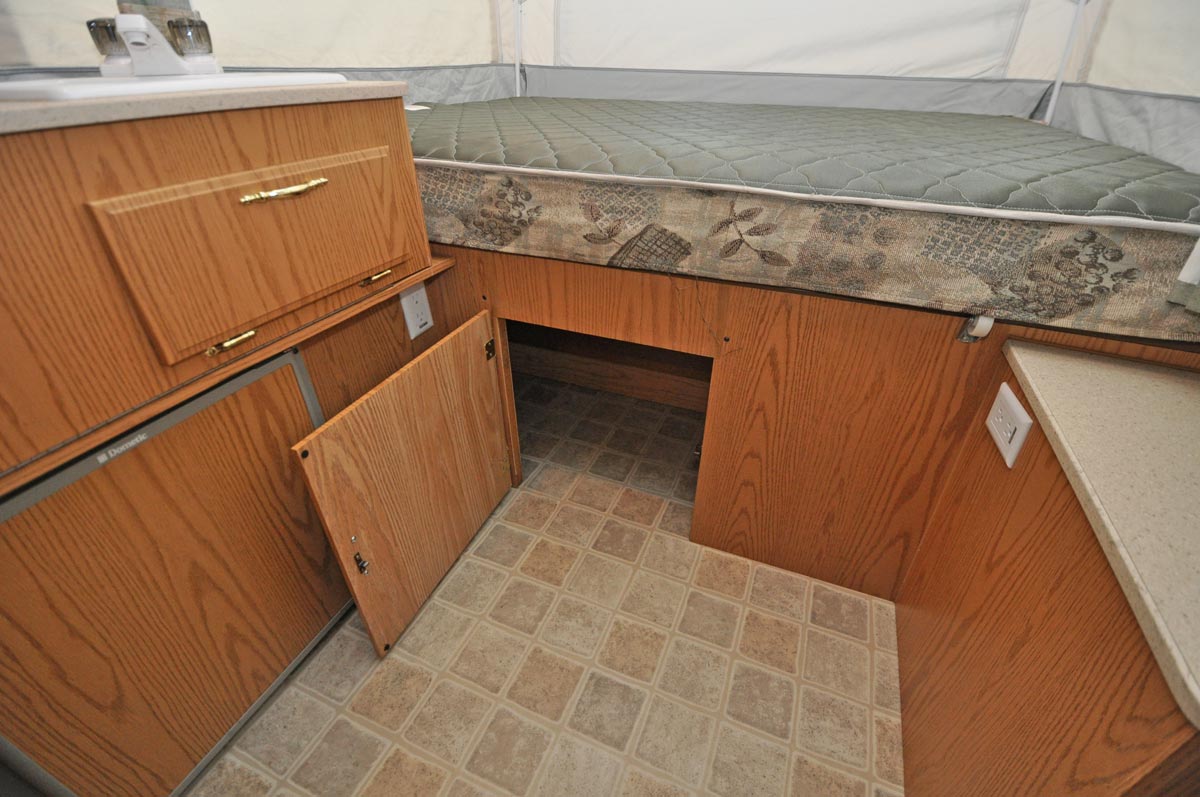

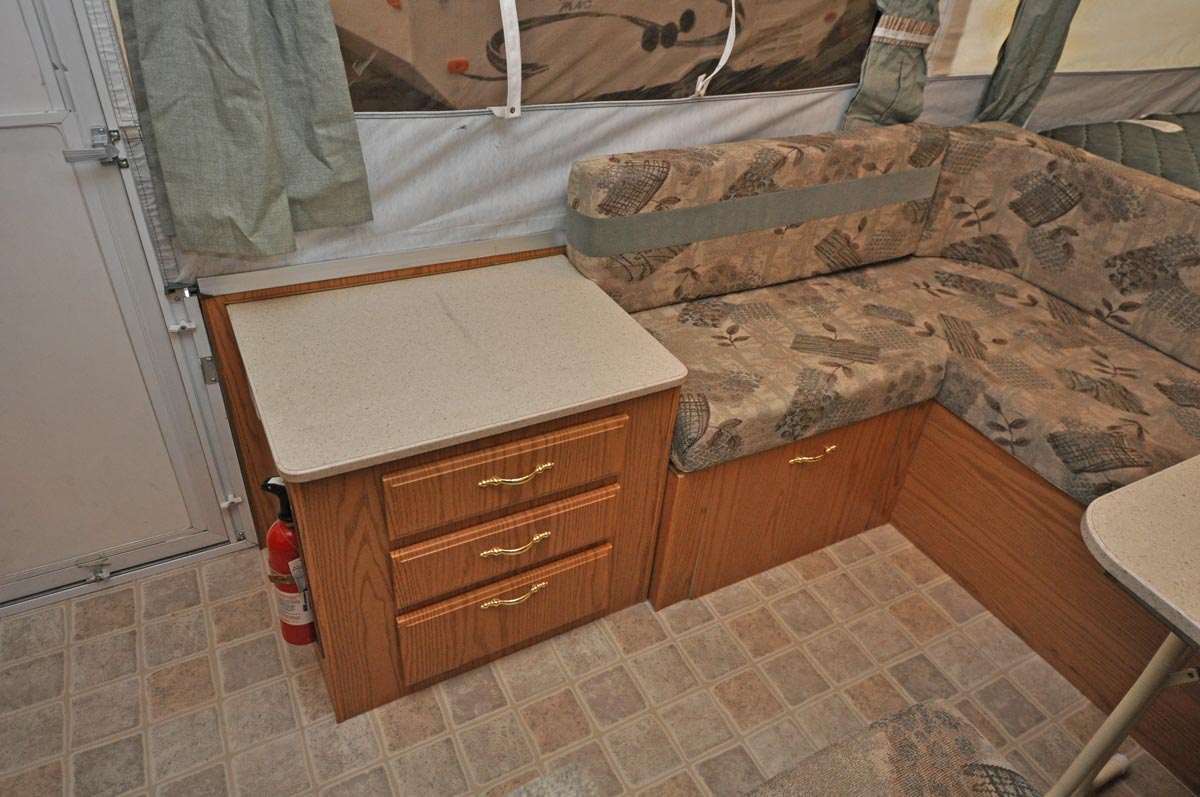

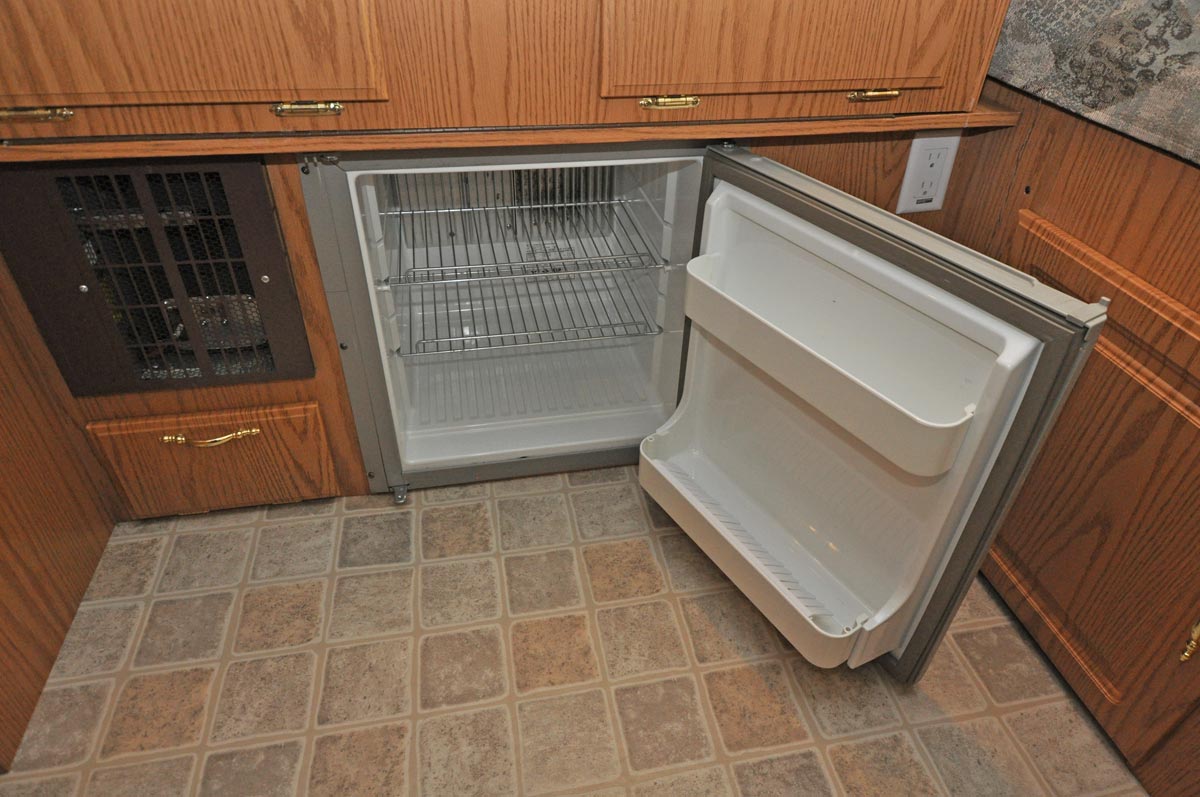

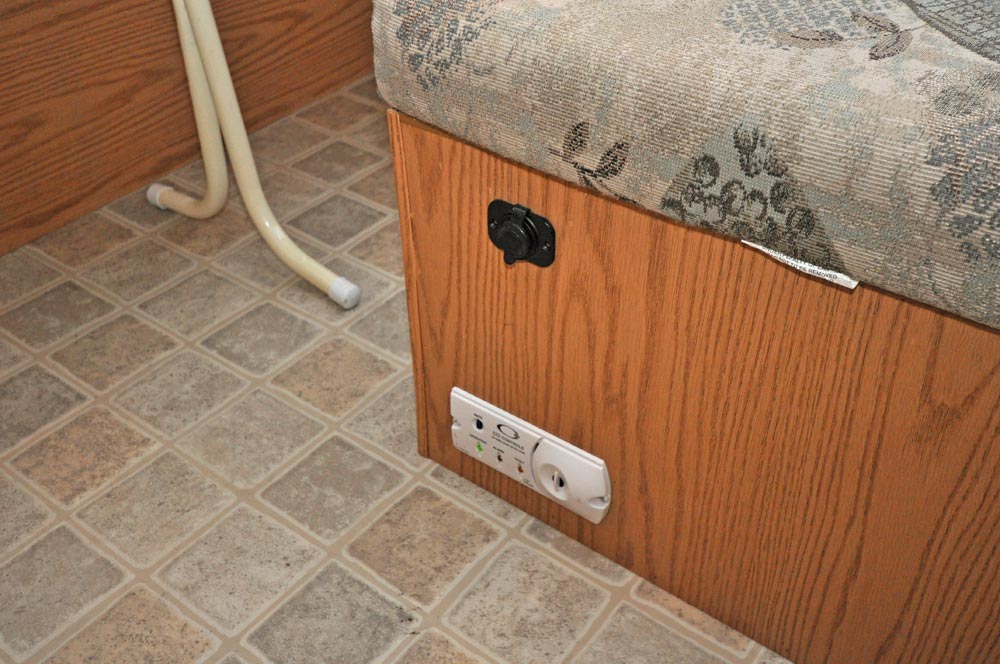

2006 Flagstaff 620ST J-dinette 2006 Flagstaff 620ST 12-volt outlet 2006 Flagstaff 620ST fridge 2006 Flagstaff 620ST storage trunk access

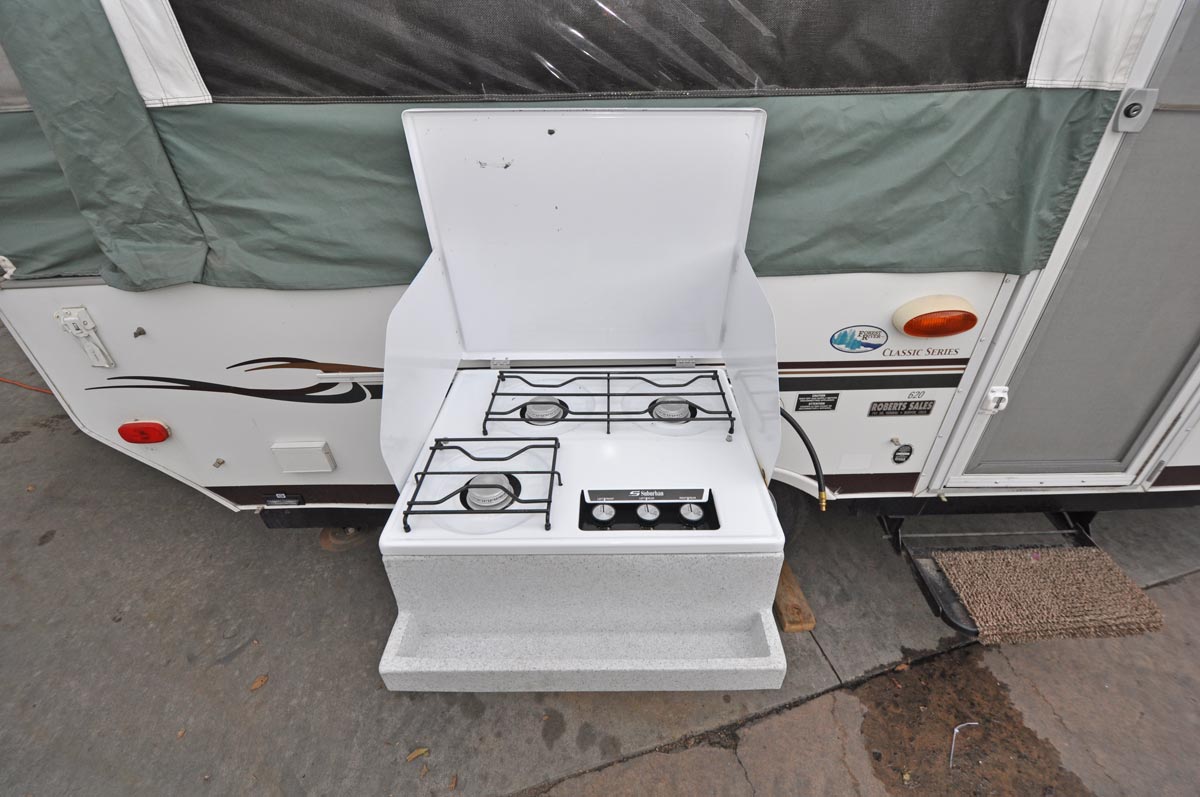

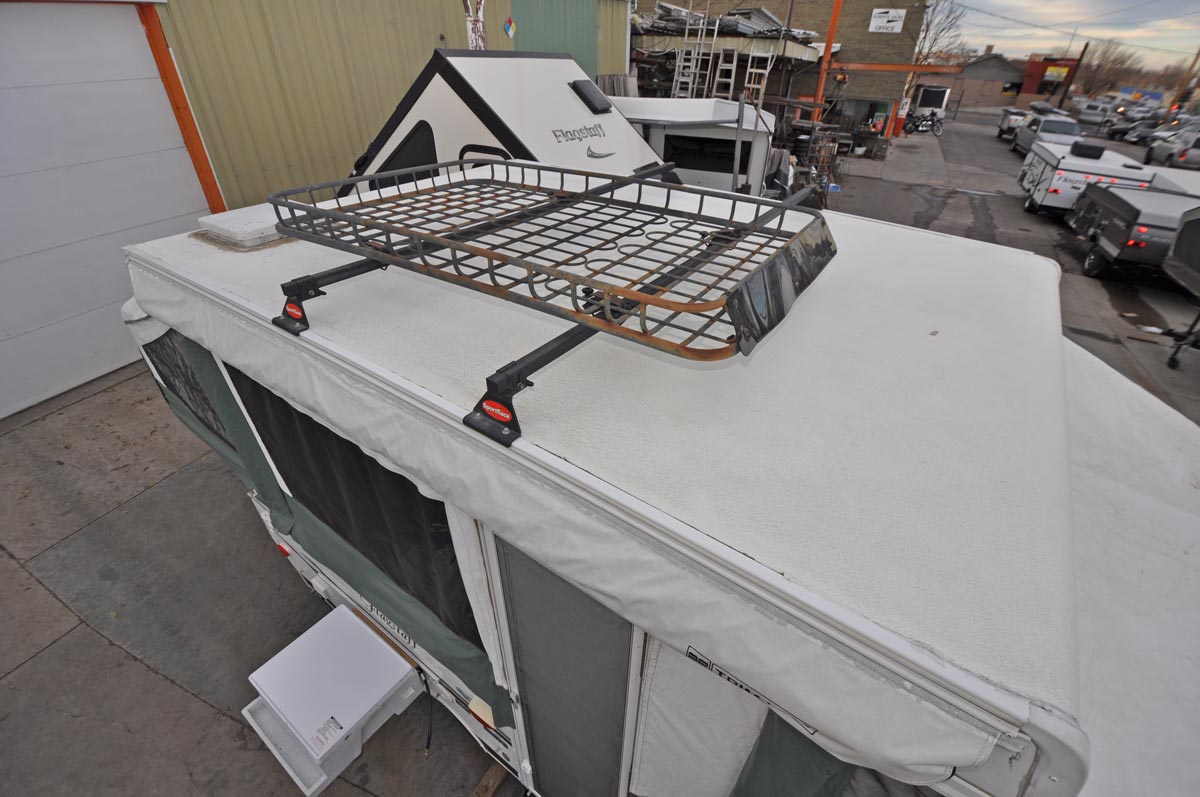

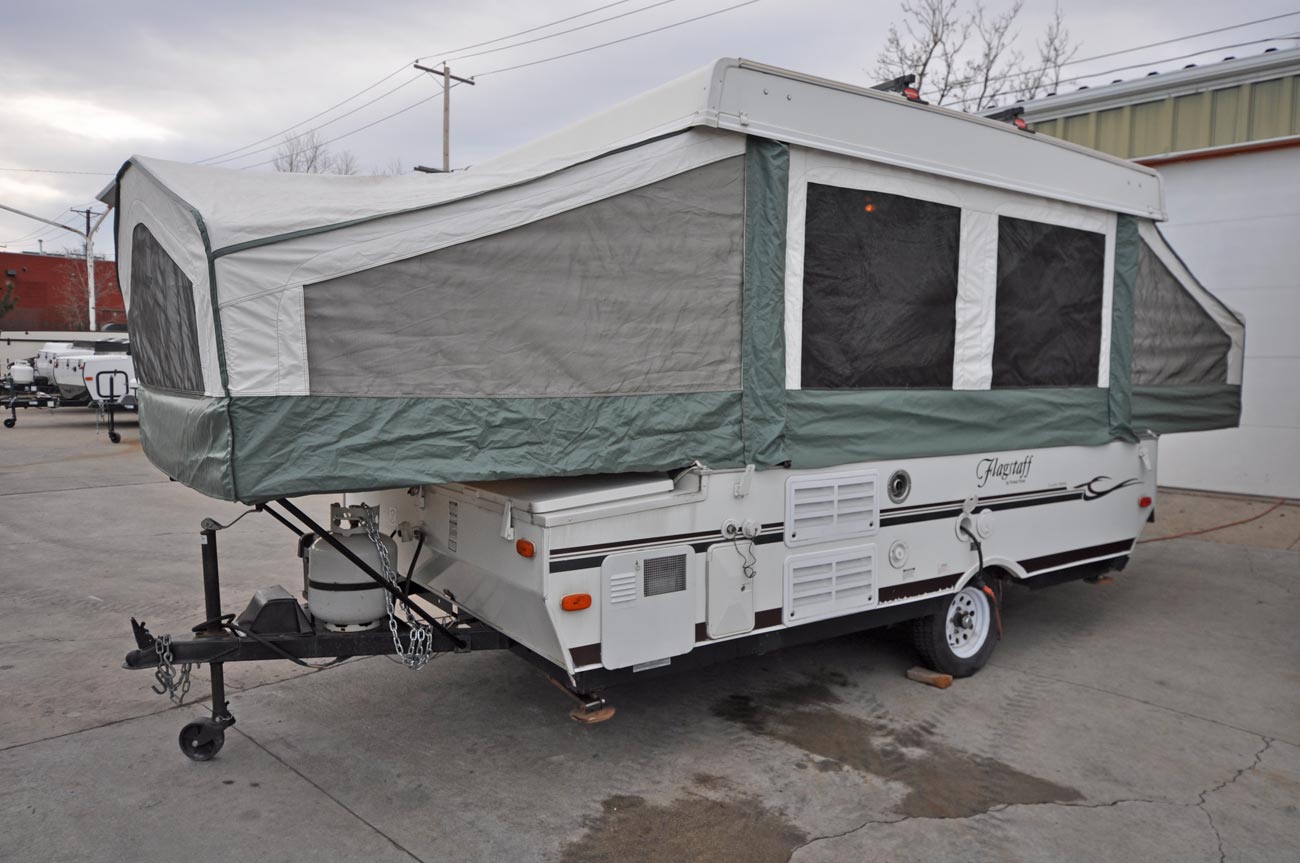

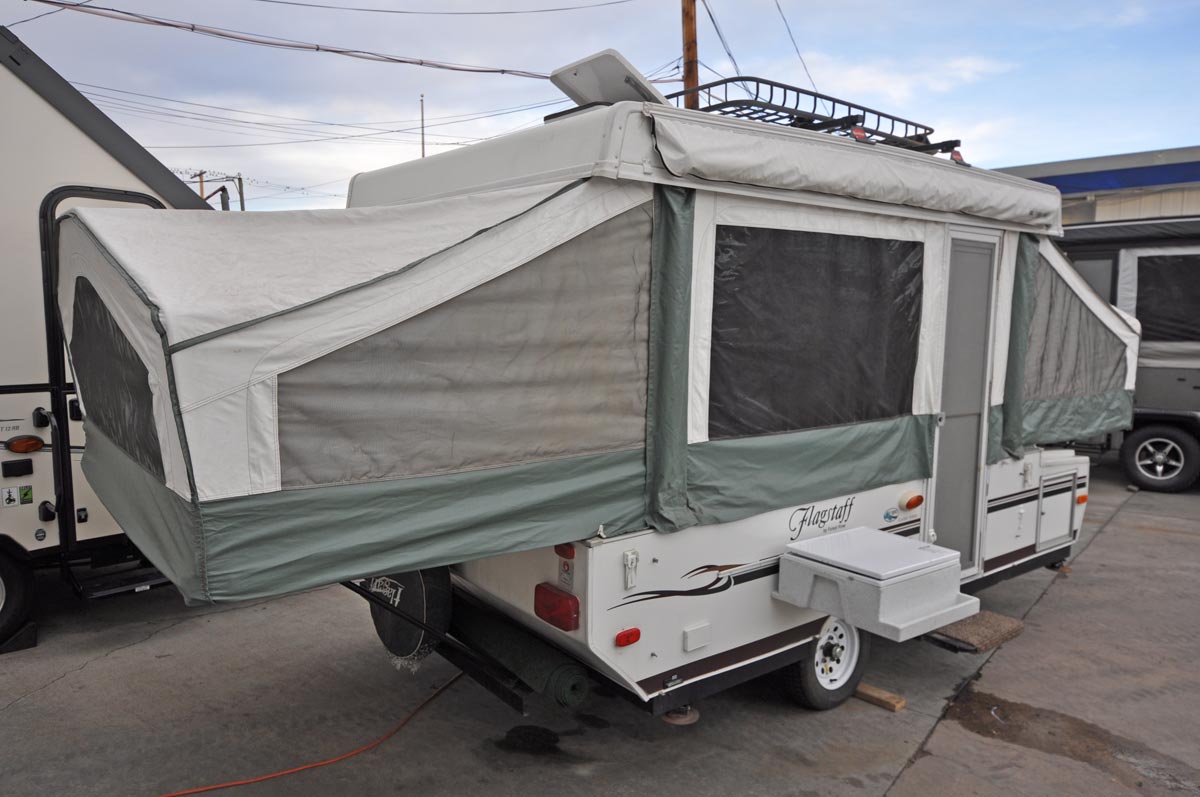

2006 Flagstaff 620ST movable stove 2006 Flagstaff 620ST 3/4 view 2006 Flagstaff 620ST back-side 2006 Flagstaff 620ST roof rack and basket

(used 2006 camper shown, with optional roof rack, roof basket, & 12-volt charging port)

Highlights

  • The Classic version of the 206ST.
  • A smart combination of seating, floor space, and storage--and only 1986 lbs.
  • The table leaf and "J dinette" adds flexibility at meals and game time.

Specifications

  • Box Size: 10'
  • Open Llength: 20' 4"
  • Travel Length: 17' 1"
  • Trailer Width: 85" (7' 1")
  • Dry Weight: 1986 lbs
  • Hitch Weight: 258 lbs
  • GVWR: 3212 lbs
  • Sleeps: 6
  • Beds:
    1. 80" x 60"
    2. 80" x 48"
    3. 74" x 38"

Comparable Models

  • 206ST - Identical layout in the MAC series.
  • 720BH - The only other 10' Classic, it alters the seating arrangement and changes the enclosed storage trunk to a Bike Hauler.

Weights and capacities are estimates and may vary based on how individual campers are outfitted.
