Flagstaff 823

(1995-2009)

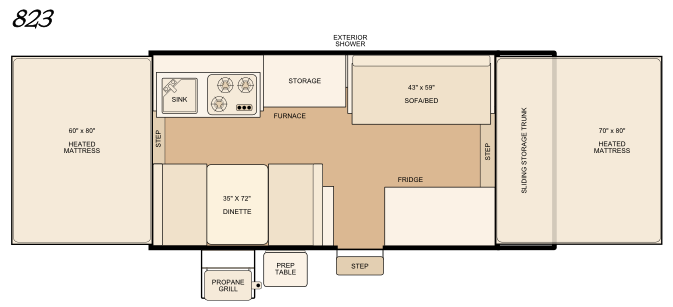

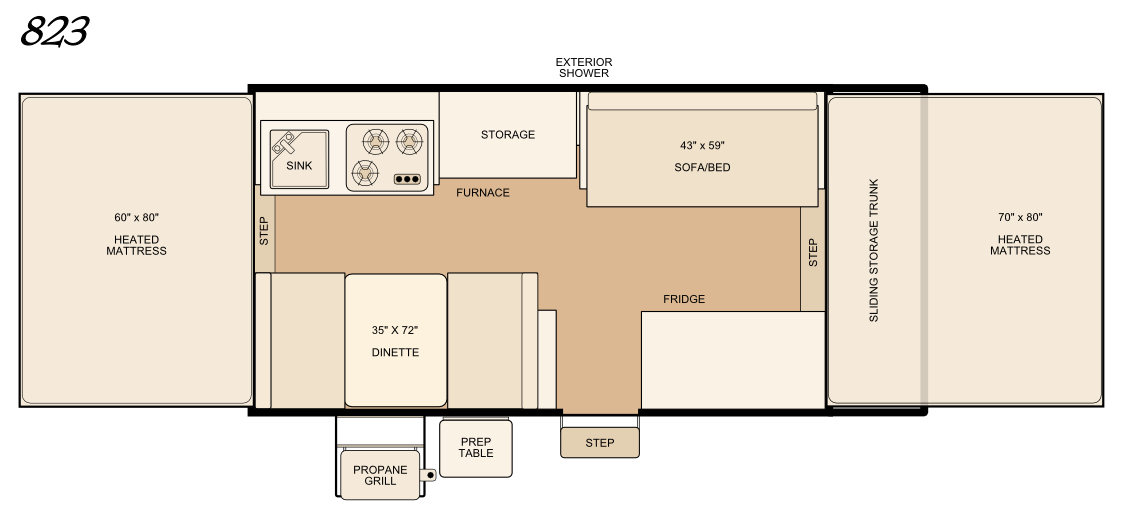

823 floorplan

Highlights

  • The full walkway from end to end made getting around the camper easy.
  • On a previous version of the 823 the sofa and dinette table were across from each other. This made sense since a large communal area is perfect for larger groups to share meals and games together. This version puts the sofa and dinette in opposite corners. Curious decision, in our opinion.
  • This was the last 12' Classic without a slide-out dinette. Slide-out dinettes are nice but a standard 12' Classic seems like a good thing to have around. Until a 12' Classic is re-introduced the 12' MACs like the 228, 227, and 228BH work nicely.

Specifications

  • Box Size: 12'
  • Open Length: 23' 6"'
  • Travel Length: 17' 11"
  • Dry Weight: 2223 lbs
  • Hitch Weight: 285 lbs
  • GVWR: 3038 lbs
  • Sleeps: 8 (techinically, but not really)
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 36"
    4. 59" x 43"

Weights and capacities are estimates and may vary based on how individual campers are outfitted.
