Flagstaff HW31SCTH


(2009-2011, 2013-2016)

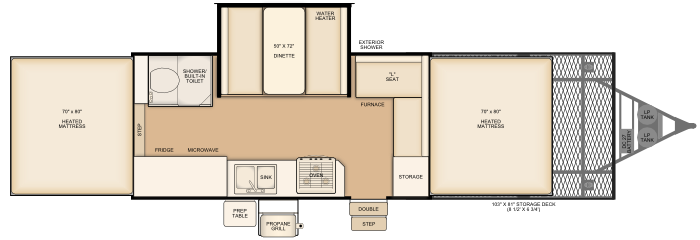

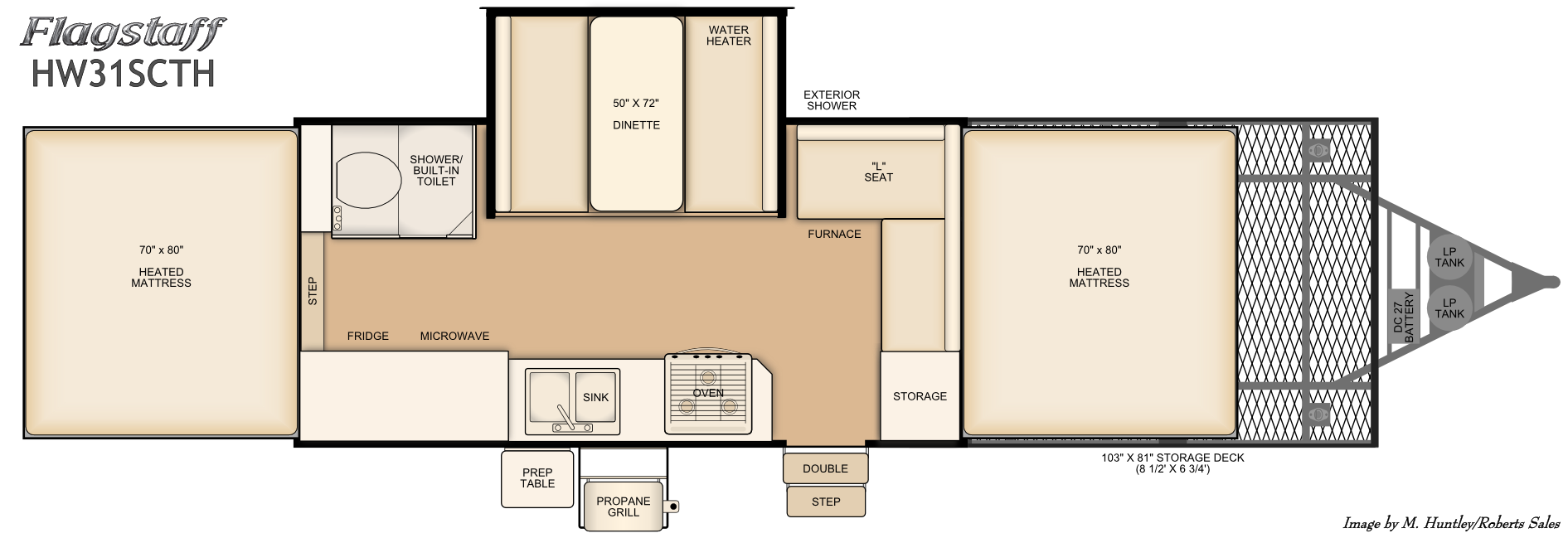

Flagstaff HW31SCTH floorplan

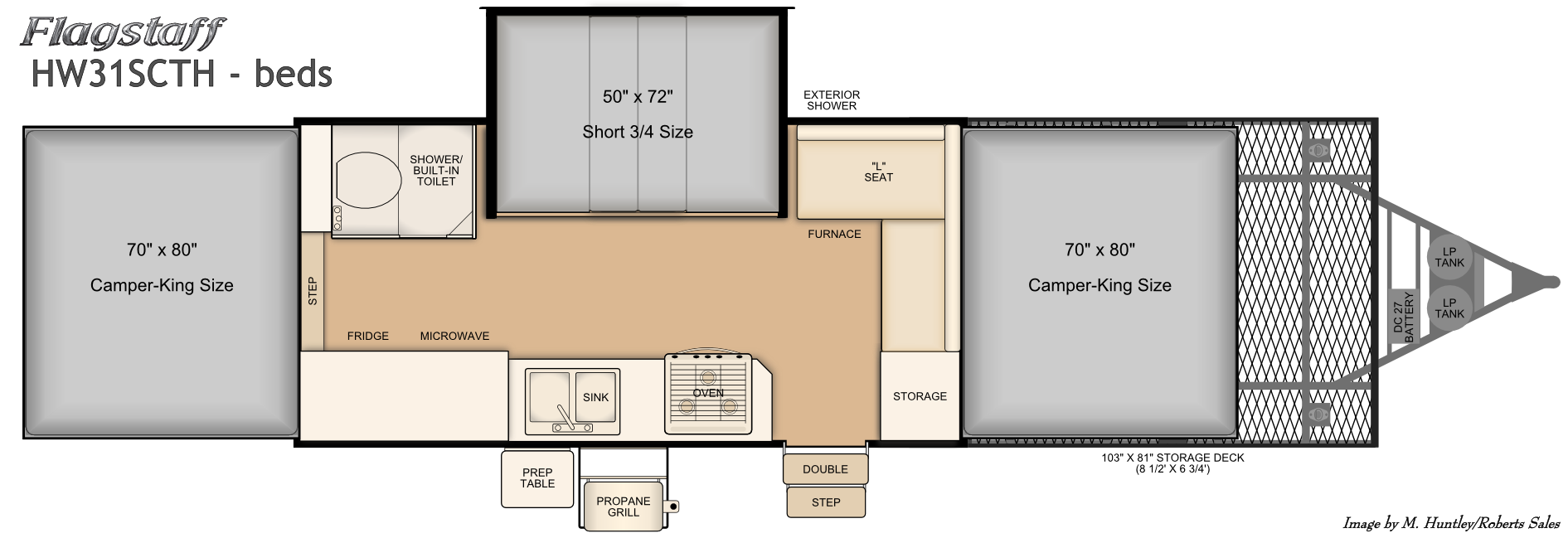

Bed Layout for this model


  • The longest Flagstaff pop-up makes. 14' box and 8 1/2' metal deck. BIG. HUGE.
  • The only Flagstaff with camper-king beds on both ends.
  • Two axles for serious cargo capacity



  • Interior shower with residential-style toilet (High Wall tent campers have hard sides on the shower area but a shower curtain is still required to control water)
  • 8 1/2' metal deck on the front for hauling ATVs, dirt bikes, tools, firewood, generator, etc.
  • Tandem axles

...as well as these features standard with the High Wall series:

  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Double-pan sink
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Residential-style toilet
  • 12-gallon gray water storage tank
  • 12-gallon black water storage tank
  • Overhead cabinet
  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • Two 20# propane tanks with automatic regulator
  • 14" aluminum wheels
  • Spare tire
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • HW27SC - Nearly identical floorplan to the HW31SCTH but without the 8 1/2' metal deck, only one axle, and with the entry door moved back a little. Also, the HW27SC has a queen bed in the rear.
  • HW29SC - The only other double-axle High Wall unit. No metal deck but it does have two extra feet of interior space (16' box!)
  • 28TSCSE - Same 8 1/2' deck and double-axle but with a 12' box and in the Sports Enthusiast series.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities should be considered estimates and may vary based on how individual campers are outfitted.
