Flagstaff T21FKHW

(2017, 2018)

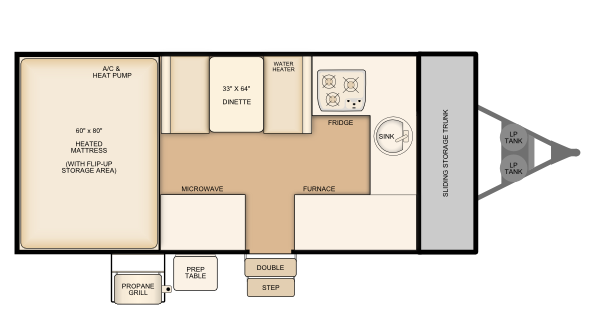

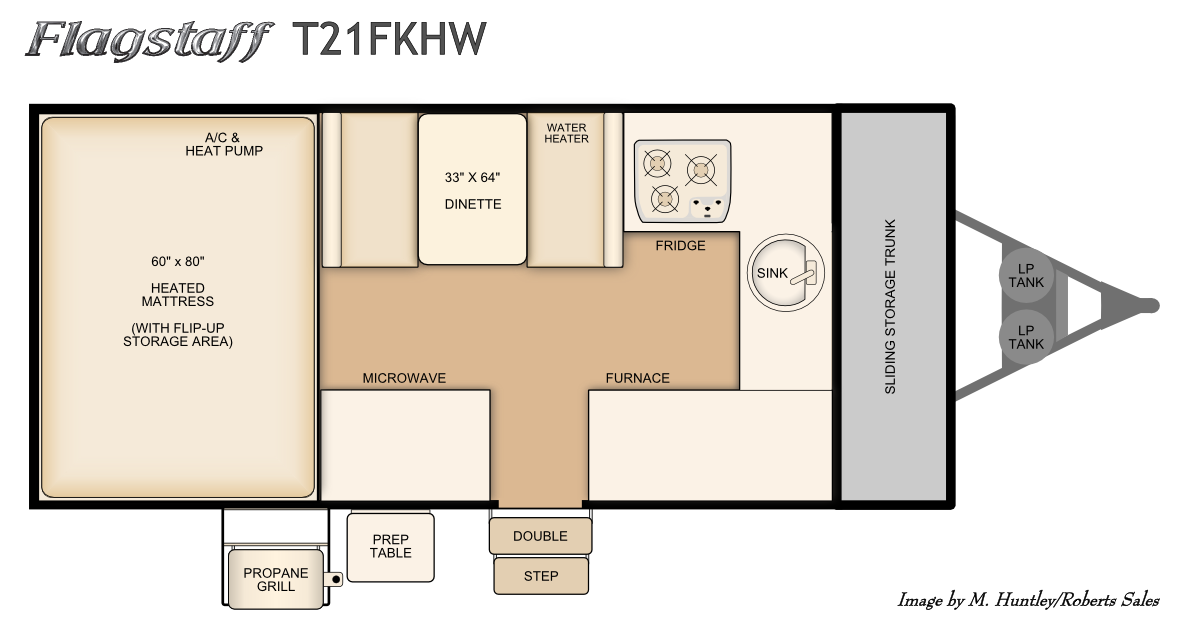

Flagstaff T21FKHW Floorplan

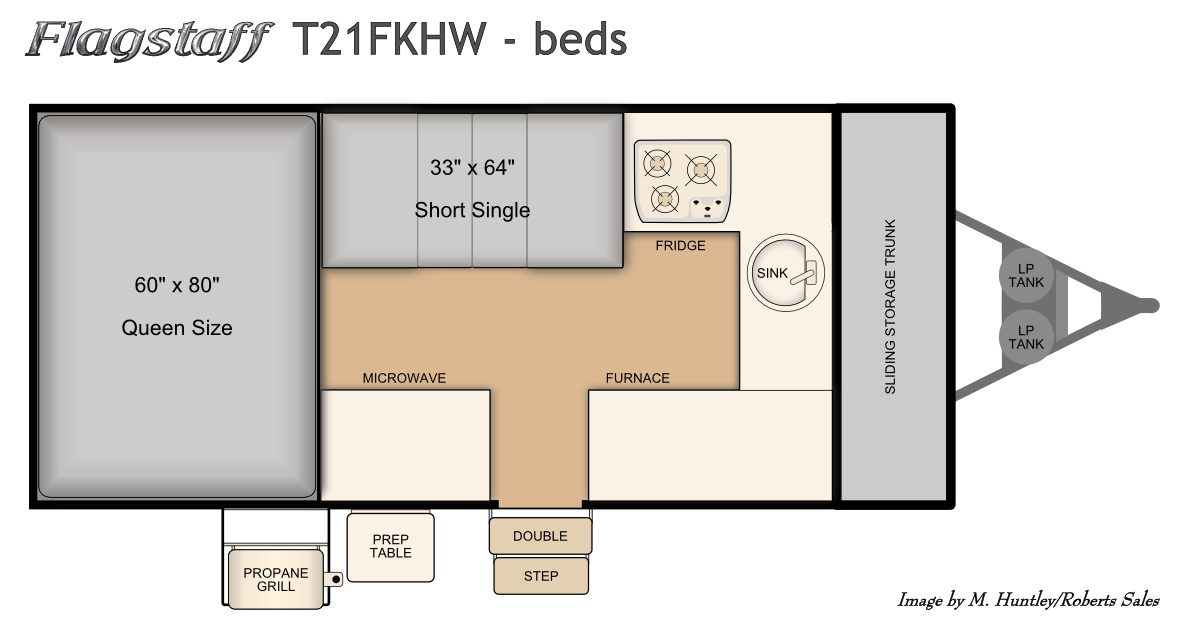

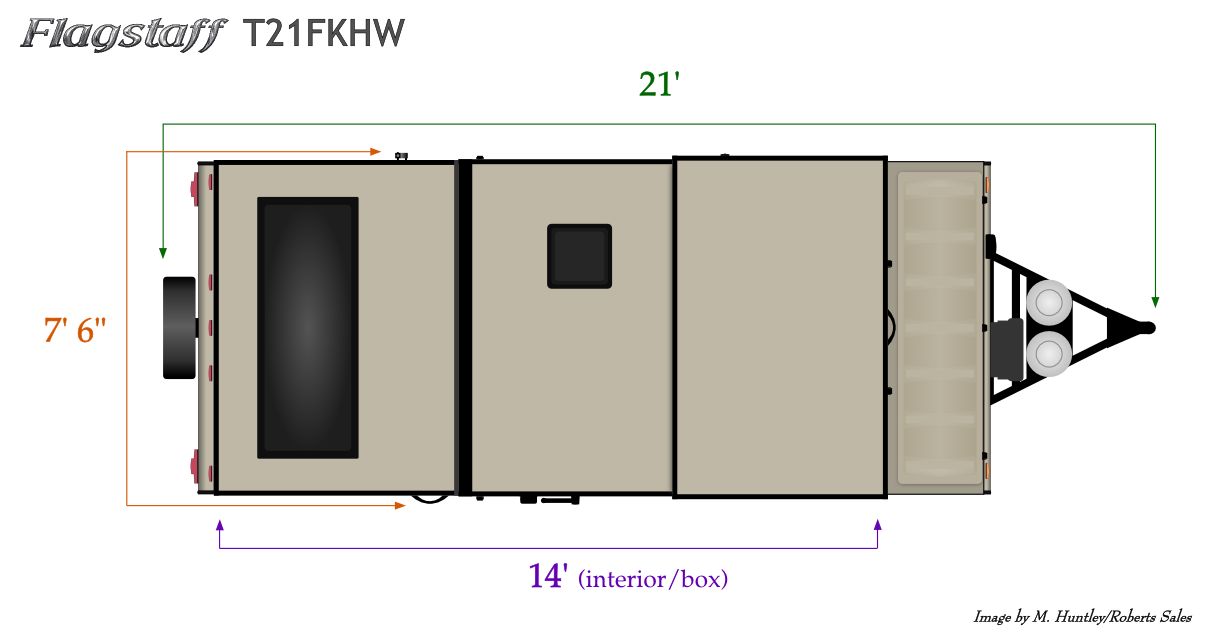

T21FKHW bed layout Length and width dimensions for Flagstaff T21FKHW

2017 Flagstaff T21FKHW exterior open

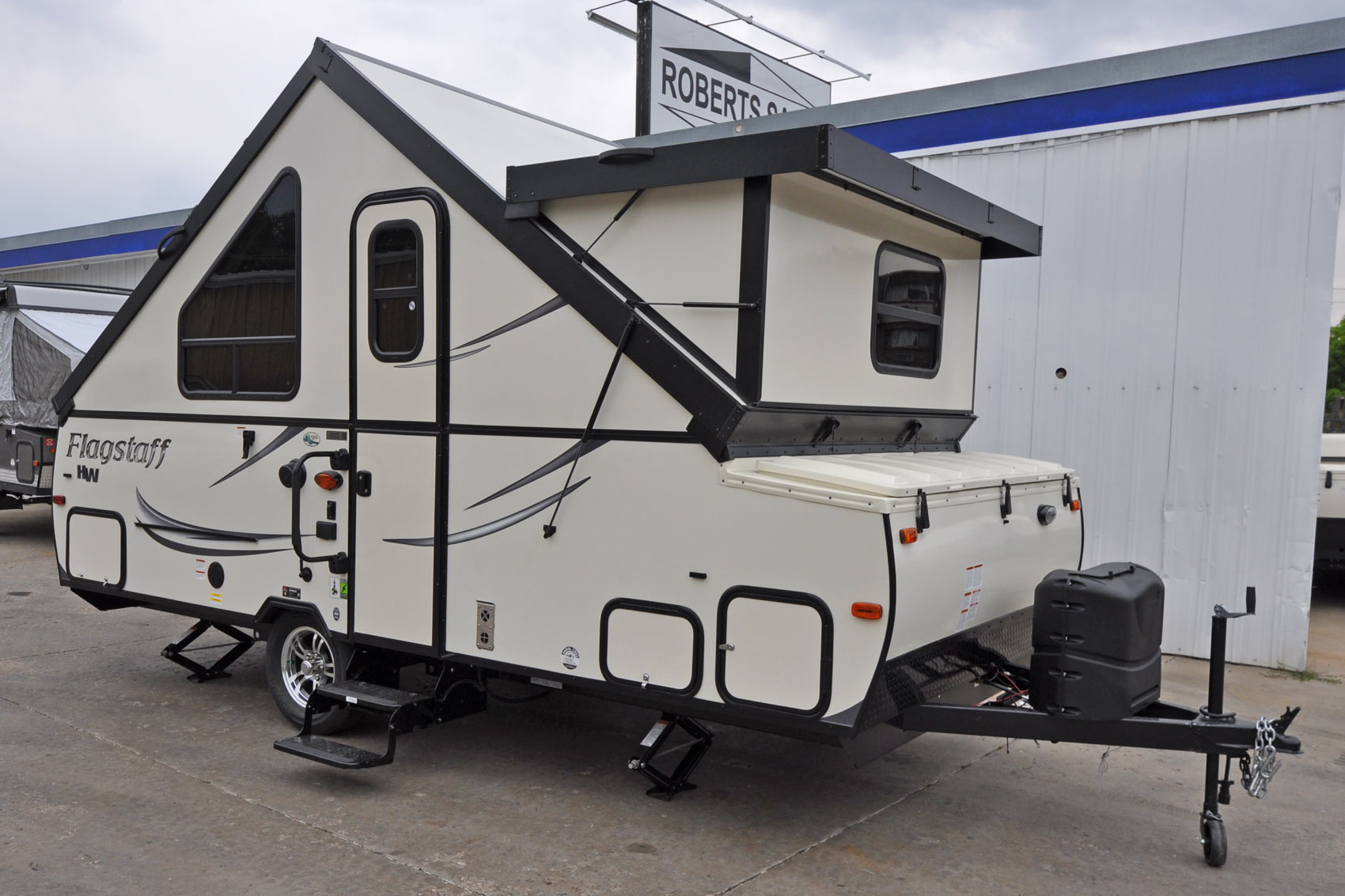

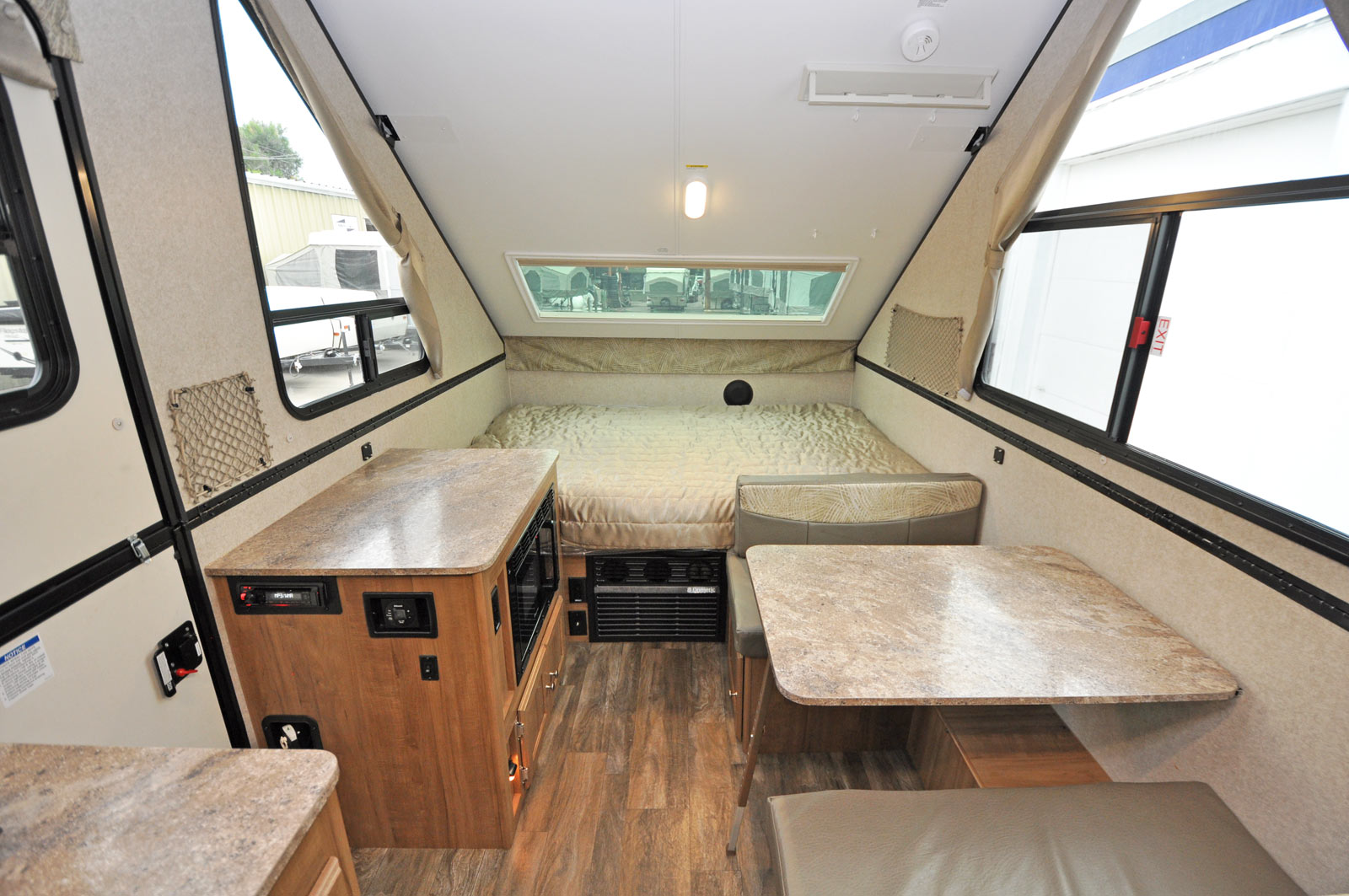

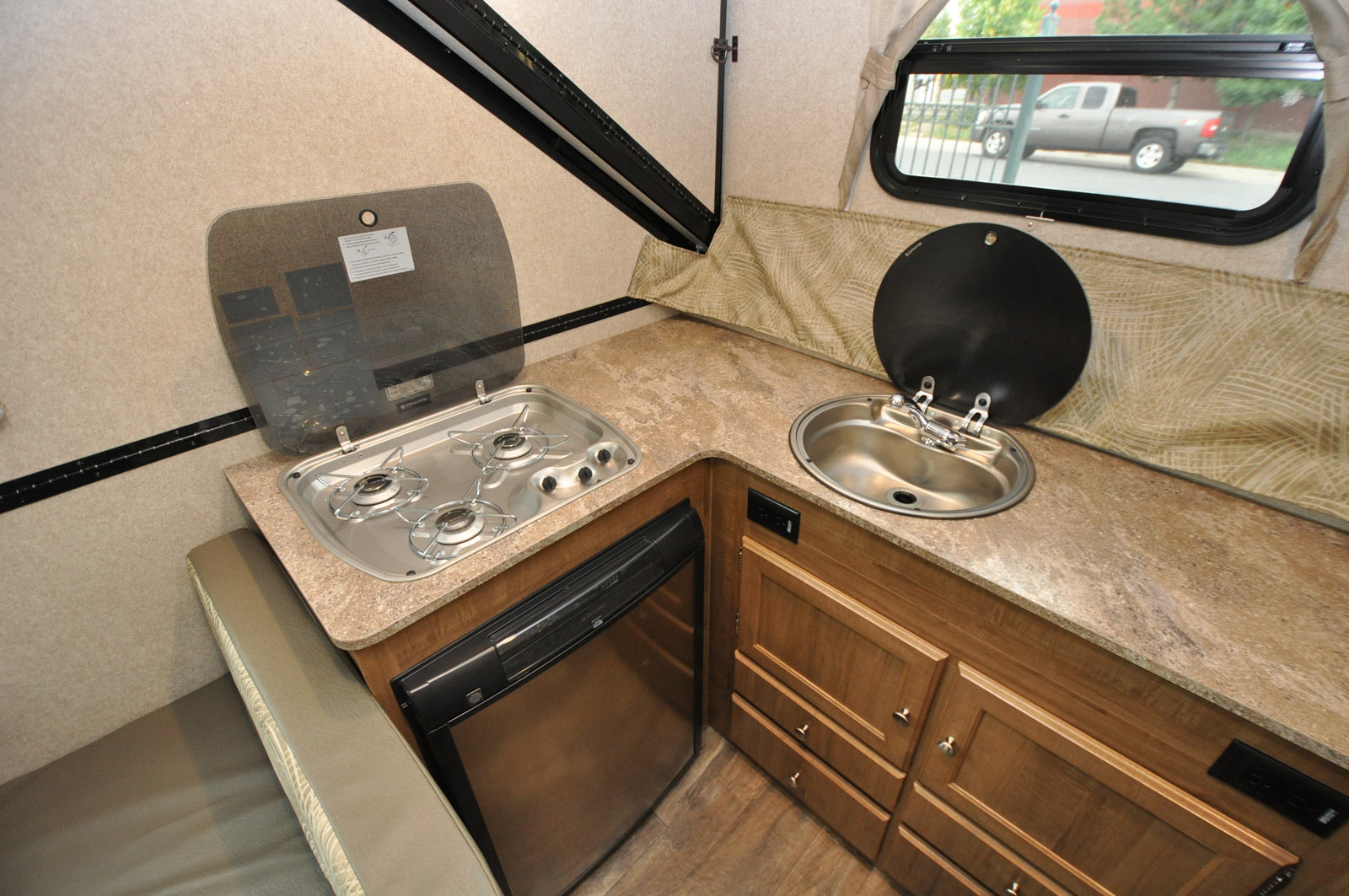

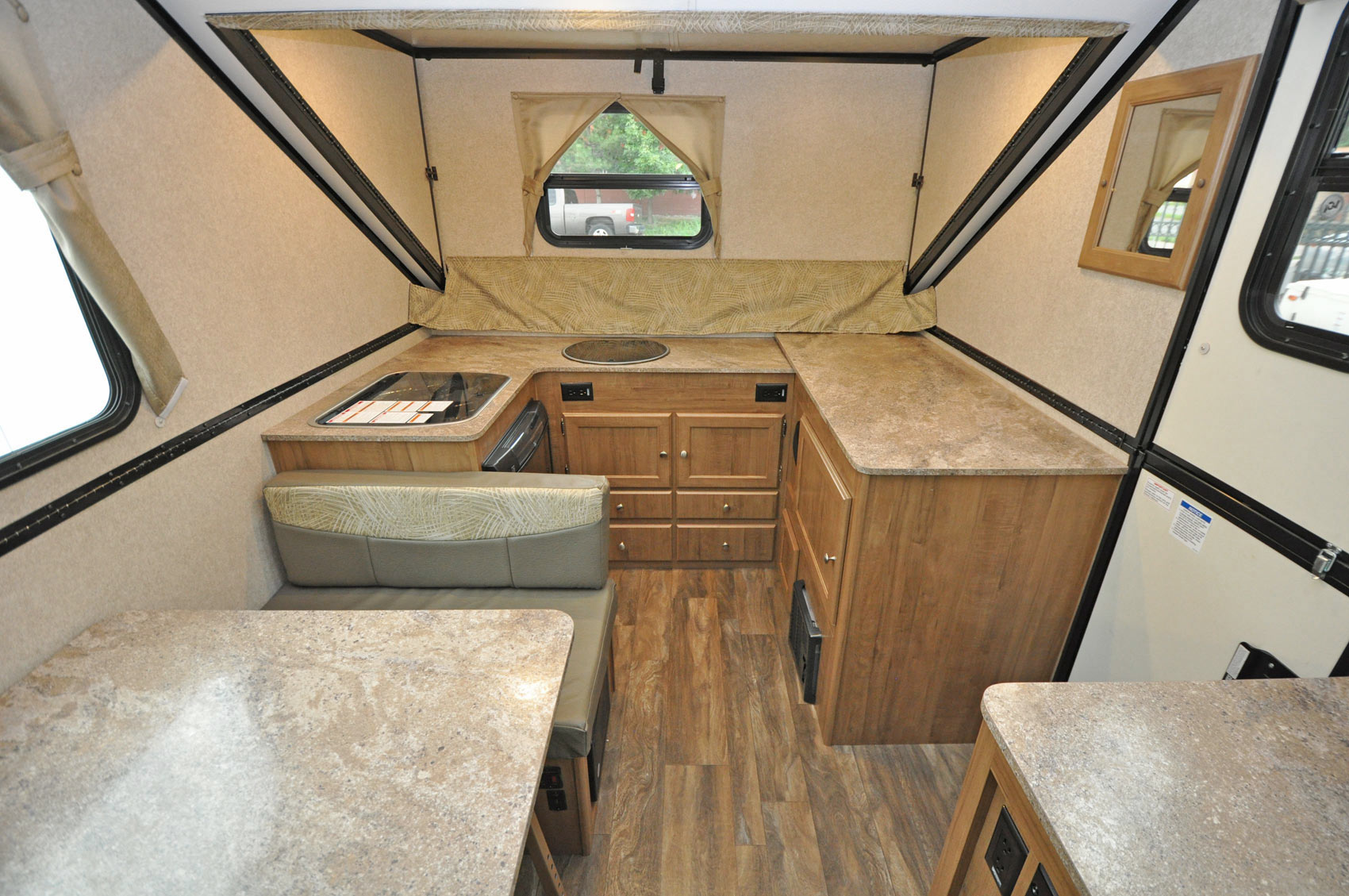

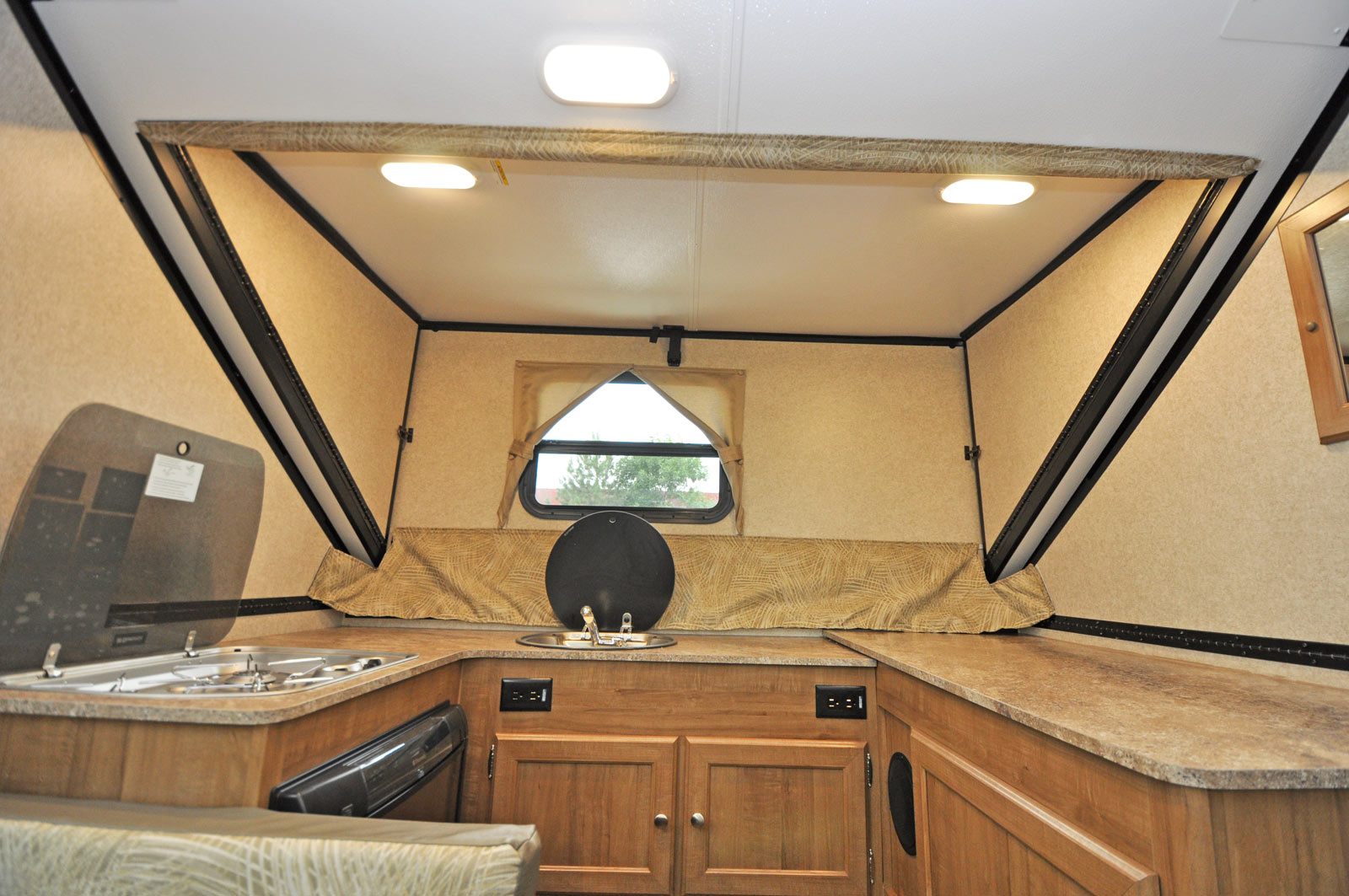

2017 Flagstaff T21FKHW front view 2017 Flagstaff T21FKHW rear view 2017 Flagstaff T21FKHW dormer interior space 2017 Flagstaff T21FKHW galley

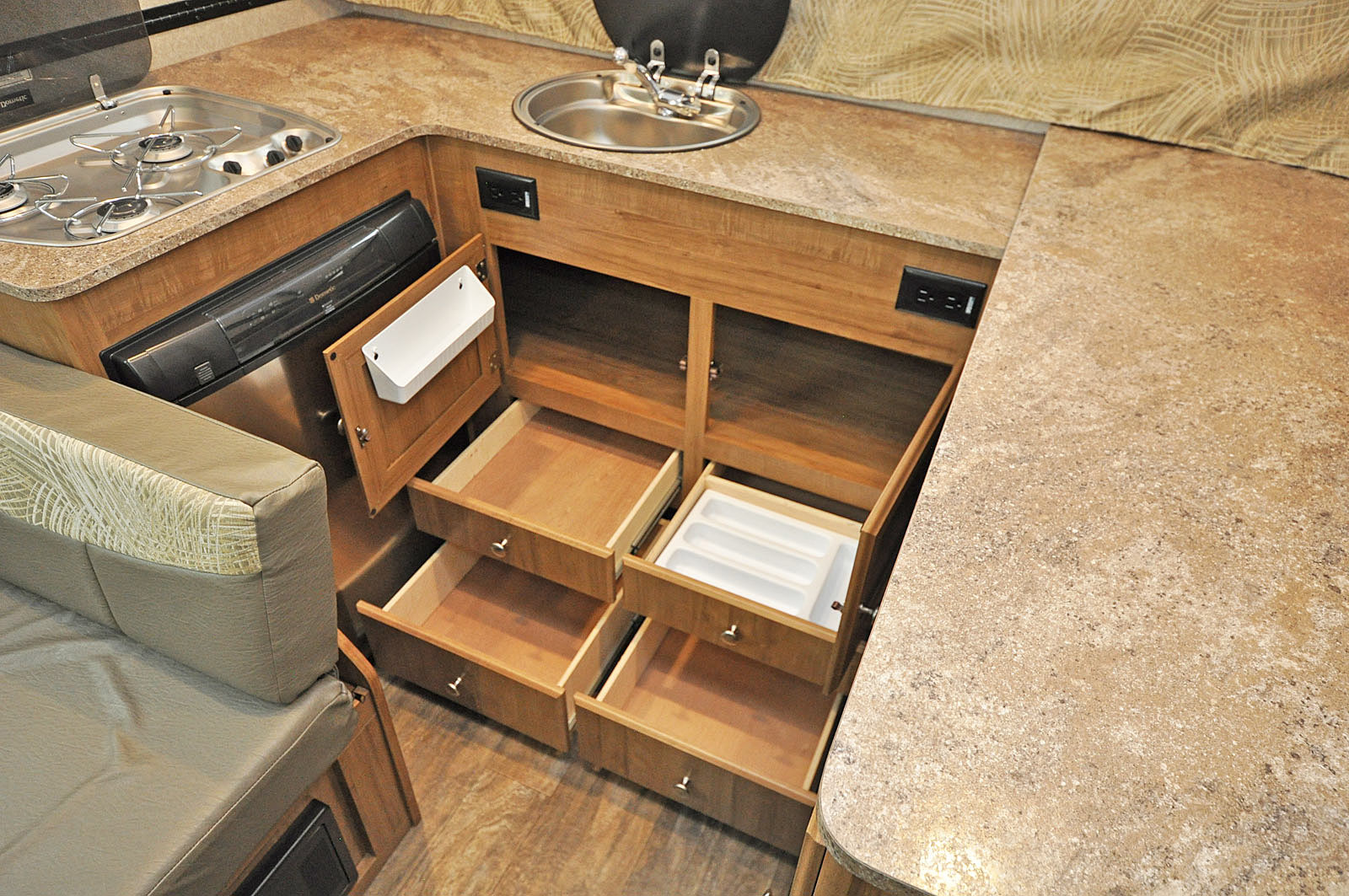

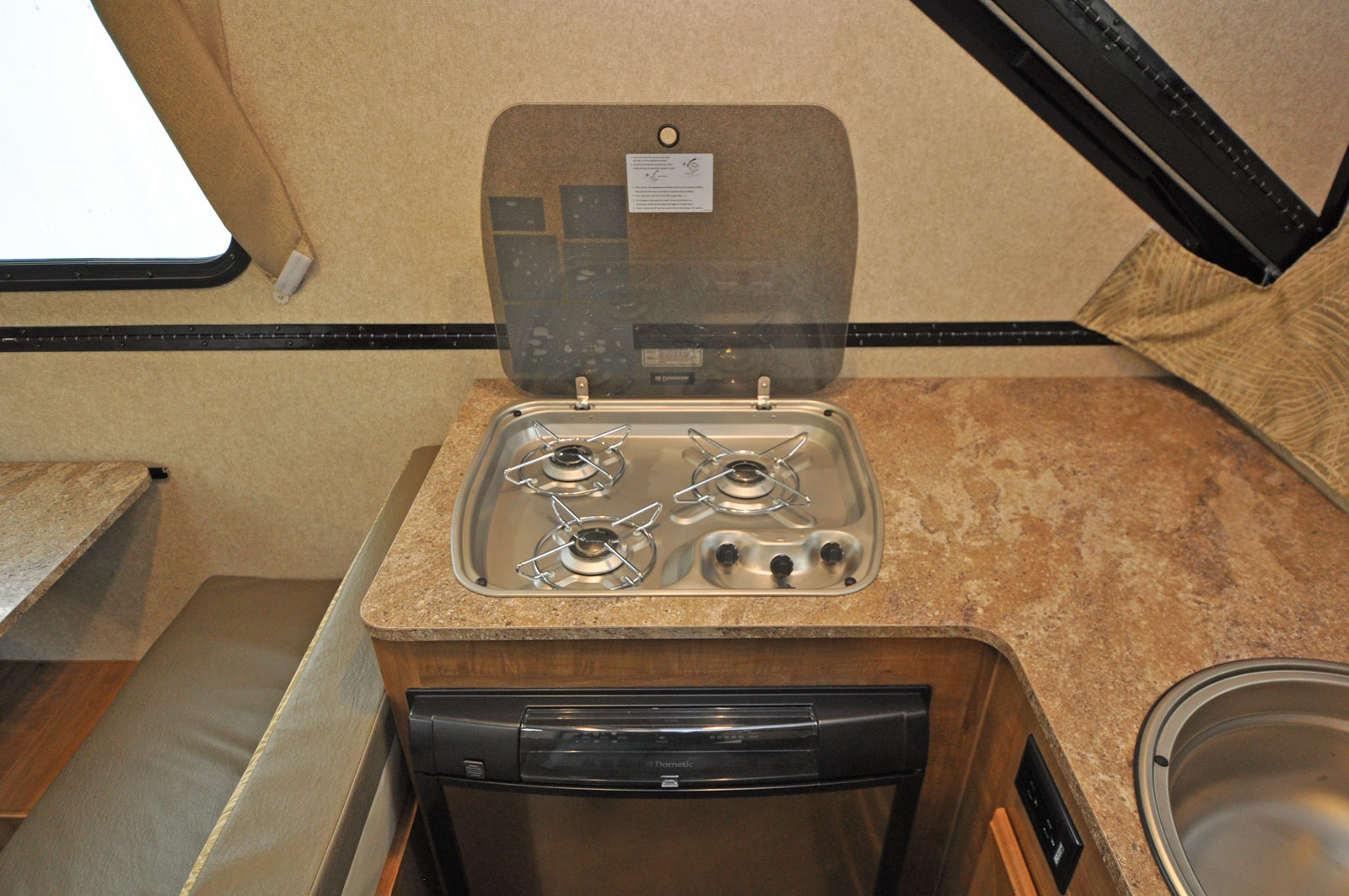

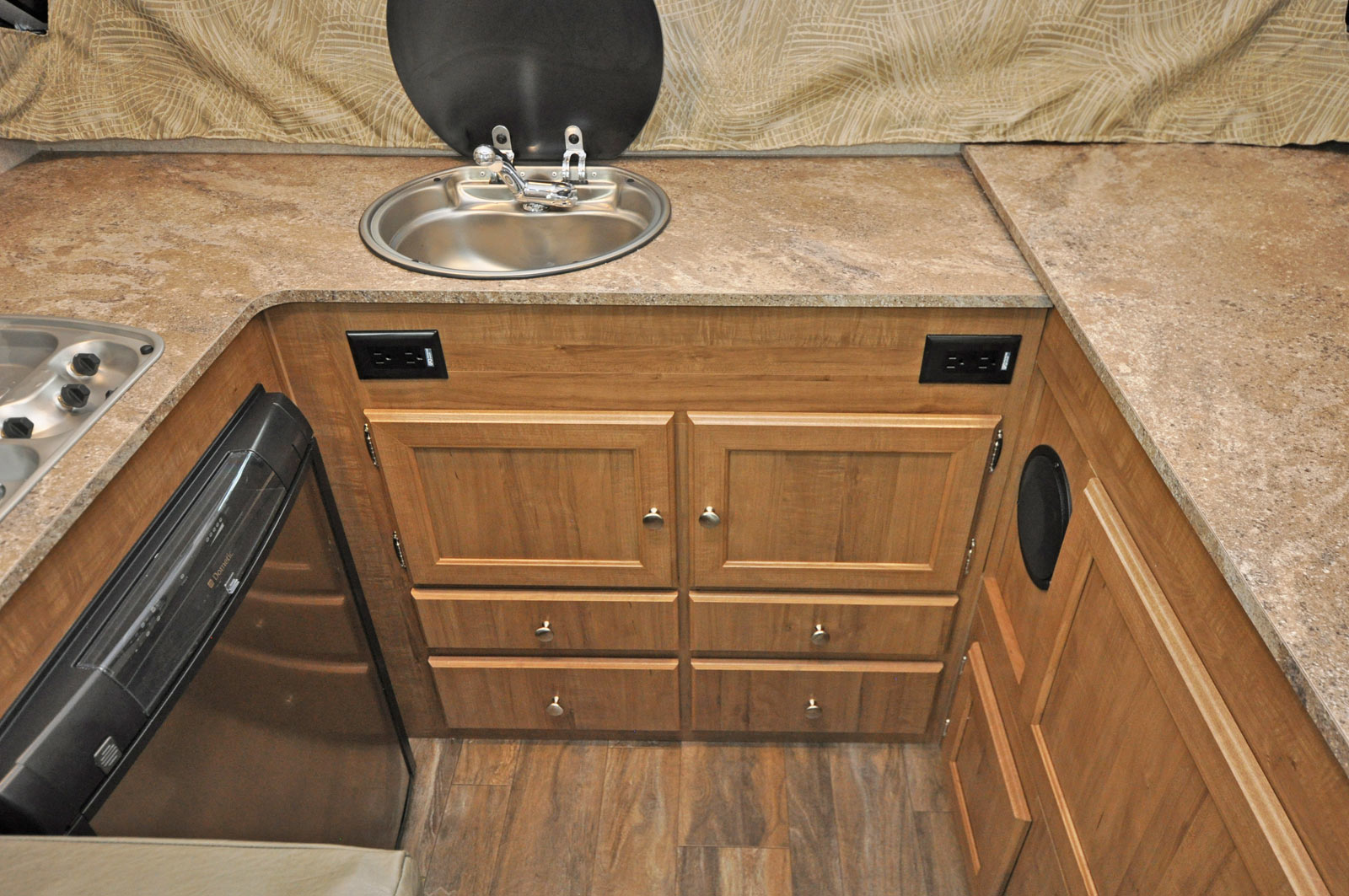

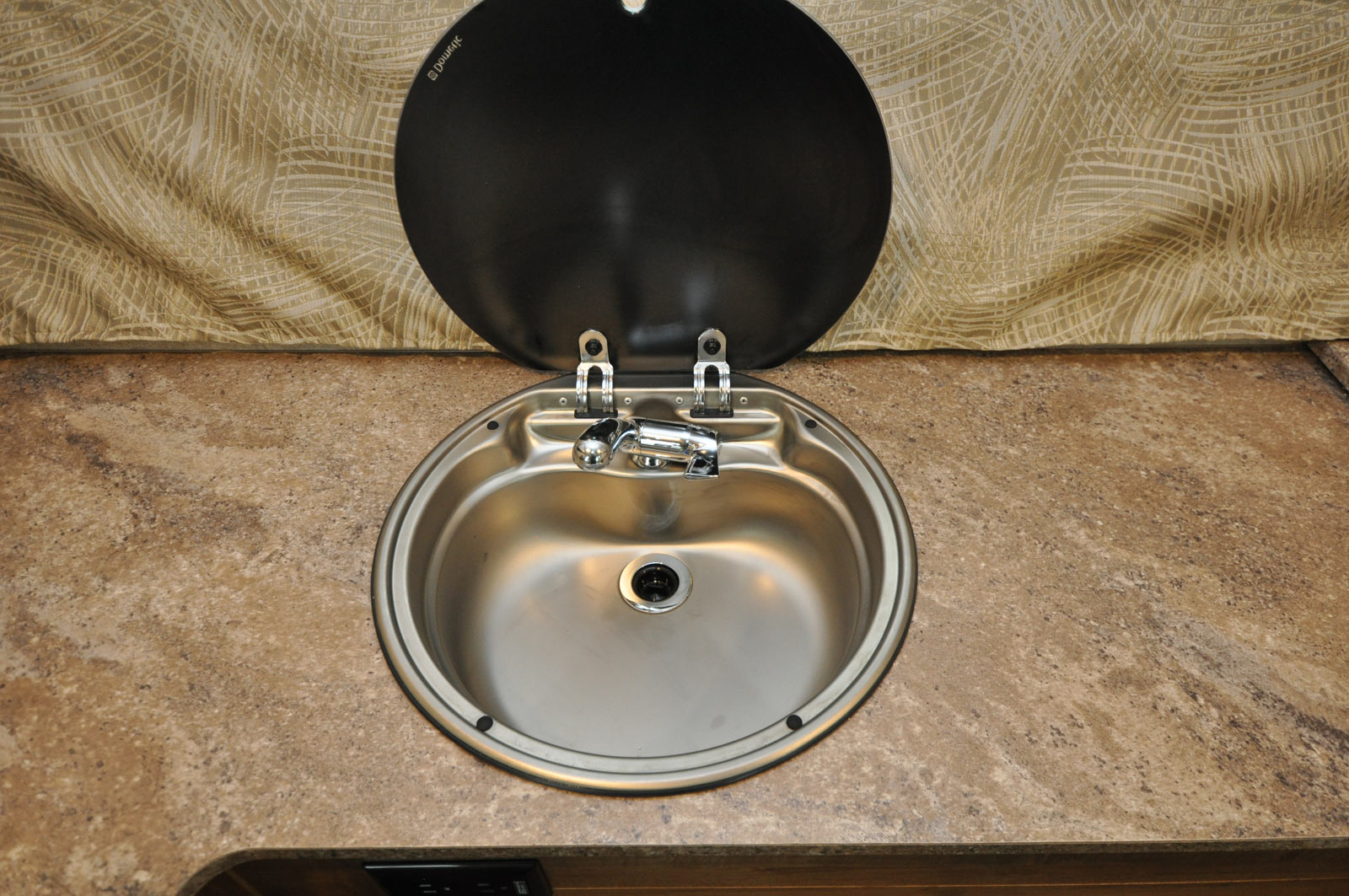

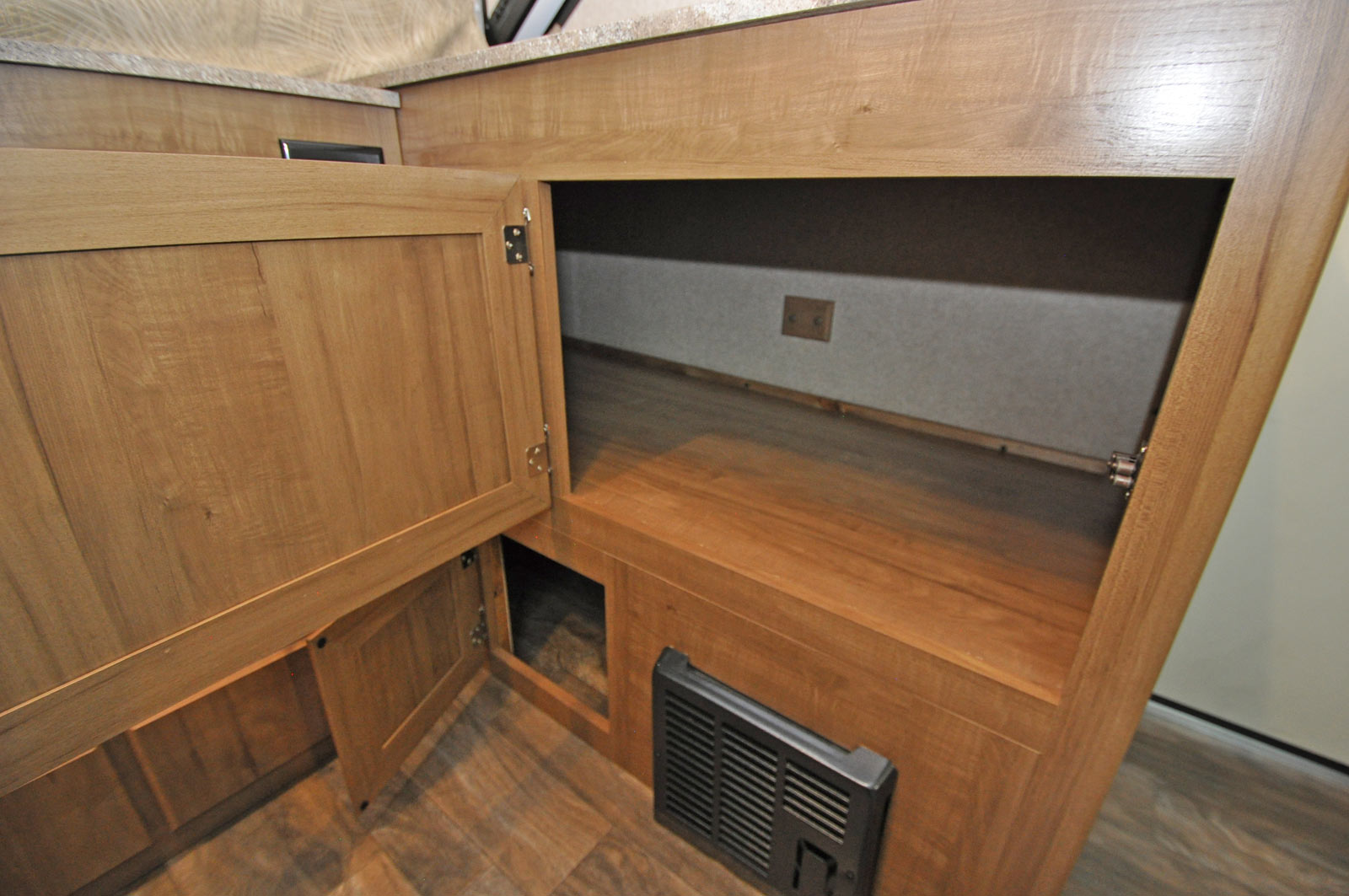

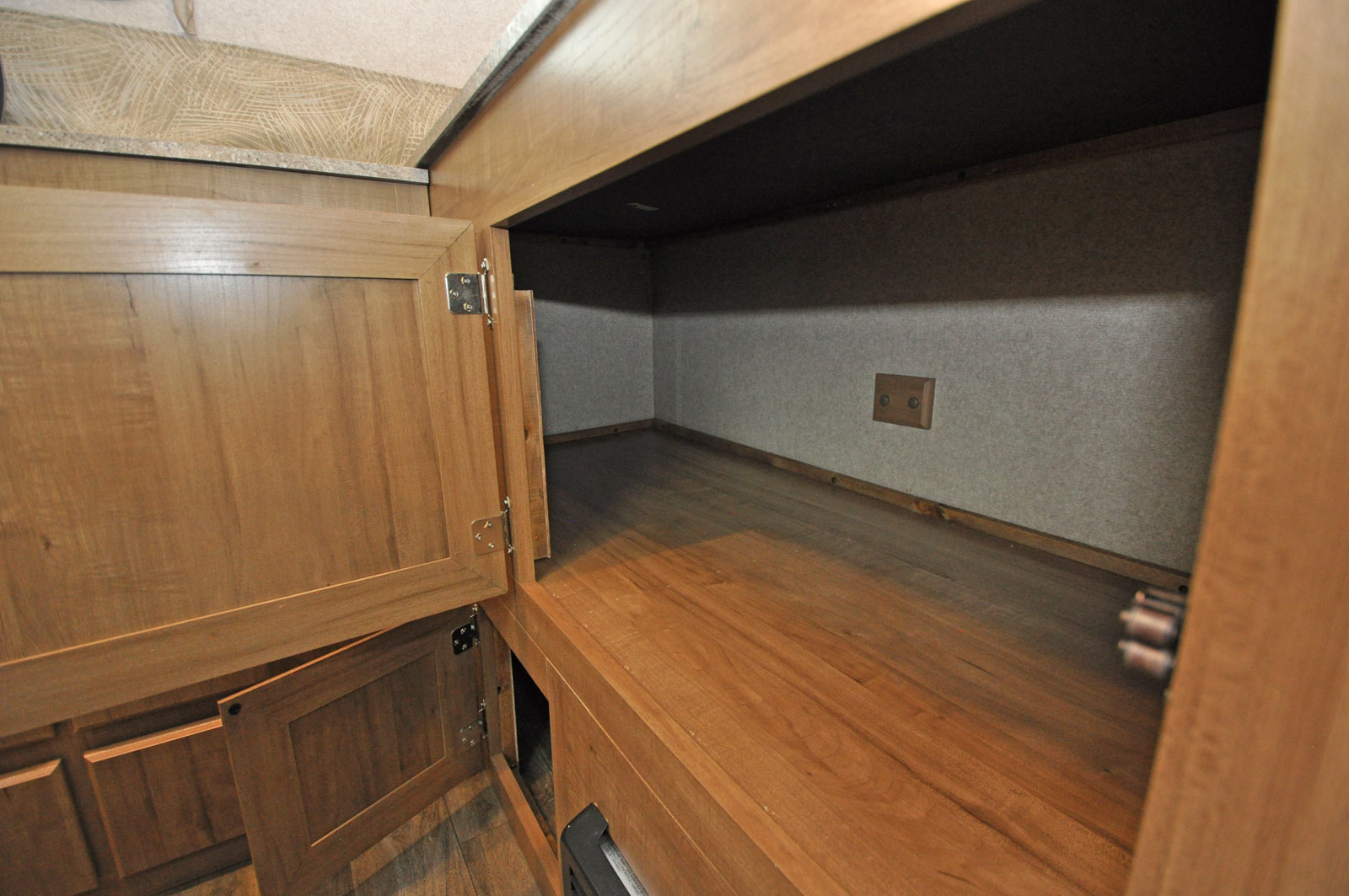

2017 Flagstaff T21FKHW stove 2017 Flagstaff T21FKHW sink 2017 Flagstaff T21FKHW galley cabinets 2017 Flagstaff T21FKHW galley cabinet storage

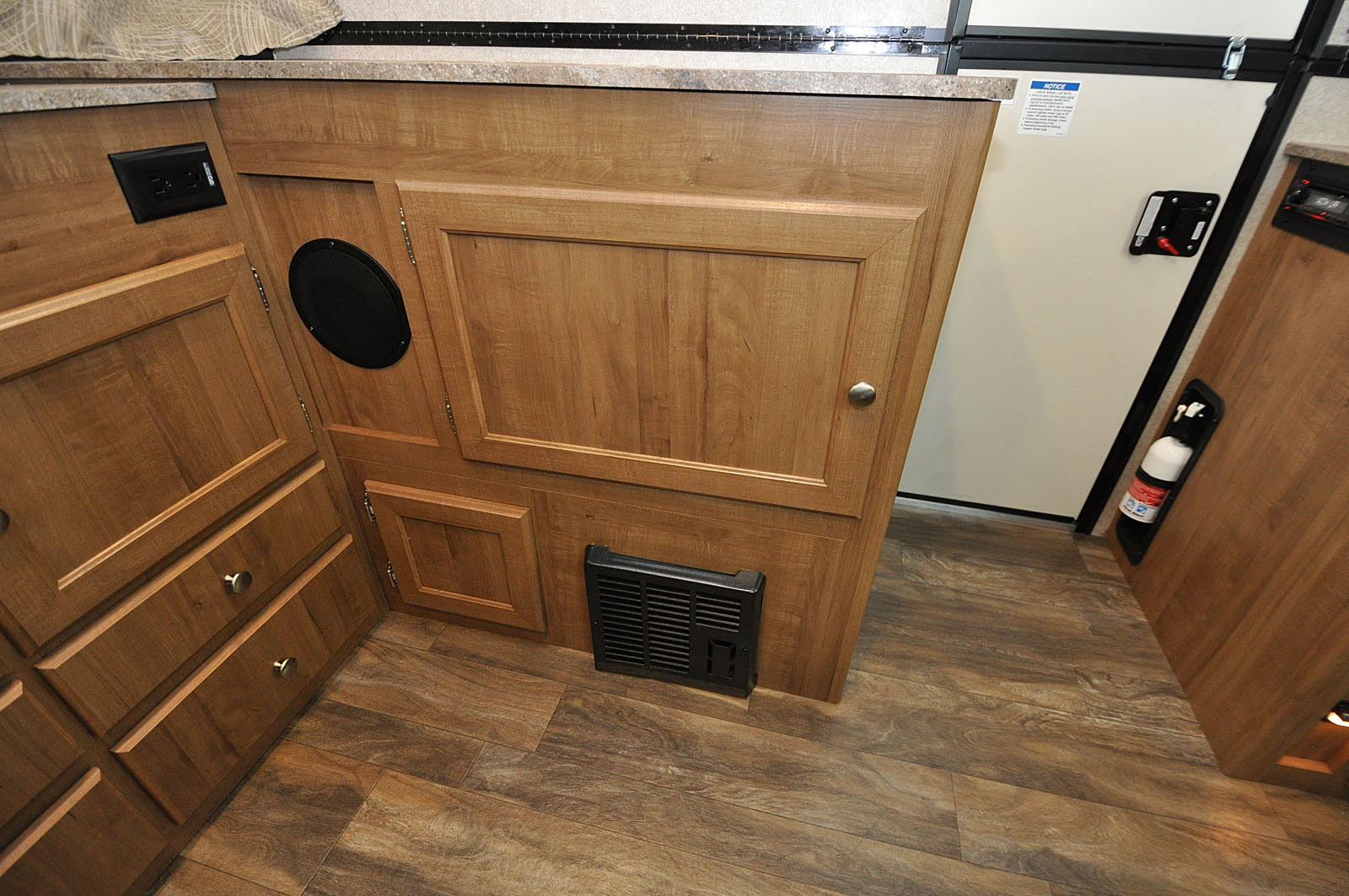

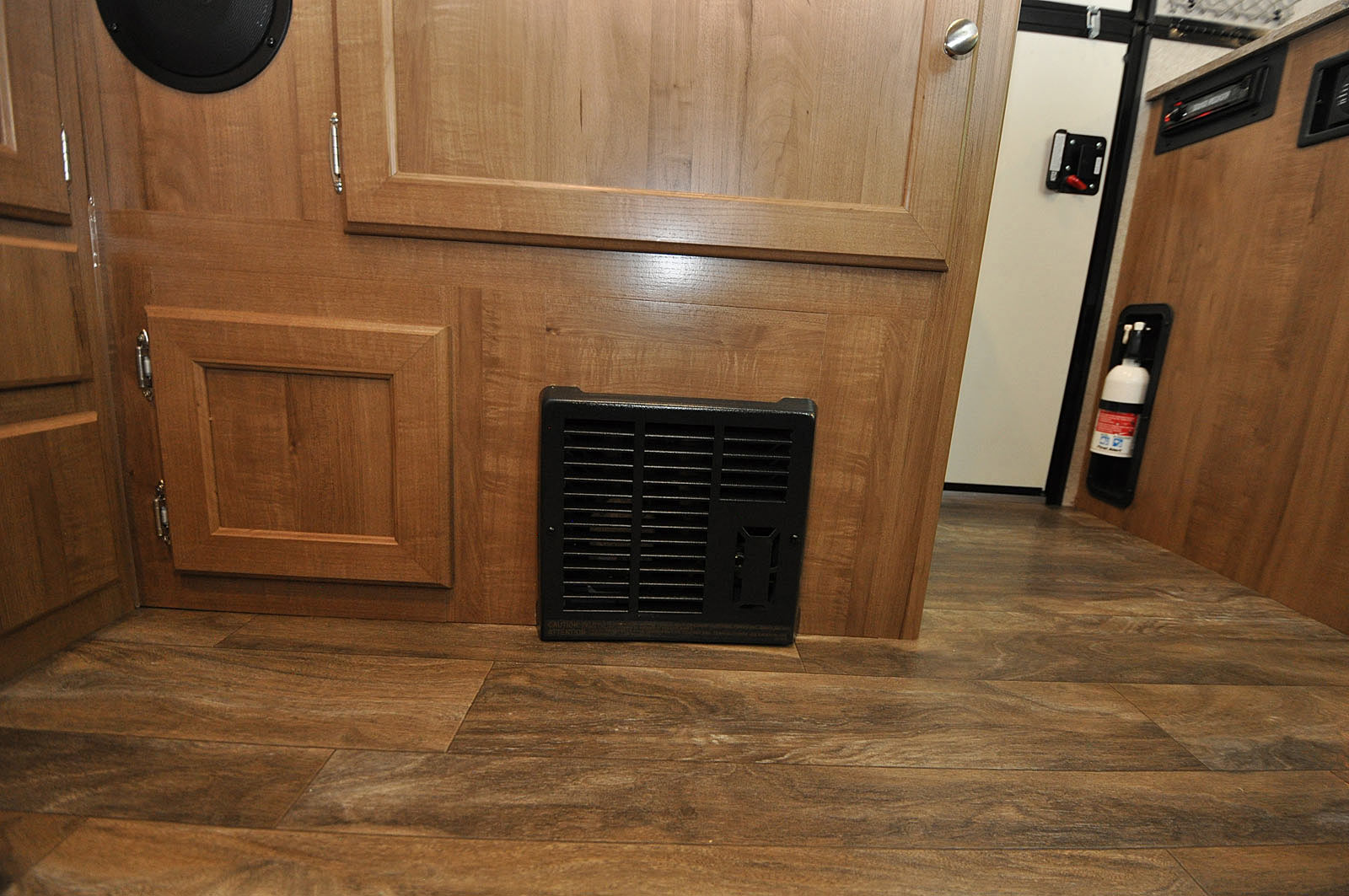

2017 Flagstaff T21FKHW front cabinets 2017 Flagstaff T21FKHW front cabinet storage 2017 Flagstaff T21FKHW more front cabinet storage 2017 Flagstaff T21FKHW 19,000 BTU furnace

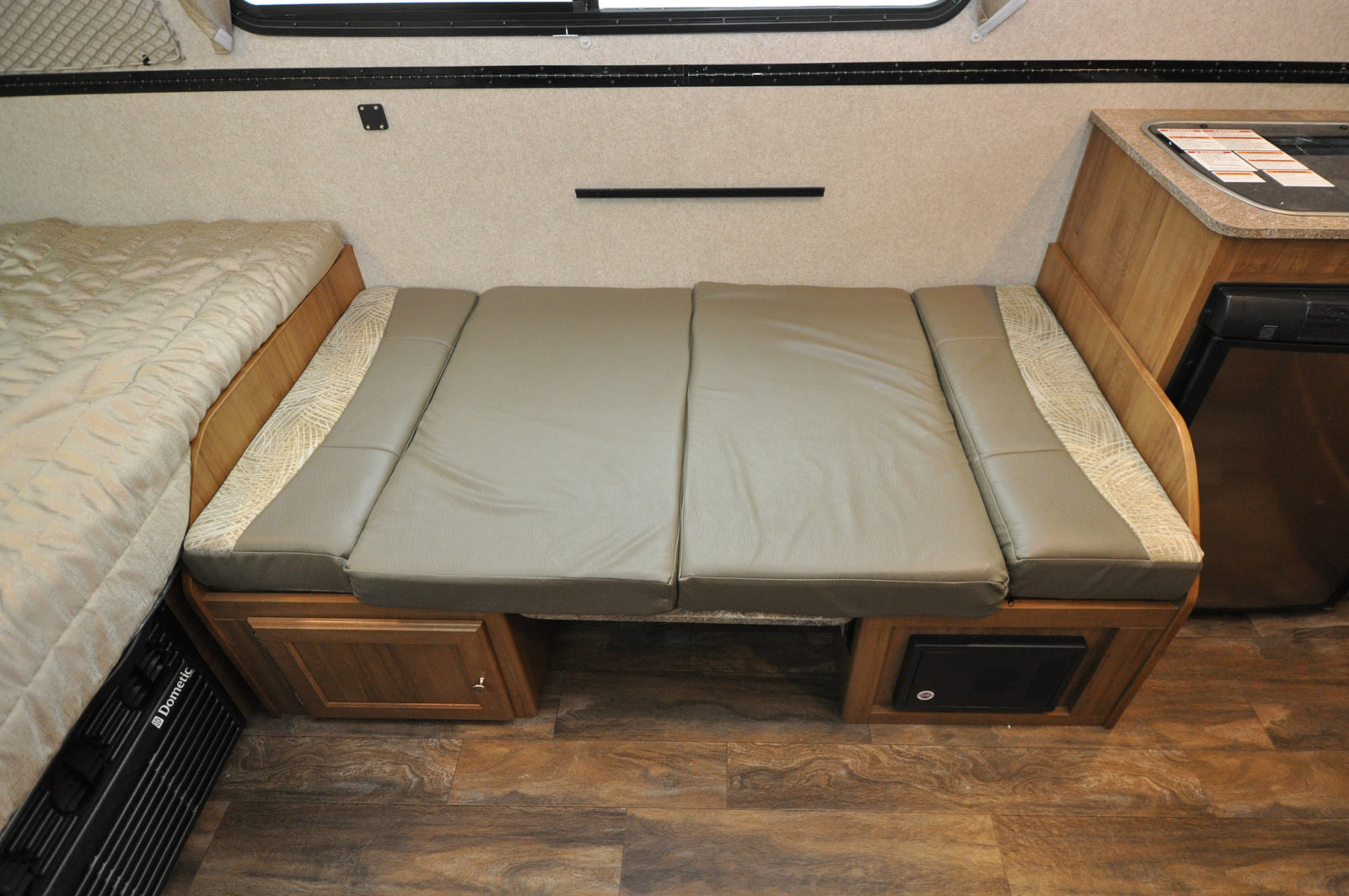

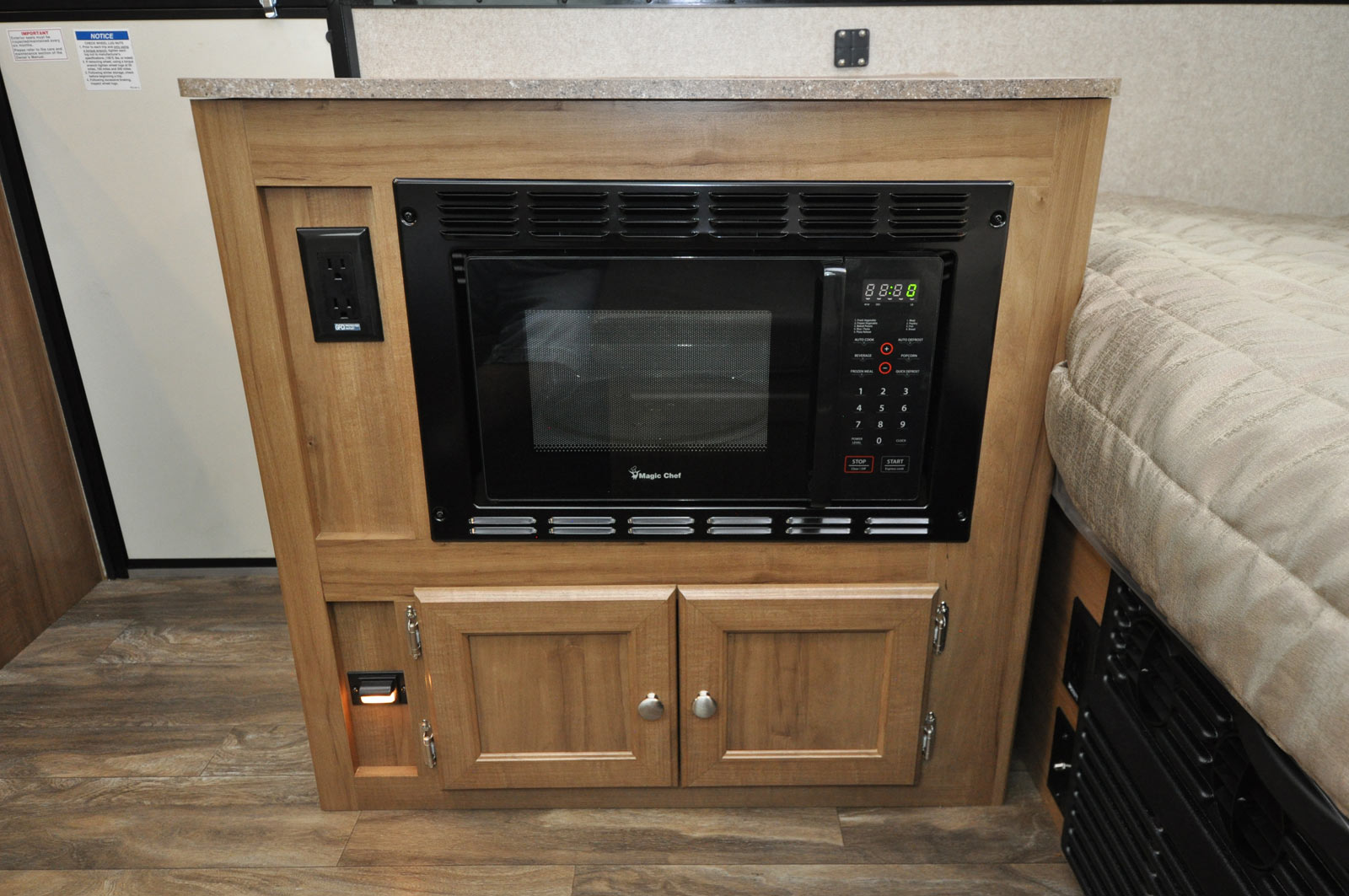

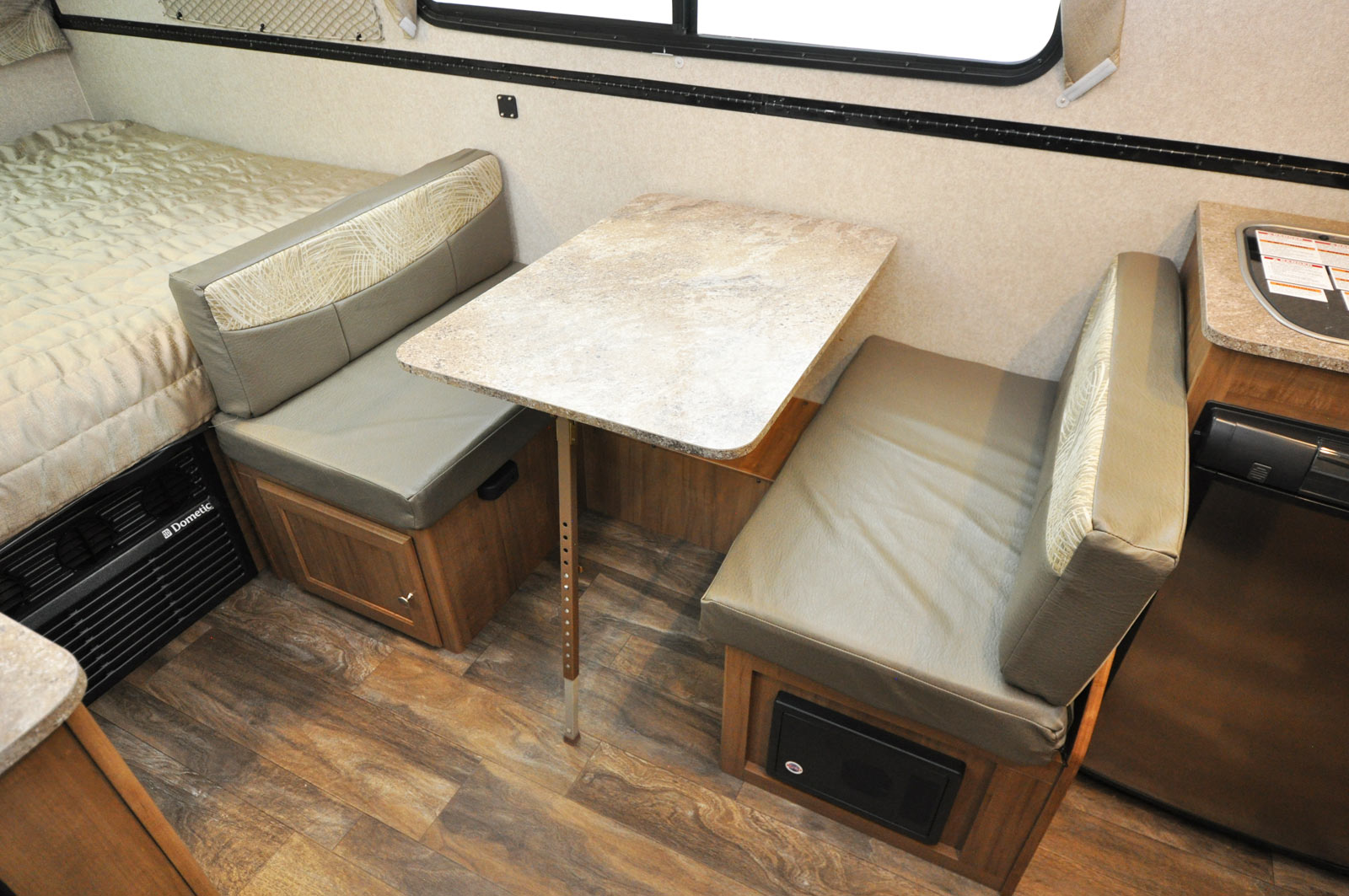

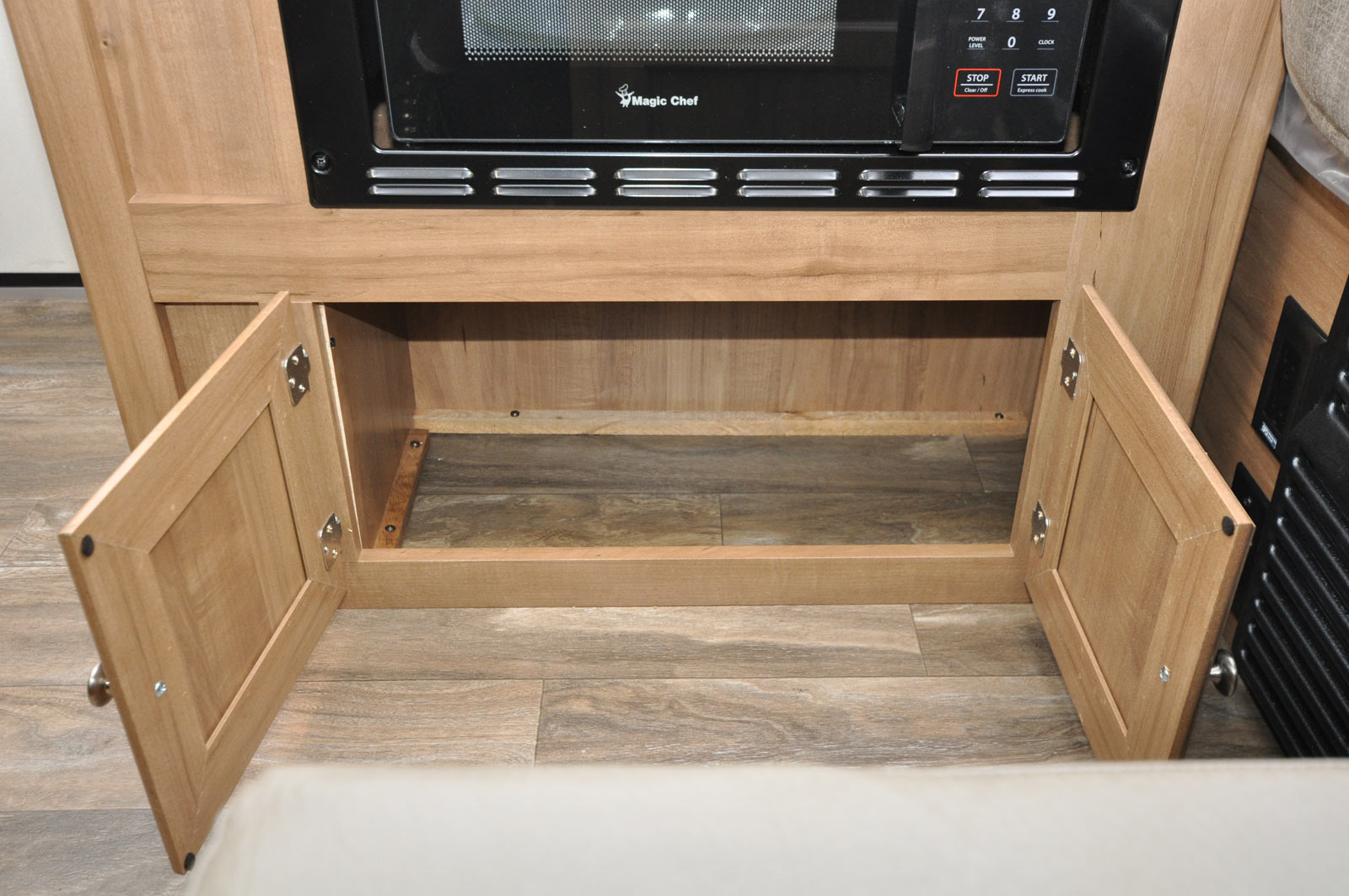

2017 Flagstaff T21FKHW mircowave 2017 Flagstaff T21FKHW storage under microwave 2017 Flagstaff T21FKHW dinette 2017 Flagstaff T21FKHW dinette as a bed

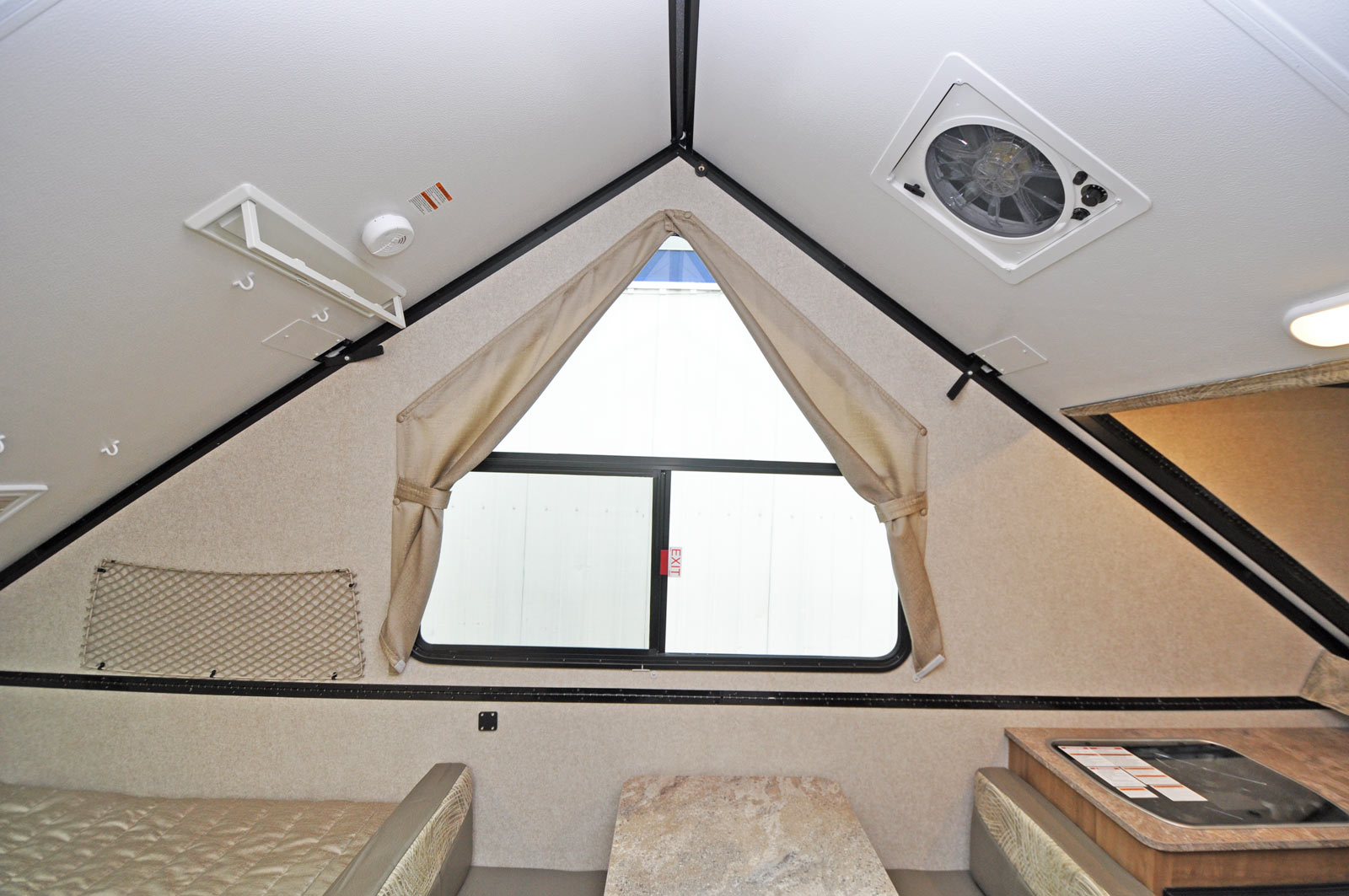

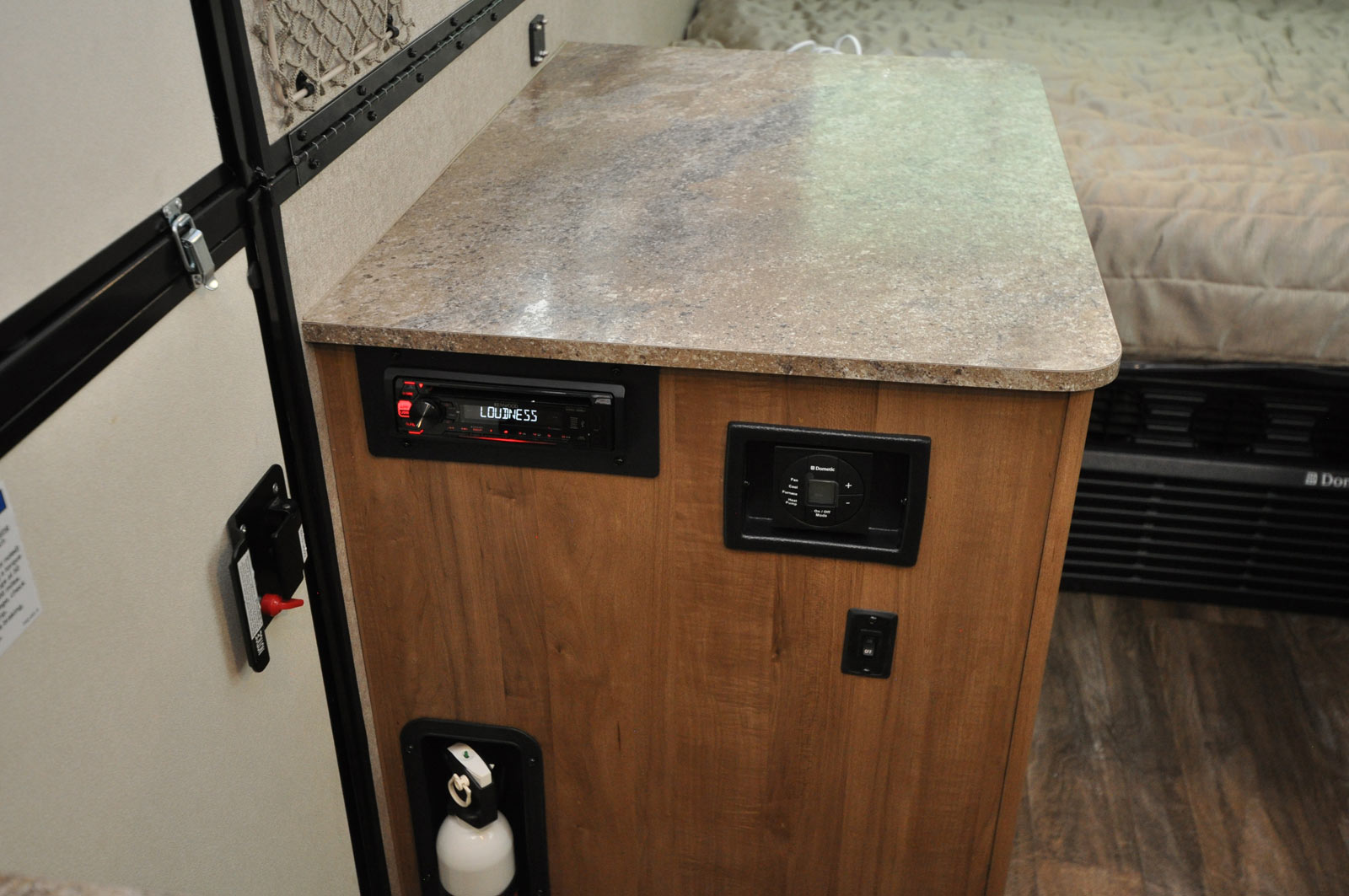

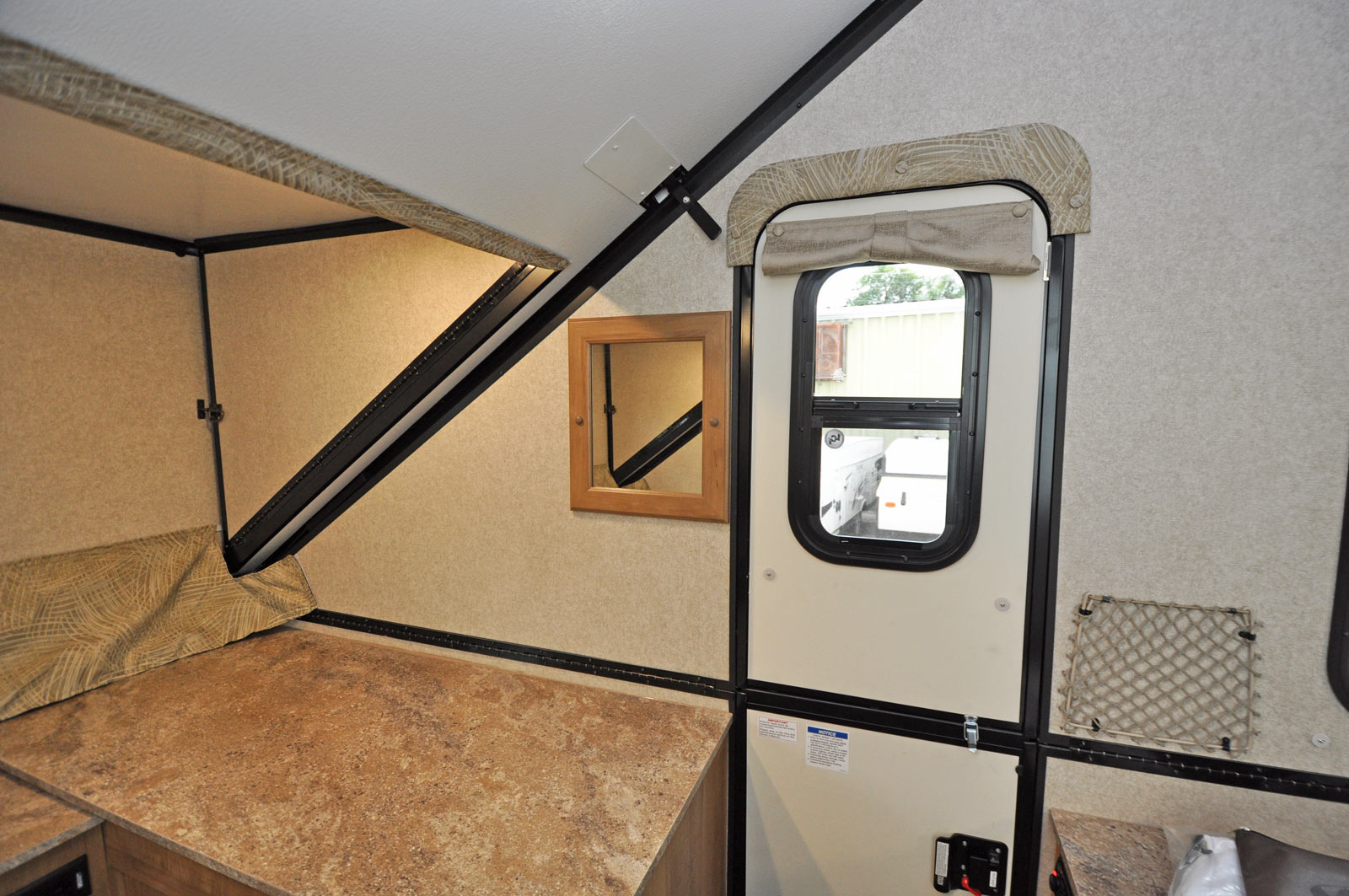

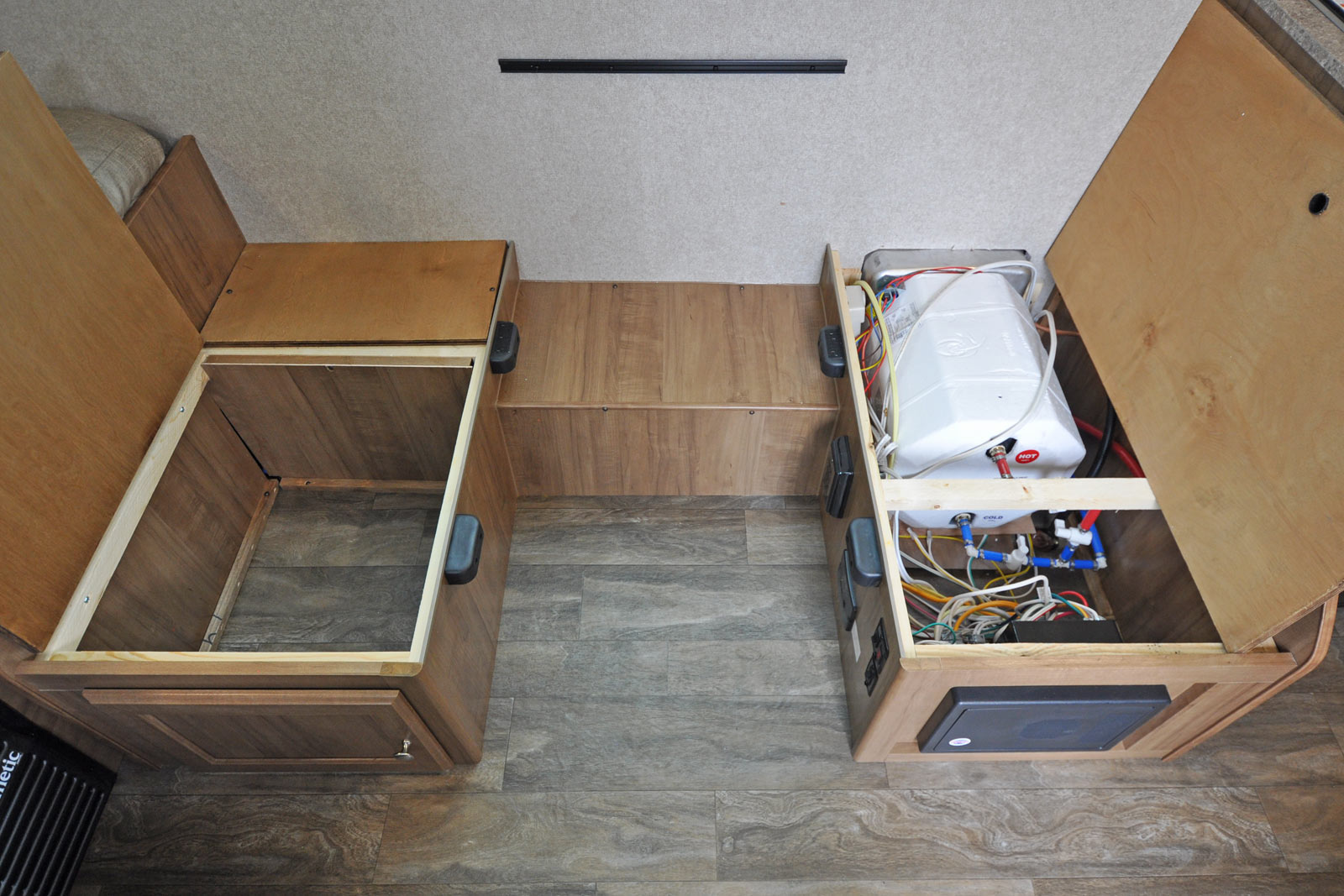

2017 Flagstaff T21FKHW storage under dinette 2017 Flagstaff T21FKHW stereo and thermostat 2017 Flagstaff T21FKHW mirror on the wall 2017 Flagstaff T21FKHW clothes rack and powered roof vent

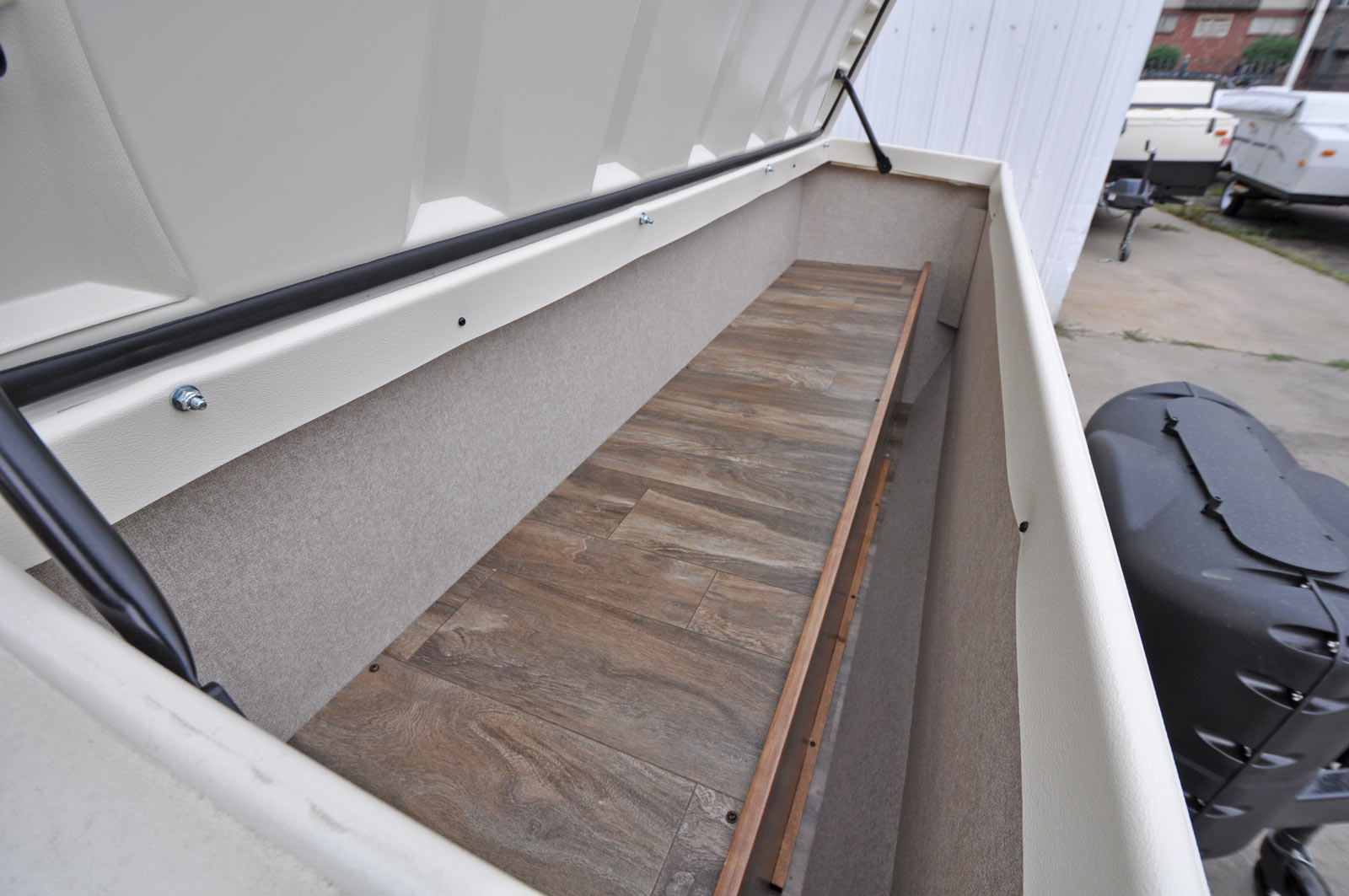

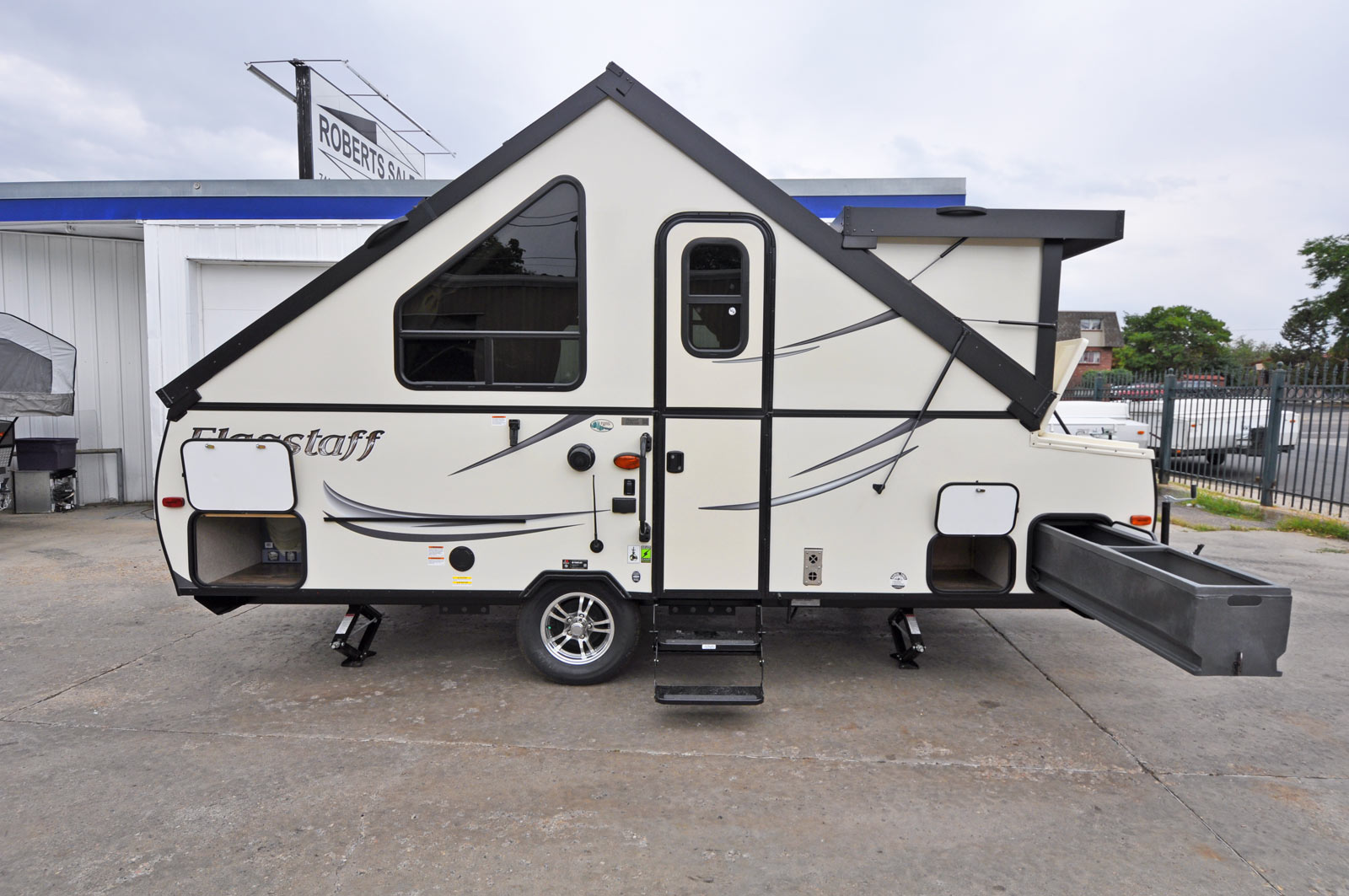

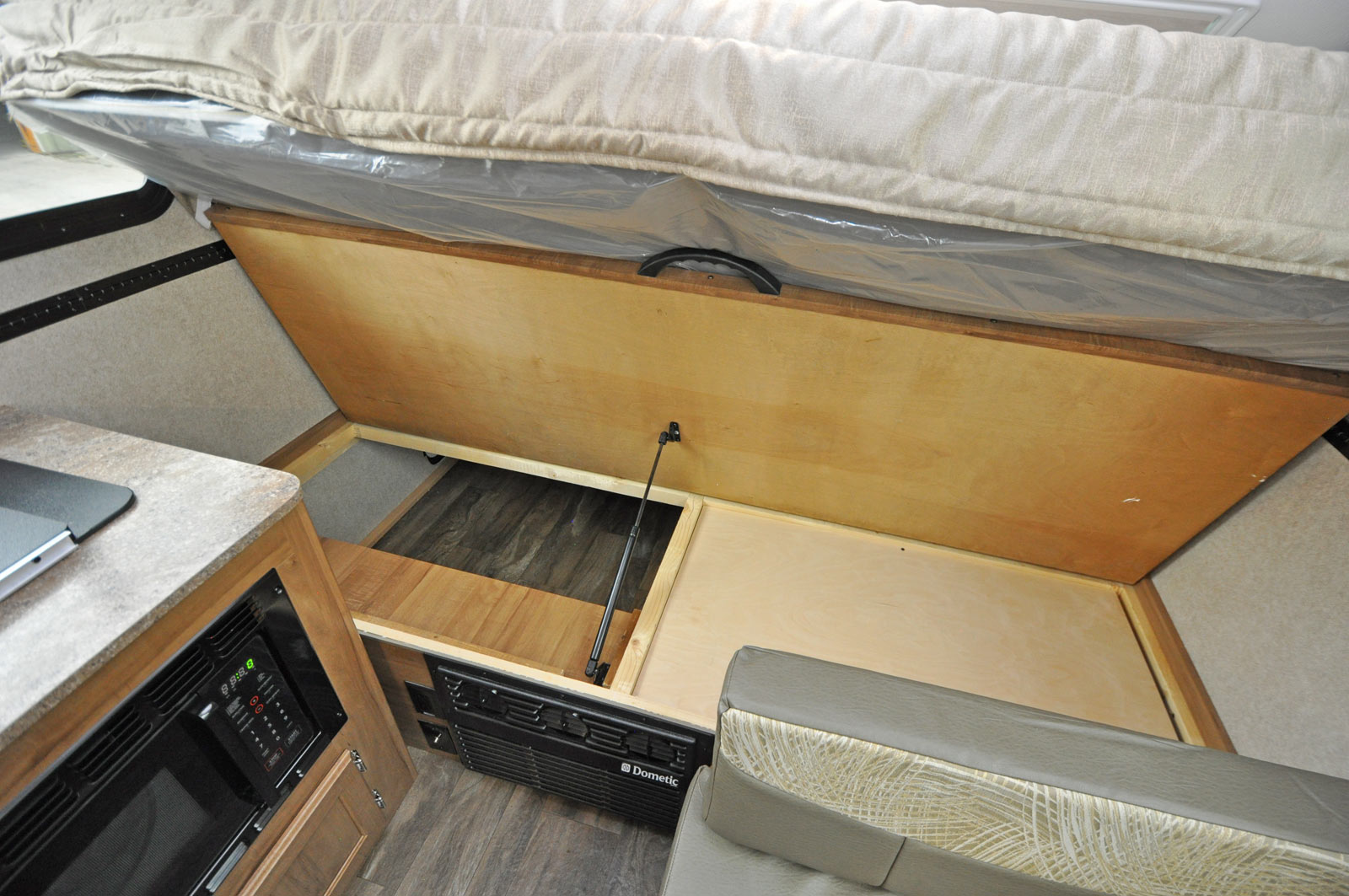

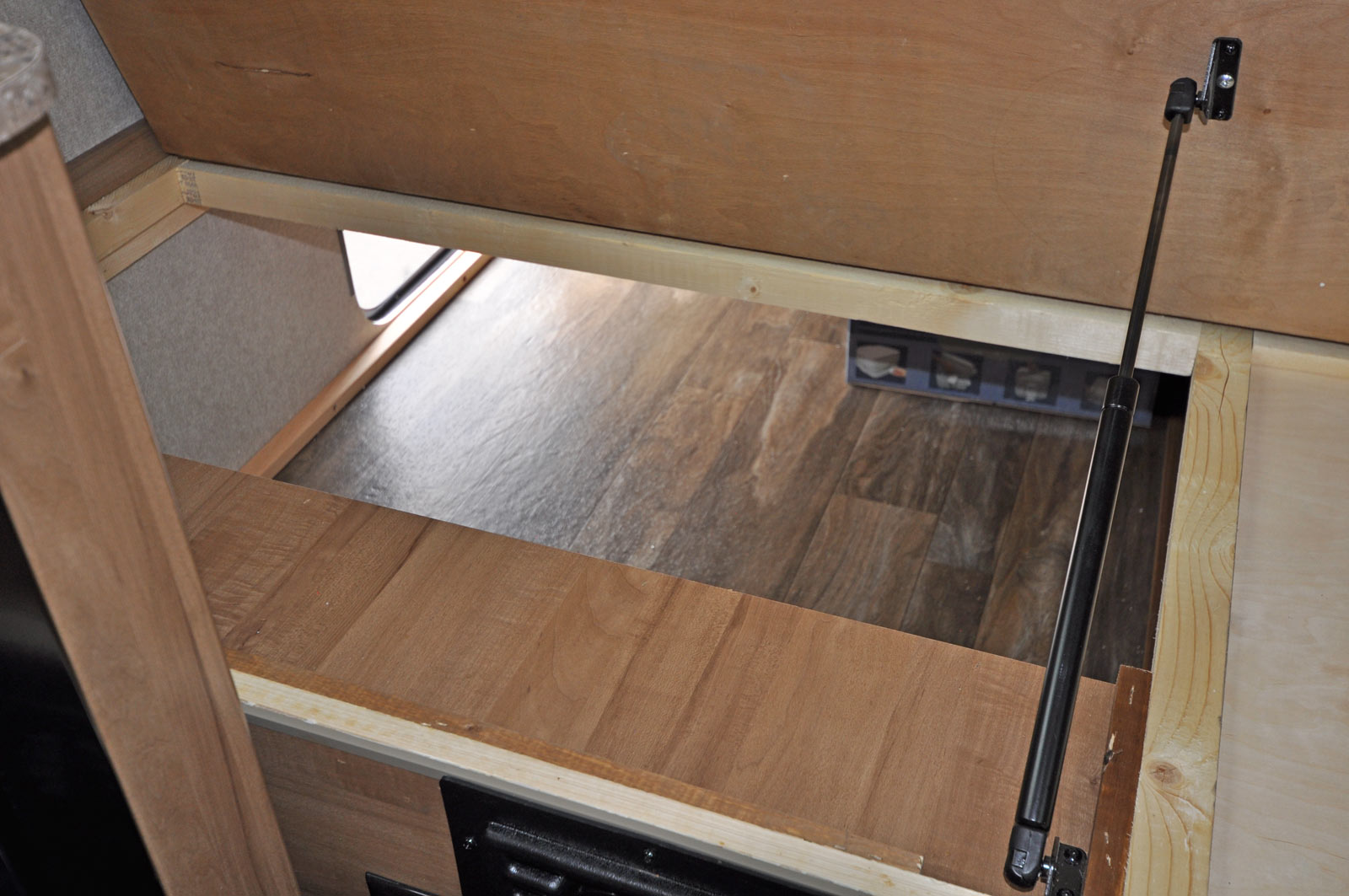

2017 Flagstaff T21FKHW under bed storage 2017 Flagstaff T21FKHW under bed storage detail 2017 Flagstaff T21FKHW outside baggage doors overview 2017 Flagstaff T21FKHW sliding storage trunk

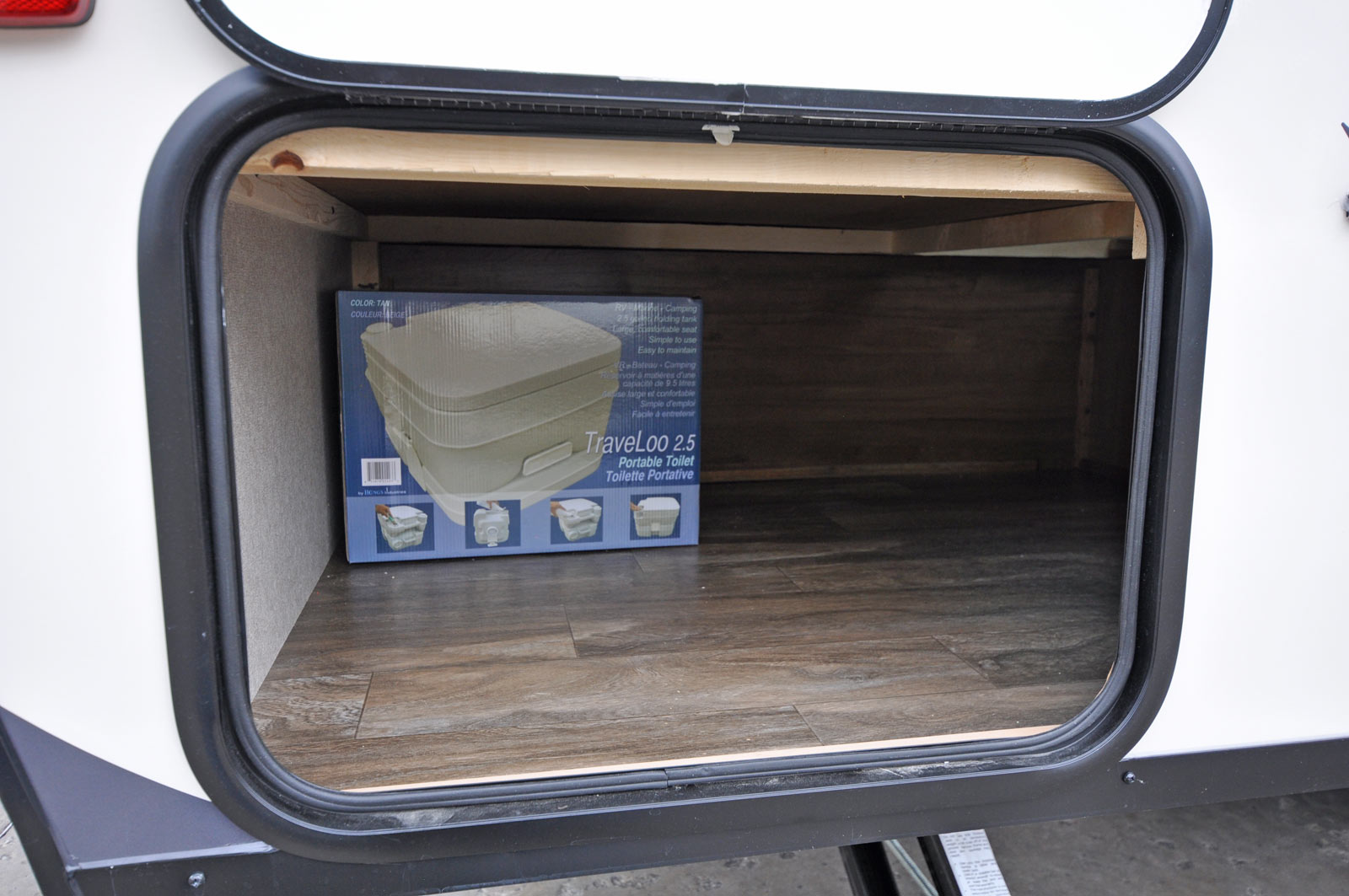

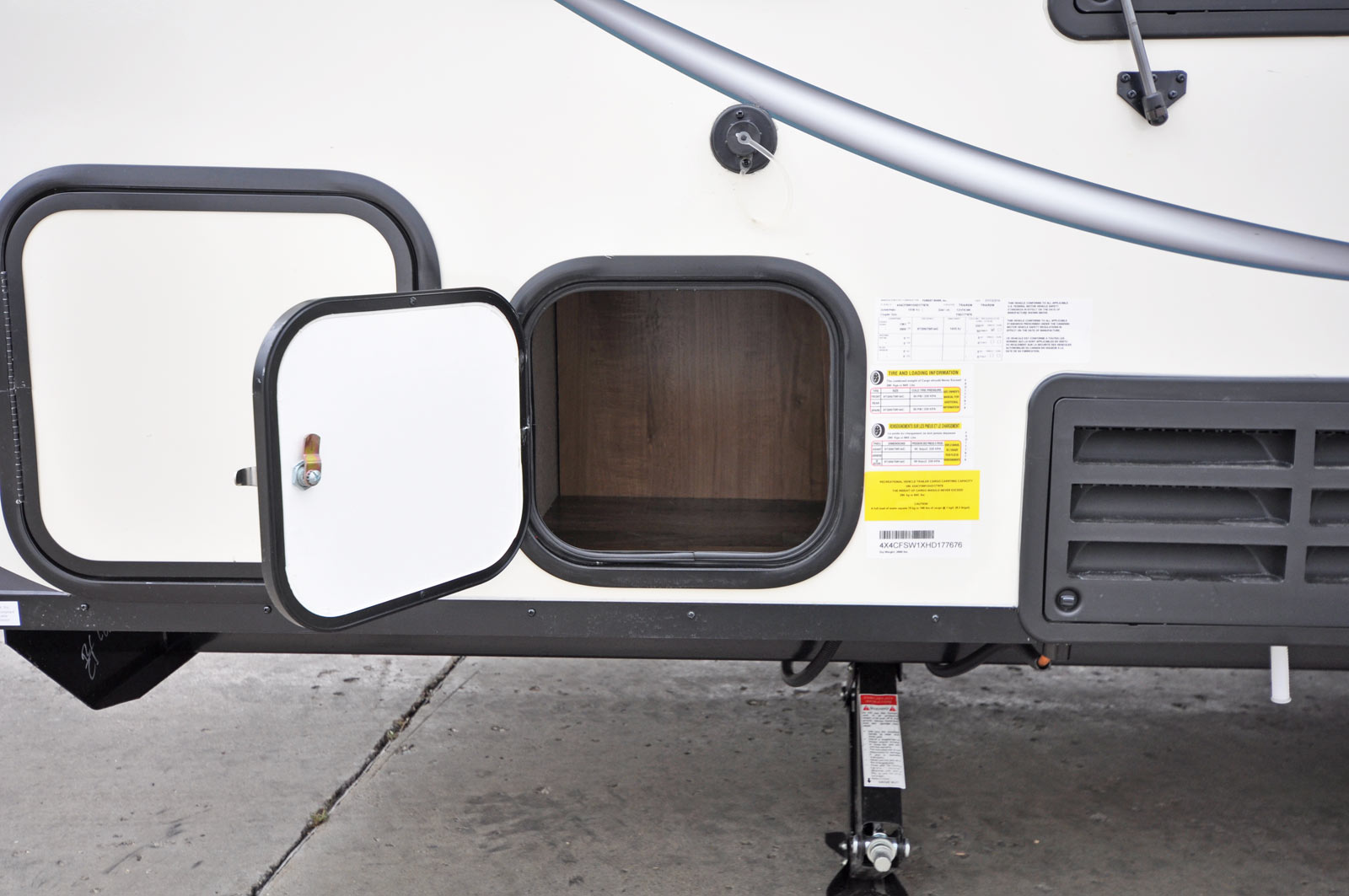

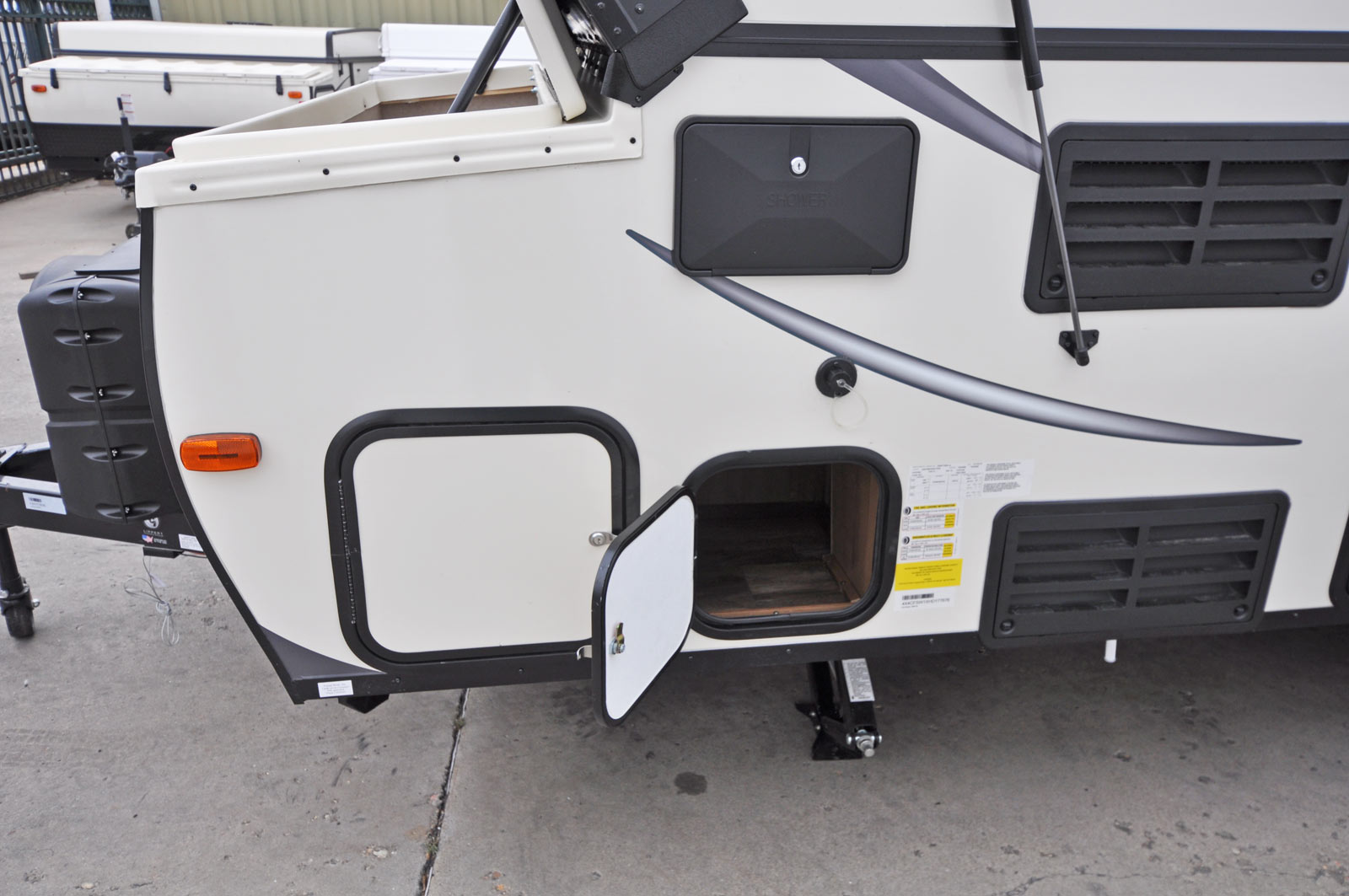

2017 Flagstaff T21FKHW under bed storage baggage door 2017 Flagstaff T21FKHW front storage trunk lid 2017 Flagstaff T21FKHW baggage cubby overview 2017 Flagstaff T21FKHW baggage cubby close-up

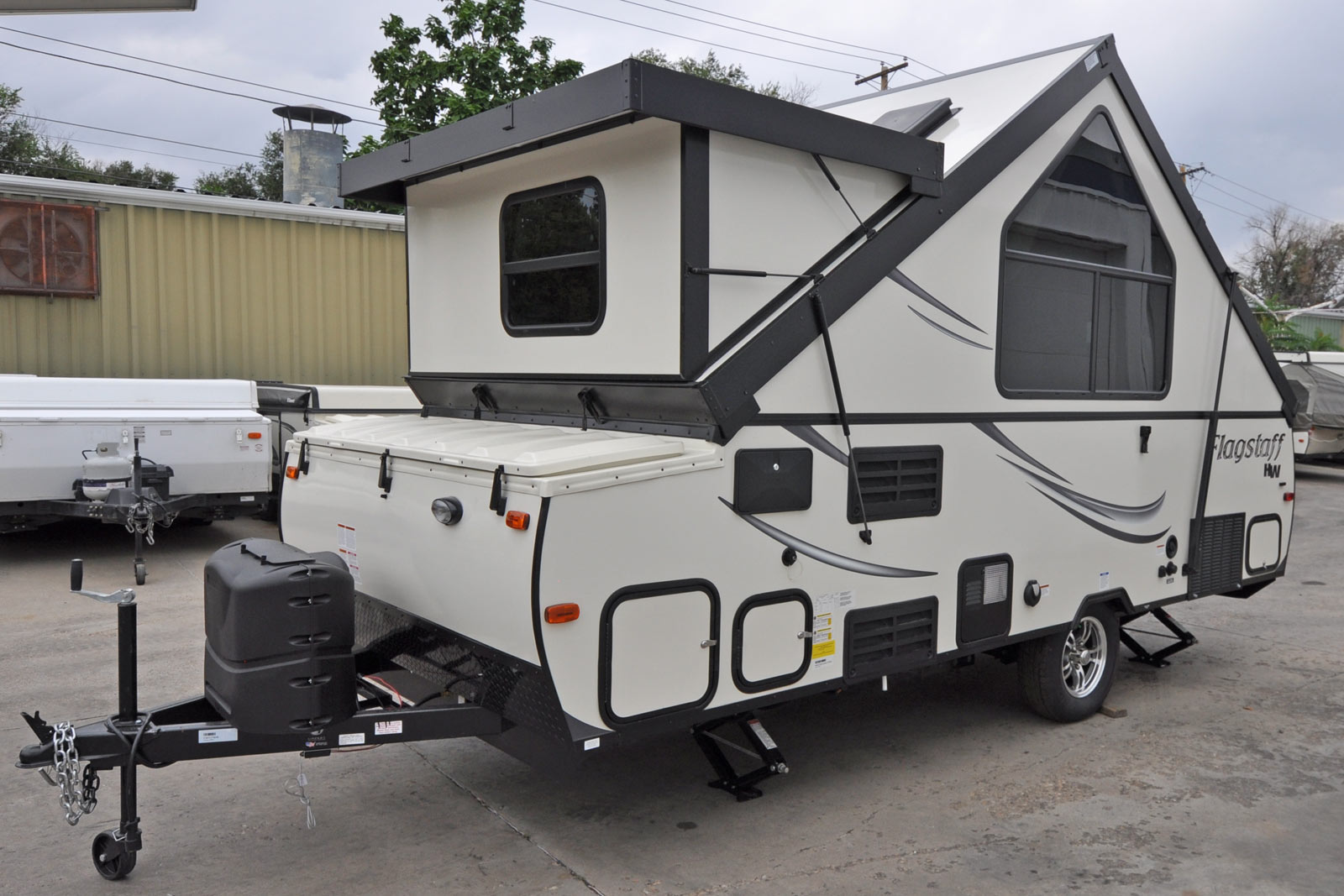

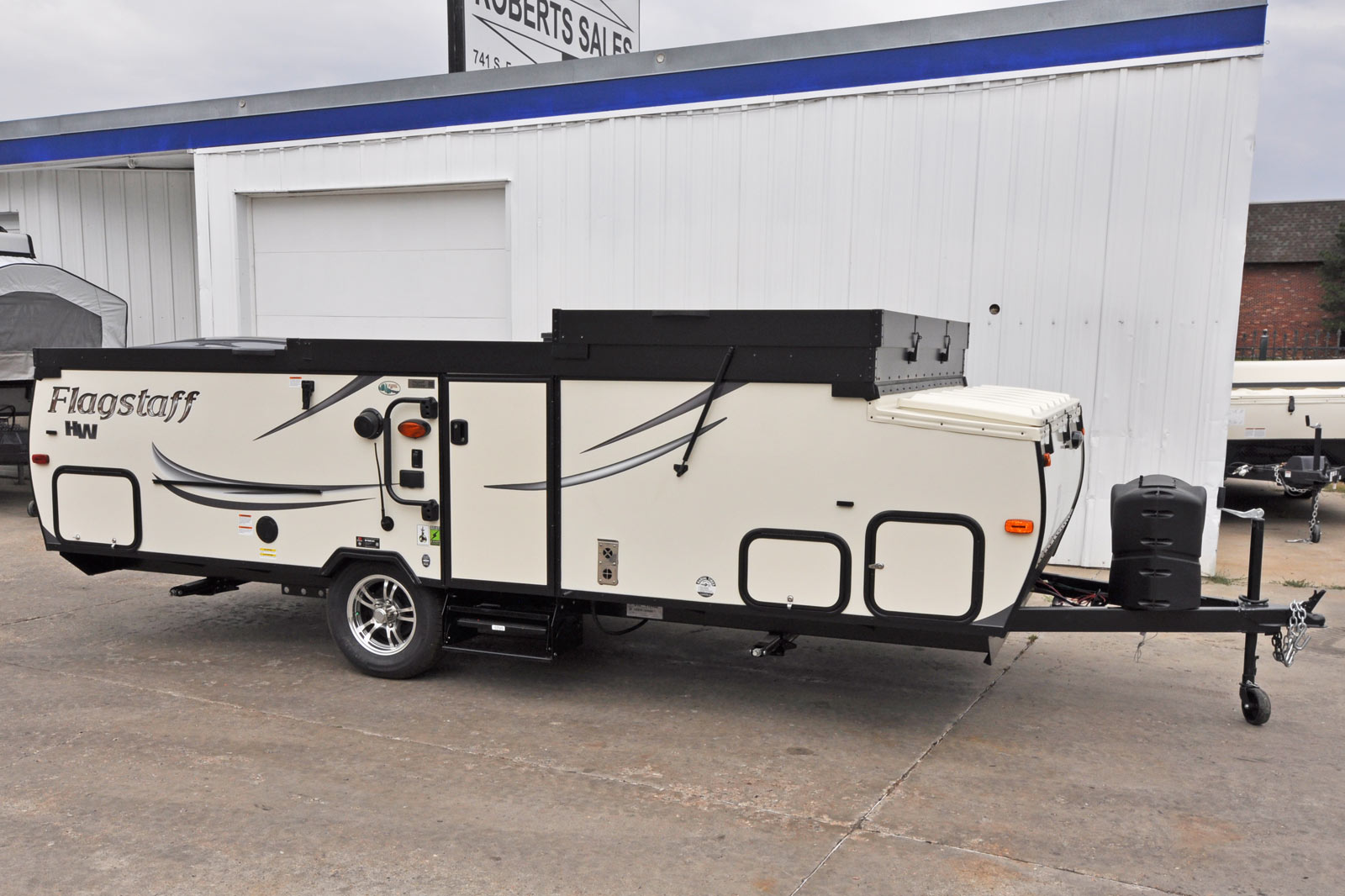

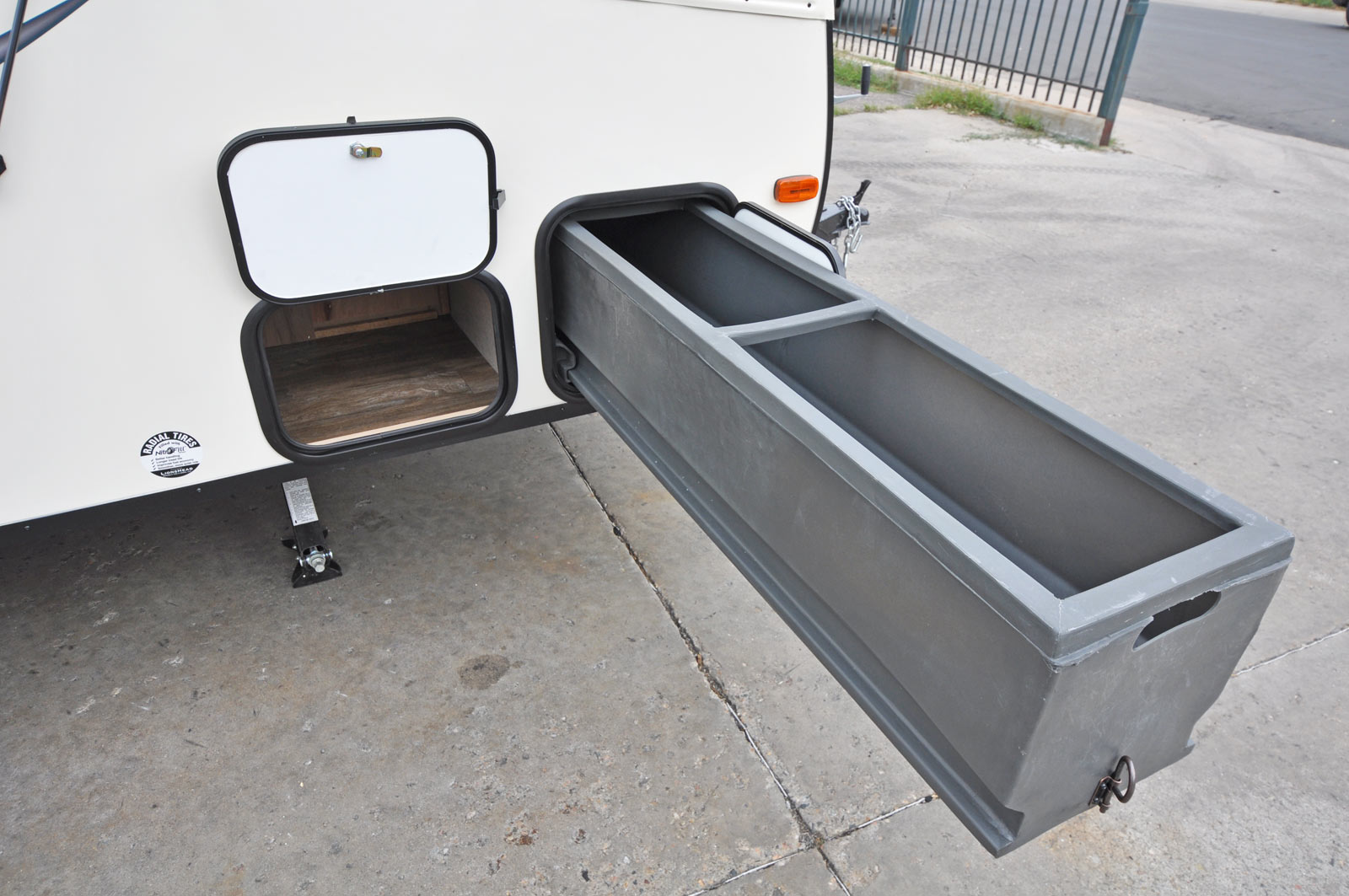

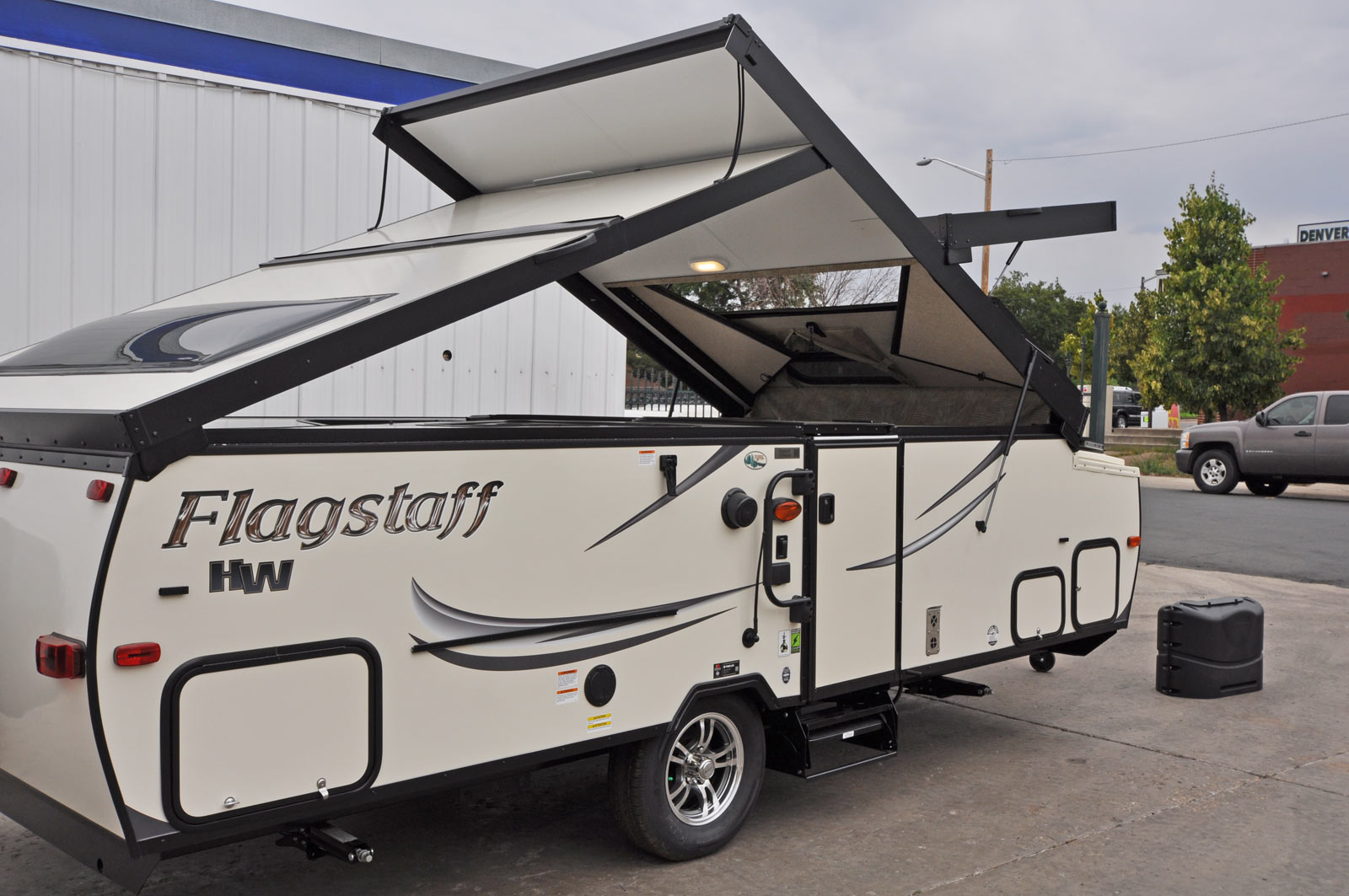

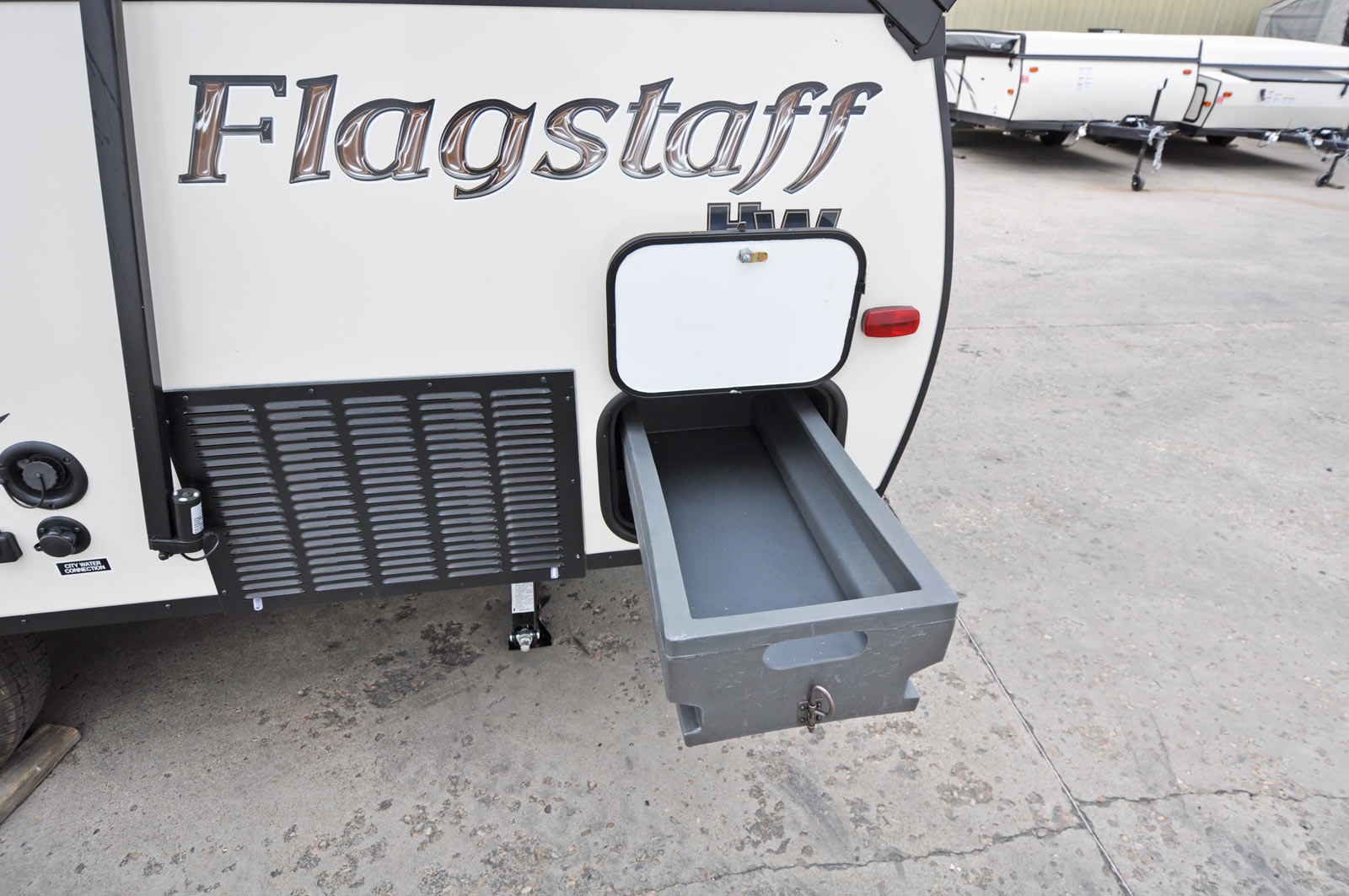

2017 Flagstaff T21FKHW rear storage bin 2017 Flagstaff T21FKHW back side 2017 Flagstaff T21FKHW partially up 2017 Flagstaff T21FKHW folded down

(2017 model year shown)

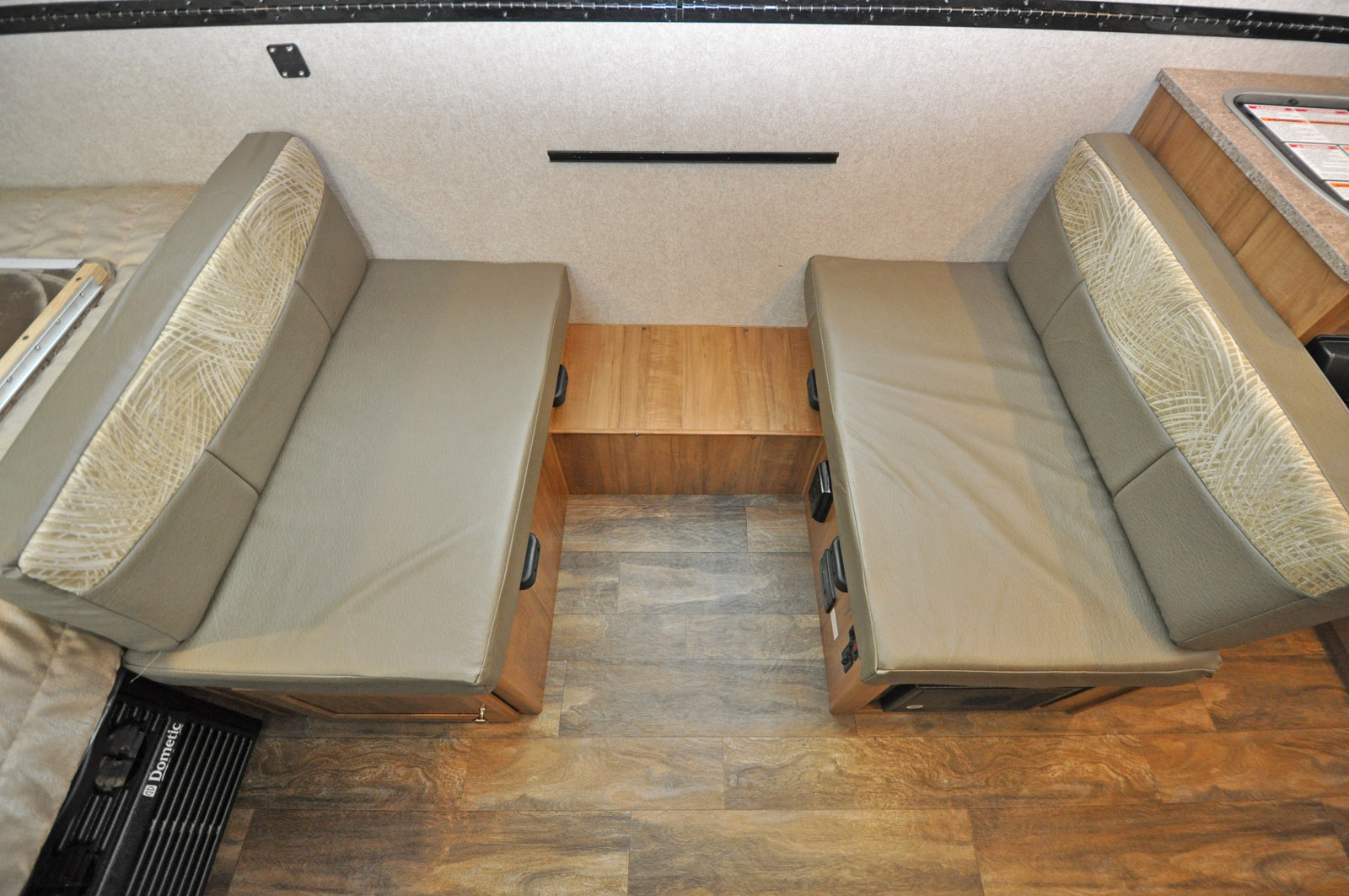

Wheel-well note: the wheel-well protrudes into the dinette's leg-room area and cuts the available leg-room space by about one-third:

2017 Flagstaff T21FKHW wheel-well issue

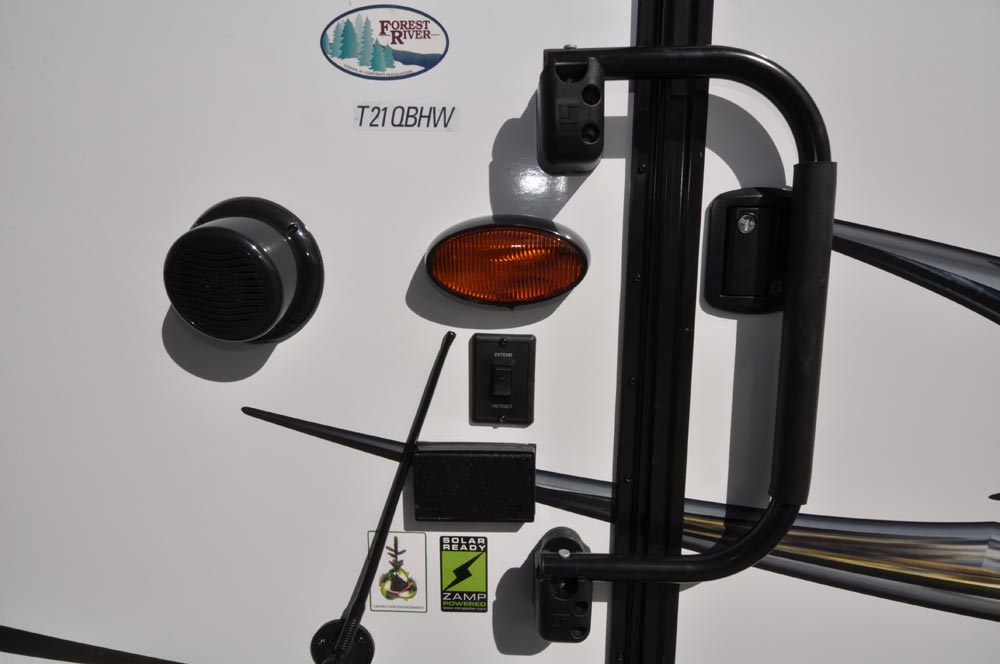

High-wall T-series campers have a 12-volt powered roof assist. Instead of pushing the roof up manually like other T-series campers, the 12V motor lifts the roof on its own with the push of a button (the button is to the left of the entry door).

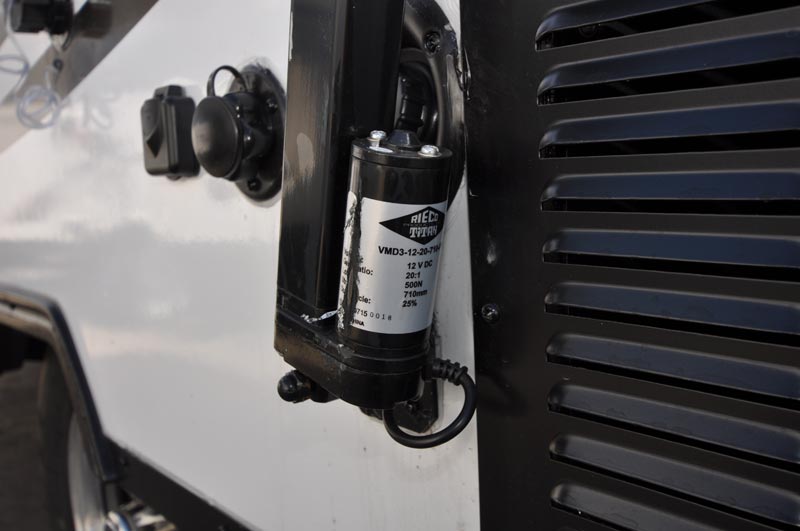

Flagstaff T21QBHW powered lift assist Flagstaff T21QBHW powered lift assist motor Flagstaff T21QBHW lift button

Highlights

  • The front kitchen area provides the most storage area of any T-series camper.
  • The roof dormer system allows for a larger kitchen area than most T-series campers. This provides a lot of counter space.
  • Higher side walls allow for higher counter-tops (than the standard T-Series), more head-room and a 4.0 cu. ft fridge with a small freezer compartment.

Specifications

  • Box Size: 14'
  • Travel Length: brochure says 20' 10"; actual (with spare tire) - 21'
  • Travel Width: 7' 6"
  • Closed Height: 68"
  • Dry Weight: 2638 lbs (brief weight explanation)
  • Hitch Weight: 350 lbs
  • GVWR: 3350 lbs
  • Coupler size: 2"
  • Sleeps: 4
  • Beds:
    1. 80" x 60"
    2. 64" x 33"

Features

  • 110V heated mattress
  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Built-in cassette toilet and interior shower
  • Front storage trunk with sliding tray
  • 14" aluminum wheels (spare tire has a steel wheel)
  • Electric roof-lift assist

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two 20# propane tanks with automatic regulator
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • T21DMHW - Same 14' box and heavy dormer system but with a cassette toilet/shower combo in place of the (door-side front) extra counter space.
  • T21TBHW - Same 14' box but with a cassette toilet and a convertible two-single-beds/one-king-bed design in the back. Also a different dinette arrangement.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
