Flagstaff 246D

(2010-2016)

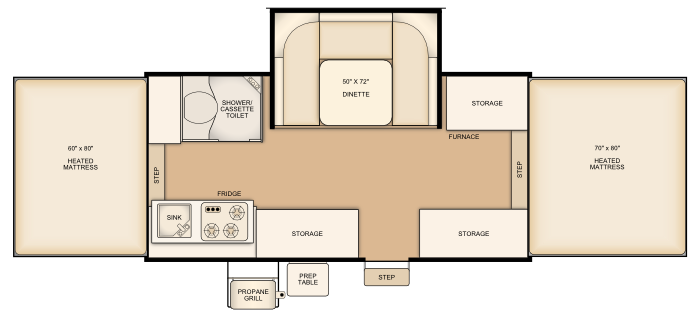

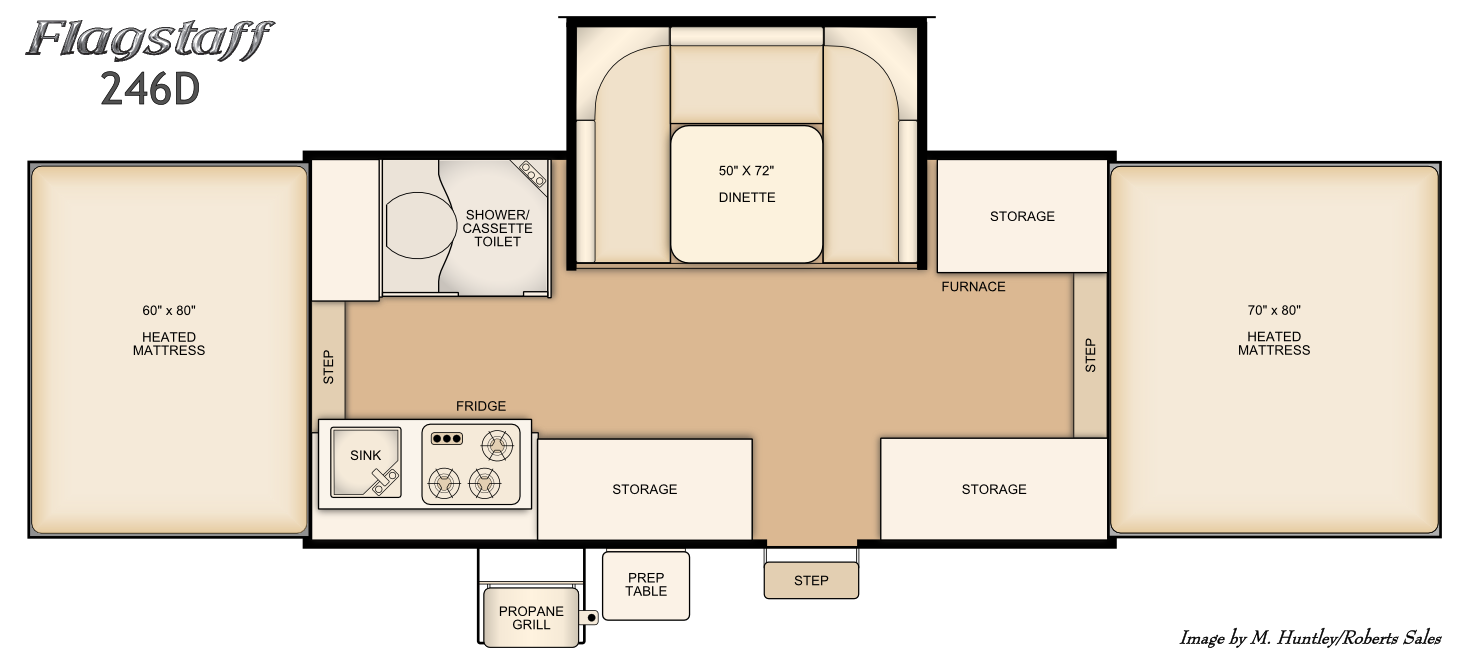

Flagstaff 246D floorplan

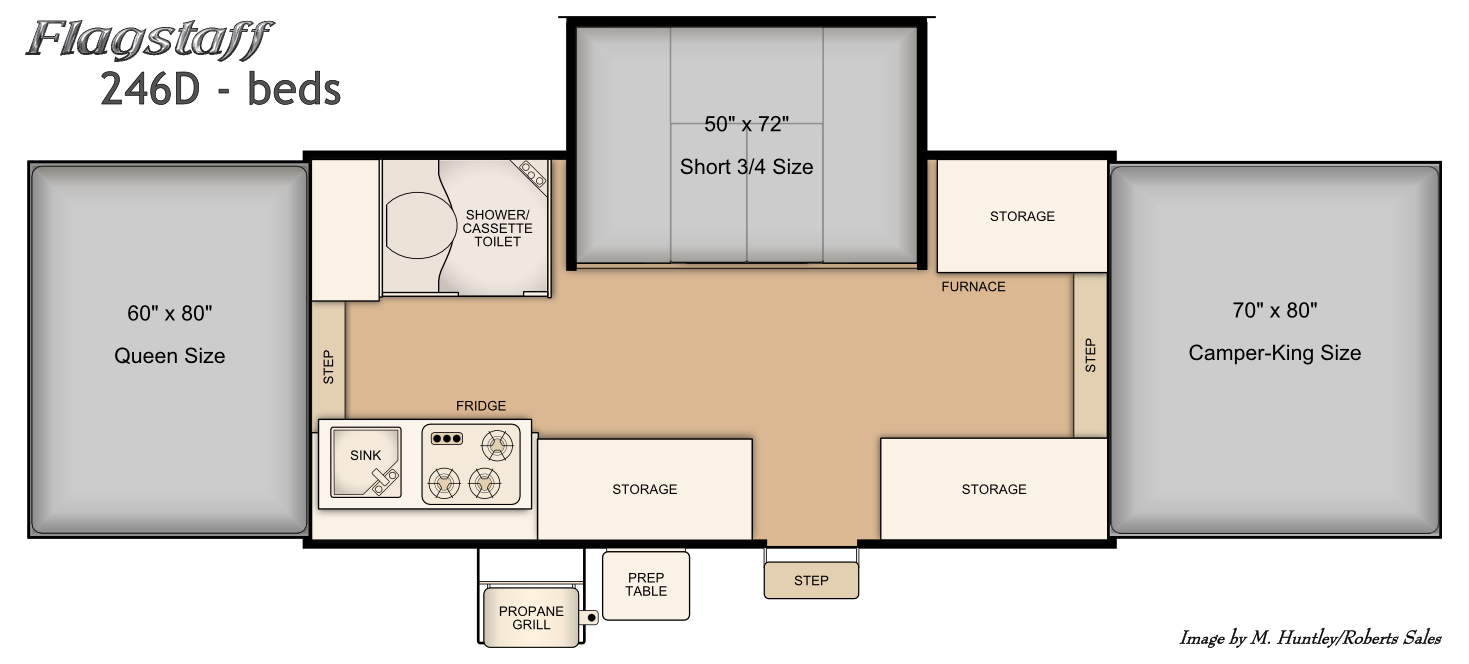

Bed Layout for this model

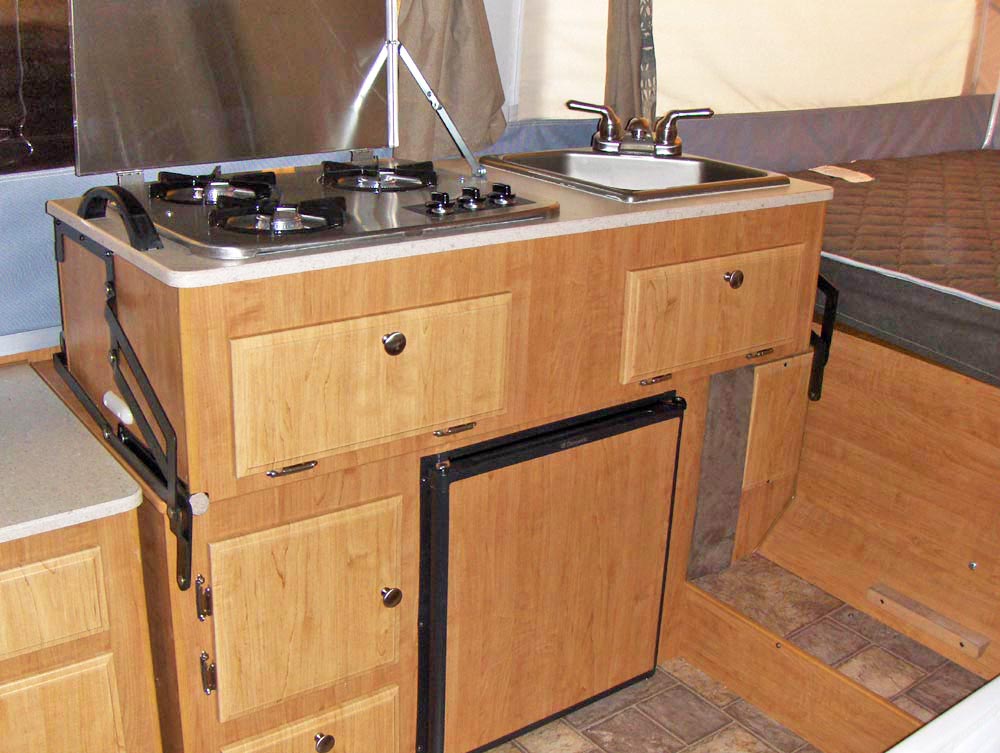

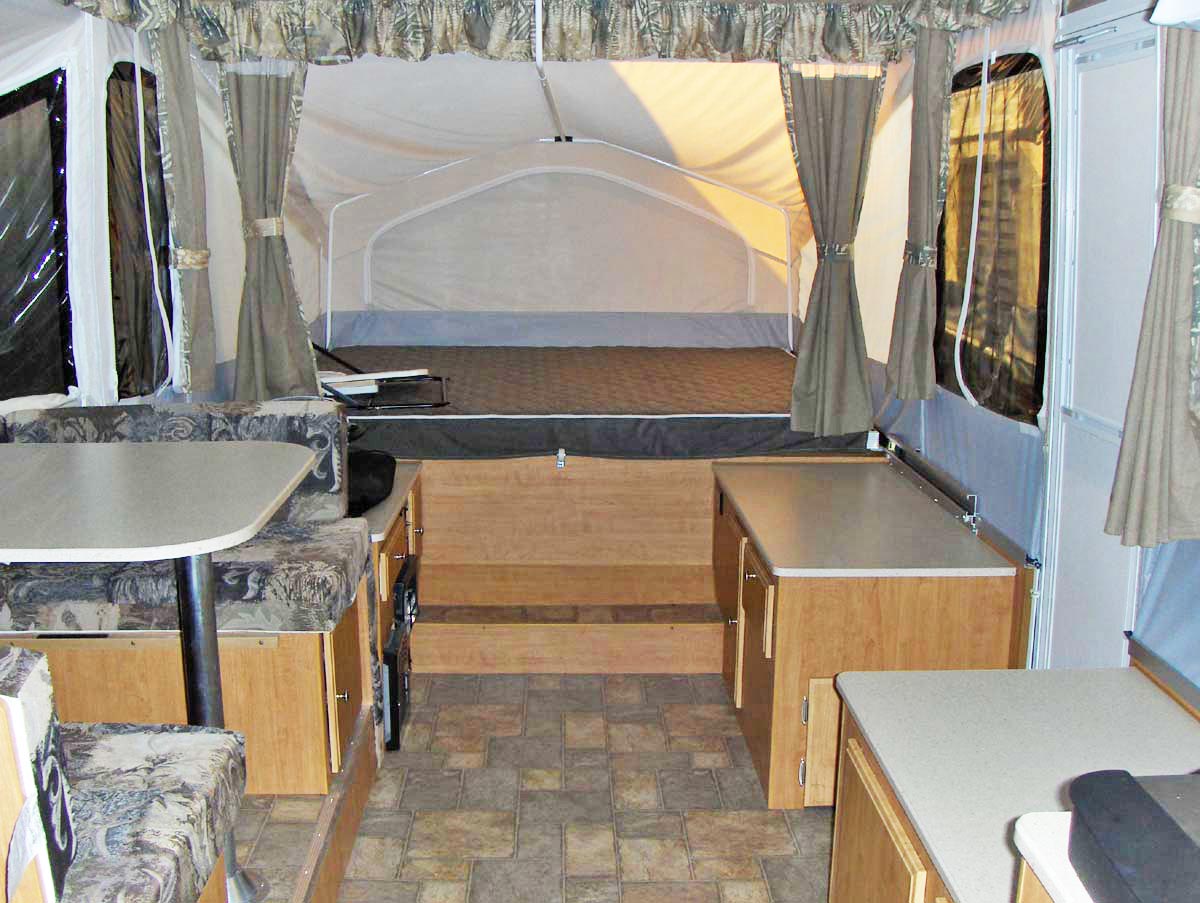

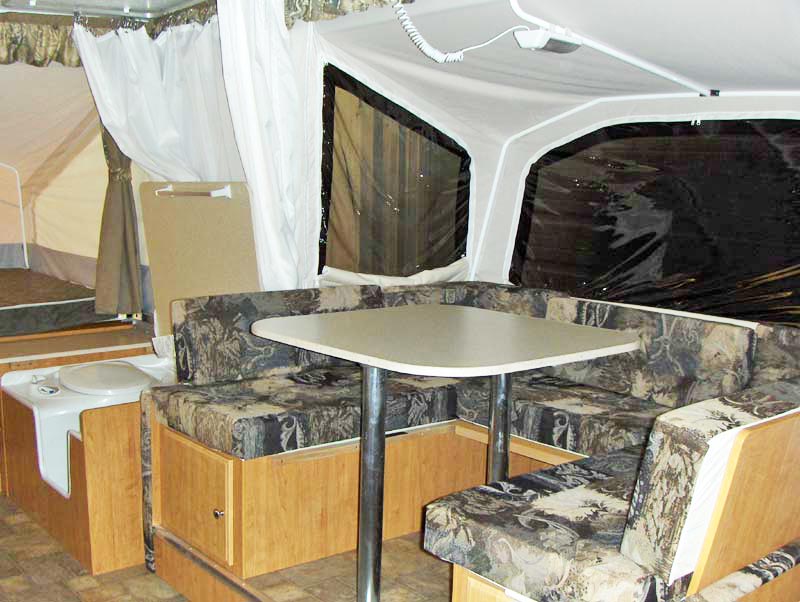

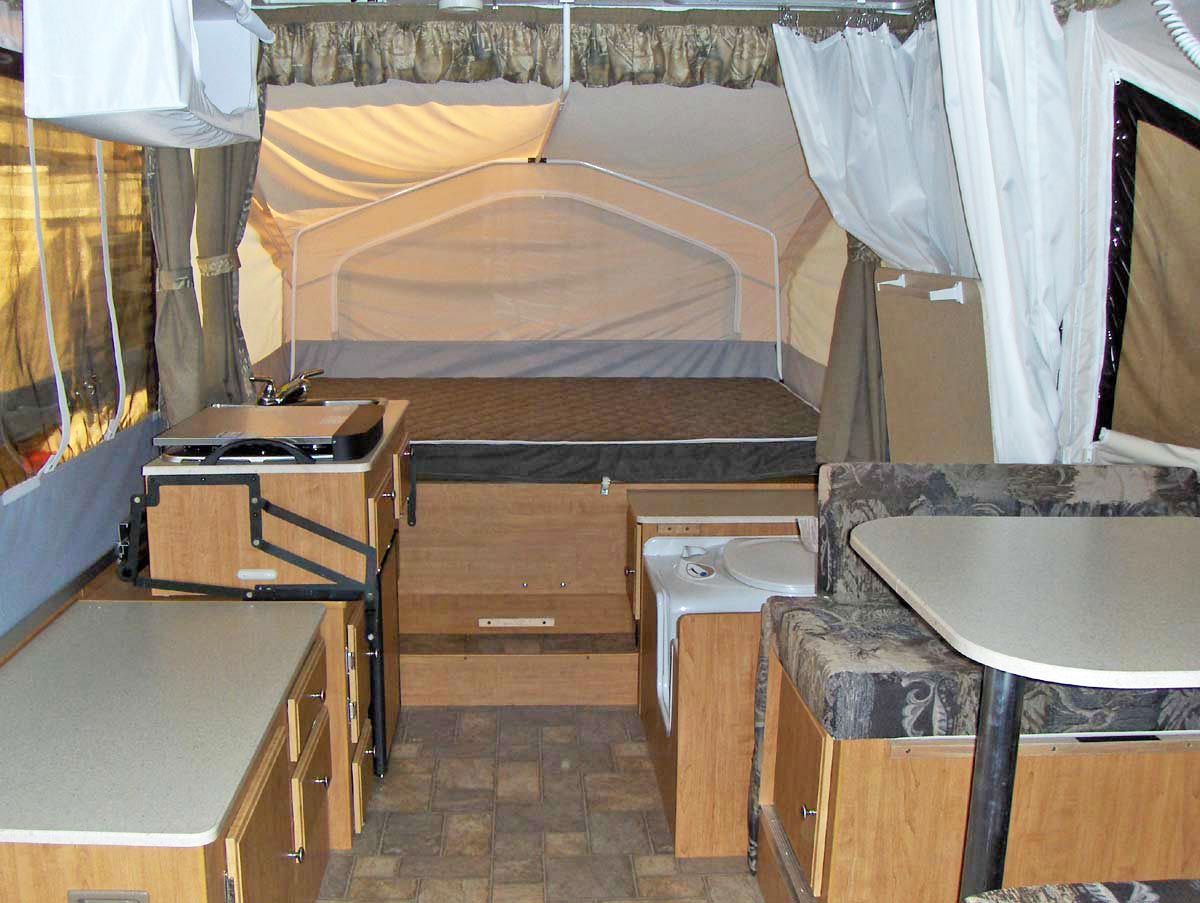

Flagstaff 246D front view Flagstaff 246D rear view Flagstaff 246D galley Flagstaff 246D dinette

(2010 model year shown)

Highlights

  • Flagstaff's only 14' MAC - slide-out dinette and shower/cassette come standard
  • Lots of counter space and storage space plus a full walkway from end to end

Specifications

  • Box Size: 14'
  • Open Length: 25' 10"
  • Travel Length: 19' 2"
  • Travel Width: 7' 6"
  • Dry Weight: 2552 lbs (brief weight explanation)
  • Hitch Weight: 246 lbs
  • GVWR: 3227 lbs
  • Coupler size: 2"
  • Sleeps: 6
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"

Features

  • Interior shower/cassette toilet
  • 6-gallon water heater with automatic ignition and exterior shower fixture

...as well as these features standard with the MAC series:

  • Dometic 1.9 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • Overhead cabinet
  • Group 27 battery pack
  • 110V heated 3.5" foam mattresses
  • Privacy curtains
  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • Awning
  • 20# propane tank
  • 13" steel wheels
  • Spare tire
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Model

  • 228D w/ shower - Since the 246D is the only 14' MAC it's hard to name a comparable model, but if 14' is a bit too long but a slide-out dinette and interior shower are mandatory, the 12' 228D with shower offers the same amenities.
  • 627D - Also a 14' camper, but in the Classic Series so it has more bells and whistles (series comparison) in addition to an extra sofa/bed for a total of four beds. It also has exterior access to a fridge.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities should be considered estimates and may vary based on how individual campers are outfitted.
