Flagstaff 627D


(2014-2019; succeeded by the 627M)

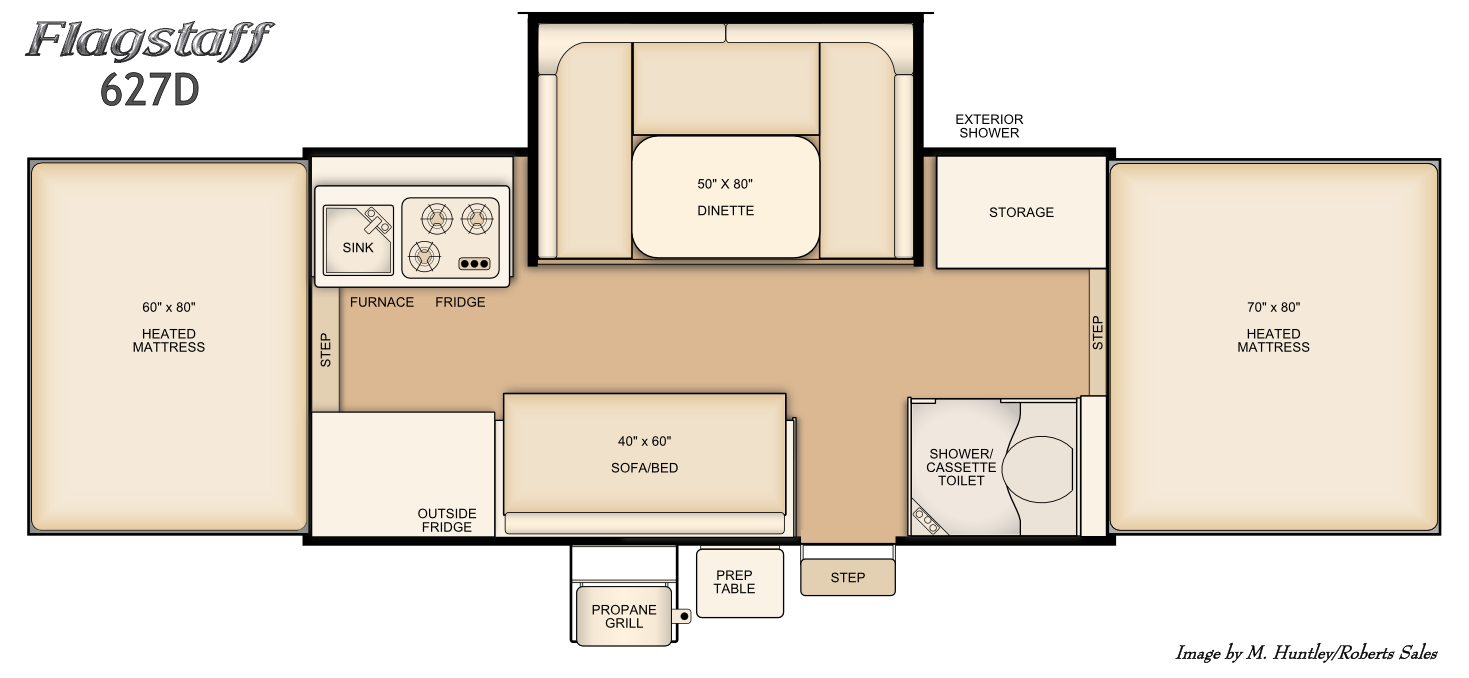

Flagstaff 627D floorplan

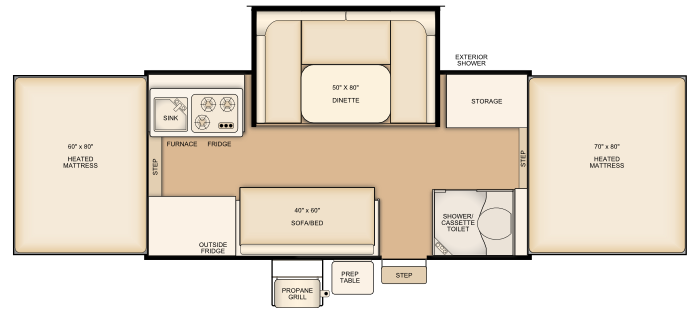

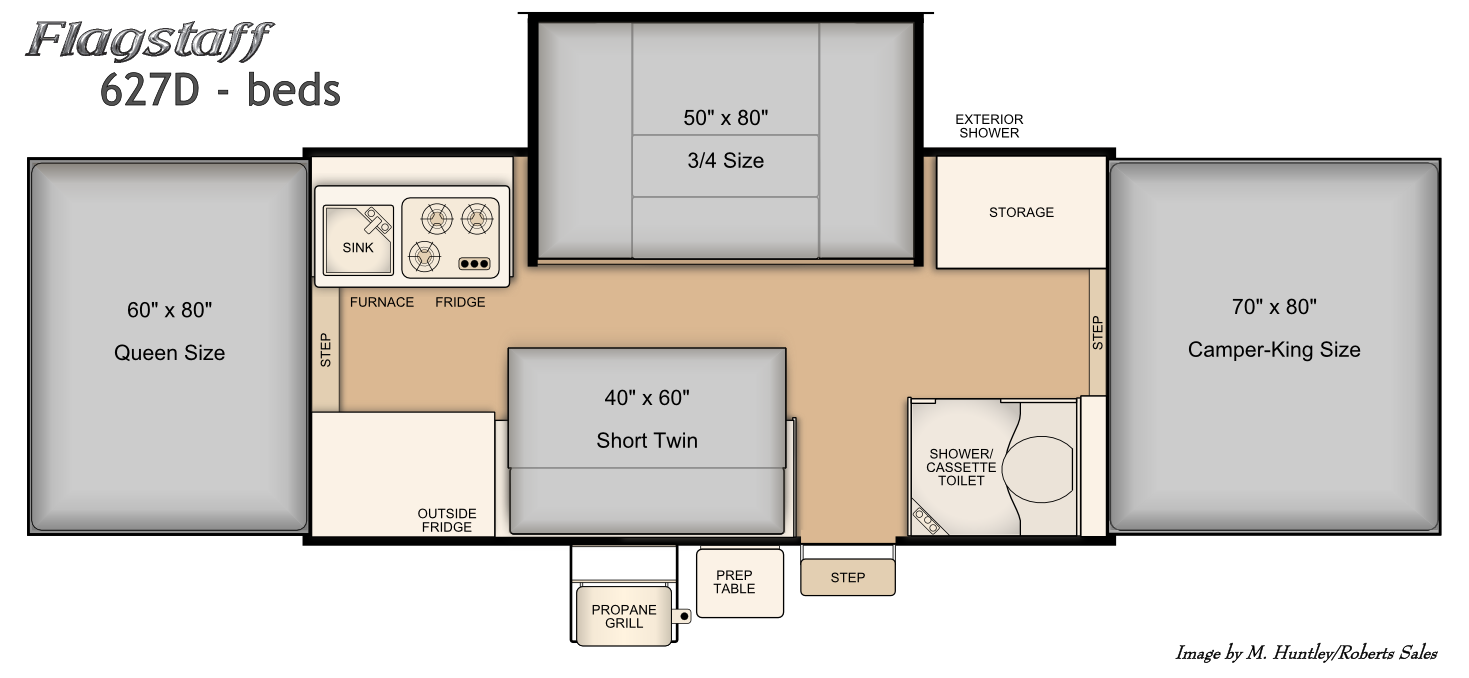

Bed Layout for this model

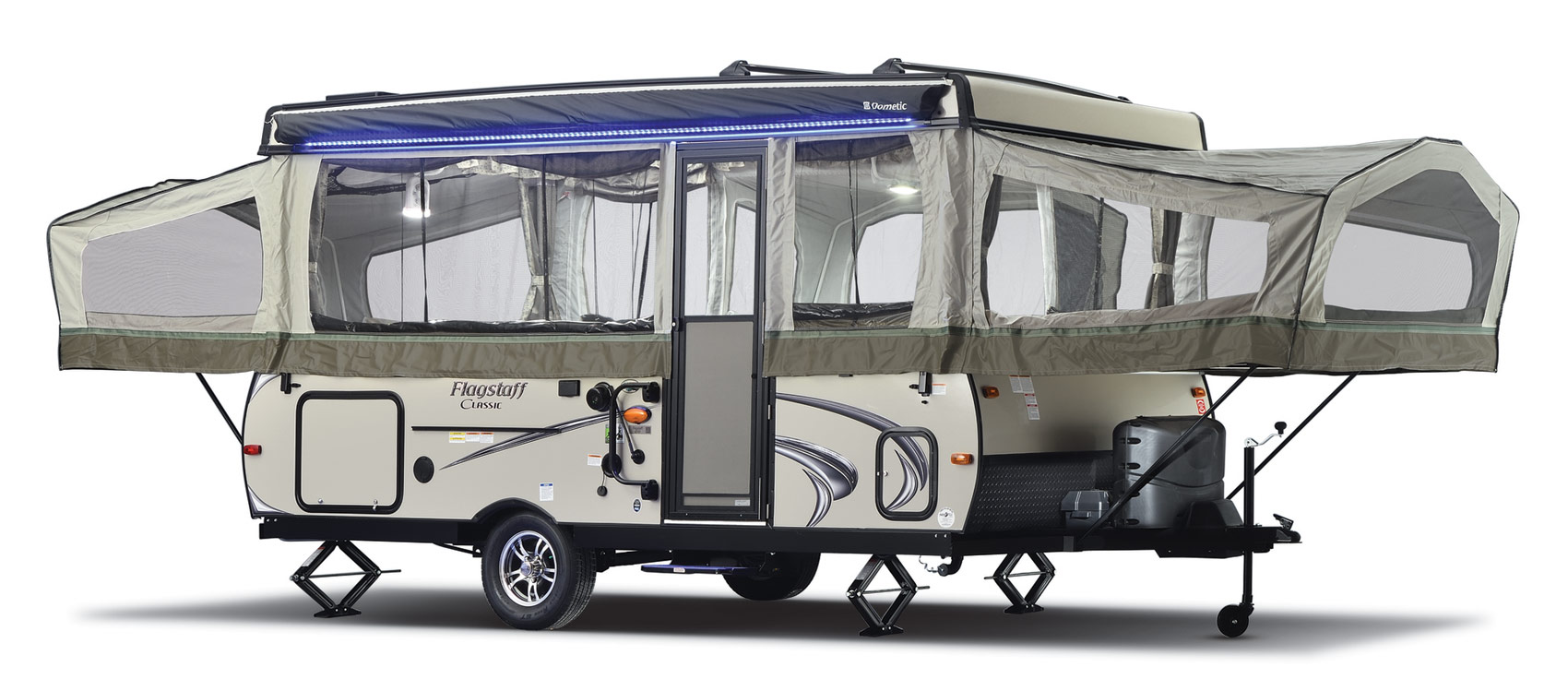

2018 Flagstaff 627D open

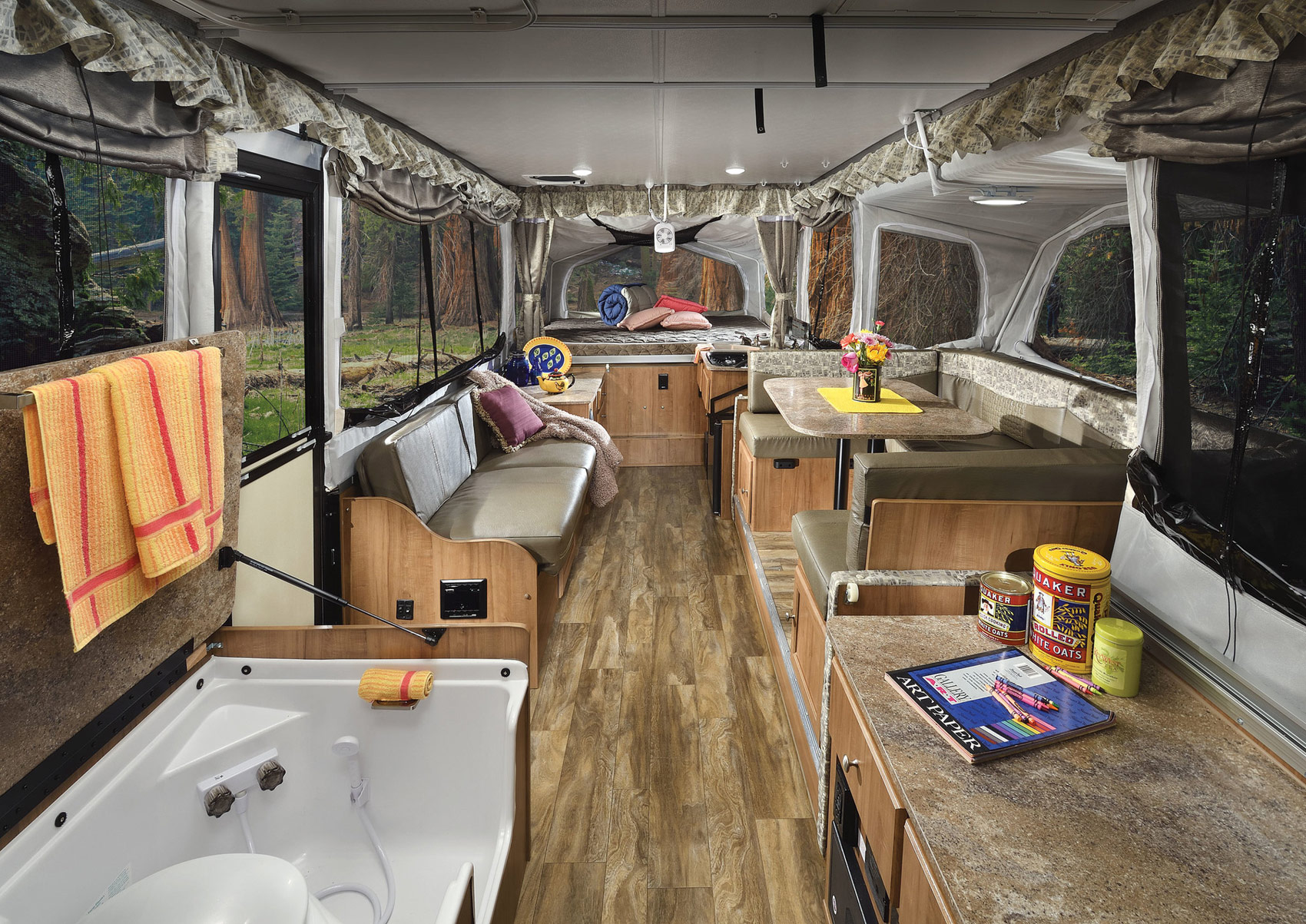

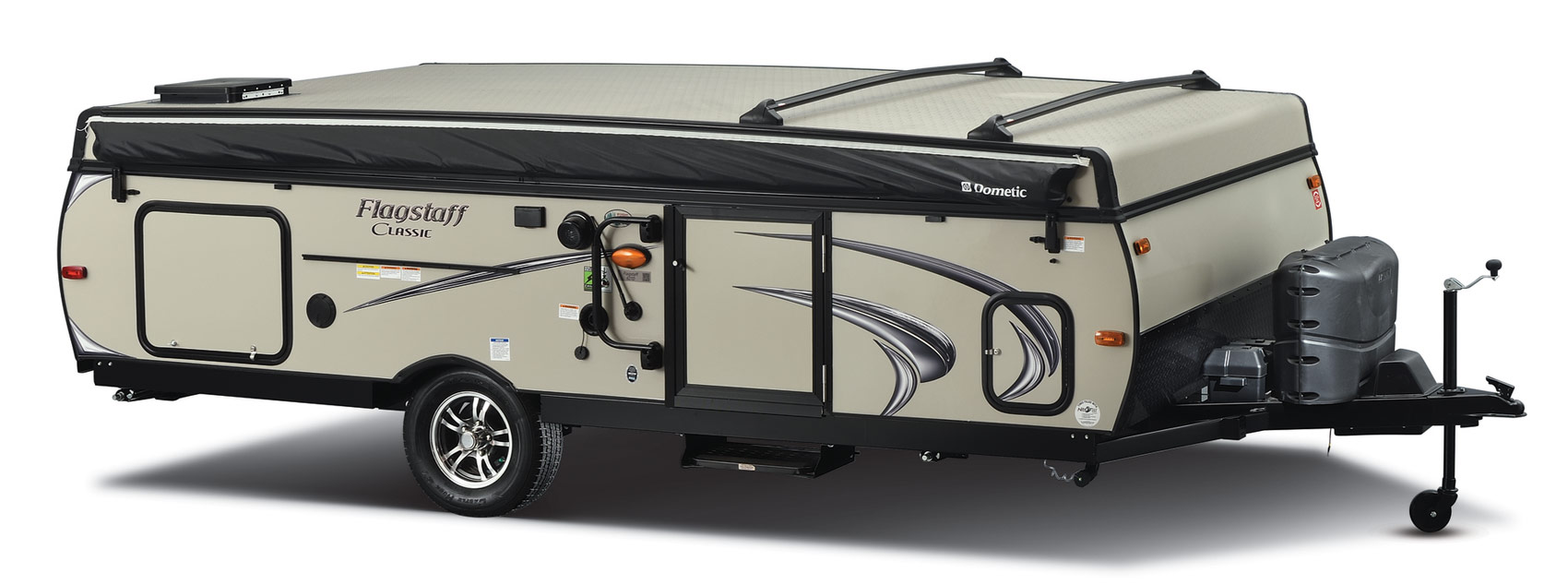

2018 Flagstaff 627D interior 2018 Flagstaff 627D exterior closed (2018 Model Year shown)

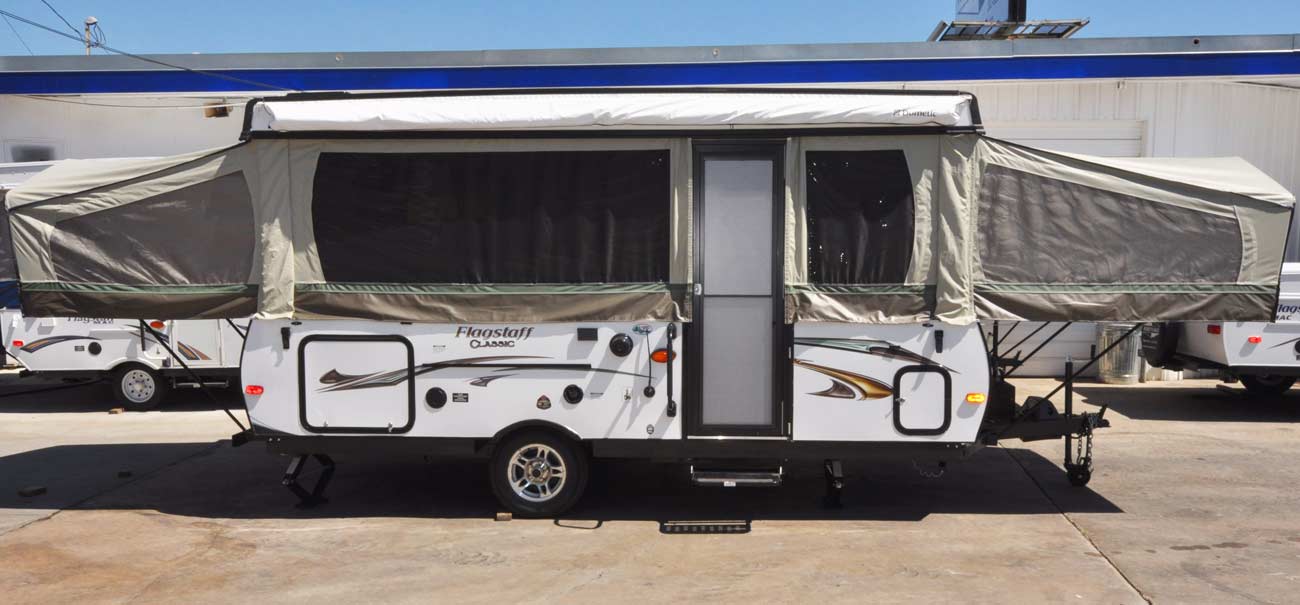

2014 Flagstaff 627D exterior profile

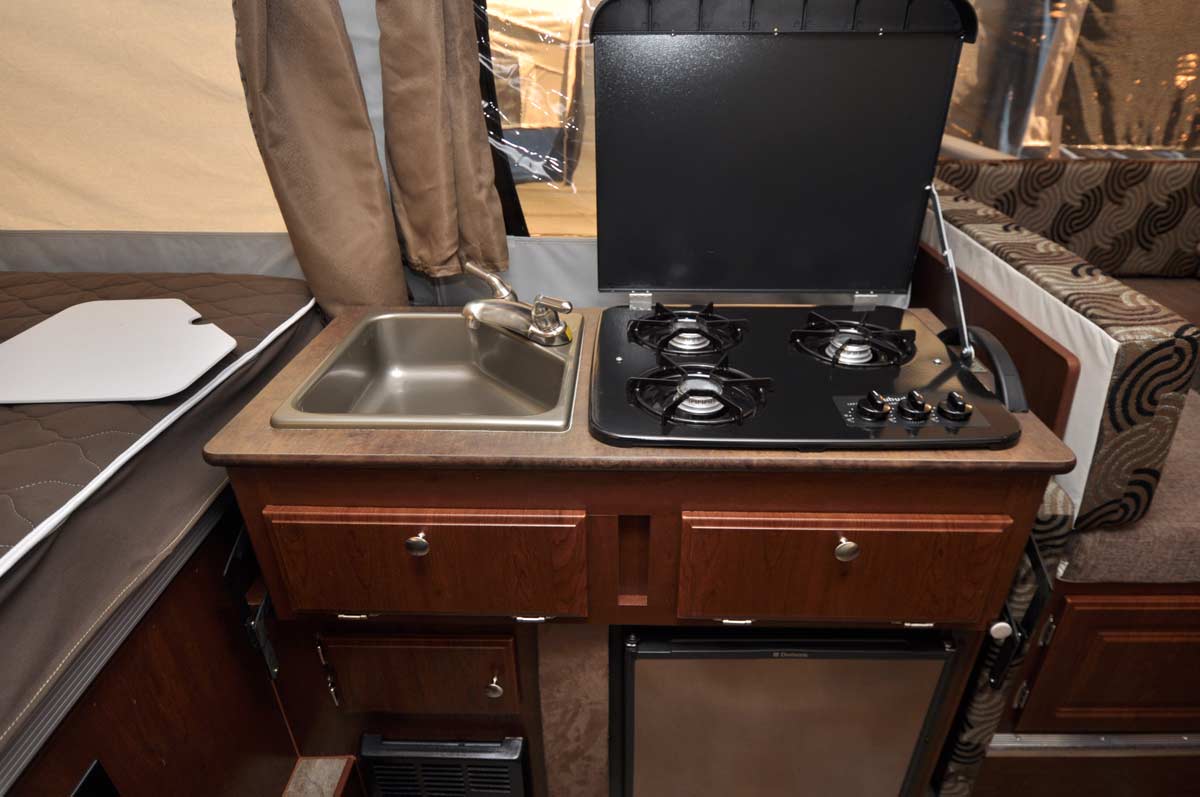

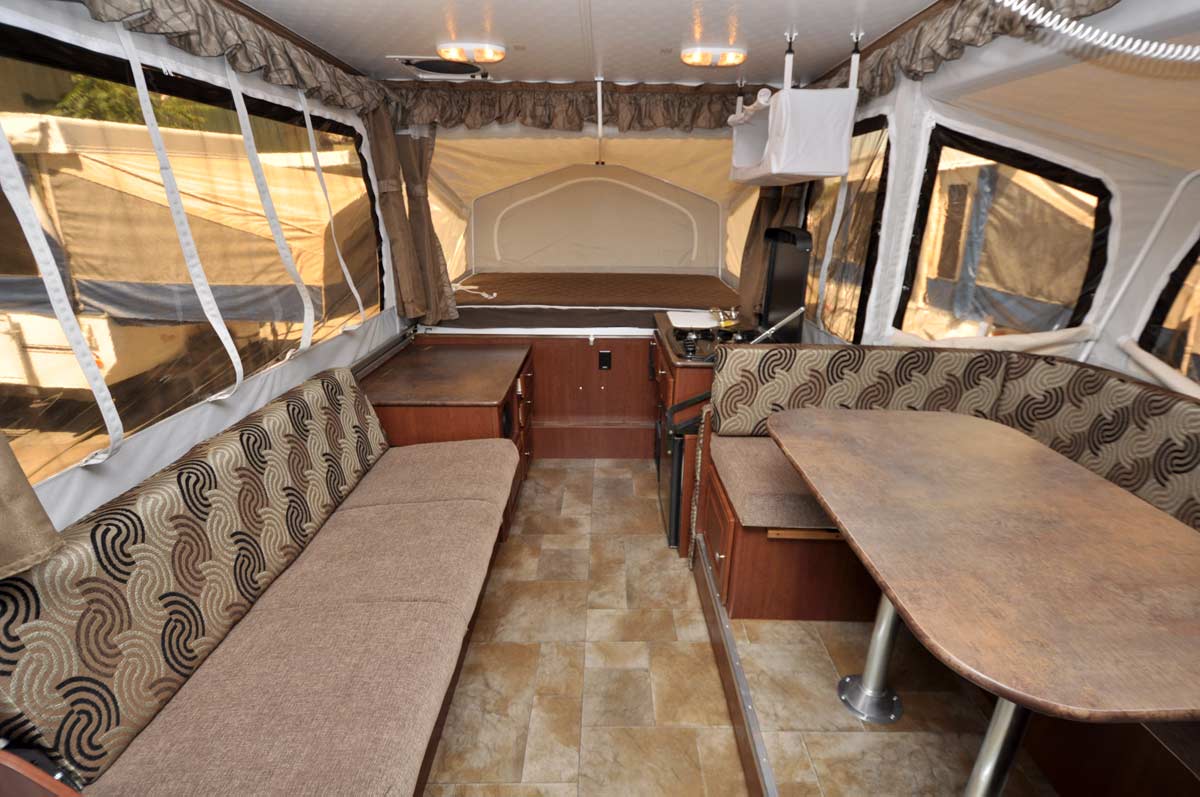

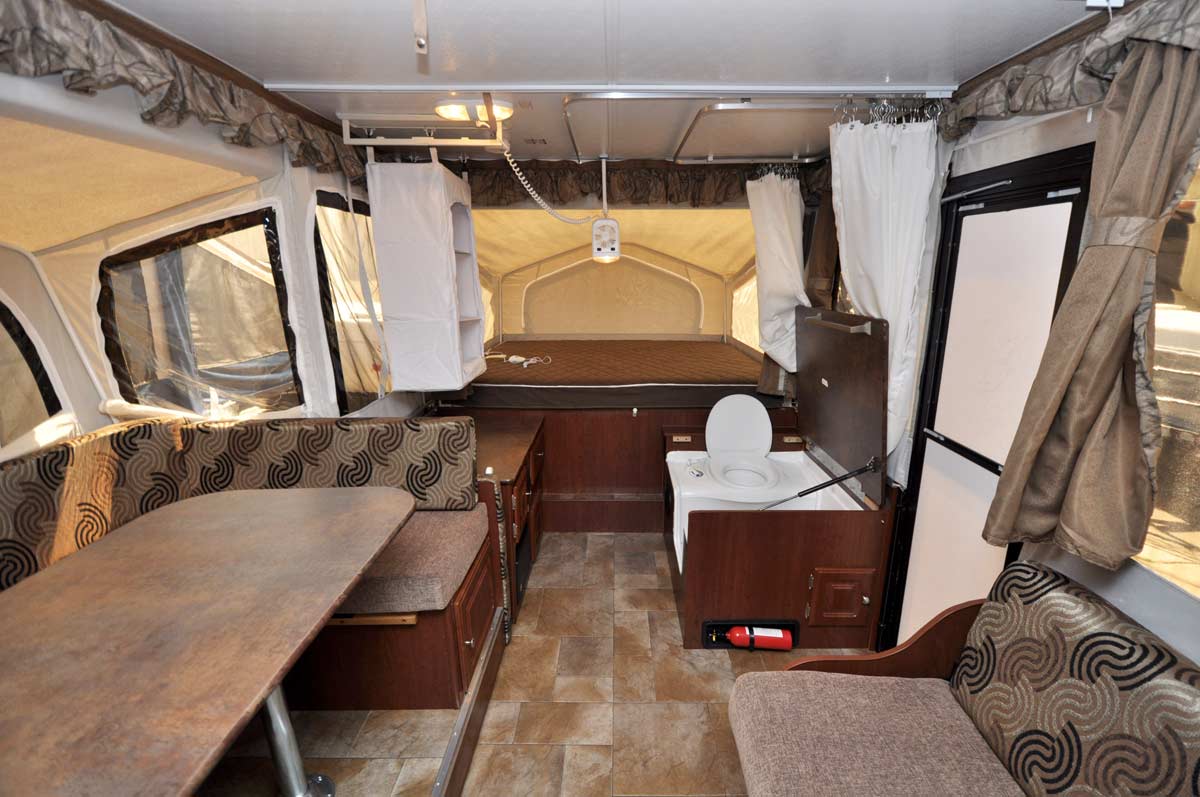

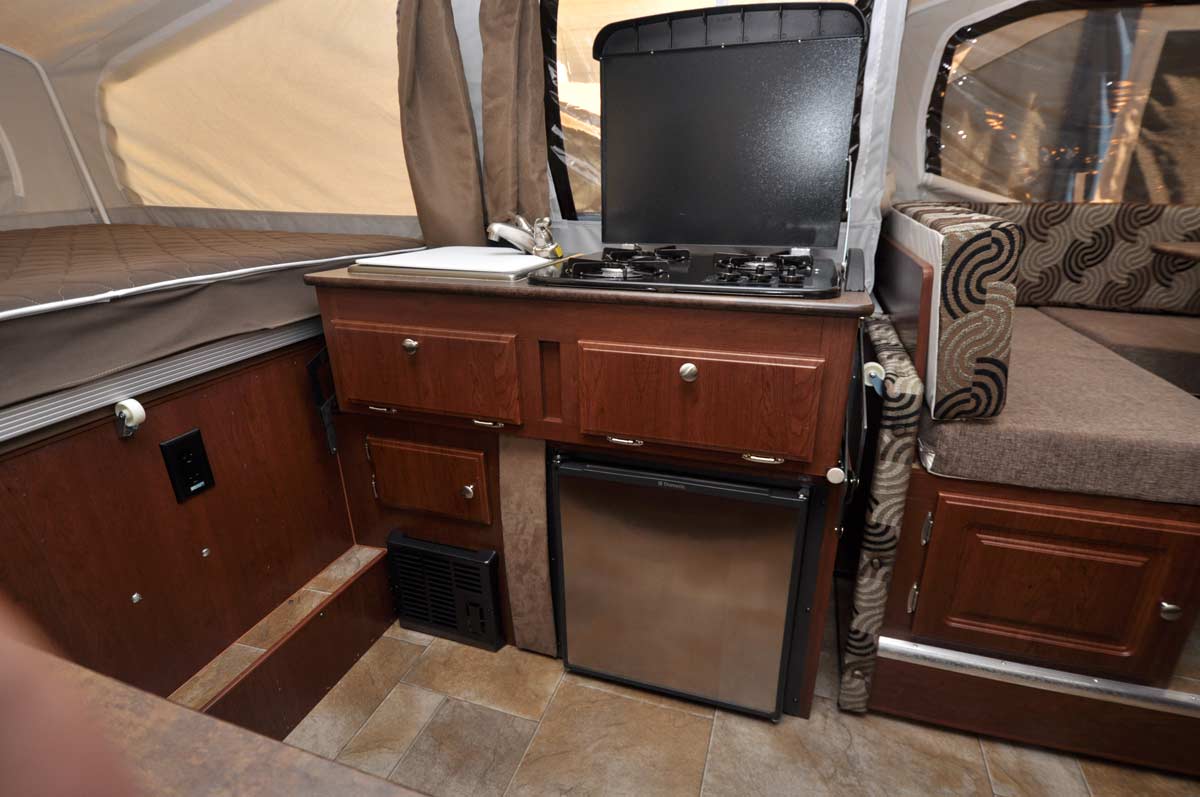

front view rear view galley galley close-up

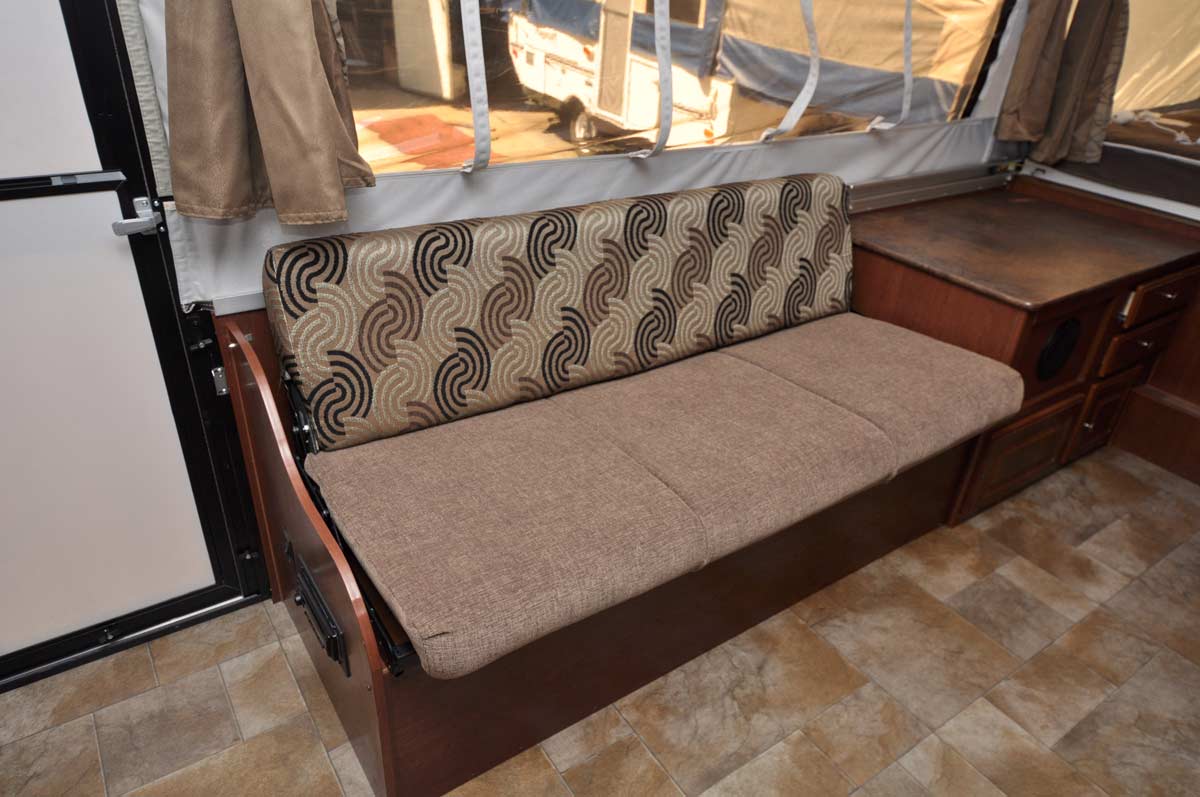

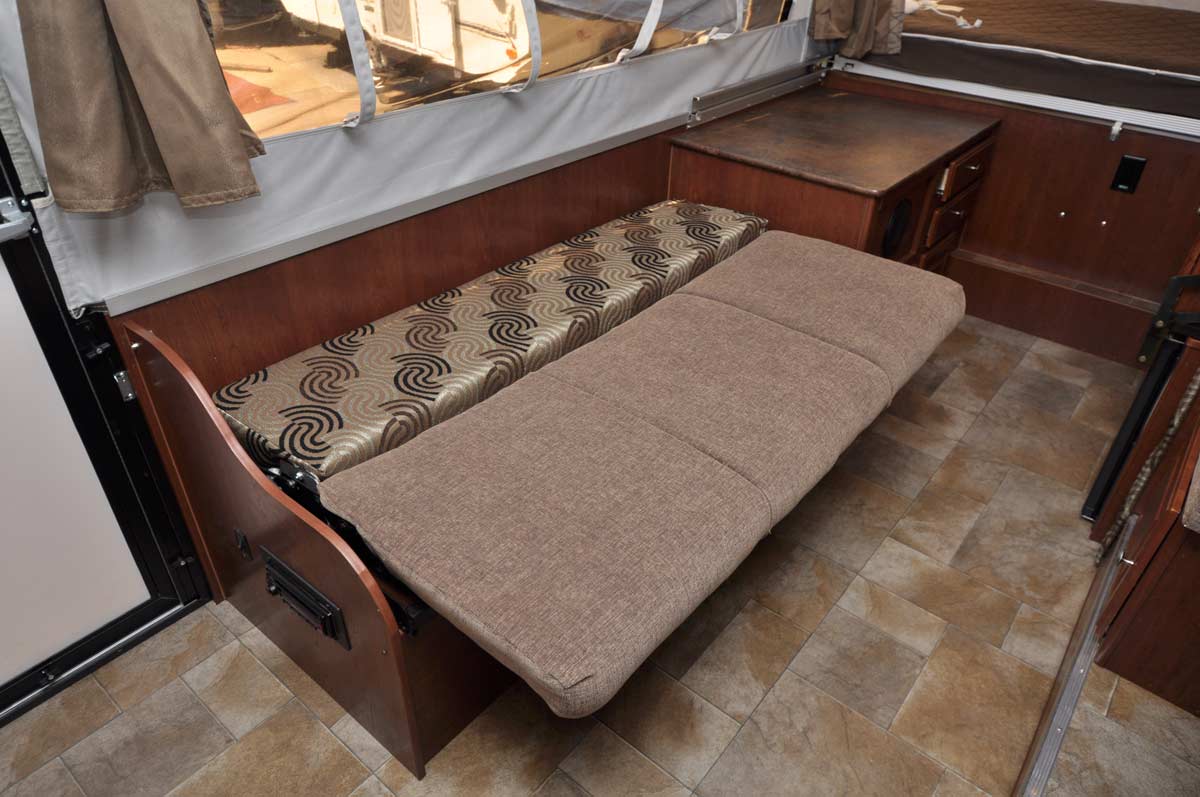

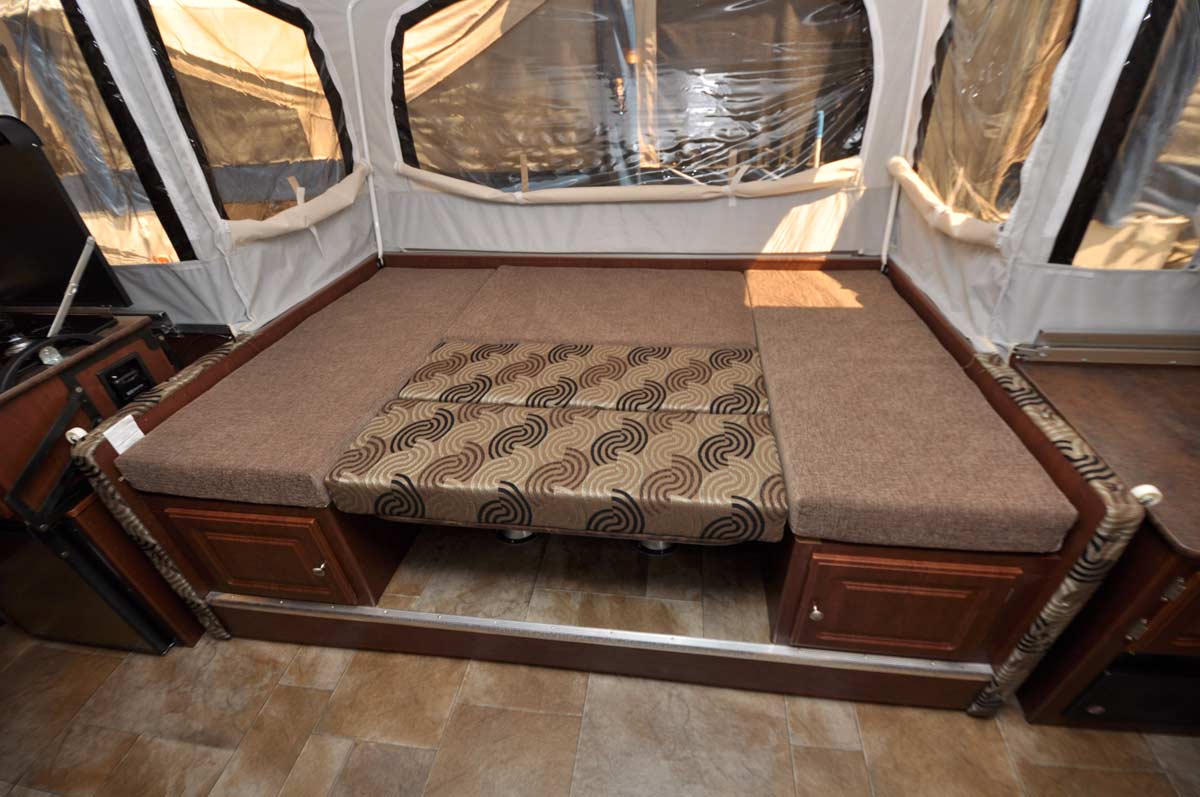

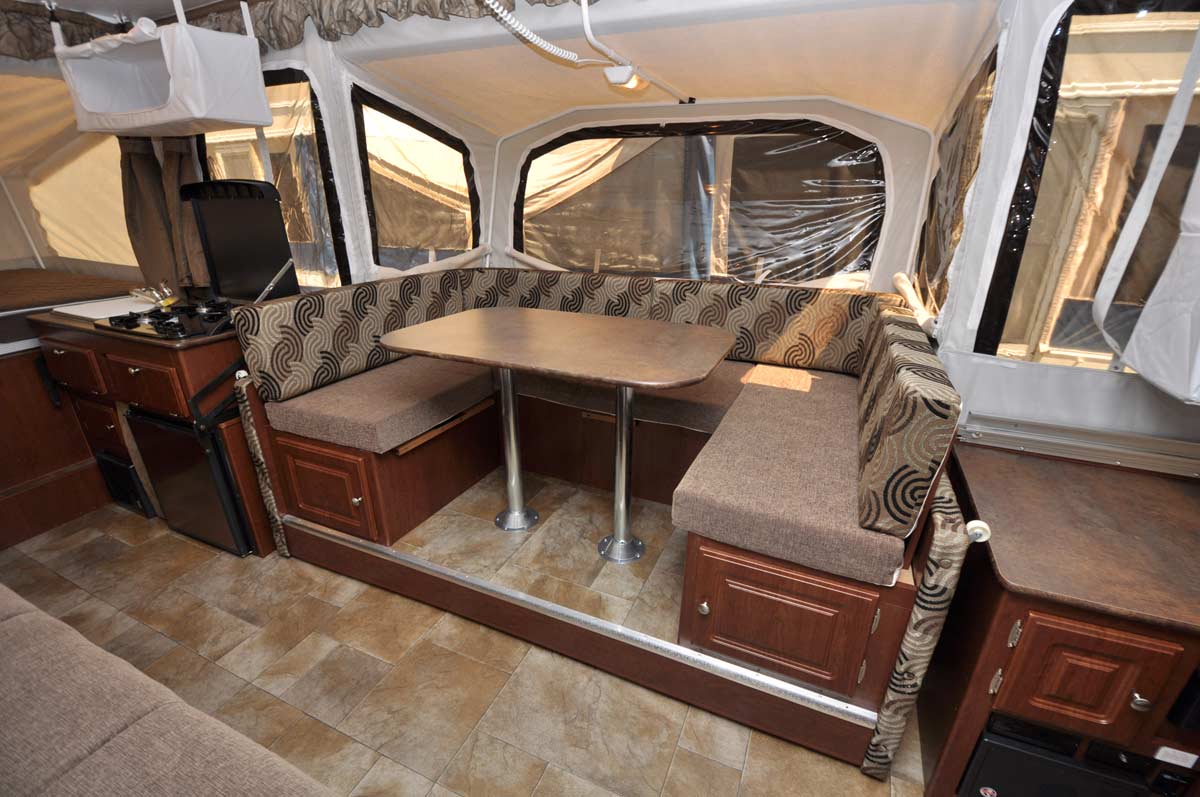

slide-out dinette Flagstaff dinette as a bed 2014 Flagstaff 627D sofa bed sofa in bed formation

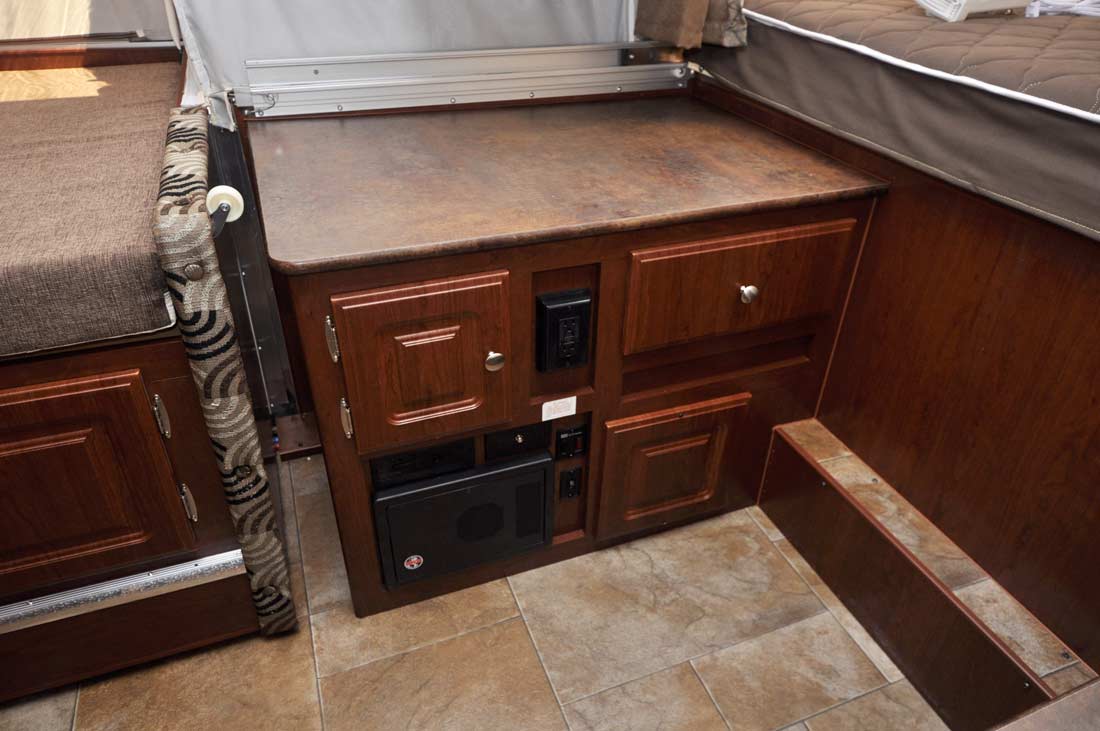

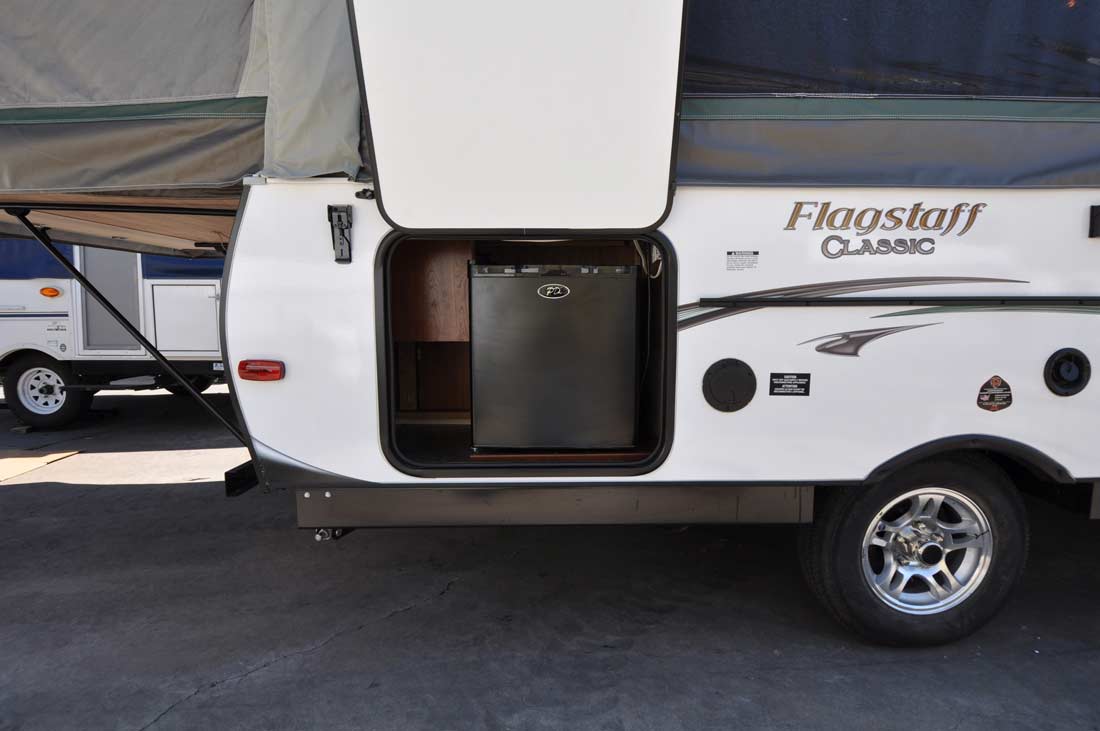

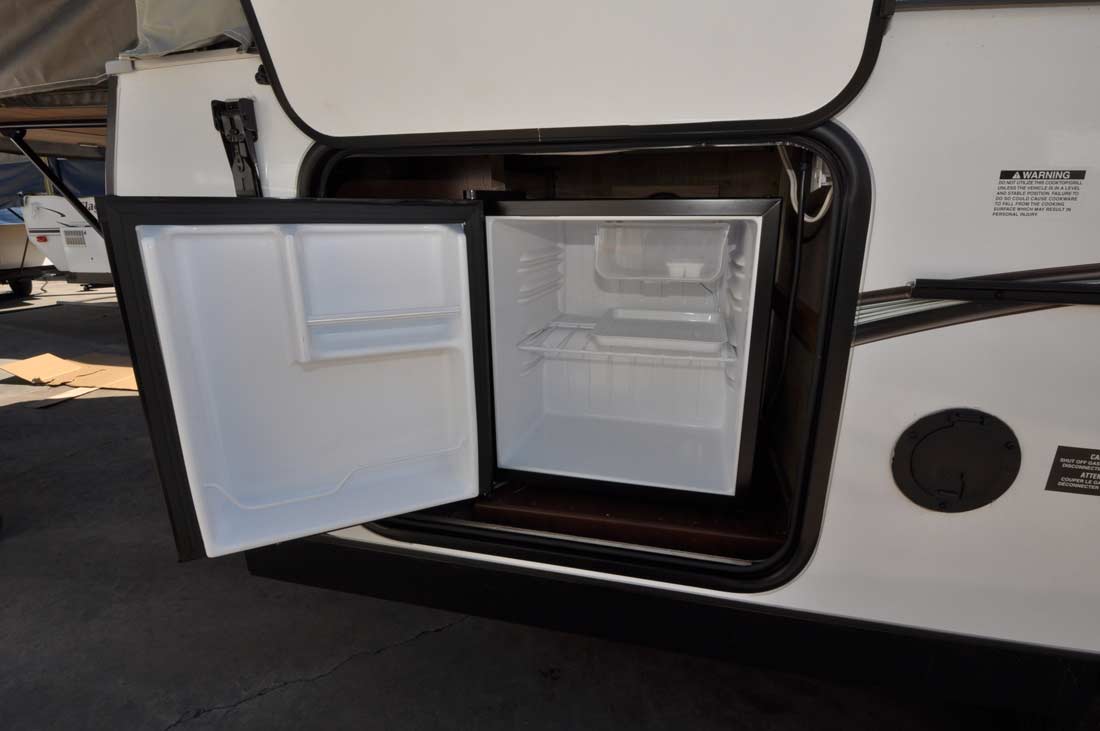

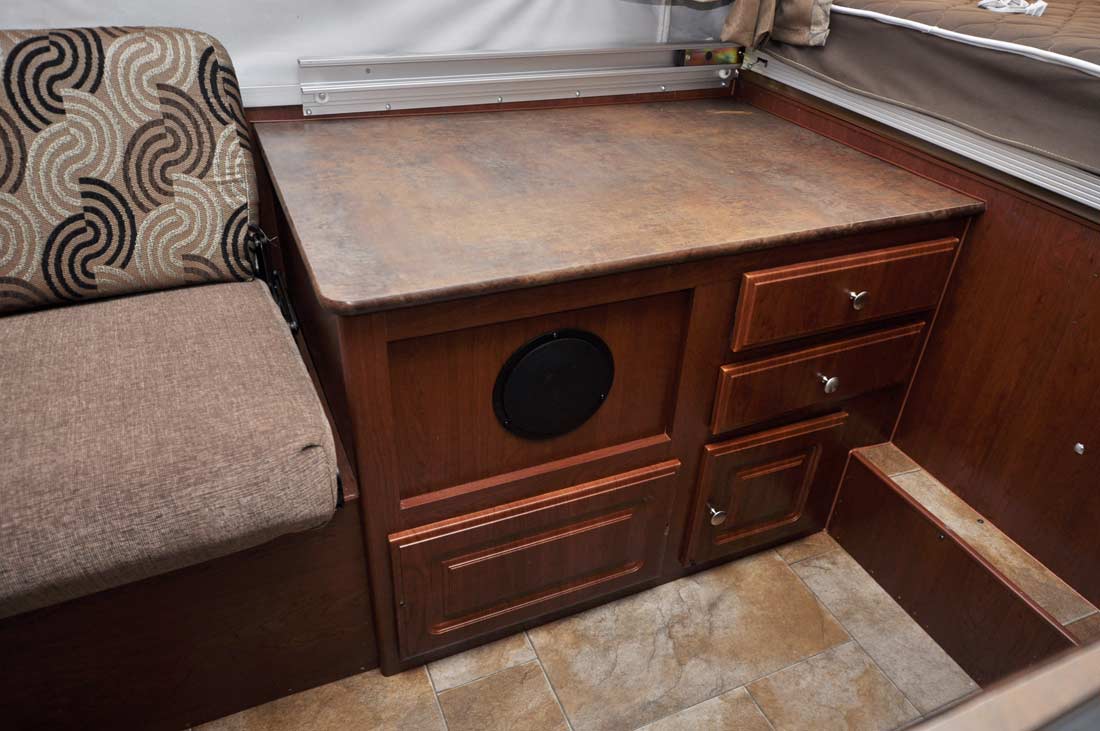

Flagstaff 627D outside fridge compartment Flagstaff 627D outside fridge rear cabinet front cabinet

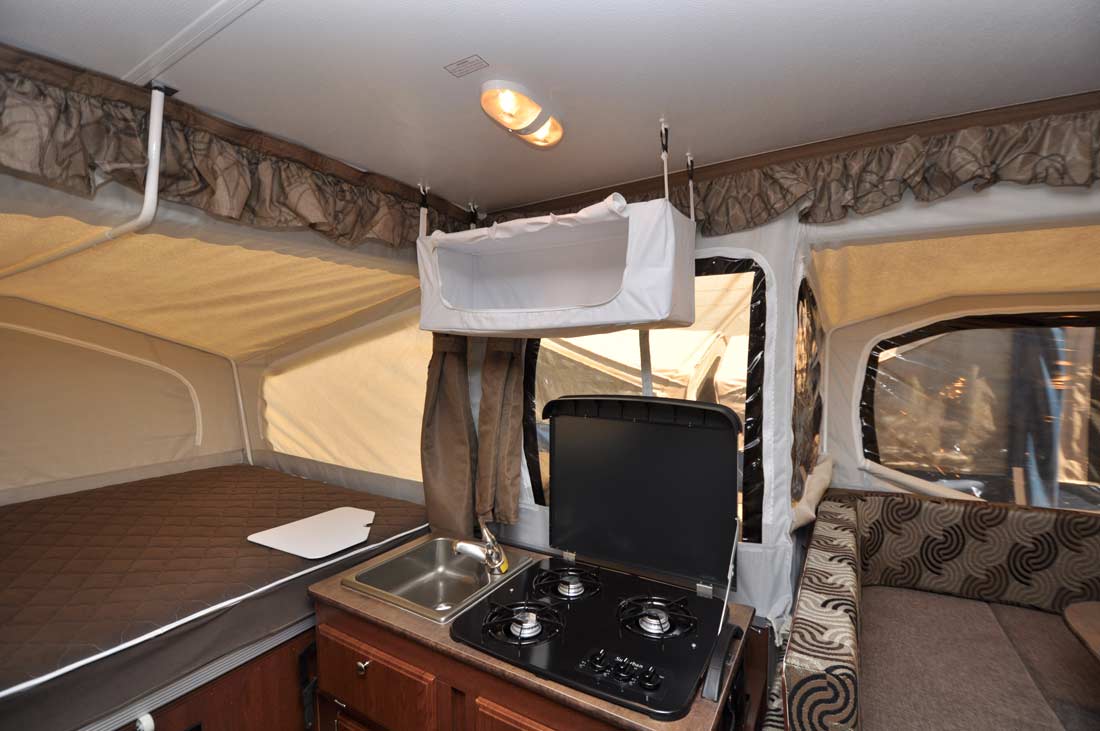

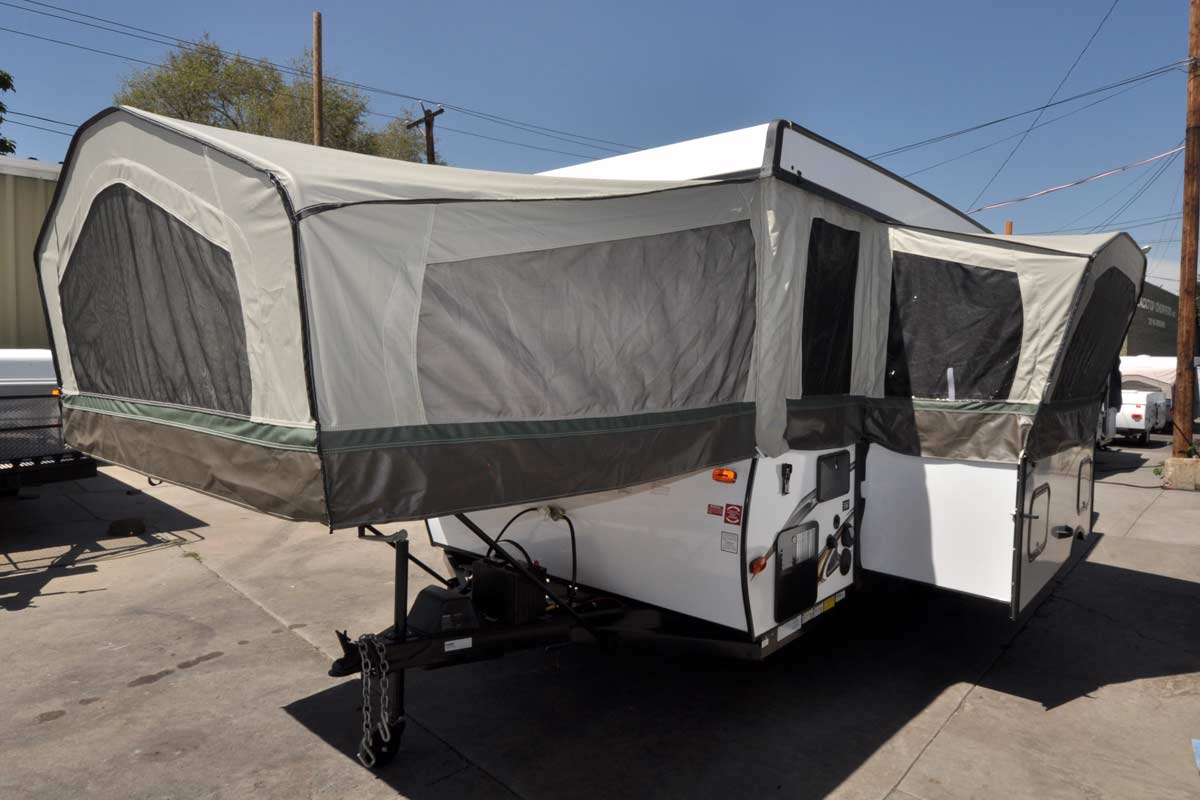

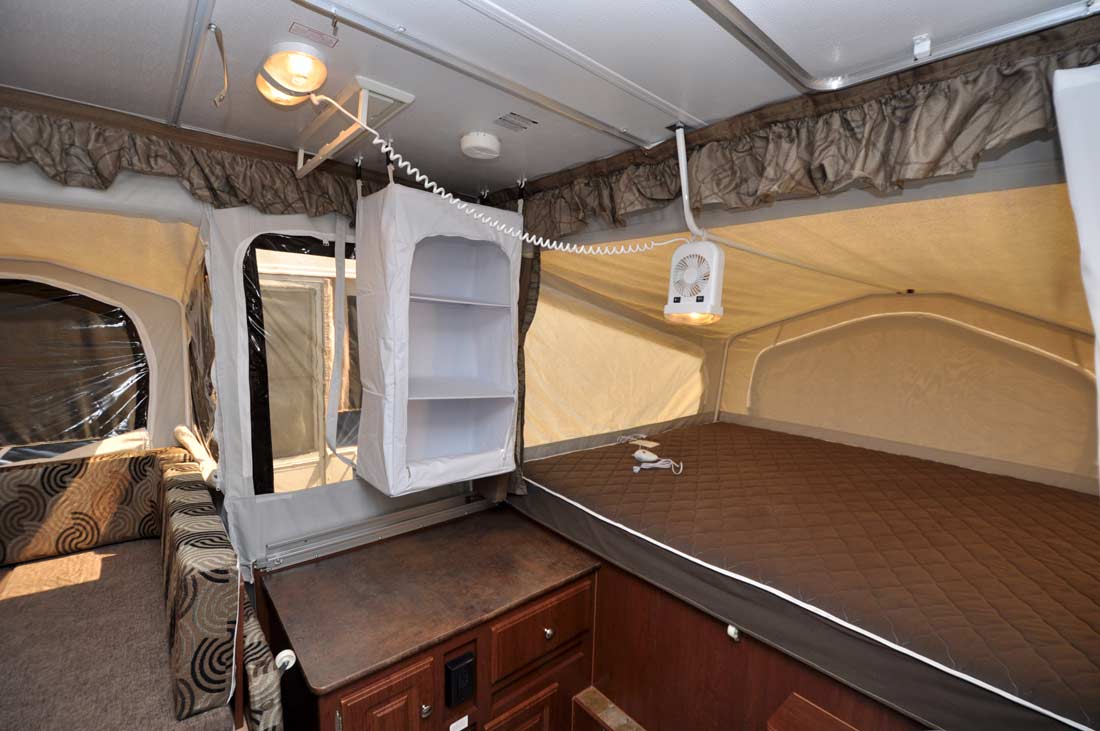

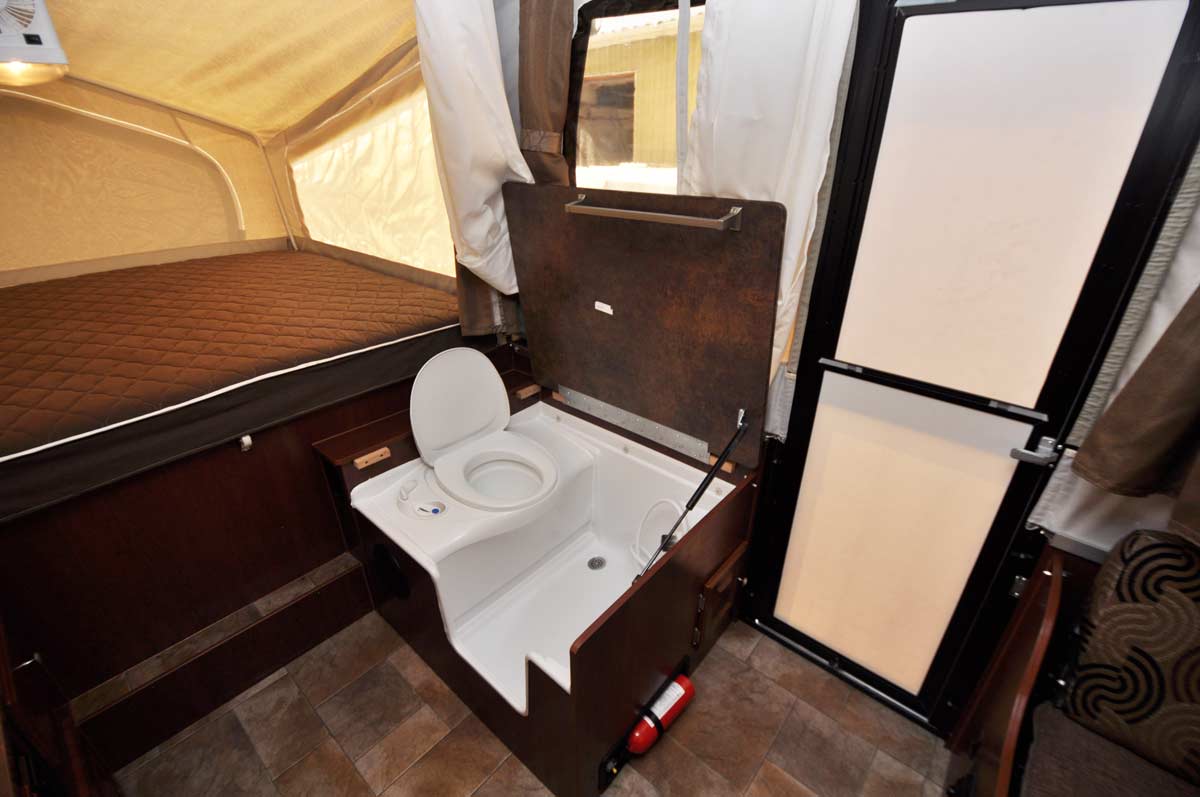

overhead wardrobe overhead cabinet cassette toilet exterior back-side

(2014 model year shown)


  • The only 14' low-wall Classic.
  • One of two Flagstaff campers with an exterior access door that leads to an outside fridge (110V only for the cube fridge); the 823D is the other.
  • The only Flagstaff tent camper with an 80" long slide-out dinette.
  • Four large beds and a full walkway from end to end--nice floor space.


  • Box Size: 14'
  • Open Length: 25' 10"
  • Travel Length: 19' 2"
  • Travel Width: 7' 6"
  • Dry Weight: 2831 lbs (brief weight explanation)
  • Hitch Weight: 370 lbs
  • GVWR: 3370 lbs
  • Coupler size: 2"
  • Sleeps: 8
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"
    4. 60" x 40"


  • Interior shower/cassette toilet
  • Automotive-style webbing/support for the sofa/bed (as opposed to foam-on-plywood couch on the MAC series)
  • 110V cube fridge (accessed through the exterior baggage door on the rear door-side panel, runs on 110V power only) --perfect for tailgating!

...as well as these features standard with the Classic series:

  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Overhead cabinet
  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Model

  • 625D - The only other low-wall Classic with an interior shower/cassette toilet but in a 12' box with a front storage trunk.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to Classic Series

Top of Page

Older Photos

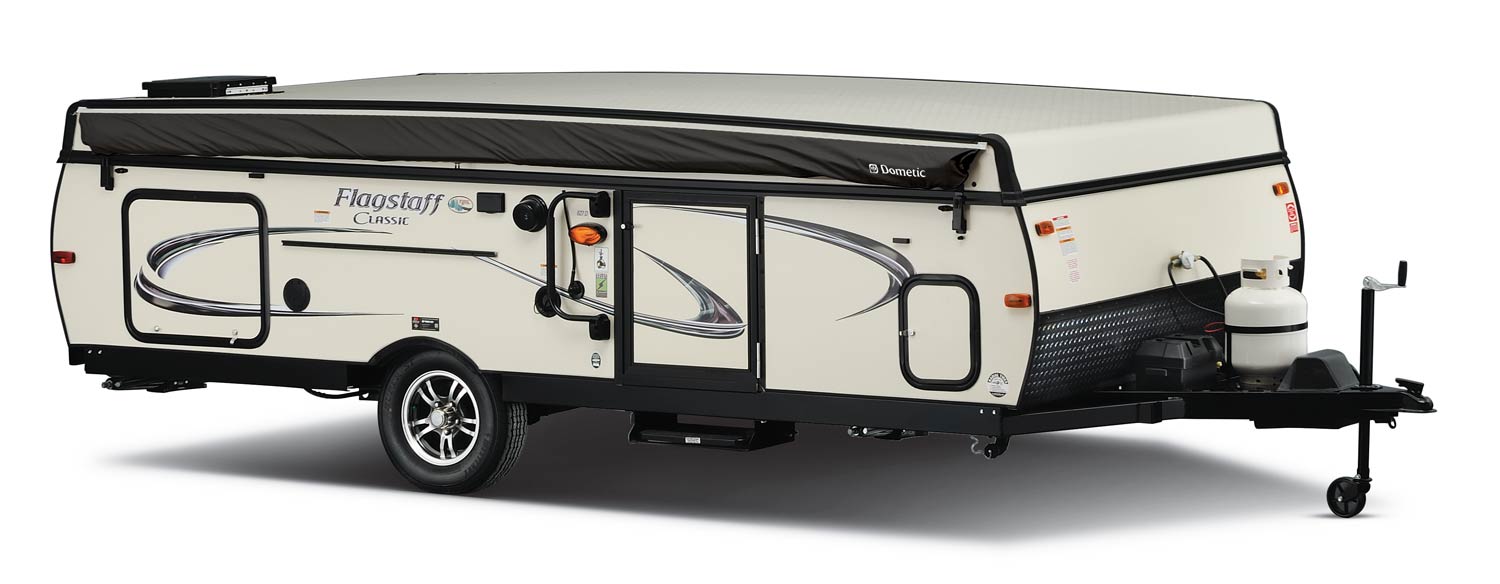

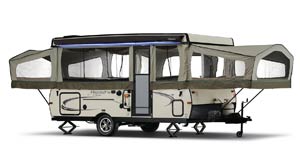

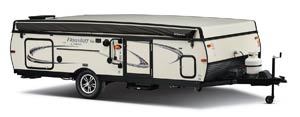

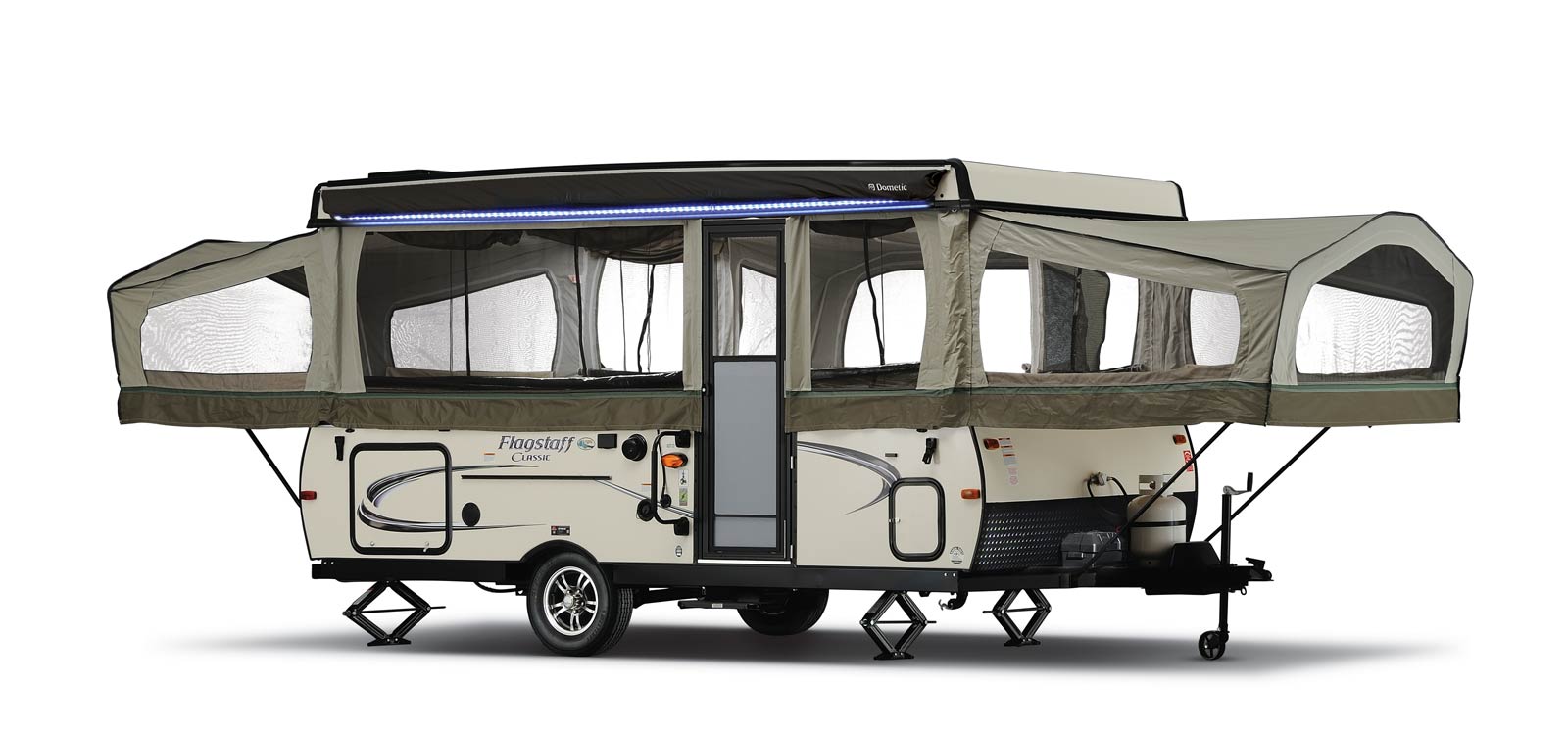

2016 Flagstaff 627D exterior open 2016 Flagstaff 627D exterior down

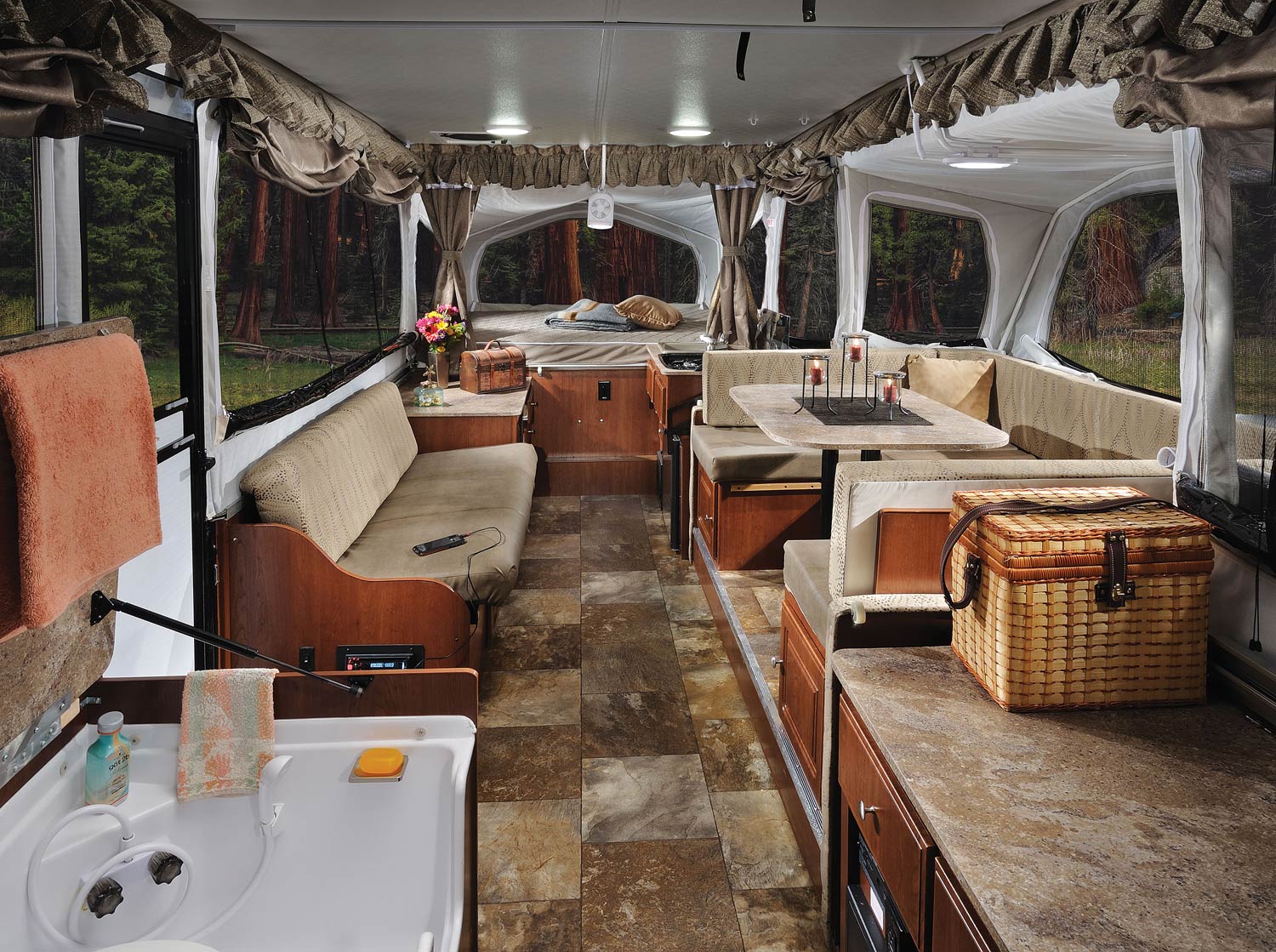

2016 Flagstaff 627D interior factory picture (2016 model shown)
