Flagstaff 625D



(1999-2019)


Flagstaff 625D floorplan

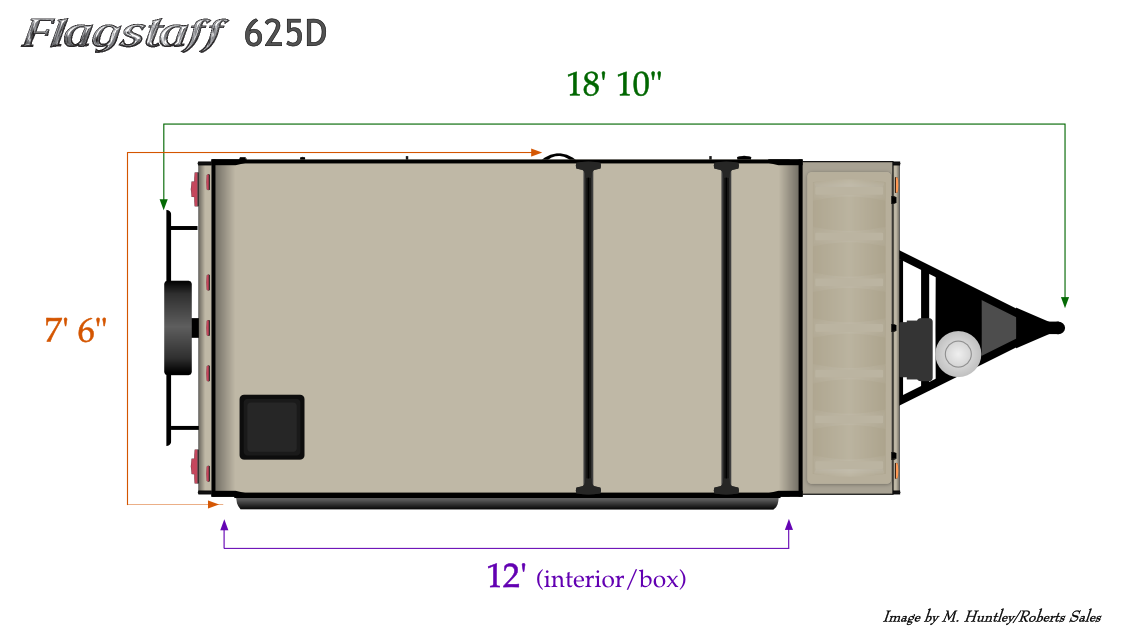

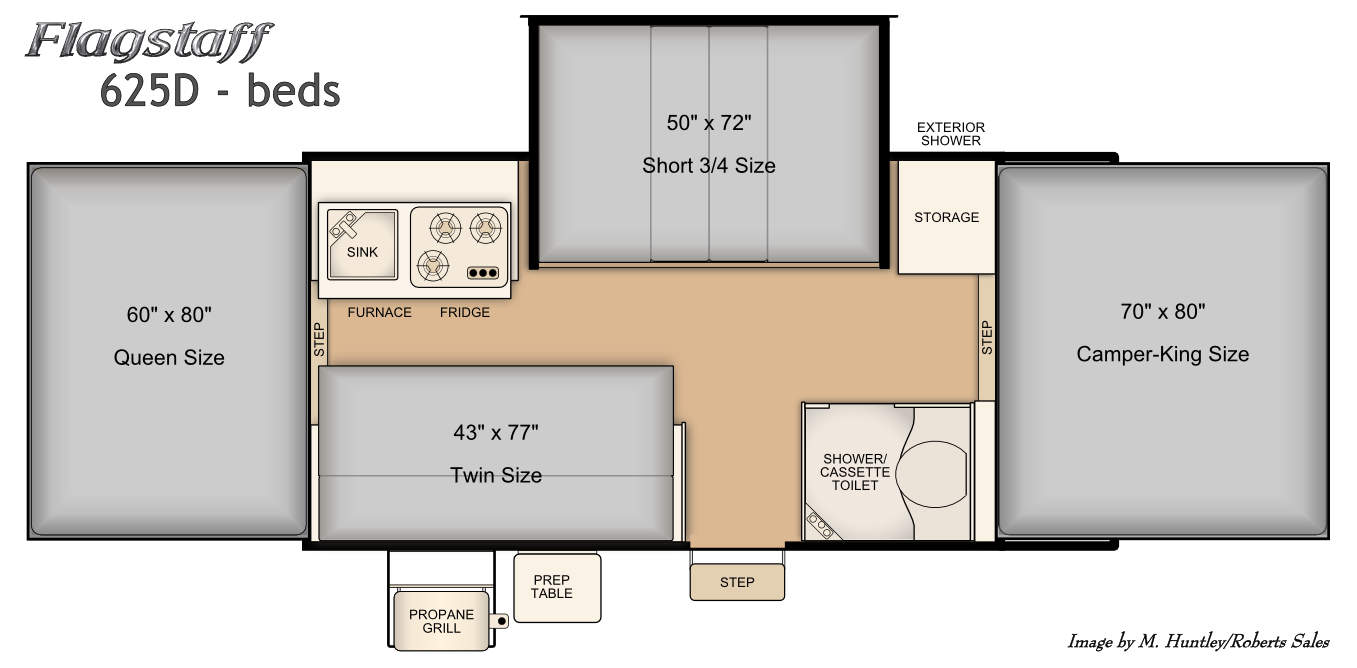

Bed Layout for this model Flagstaff 625D travel length and width

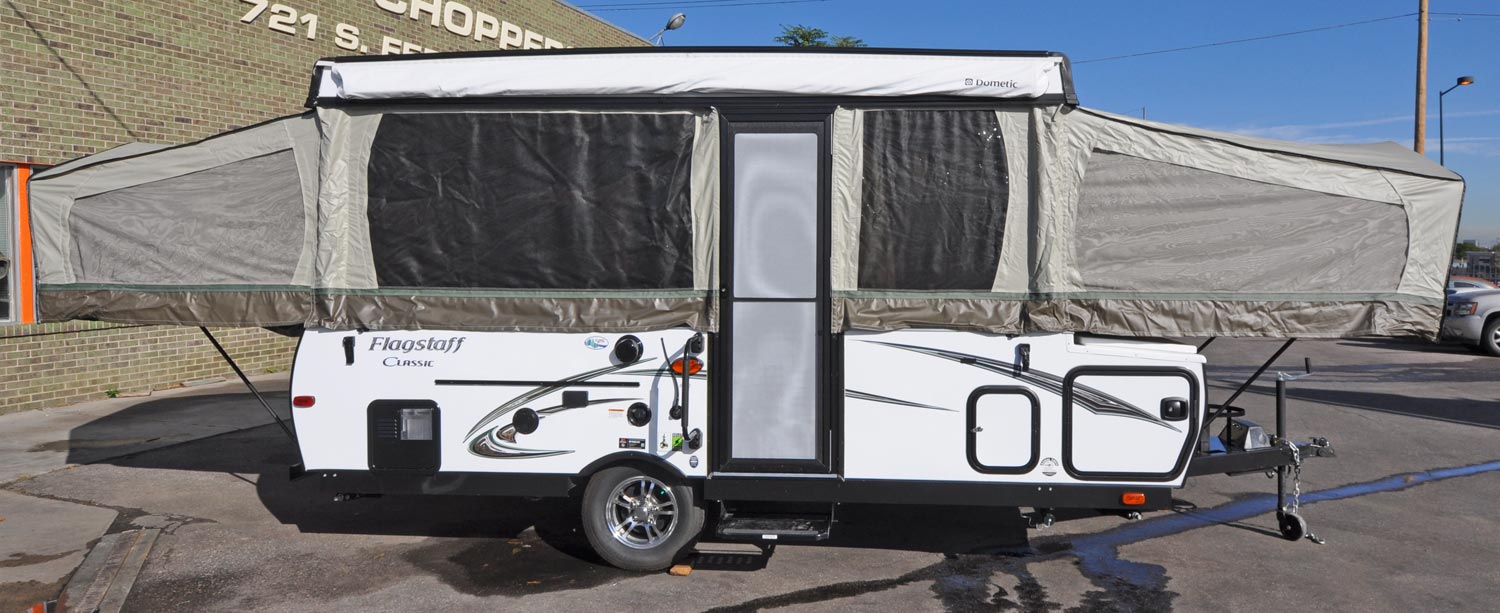

Early Model 2016 Flagstaff 625D exterior

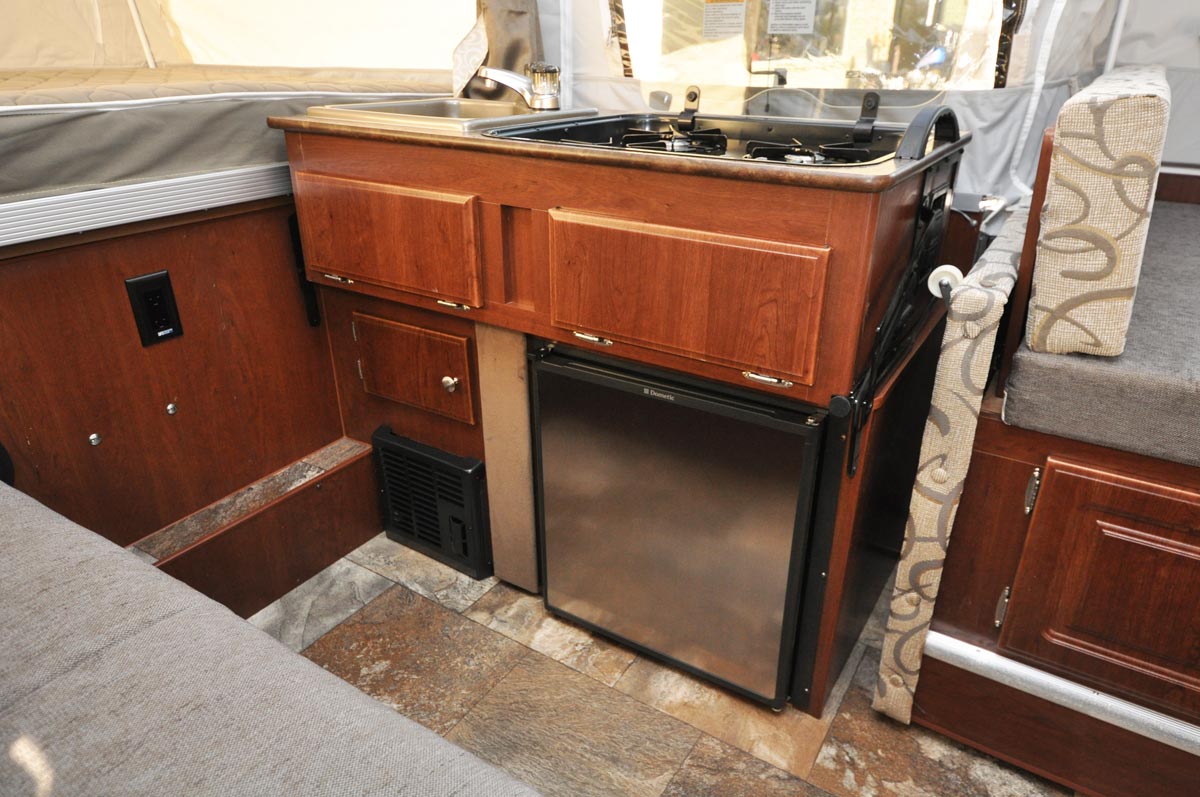

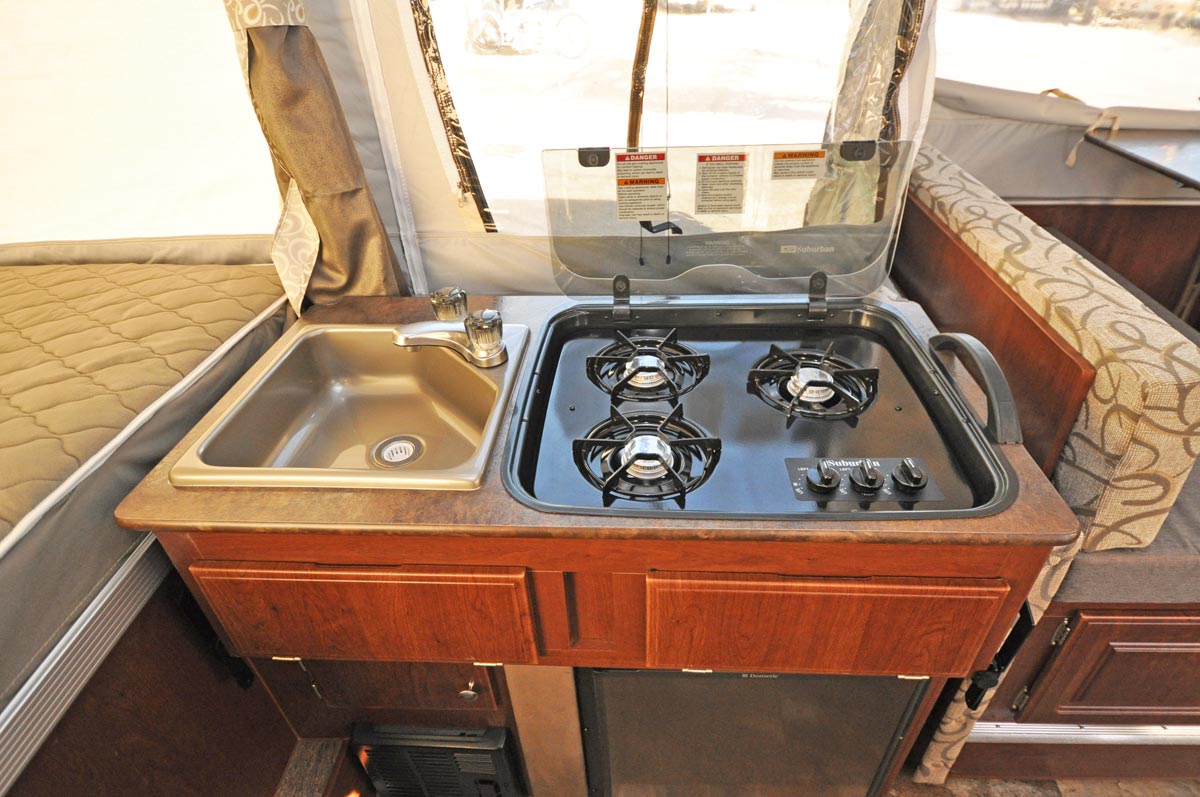

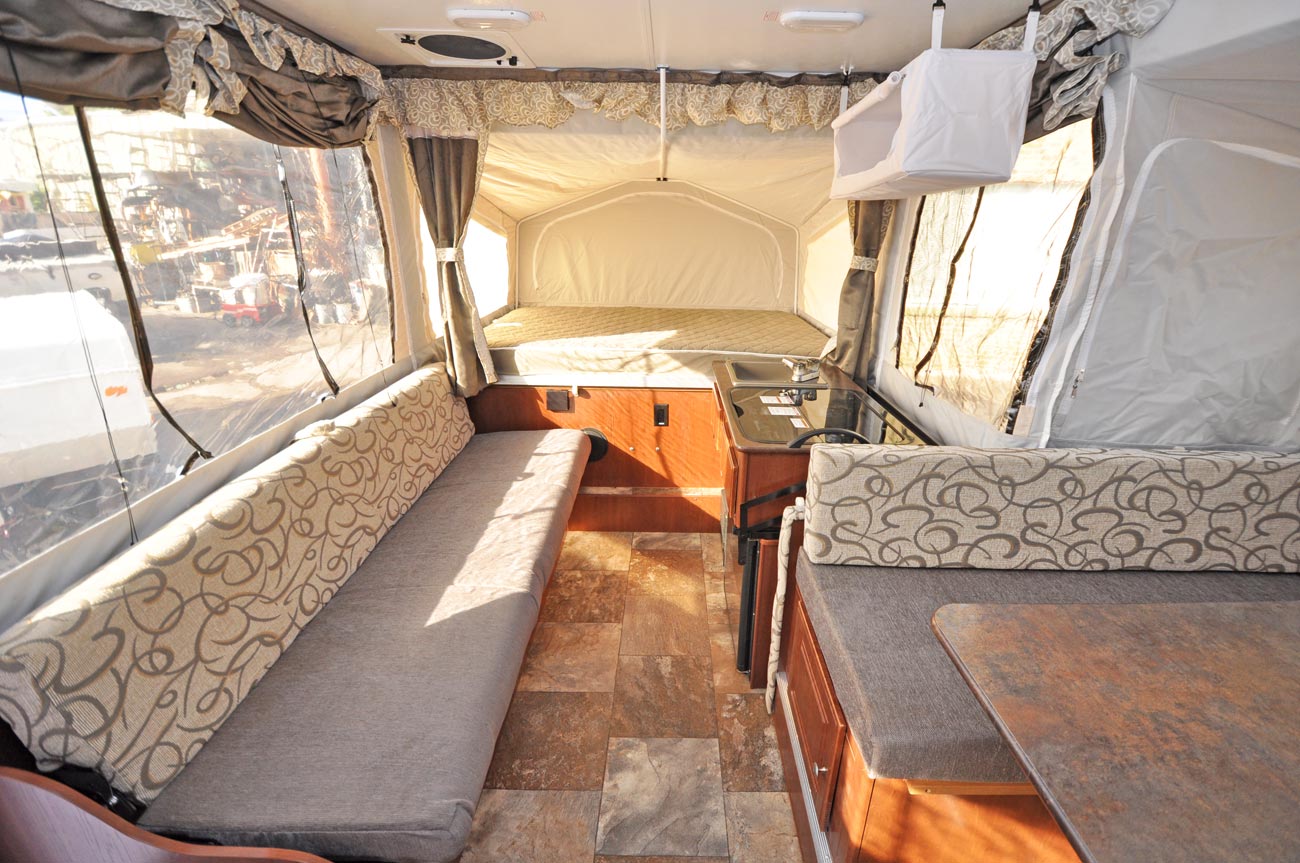

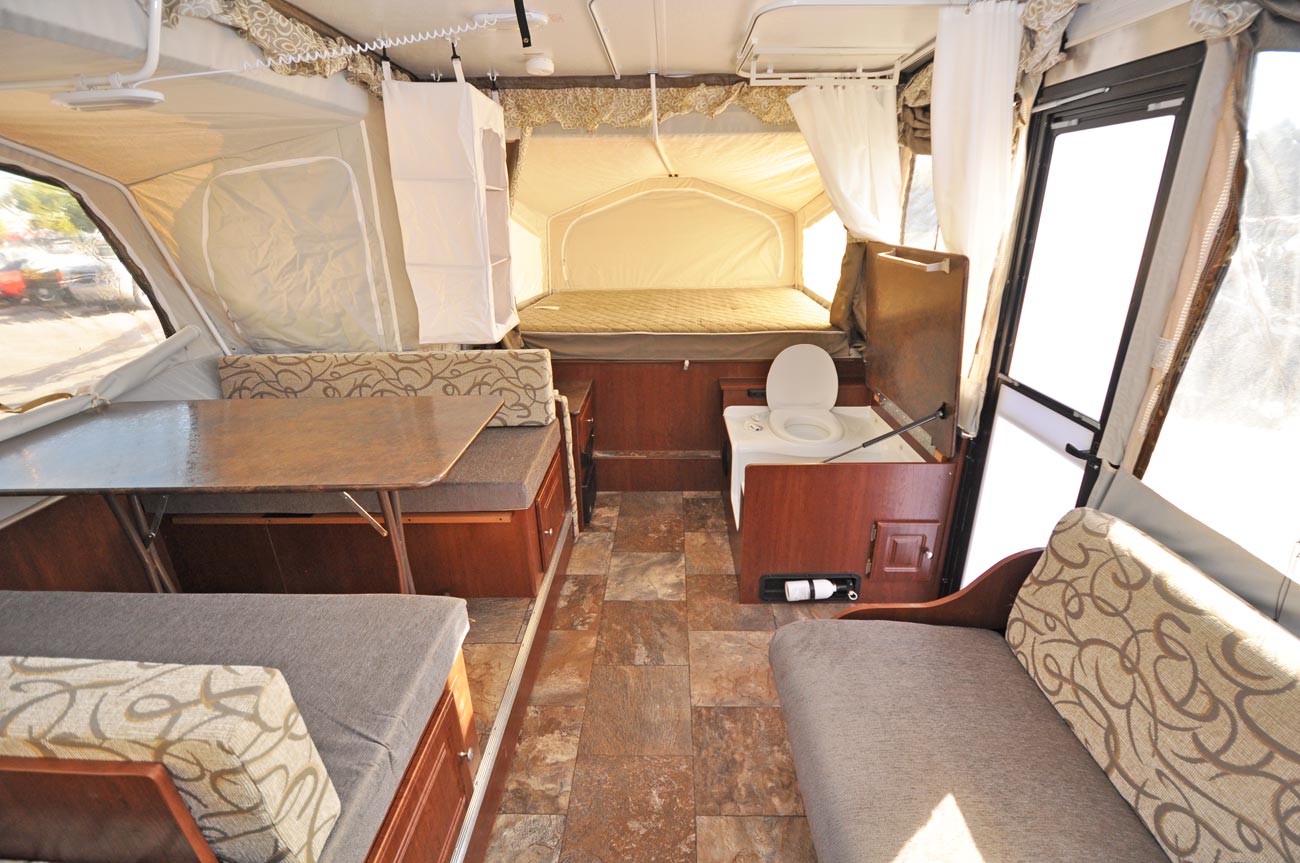

Early Model 2016 Flagstaff 625D front view Early Model 2016 Flagstaff 625D rear view Early Model 2016 Flagstaff 625D galley Early Model 2016 Flagstaff 625D sink and stove

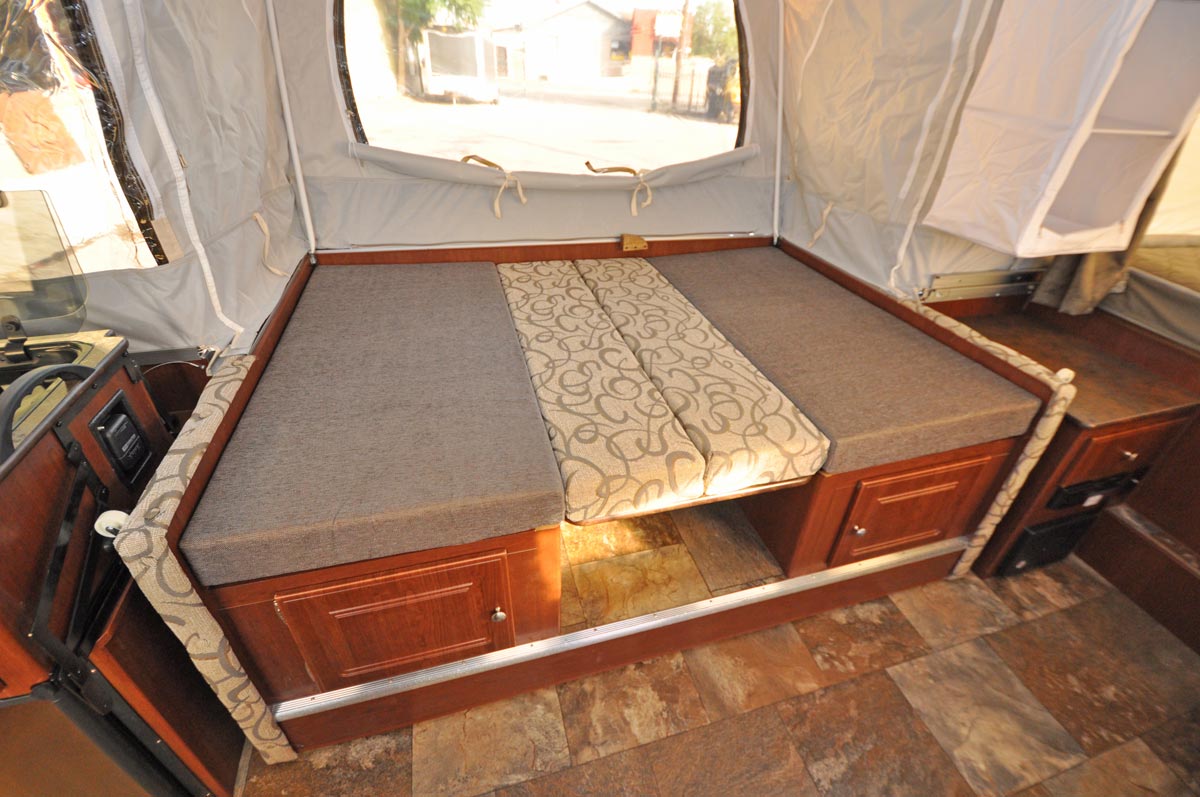

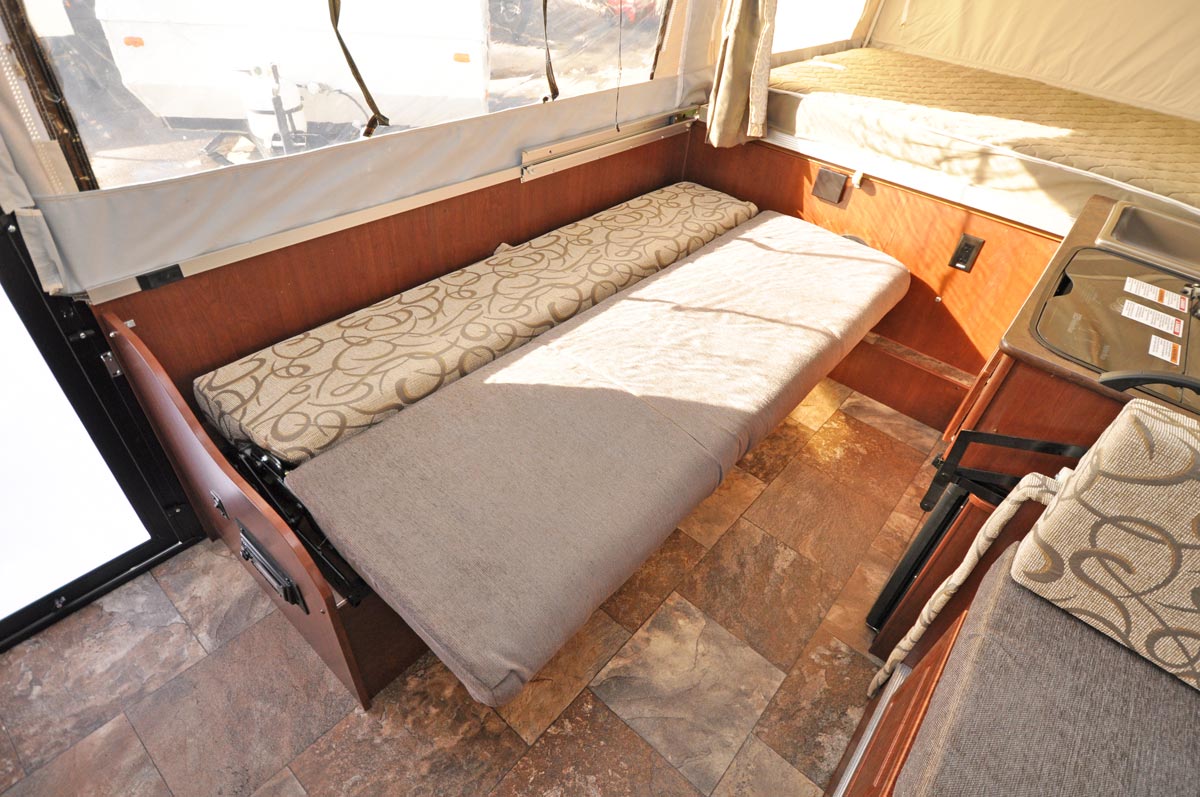

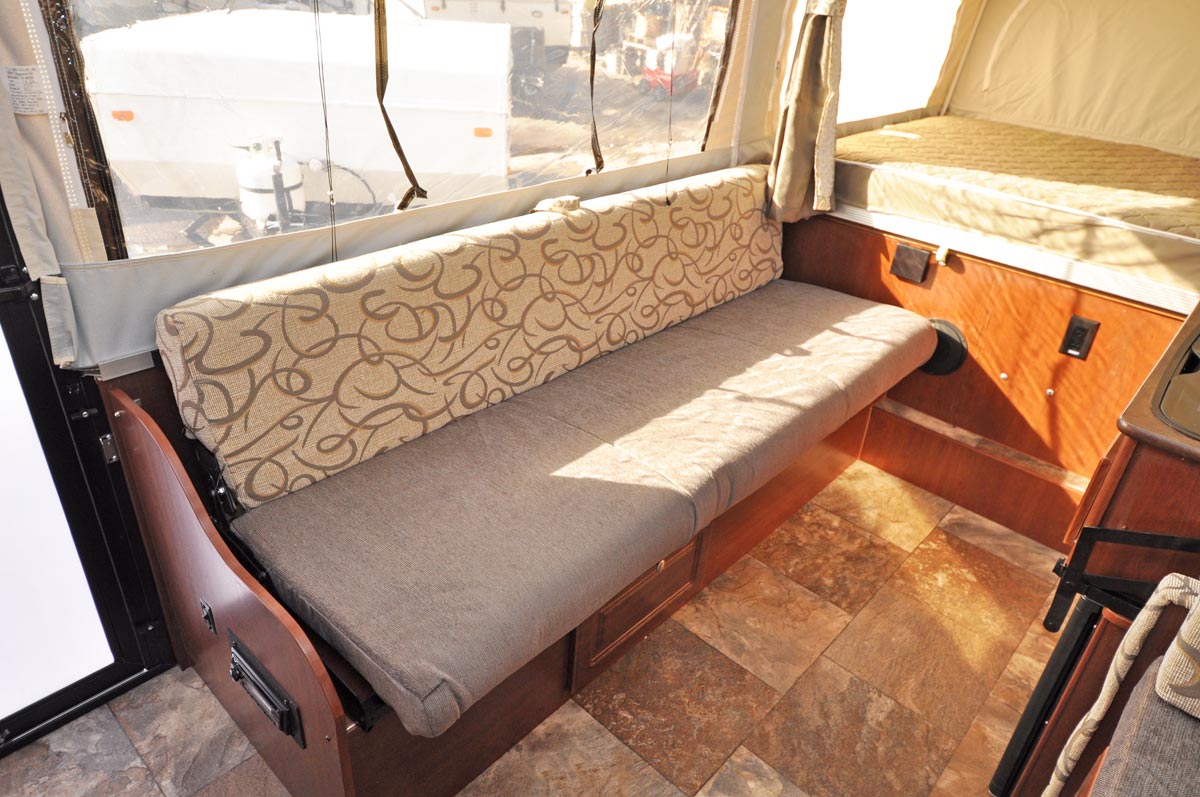

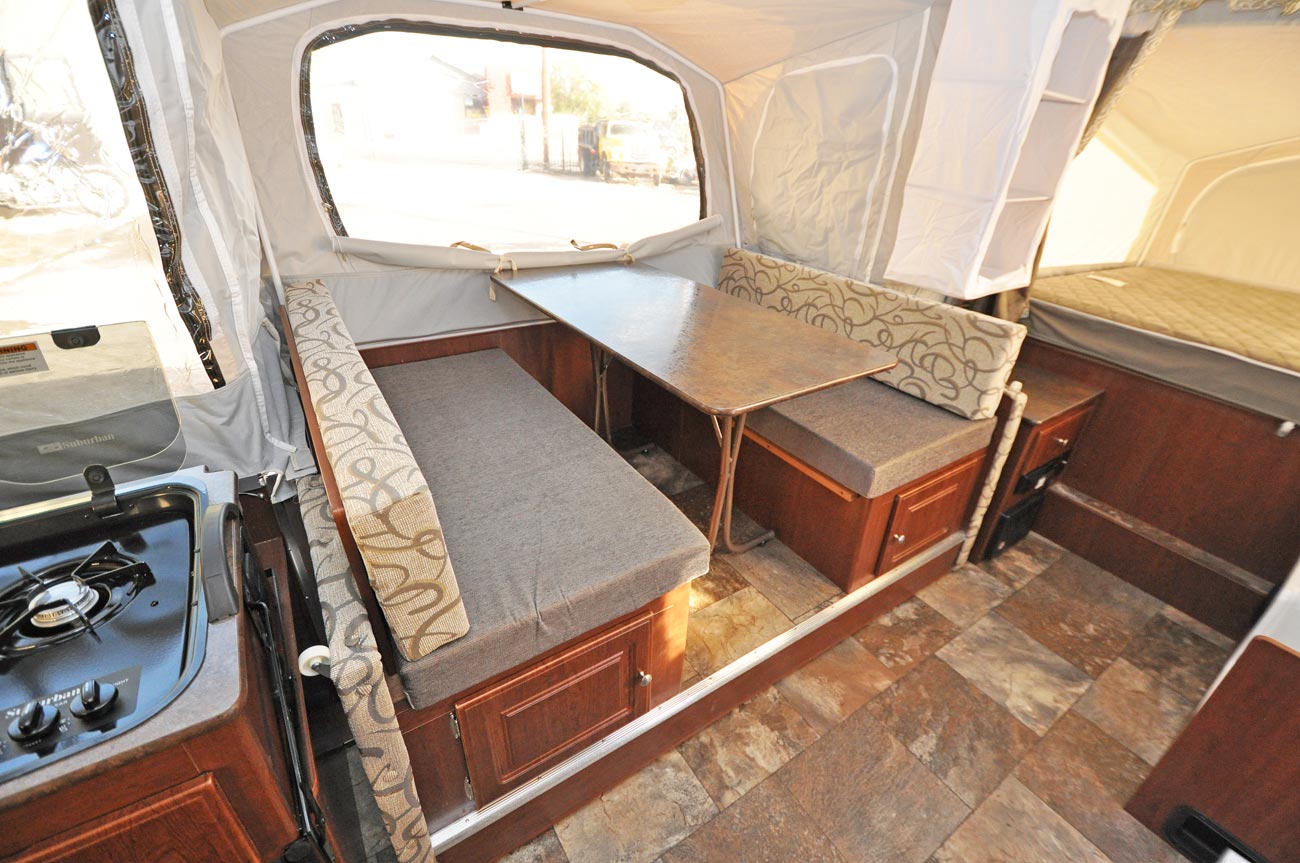

Early Model 2016 Flagstaff 625D slide-out dinette Early Model 2016 Flagstaff 625D dinette as bed Early Model 2016 Flagstaff 625D sofa Early Model 2016 Flagstaff 625D sofa as bed

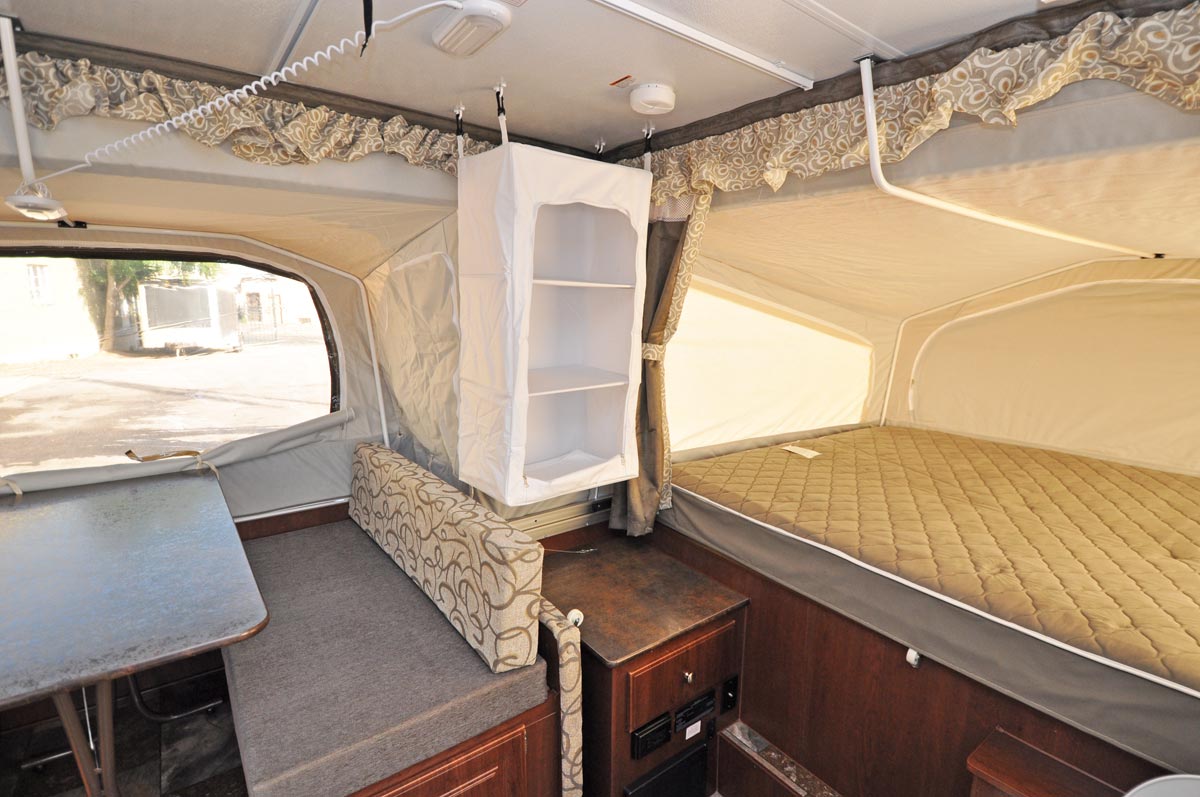

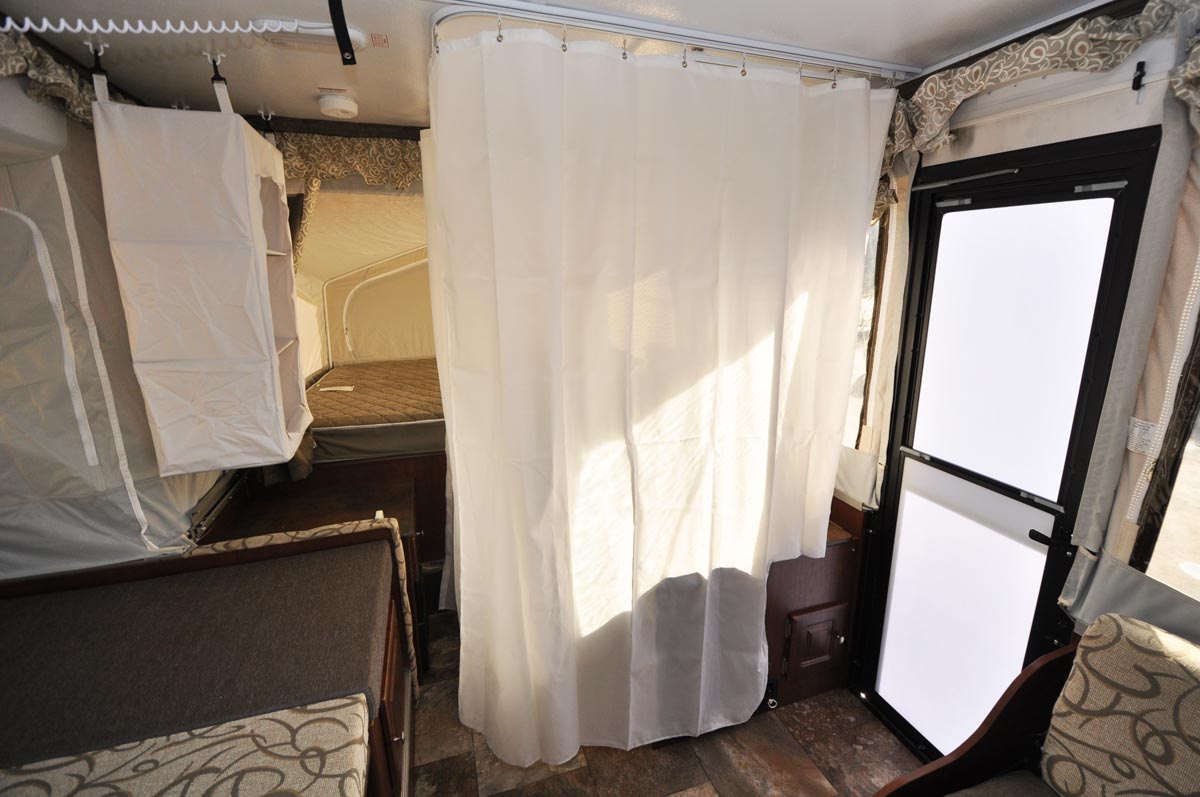

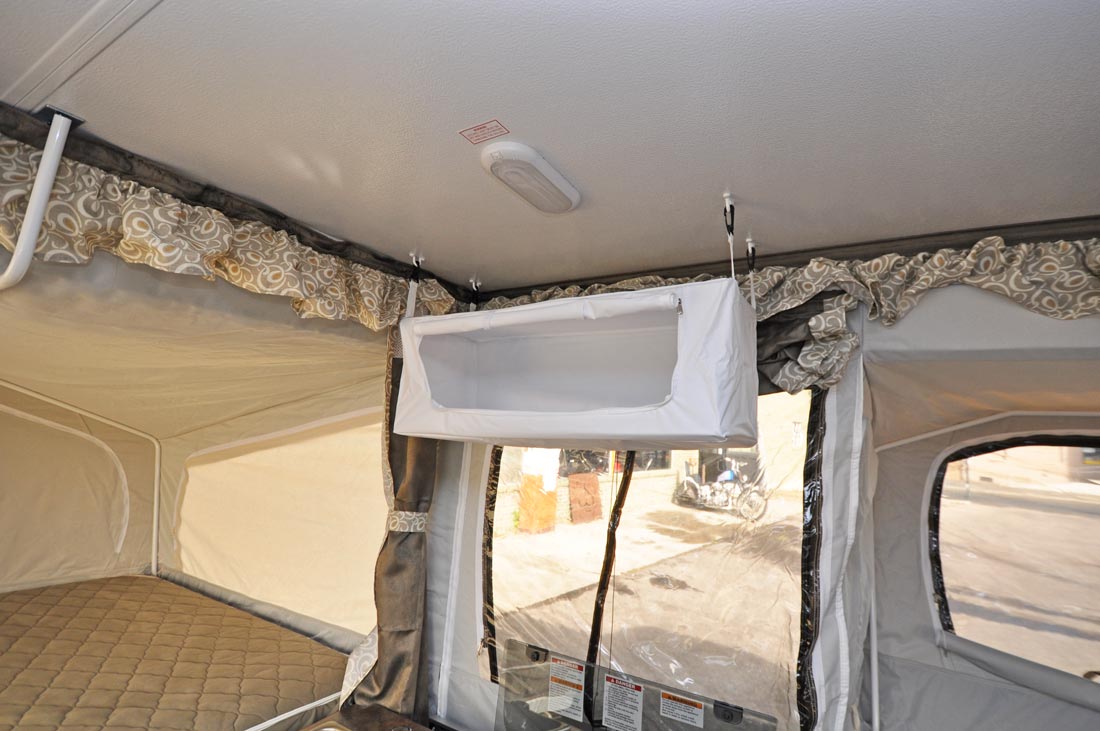

Early Model 2016 Flagstaff 625D cassette toilet/shower Early Model 2016 Flagstaff 625D privacy curtain for toilet area Early Model 2016 Flagstaff 625D overhead cabinet Early Model 2016 Flagstaff 625D overhead wardrobe

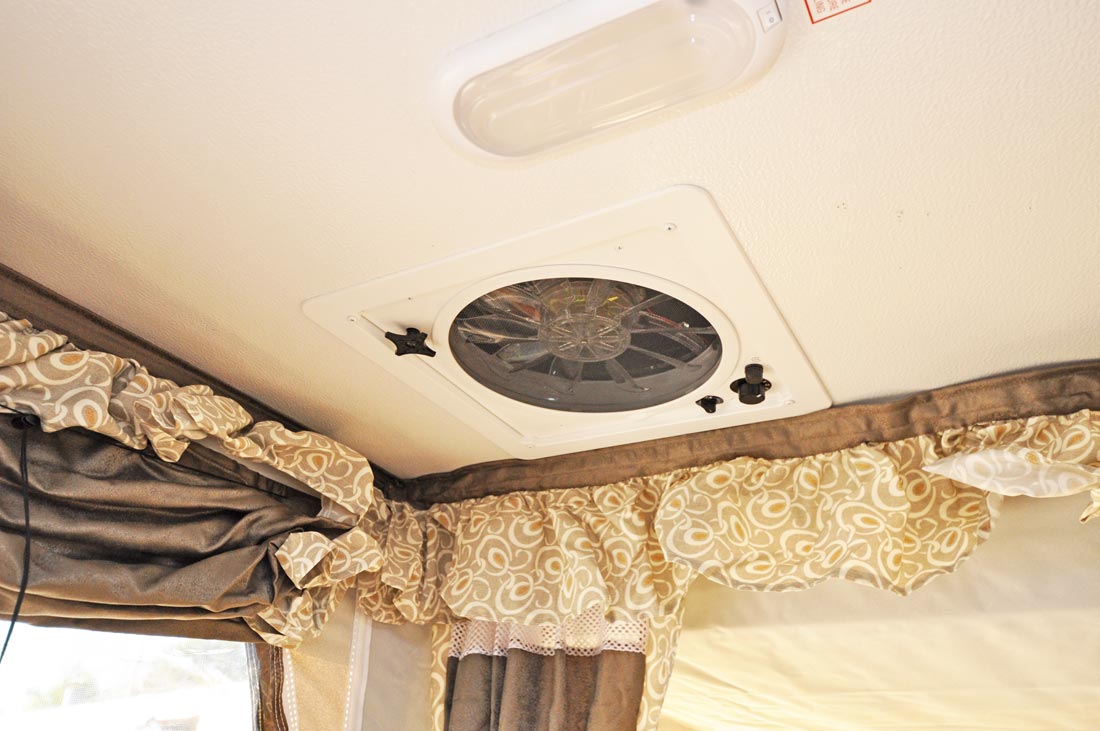

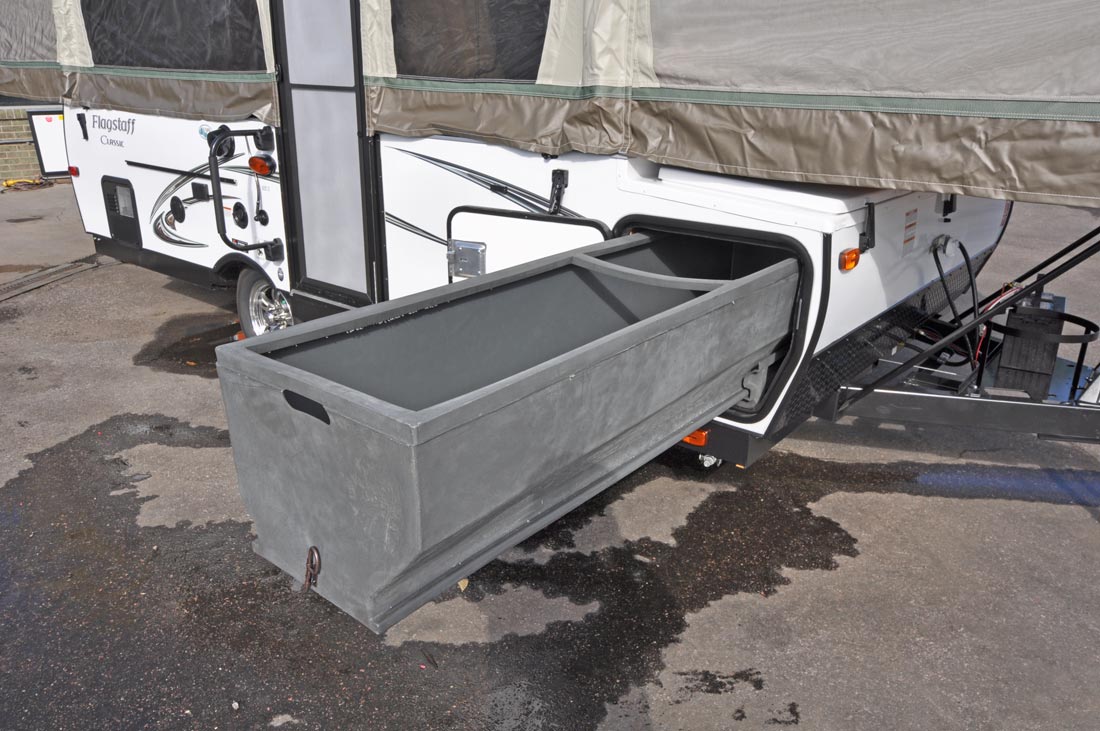

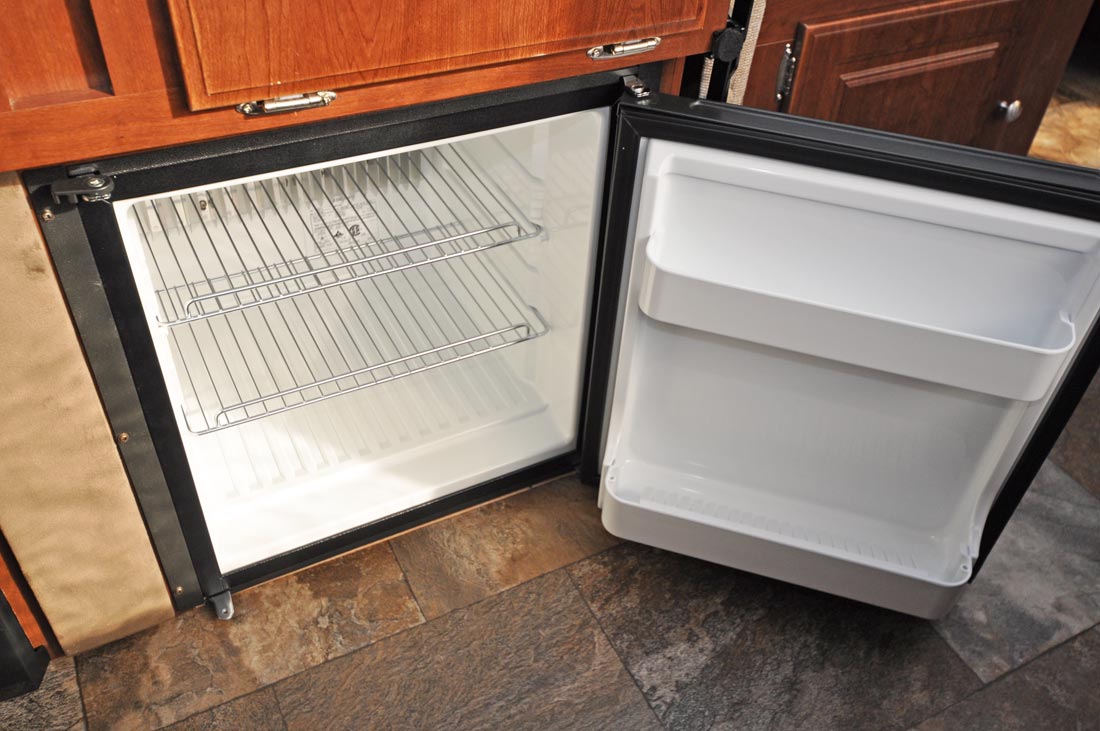

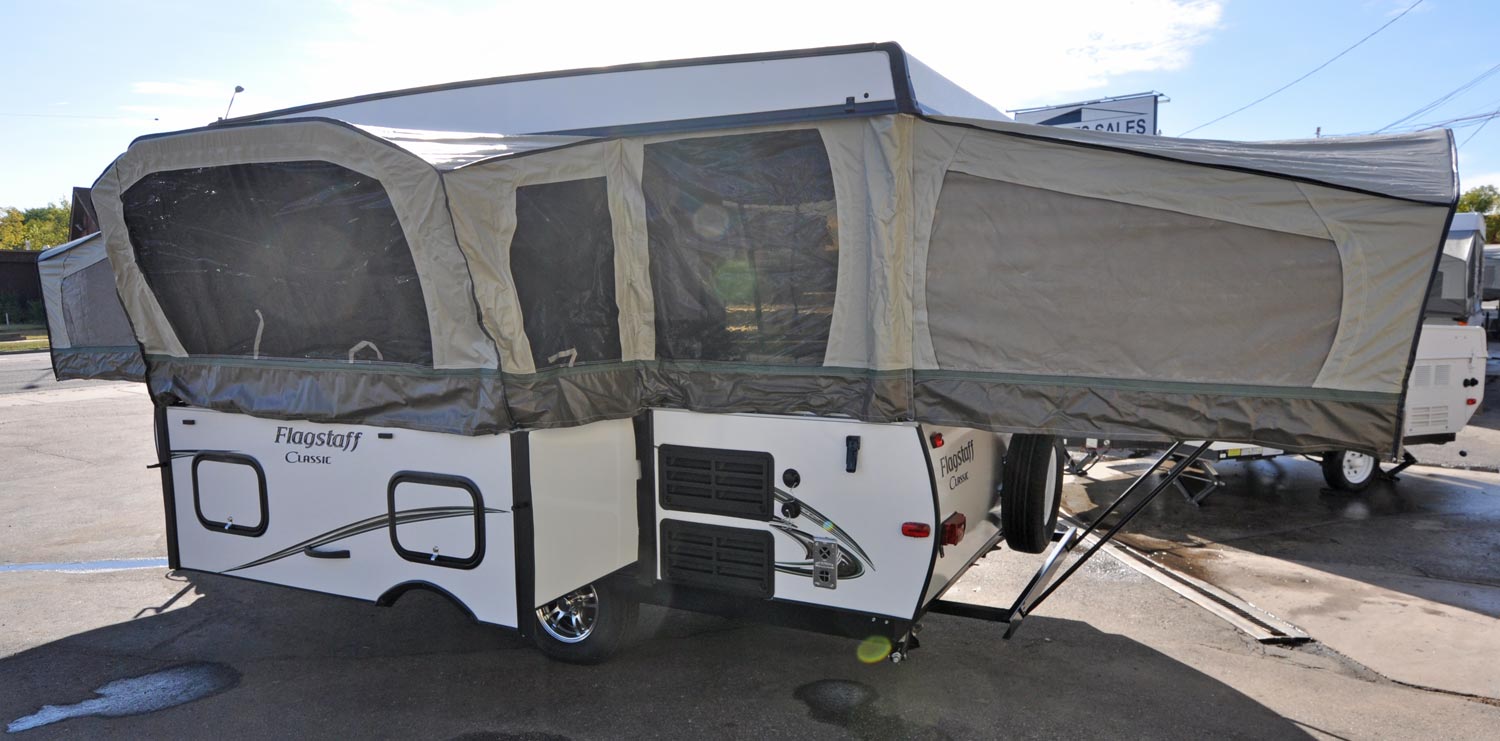

Early Model 2016 Flagstaff 625D powered roof vent Early Model 2016 Flagstaff 625D 2.5 cu. ft. 3-way fridge Early Model 2016 Flagstaff 625D sliding storage tray Early Model 2016 Flagstaff 625D exterior back-side

(Early model 2016 model year shown)

Highlights

  • The only 12' low-wall Classic with an interior shower/cassette toilet.
  • Four large beds and a full walkway from end to end--nice floor space!

Specifications

  • Box Size: 12'
  • Open Length: 23' 9"
  • Travel Length: 18' 10"
  • Travel Width: 7' 6"
  • Dry Weight: 2955 lbs (brief weight explanation)
  • Hitch Weight: 386 lbs
  • GVWR: 3386 lbs
  • Coupler size: 2"
  • Sleeps: 8
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"
    4. 77" x 43"

Features

  • Interior shower/cassette toilet
  • Automotive-style webbing/support for the sofa/bed (as opposed to foam-on-plywood couch on the MAC series)
  • Front storage trunk with pull out "camp kitchen" (grill and cooler)

...as well as these features standard with the Classic series:

  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Overhead cabinet
  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 627D - The same interior shower/cassette toilet but with a 14' box and a slightly shorter sofa bed.
  • 228D w/shower - Almost identical layout inside but in the MAC series (series comparison); no enclosed storage trunk.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to Archives

To Classic Series

Top of Page

Older Photos

Flagstaff Classic series glass stove top Flagstaff Classic series stove top (2015 shown)

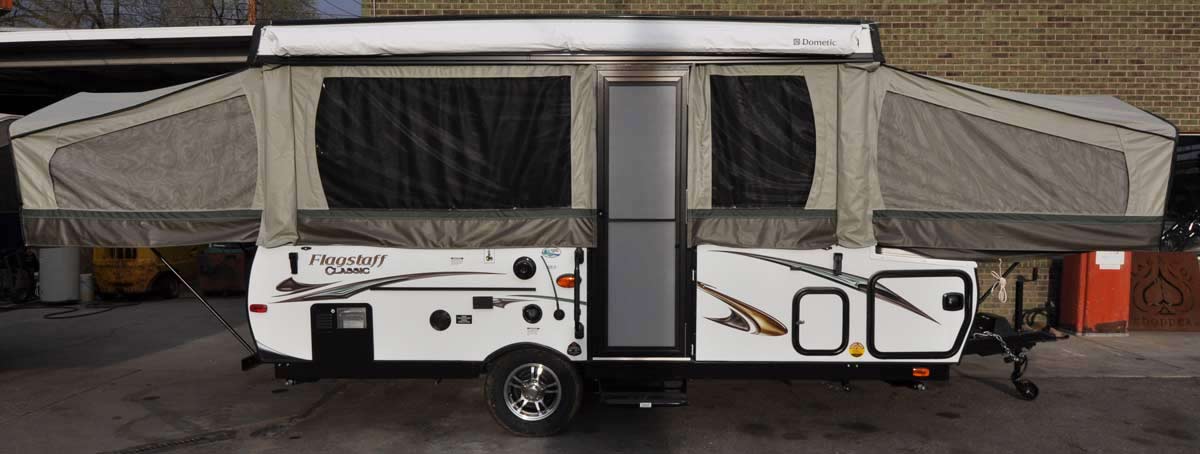

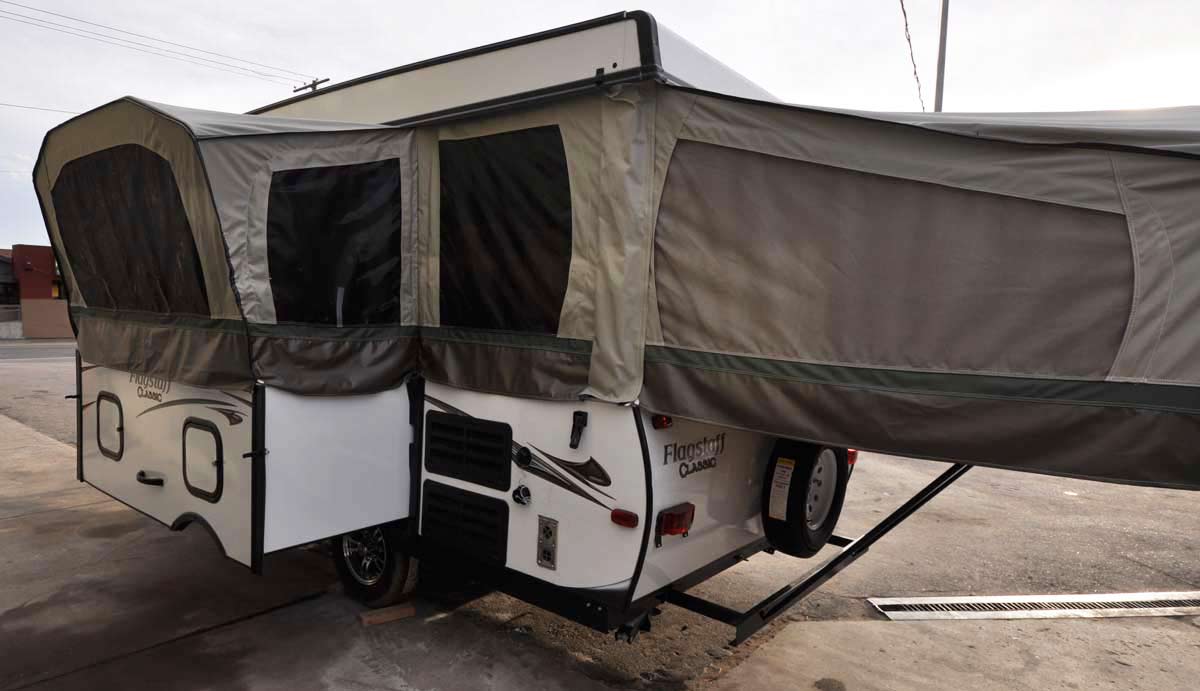

2014 Flagstaff 625D profile 2014 Flagstaff 625D back side (2014 model shown)
