Flagstaff T12RBSSE



(2017-2019)

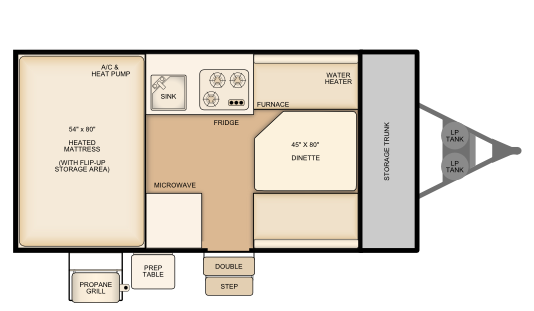

Flagstaff T12RBSSE floorplan

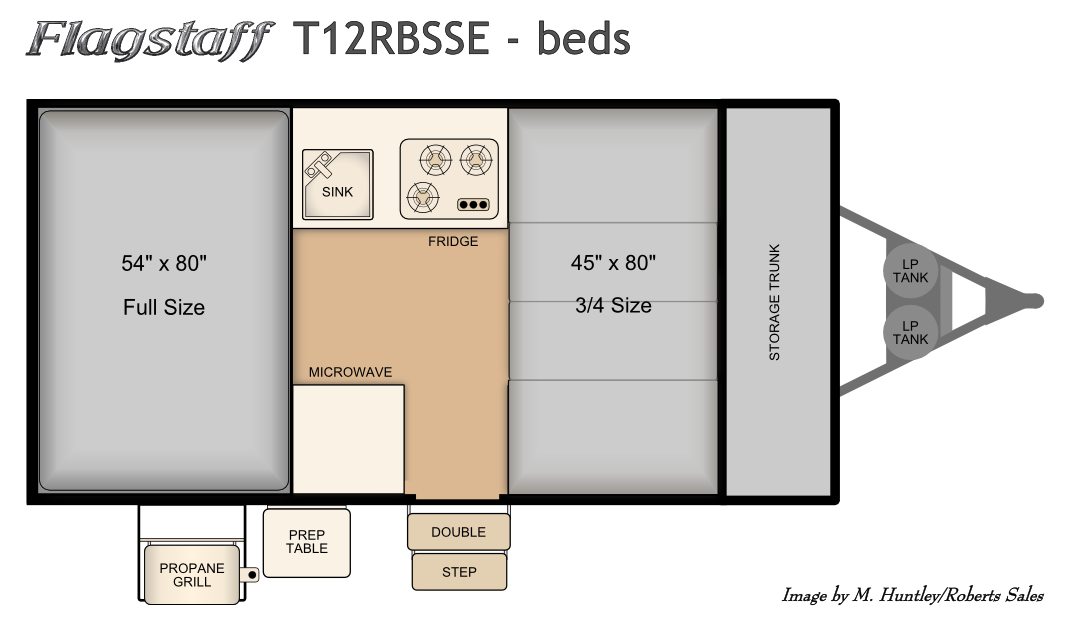

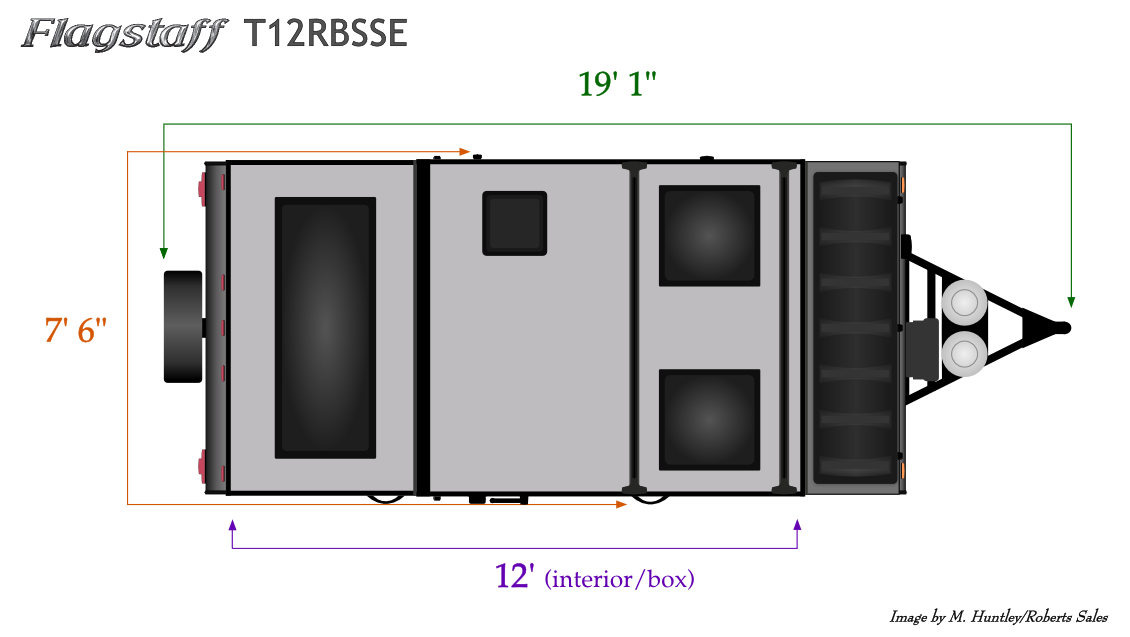

Bed Layout for this model length and width dimensions for Flagstaff T12RBSSE

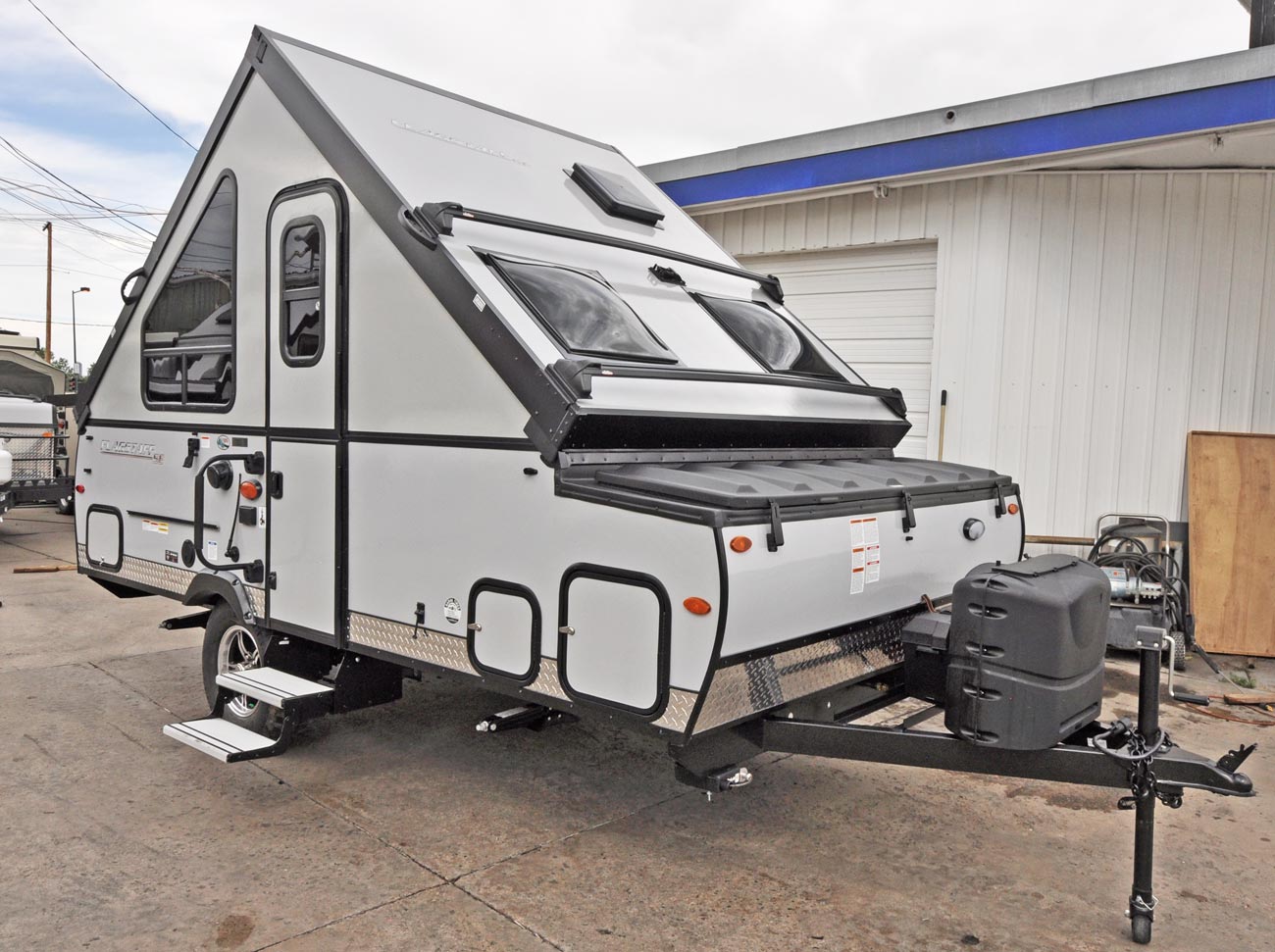

2019 Flagstaff T12RBSSE exterior

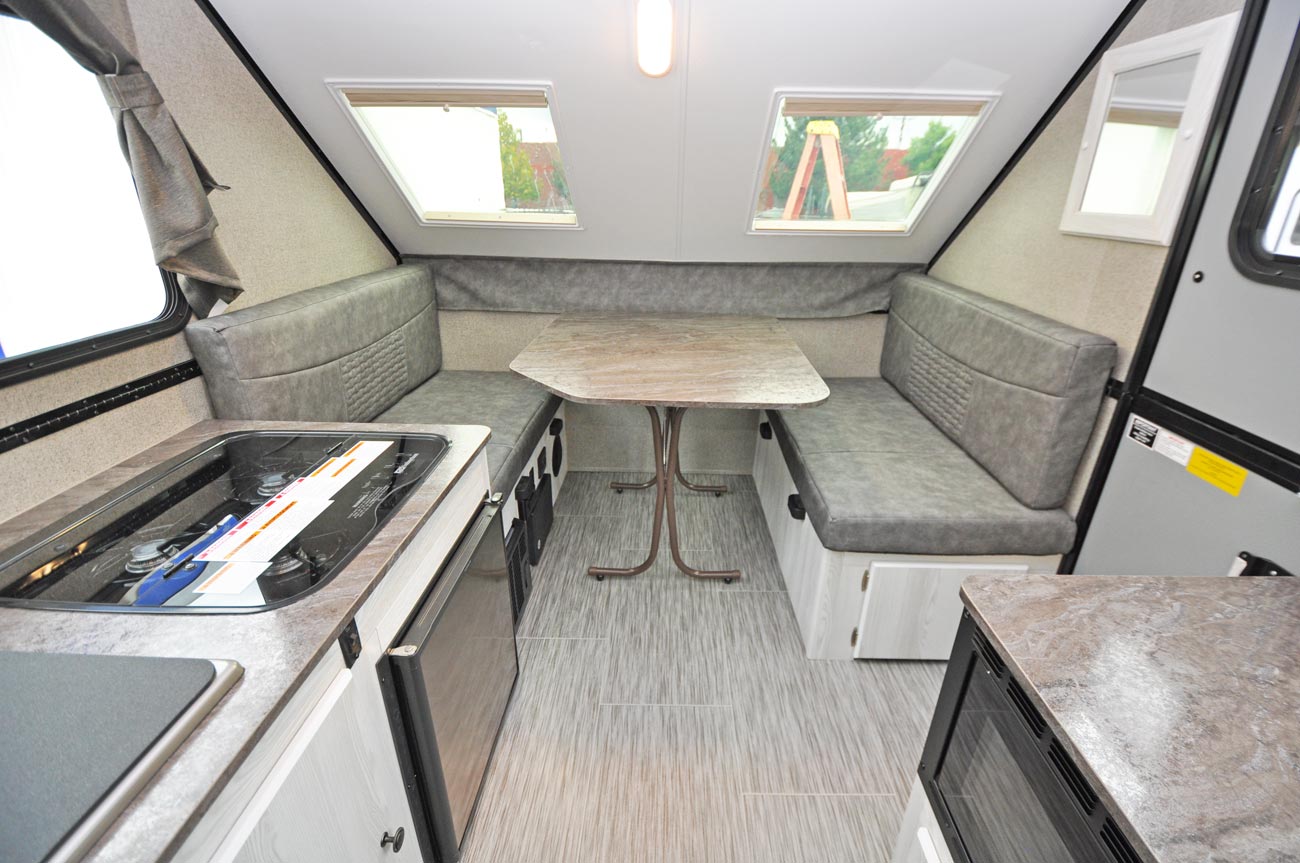

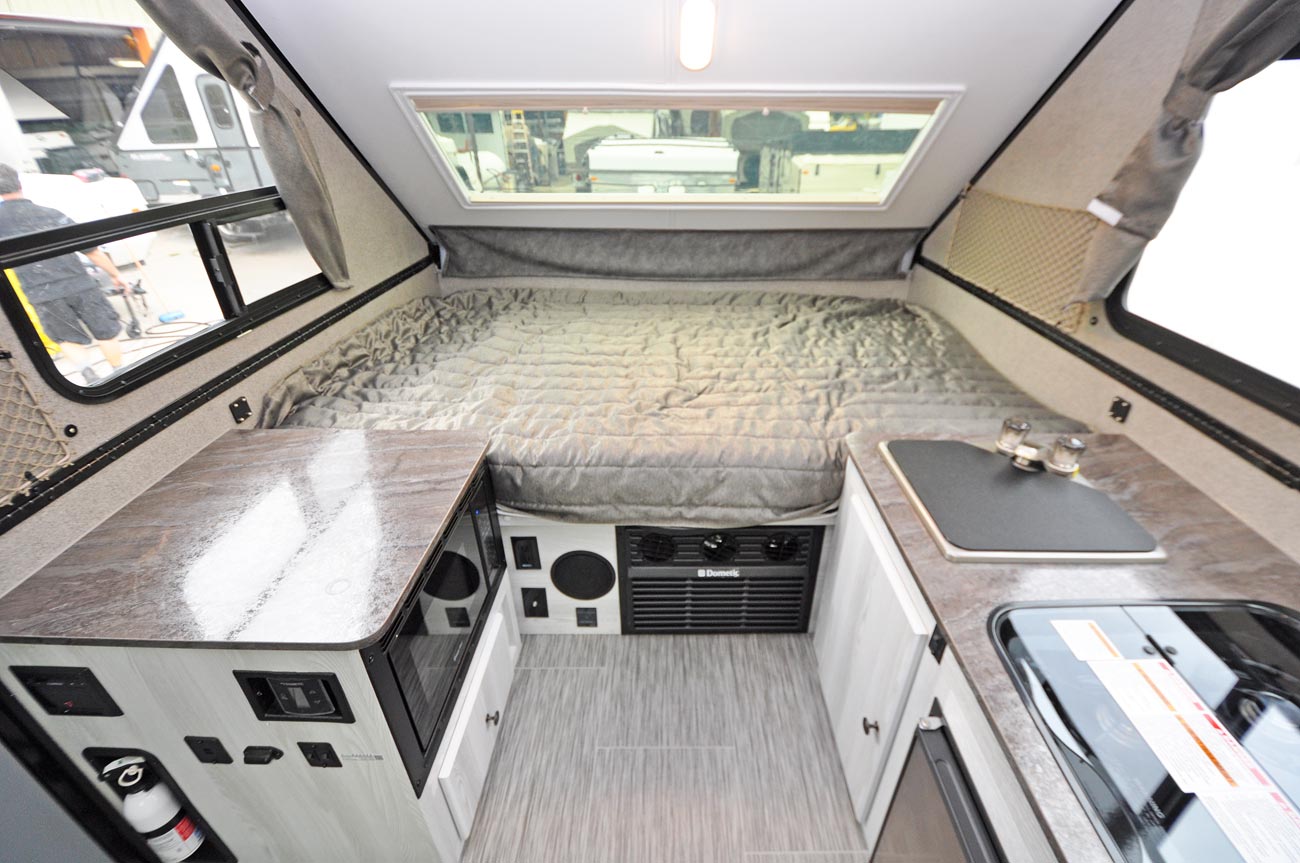

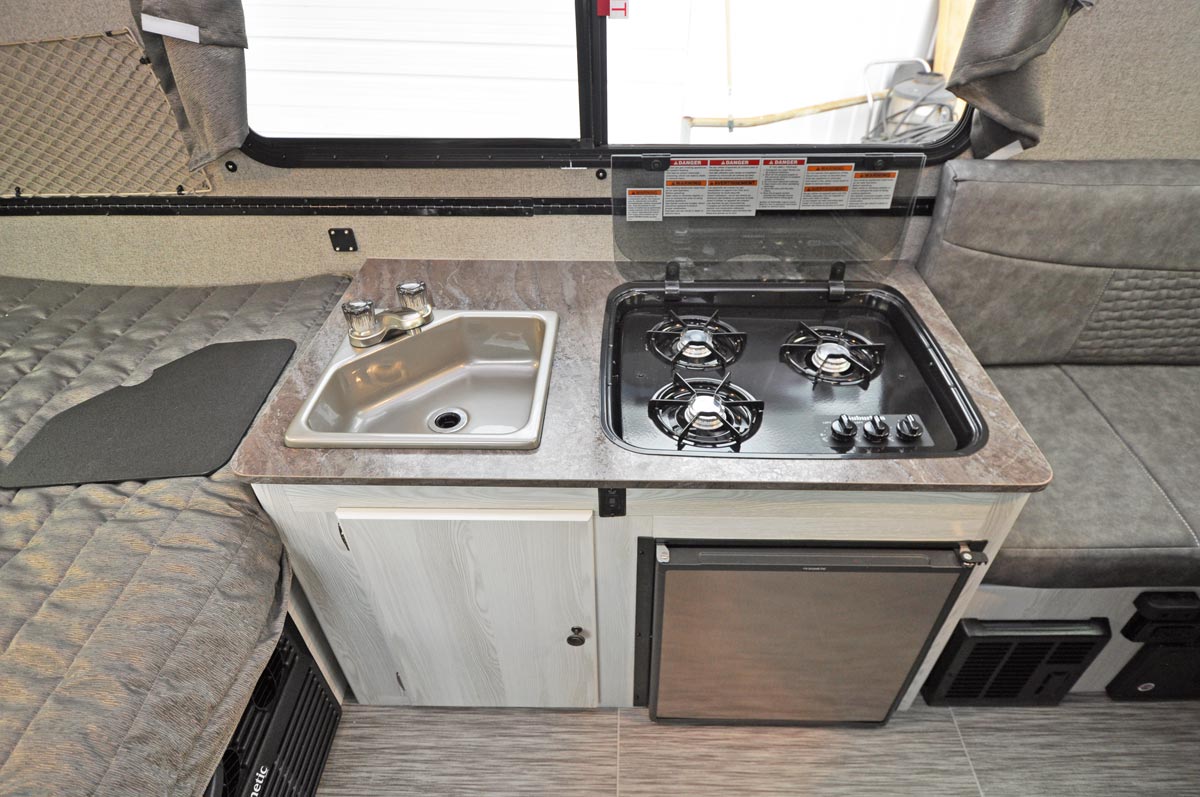

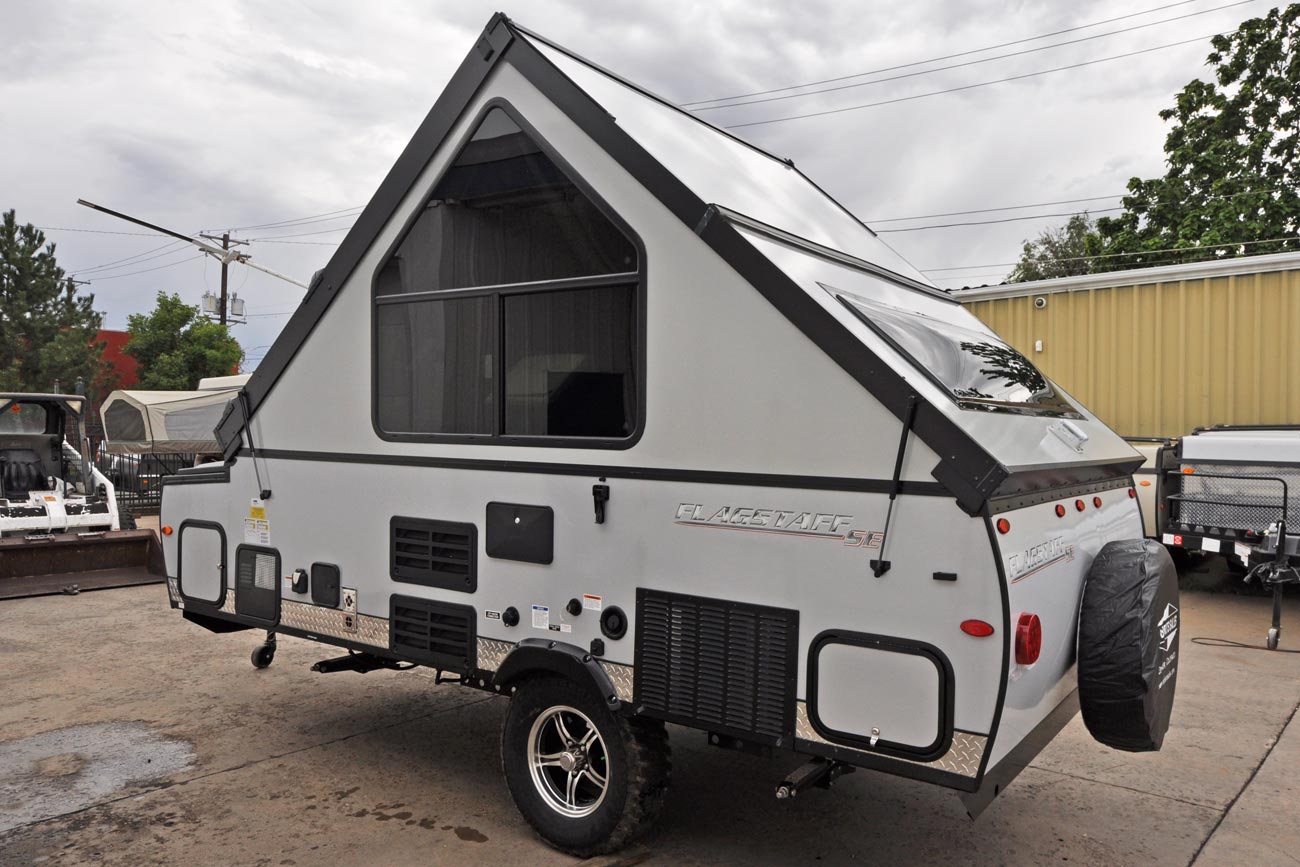

2019 Flagstaff T12RBSSE back-side 2019 Flagstaff T12RBSSE front view 2019 Flagstaff T12RBSSE rear view 2019 Flagstaff T12RBSSE galley

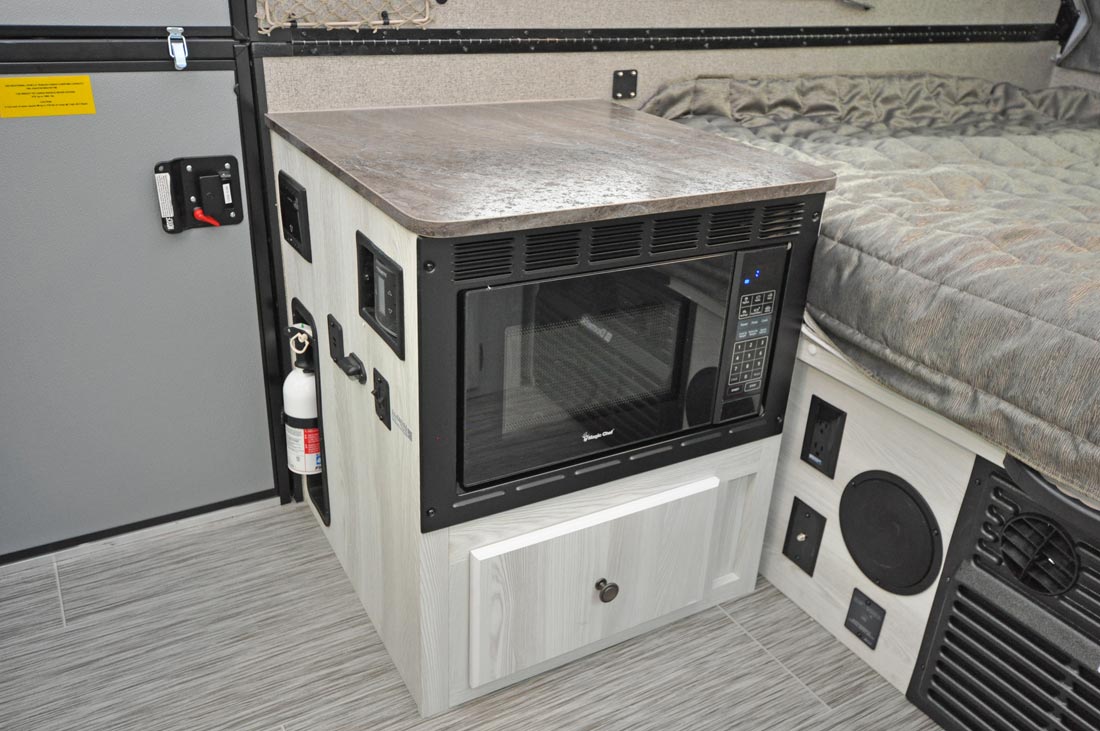

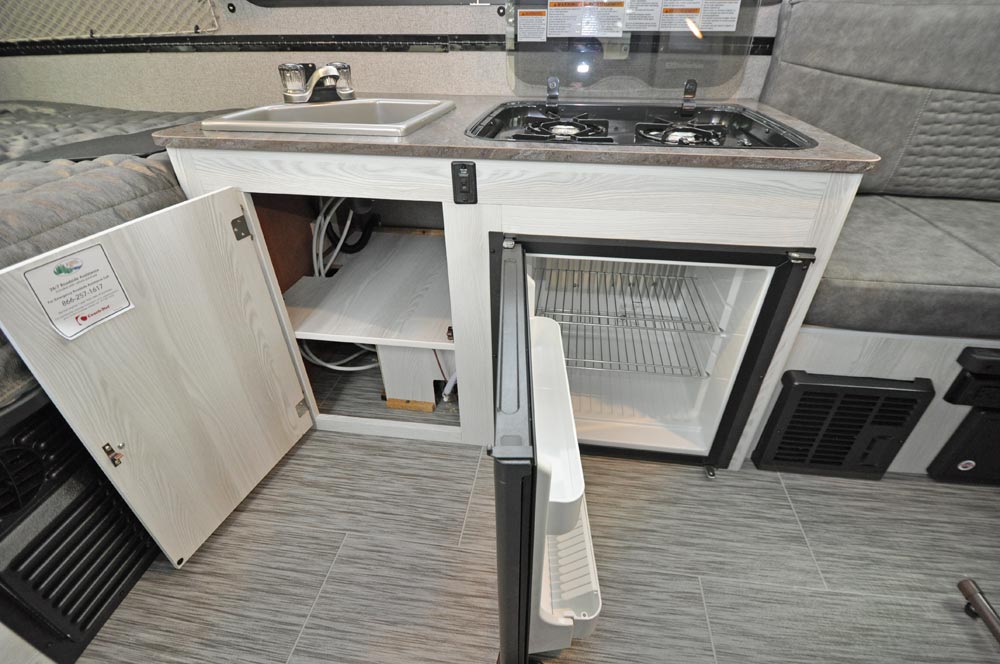

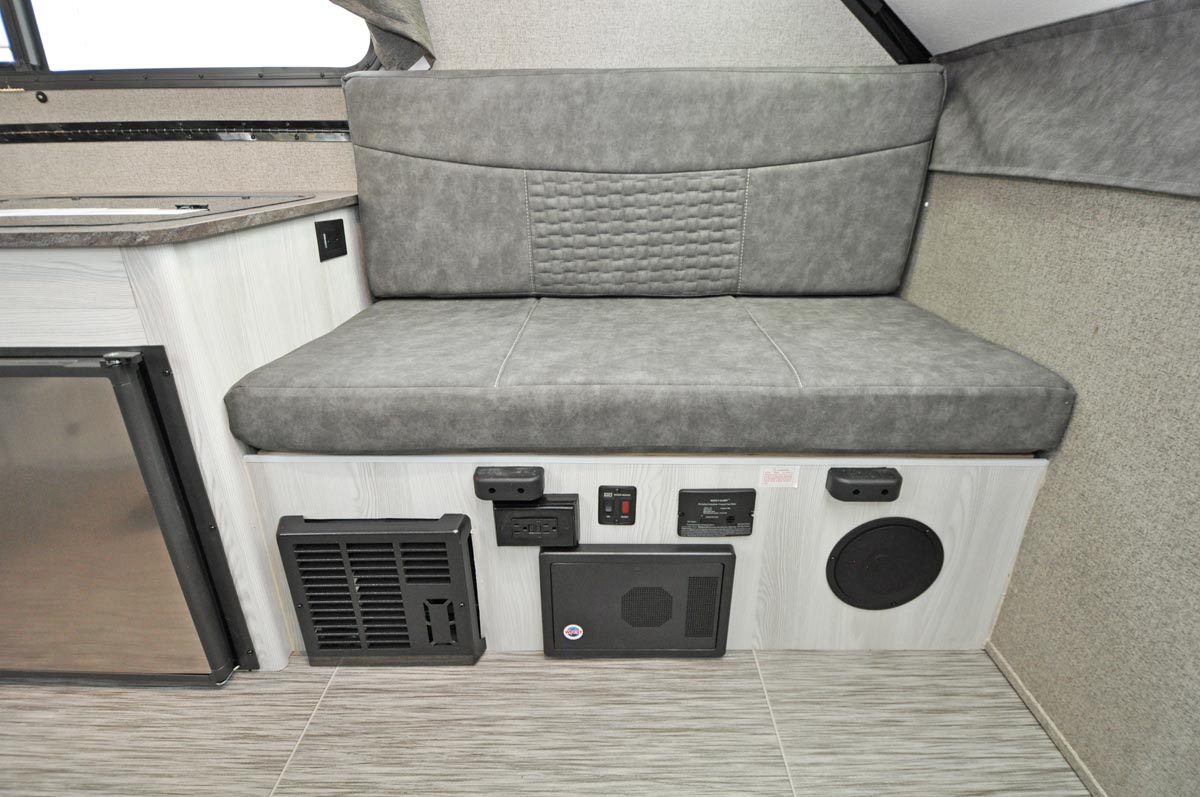

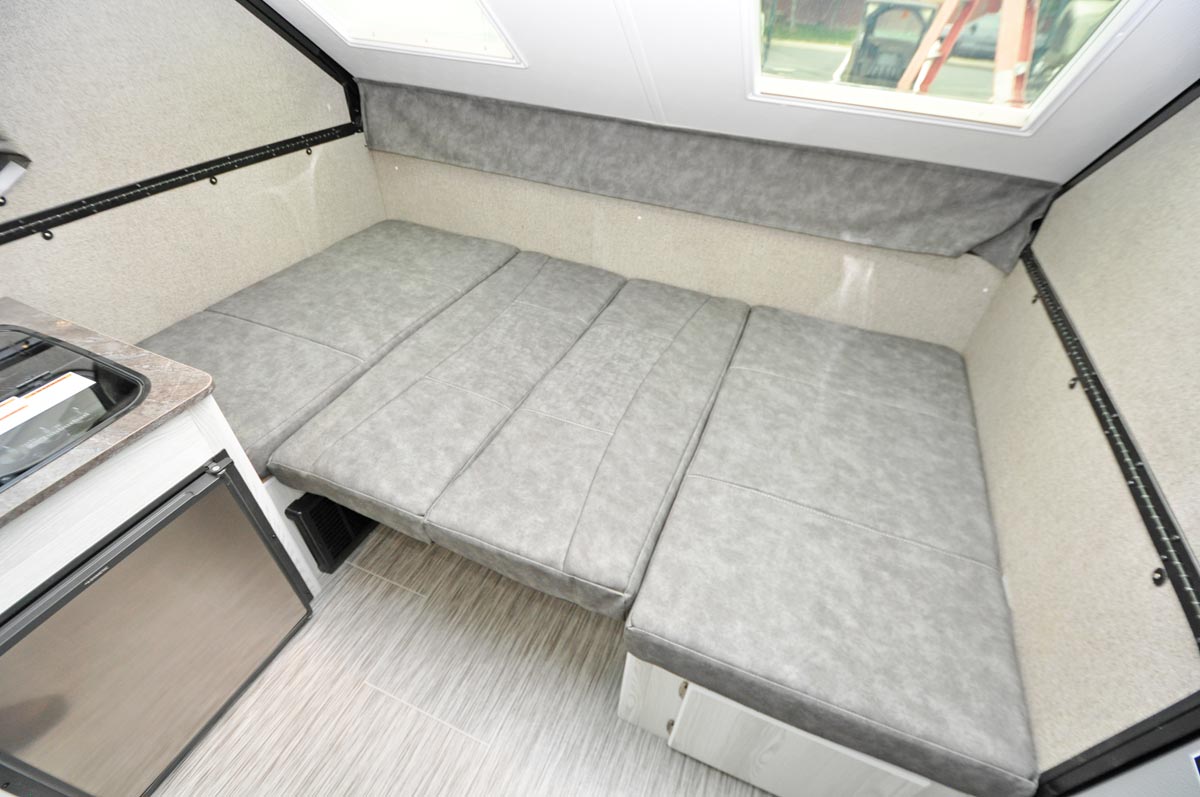

2019 Flagstaff T12RBSSE galley storage 2019 Flagstaff T12RBSSE dinette as a bed 2019 Flagstaff T12RBSSE furnace 2019 Flagstaff T12RBSSE microwave

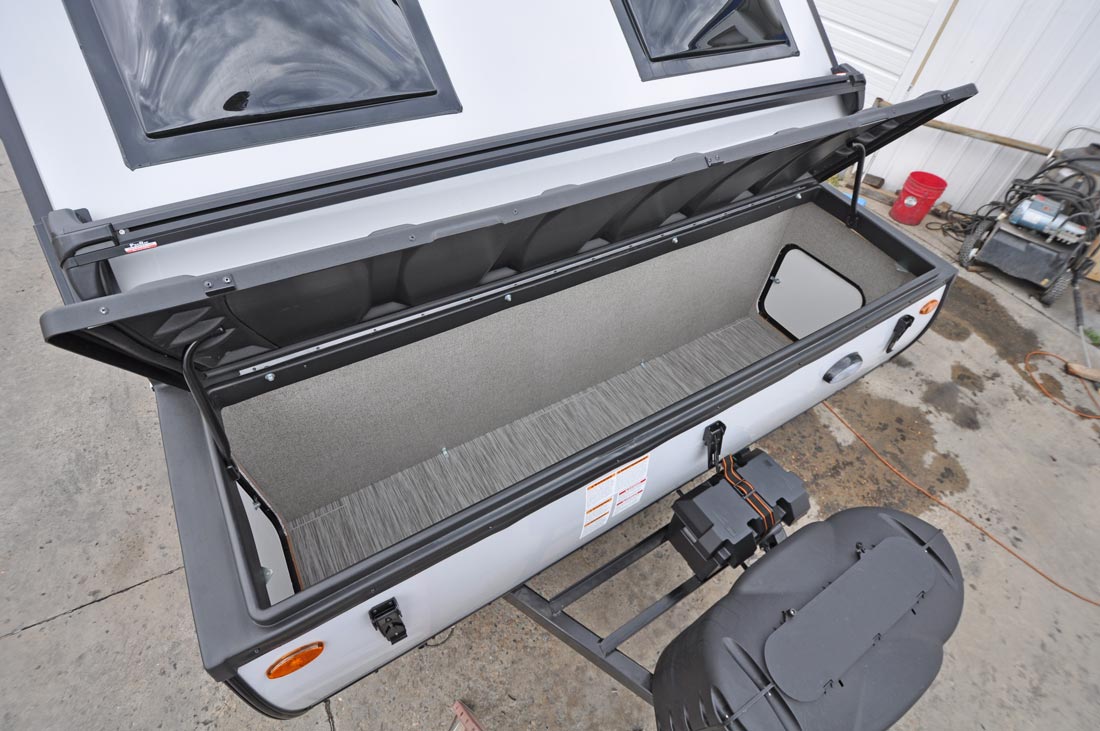

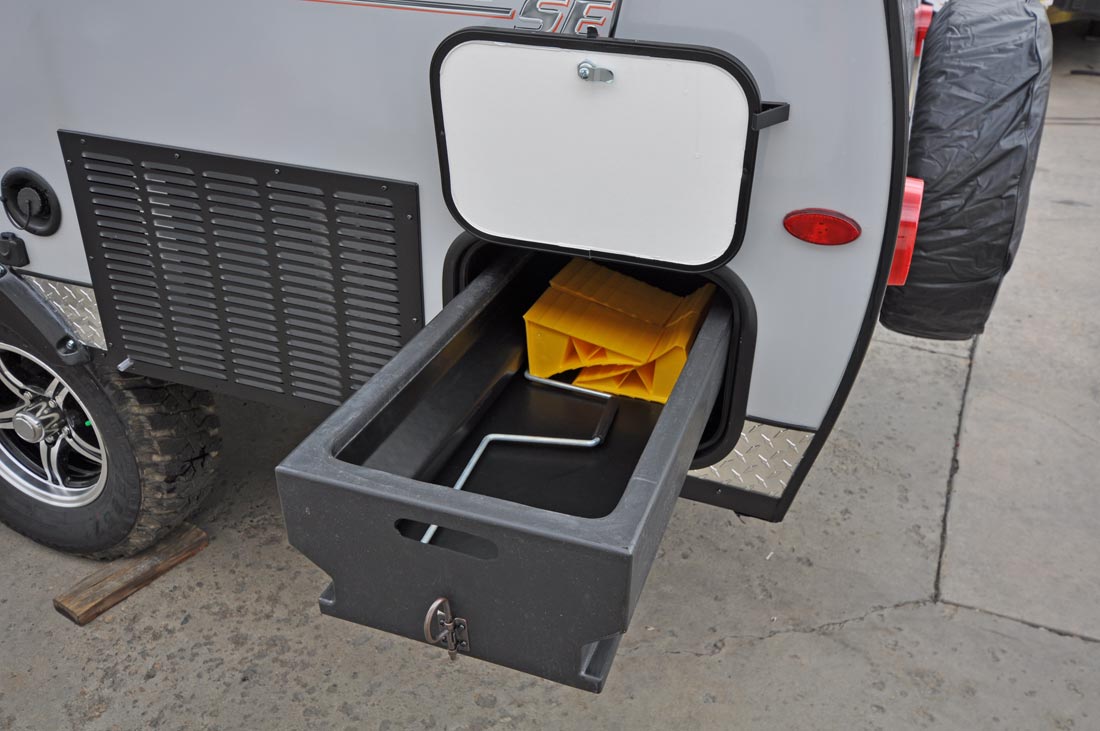

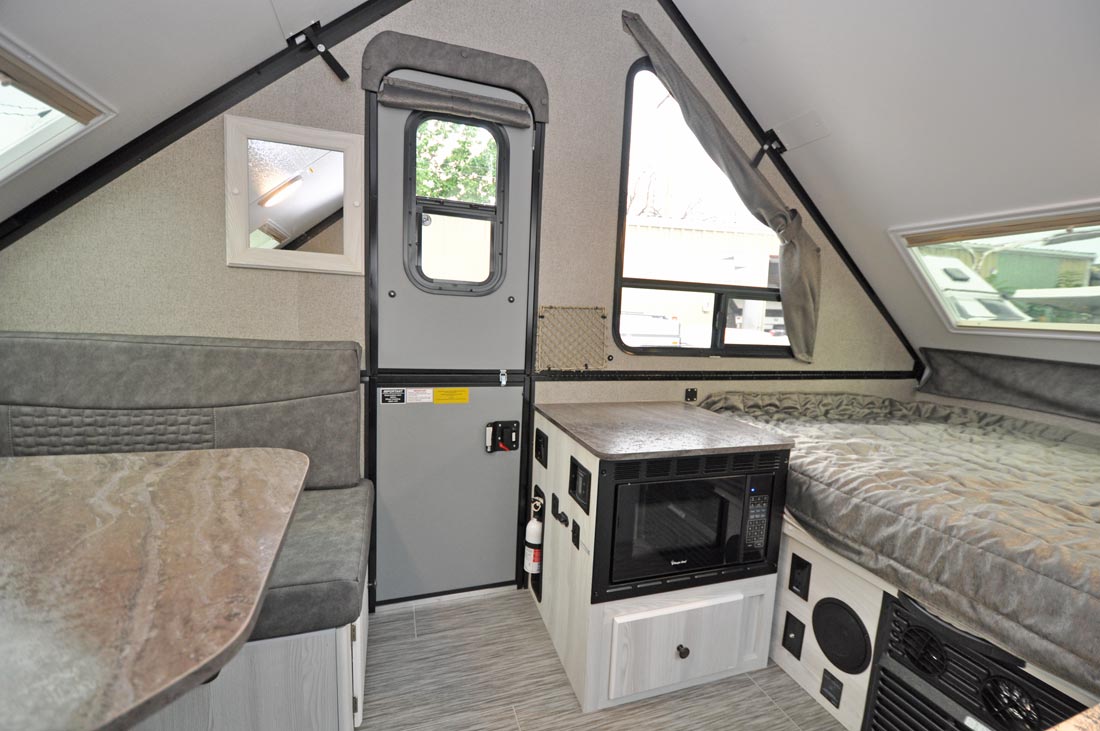

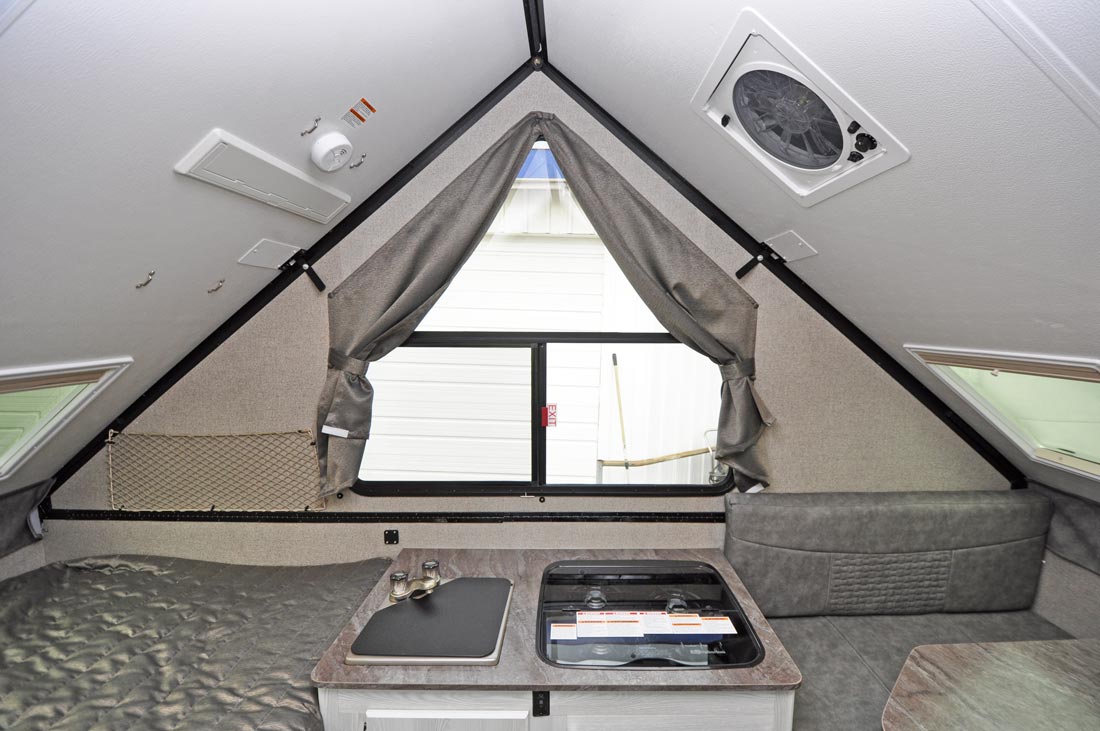

2019 Flagstaff T12RBSSE door side interior 2019 Flagstaff T12RBSSE ceiling area 2019 Flagstaff T12RBSSE storage trunk 2019 Flagstaff T12RBSSE storage bin

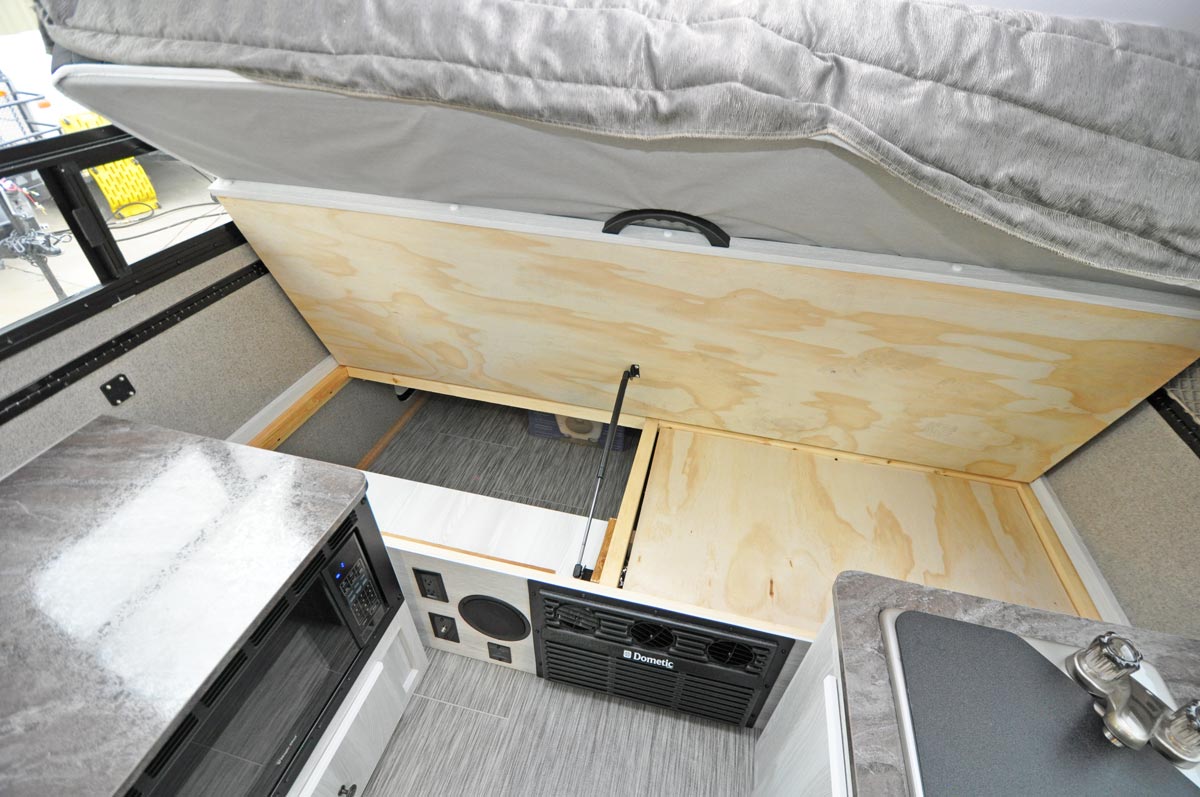

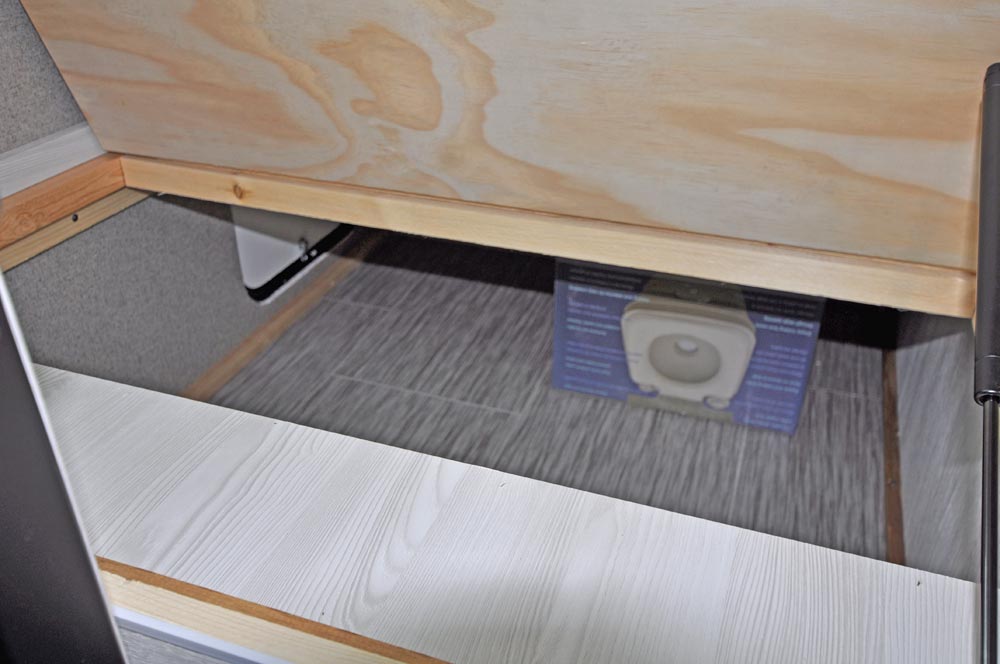

2019 Flagstaff T12RBSSE storage under bed 2019 Flagstaff T12RBSSE portable toilet 2019 Flagstaff T12RBSSE profile (2019 model year shown)

Highlights

  • The excellent T12RB interior with an enclosed storage trunk on the front and the Sports Enthusiast 15" tire and wheel package, gray exterior, and "Driftwood" interior.
  • Large storage trunk on the front.

Specifications

  • Box Size: 12'
  • Travel Length: brochure says 19'; actual (with spare tire) 19' 1"
  • Travel Width: 7' 6"
  • Closed Height: 71"
  • Dry Weight: 2272 lbs (brief weight explanation)
  • Hitch Weight: 290 lbs
  • GVWR: 3790 lbs
  • Coupler size: 2"
  • Sleeps: 4
  • Beds:
    1. 80" x 54"
    2. 80" x 45"

Features

  • 110V heated mattress
  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Portable toilet
  • Front storage trunk
  • 15" aluminum wheels (spare tire has a steel wheel)

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two 20# propane tanks with automatic regulator
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • T12RBST - Has the exact same interior layout but with the standard, non-lifted frame and with 13" wheels (instead of 15").
  • T12BHSE - Same layout and in the Sports Enthusiast series, but with a metal deck on the front (instead of a storage trunk) and a front dormer.
  • T12RBTHSE - Same interior layout and same 15" wheels but with the a 4 1/2' metal deck on the front (instead of the storage trunk).

Prior to the 2017 model year this layout was known as the T12RBSOR.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to Archives

To T-Series

Top of Page

Older Photos

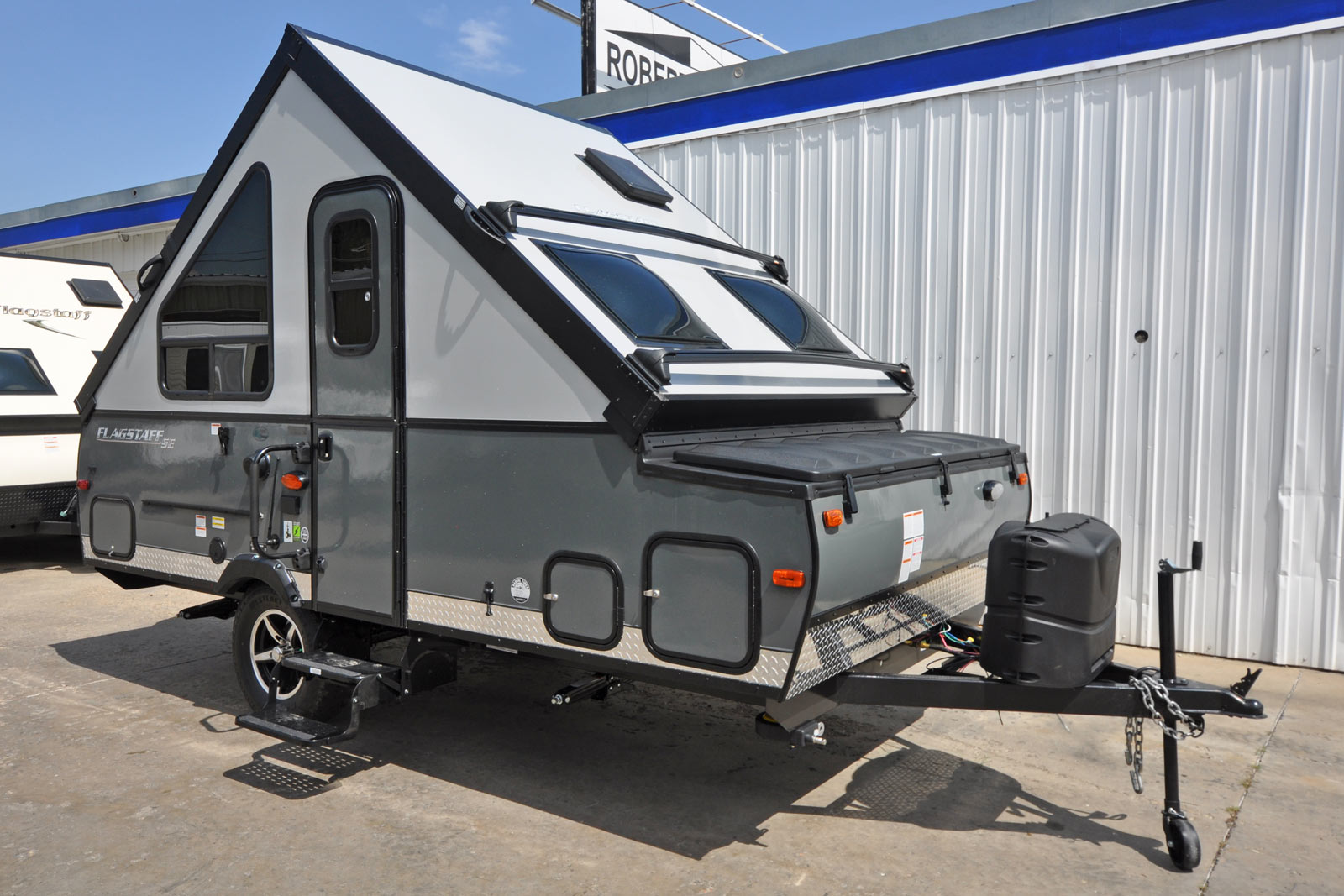

2017 Flagstaff T12RBSSE exterior

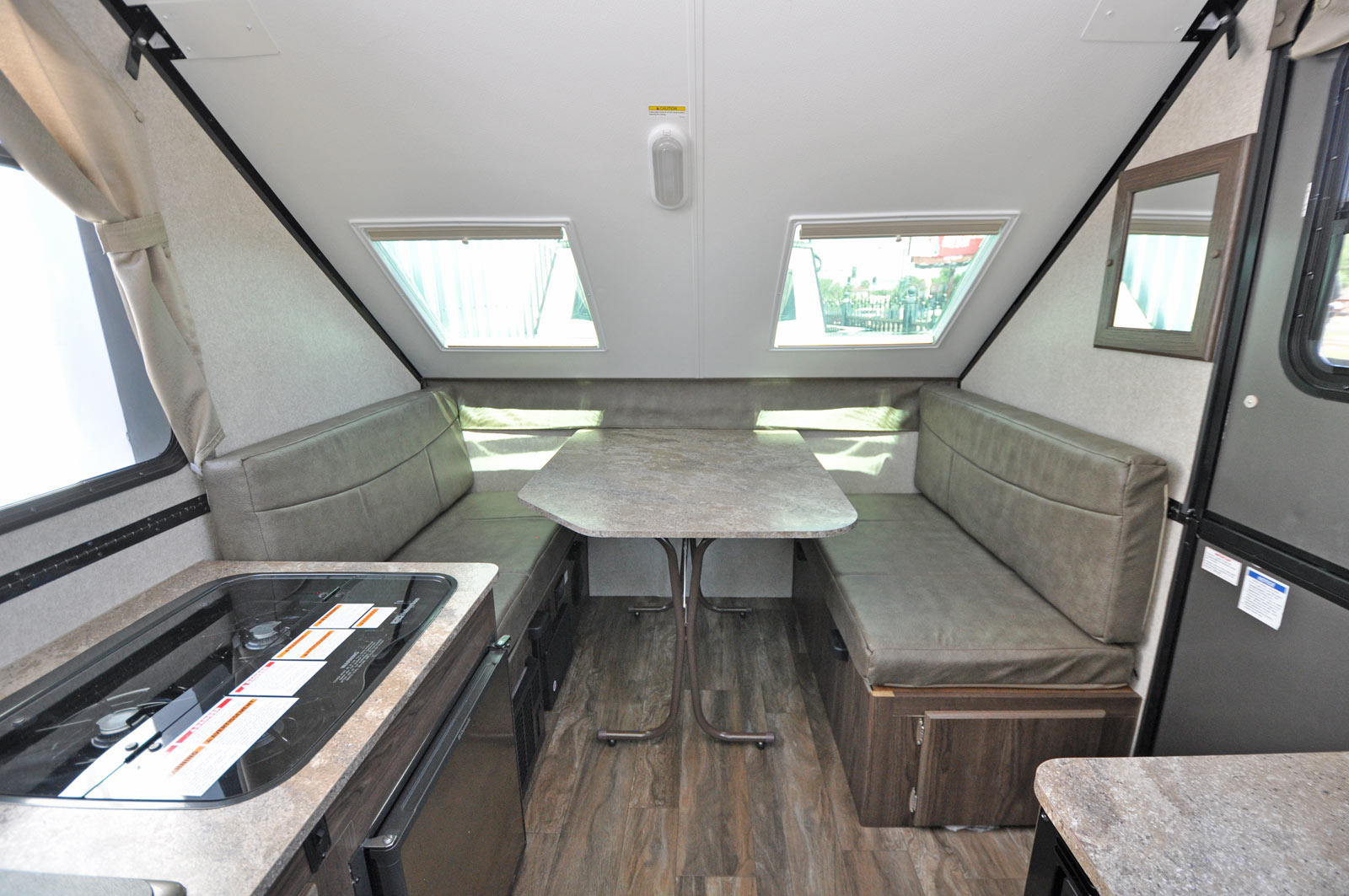

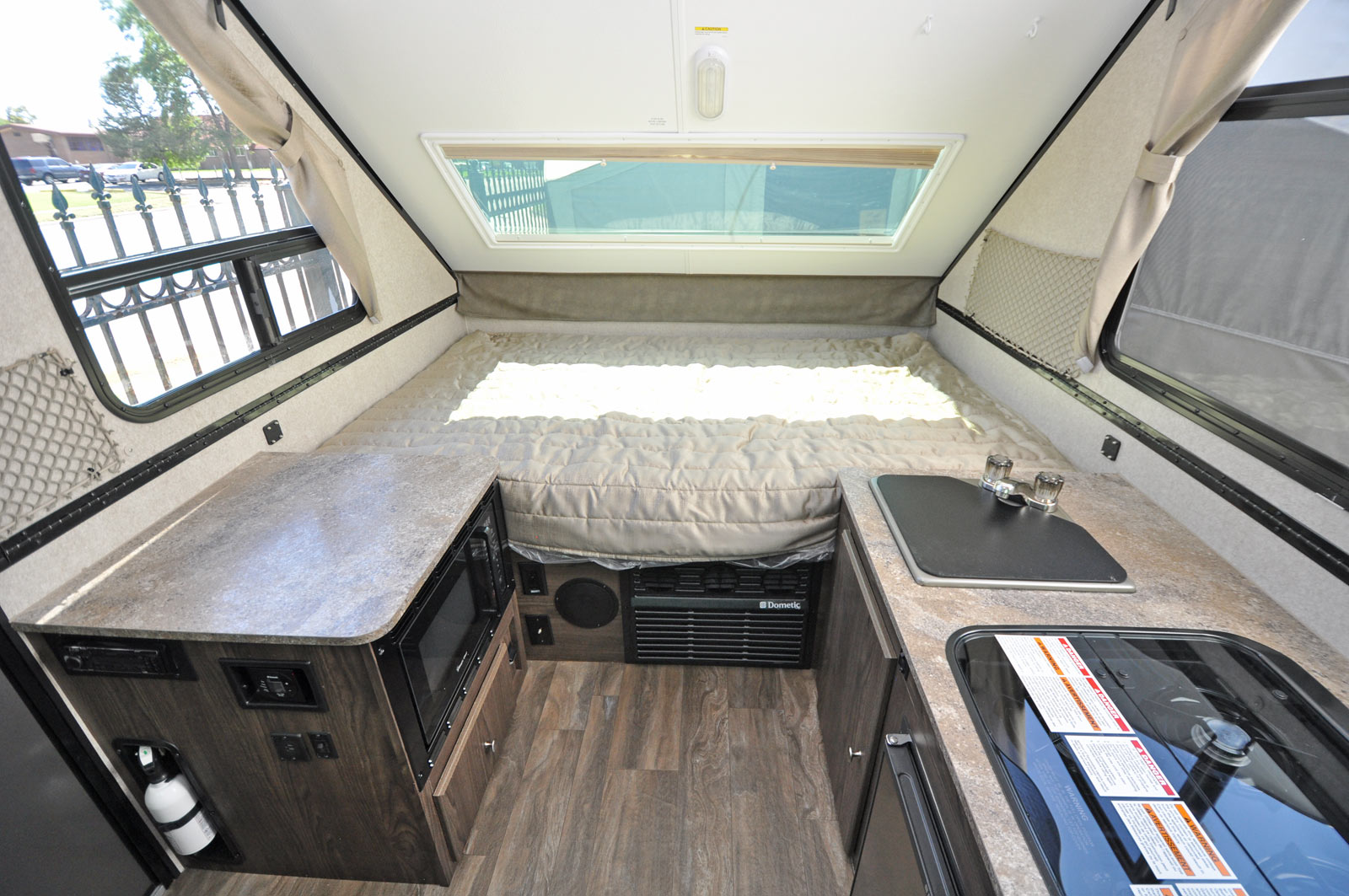

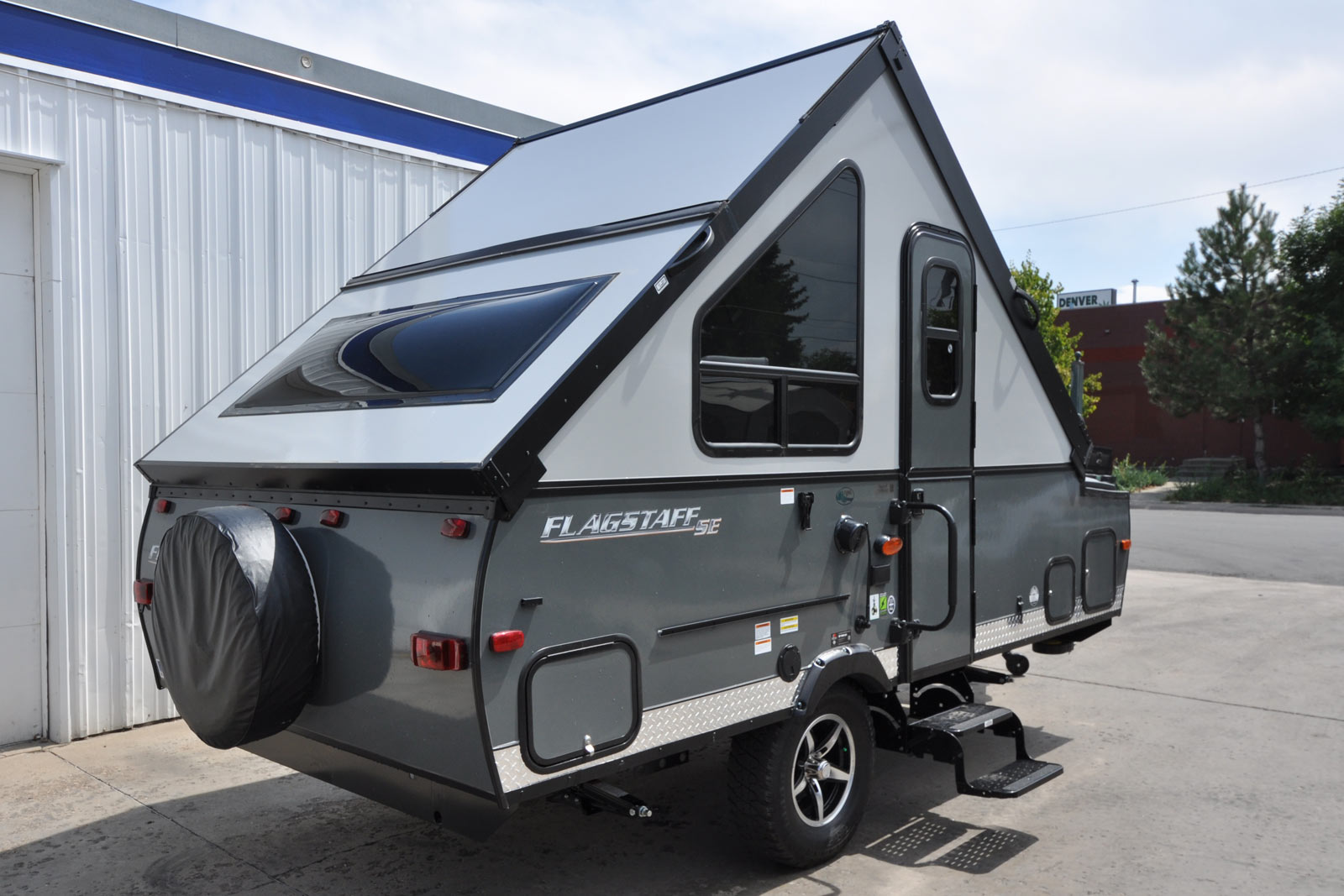

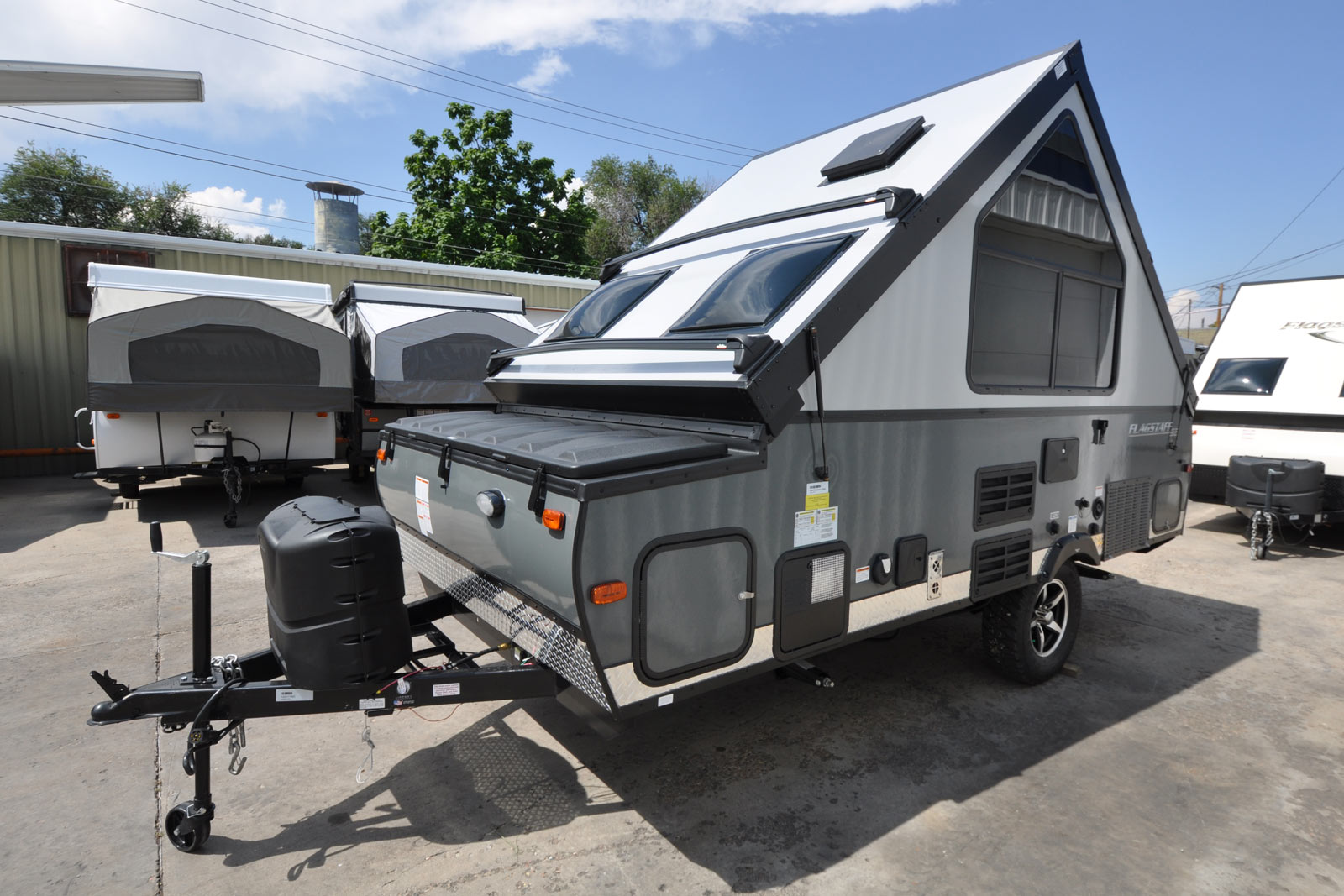

2017 Flagstaff T12RBSSE back-side 2017 Flagstaff T12RBSSE 3/4 view 2017 Flagstaff T12RBSSE front view 2017 Flagstaff T12RBSSE rear view

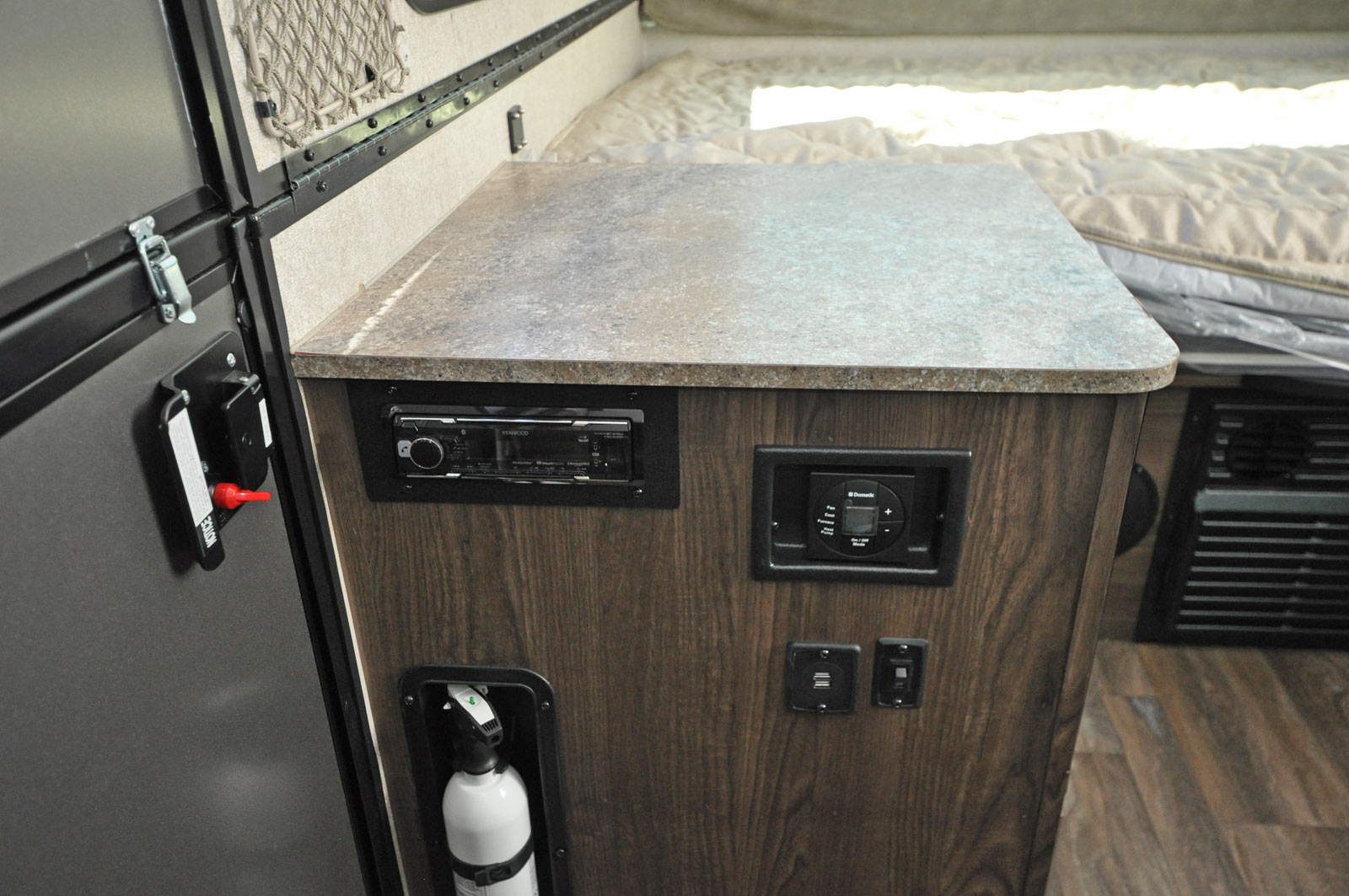

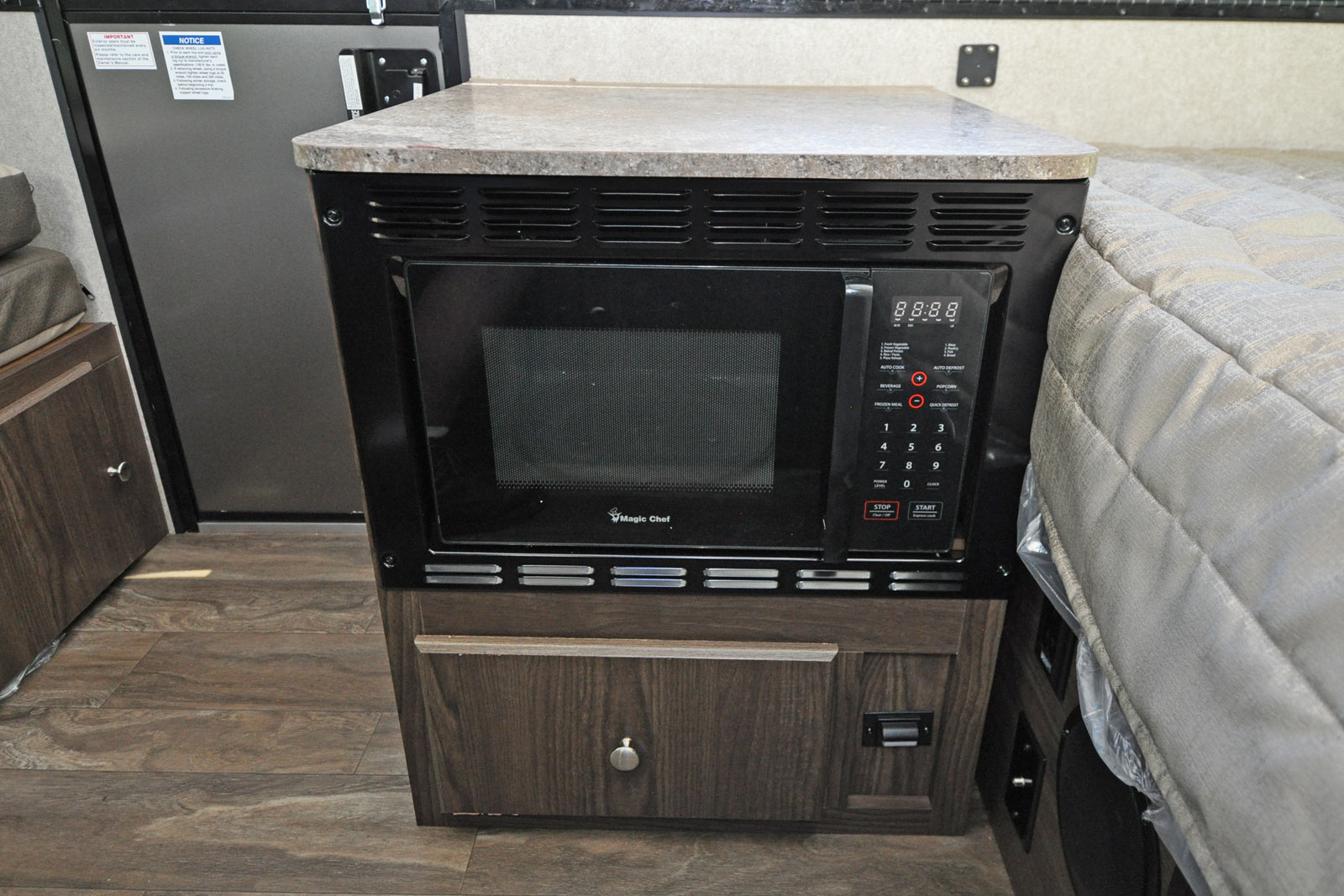

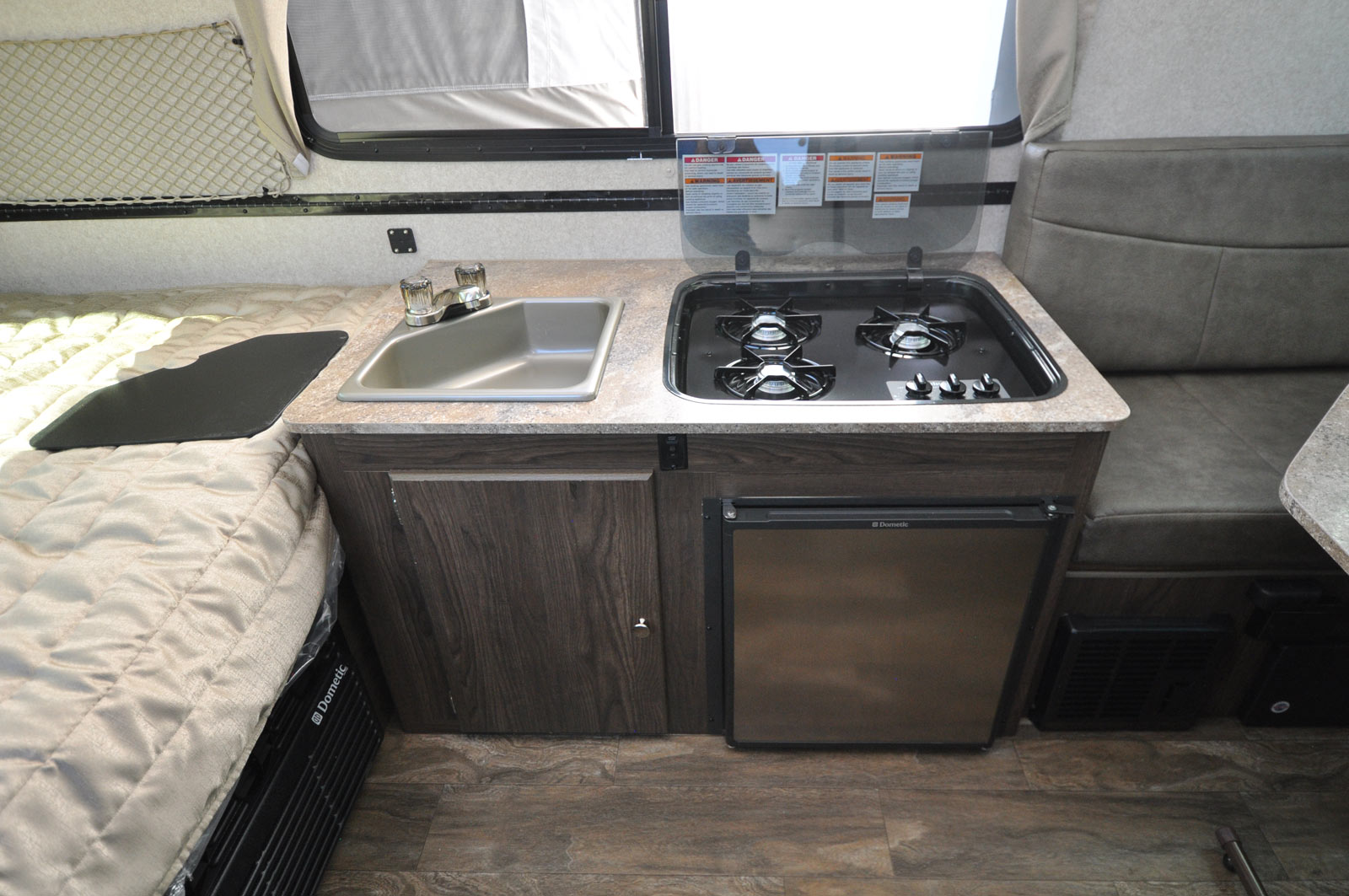

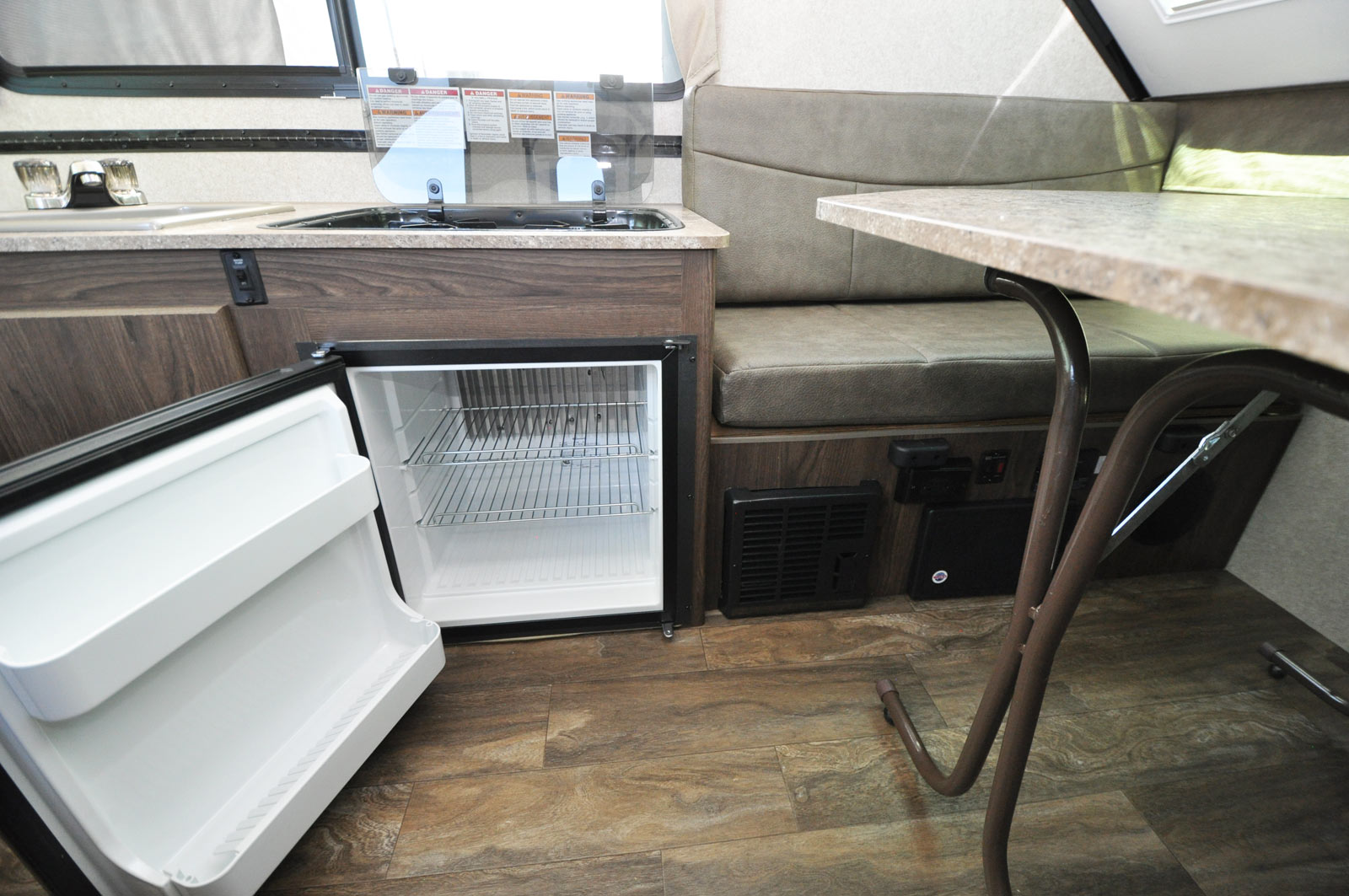

2017 Flagstaff T12RBSSE galley 2017 Flagstaff T12RBSSE fridge and furnace 2017 Flagstaff T12RBSSE microwave 2017 Flagstaff T12RBSSE stereo and thermostat

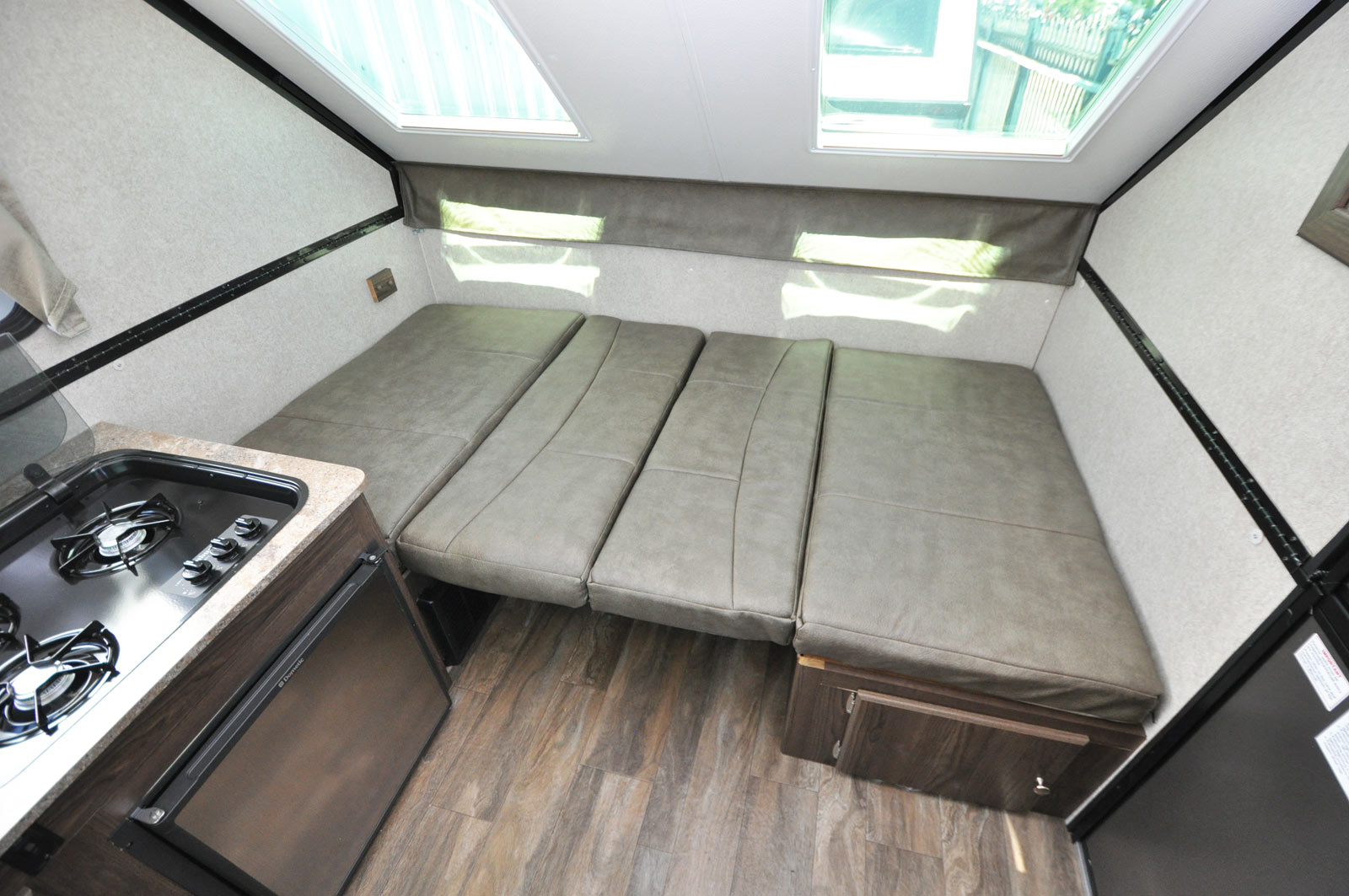

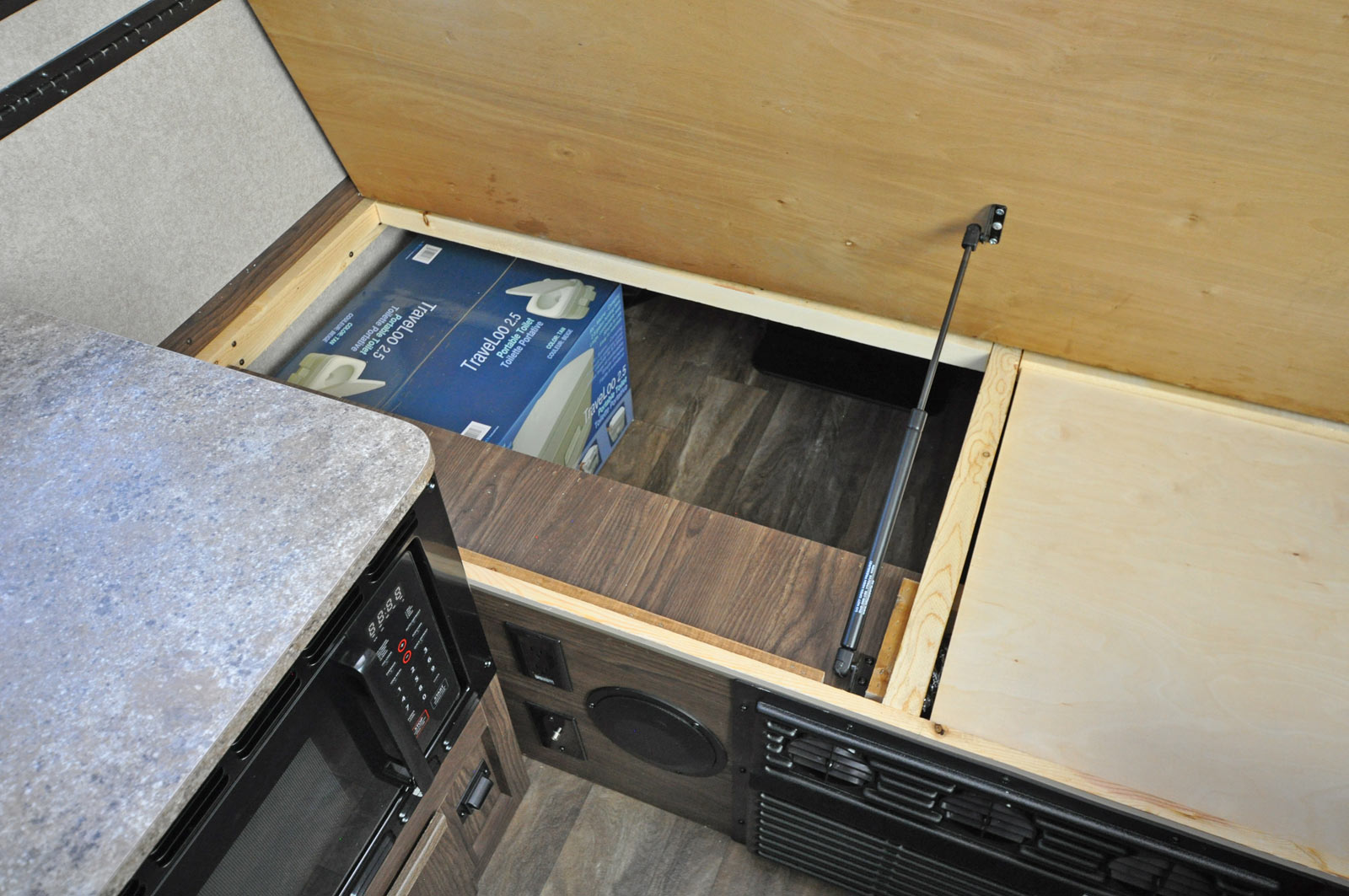

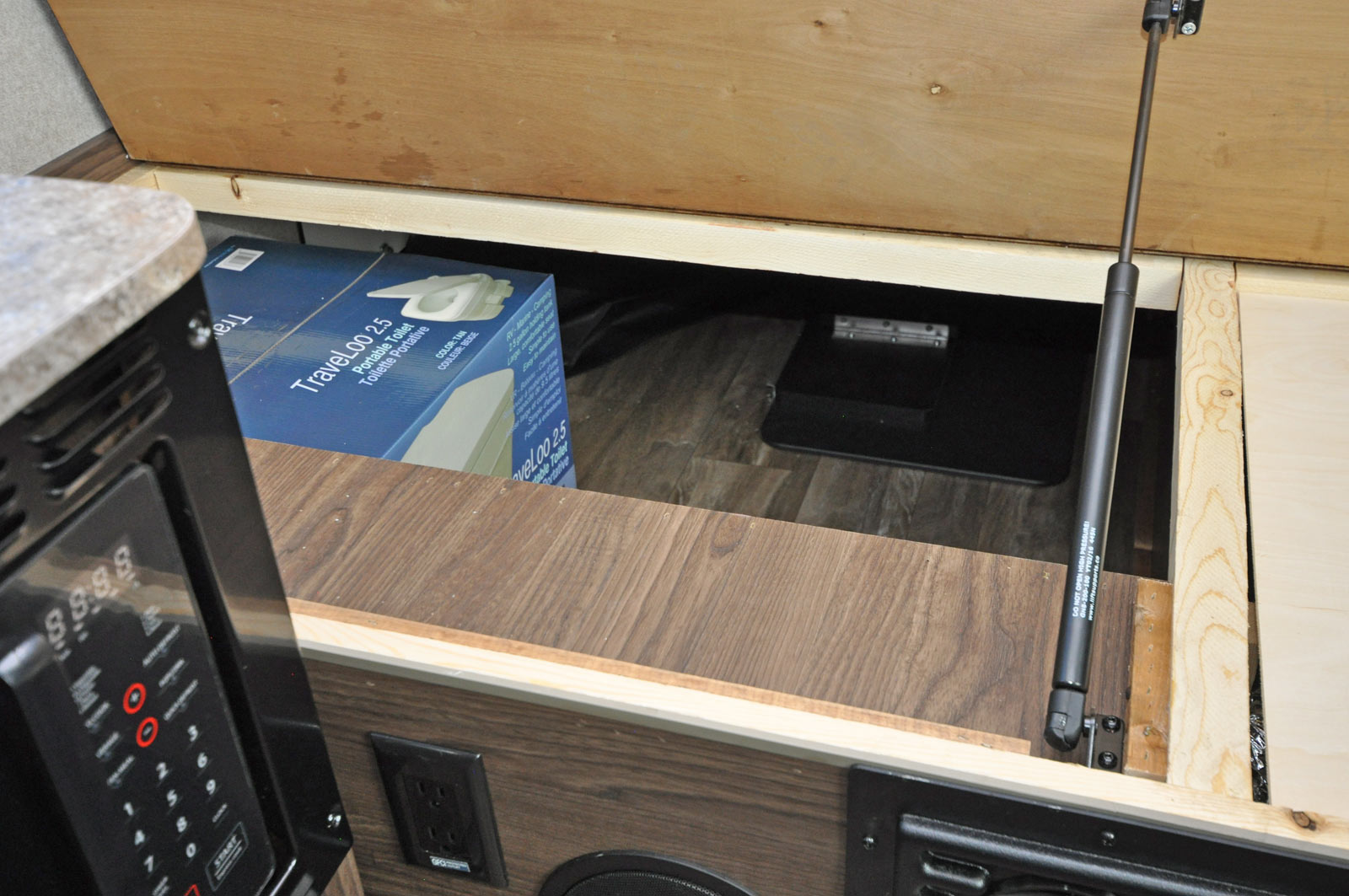

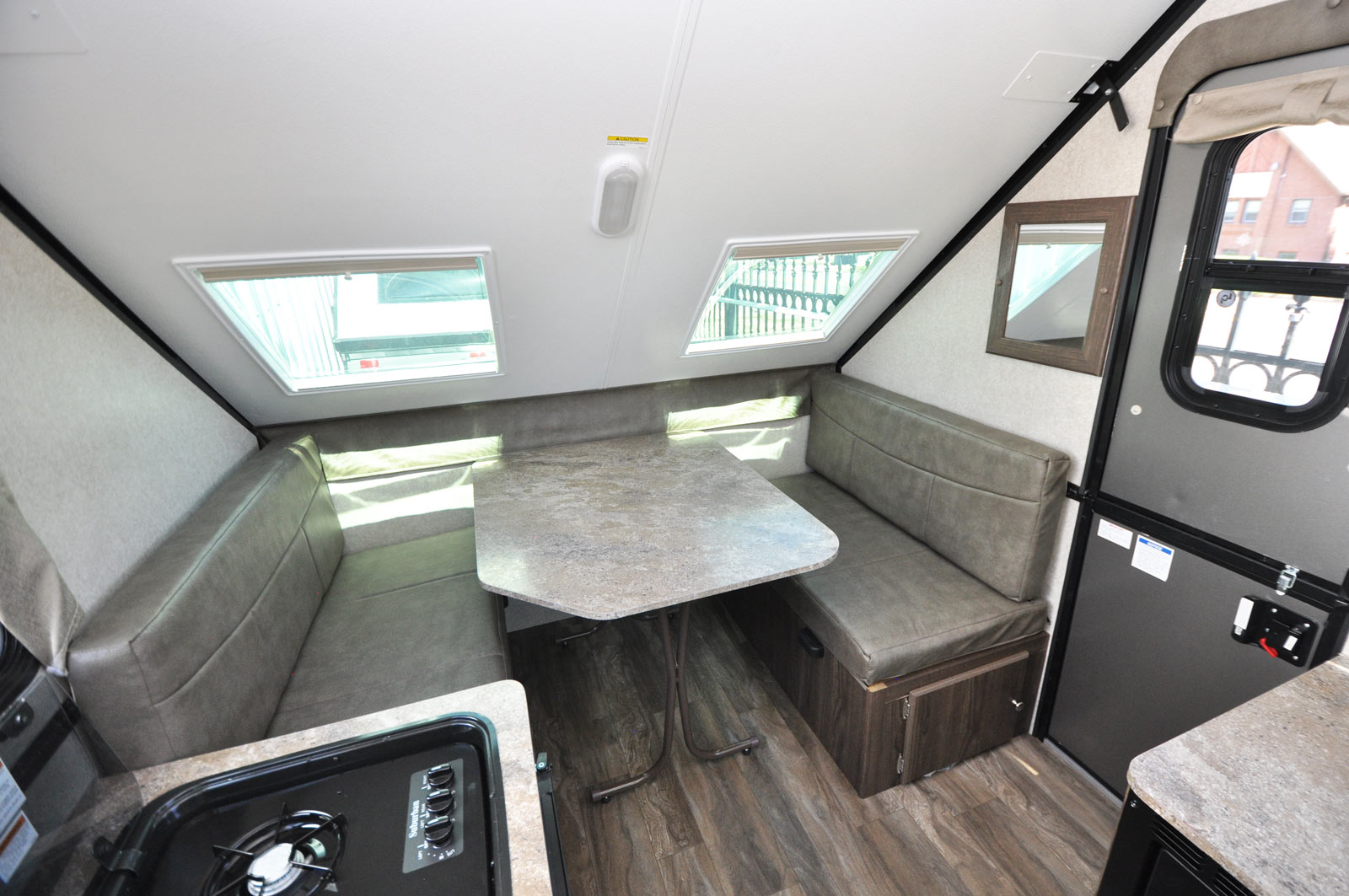

2017 Flagstaff T12RBSSE dinette 2017 Flagstaff T12RBSSE dinette as a bed 2017 Flagstaff T12RBSSE under bed storage 2017 Flagstaff T12RBSSE under bed storage close-up

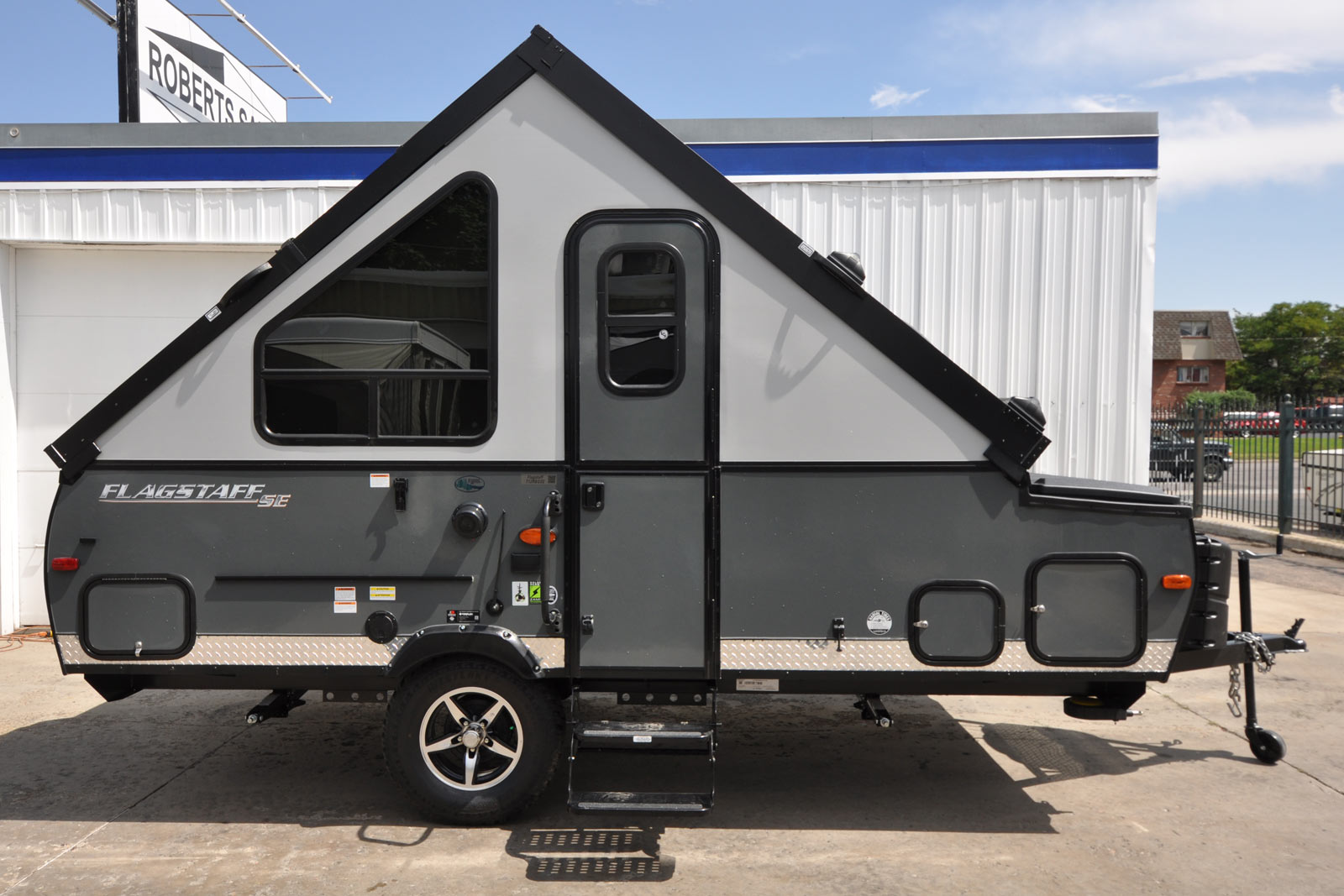

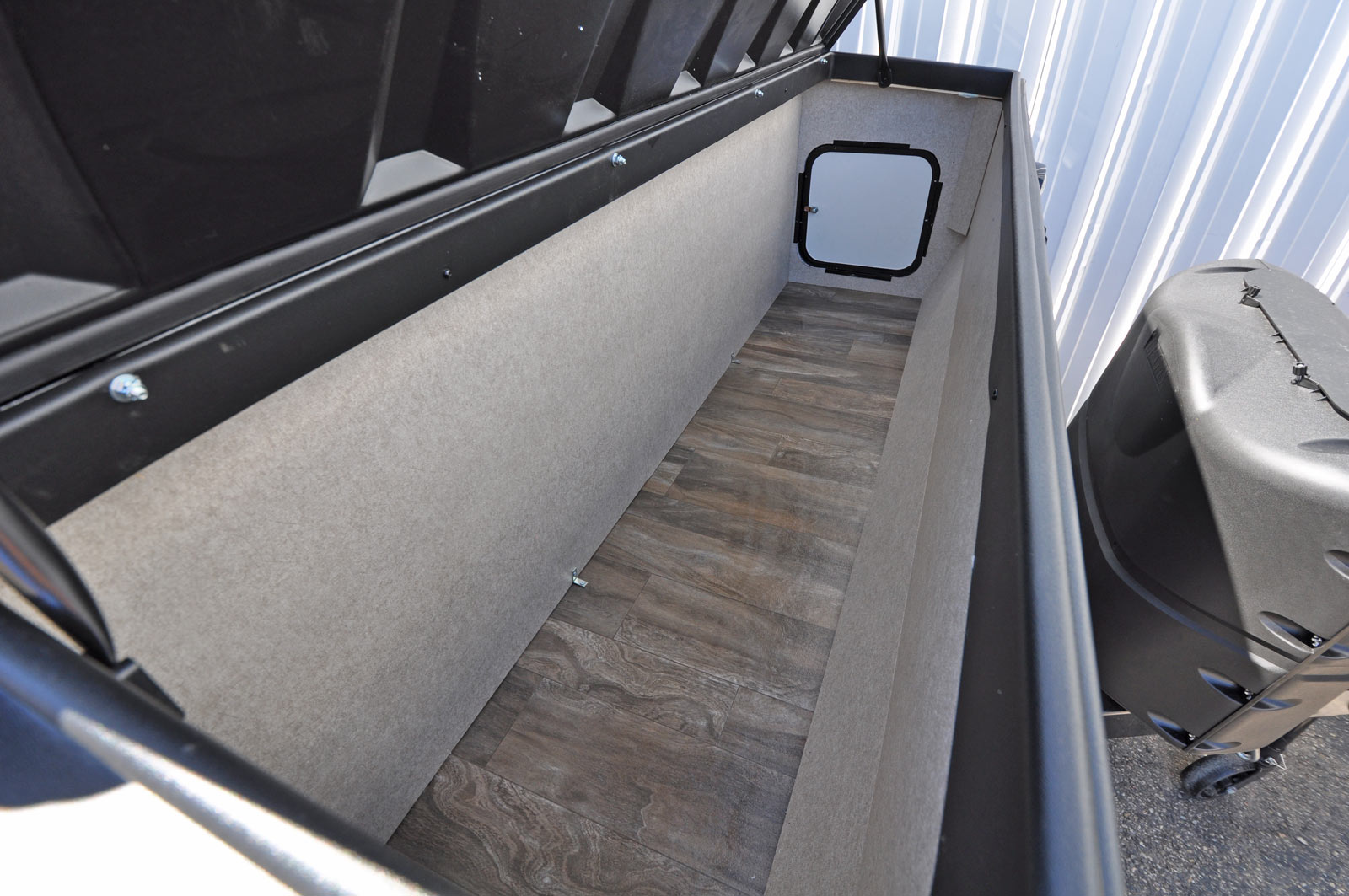

2017 Flagstaff T12RBSSE storage trunk 2017 Flagstaff T12RBSSE profile (2017 model year shown)
