Flagstaff T12RBTHSE



(2017-2019; preceded and succeeded by the T12RBTH)

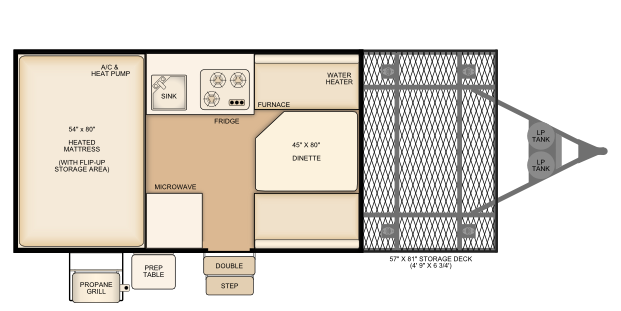

Flagstaff T12RBTHSE floorplan

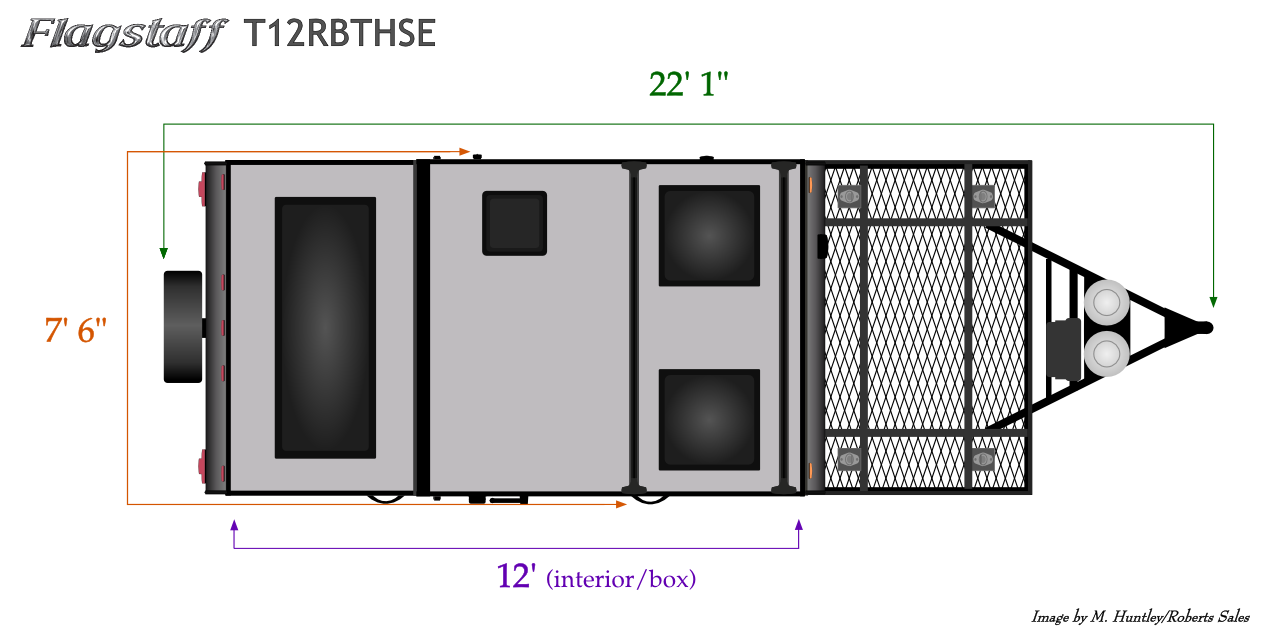

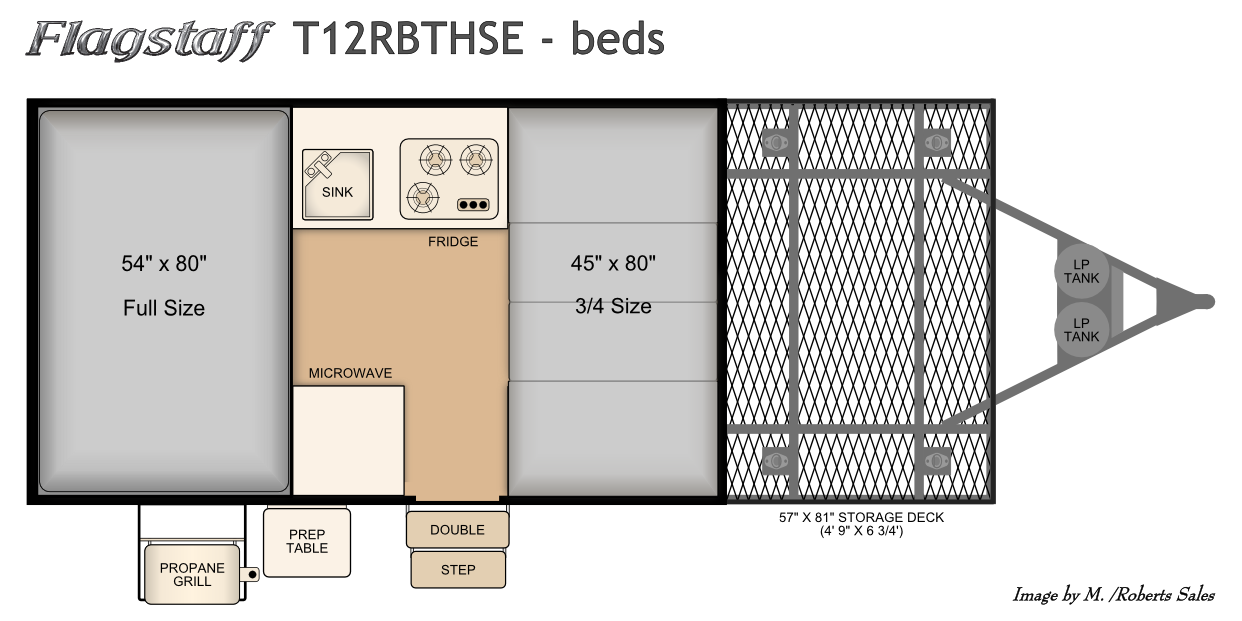

Bed Layout for this model length and width dimensions for Flagstaff T12RBTHSE

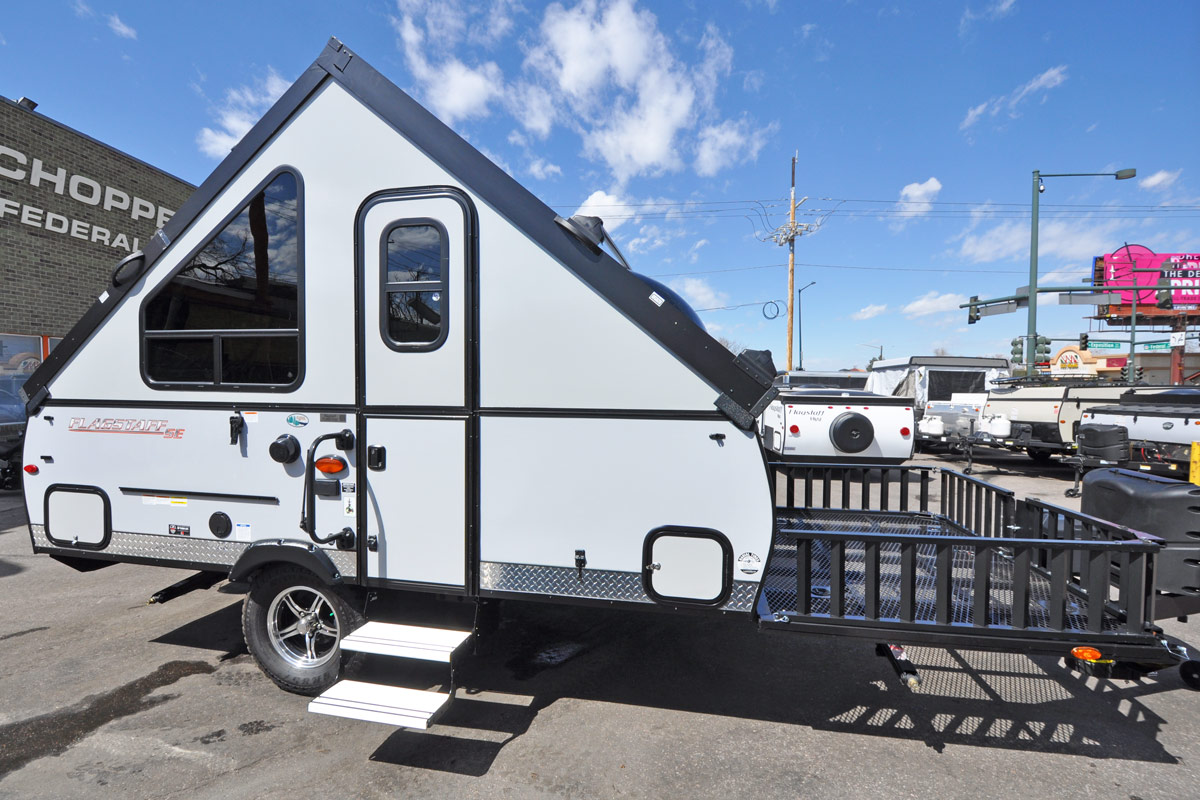

2019 Flagstaff T12RBTHSE exterior

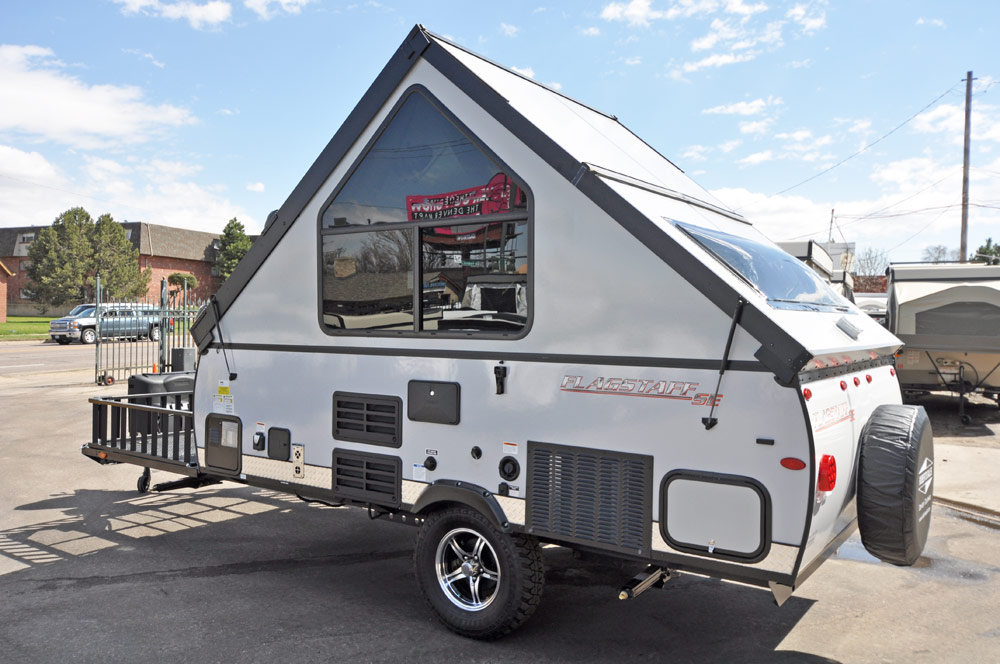

2019 Flagstaff T12RBTHSE back-side (2019 model year shown)

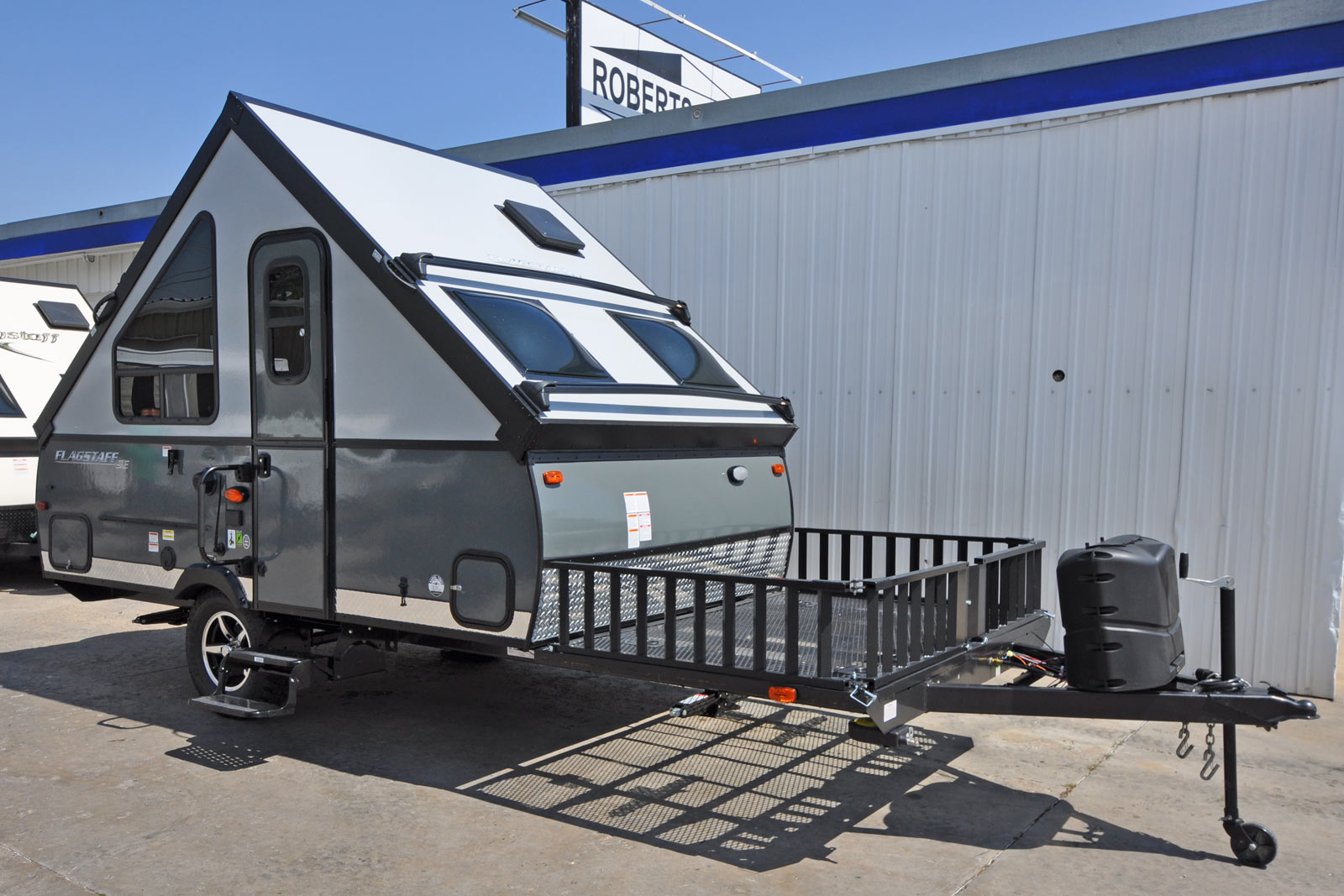

2017 Flagstaff T12RBTHSE exterior

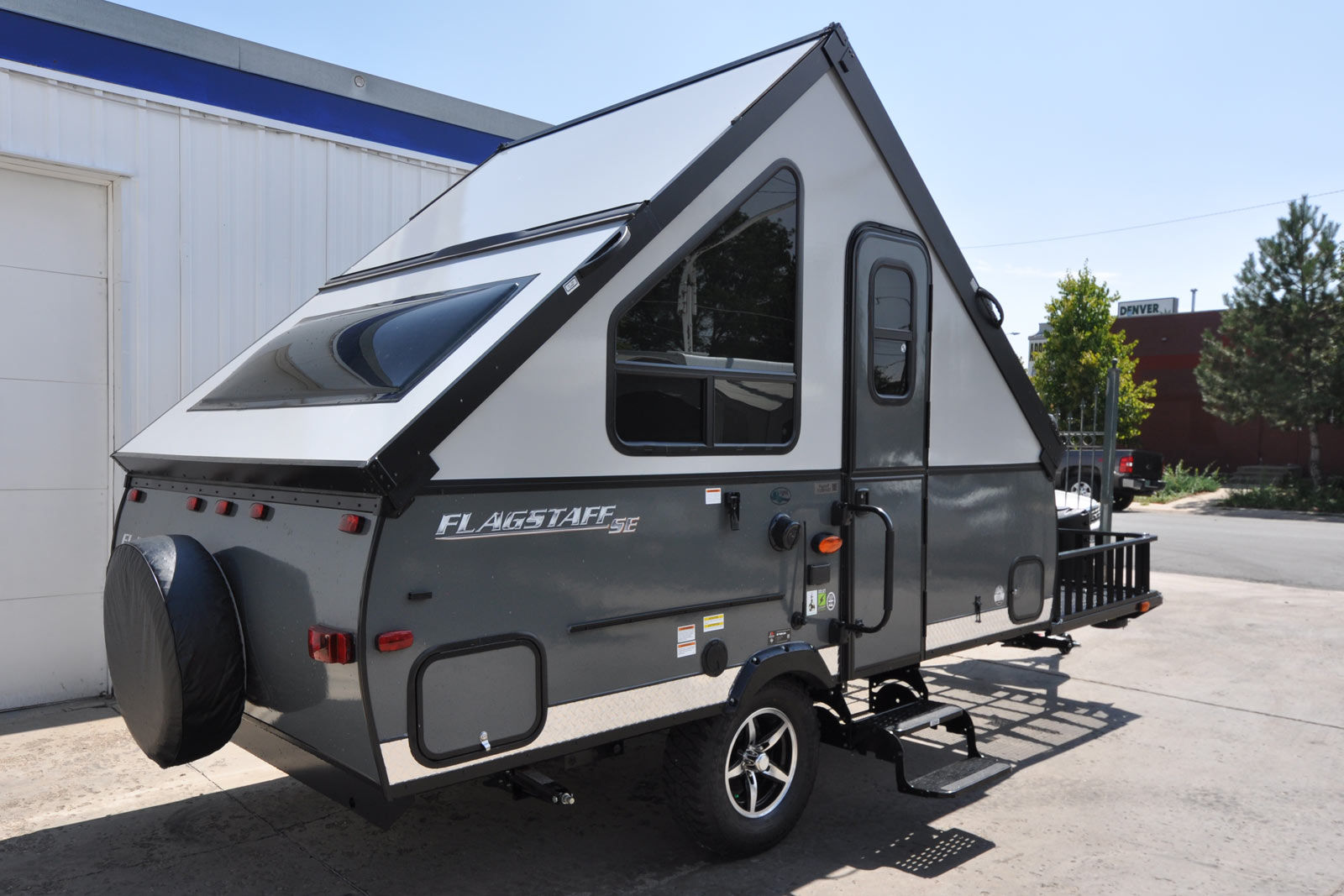

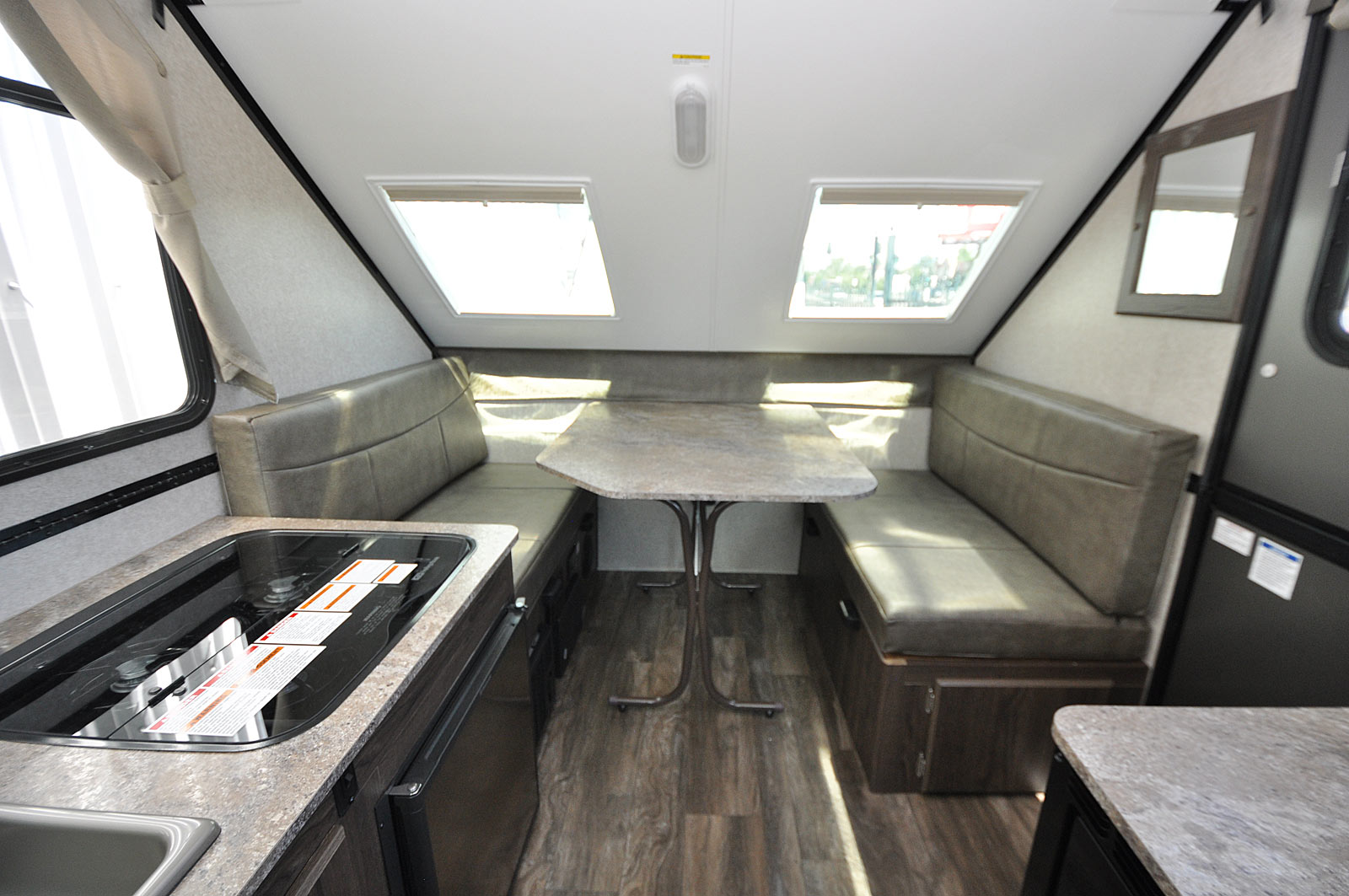

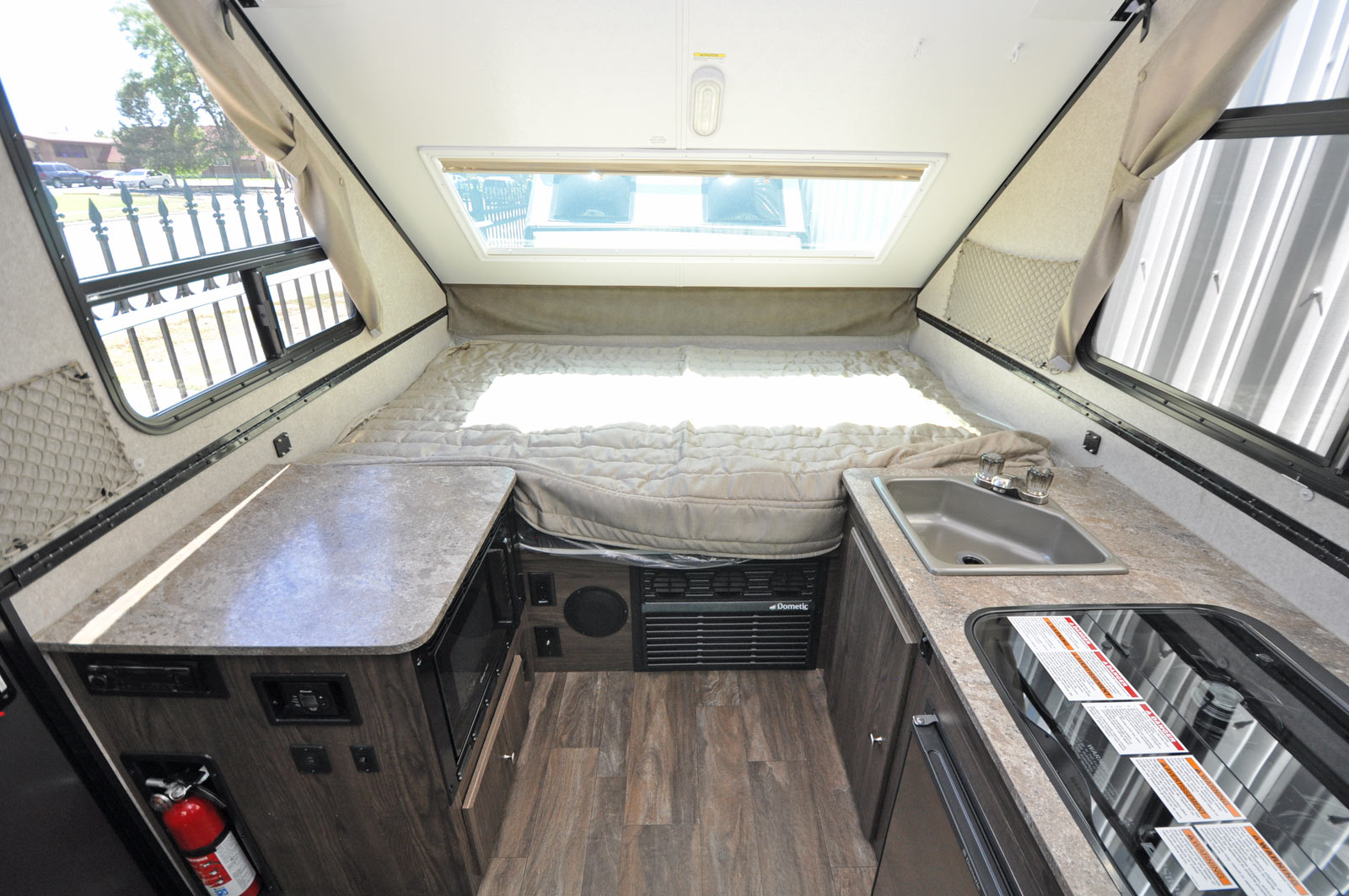

2017 Flagstaff T12RBTHSE back-side 2017 Flagstaff T12RBTHSE 3/4 rear view 2017 Flagstaff T12RBTHSE front view 2017 Flagstaff T12RBTHSE rear view

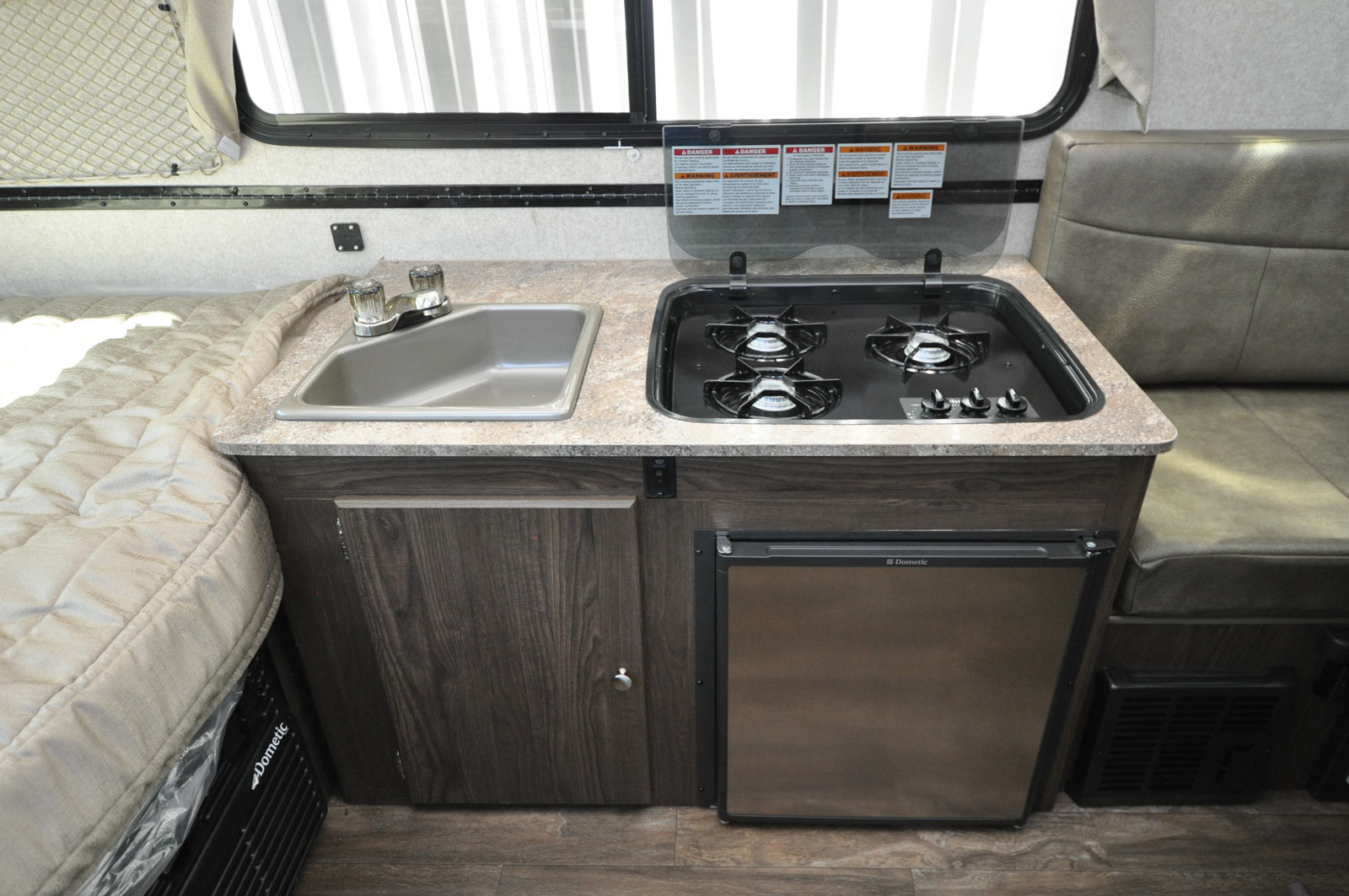

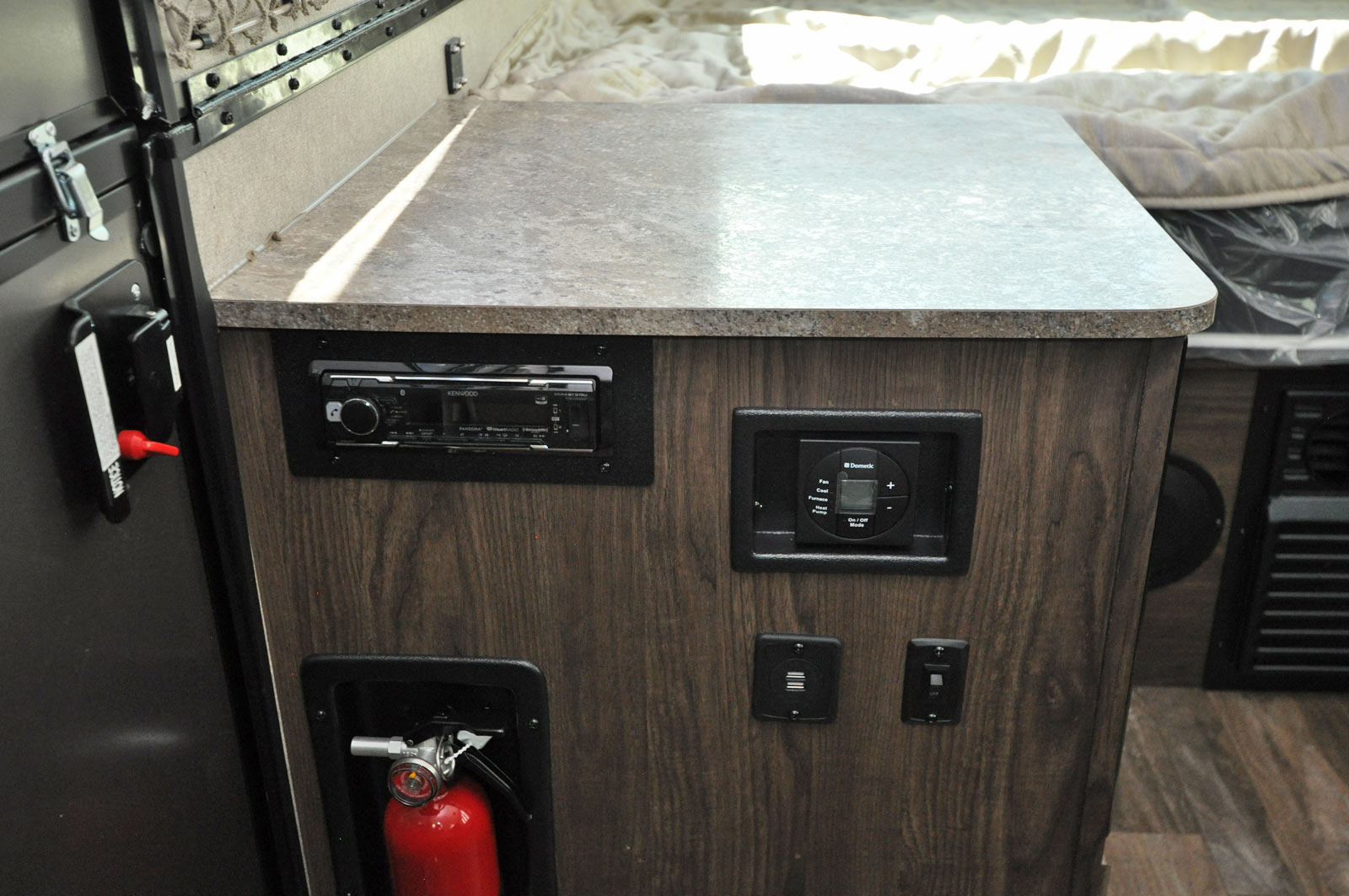

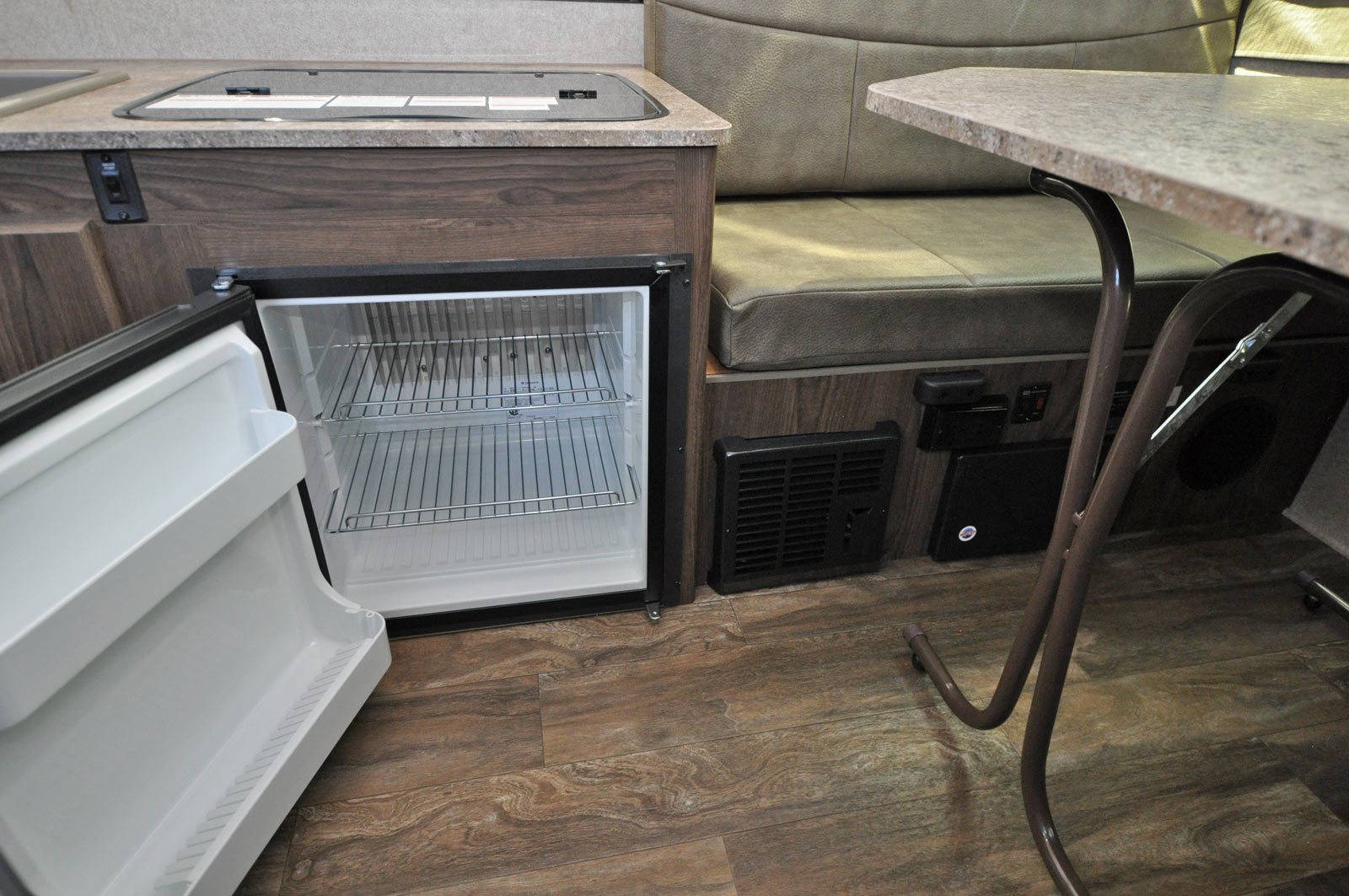

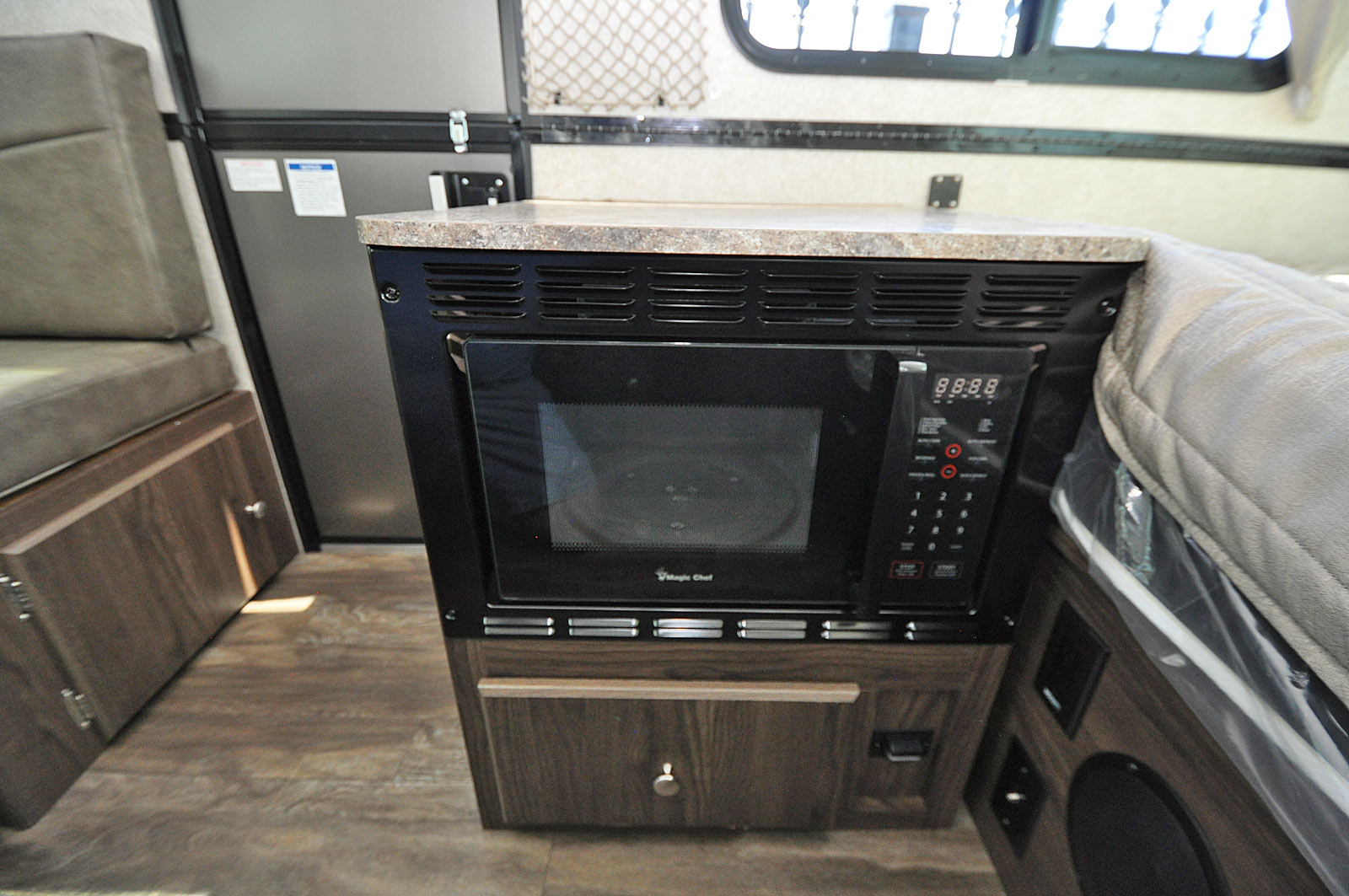

2017 Flagstaff T12RBTHSE galley 2017 Flagstaff T12RBTHSE fridge and furnace 2017 Flagstaff T12RBTHSE microwave 2017 Flagstaff T12RBTHSE stereo and thermostat

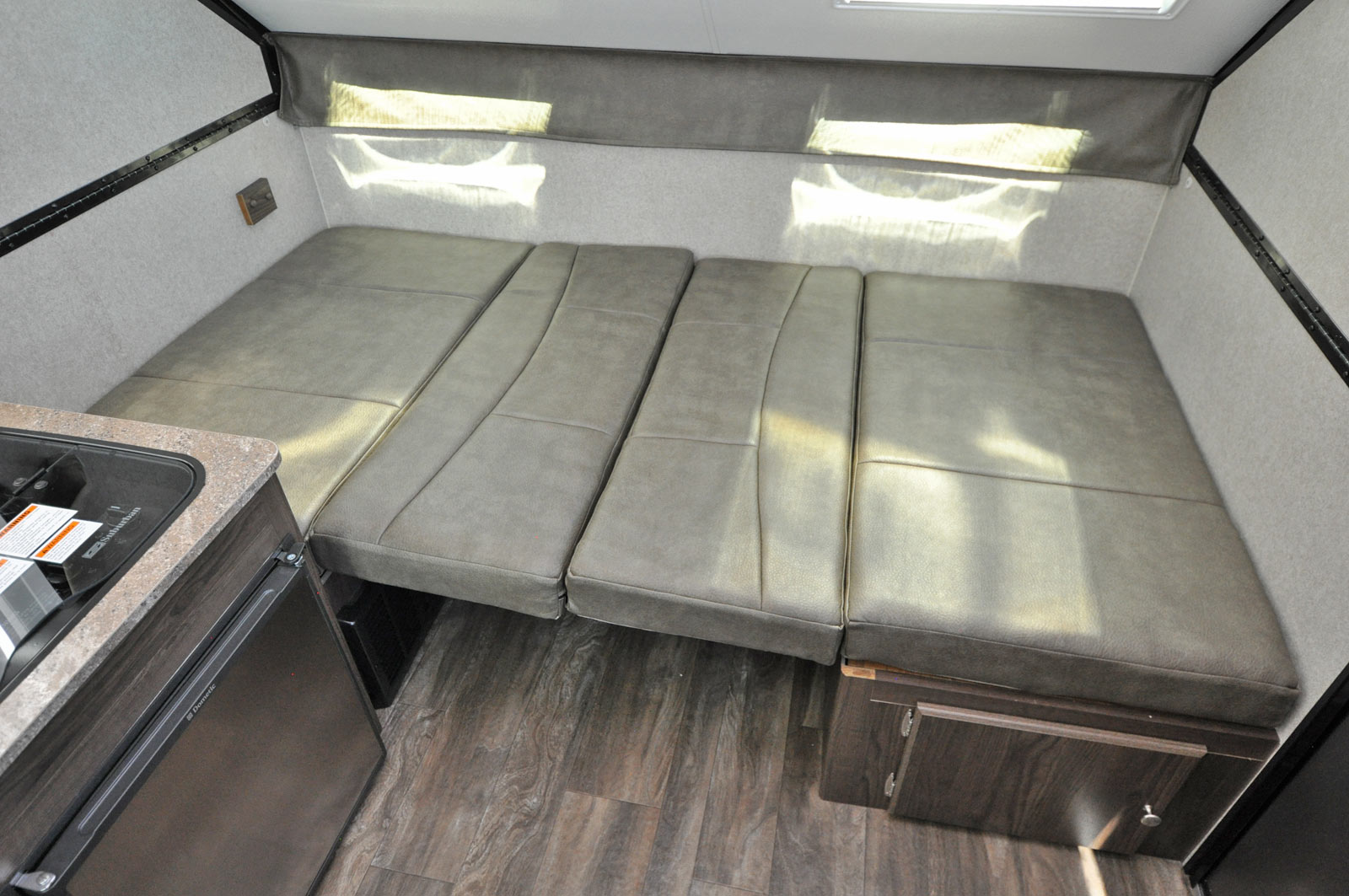

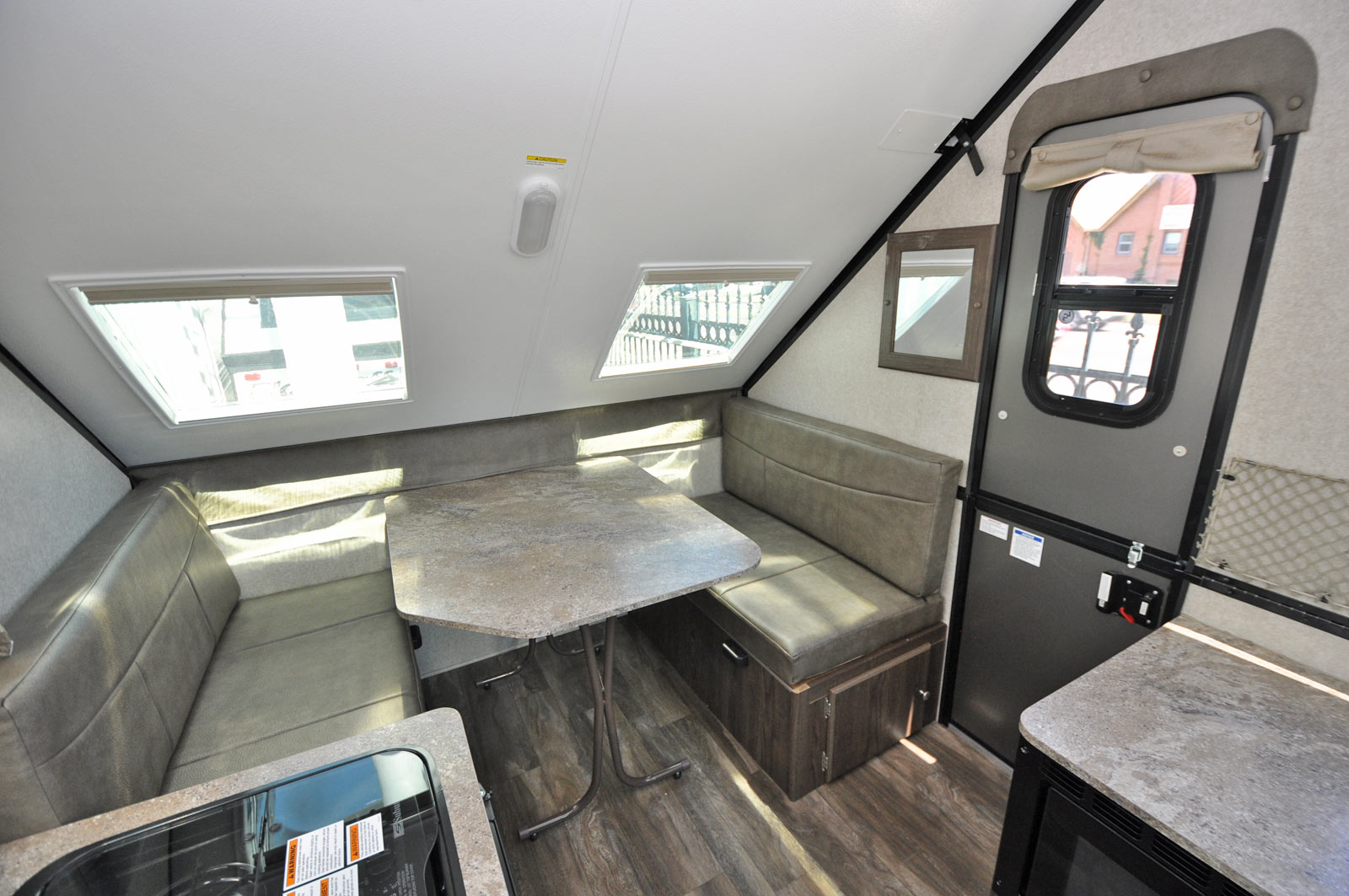

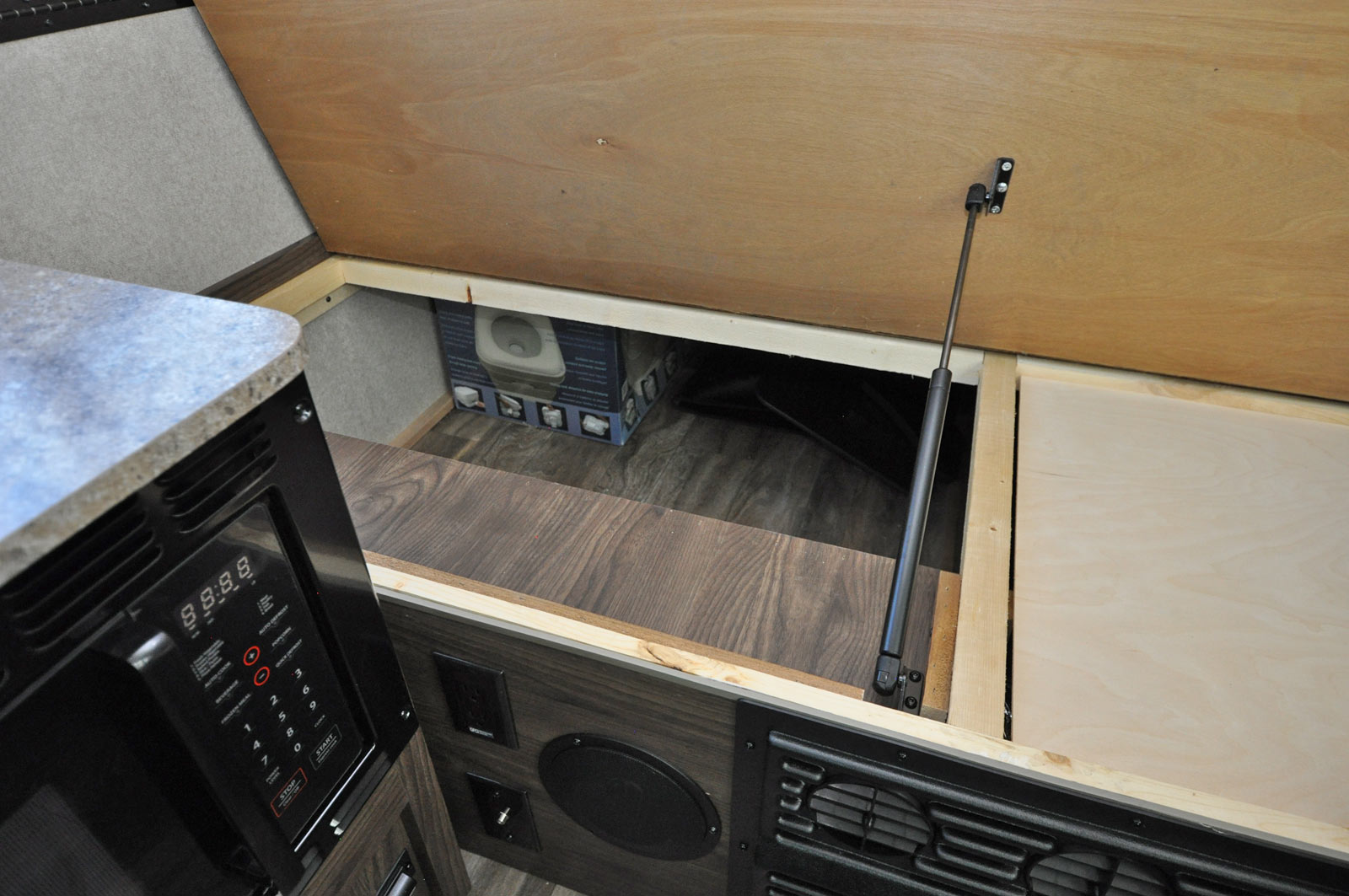

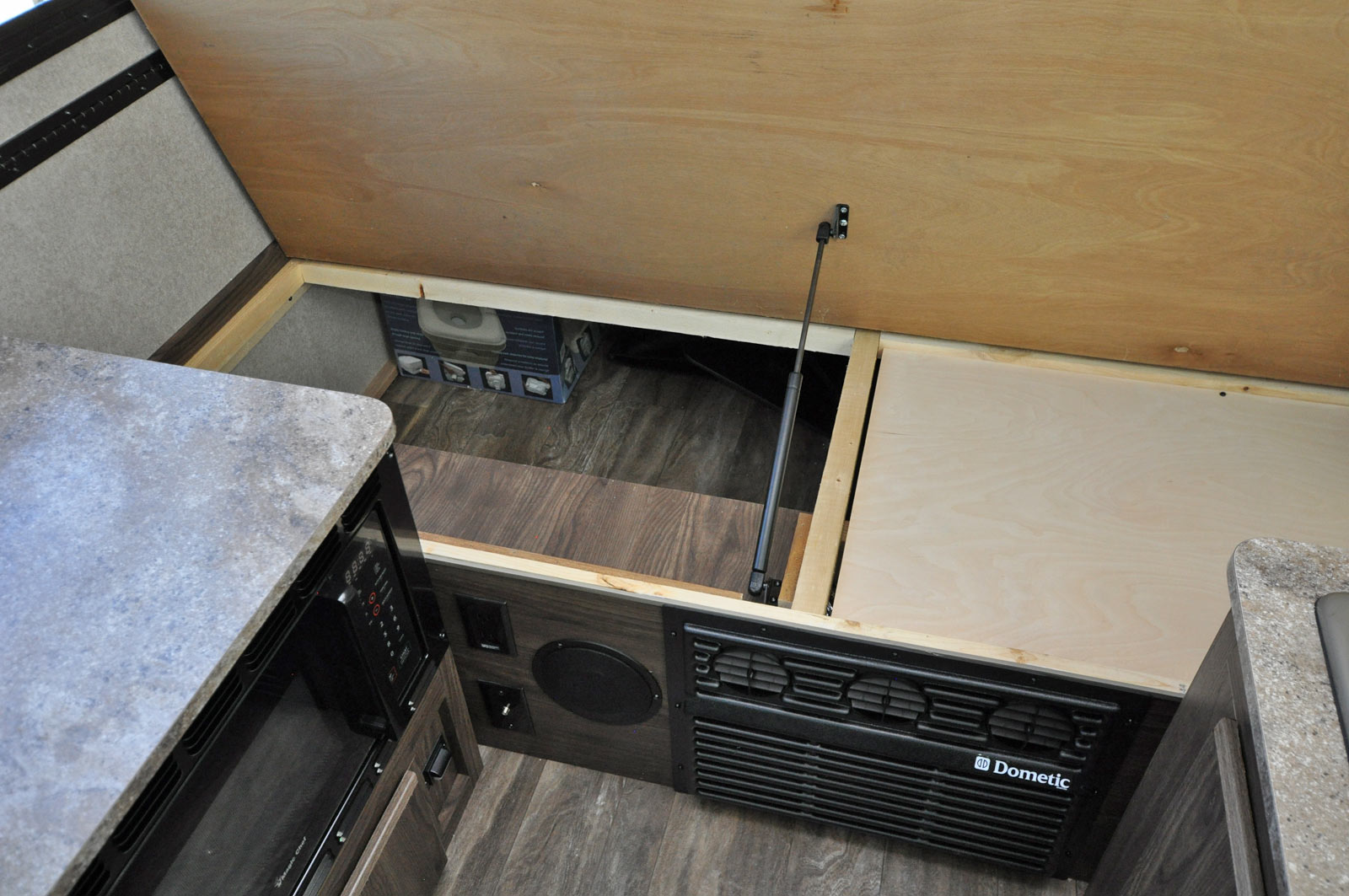

2017 Flagstaff T12RBTHSE dinette 2017 Flagstaff T12RBTHSE dinette as bed 2017 Flagstaff T12RBTHSE under bed storage under bed storage close-up

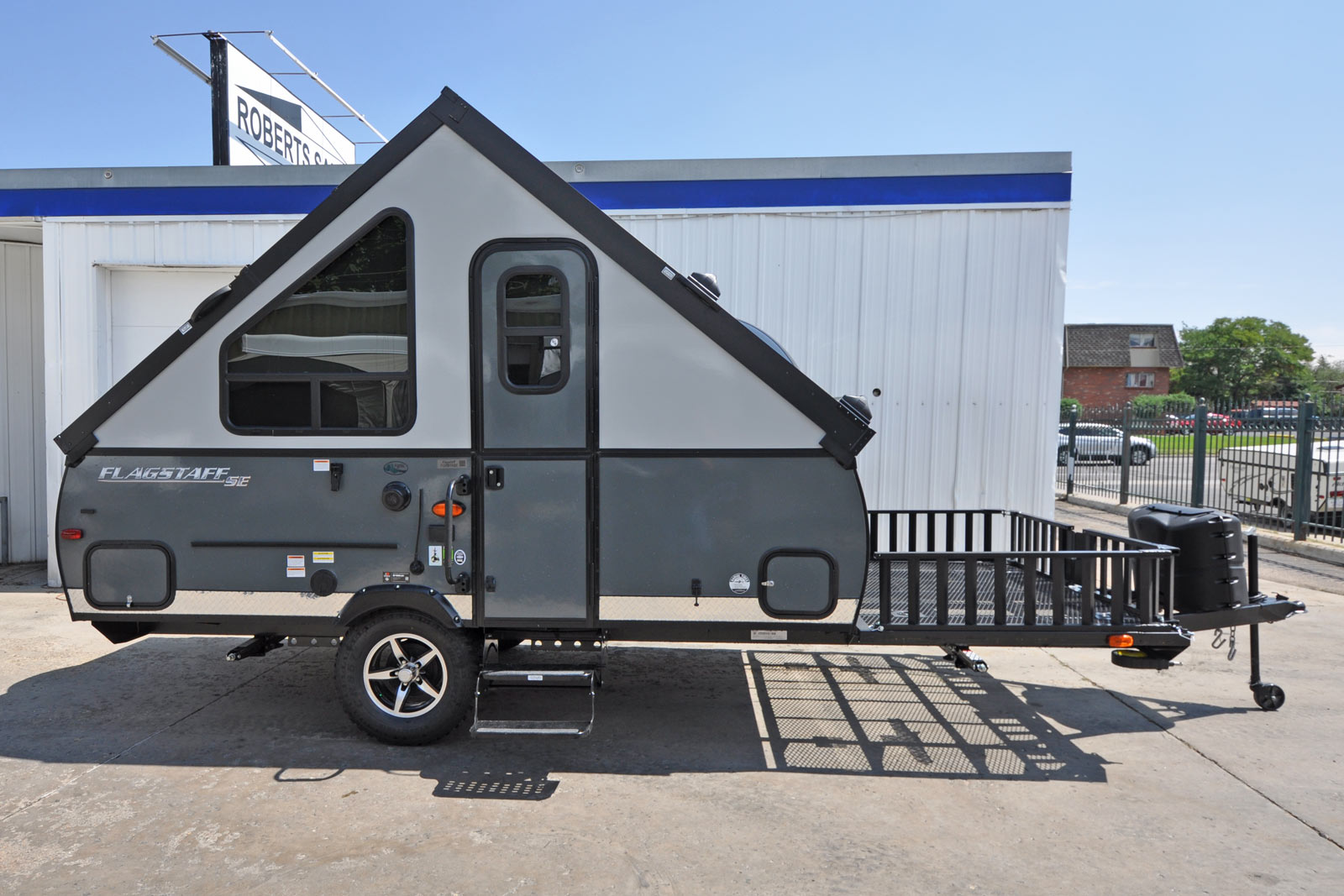

2017 Flagstaff T12RBTHSE profile (2017 model year shown)

Highlights

  • The only T-Series model with a 57" metal deck for ATVs, bikes, or extra cargo.
  • The "SE" is the Sports Enthusiast 15" wheels and tires with raised frame, gray exterior, and "Driftwood" interior.
  • 5" Innerspring mattress rear bunk (with a 110V heated top)

Specifications

Features

  • 110V heated mattress
  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Portable toilet
  • 4 1/2' front storage deck with loading ramps
  • 15" aluminum wheels (spare tire has a steel wheel)

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two 20# propane tanks with automatic regulator
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • T12BHSE - Has the exact same interior layout but with a "Bike Hauler" storage deck on the front and a front roof dormer.
  • T12RB - Has the exact same interior layout but with no storage on the exterior.
  • T12RBSSE - Has the same interior and the same 15" wheels and raised frame, but with a 2' storage trunk instead of a 4 1/2' metal storage deck.
  • 23SCSE - Same 4 1/2' metal deck on the front but in a tent camper (instead of an a-frame).

Prior to the 2017 model year this layout was known as the T12RBTH.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
