Flagstaff T19QBHW

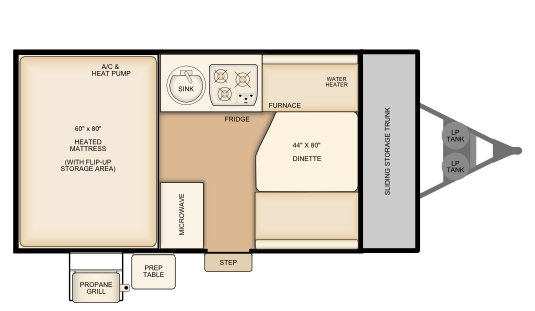

Flagstaff T19QBHW Floorplan

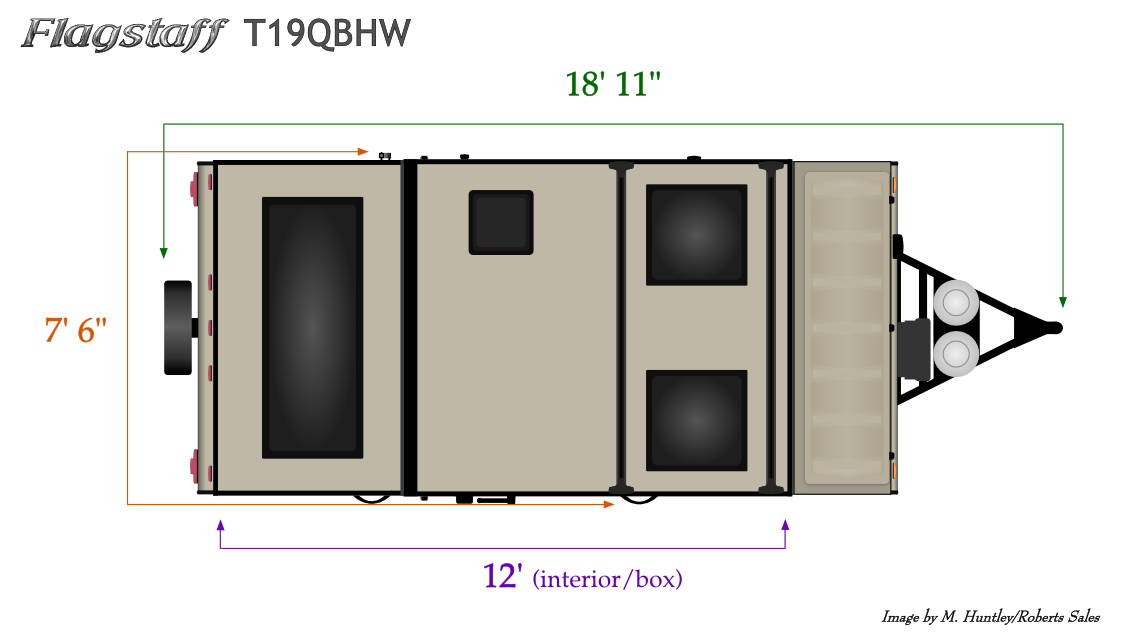

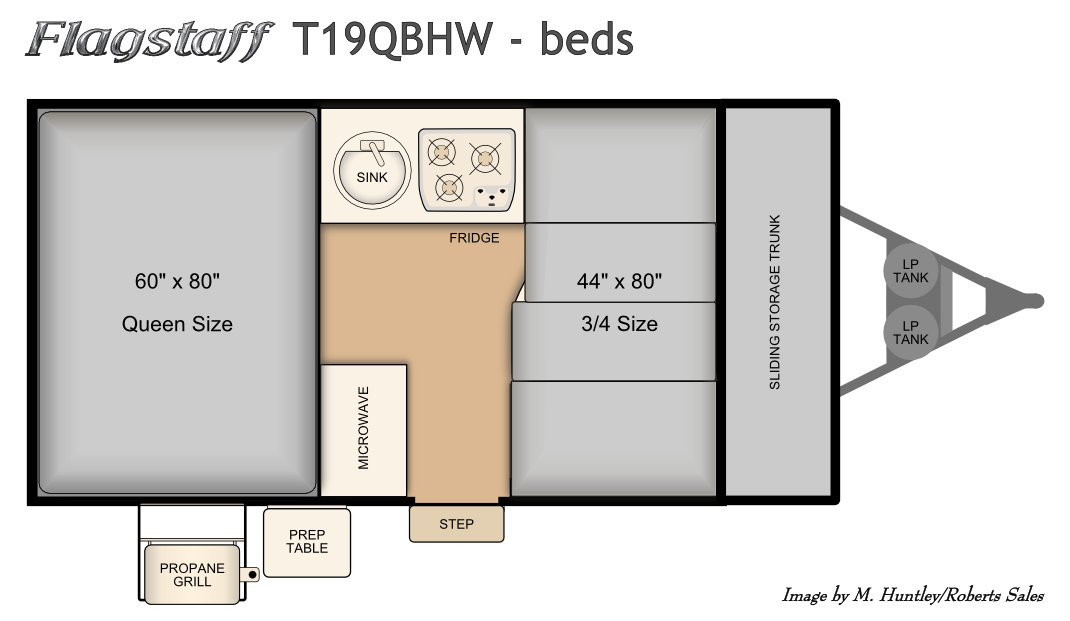

T19QBHW bed layout  Flagstaff T19QBHW length and width dimensions

Early Model 2019 Flagstaff T19QBHW exterior

(Early Model 2019 model shown)

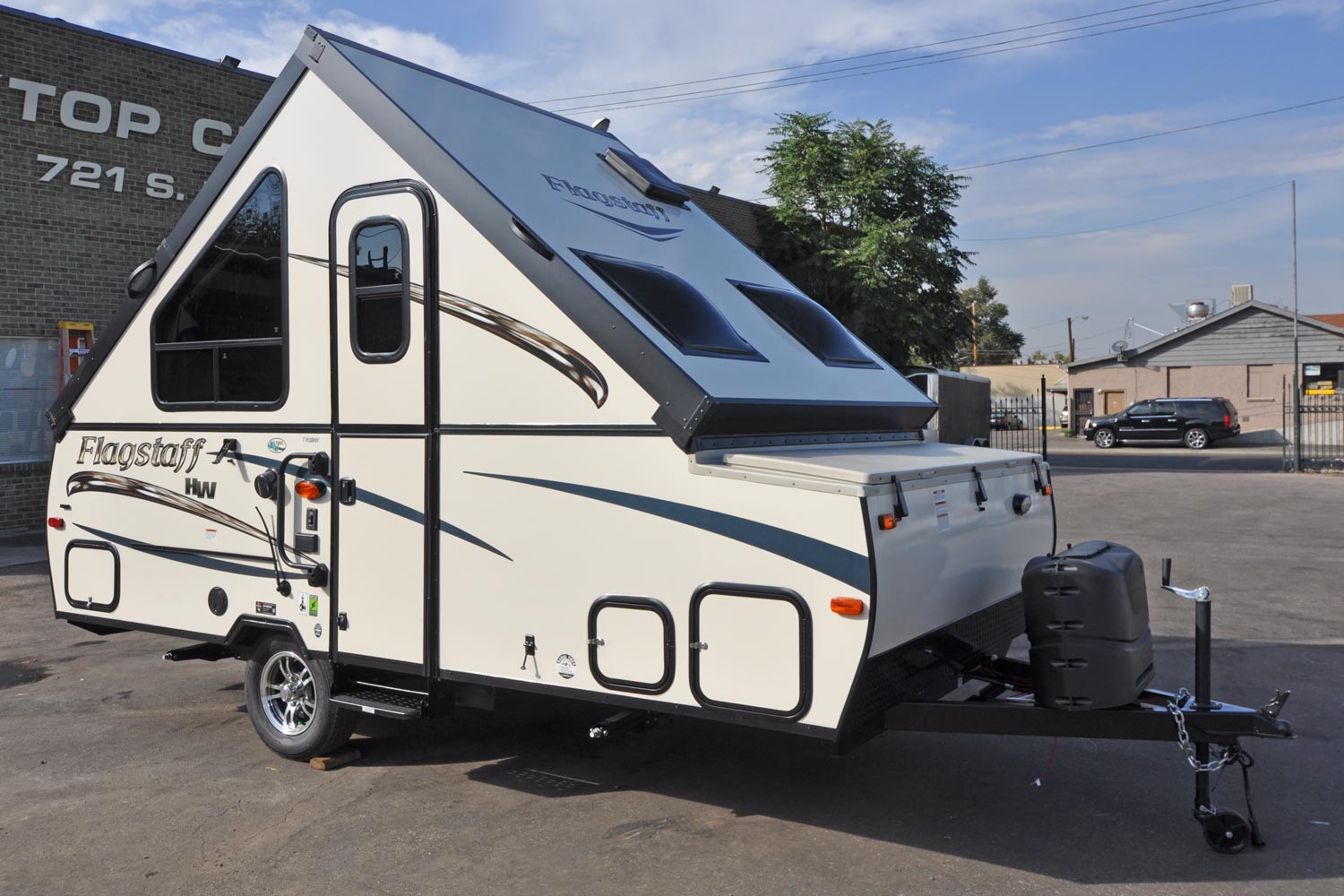

2016 Flagstaff T19QBHW exterior

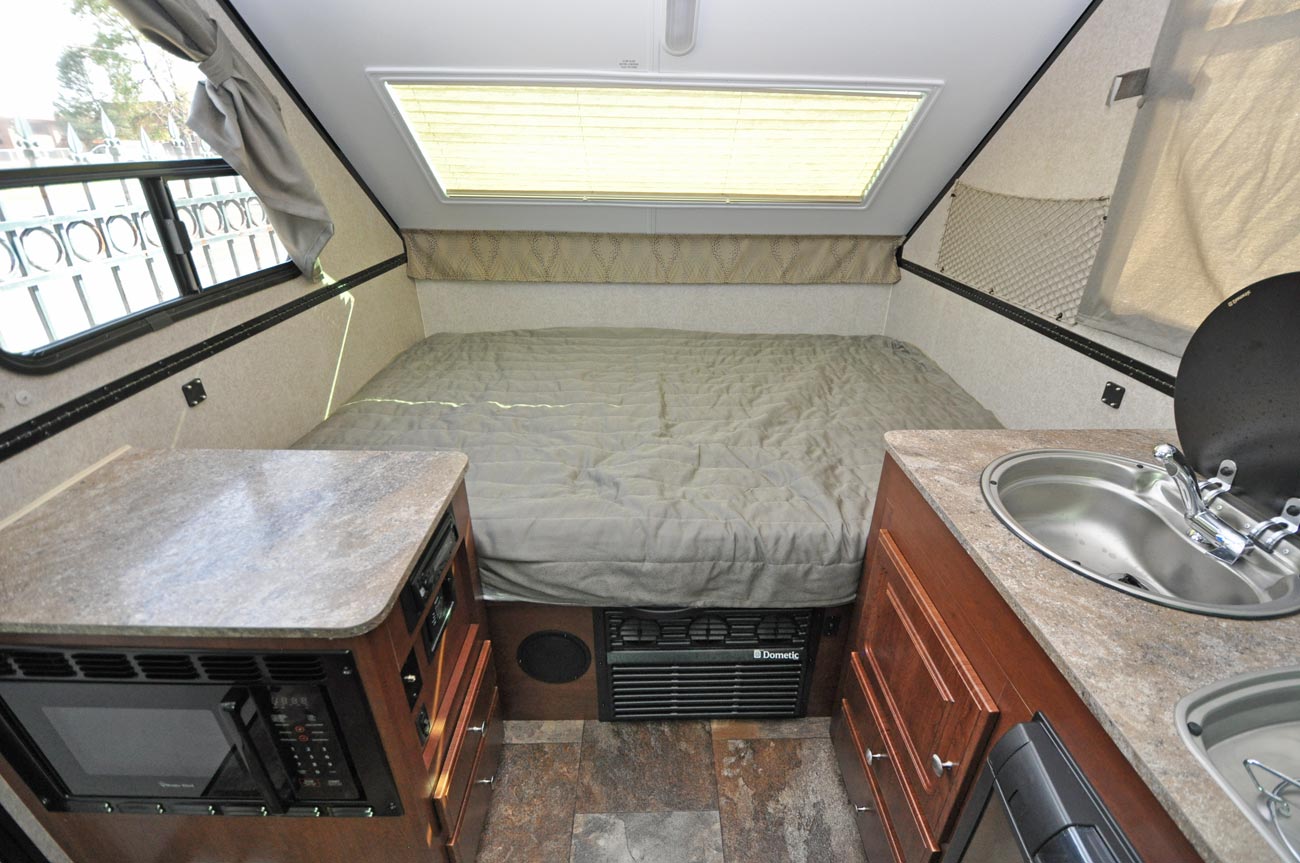

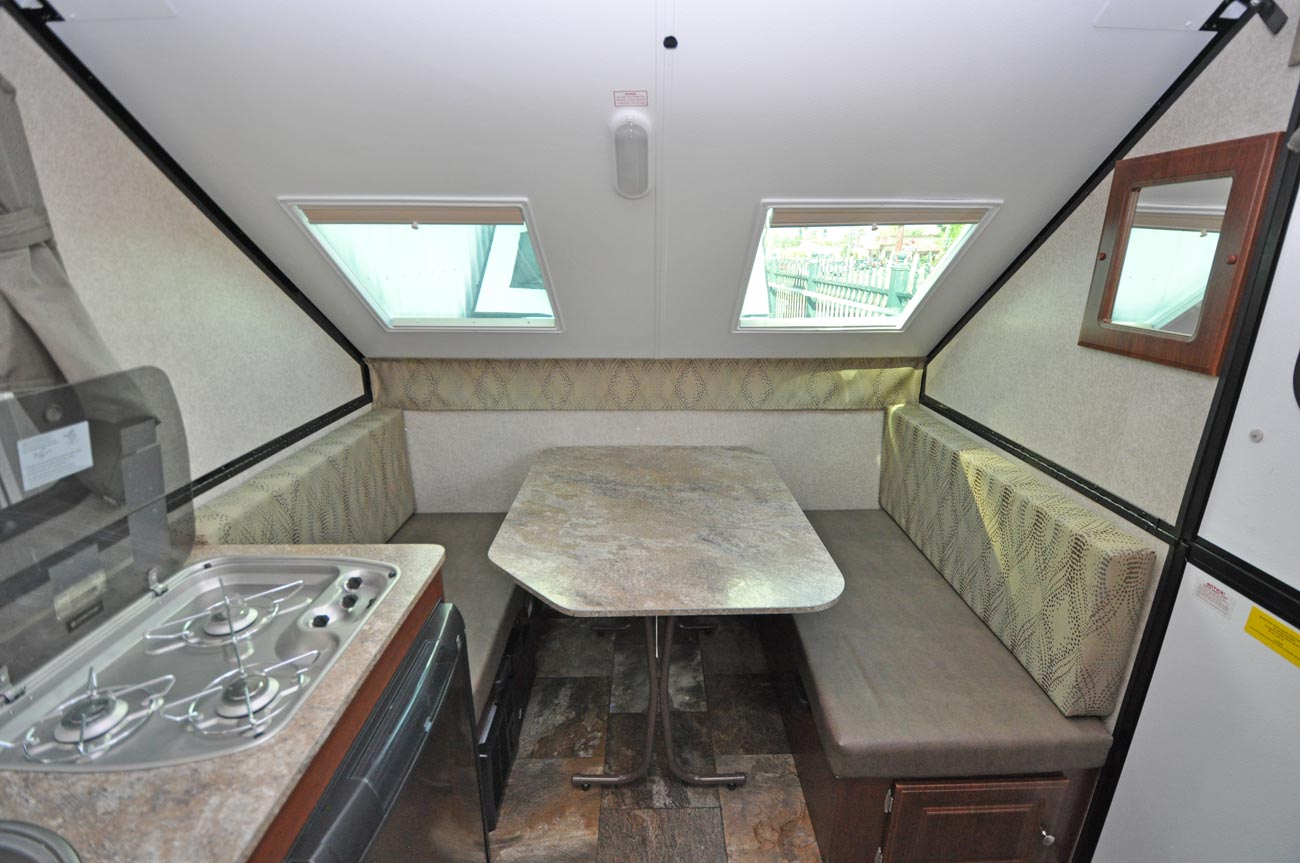

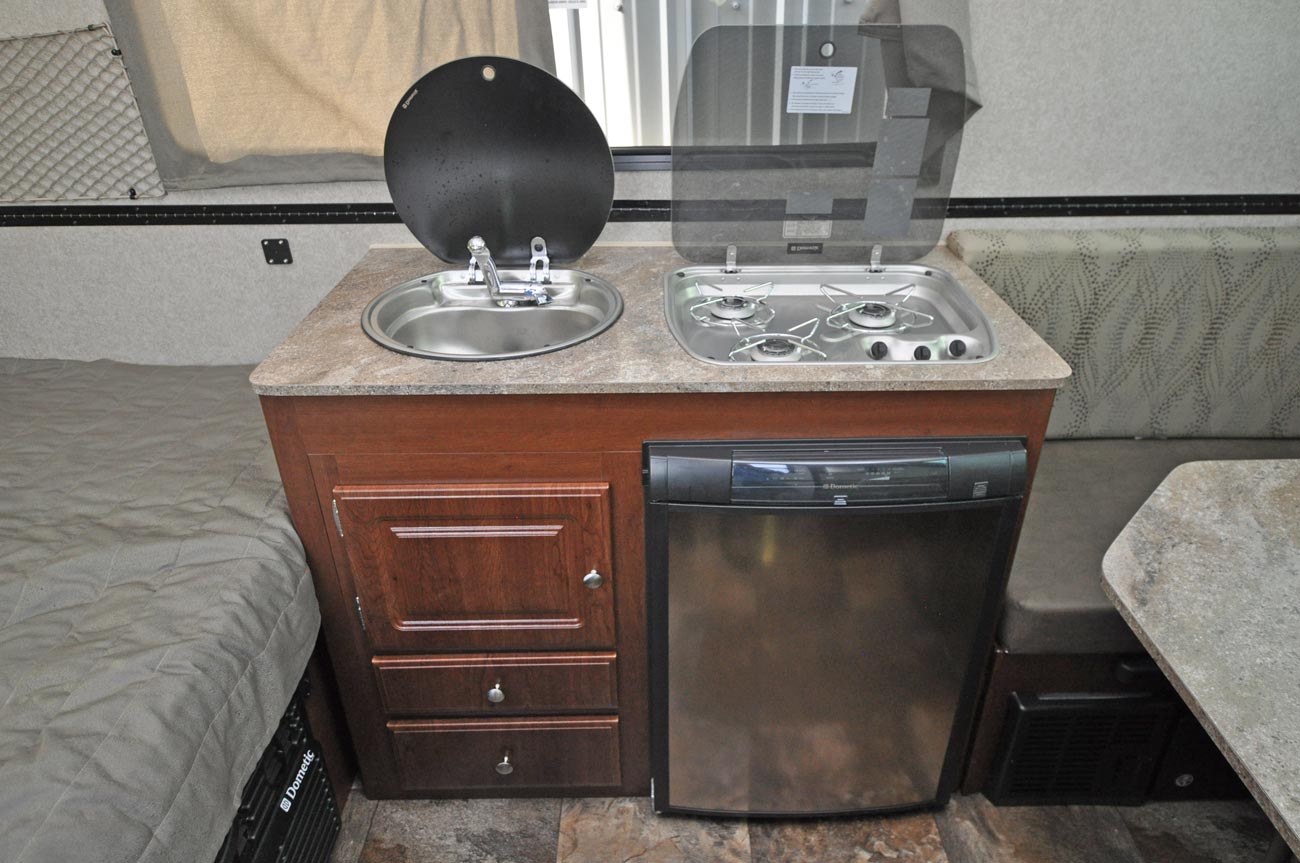

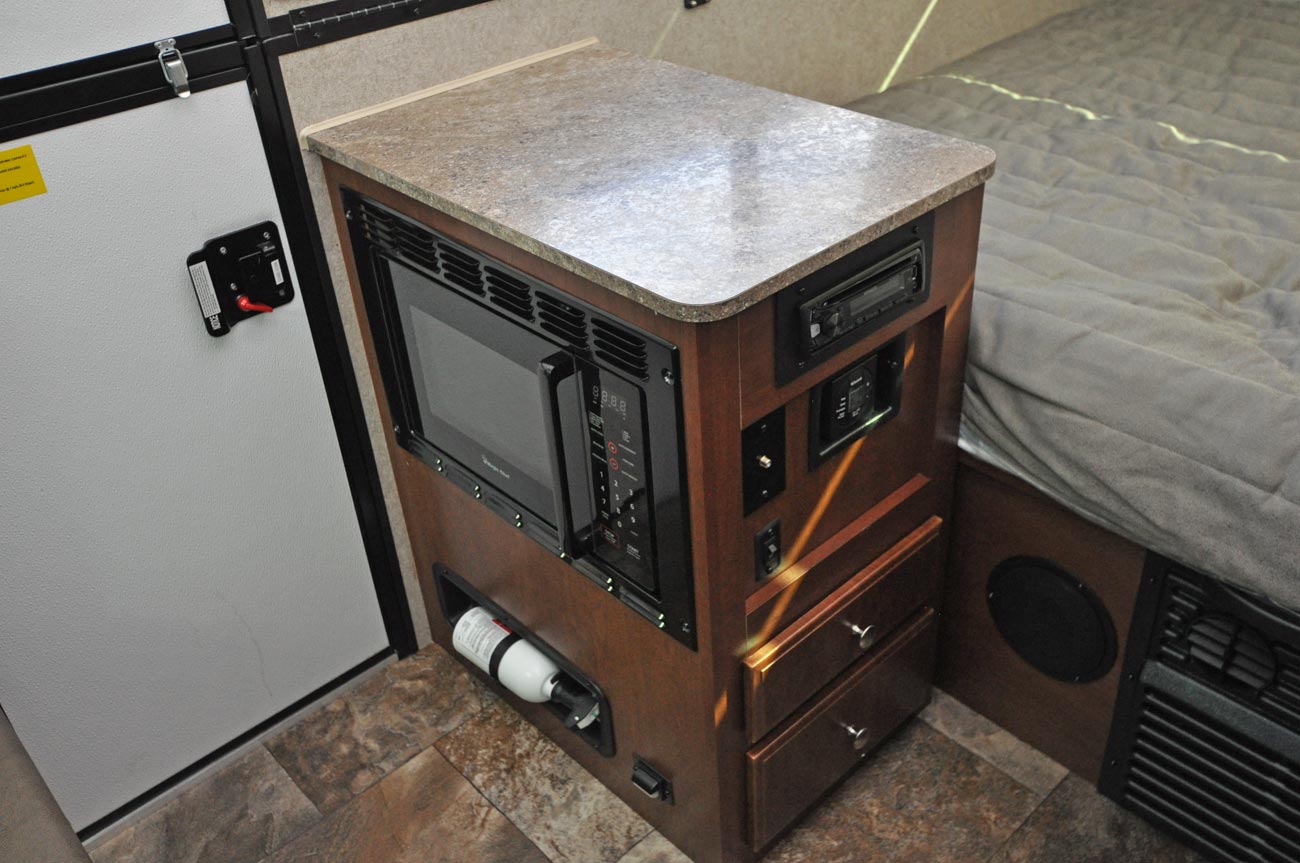

2016 Flagstaff T19QBHW front view 2016 Flagstaff T19QBHW rear view 2016 Flagstaff T19QBHW galley 2016 Flagstaff T19QBHW microwave

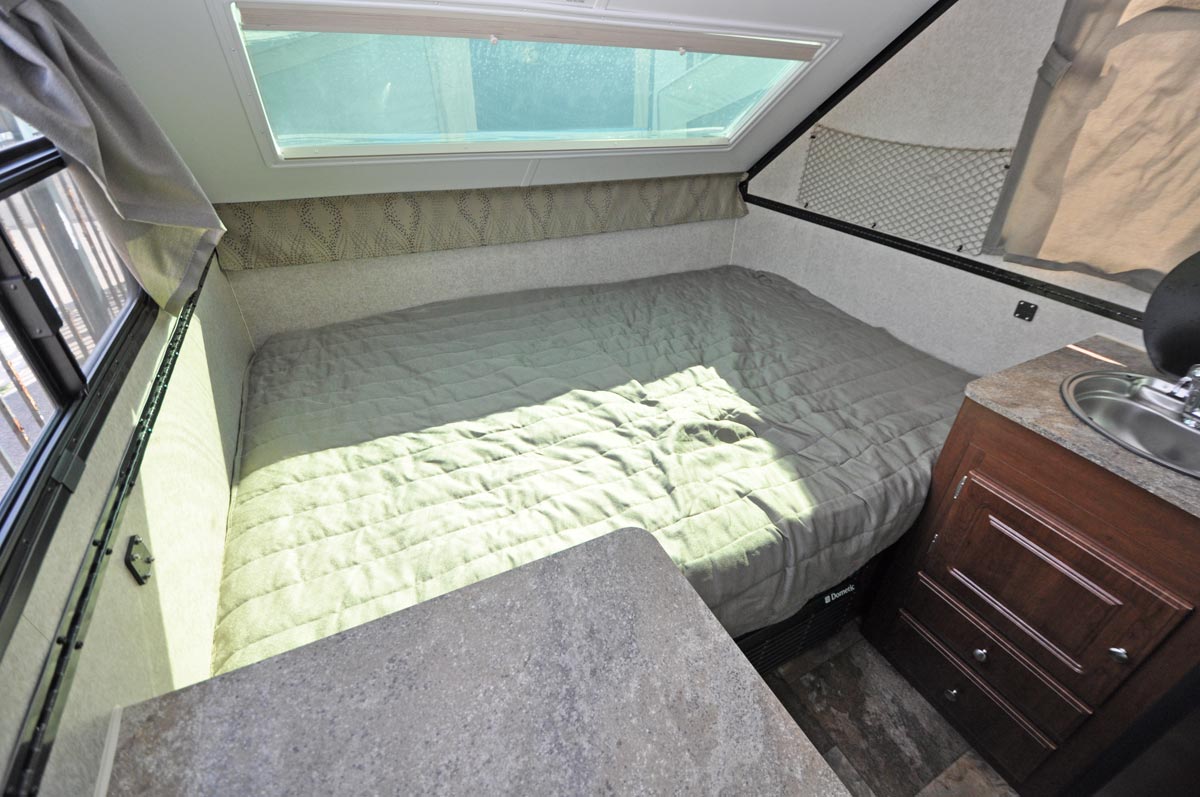

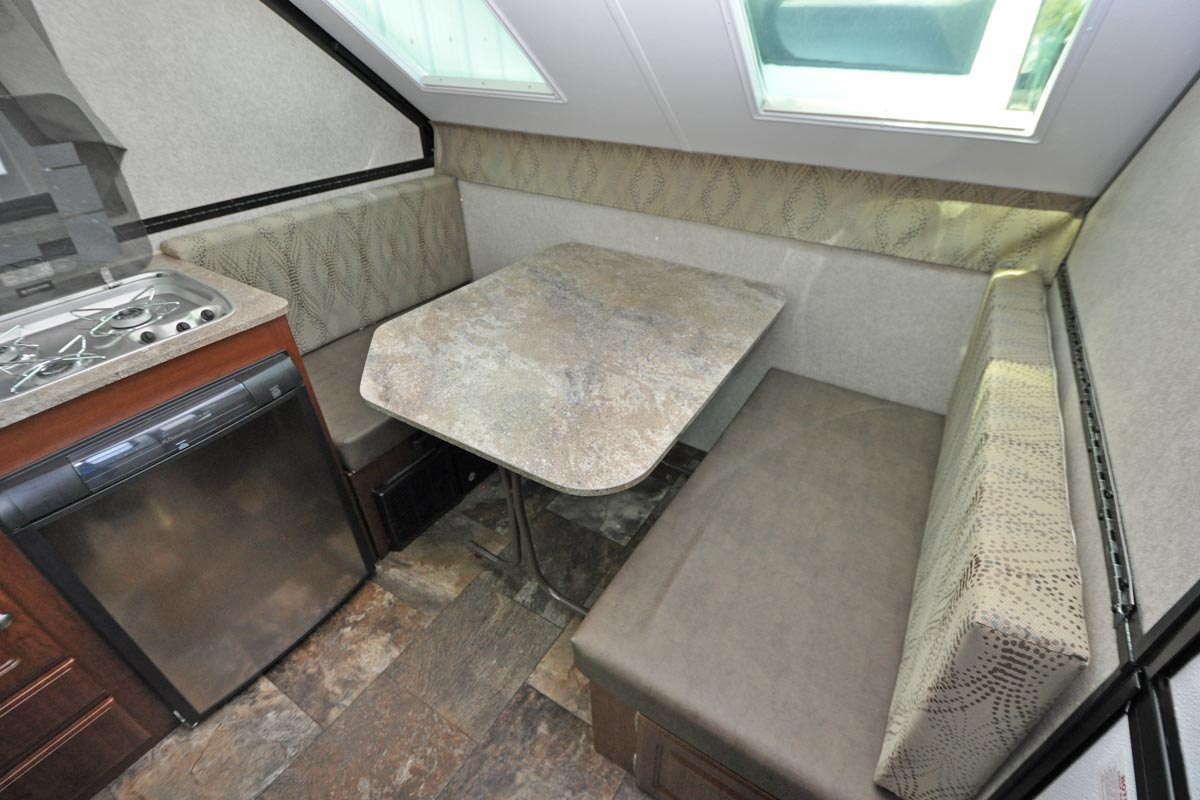

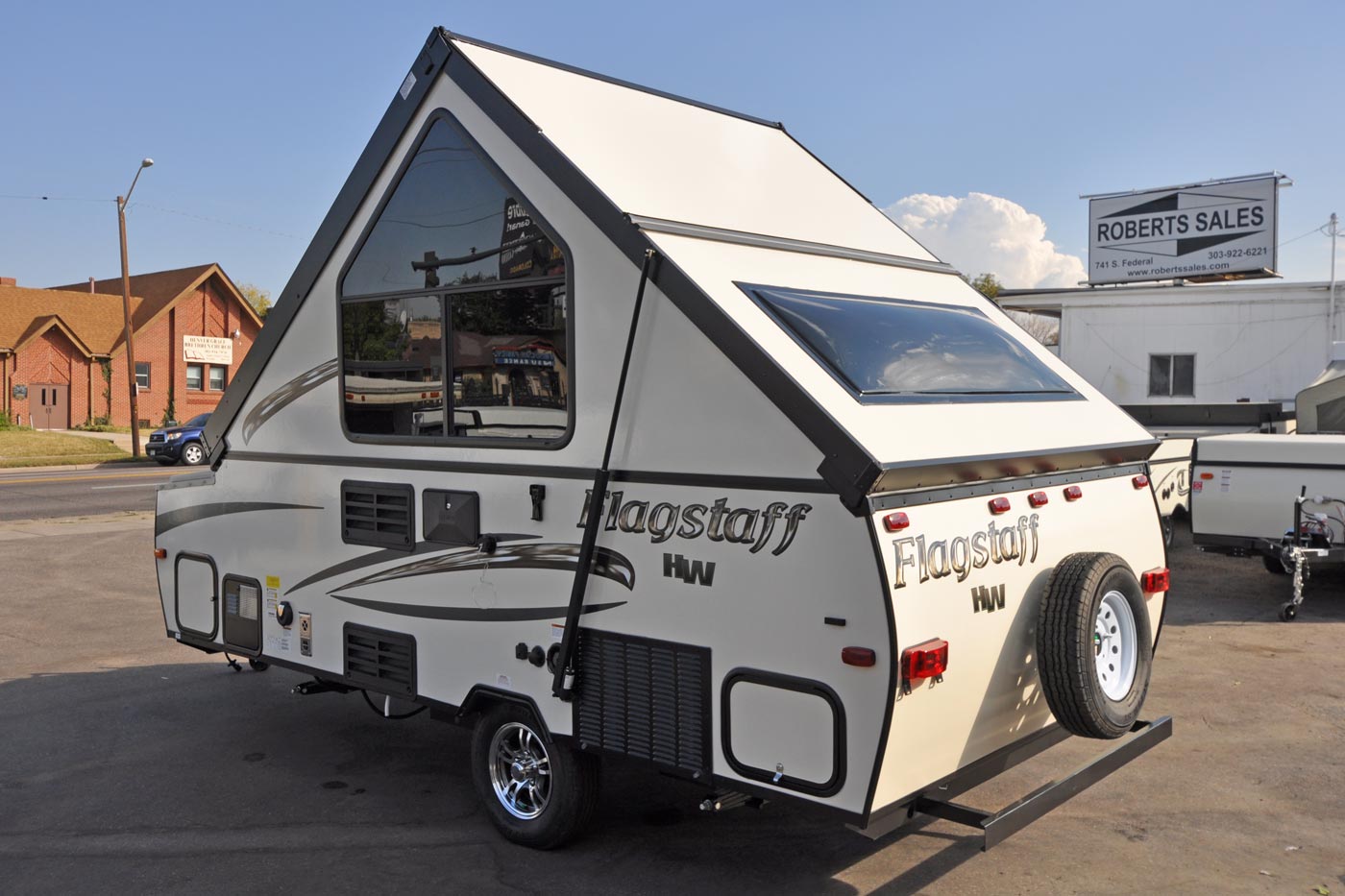

2016 Flagstaff T19QBHW dinette 2016 Flagstaff T19QBHW bed 2016 Flagstaff T19QBHW exterior back-side (2016 model year shown)

High-wall T-series campers have a 12-volt powered roof assist. Instead of pushing the roof up manually like other T-series campers, the 12V motor lifts the roof on its own with the push of a button (the button is to the left of the entry door).

Flagstaff T21QBHW powered lift assist Flagstaff T21QBHW powered lift assist motor Flagstaff T21QBHW lift button


  • The only 12' High Wall T-Series left. As such it's the lightest and most compact High Wall T-Series.
  • Higher side walls allow for higher counter-tops (than the standard T-Series), more head-room and a 4.0 cu. ft fridge with a small freezer compartment..



  • 110V heated mattress
  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Portable toilet
  • Front storage trunk with sliding tray
  • 13" aluminum wheels (spare tire has a steel wheel)

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two 20# propane tanks with automatic regulator
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • T12RBST - This has a similar dinette/bed layout as the T19QBTH but in a low-wall T-Series and with a full bed (54" wide) in the back instead of a queen bed (60").
  • T21QBHW - Similar layout to the T19QBHW, but in a 14' box which allows a double-pan sink, larger front dinette, an oven, and a little more floor space.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to T-Series

Top of Page

Older Photos

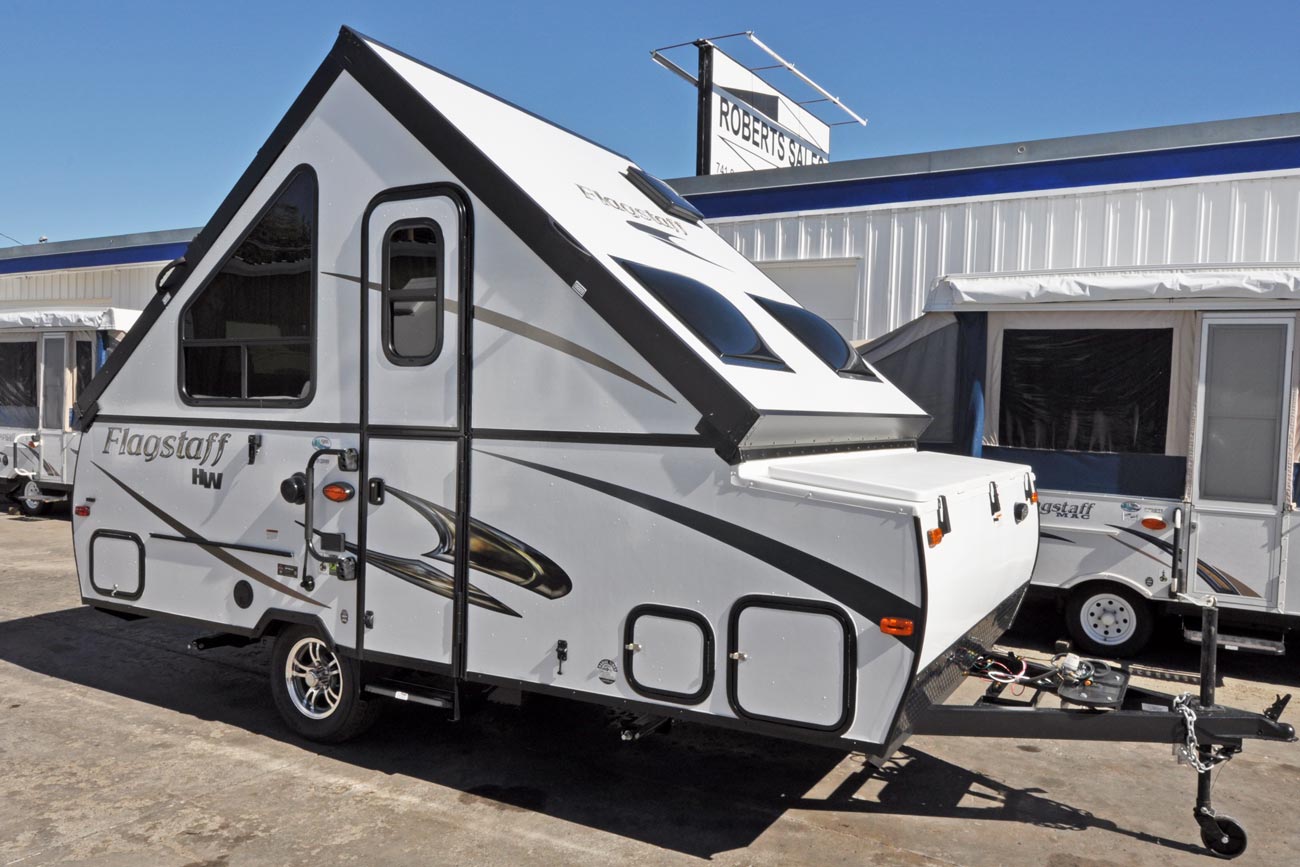

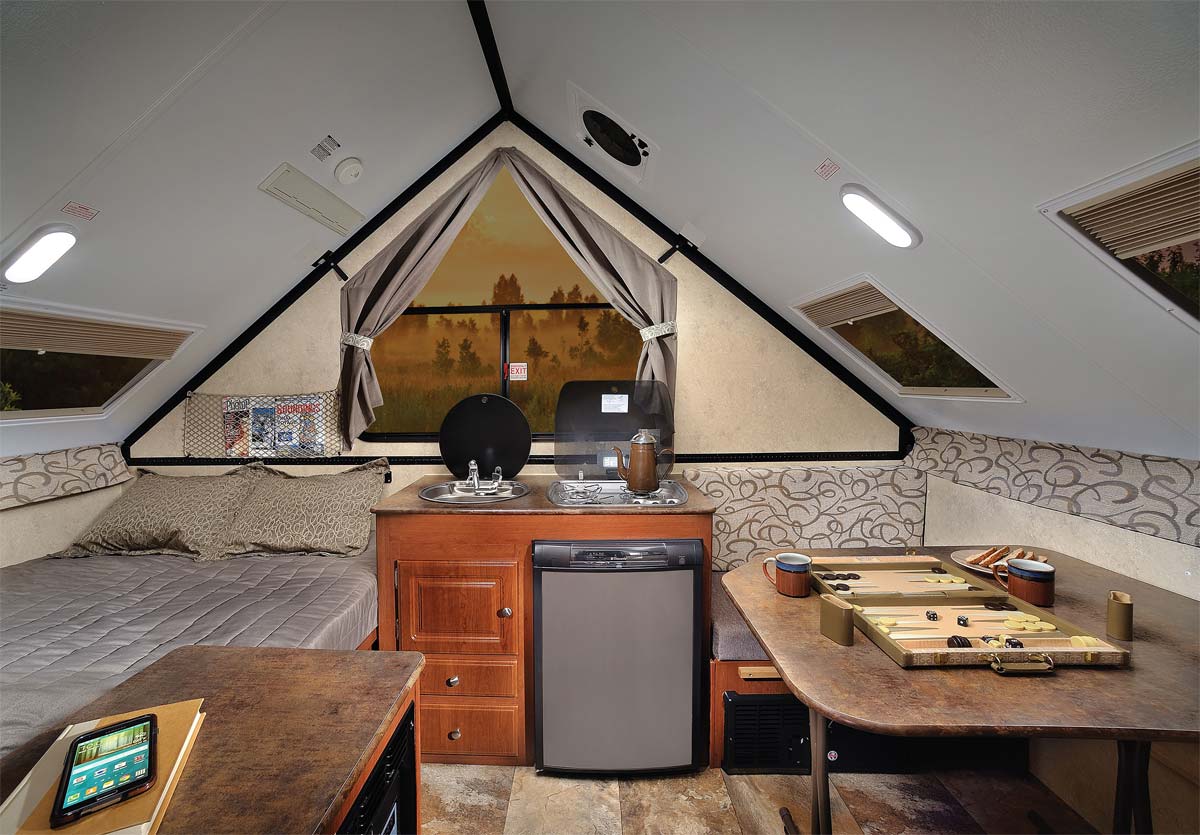

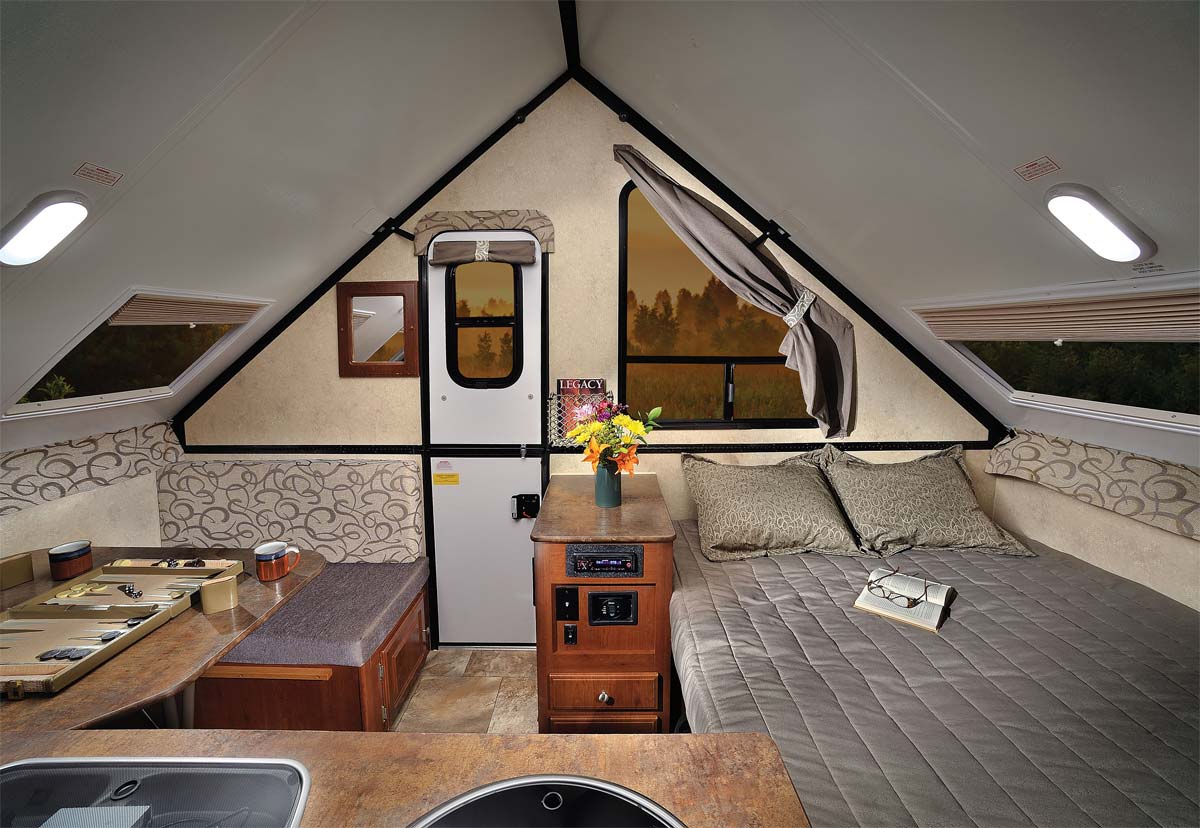

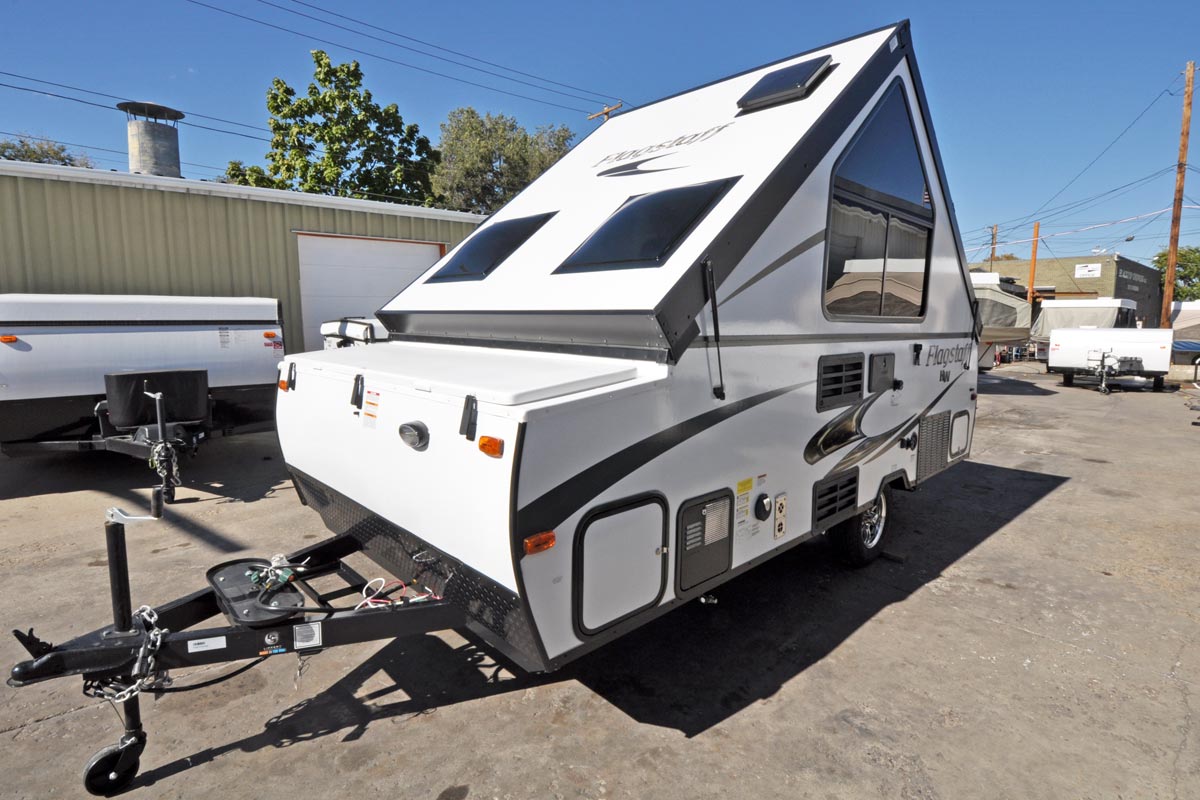

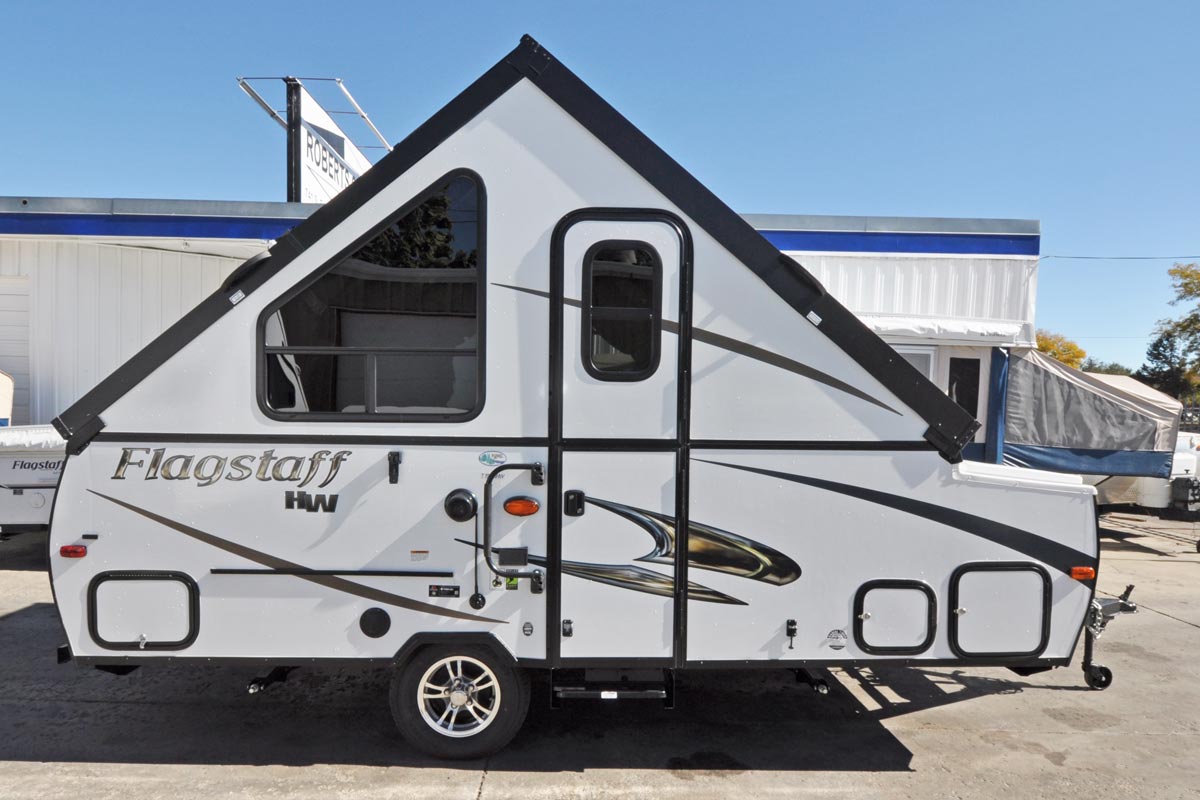

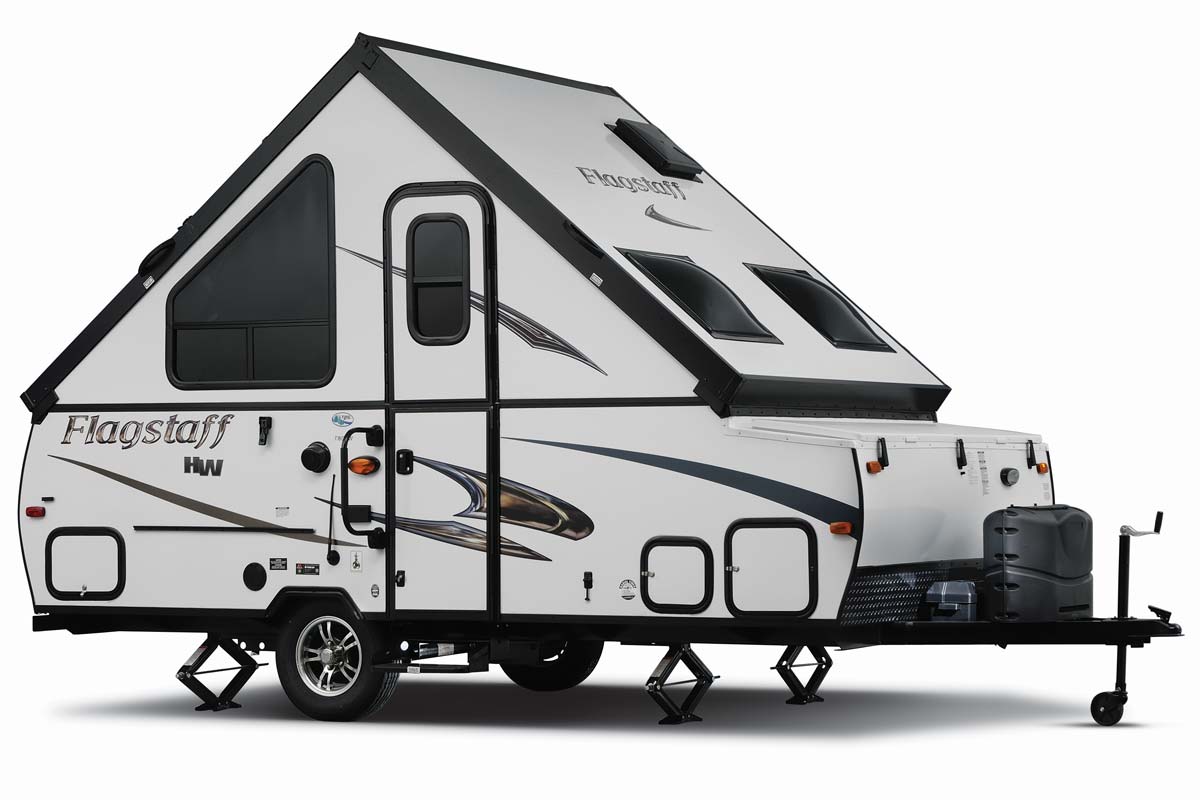

2015 exterior 2015 interior 2015 interior (door-side) (2015 shown)
