Flagstaff T21QBHW



(2015-2020)

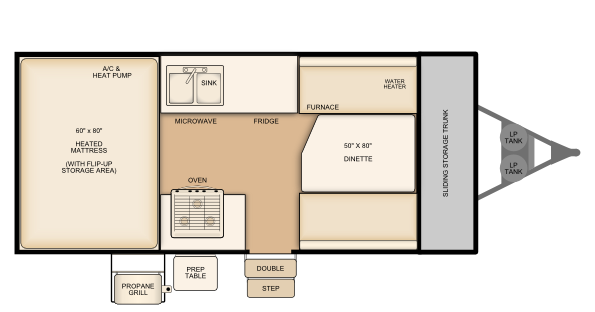

Flagstaff T21QBHW Floorplan

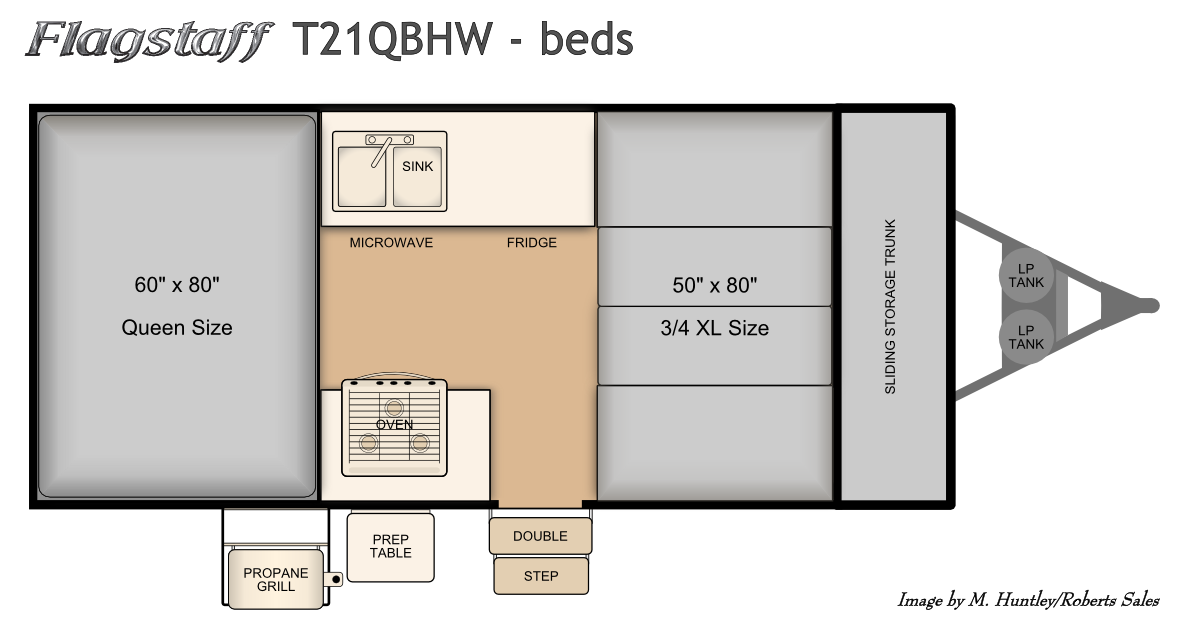

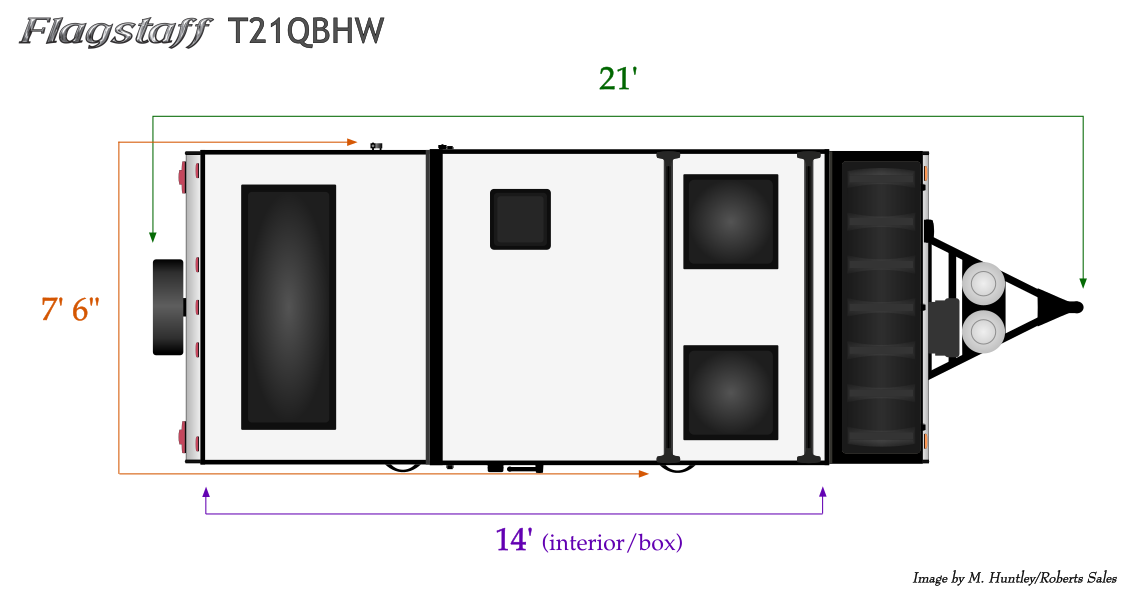

T21QBHW bed layout Flagstaff T21QBHW travel length and width

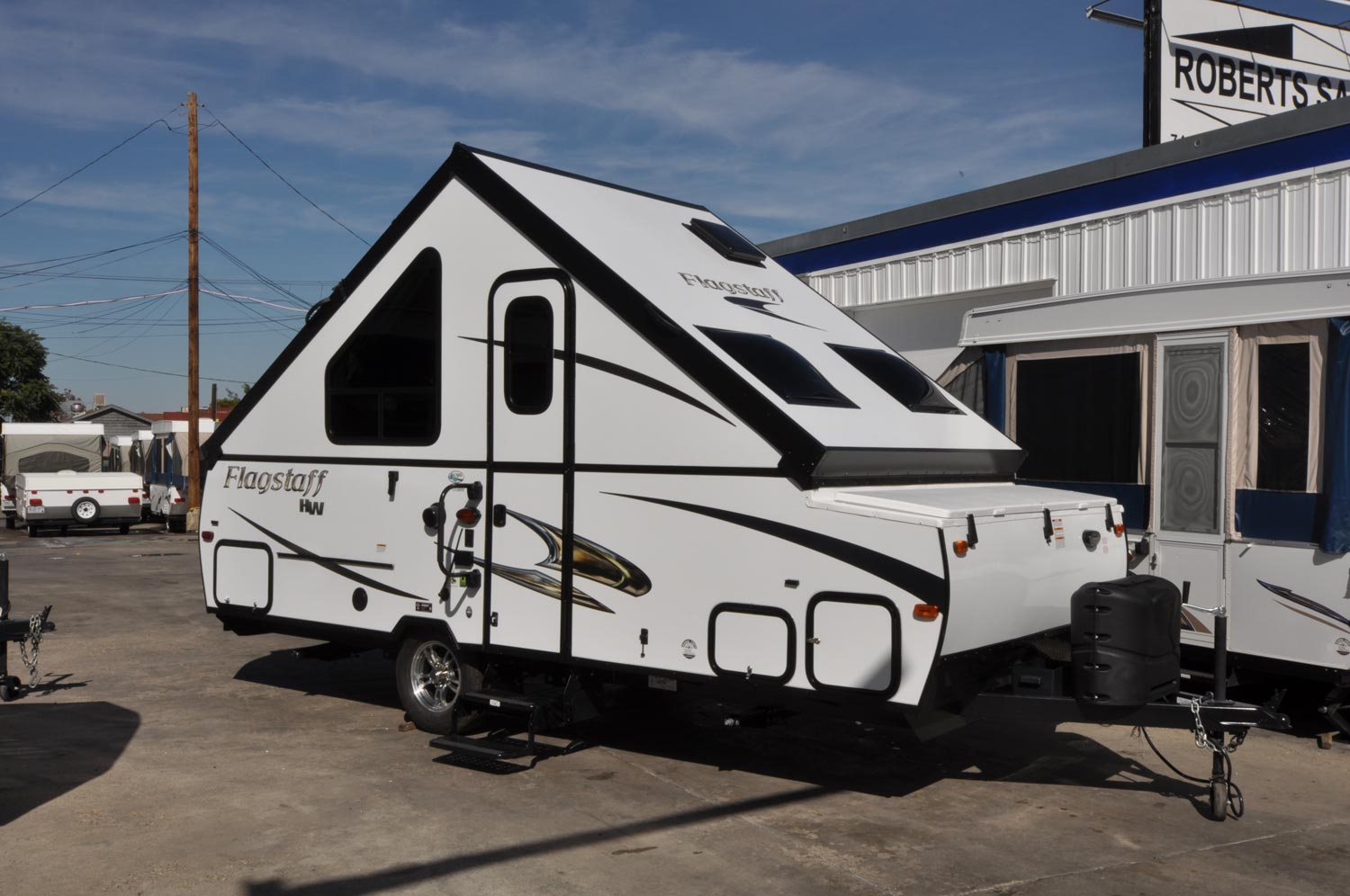

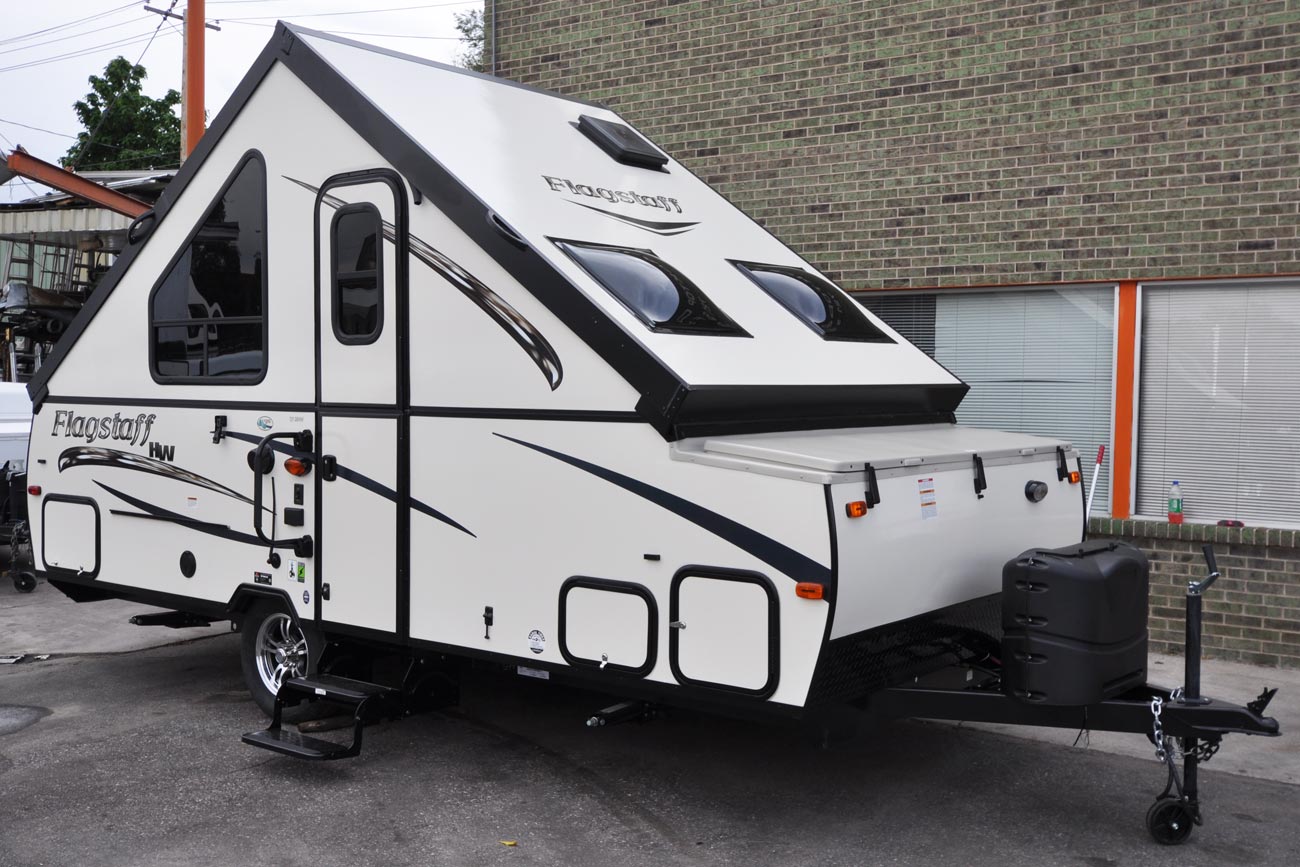

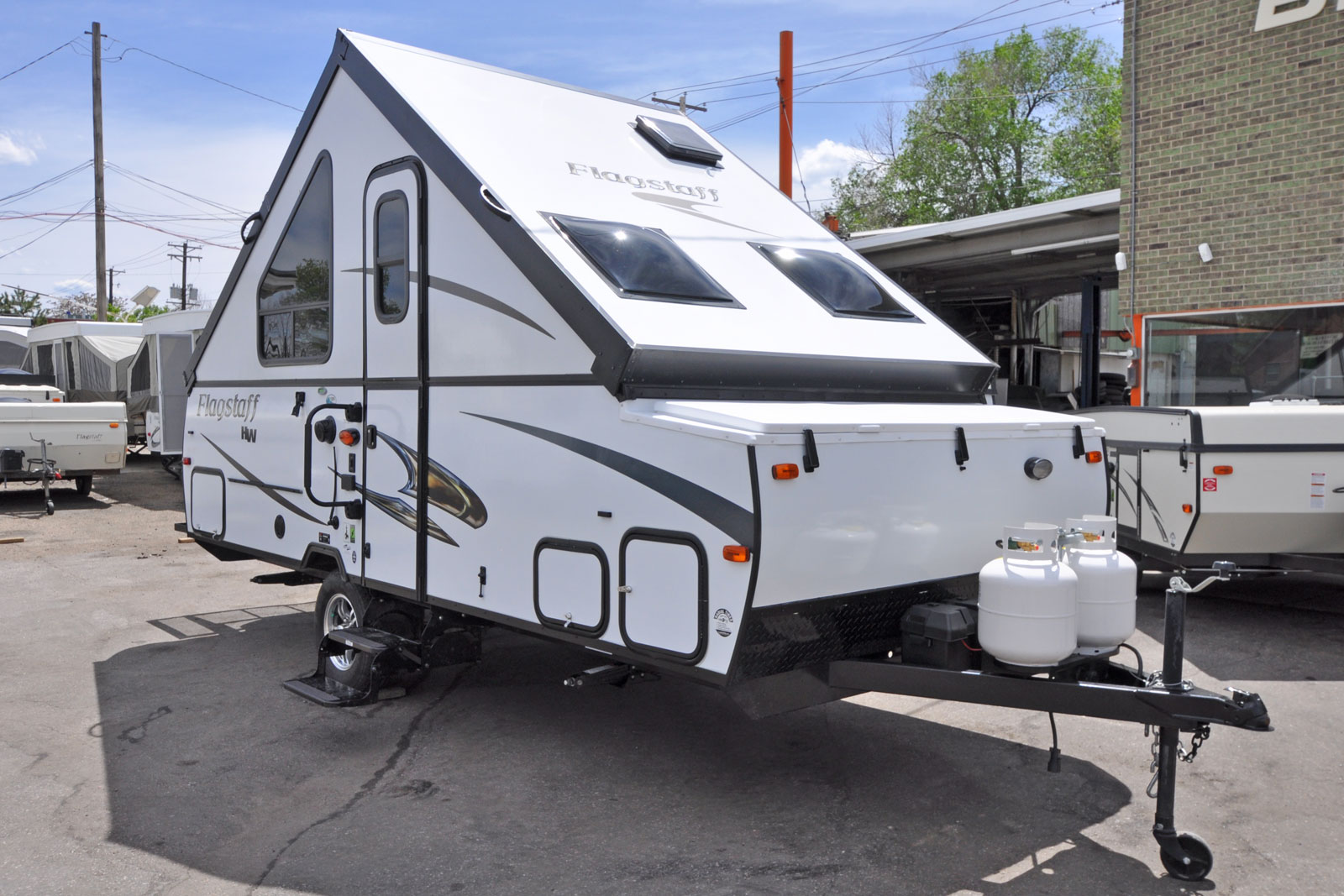

2016 Flagstaff T21QBHW exterior

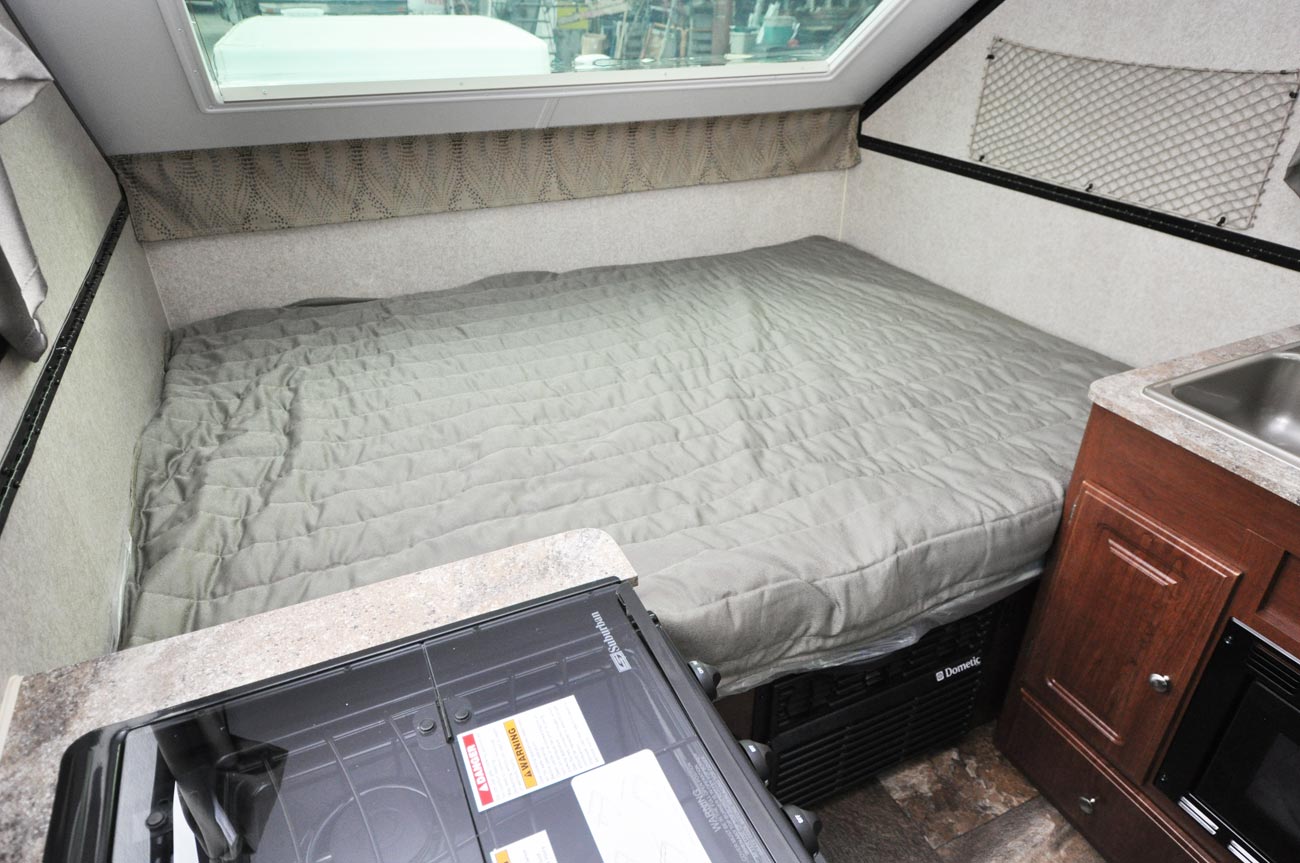

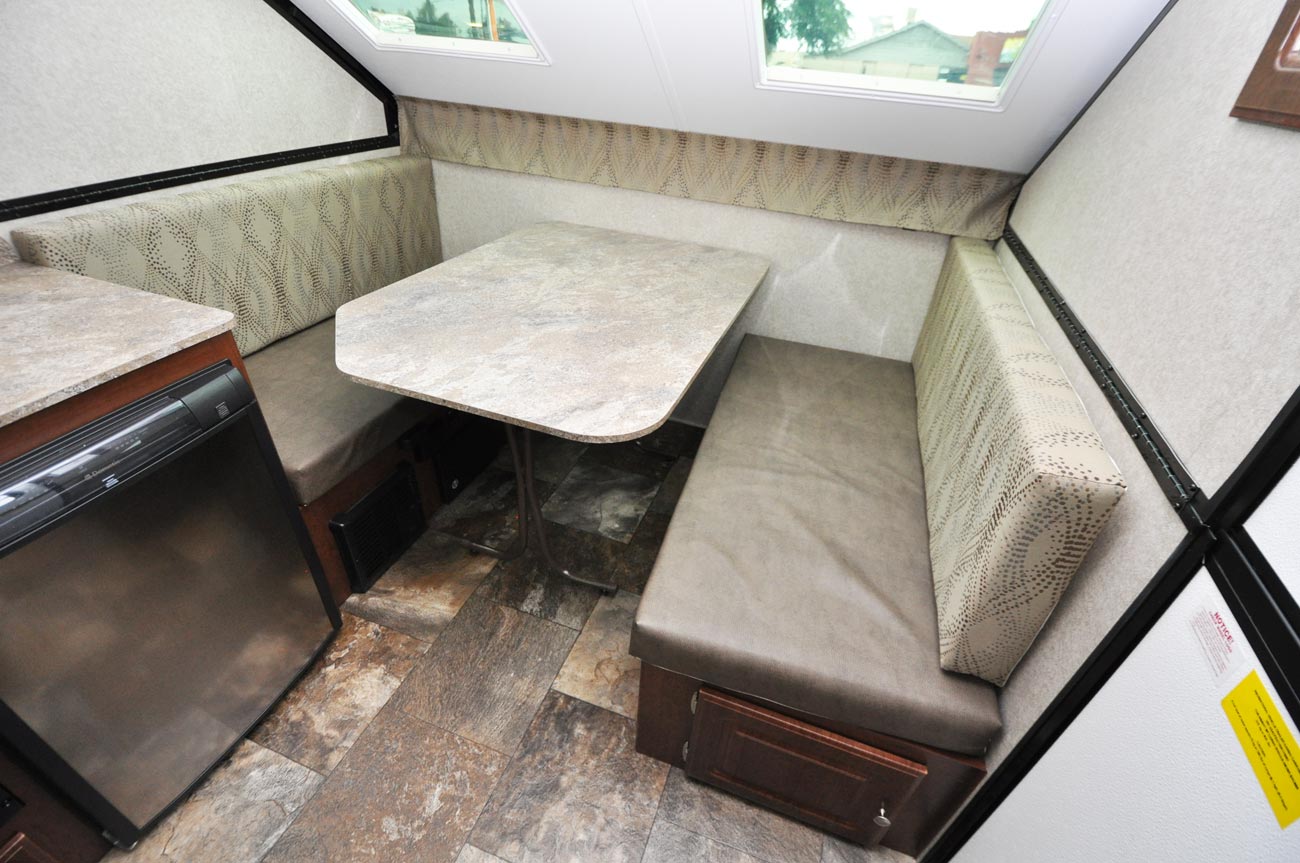

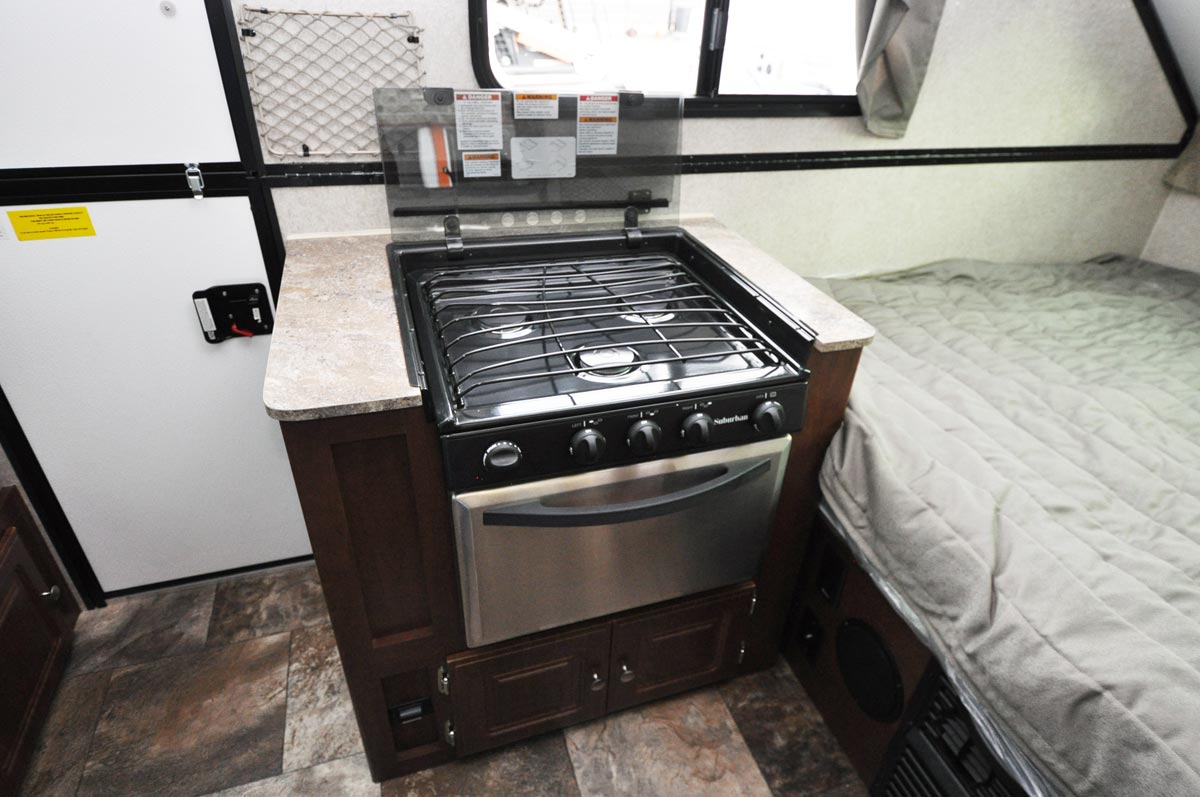

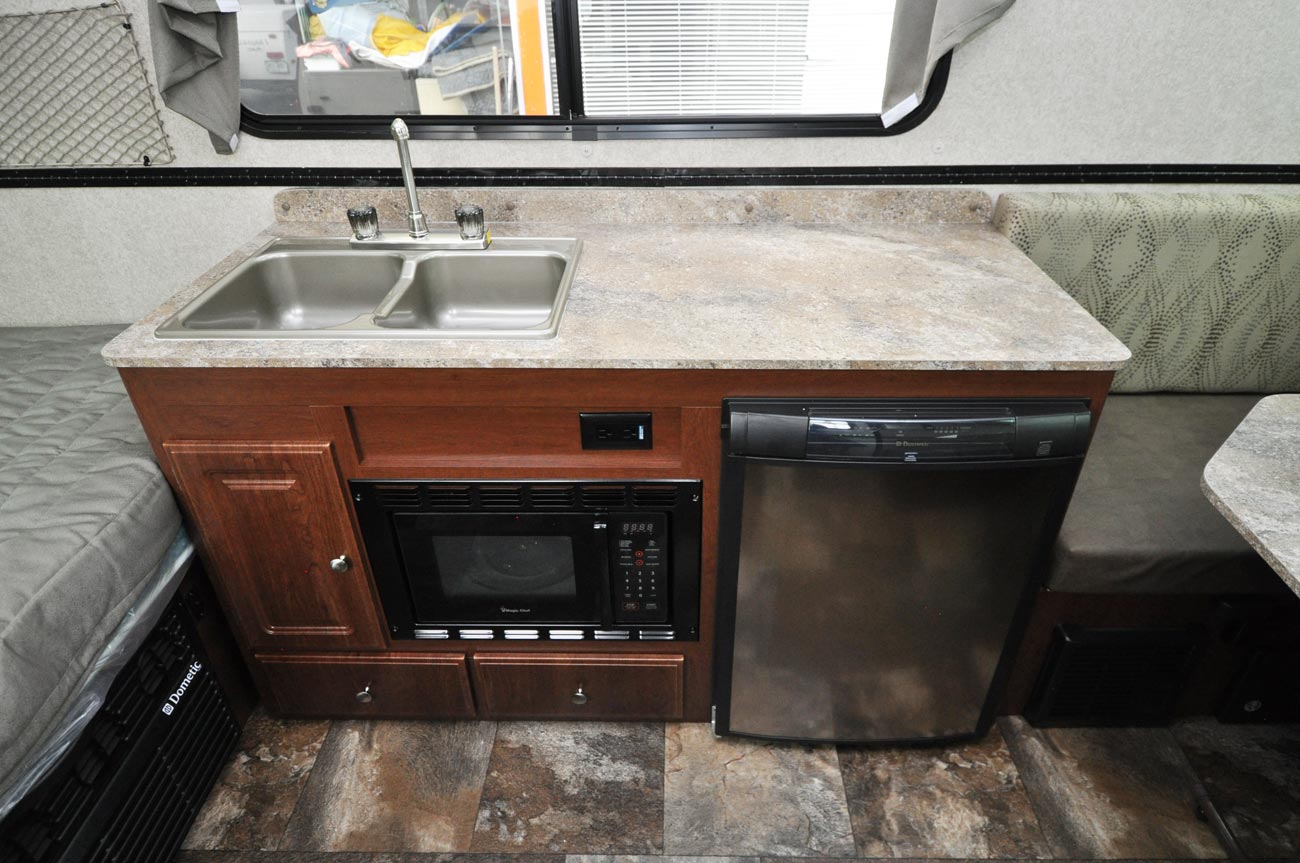

2016 Flagstaff T21QBHW front dinette 2016 Flagstaff T21QBHW rear bed 2016 Flagstaff T21QBHW galley 2016 Flagstaff T21QBHW stove/oven combo

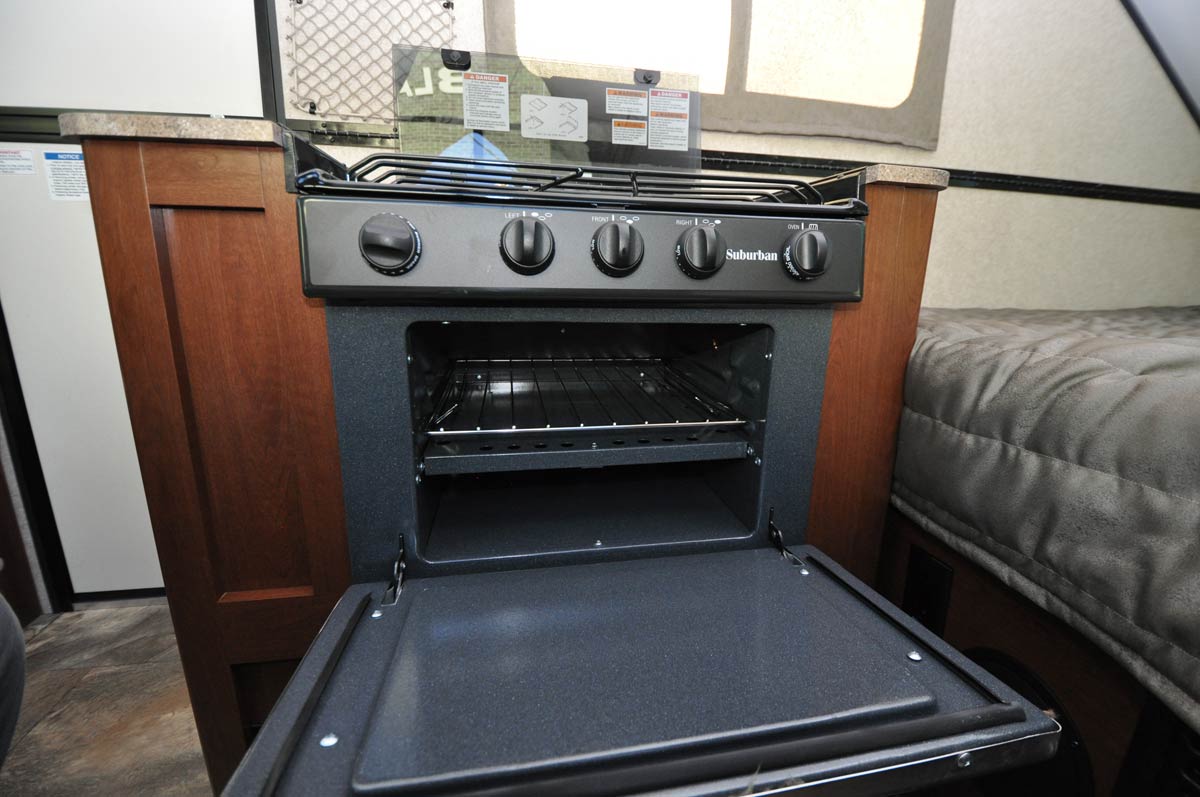

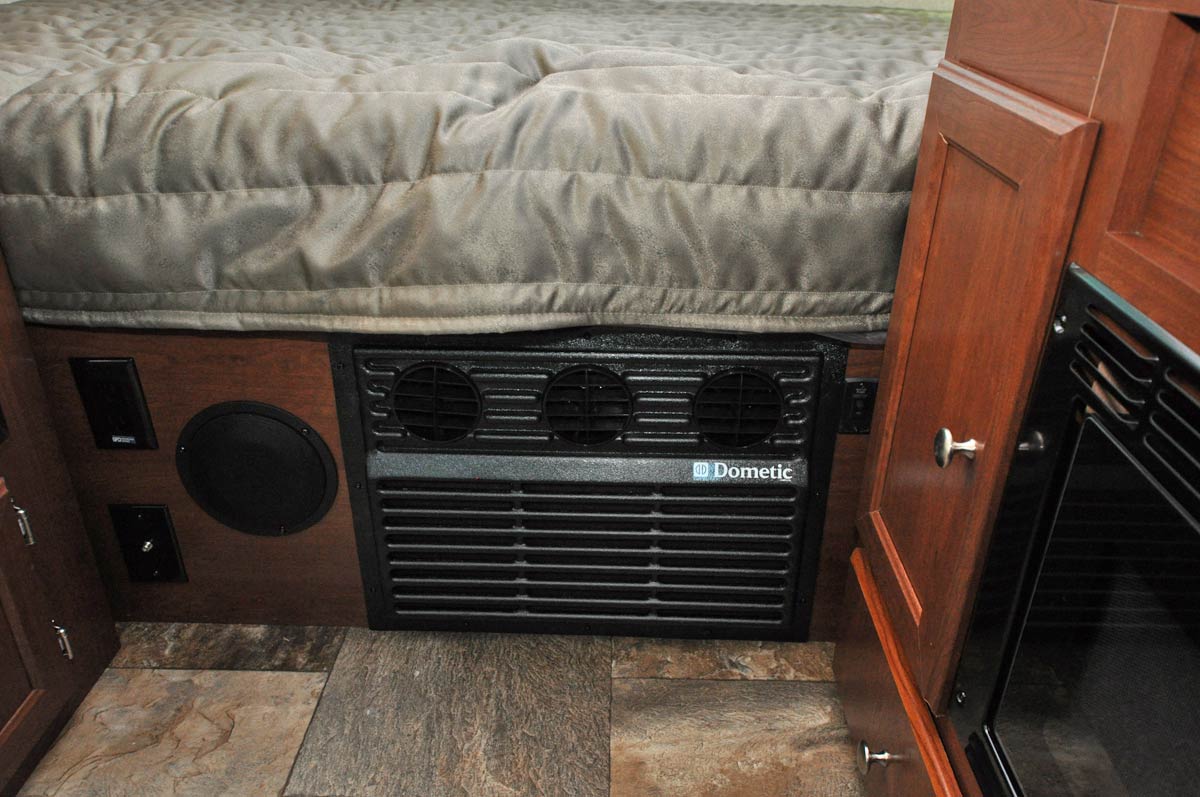

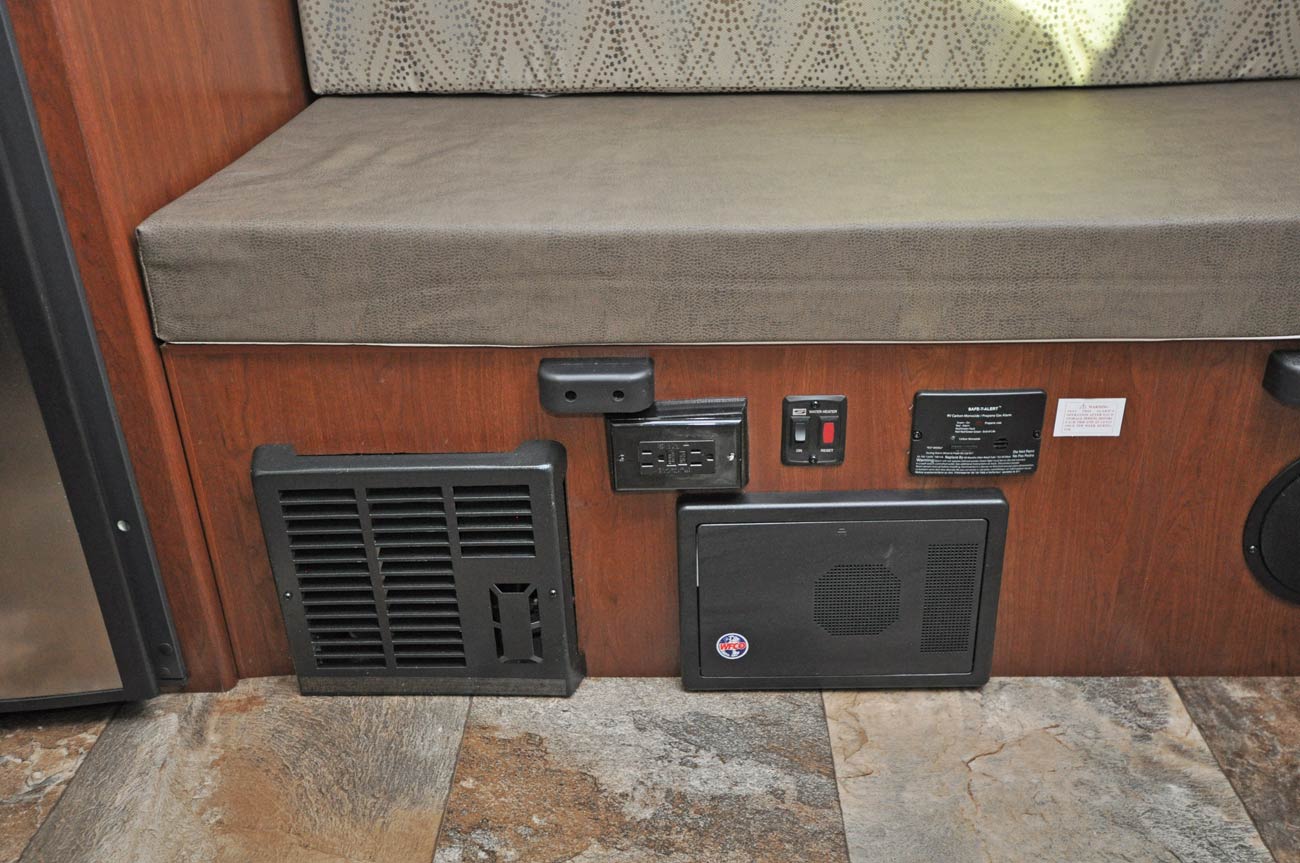

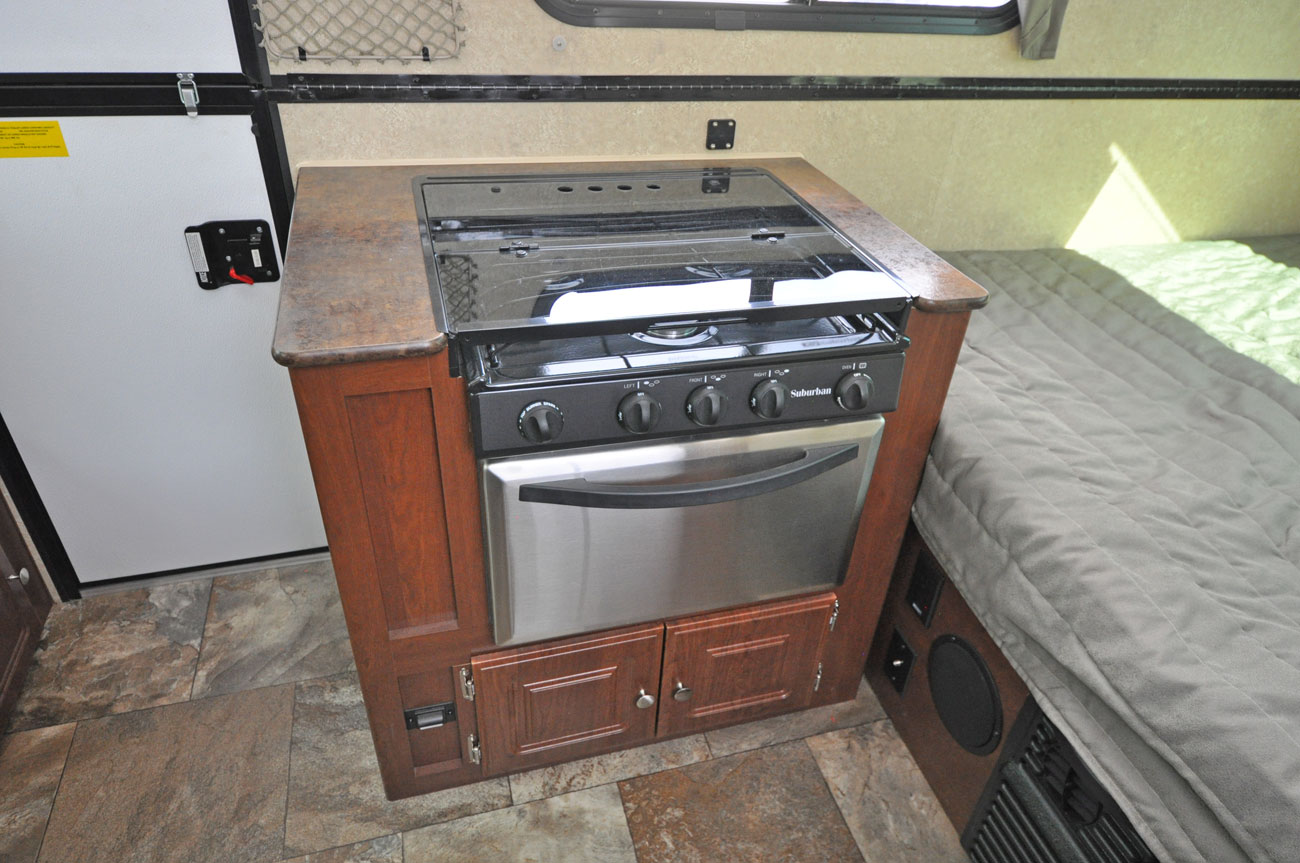

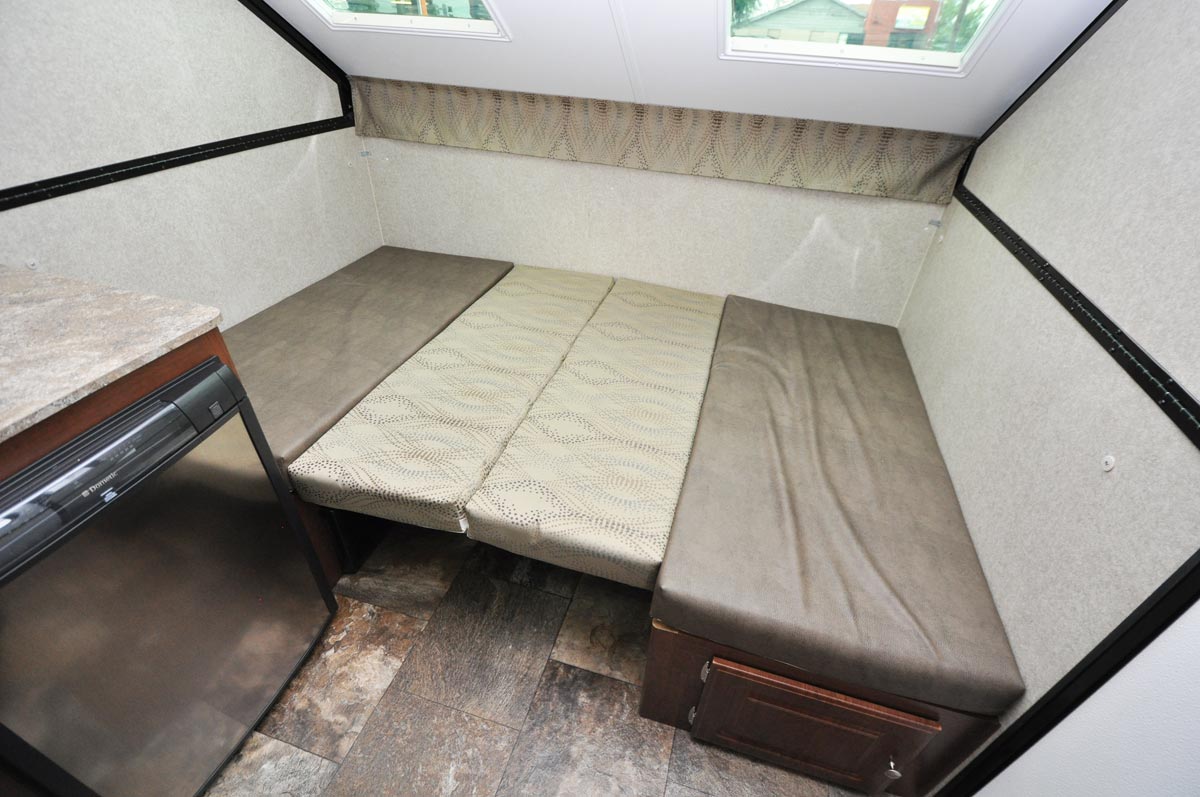

2016 Flagstaff T21QBHW oven 2016 Flagstaff T21QBHW 10,000 BTU air conditioner and heat pump 2016 Flagstaff T21QBHW furnace and power converter 2016 Flagstaff T21QBHW dinette in bed format

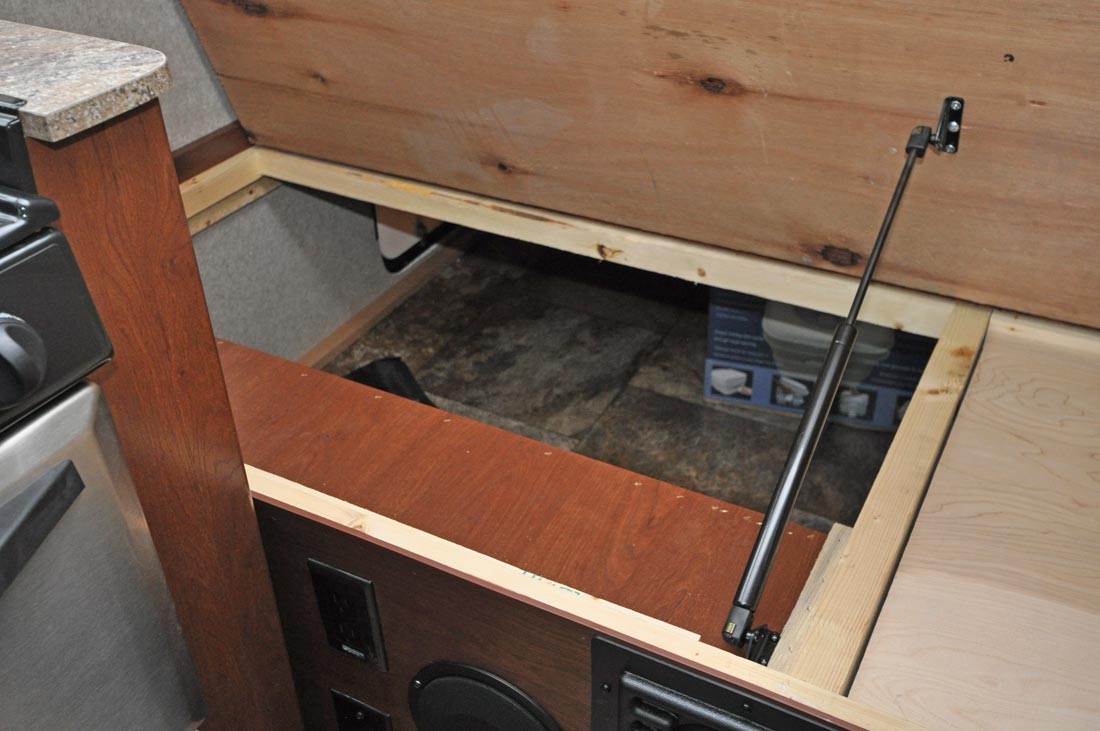

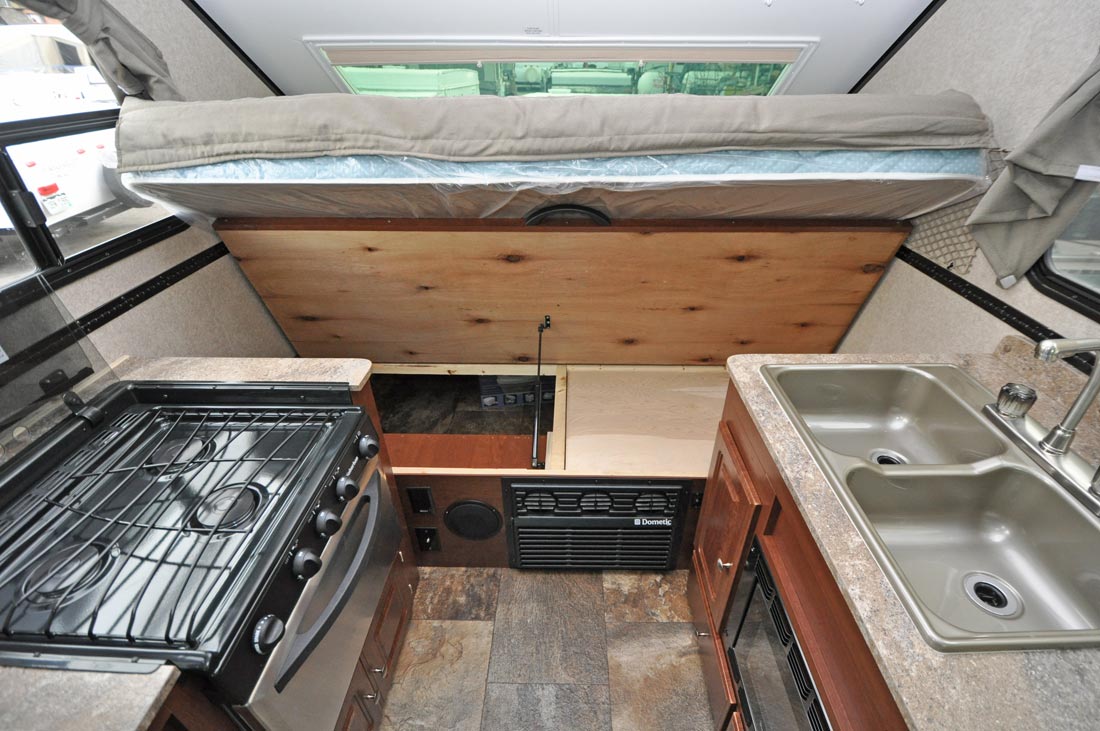

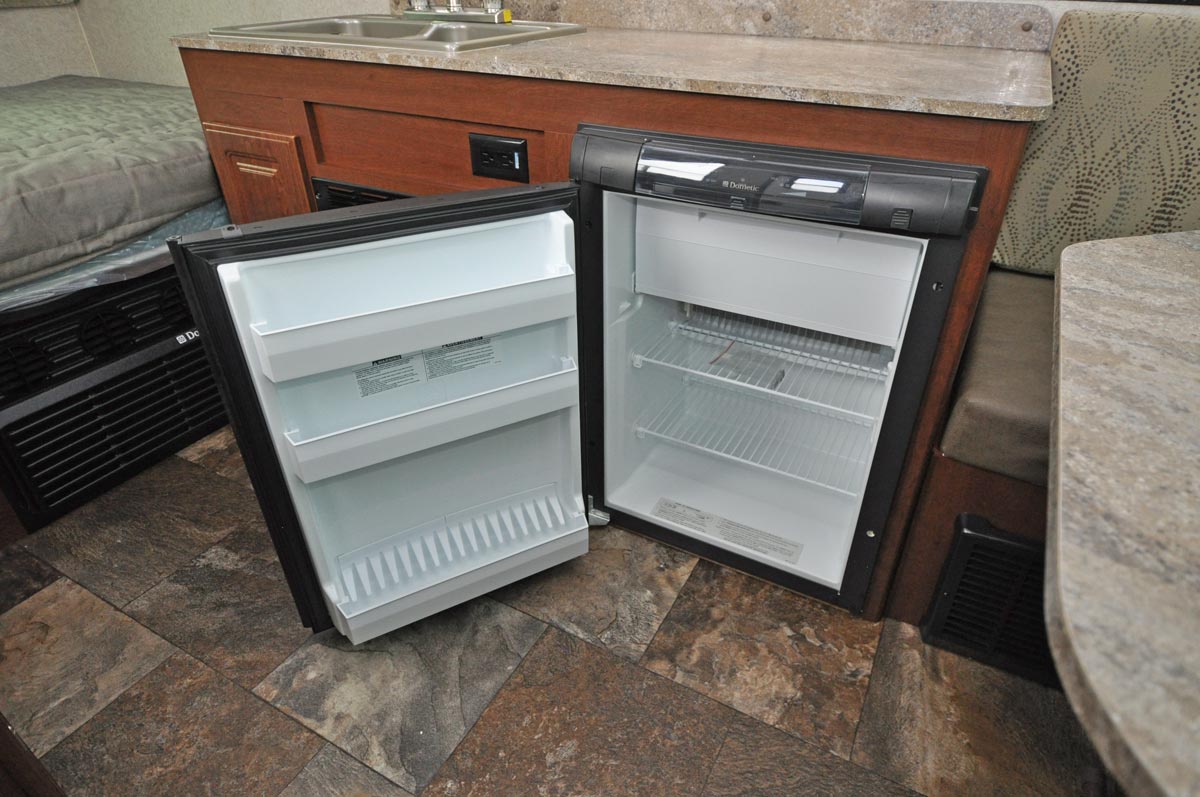

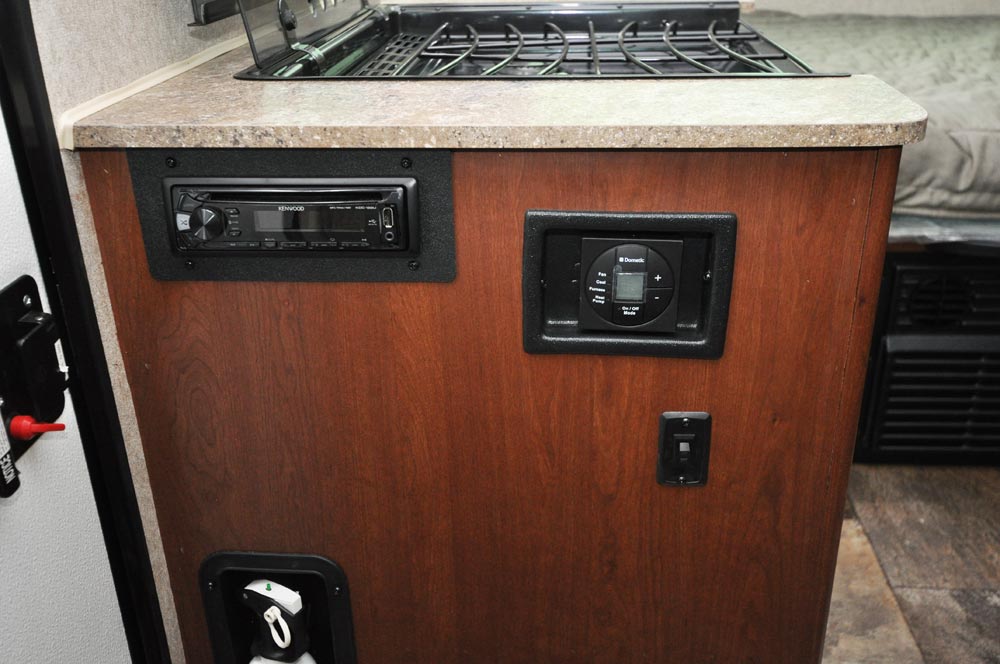

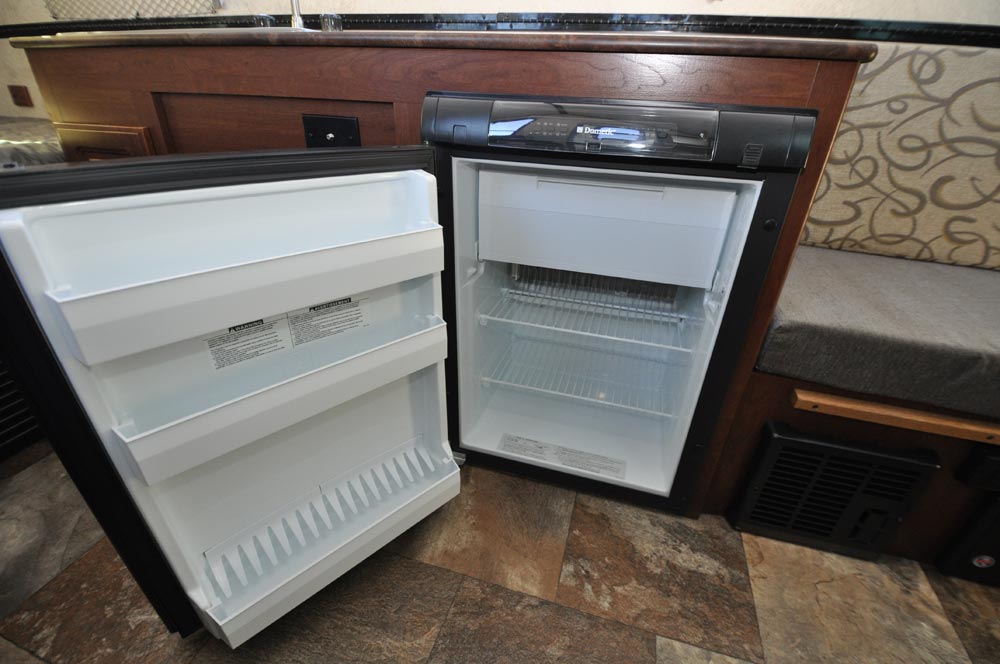

2016 Flagstaff T21QBHW stereo 2016 Flagstaff T21QBHW under-bed storage 2016 Flagstaff T21QBHW under-bed storage close-up 2016 Flagstaff T21QBHW 4.0 cu. ft. fridge

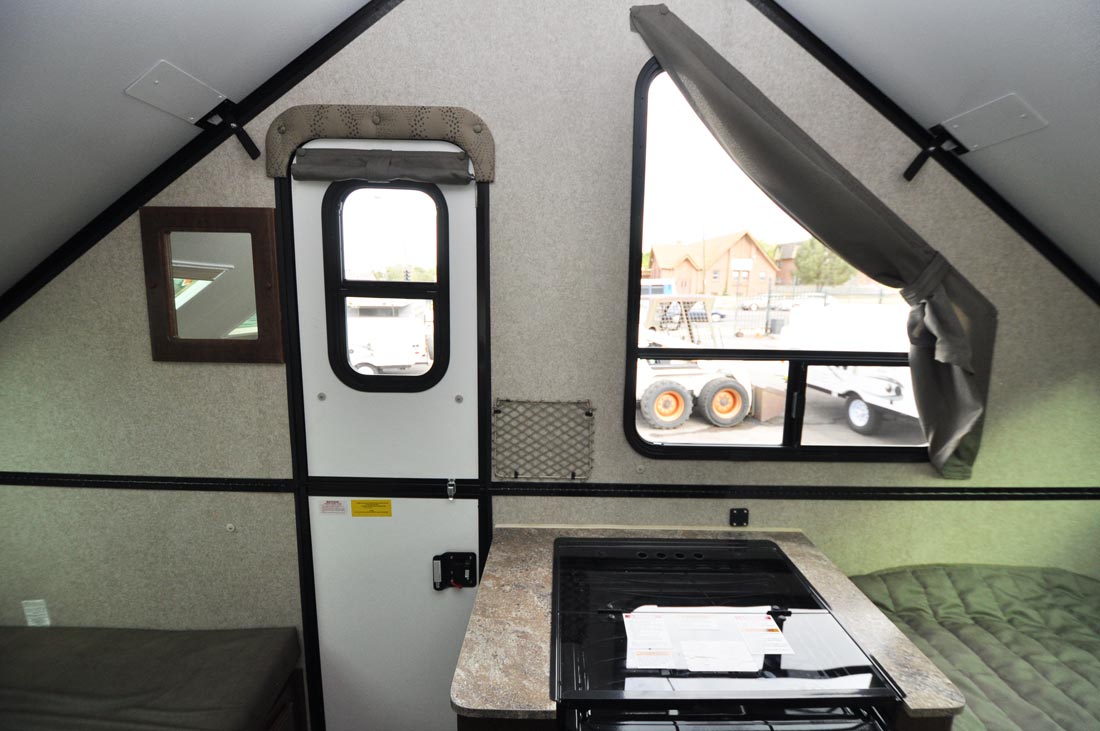

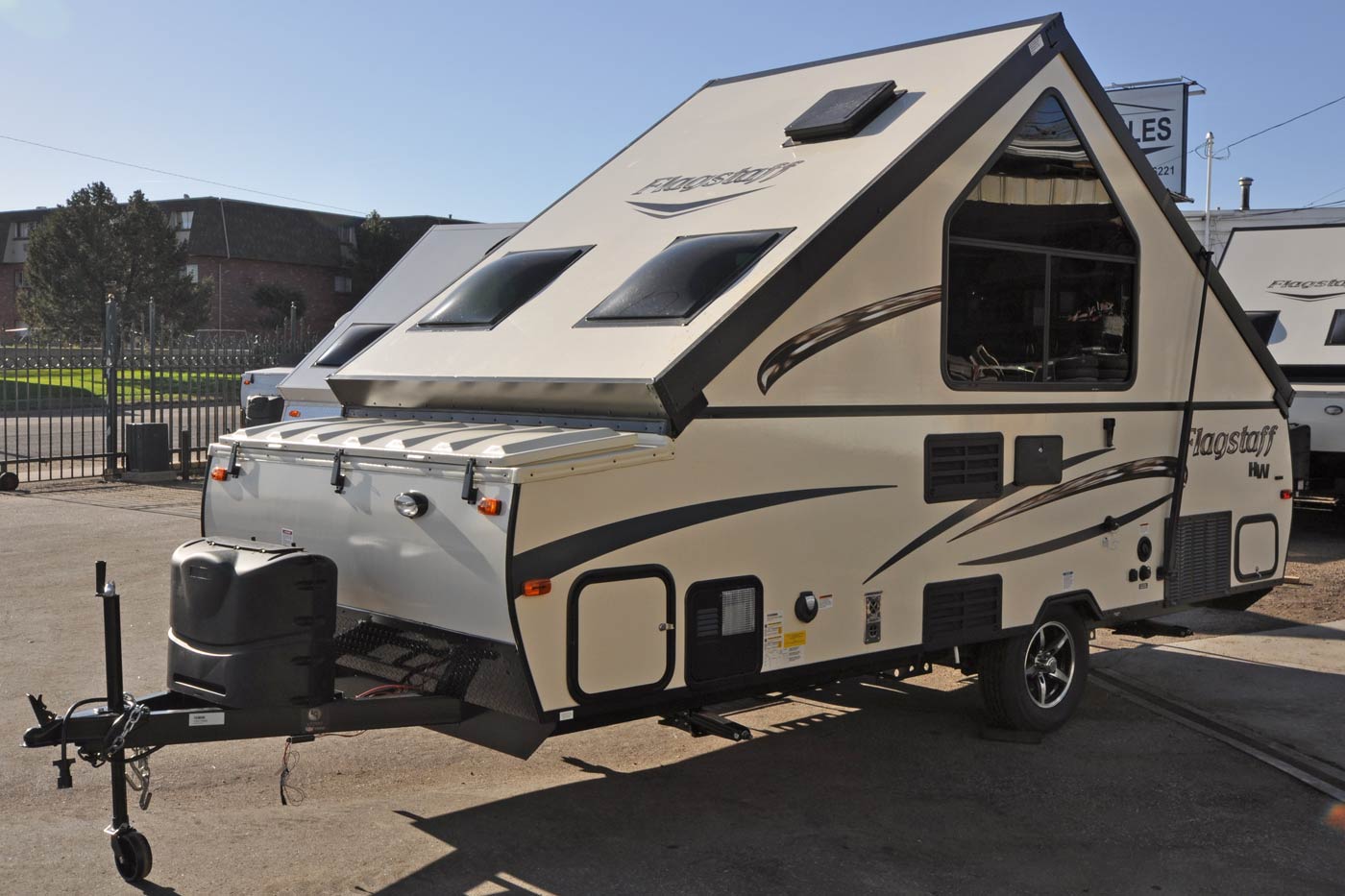

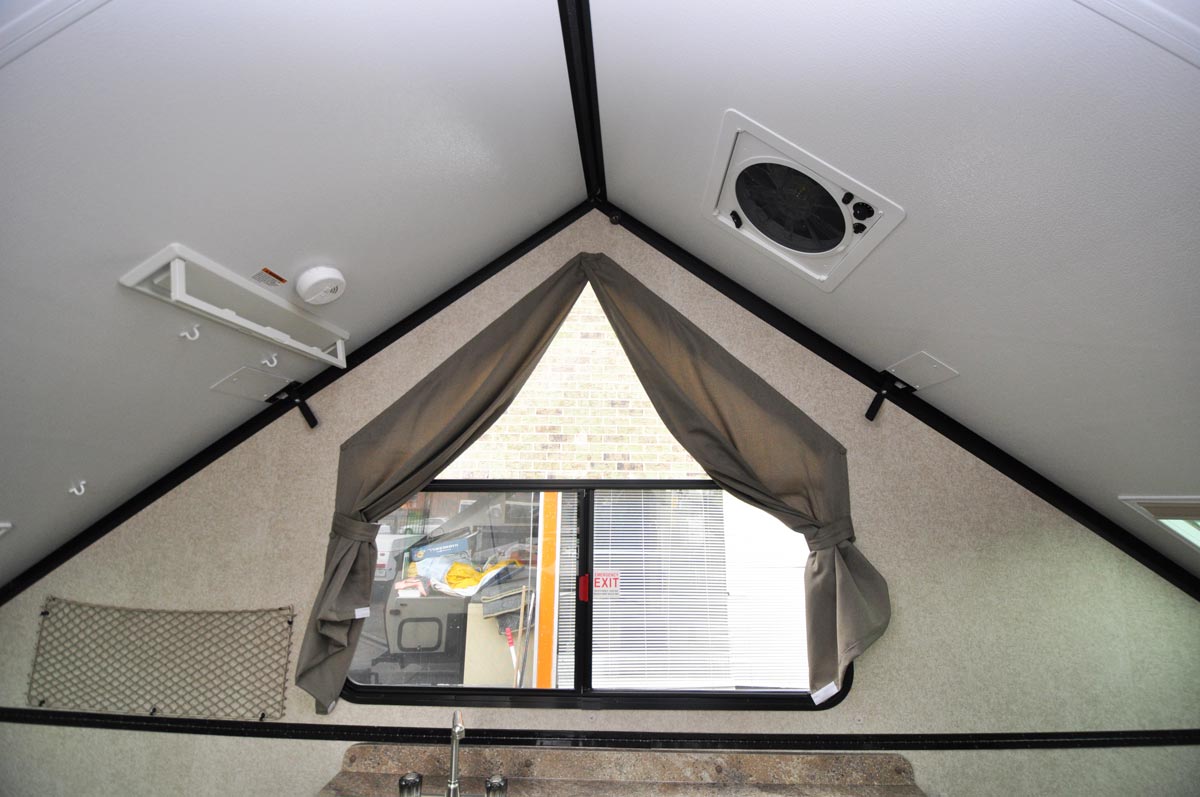

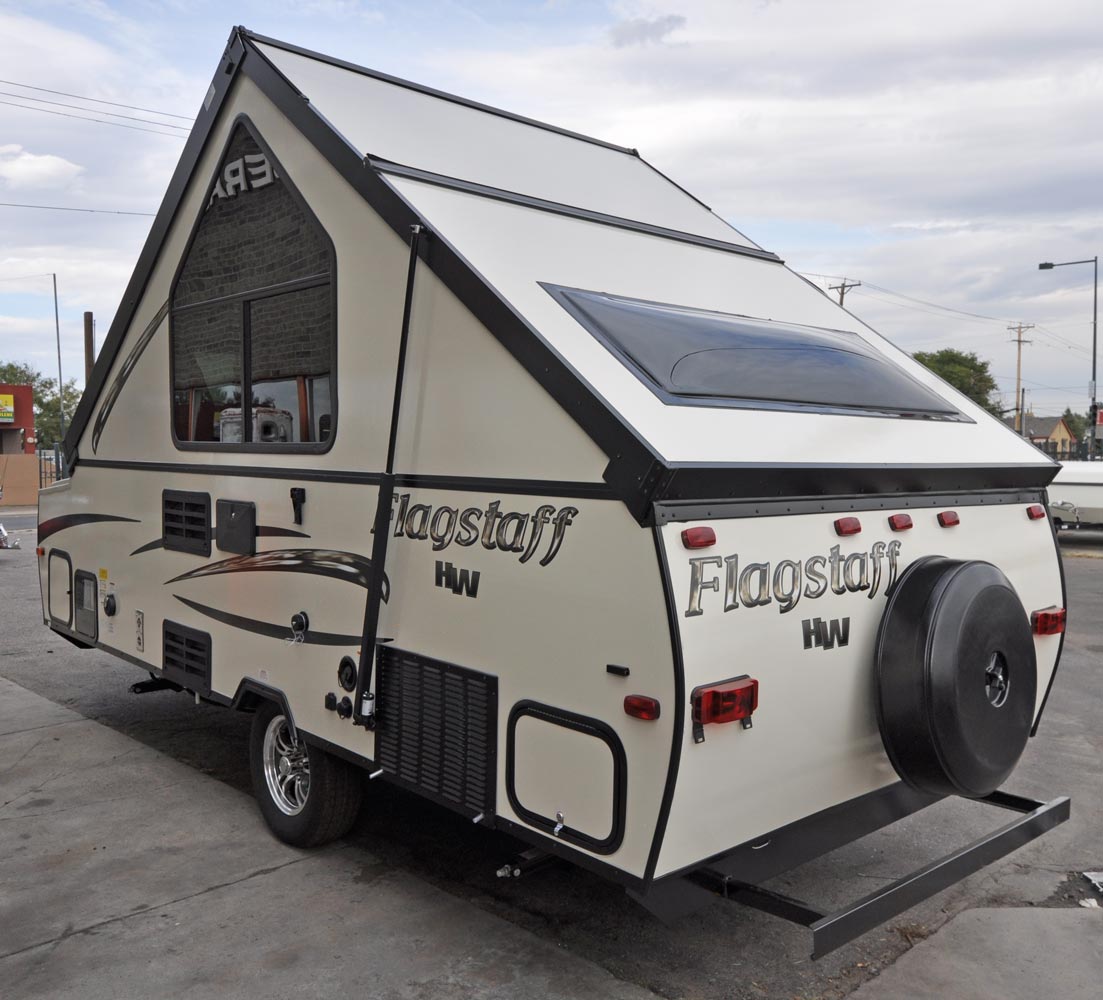

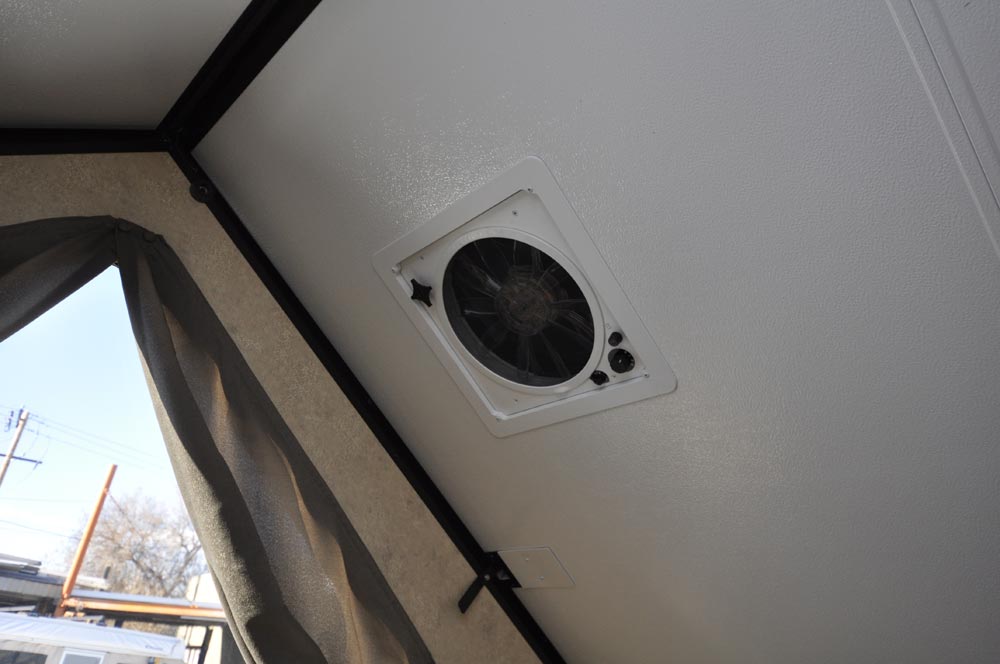

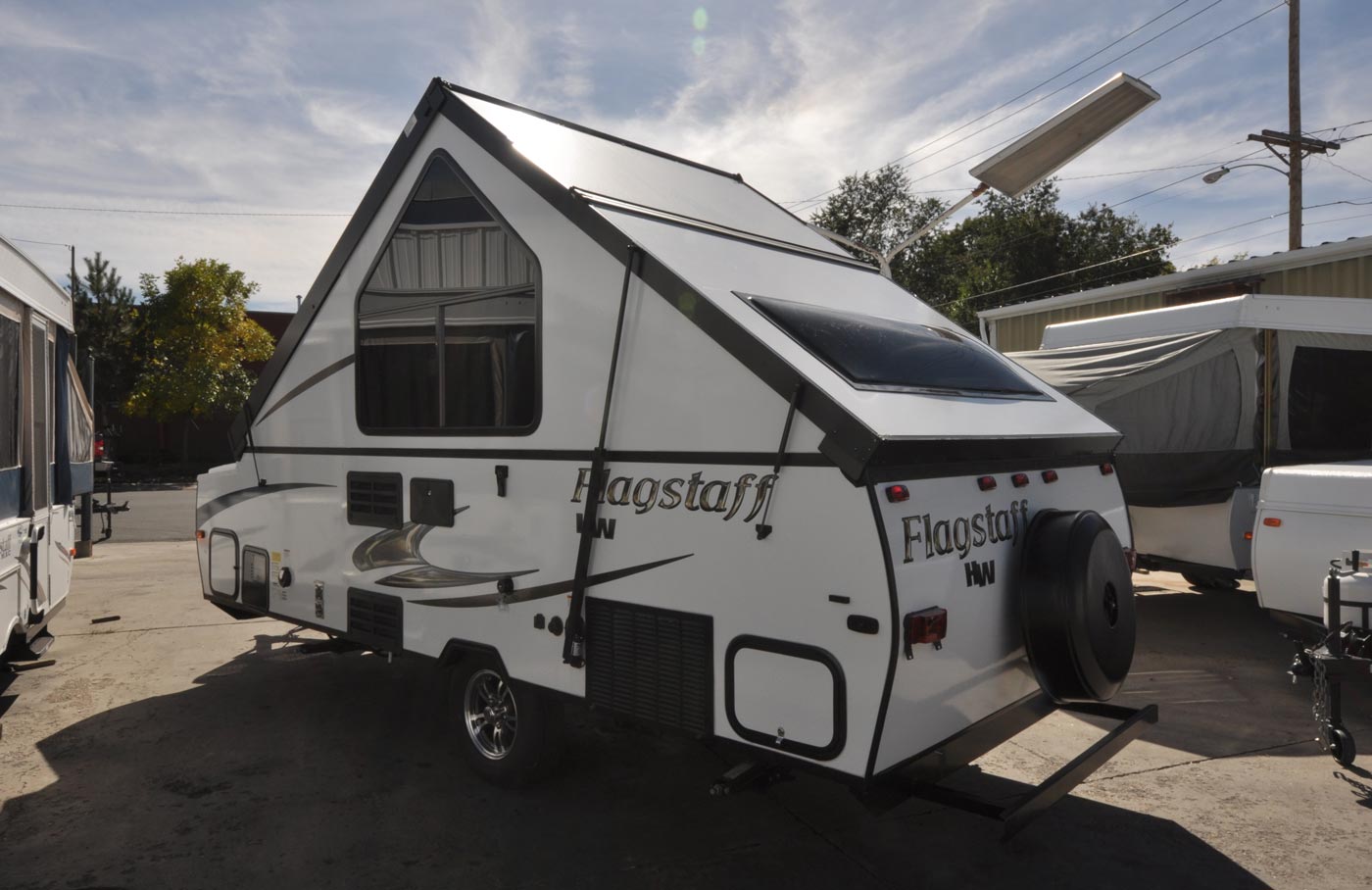

2016 Flagstaff T21QBHW powered roof vent and clothes rack 2016 Flagstaff T21QBHW door-side view 2016 Flagstaff T21QBHW exterior back-side 2016 Flagstaff T21QBHW exterior back-side

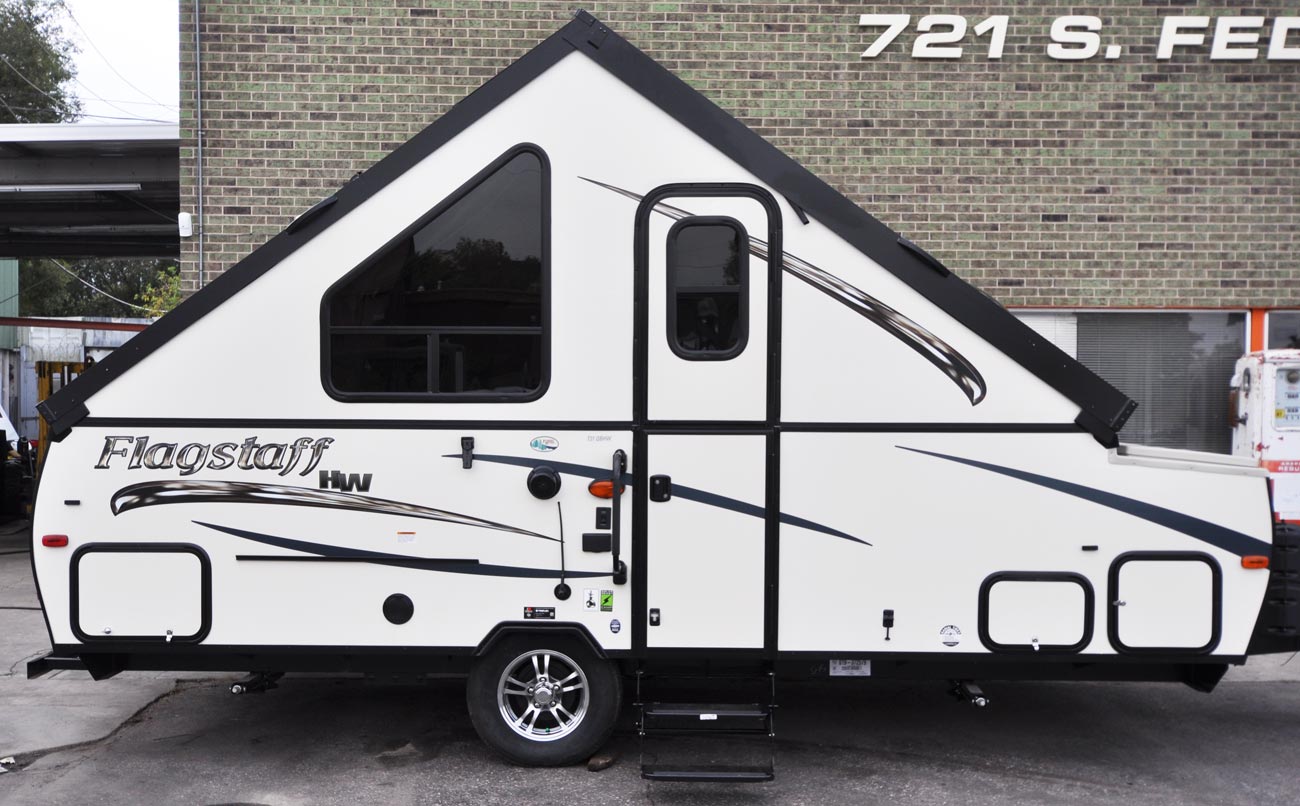

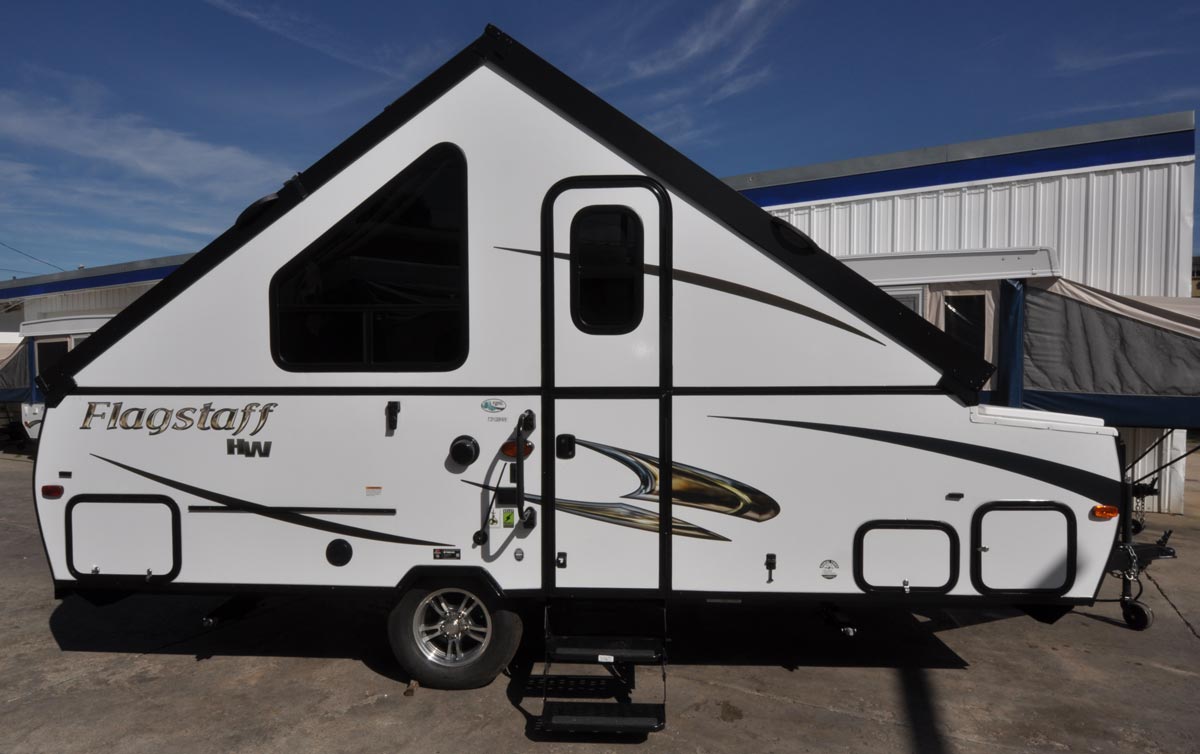

2016 Flagstaff T21QBHW profile (2016 model year shown)

High-wall T-series campers have a 12-volt powered roof assist. Instead of pushing the roof up manually like other T-series campers, the 12V motor lifts the roof on its own with the push of a button (the button is to the left of the entry door).

Flagstaff T21QBHW powered lift assist Flagstaff T21QBHW powered lift assist motor Flagstaff T21QBHW lift button

Highlights

  • Higher side walls allow for higher counter-tops (than the standard T-Series), more head-room and a 4.0 cu. ft fridge with a small freezer compartment.
  • 14' interior with two big beds (the other 14' T-series campers have only one large bed).

Specifications

  • Box Size: 14'
  • Travel Length: brochure says 20' 10"; actual (with spare tire) - 21'
  • Travel Width: 7' 6"
  • Closed Height: 67"
  • Dry Weight: 2526 lbs (brief weight explanation)
  • Hitch Weight: 311 lbs
  • GVWR: 3311 lbs
  • Coupler size: 2"
  • Sleeps: 4
  • Beds:
    1. 80" x 60"
    2. 80" x 50"

Features

  • 110V heated mattress
  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Propane oven
  • Double-pan sink
  • Portable toilet
  • Front storage trunk with sliding tray
  • 14" aluminum wheels (spare tire has a steel wheel)
  • Electric roof-lift assist

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two ProRac Systems cross-bars permanently mounted on the roof
  • Two 20# propane tanks with automatic regulator
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • T21FSHW- Identical layout except the dinette area is repalced by sofa/bed and a small table, and the front roof panel has a dormer.
  • T21TBHW - Same 14' box but with a bulit-in cassette toilet instead of a portable toilet and two single beds that convert into a king bed (as opposed to the full-time queen bed).

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to Archives

To T-Series

Top of Page

Older Photos

Early Model 2016 Flagstaff T21QBHW exterior

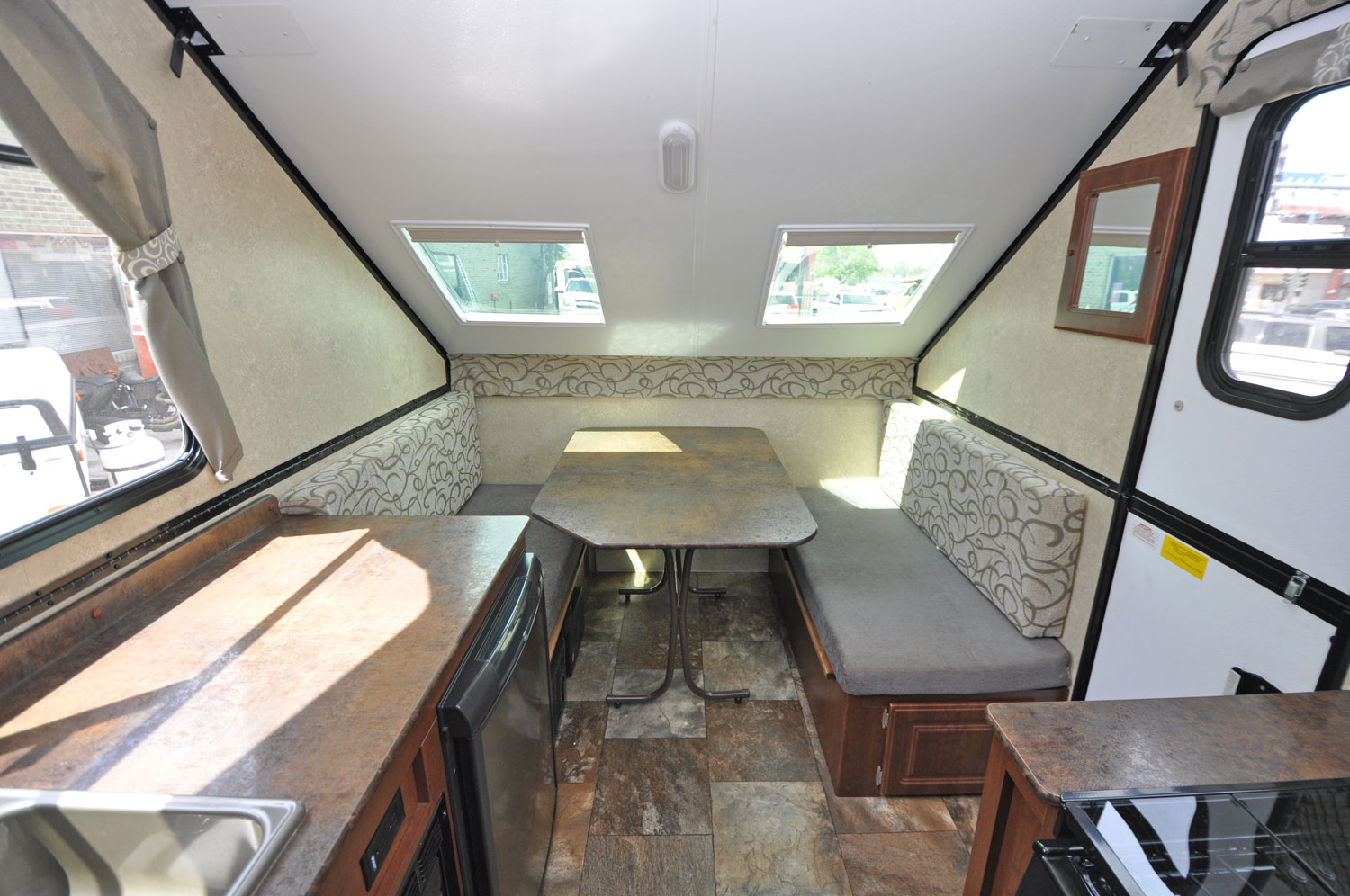

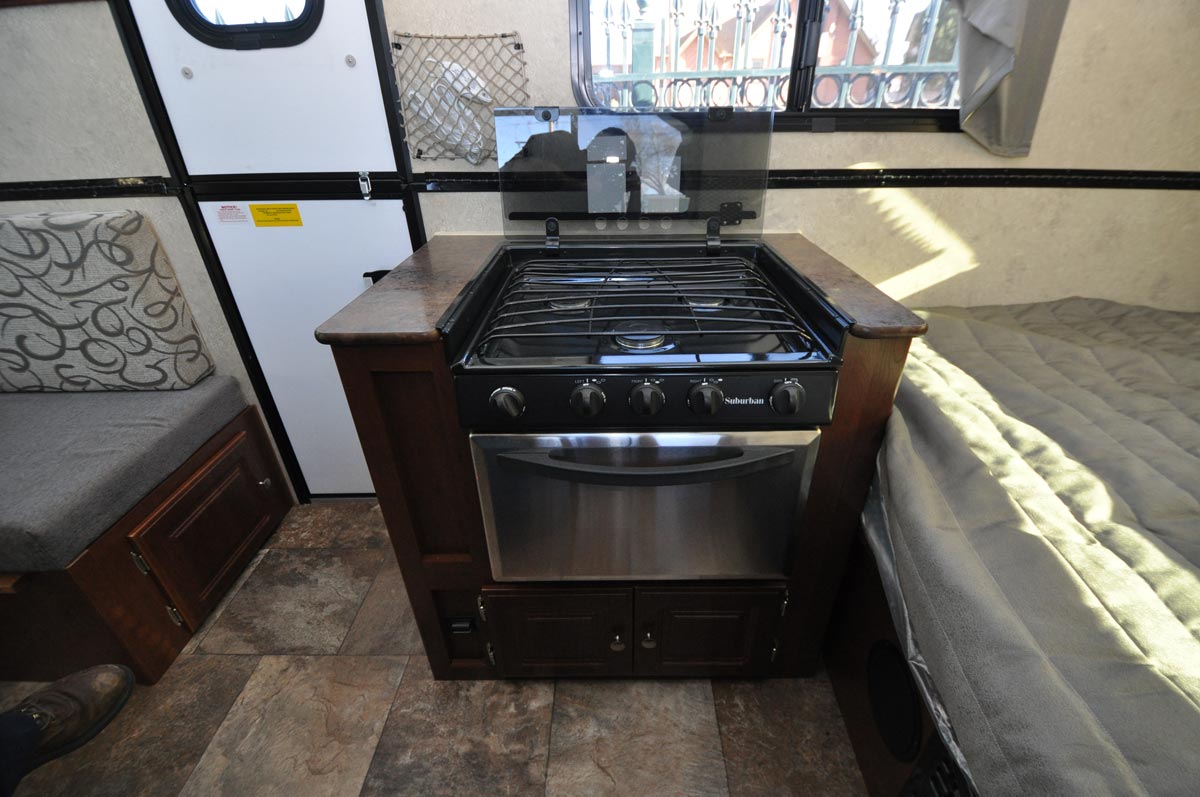

Early Model 2016 Flagstaff T21QBHW front Early Model 2016 Flagstaff T21QBHW rear Early Model 2016 Flagstaff T21QBHW galley Early Model 2016 Flagstaff T21QBHW stove/oven

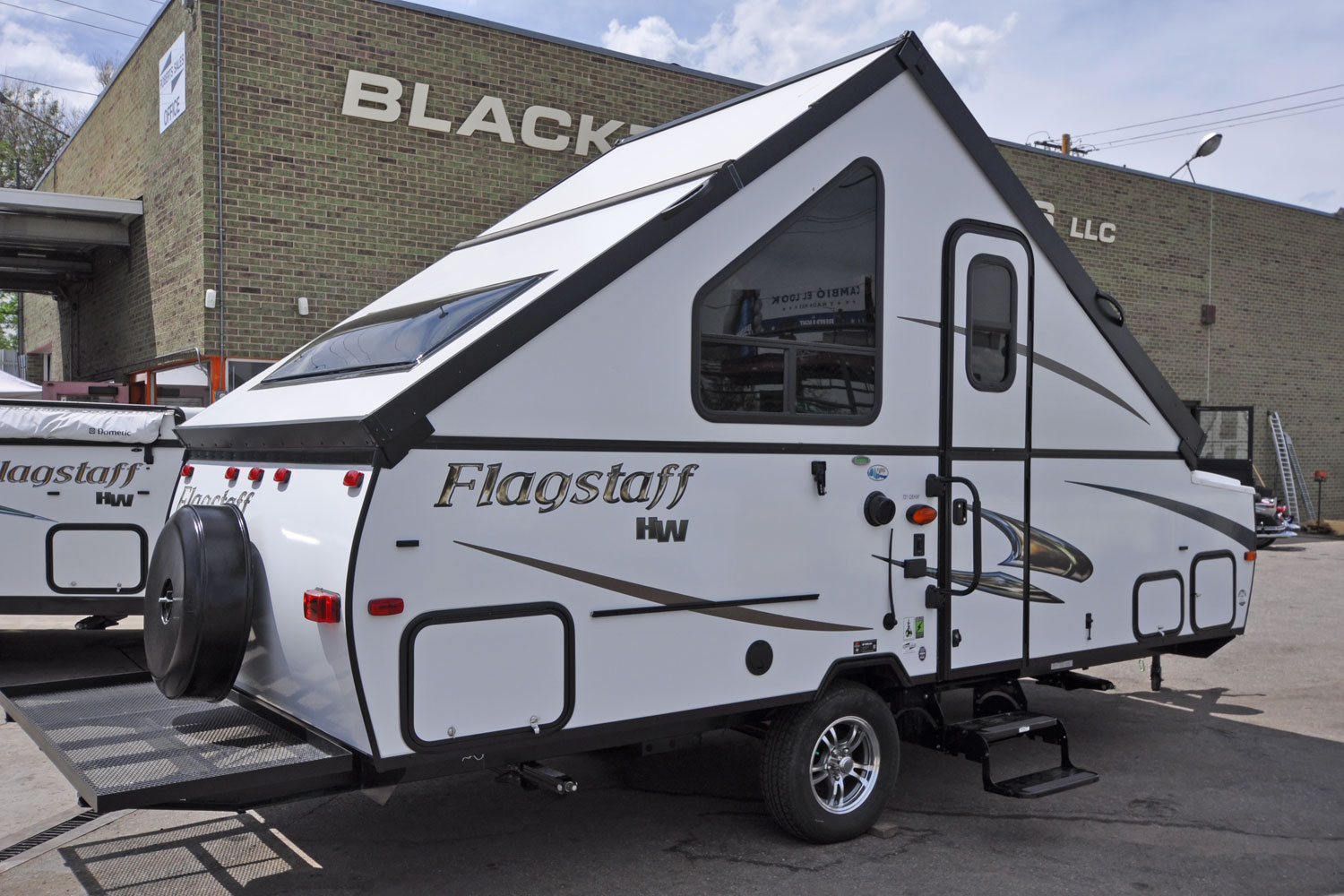

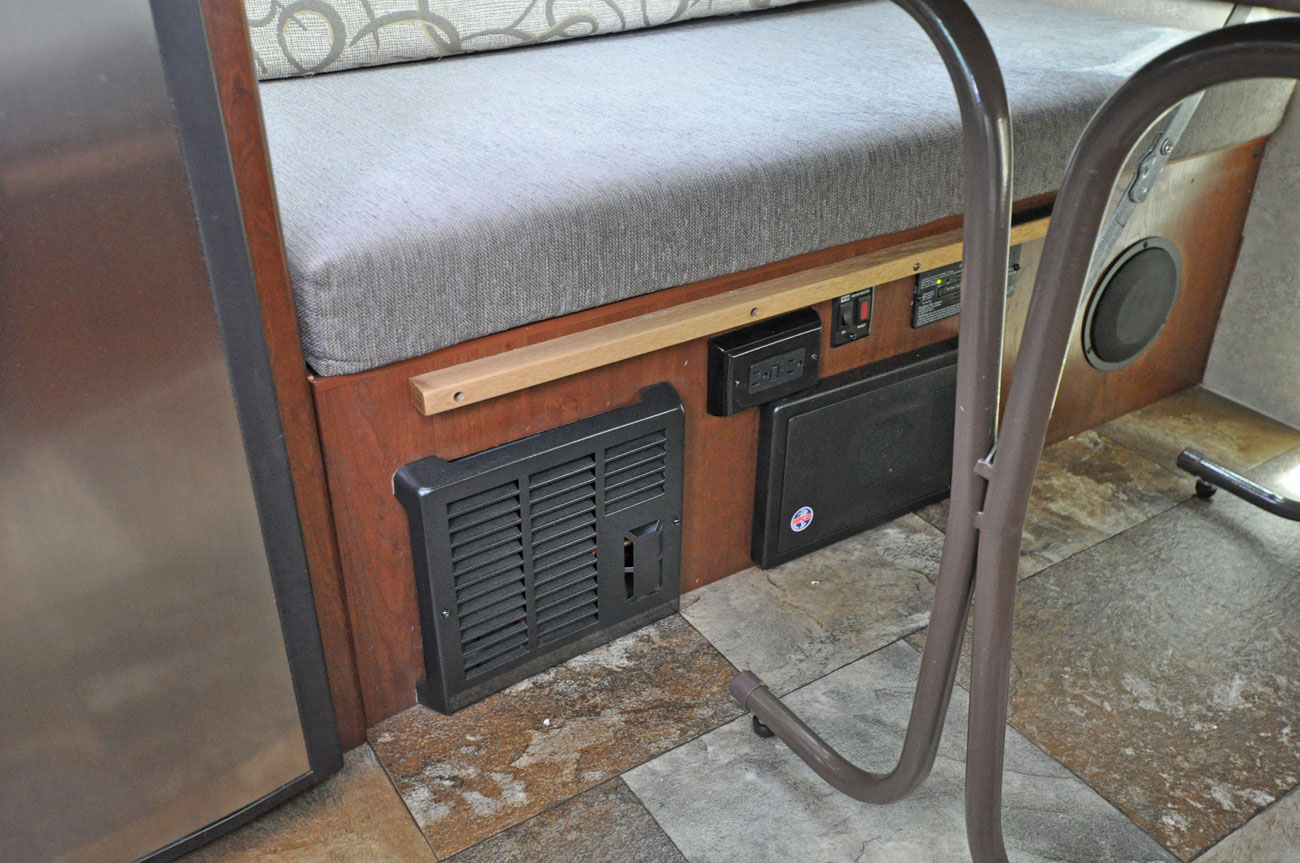

Early Model 2016 Flagstaff T21QBHW stove open Early Model 2016 Flagstaff T21QBHW furnace Early Model 2016 Flagstaff T21QBHW stereo Early Model 2016 Flagstaff T21QBHW exterior 3/4

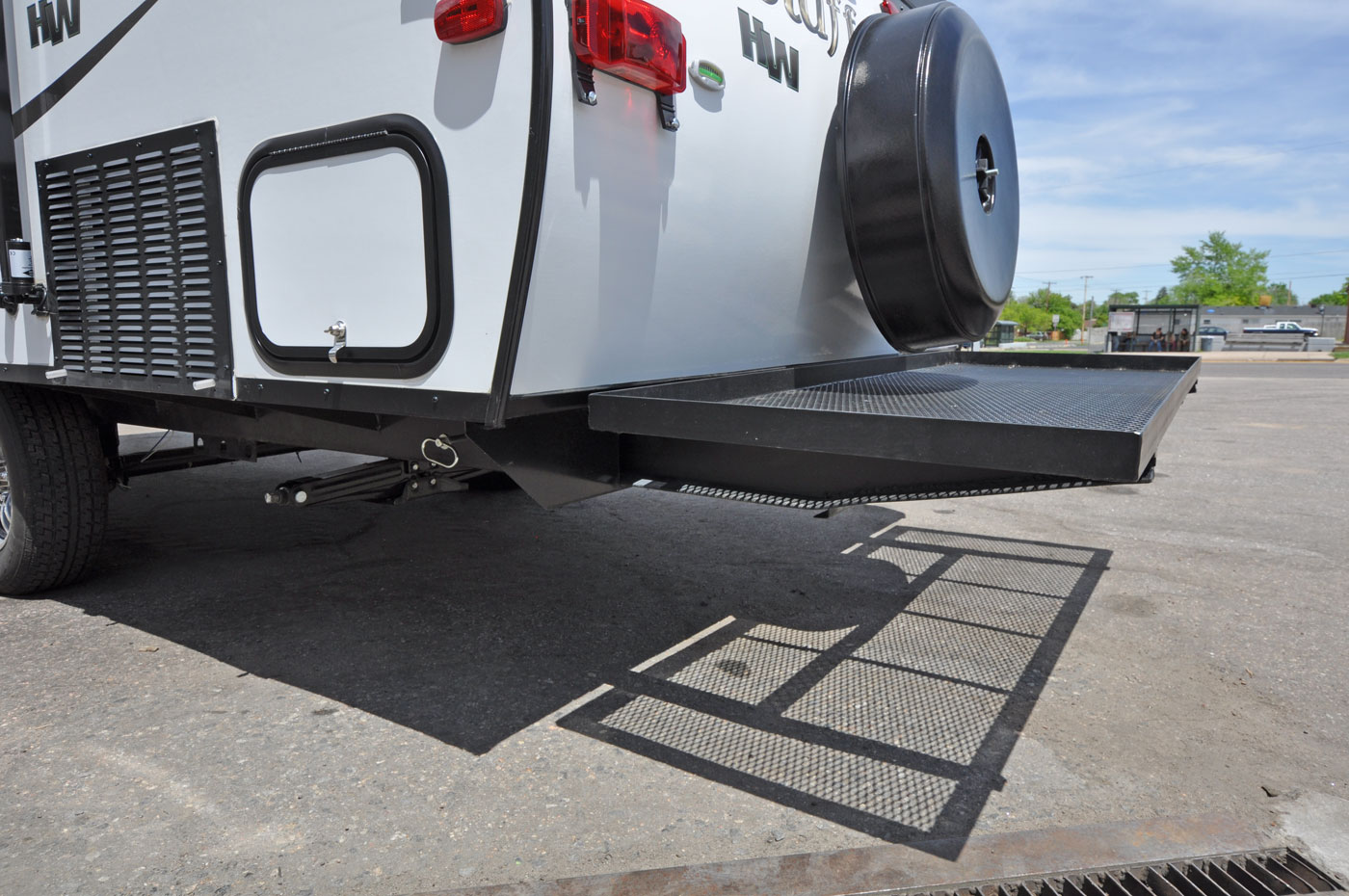

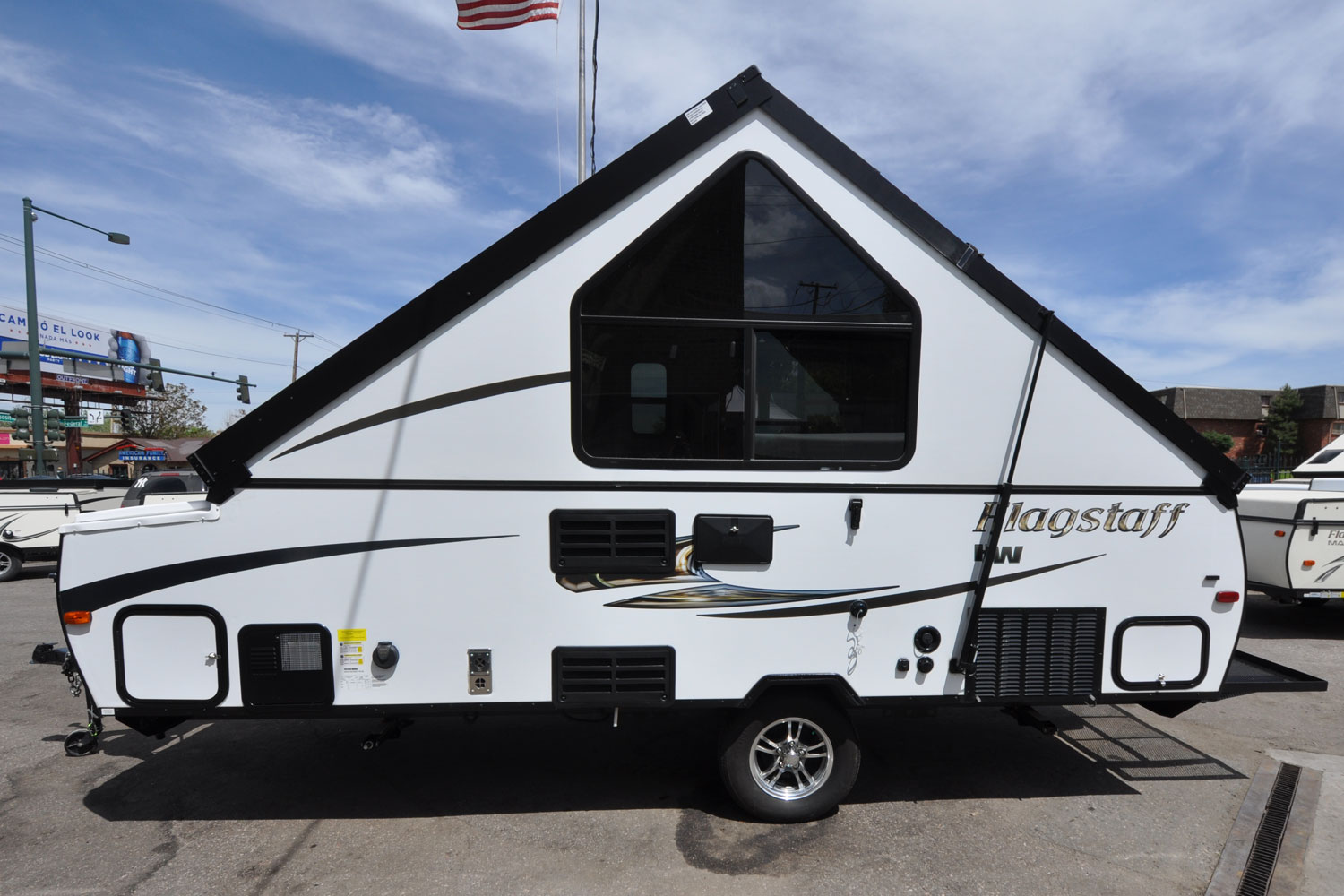

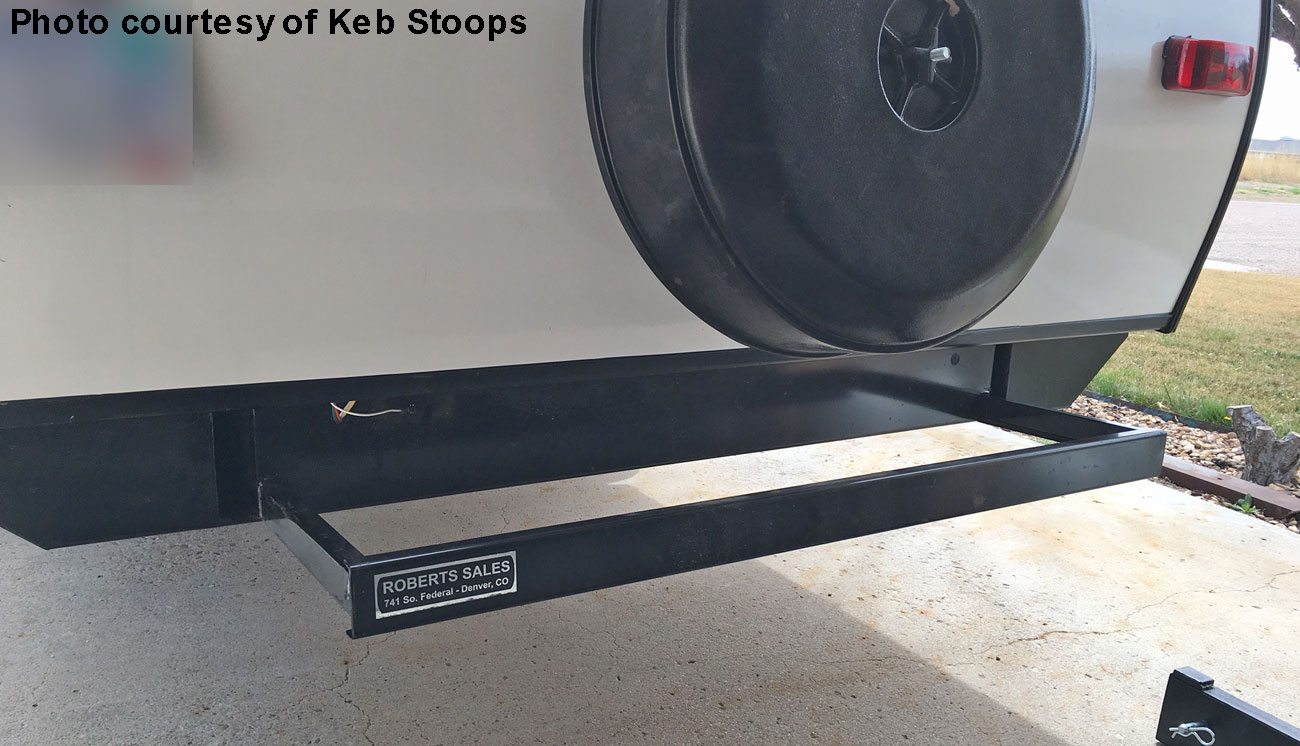

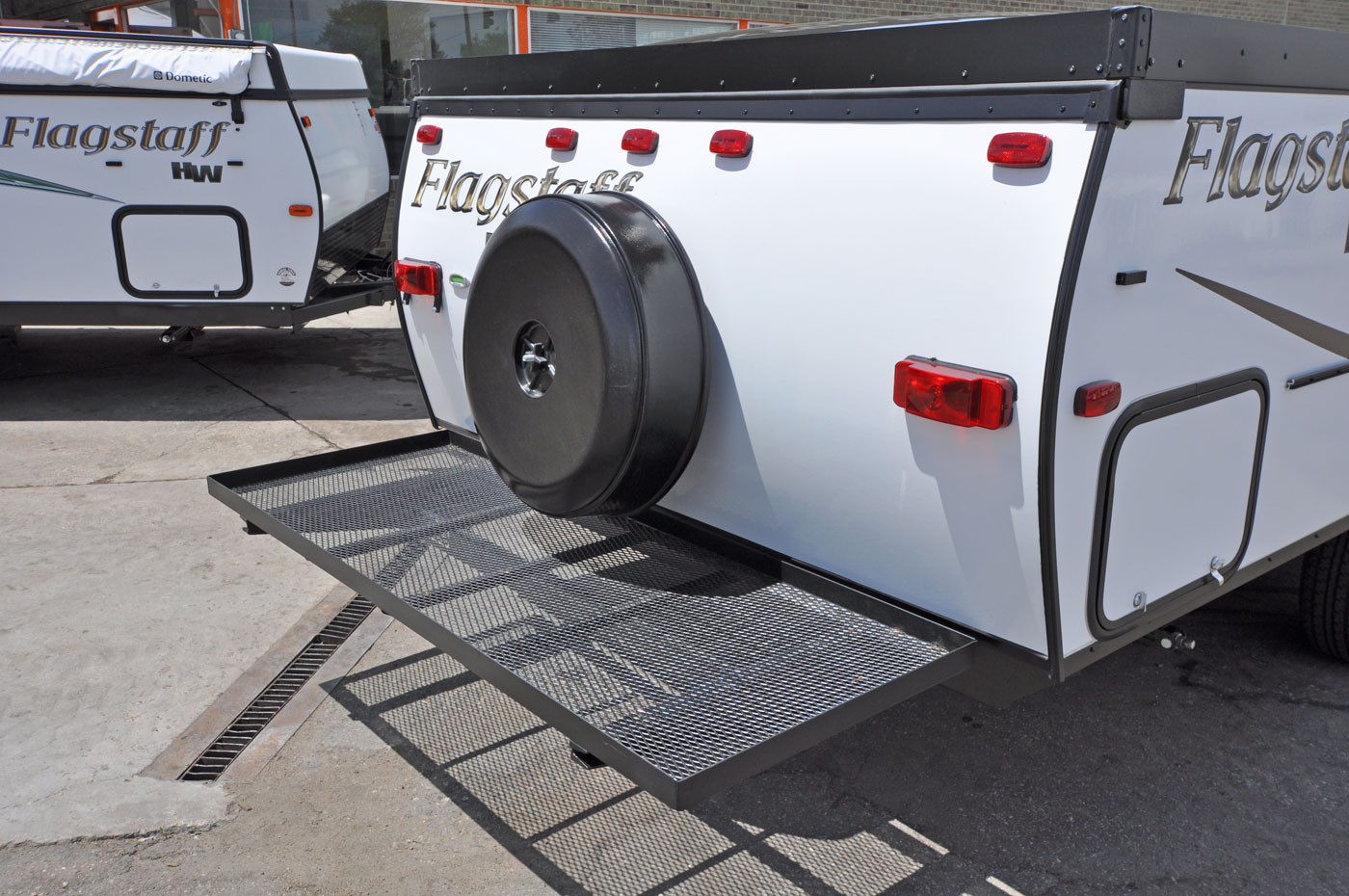

Early Model 2016 Flagstaff T21QBHW back-side Early Model 2016 Flagstaff T21QBHW custom rack Early Model 2016 Flagstaff T21QBHW custom rack 2 Early Model 2016 Flagstaff T21QBHW custom rack removed

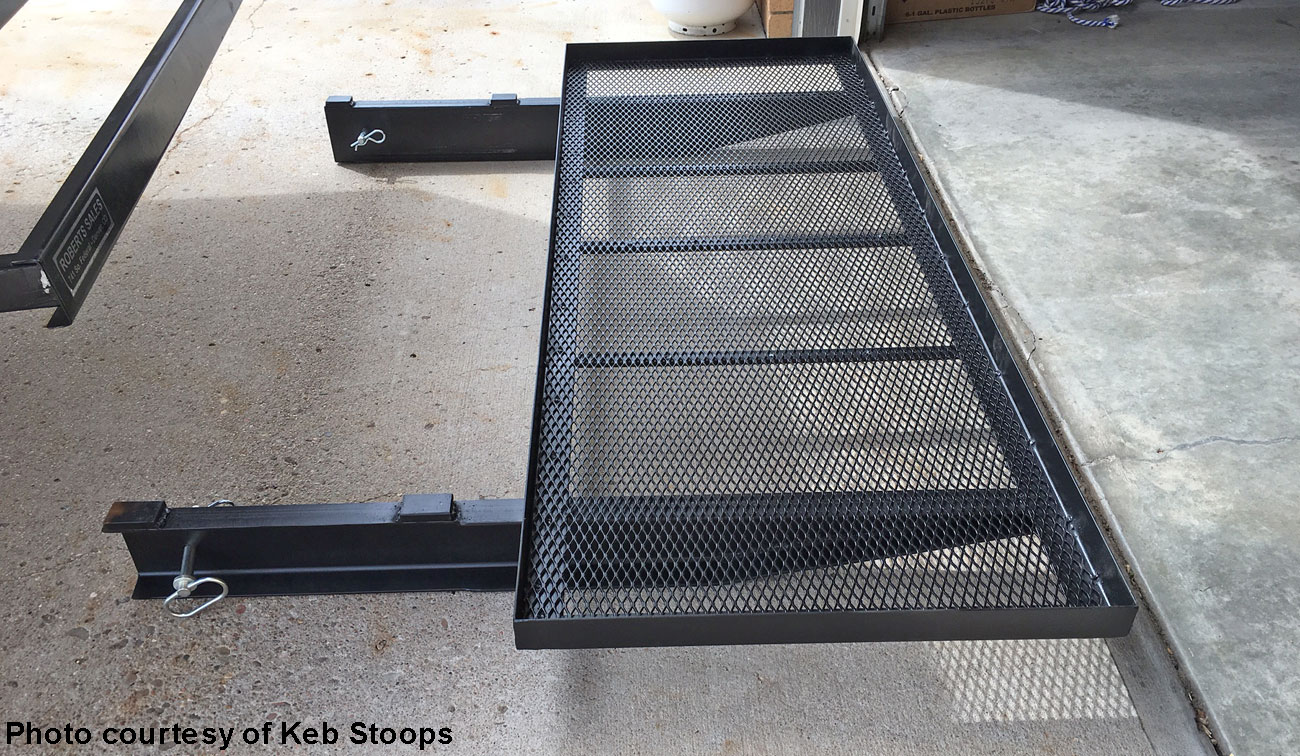

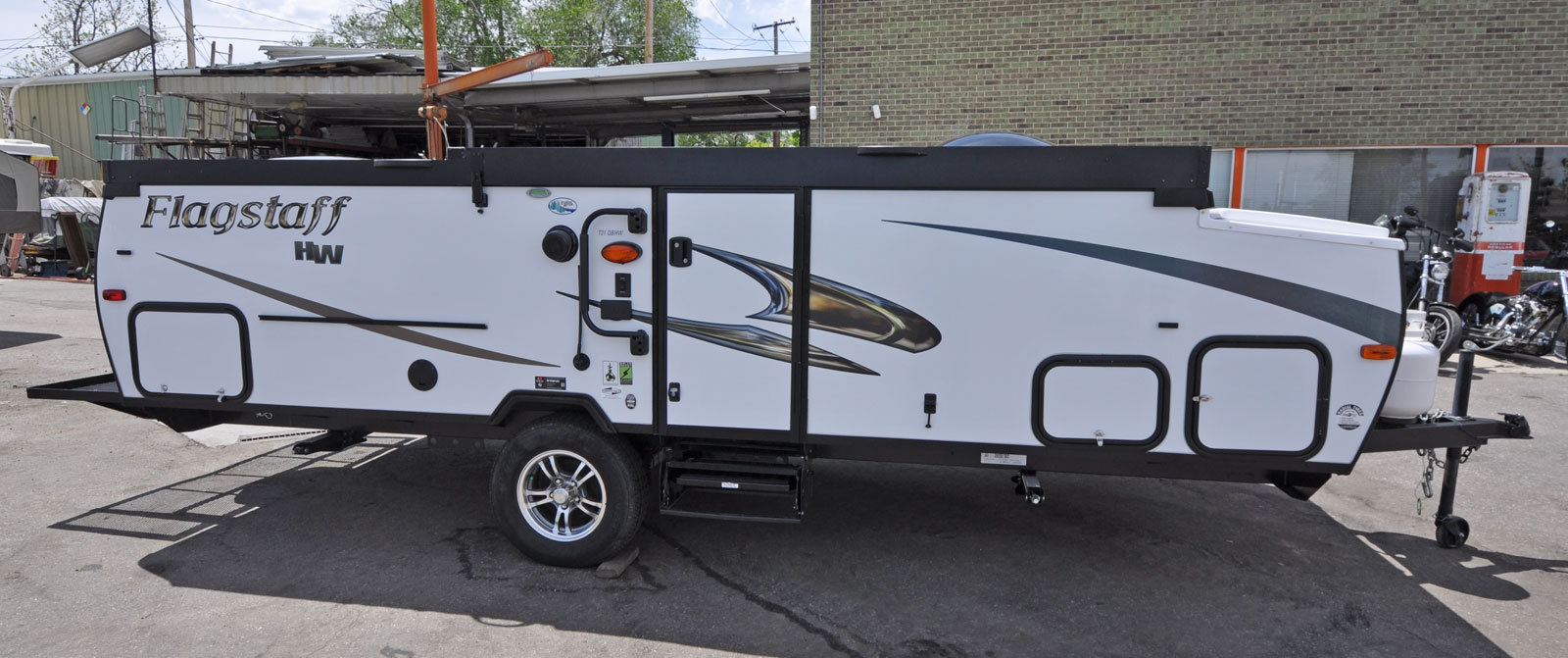

Early Model 2016 Flagstaff T21QBHW custom rack by itself Early Model 2016 Flagstaff T21QBHW exterior down

(used early model 2016 camper shown, with custom aftermarket bumper rack)

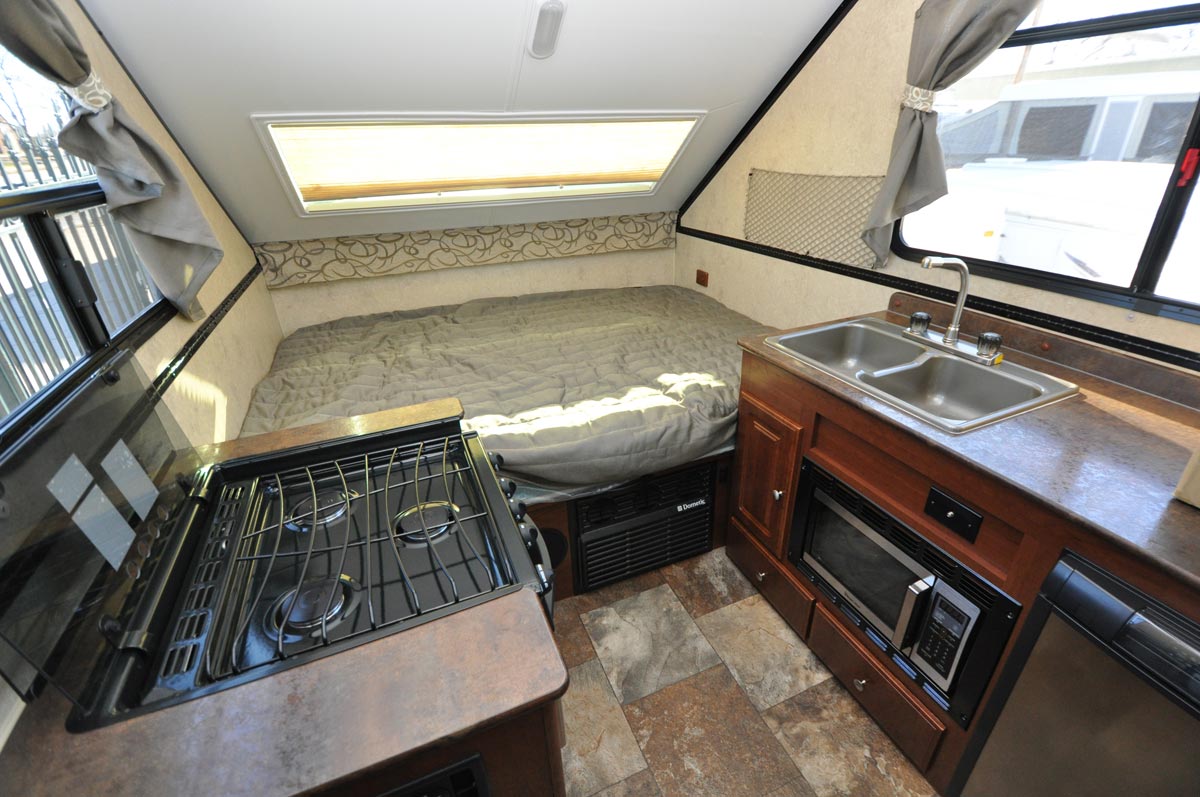

2015 Flagstaff T21QBHW exterior view Flagstaff T21QBHW profile Flagstaff T21QBHW exterior back-side view Flagstaff T21QBHW rear 3/4 view

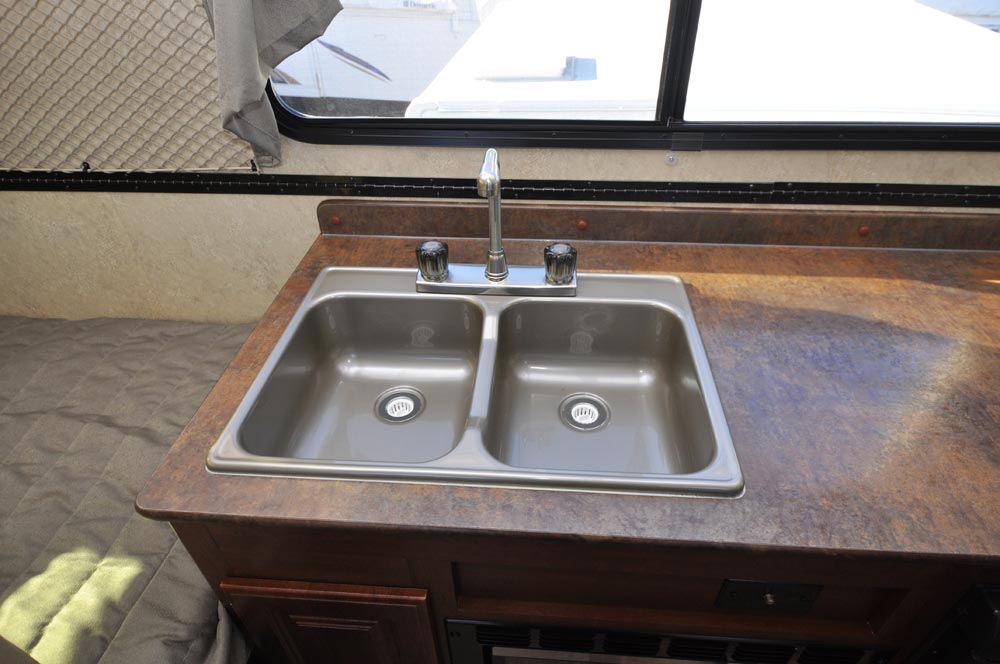

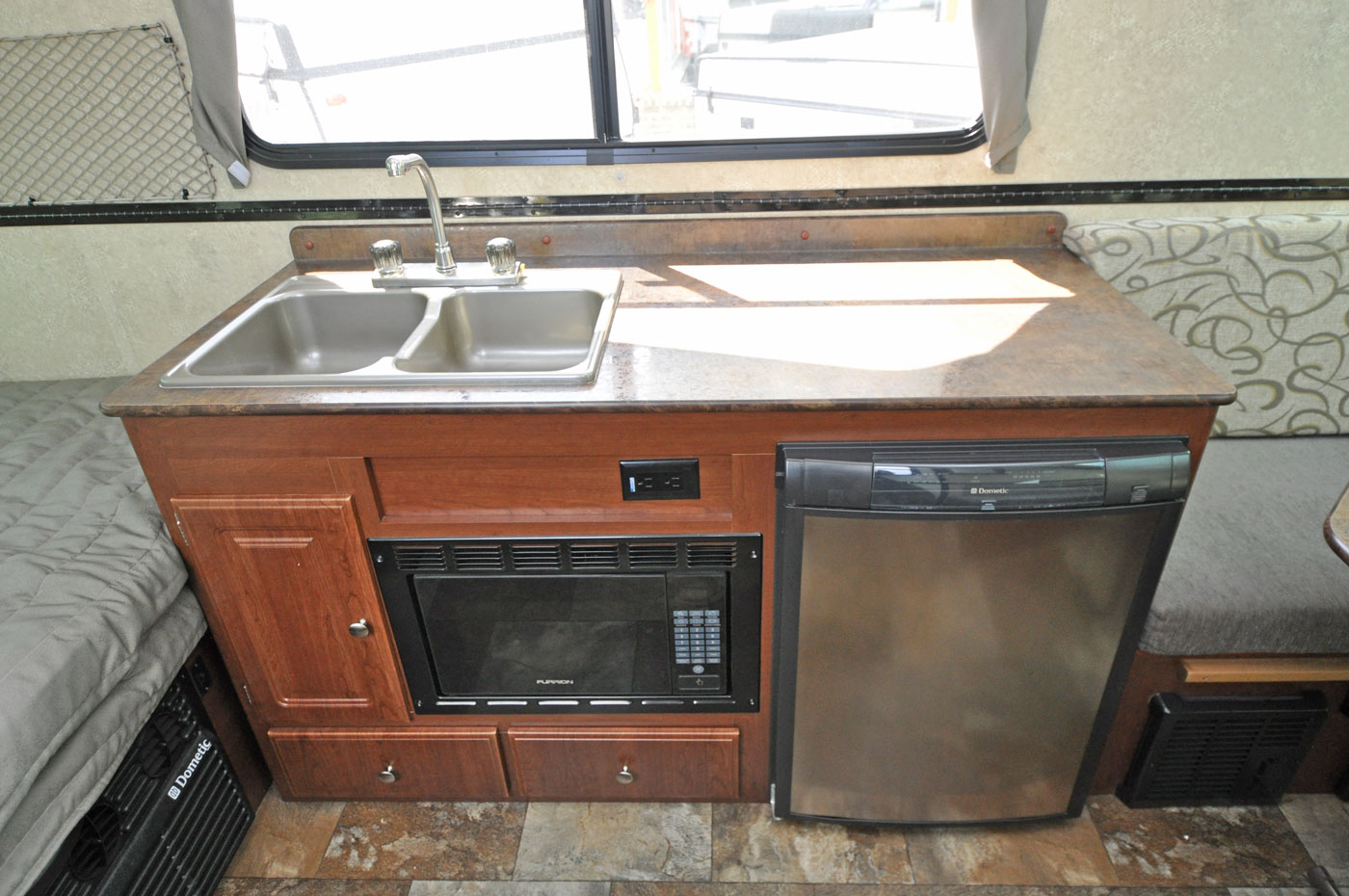

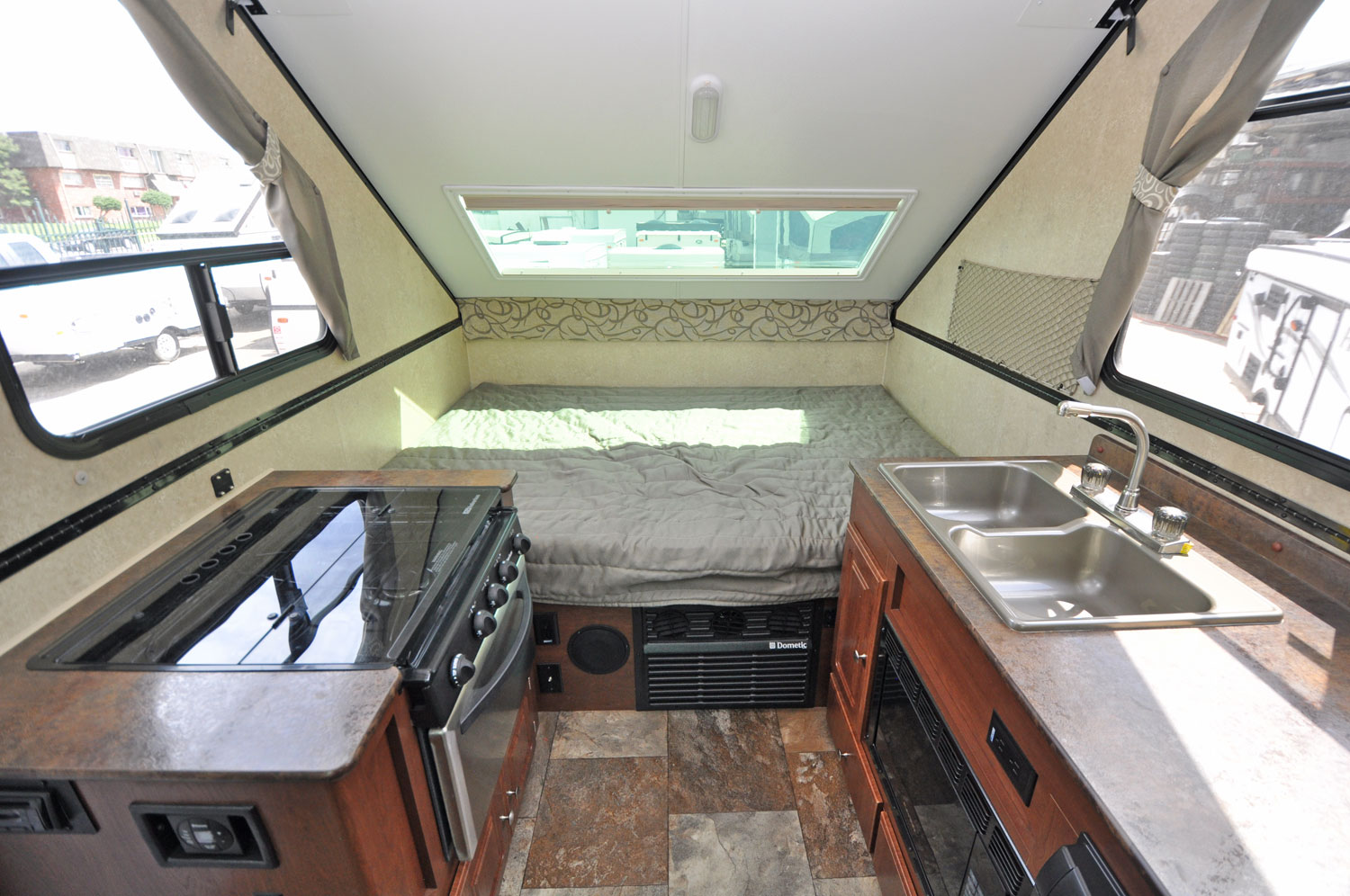

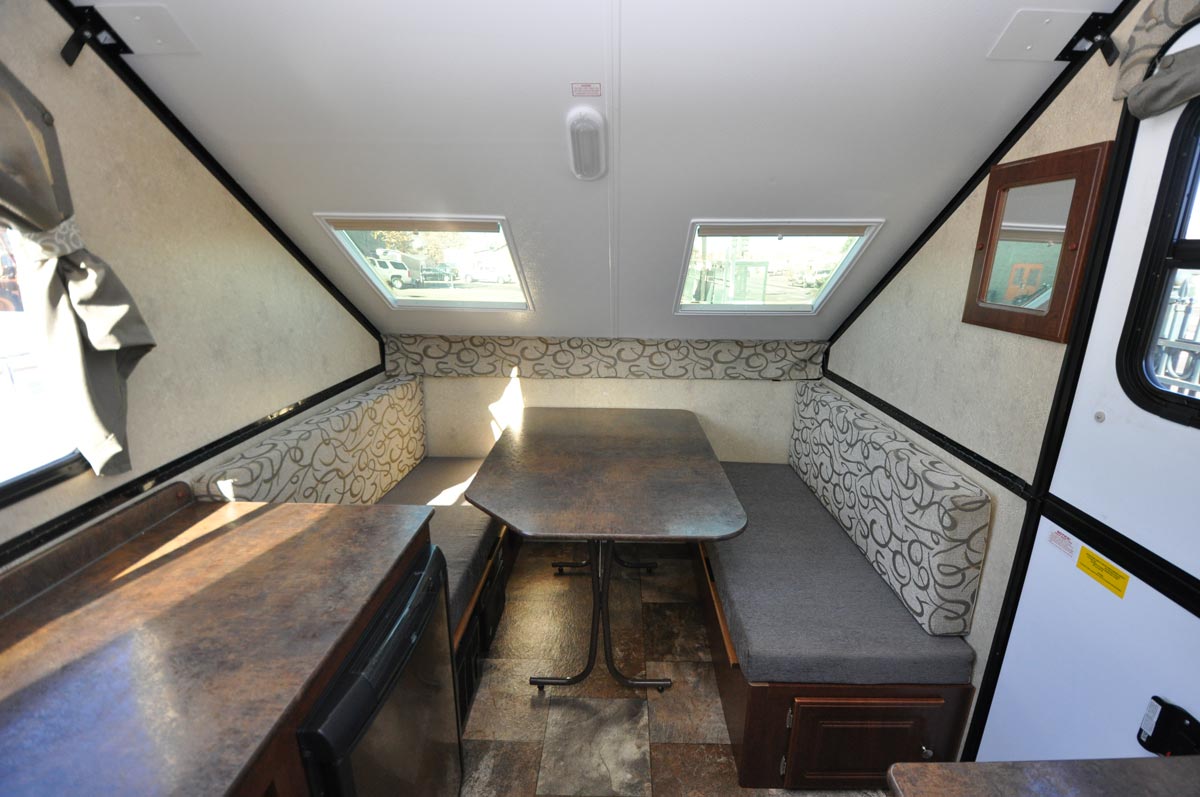

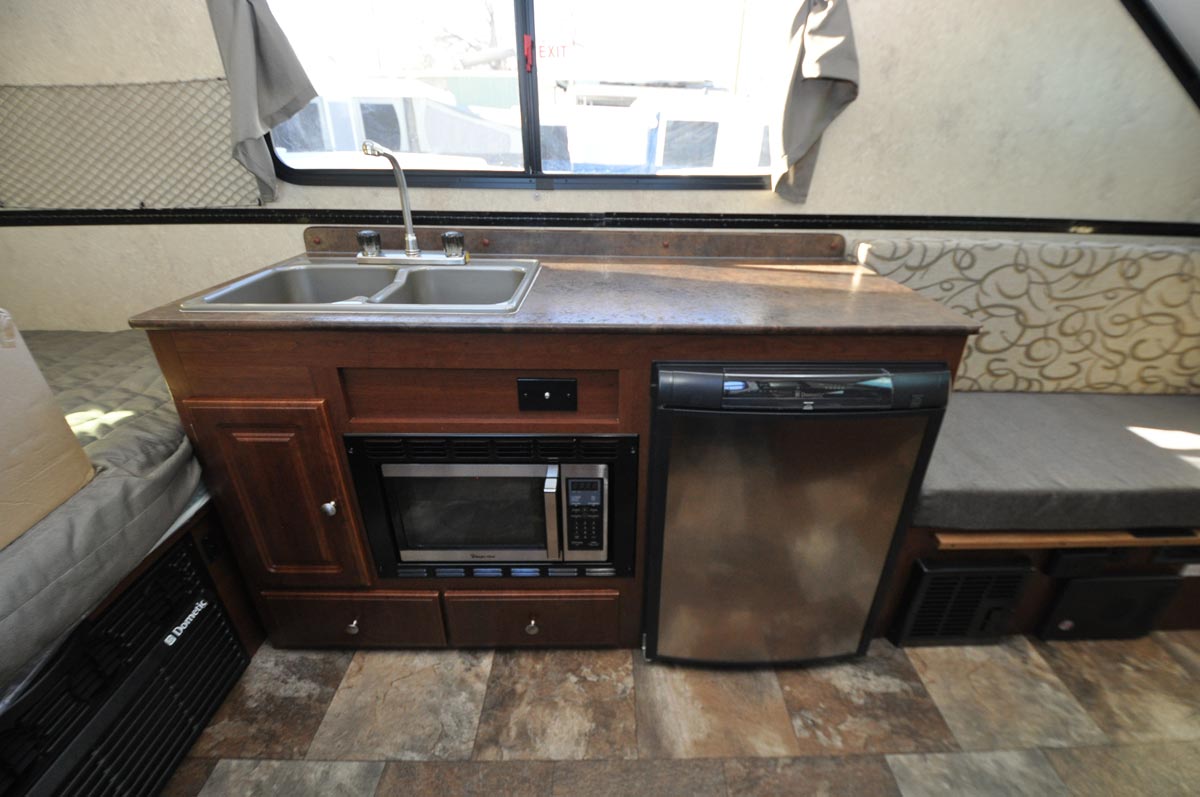

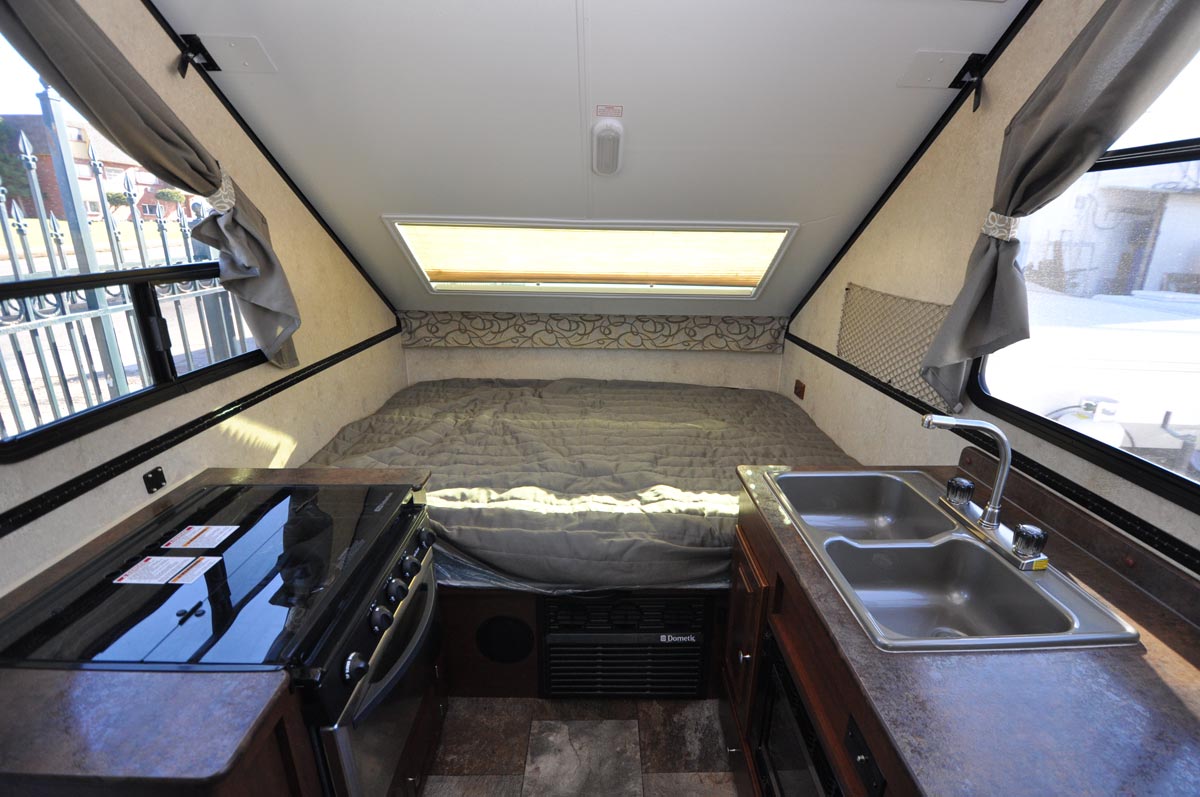

Flagstaff T21QBHW front Flagstaff T21QBHW rear view Flagstaff T21QBHW galley Flagstaff T21QBHW double-pan sink

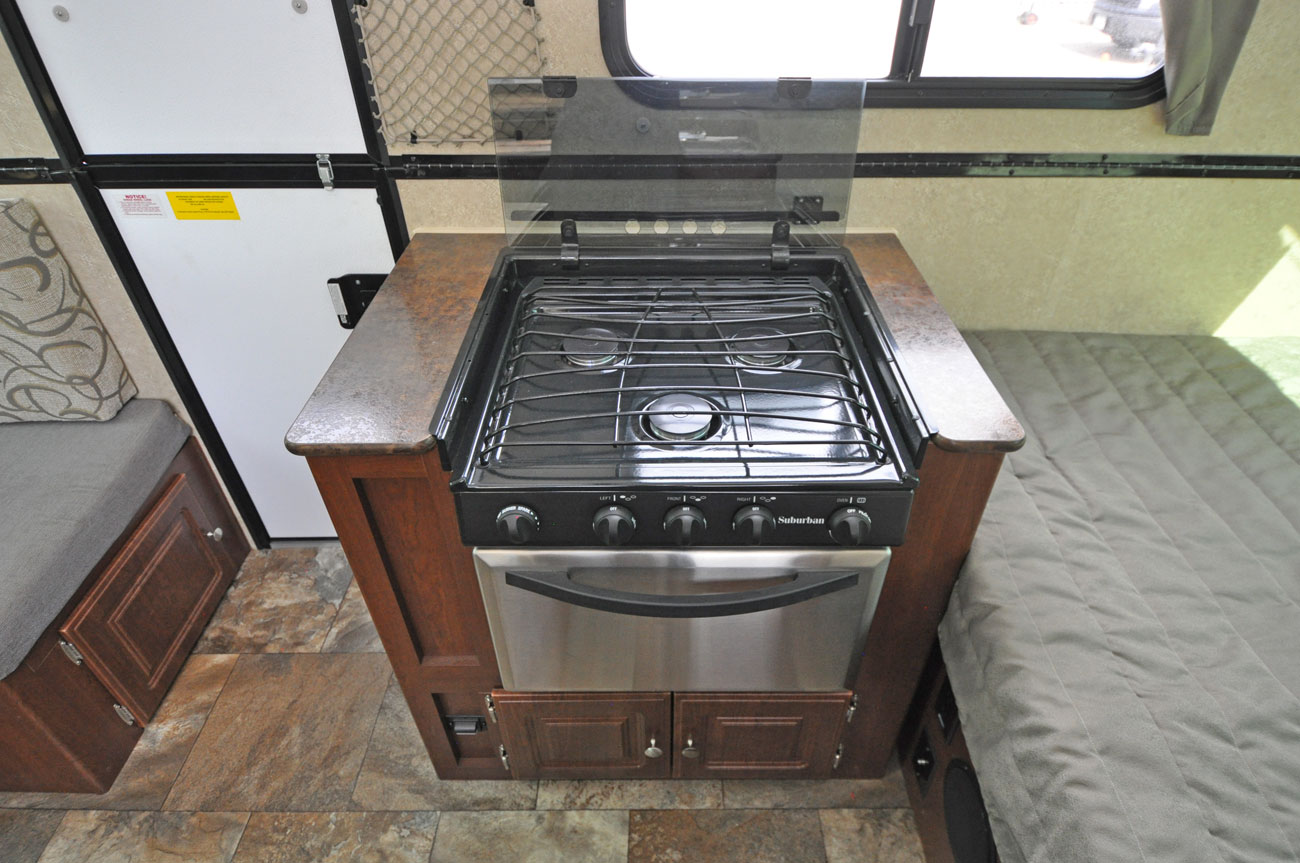

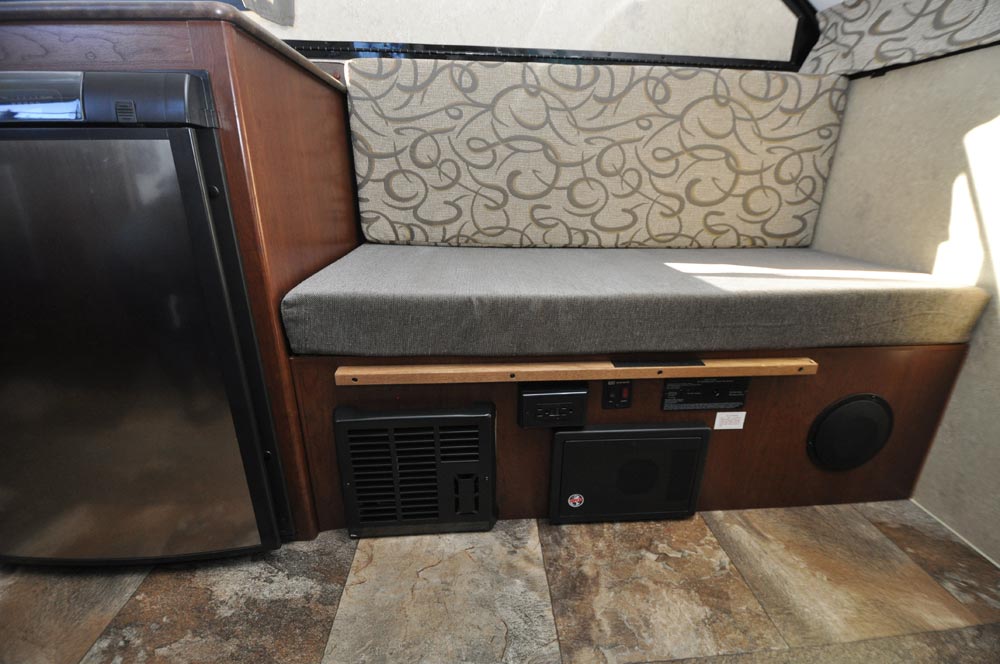

Flagstaff T21QBHW stove/oven combo Flagstaff T21QBHW furnace and converter area Flagstaff T21QBHW 4.0 cu. ft. fridge Flagstaff T21QBHW powered roof vent

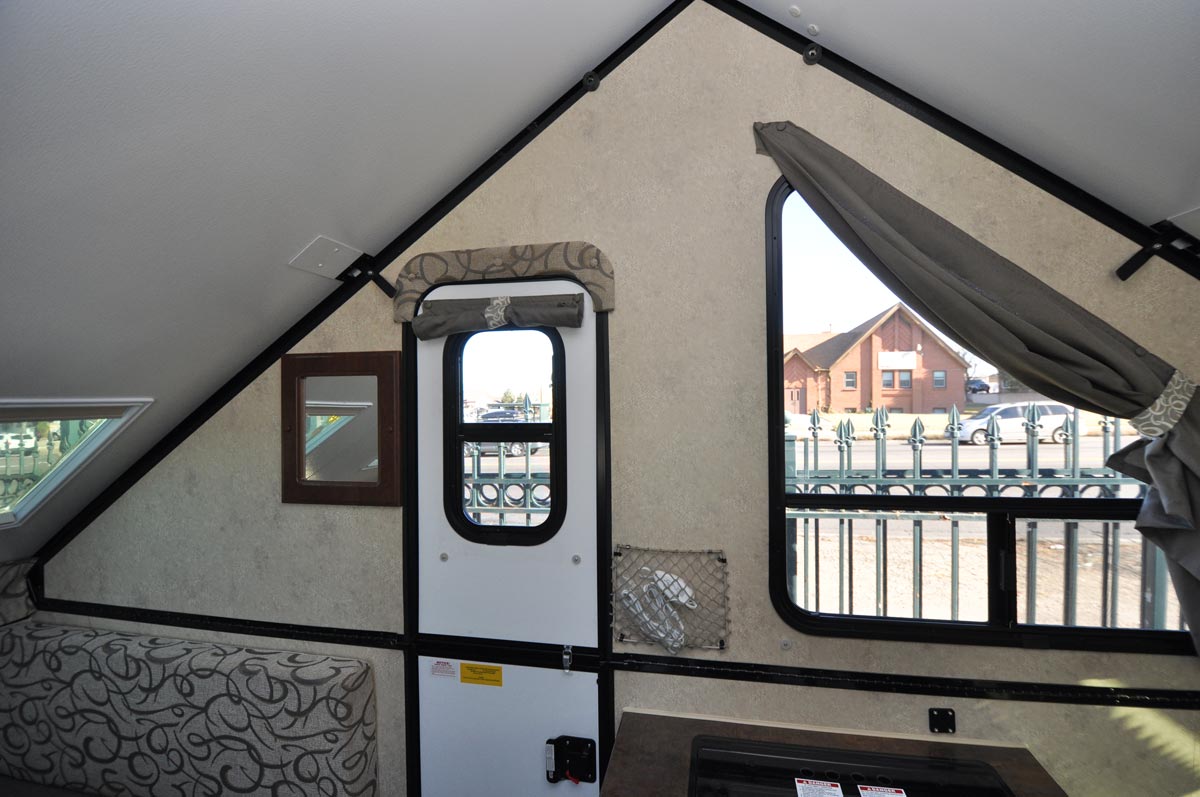

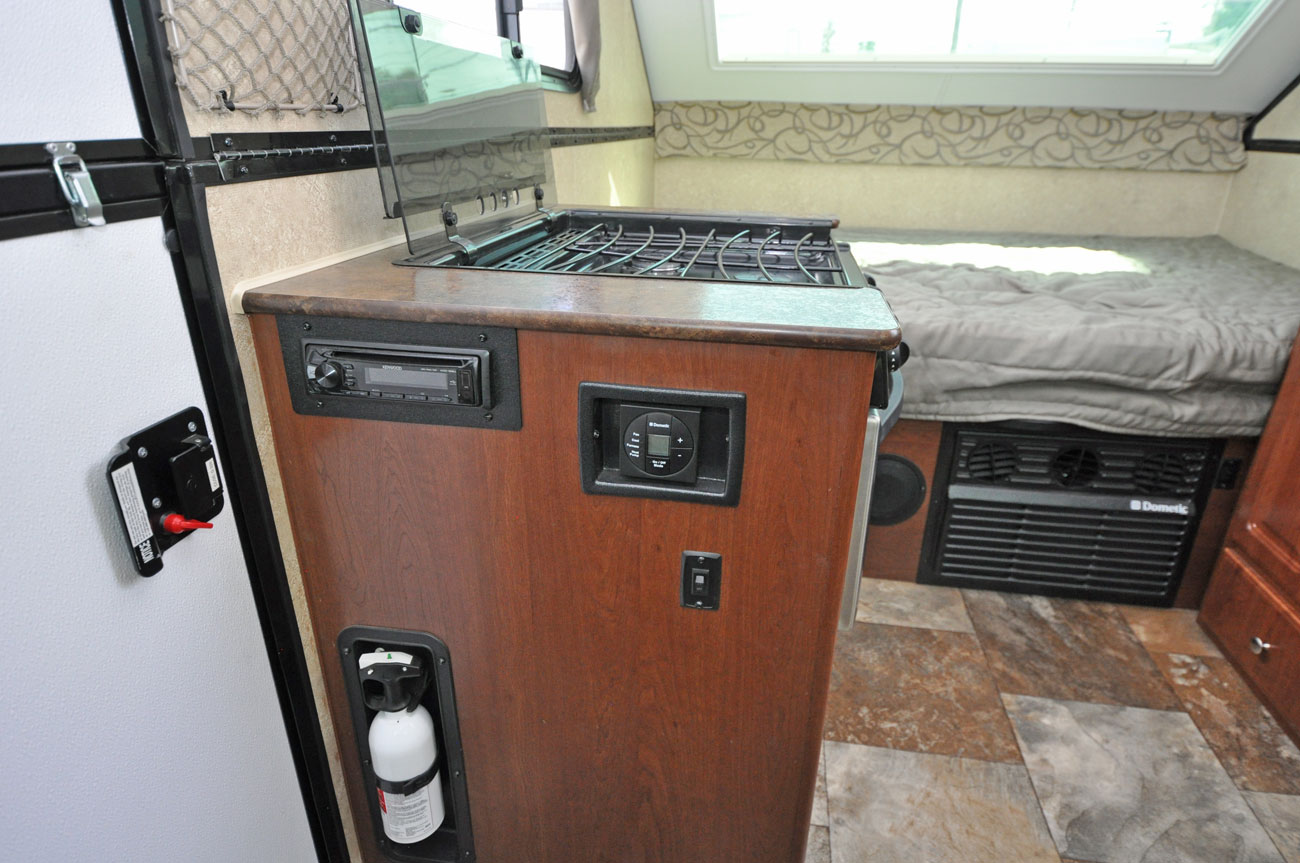

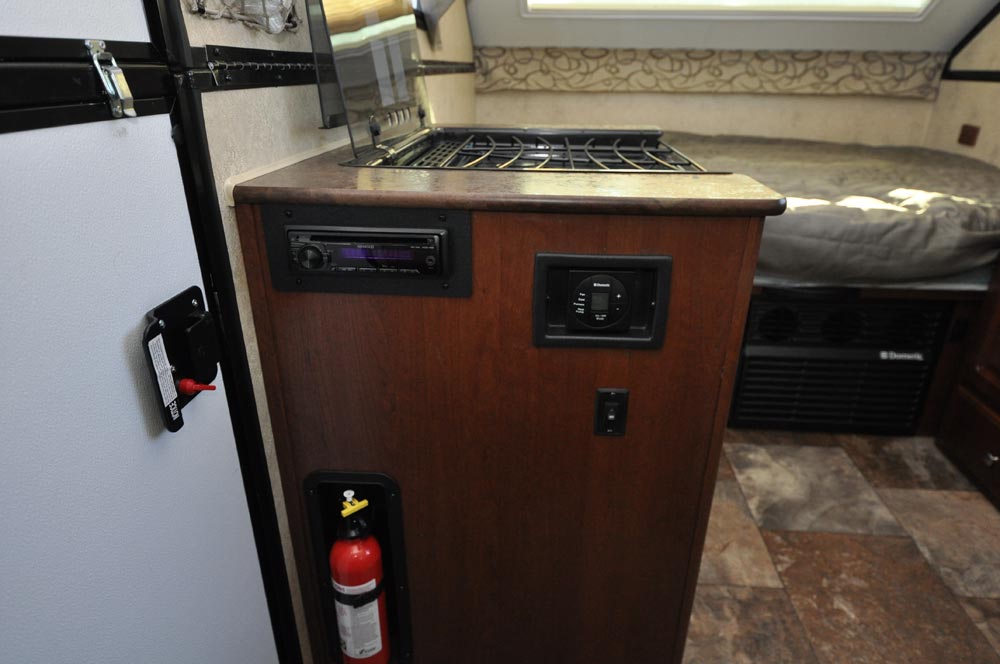

Flagstaff T21QBHW stereo and thermostat Flagstaff T21QBHW door-side interior view (2015 model year shown)
