Flagstaff T21FSHW



(2020-2021)

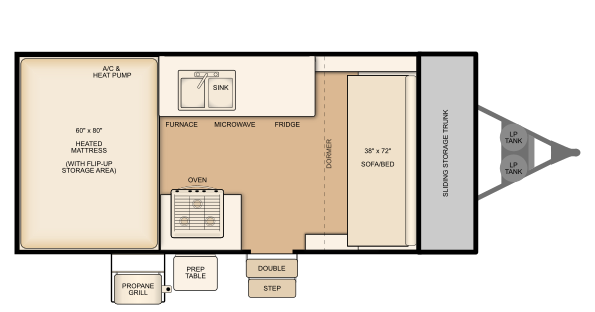

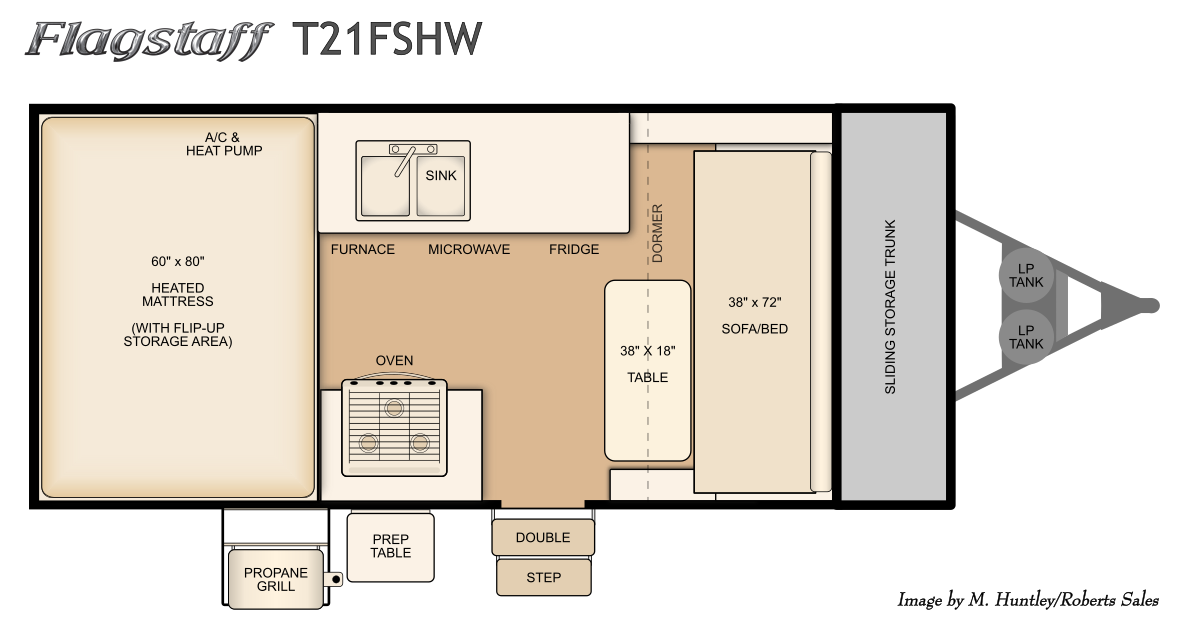

Flagstaff T21FSHW Floorplan

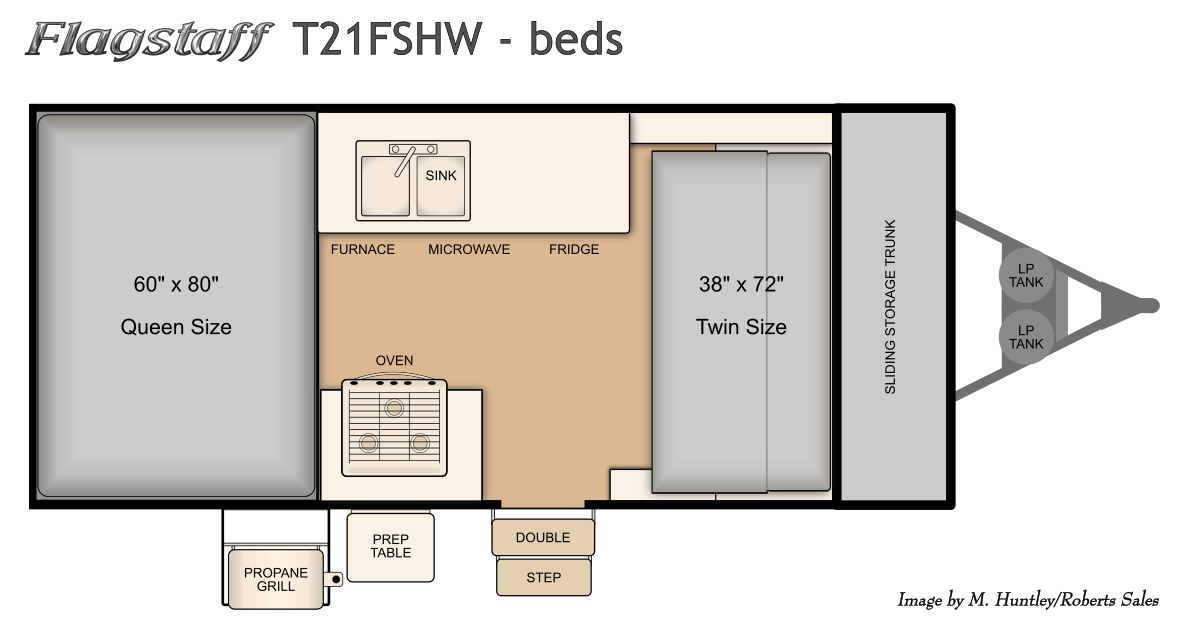

T21QBHW bed layout Flagstaff T21FSHW bed layout Flagstaff T21FSHW travel length and width

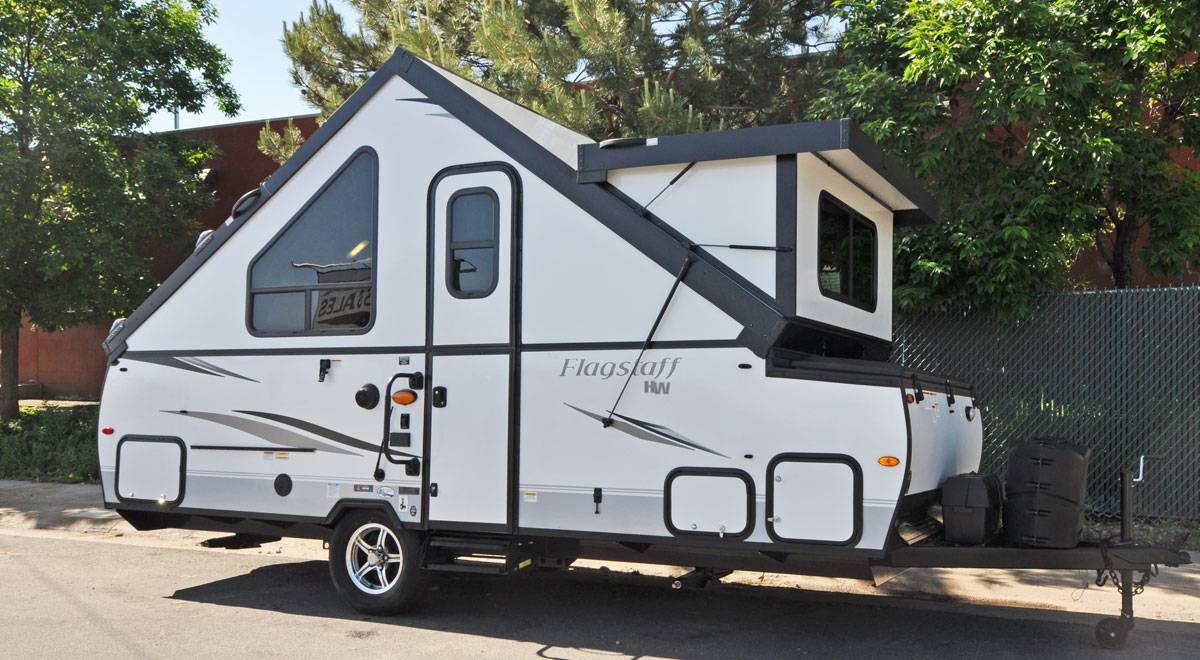

2021 Flagstaff T21FSHW exterior

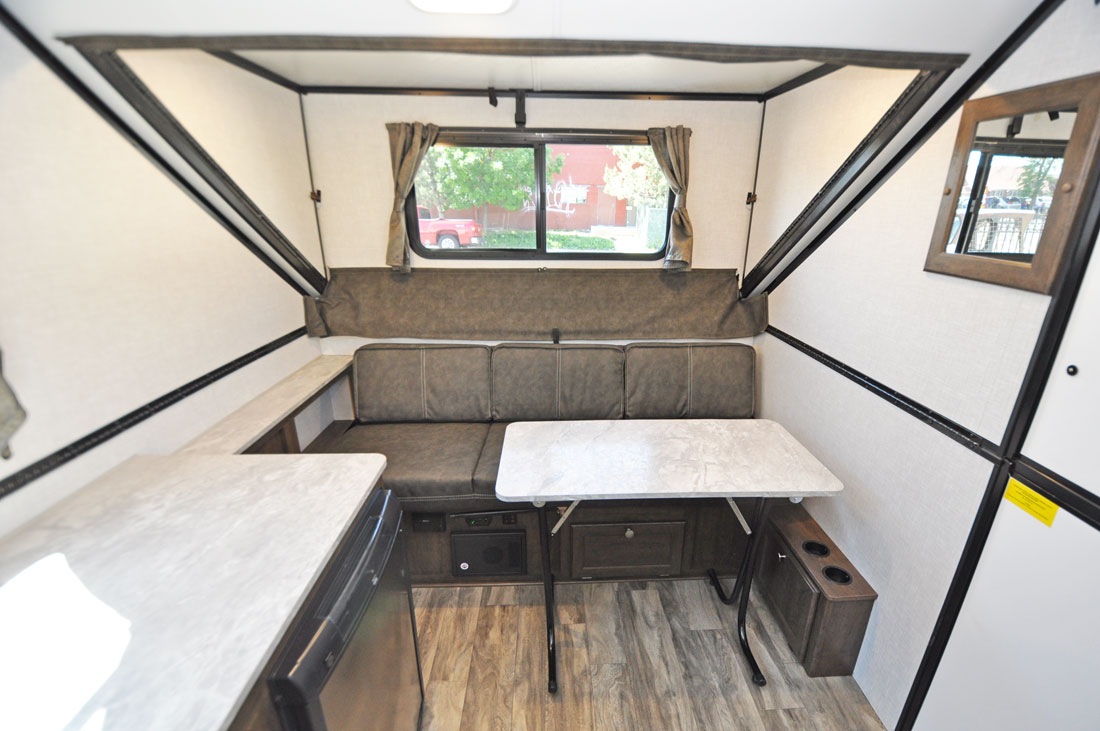

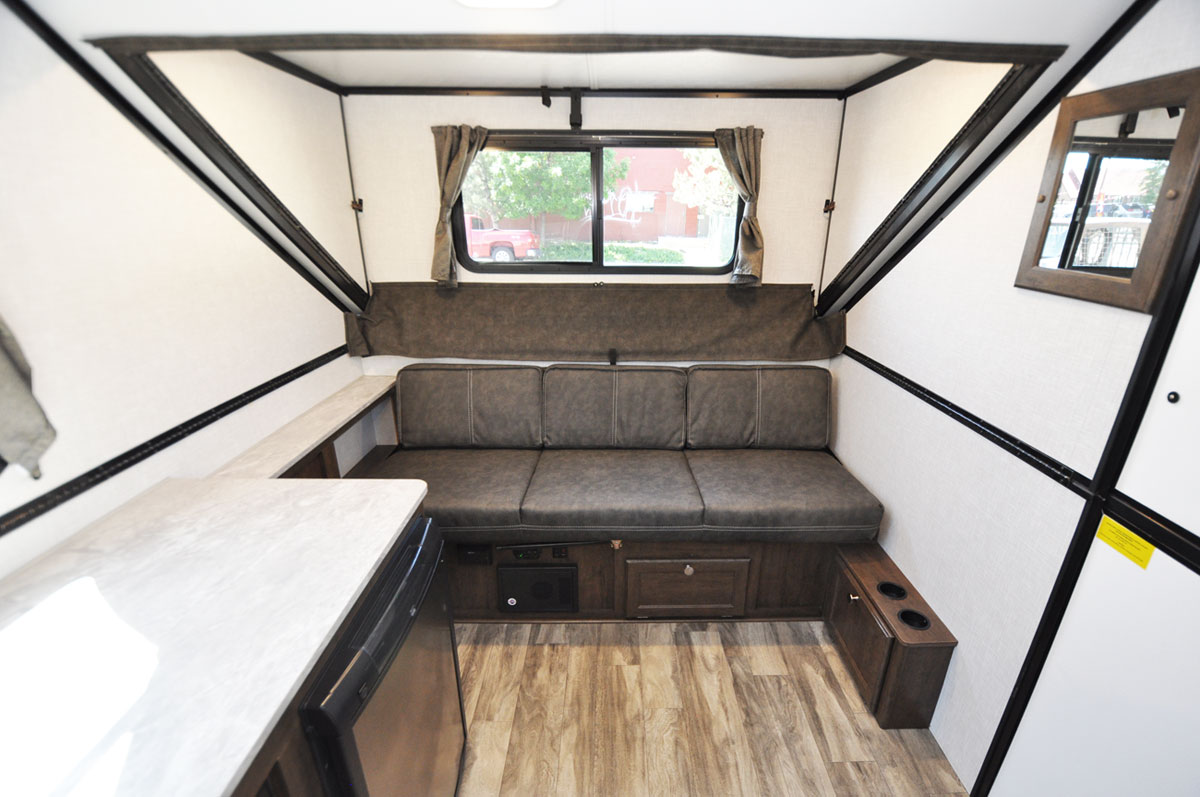

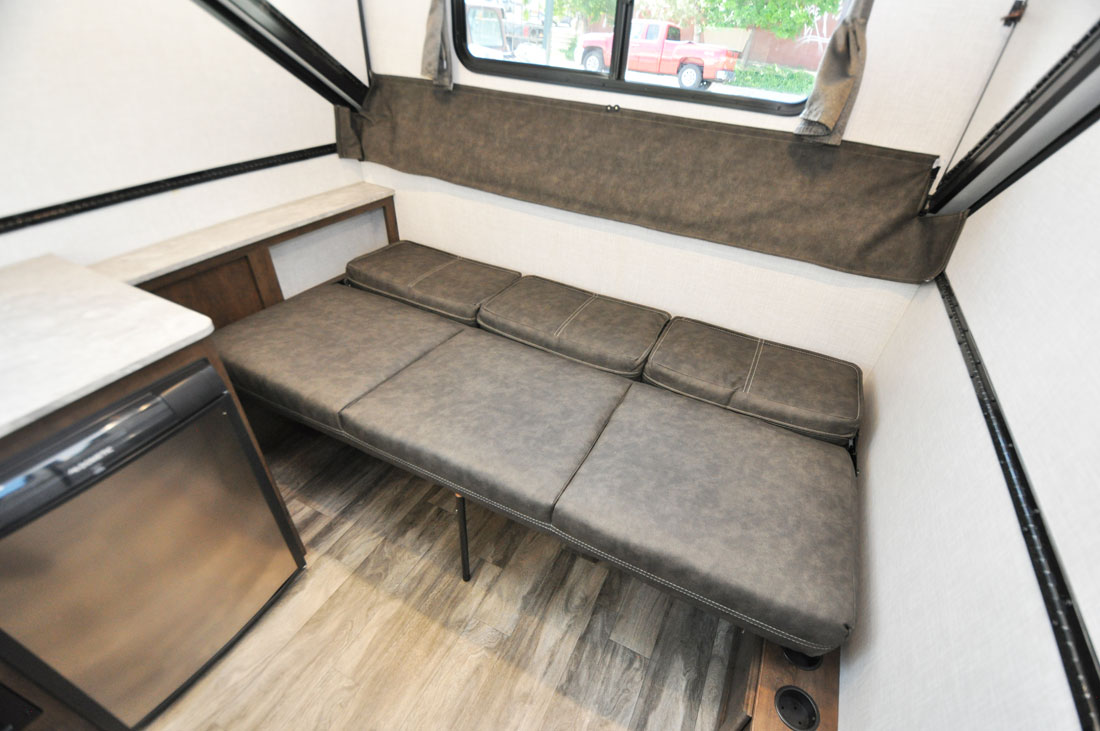

2021 Flagstaff T21FSHW rear view 2021 Flagstaff T21FSHW front view with table 2021 Flagstaff T21FSHW front view without table 2021 Flagstaff T21FSHW sofa as a bed

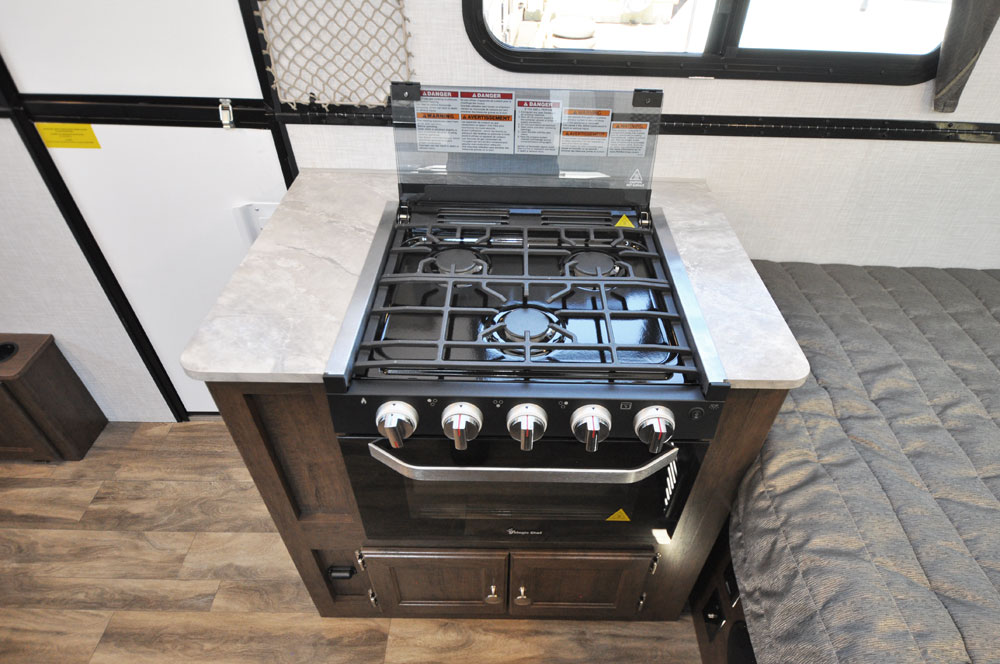

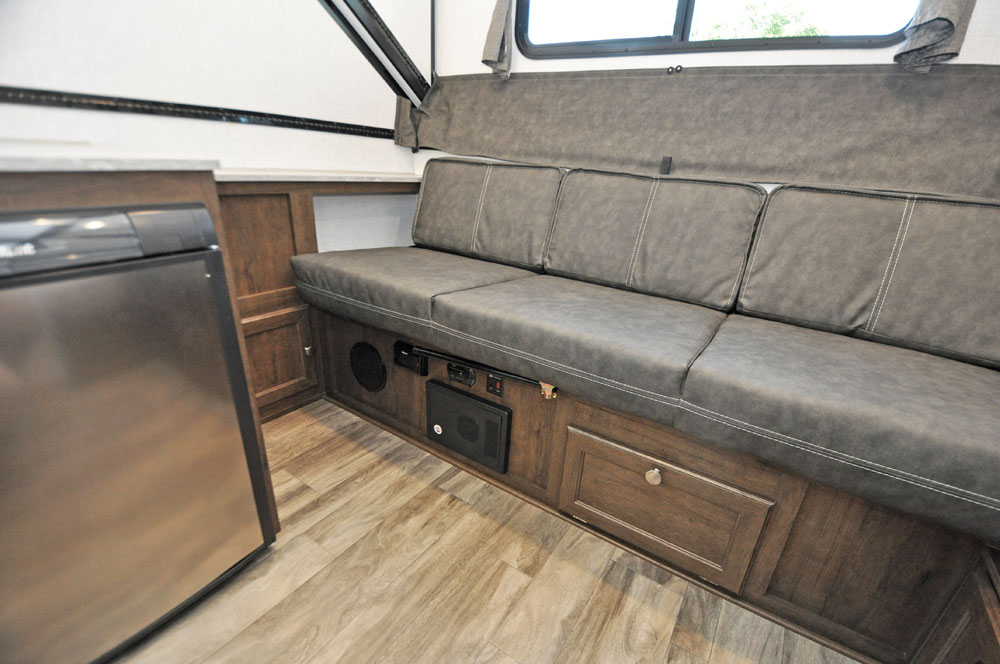

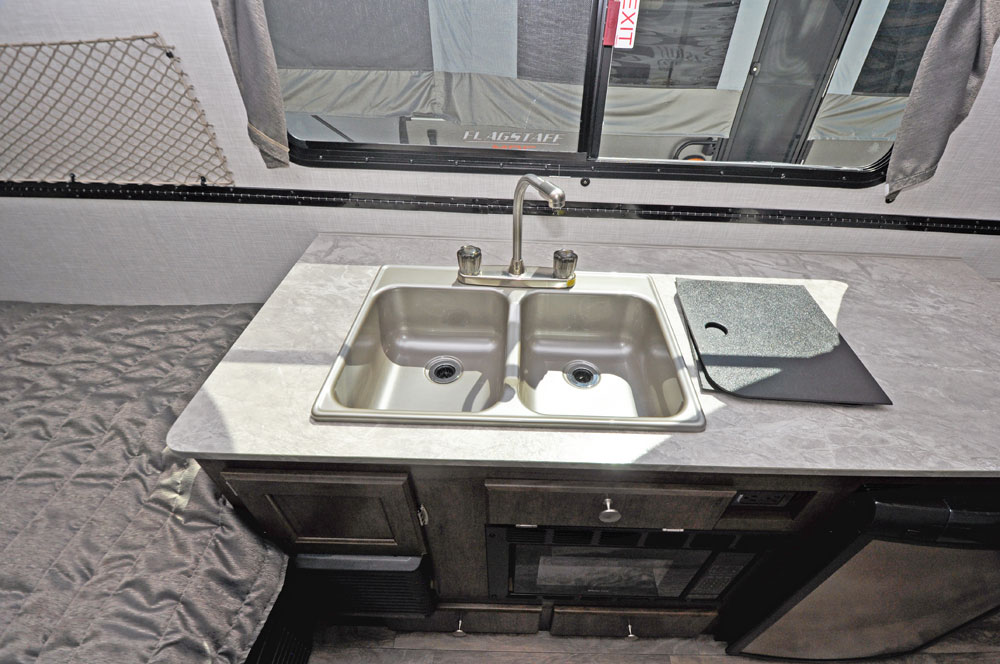

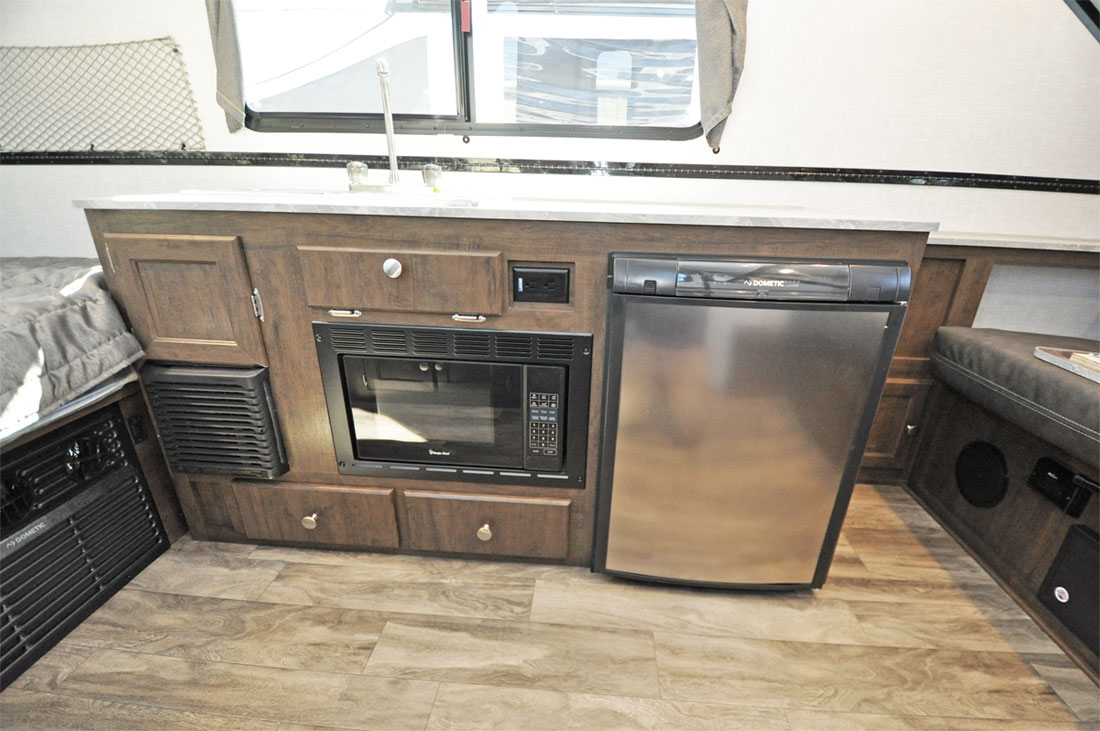

2021 Flagstaff T21FSHW range (stove/oven combo) 2021 Flagstaff T21FSHW galley 2021 Flagstaff T21FSHW double-pan sink 2021 Flagstaff T21FSHW sofa area

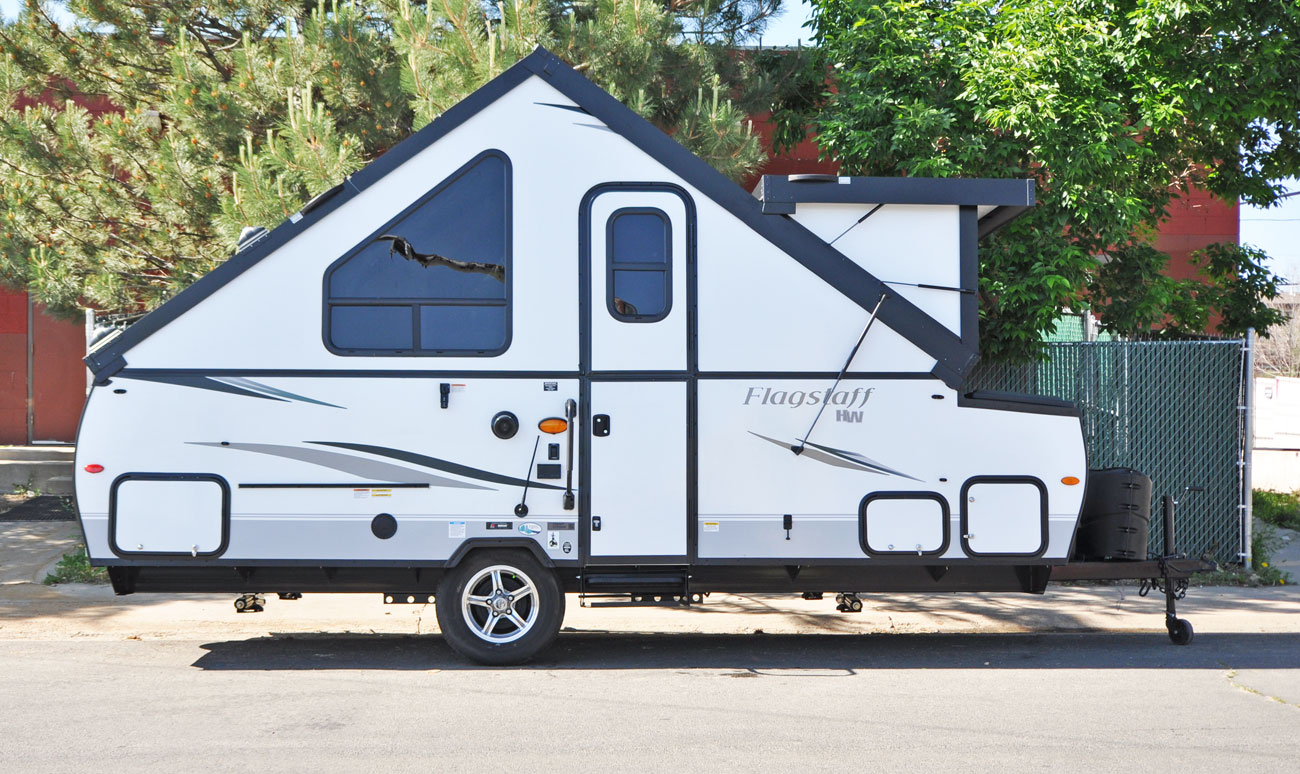

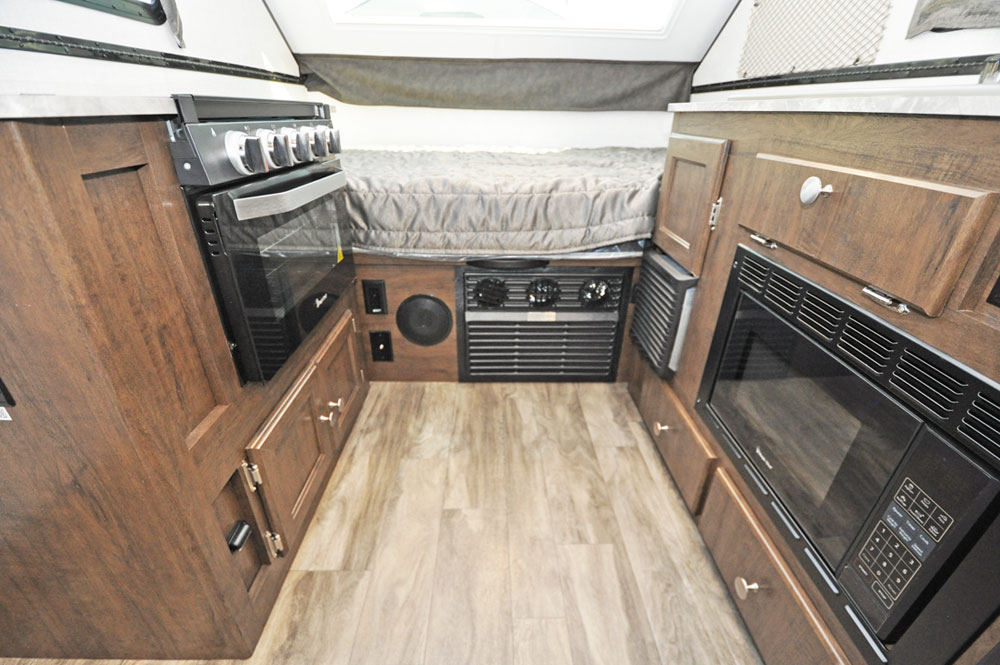

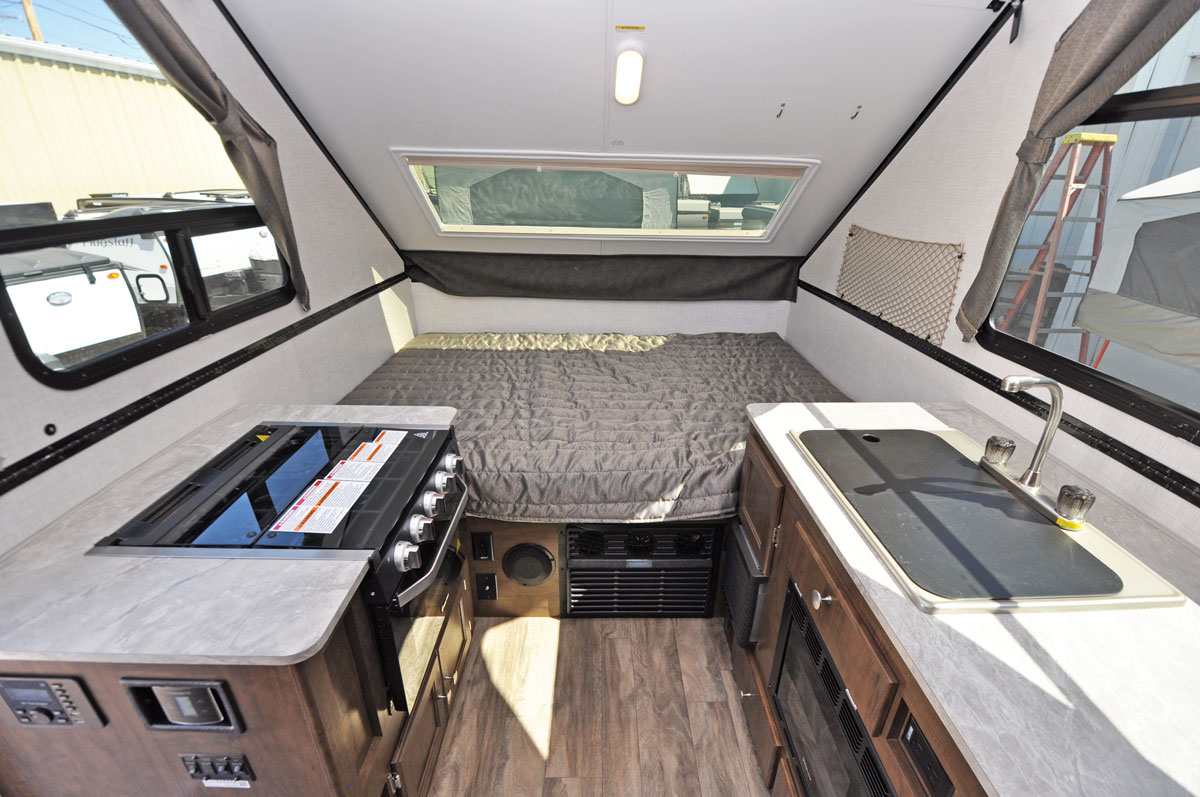

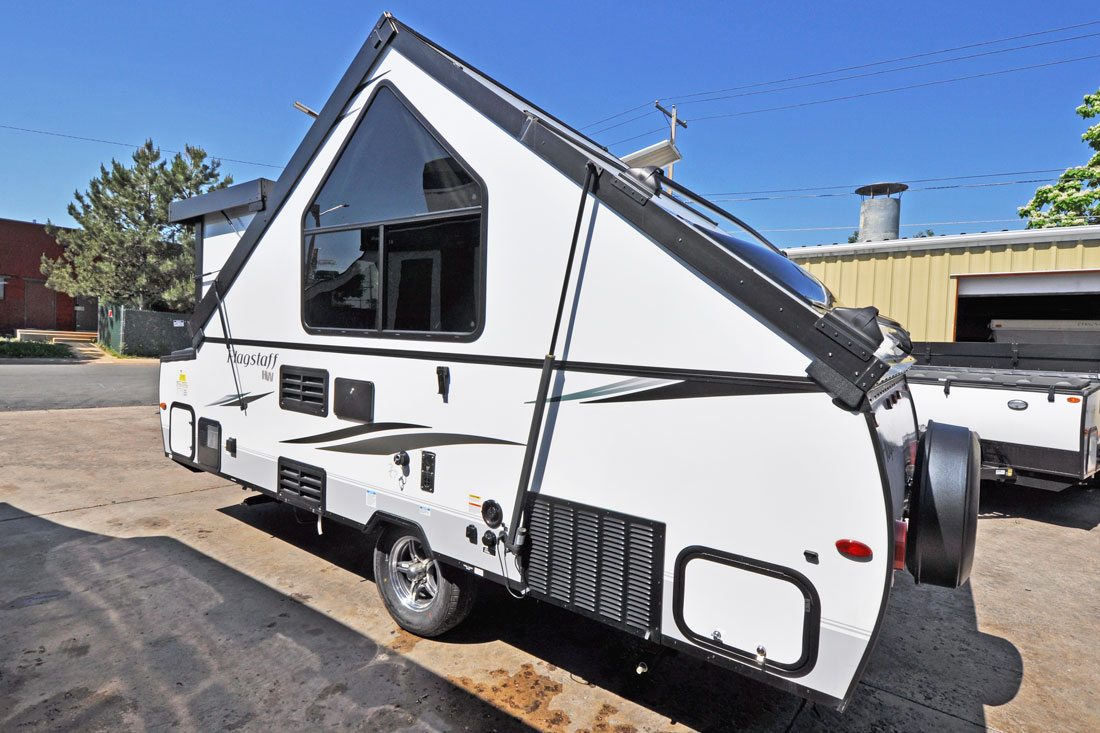

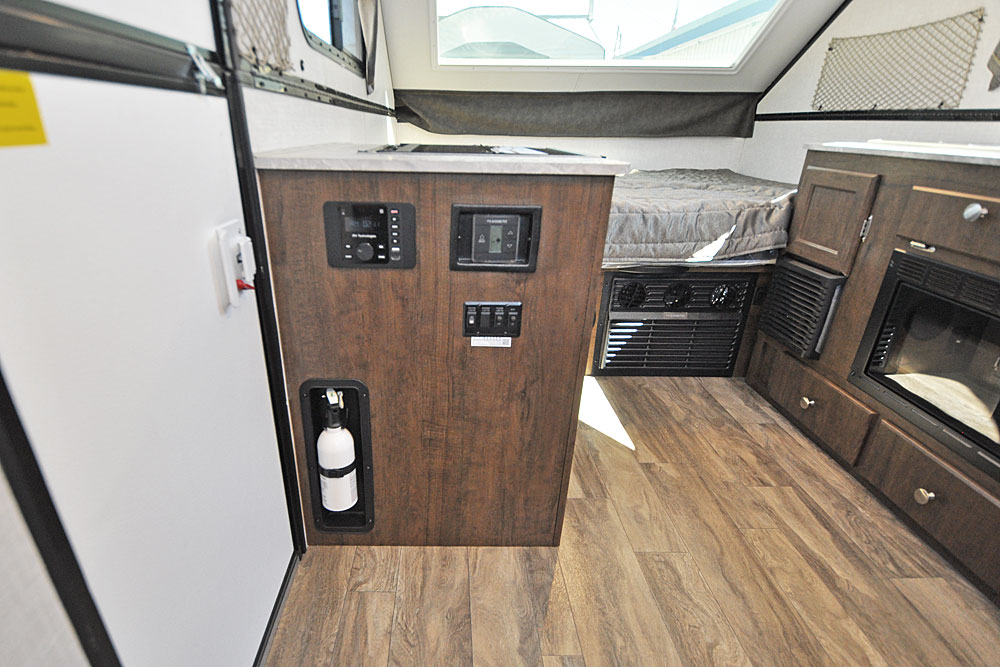

2021 Flagstaff T21FSHW air conditioner area 2021 Flagstaff T21FSHW thermostat and stereo 2021 Flagstaff T21FSHW profile 2021 Flagstaff T21FSHW back-side

(2021 model year shown)

Highlights

  • Higher side walls allow for higher counter-tops (than the standard T-Series), more head-room and a 4.0 cu. ft fridge with a small freezer compartment.
  • 14' interior with a queen bed in the back and a sofa/bed in the front. The front roof dormer and sofa/bed makes a nice "sitting room" area.

Specifications

Features

  • 110V heated mattress
  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Propane oven
  • Double-pan sink
  • Portable toilet
  • Front storage trunk with sliding tray
  • 14" aluminum wheels (spare tire has a steel wheel)
  • Electric roof-lift assist

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two ProRac Systems cross-bars permanently mounted on the roof
  • Two 20# propane tanks with automatic regulator
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Notes

High-wall T-series campers have a 12-volt powered roof assist. Instead of pushing the roof up manually like other T-series campers, the 12V motor lifts the roof on its own with the push of a button (the button is to the left of the entry door).

Flagstaff T21QBHW powered lift assist Flagstaff T21QBHW powered lift assist motor Flagstaff T21QBHW lift button

Comparable Models

  • T21QBHW - Identical layout except with a dinette in place of the sofa/bed and no dormer on the front roof panel.
  • T21TBHW - Same 14' box but with a bulit-in cassette toilet instead of a portable toilet and two single beds that convert into a king bed (as opposed to the full-time queen bed).

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
