Flagstaff T19SCHW

(2013-2016)

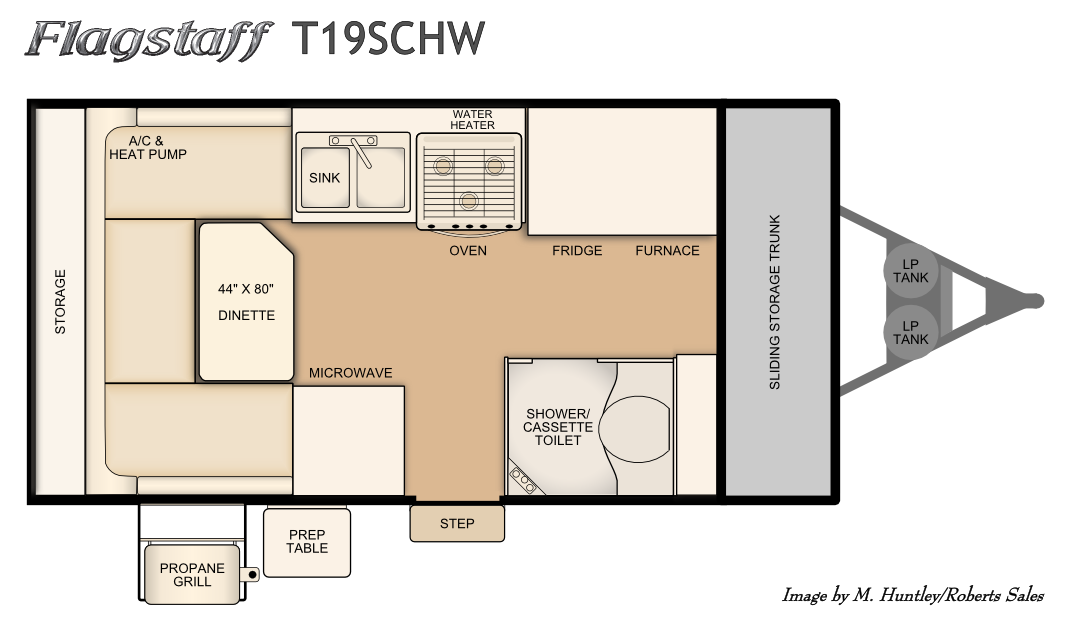

Flagstaff T19SCHW Floorplan

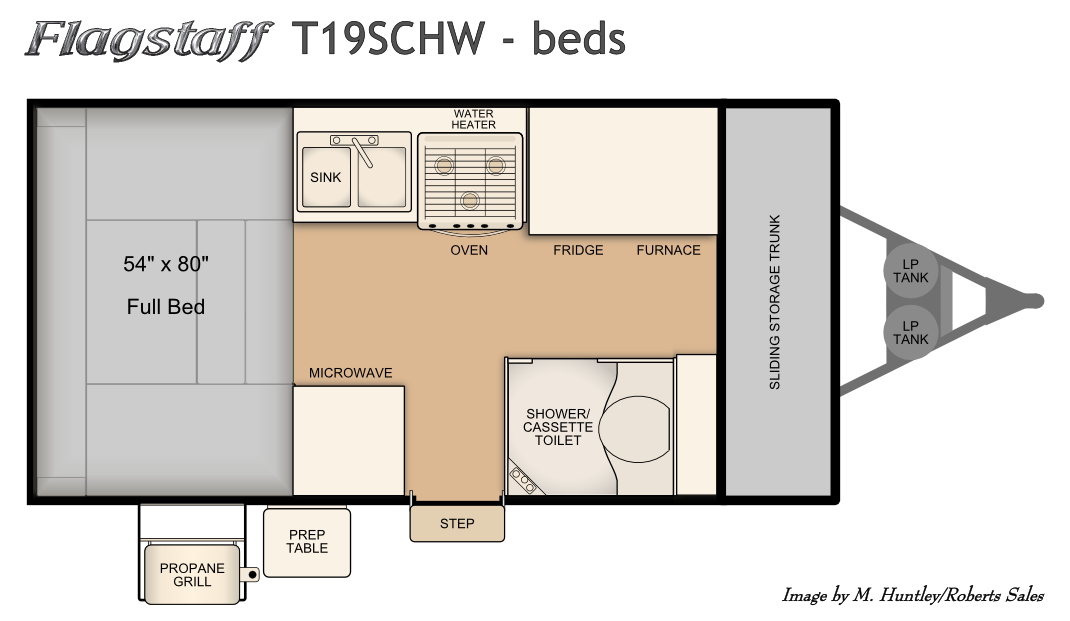

Bed Layout for this model

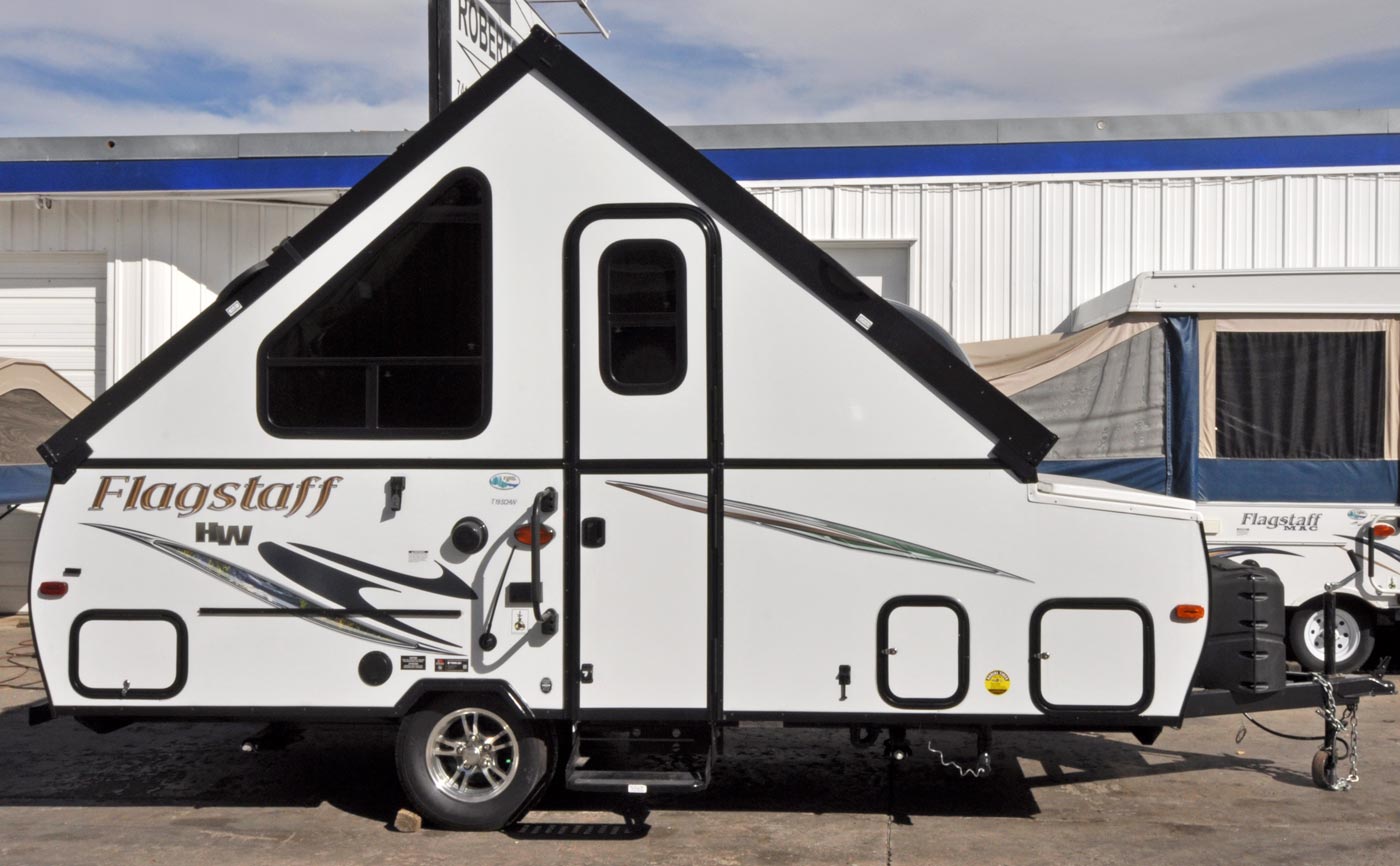

2014 Flagstaff T19SCHW profile

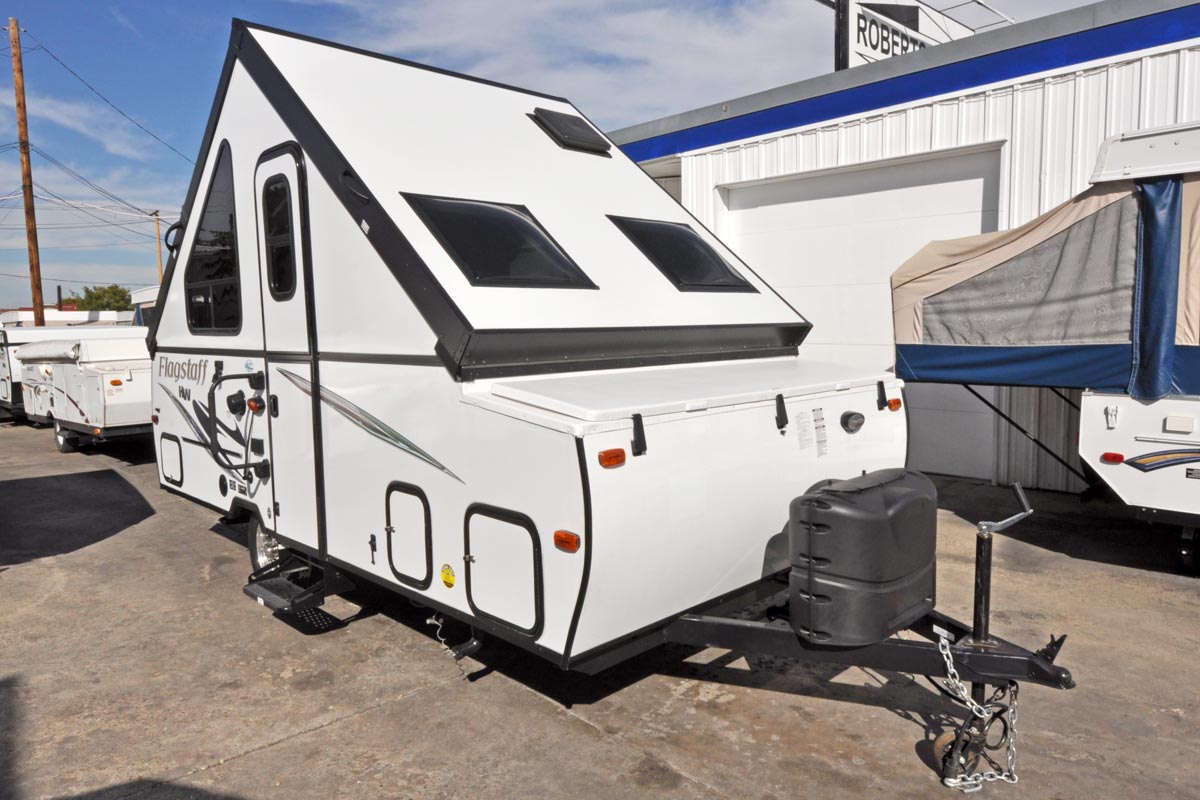

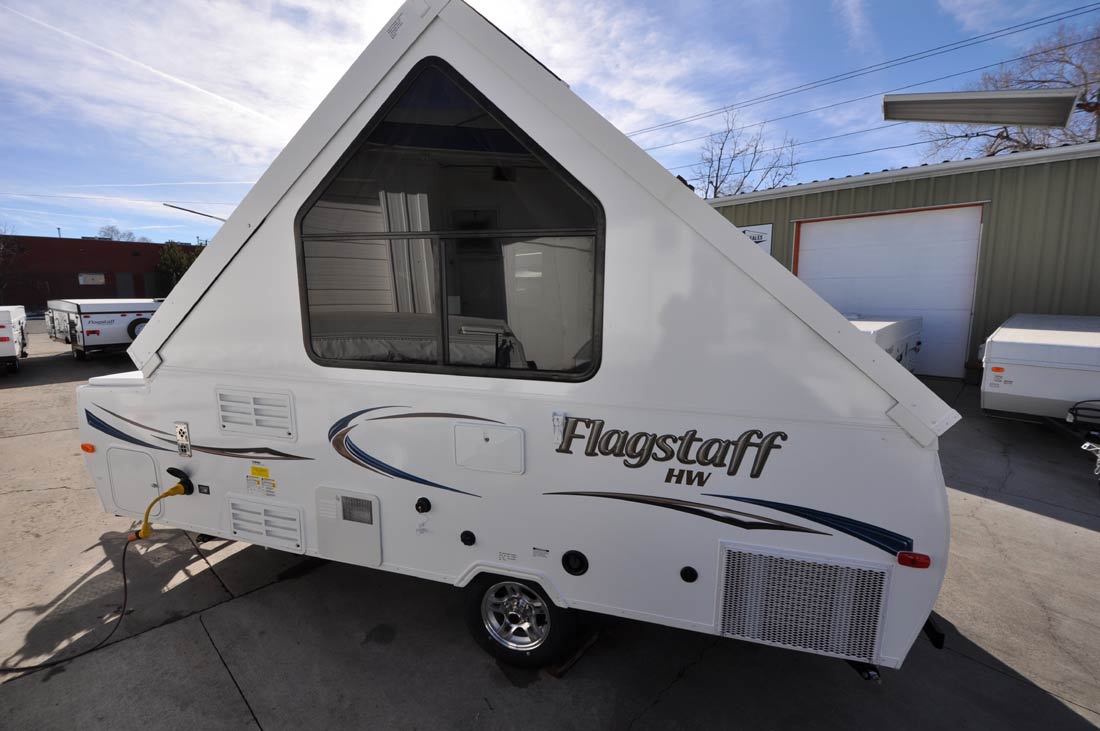

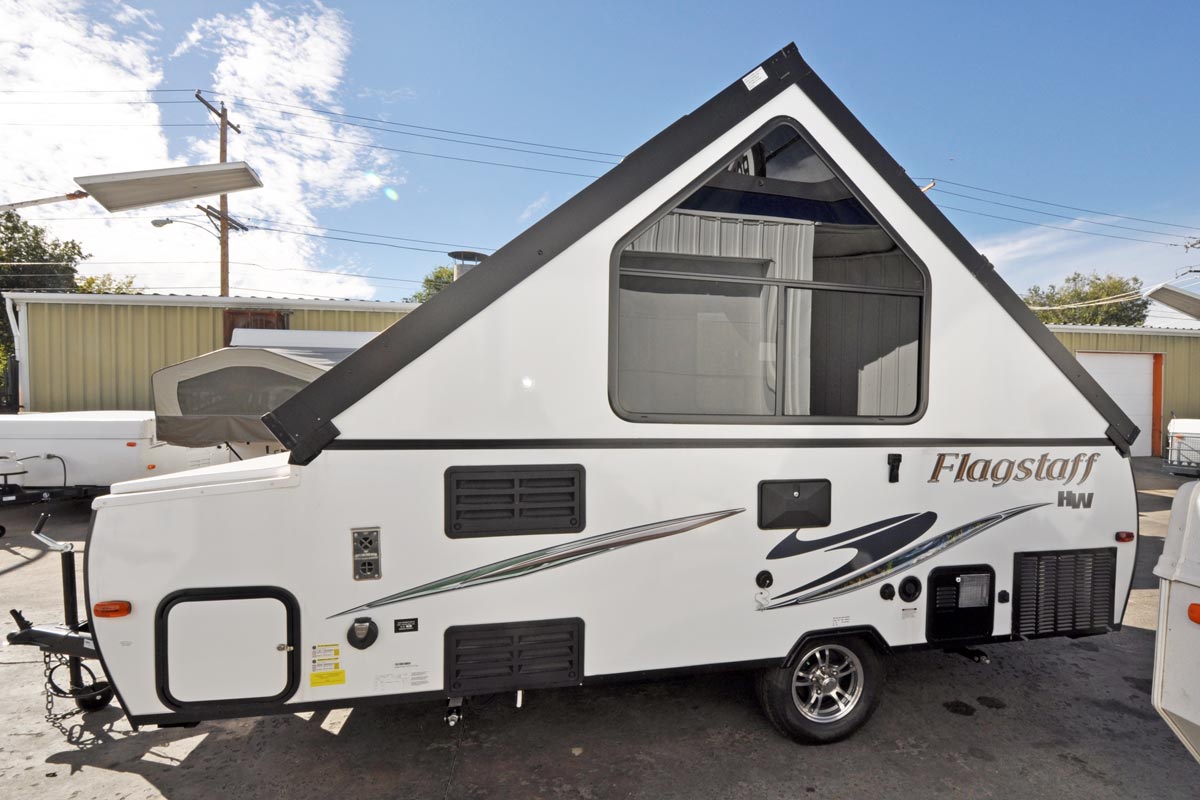

2016 Flagstaff T19SCHW 3/4 view 2016 Flagstaff T19SCHW back-side (2014 model year shown above)

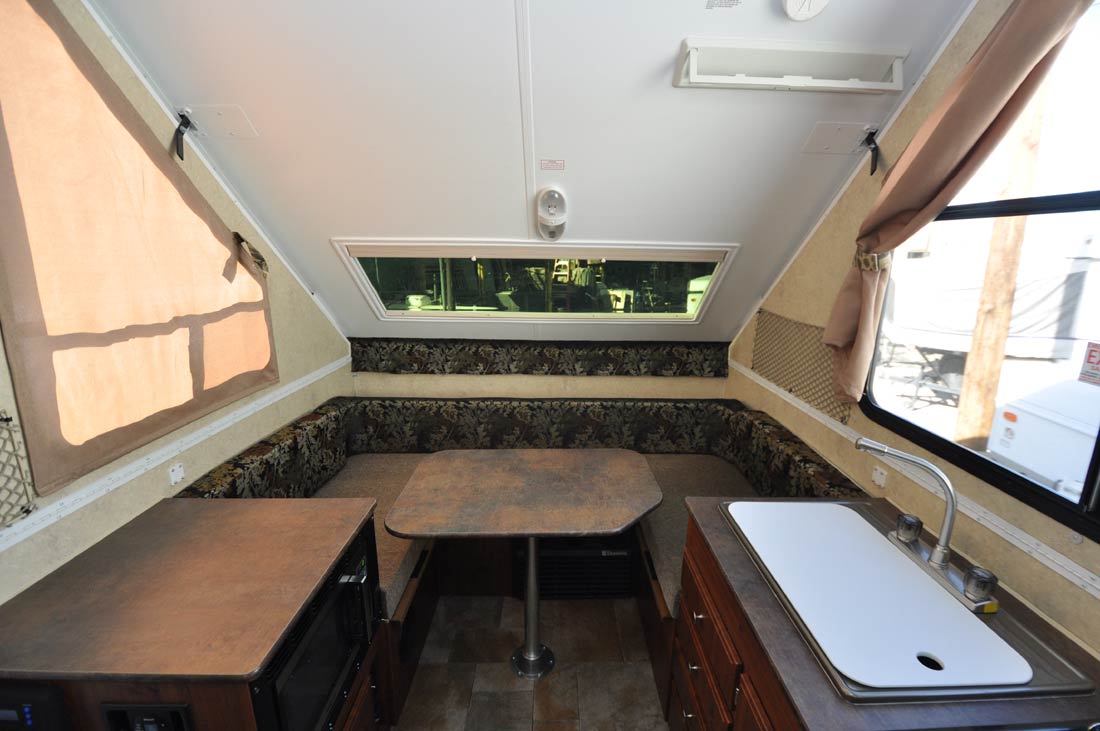

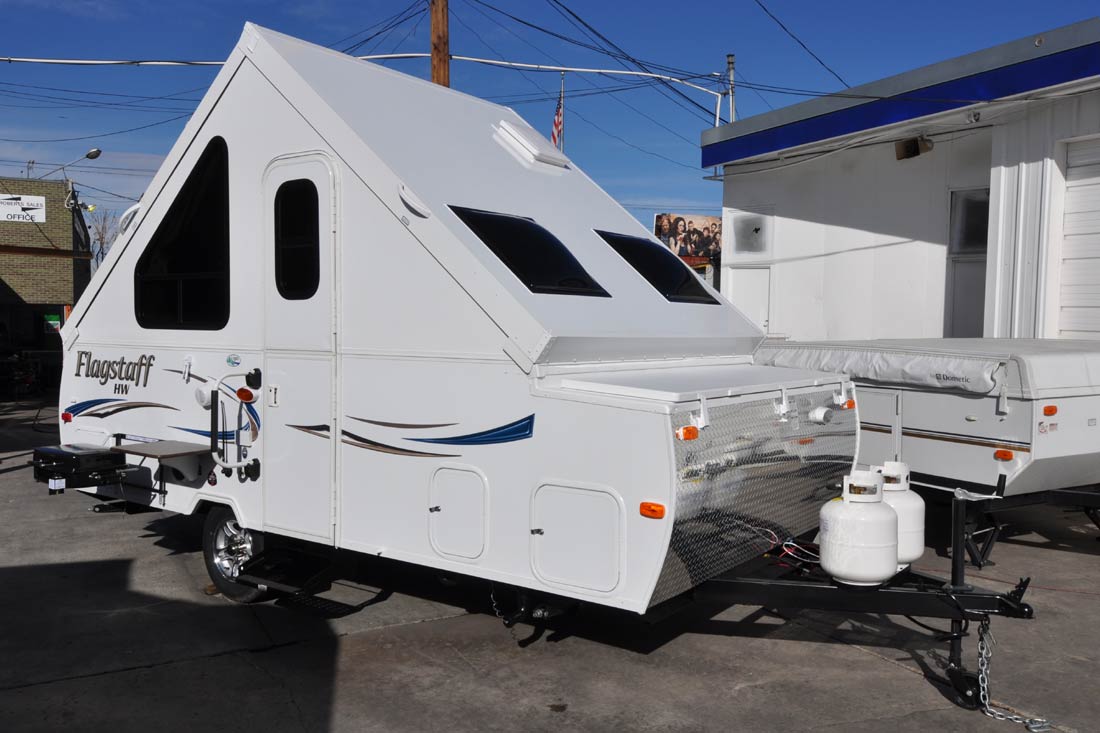

Exterior front view Exterior rear 3/4 view Interior rear view Interior front view

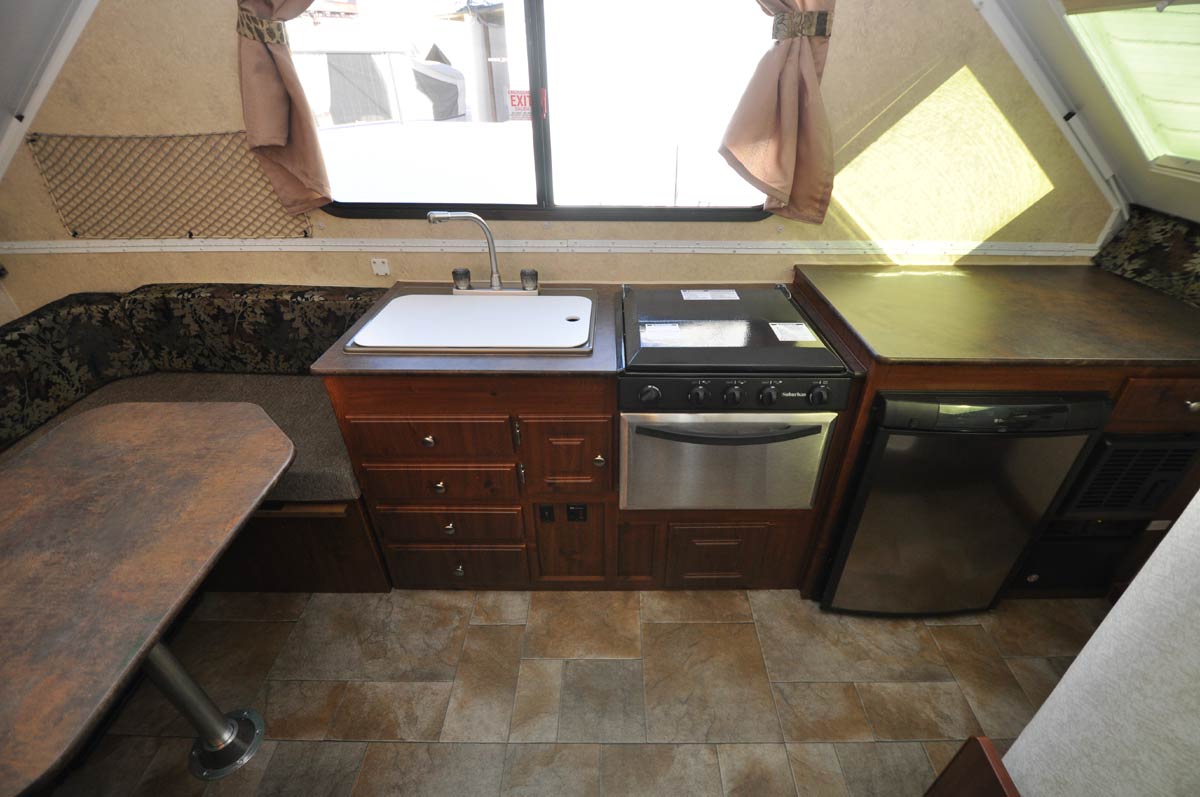

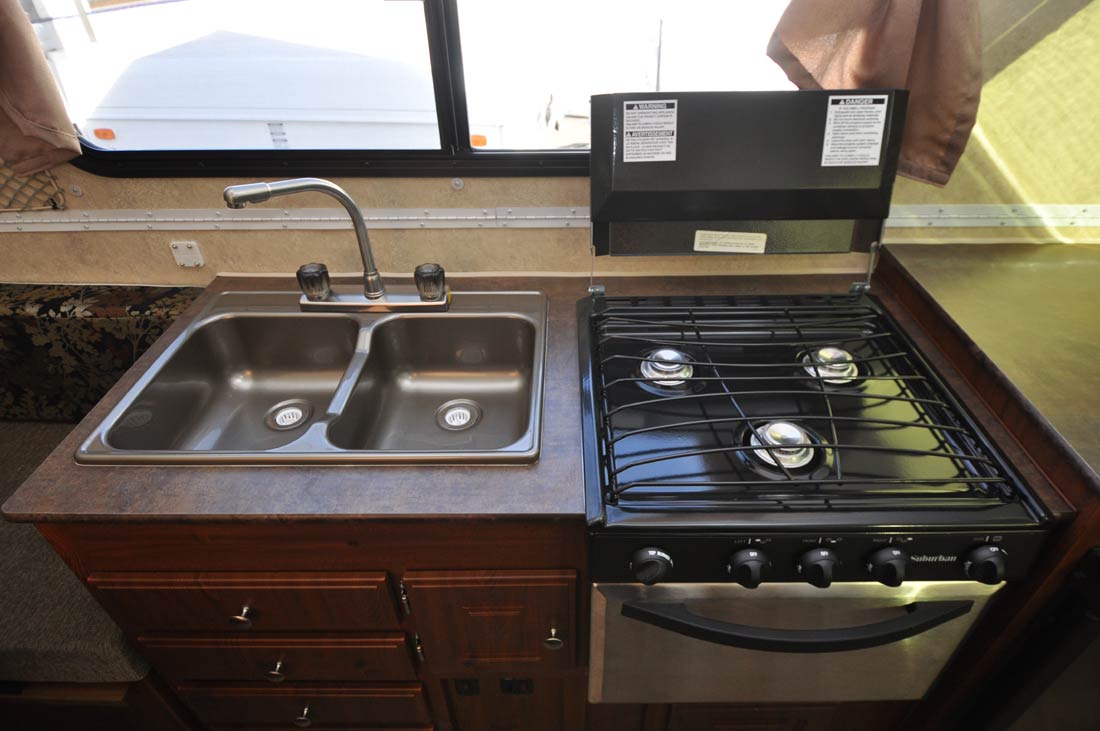

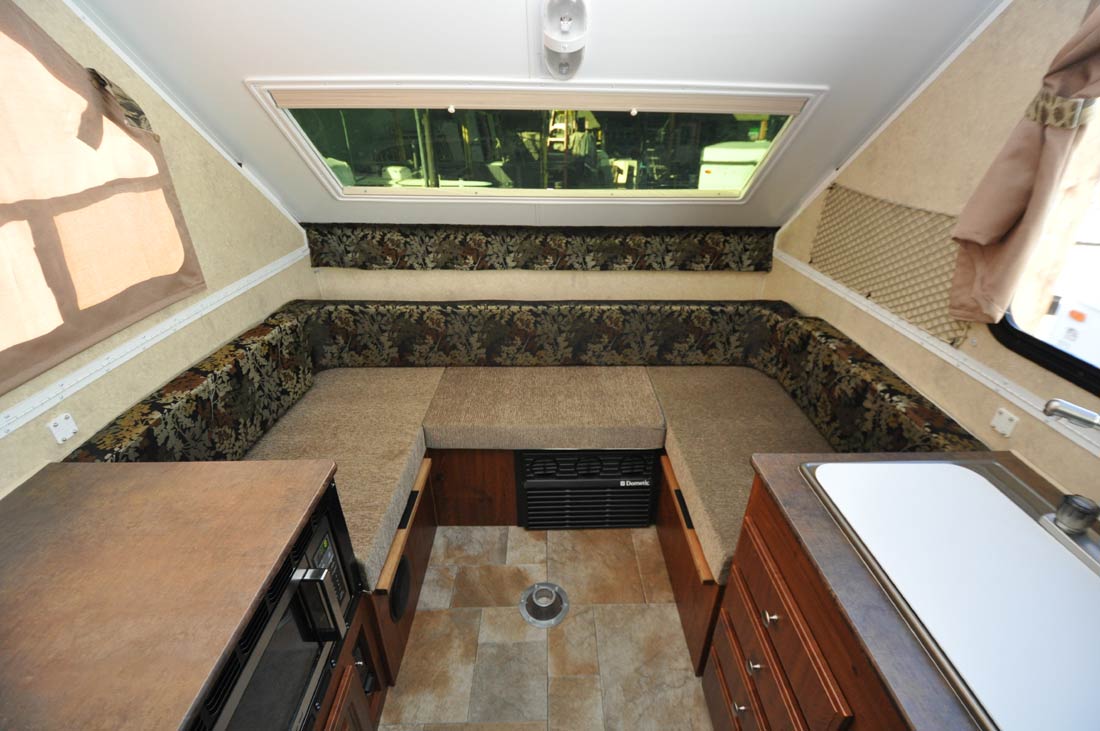

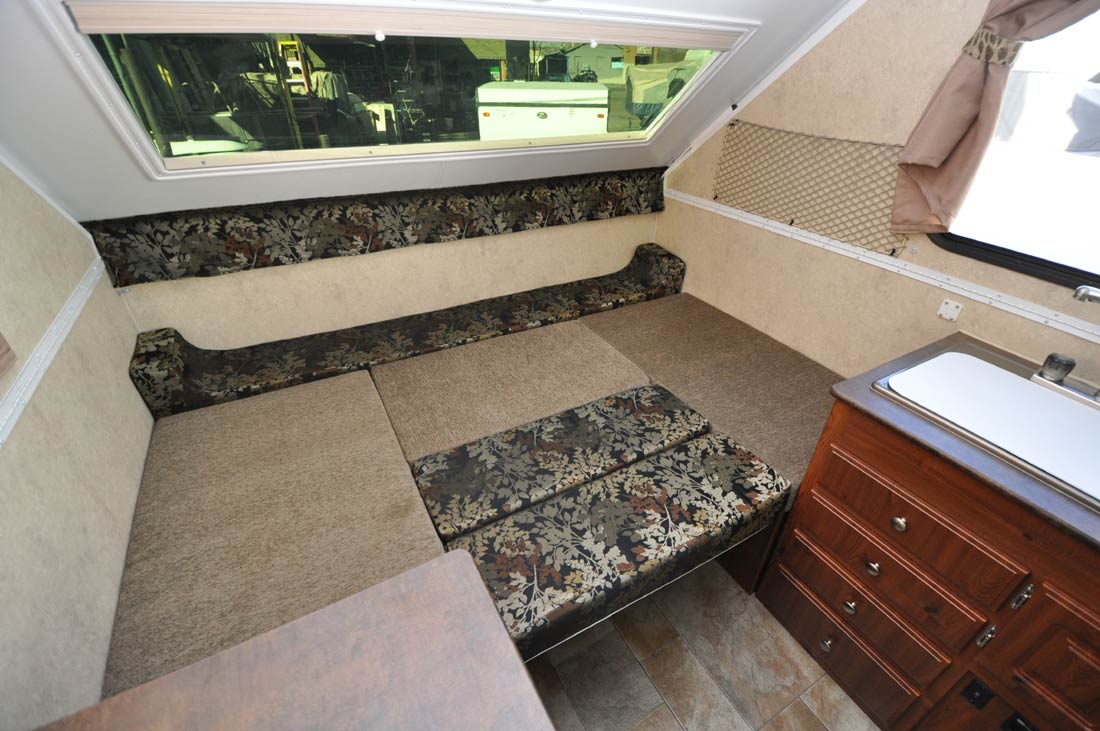

Interior side view galley wrap-around dinette dinette as a bed

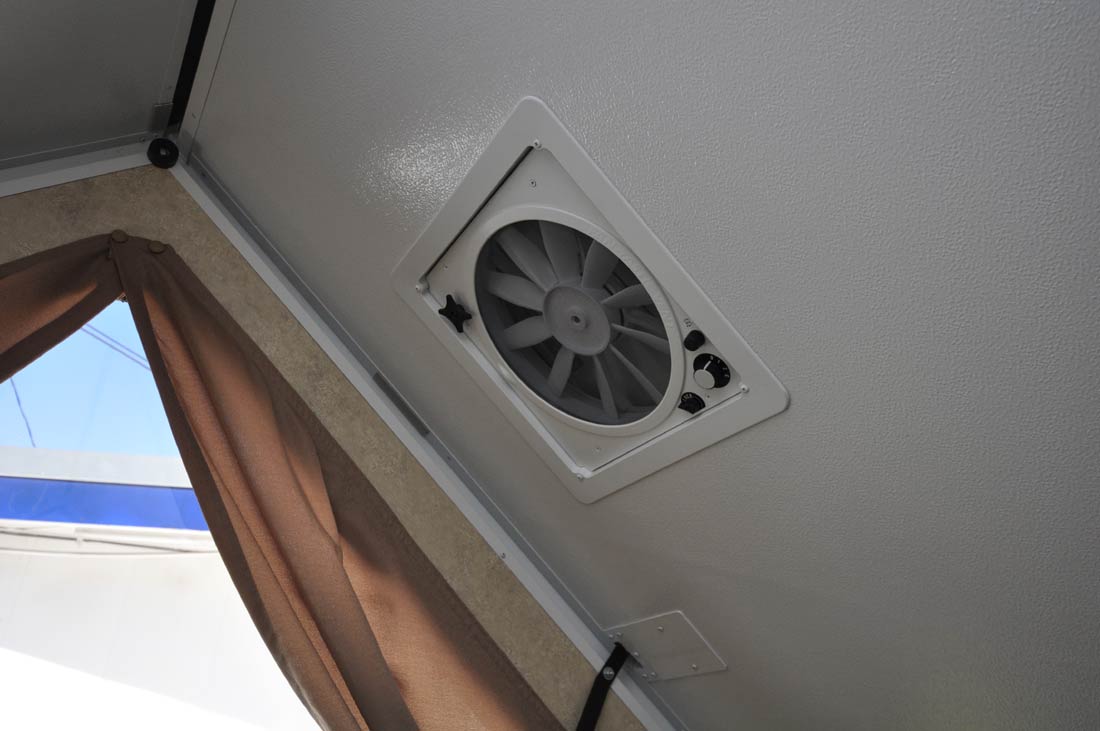

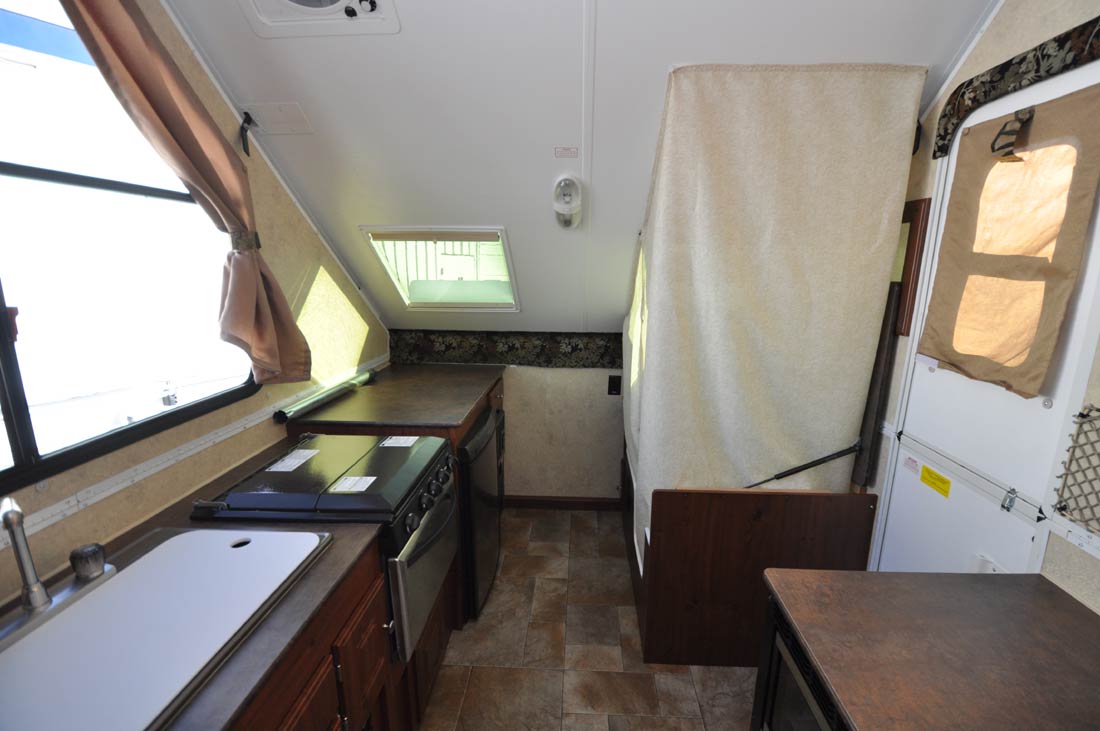

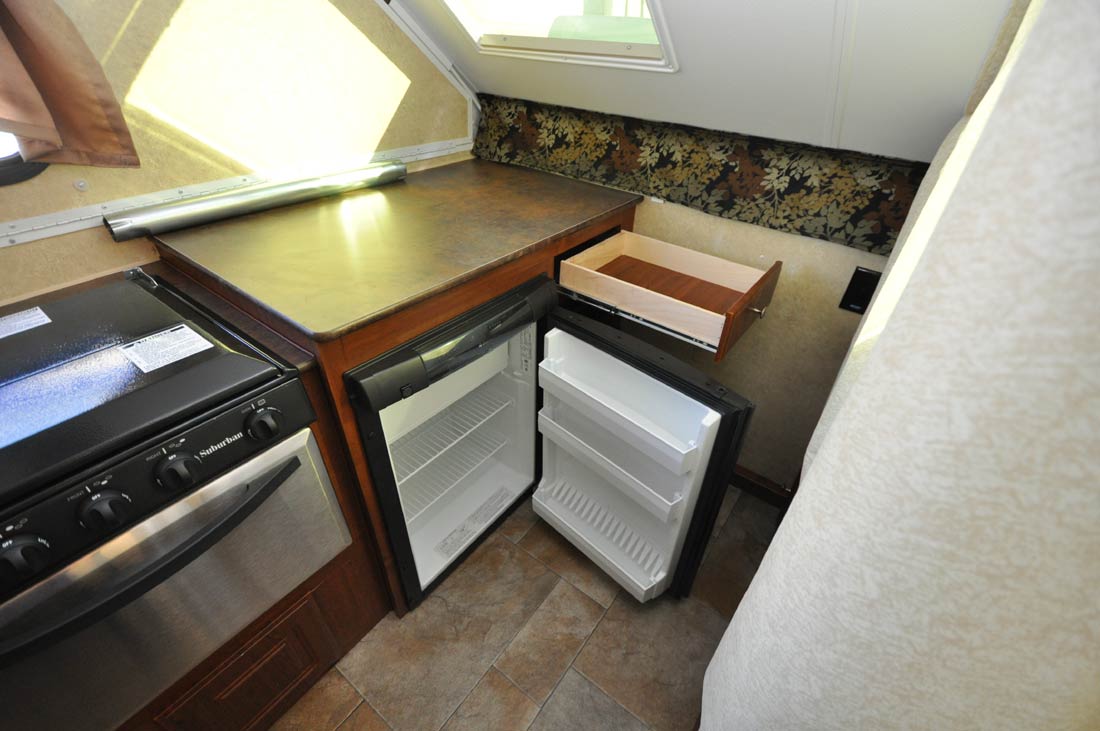

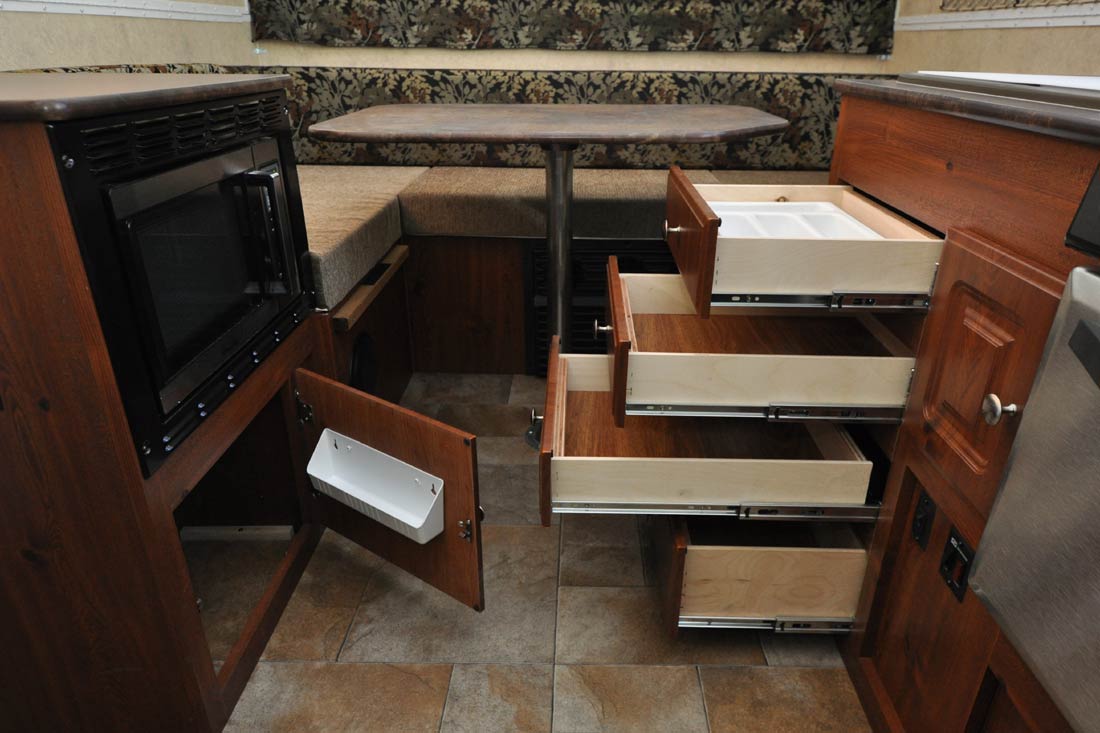

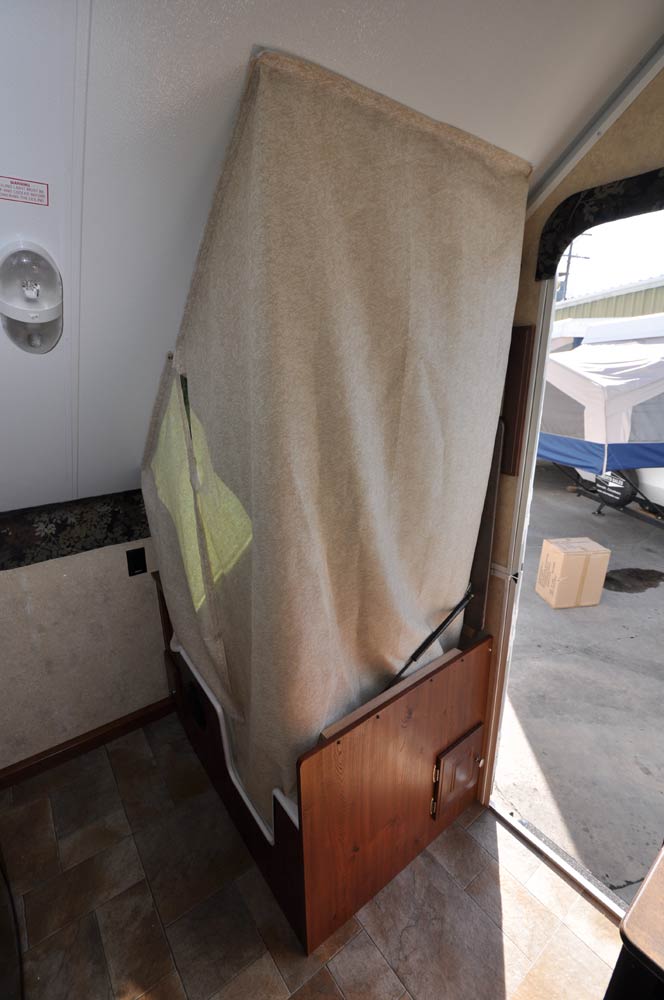

fridge drawers front view with curtain powered roof vent

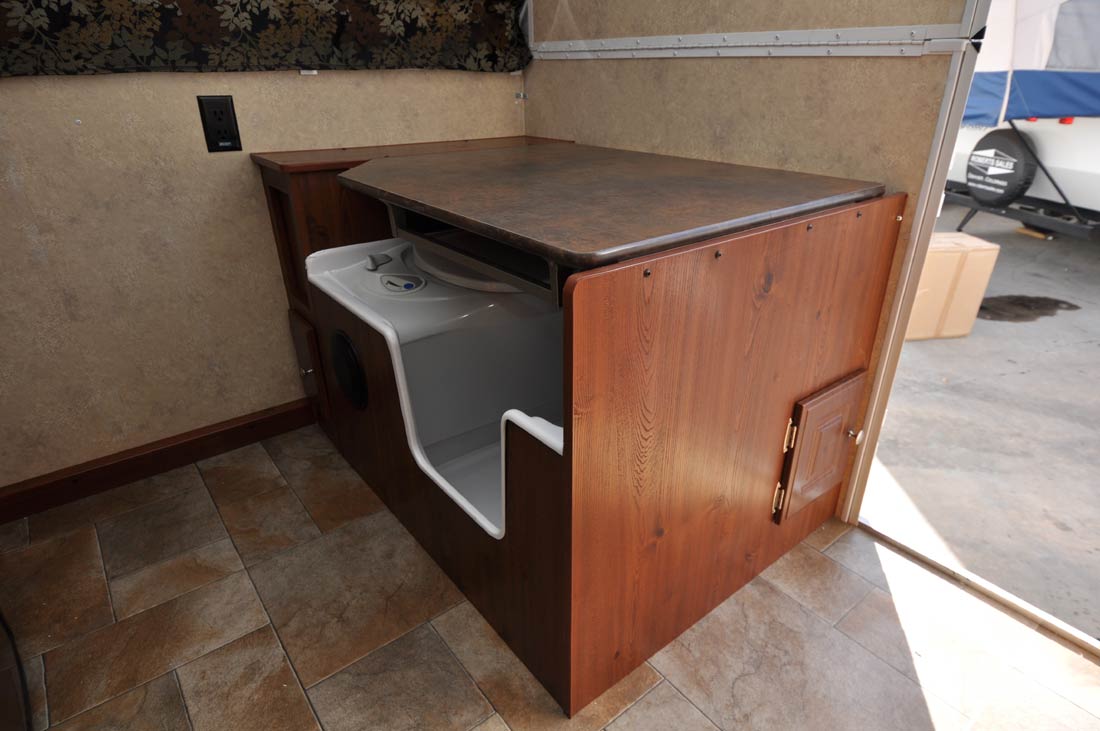

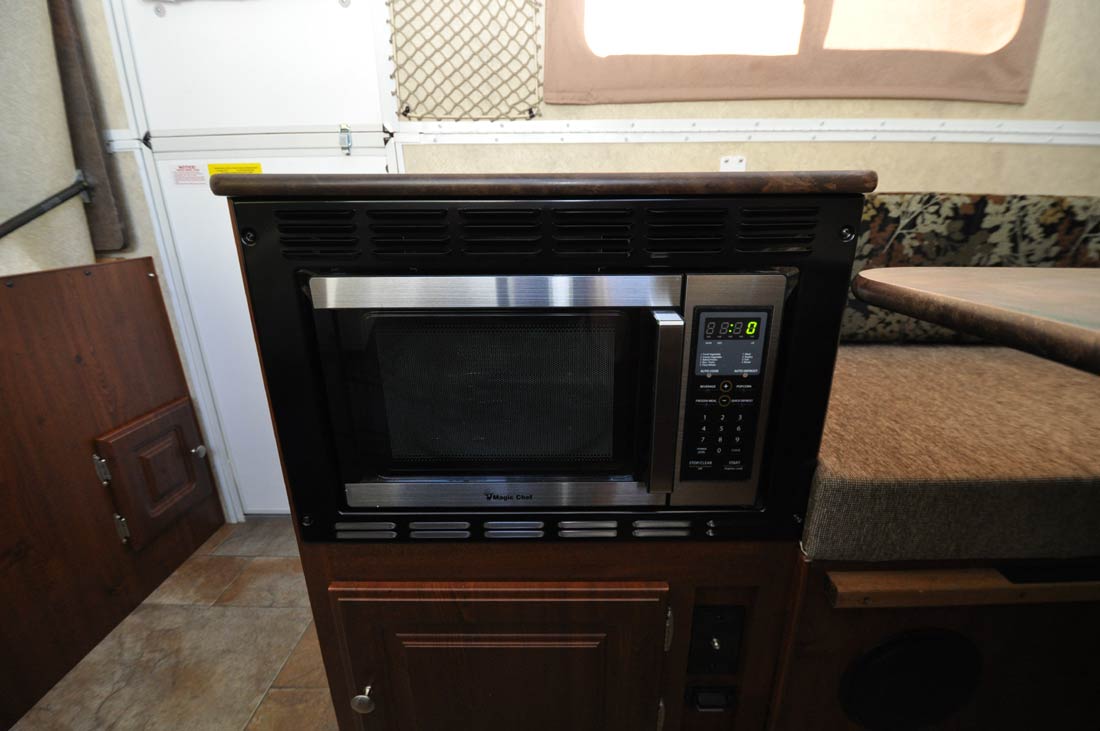

cassette/toilet combo cassette/toilet with cover microwave shower curtain

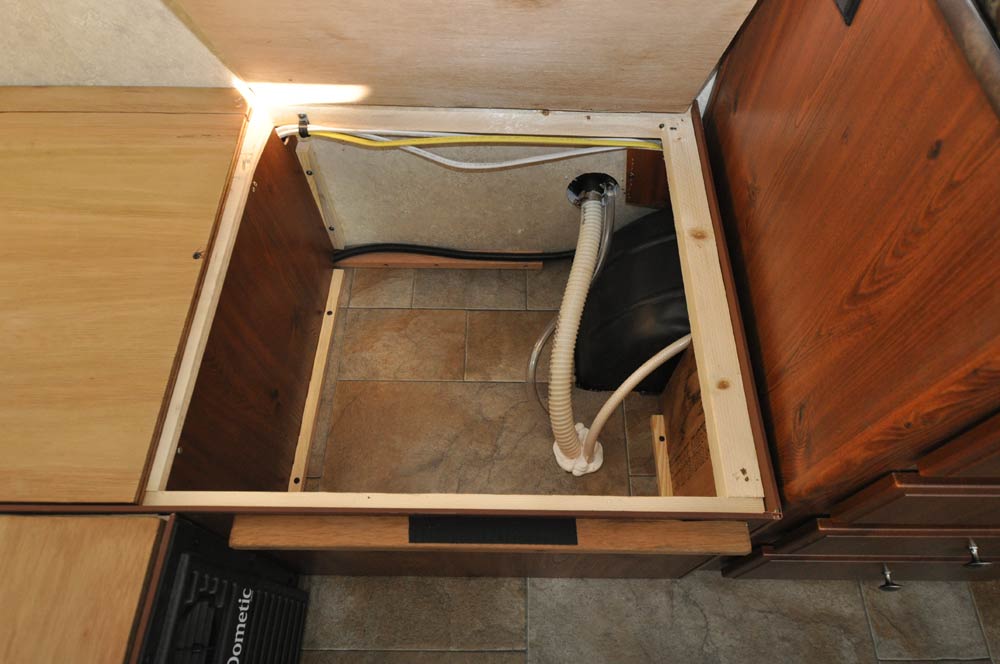

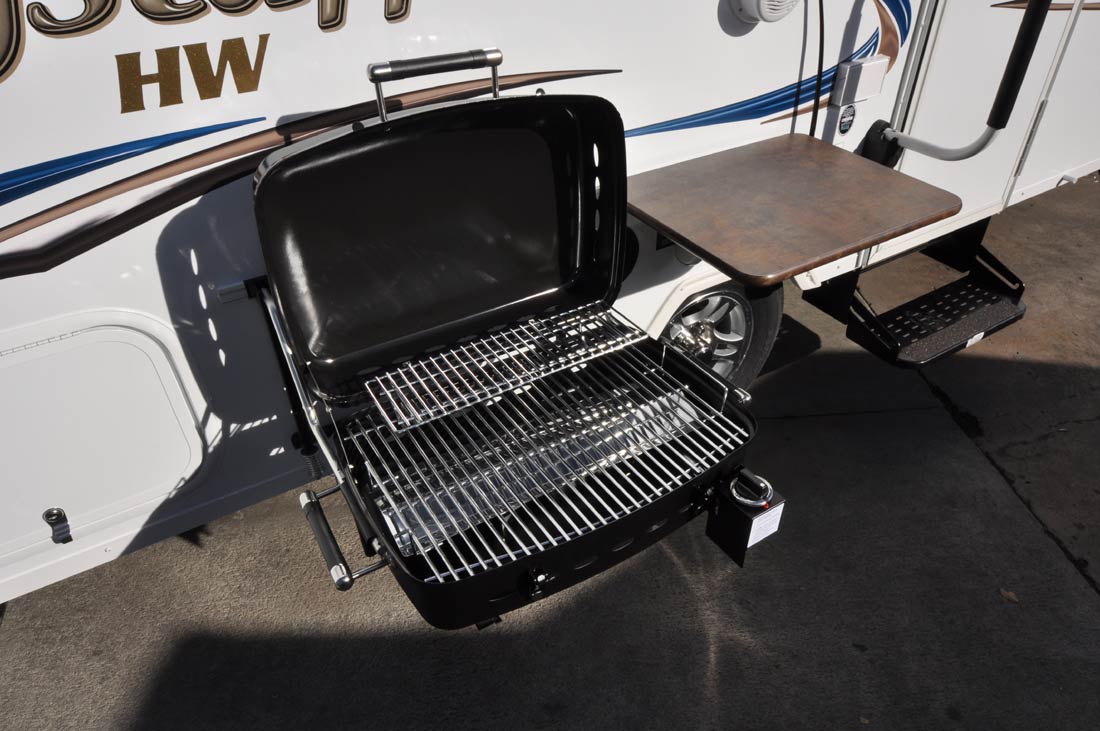

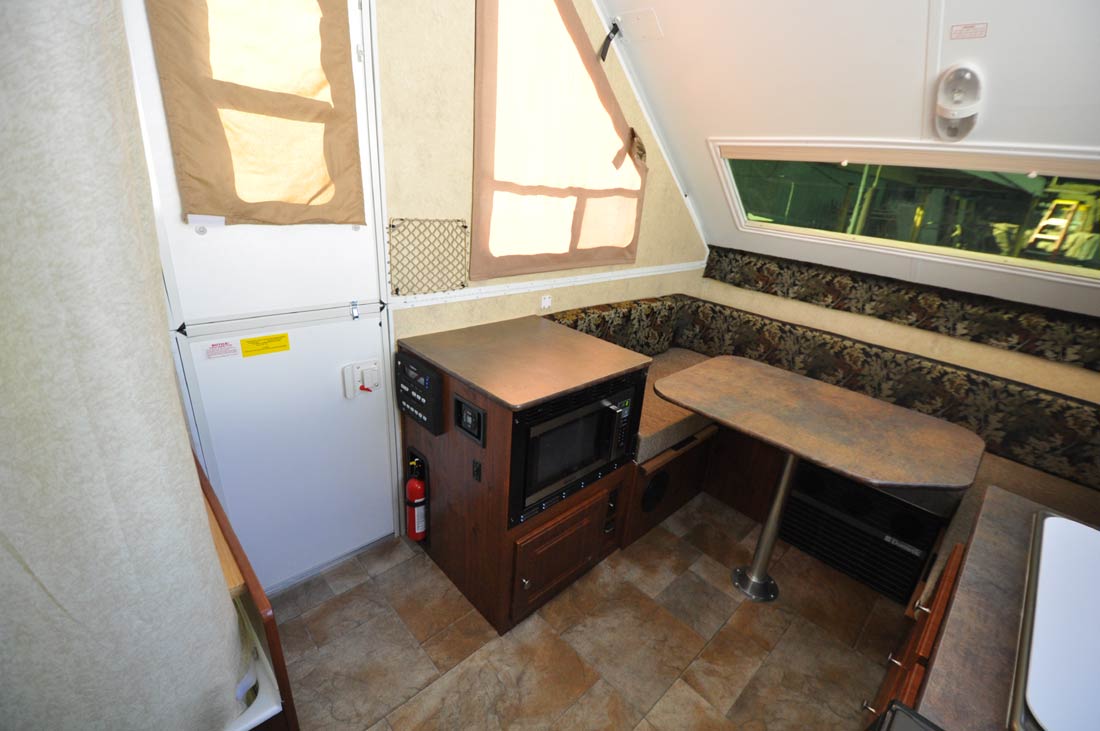

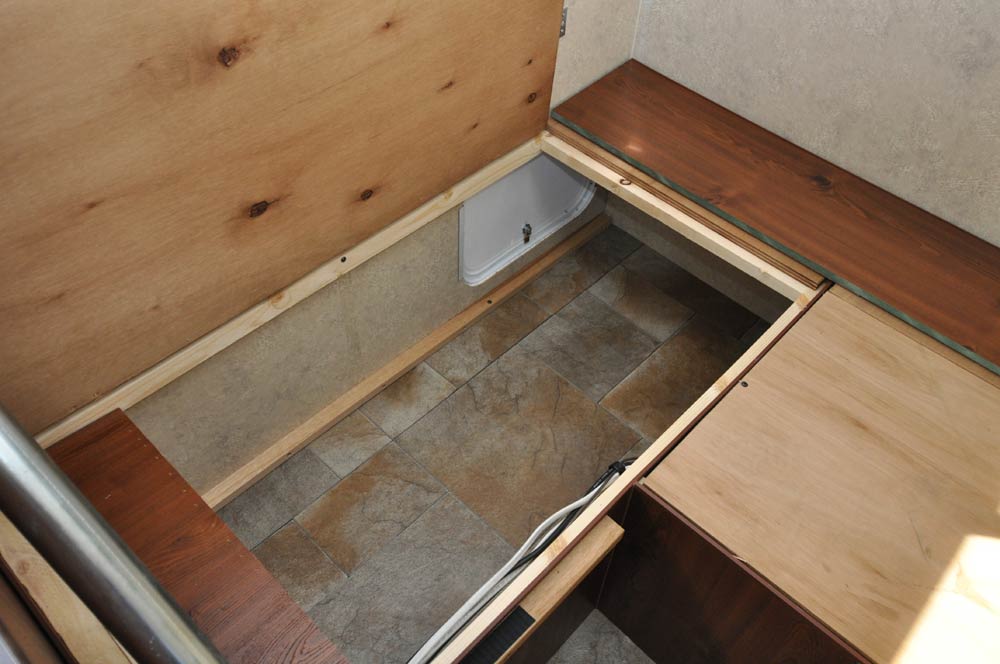

interior storage more interior storage rear interior 3/4 view grill and prep table

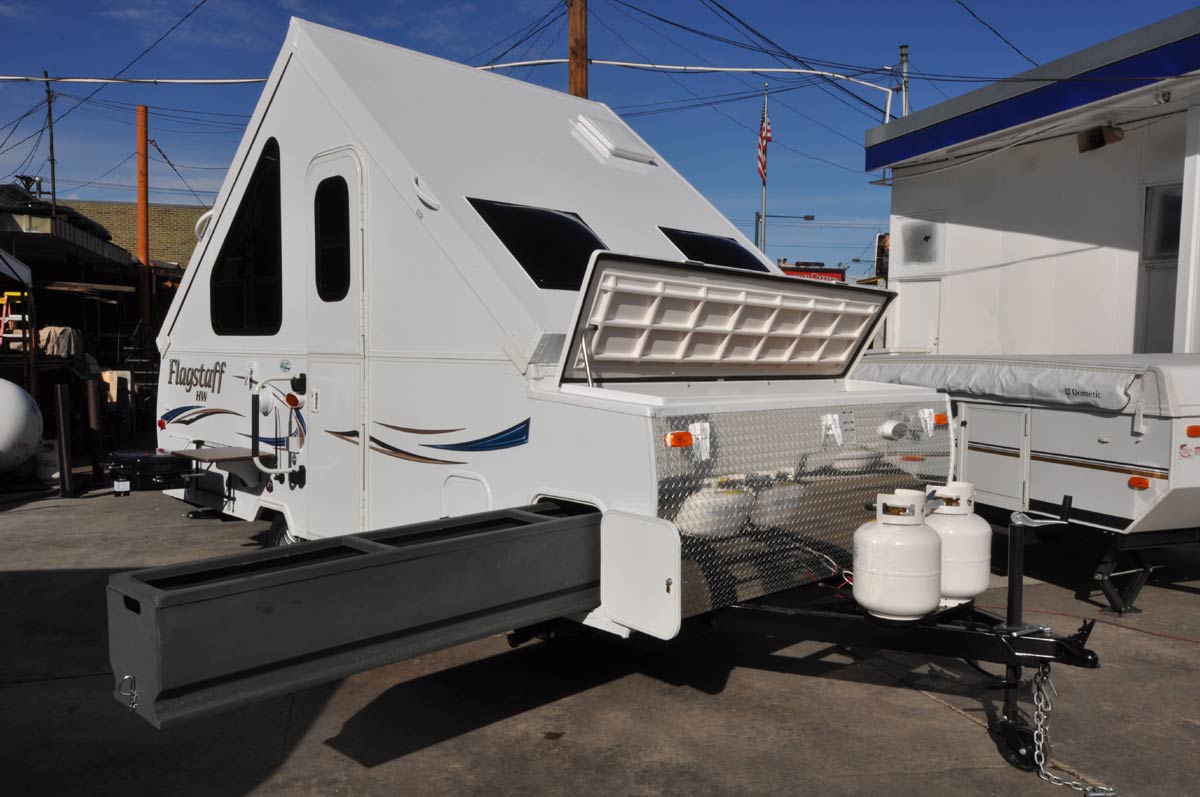

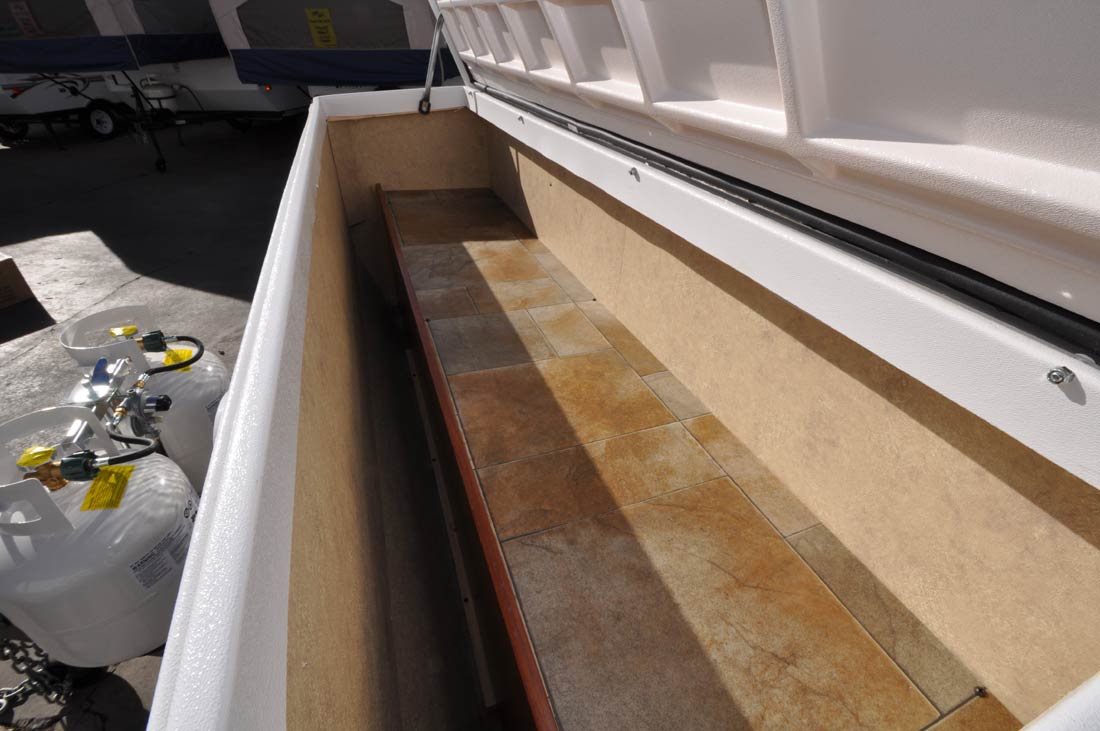

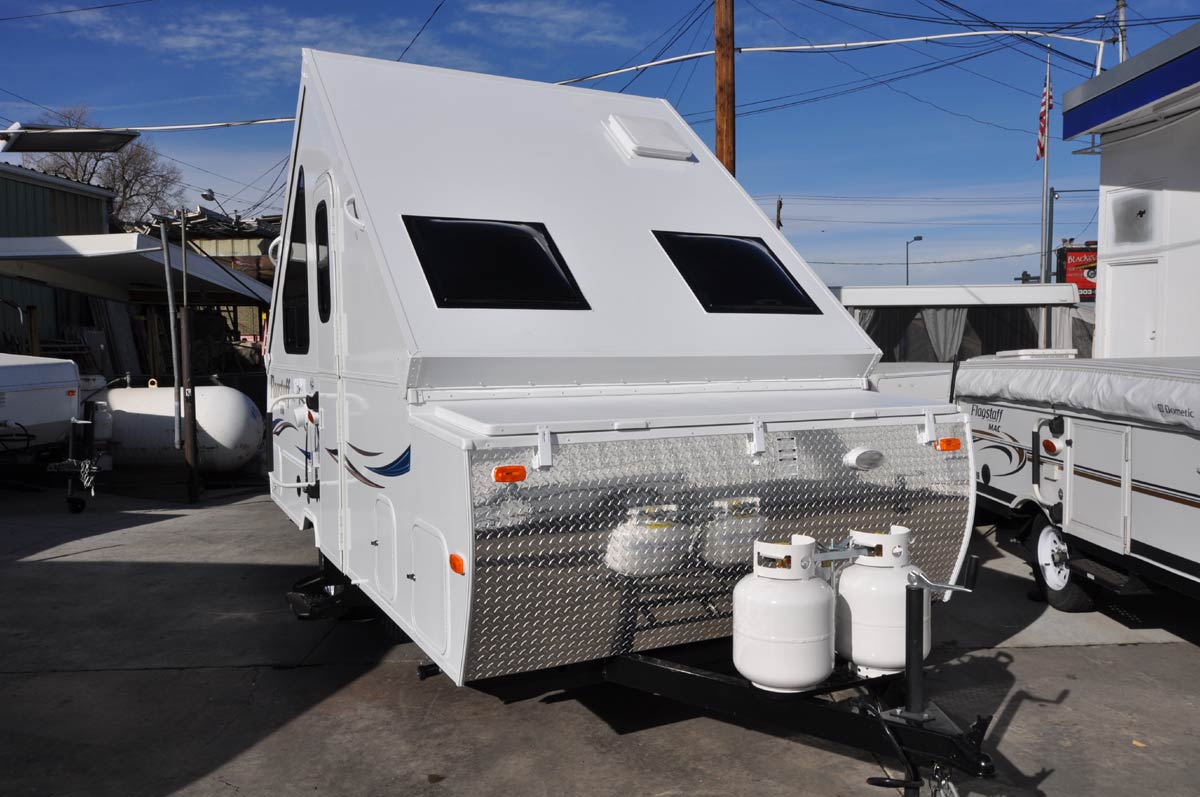

storage trunk expanded storage trunk open side view exterior front view

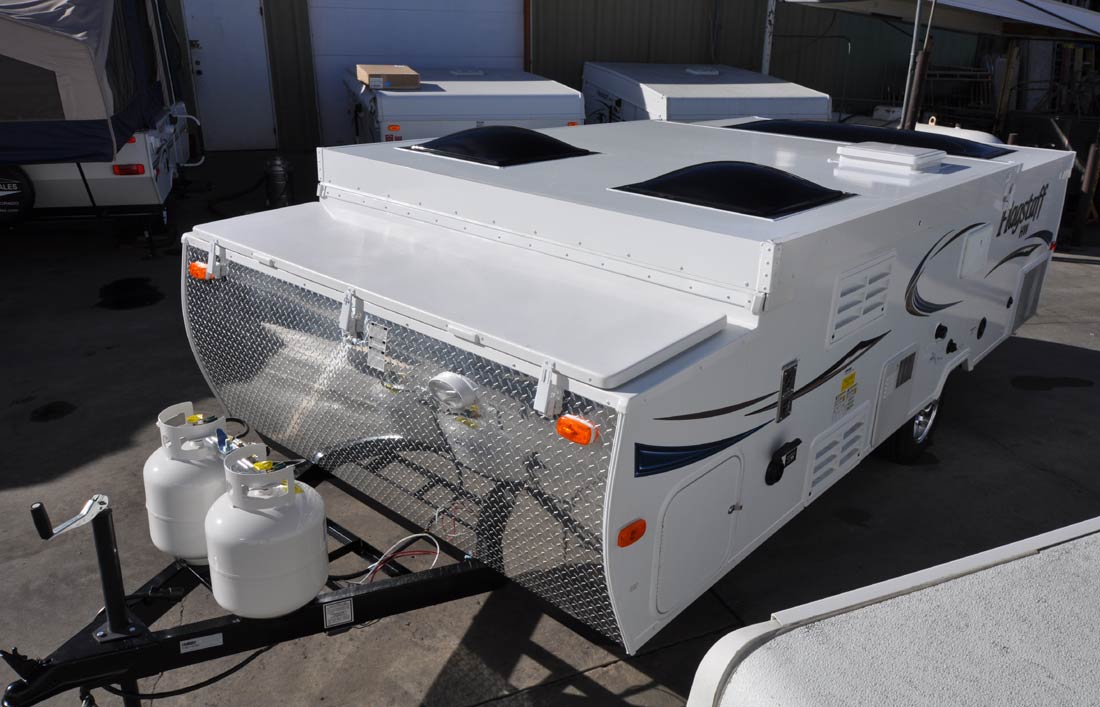

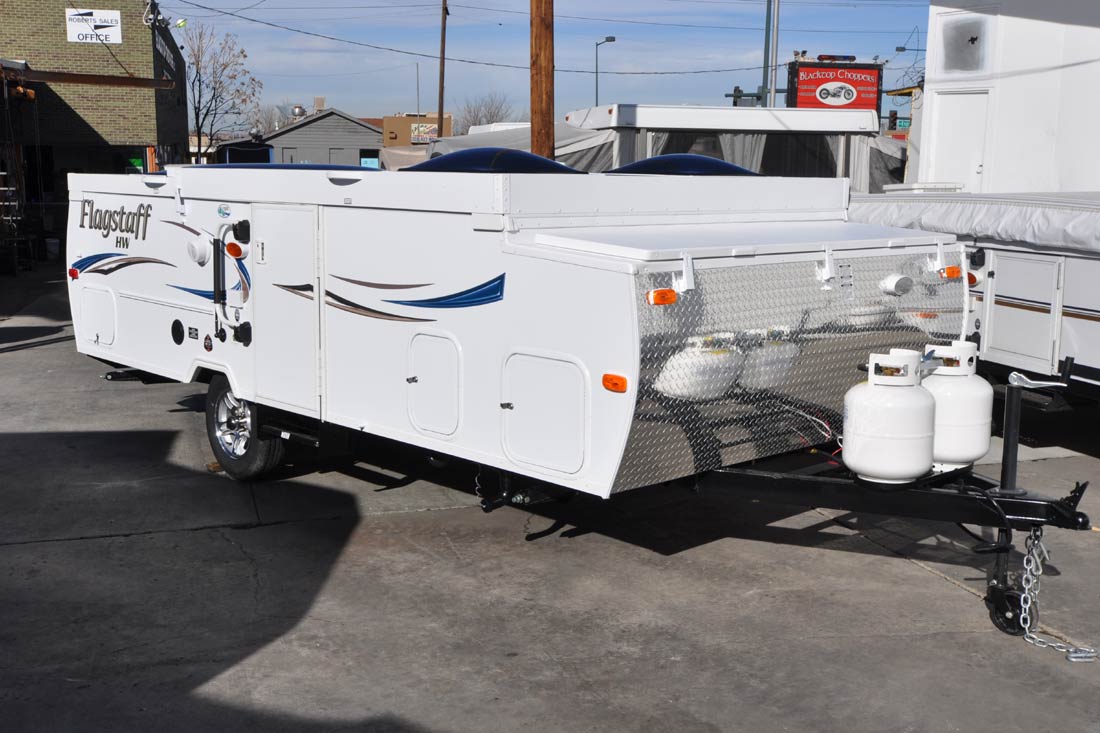

back-side down 3/4 view T19SCHW folded down (2013 model shown)

High-wall T-series campers have a 12-volt powered roof assist. Instead of pushing the roof up manually like other T-series campers, the 12V motor lifts the roof on its own with the push of a button (the button is to the left of the entry door).

Flagstaff T21QBHW powered lift assist Flagstaff T21QBHW powered lift assist motor Flagstaff T21QBHW lift button

Highlights

  • The first High Wall T-Series. Higher side walls allow for higher counter-tops (than the standard T-Series), more head-room and a 4.0 cu. ft fridge with a small freezer compartment.
  • One of only two T-series campers with a shower/cassette toilet (the other is the T21DMHW).

Specifications

Features

  • Dometic 4.0 cu. ft. 3-way refrigerator with freezer compartment
  • Propane oven
  • Double-pan sink
  • Interior shower/cassette toilet
  • Front storage trunk with sliding tray
  • 13" aluminum wheels

...as well as these features standard with the T-Series:

  • Dometic 10,000 BTU air conditioner with heat pump
  • Suburban 19,000 BTU furnace with automatic ignition
  • 900W microwave
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Group 27 battery pack
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 2-piece door
  • Two 20# propane tanks with automatic regulator
  • Spare tire
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • T19QBHW - The only other 12' High Wall T-Series camper. No shower or cassette toilet inside but it has a queen-size bed (the "QB" in T19QBHW) and a dinette.
  • T21DMHW - A 14' box with the same interior shower and cassette toilet but with hard-sided shower walls (not water-tight/must use shower curtain anyway) with a full-time queen bed in the back and a small dinette on the side.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities should be considered estimates and may vary based on how individual campers are outfitted.
