Flagstaff 206LTD

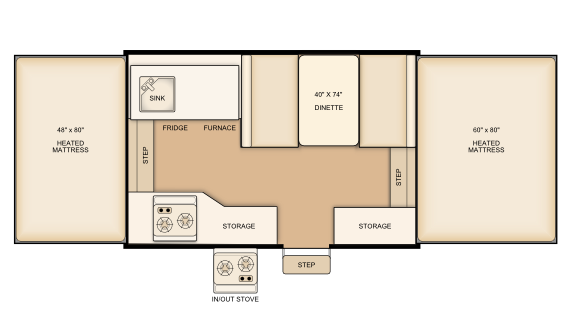

Flagstaff 206LTD floorplan

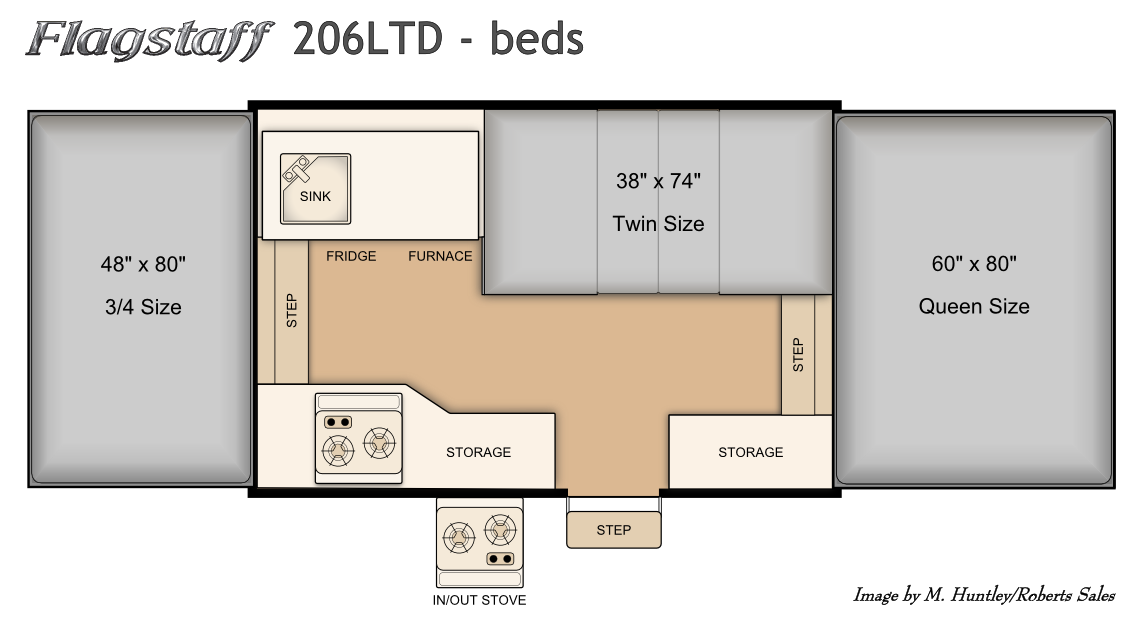

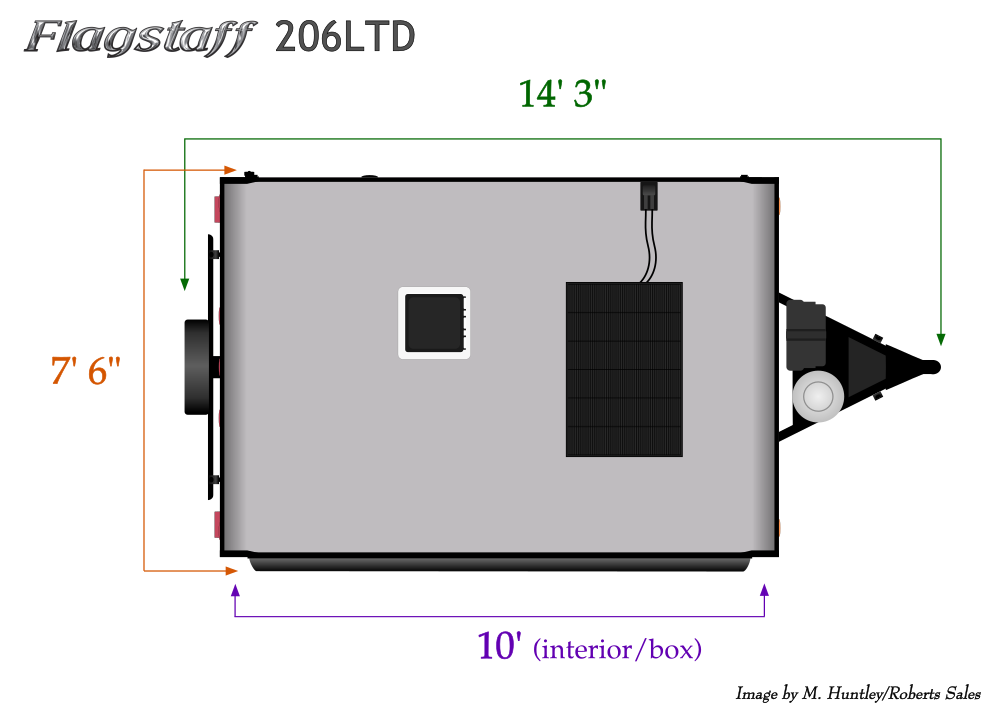

2016 Flagstaff 206LTD bed layout Length and width dimensions for Flagstaff 206LTD

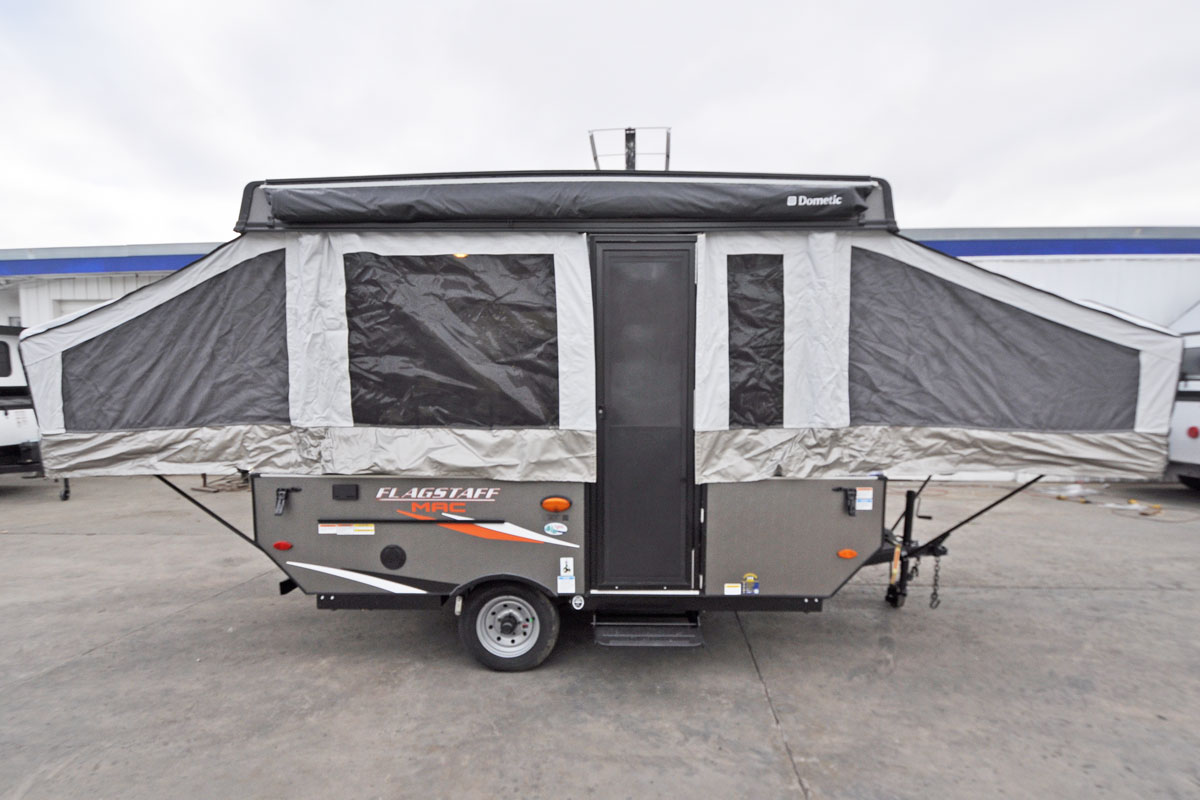

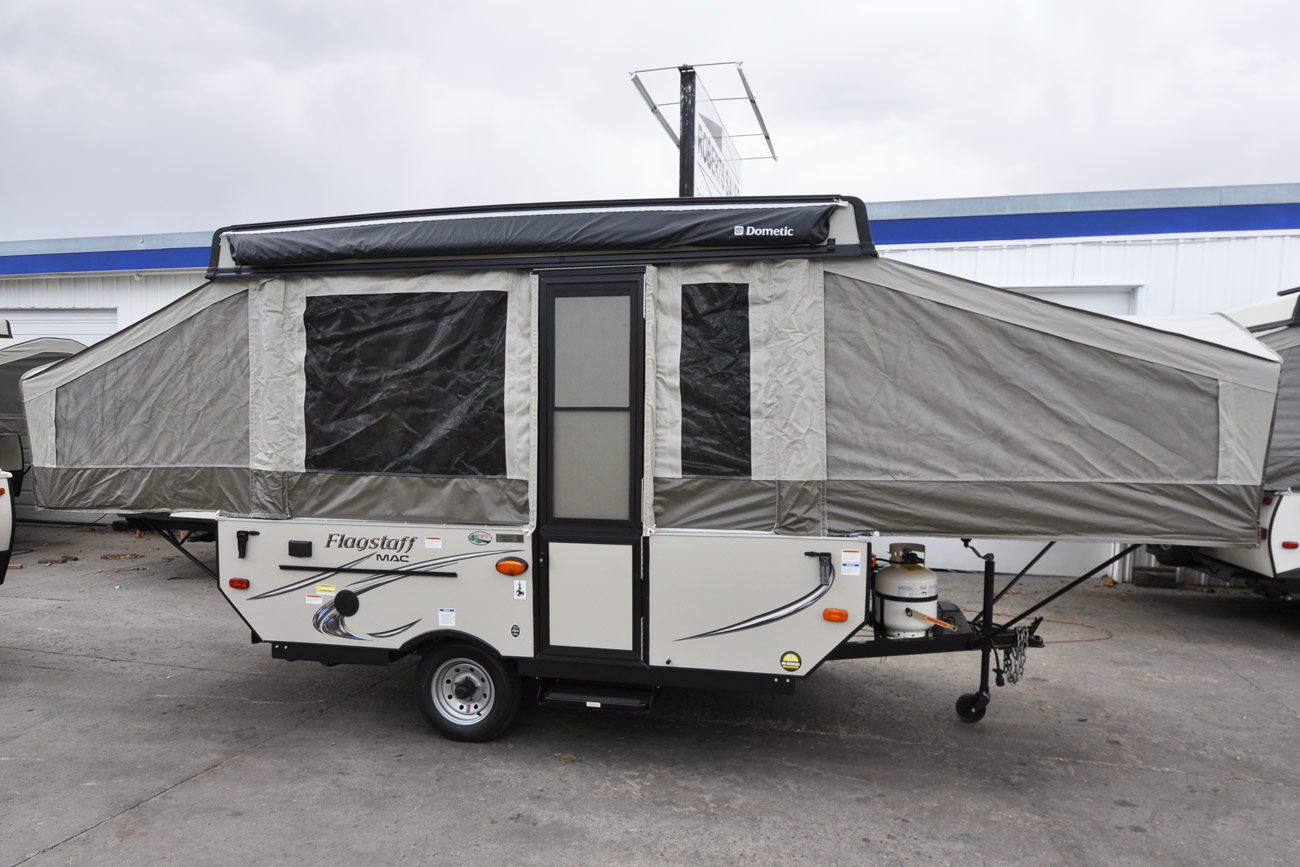

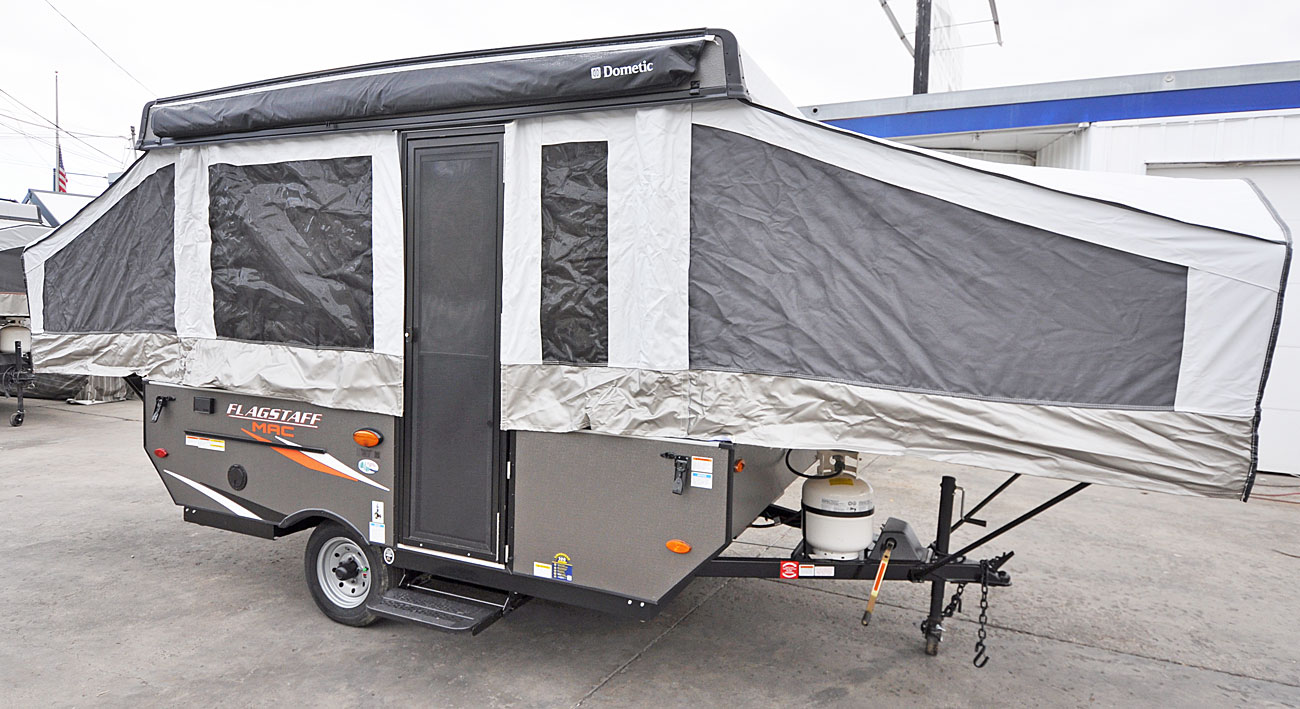

2018 Flagstaff 206LTD exterior

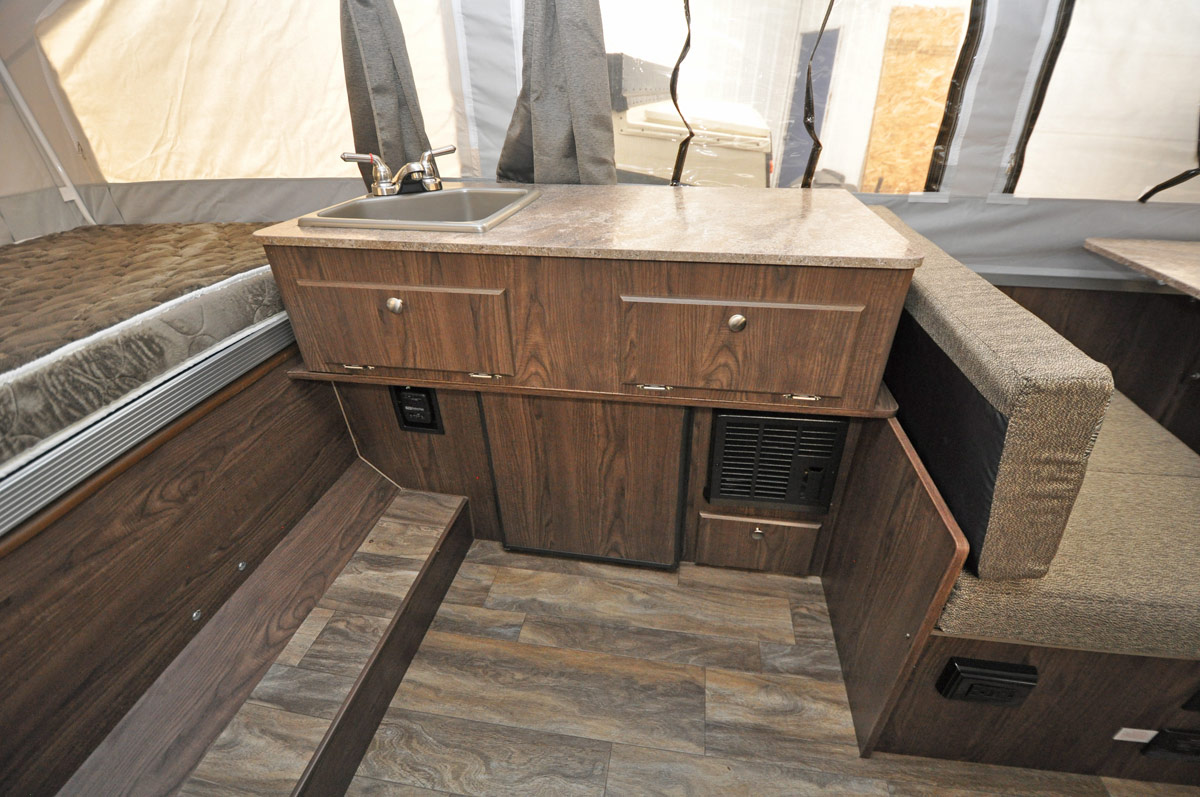

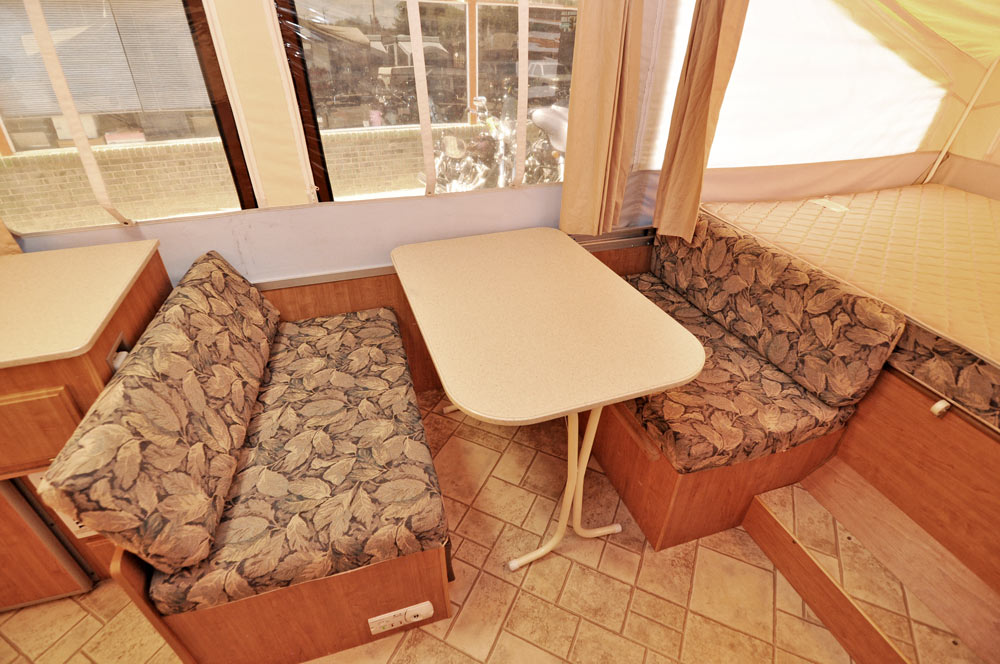

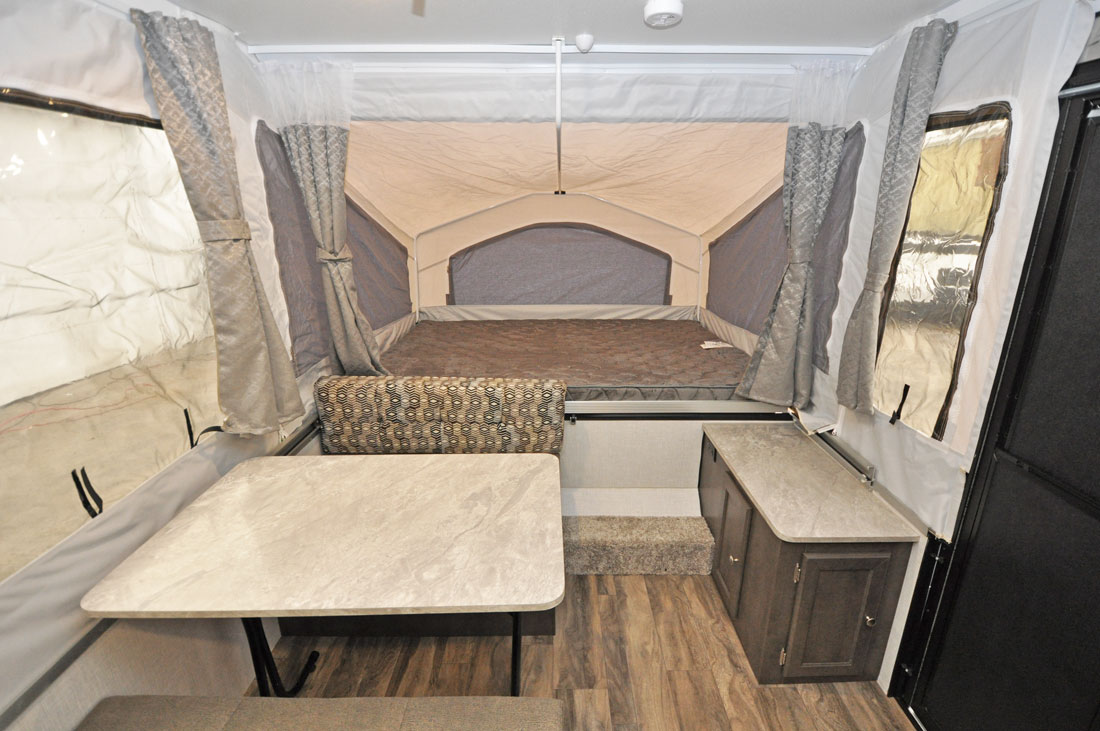

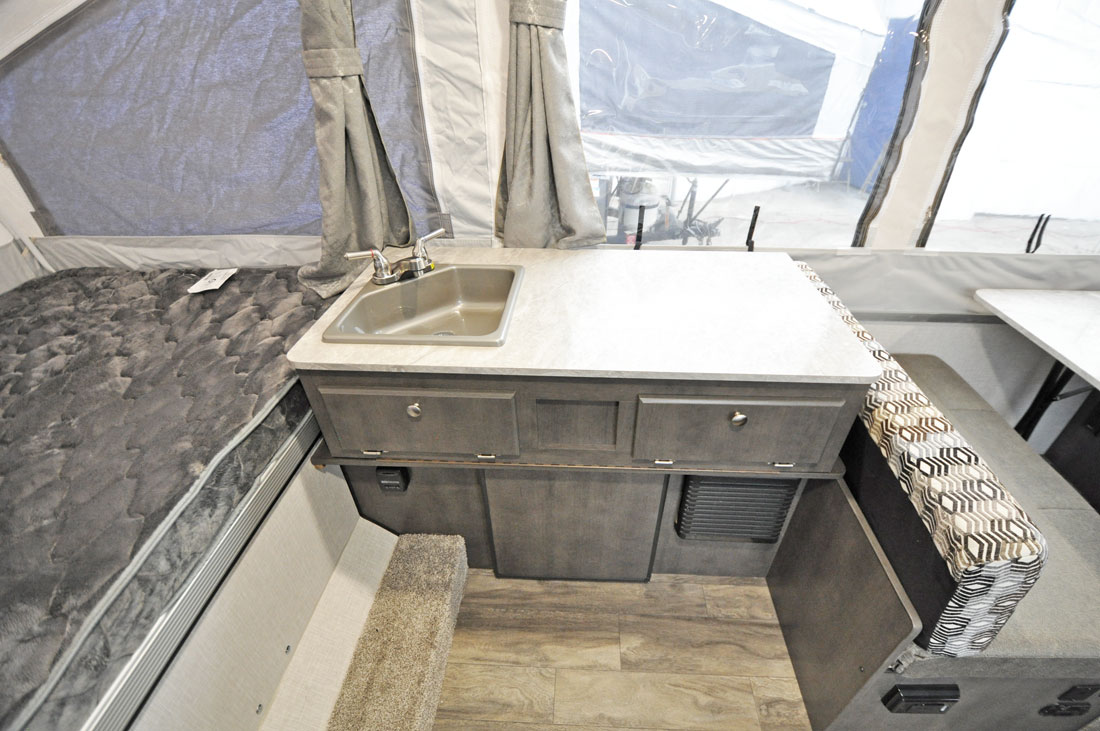

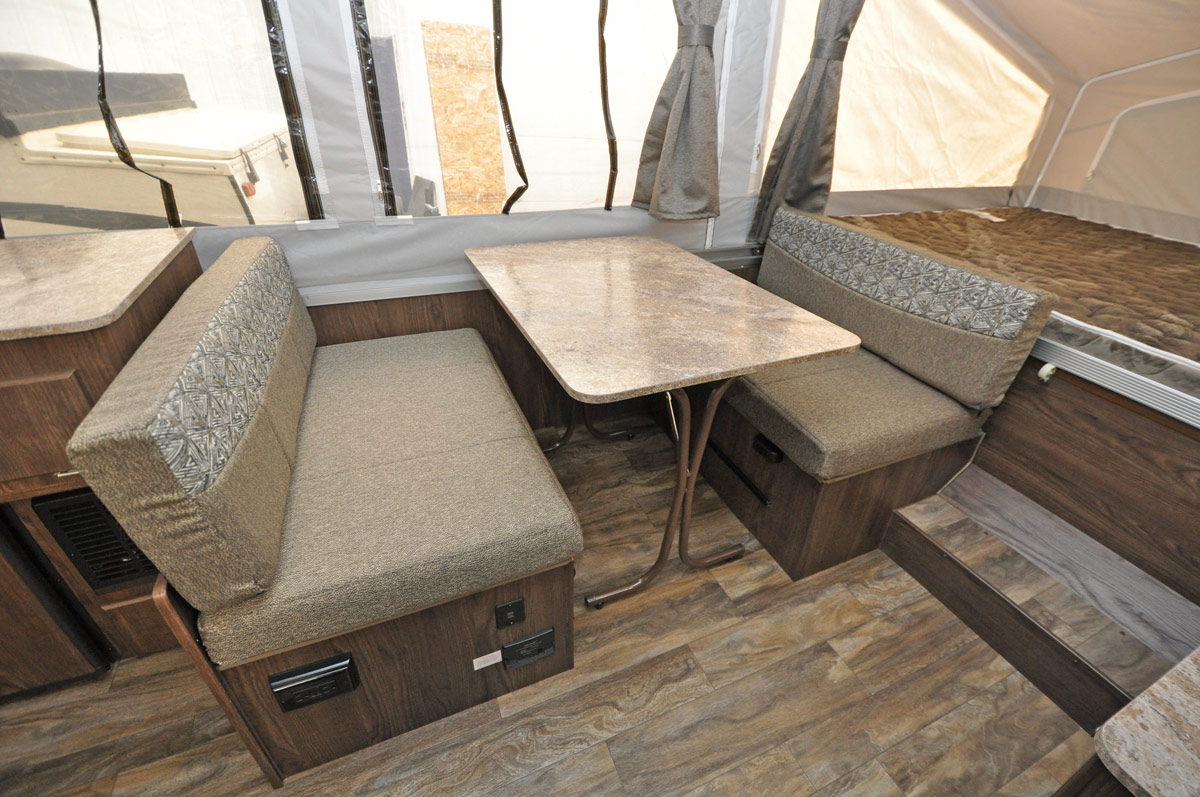

2018 Flagstaff 206LTD front view 2018 Flagstaff 206LTD rear view 2018 Flagstaff 206LTD galley 2018 Flagstaff 206LTD dinette

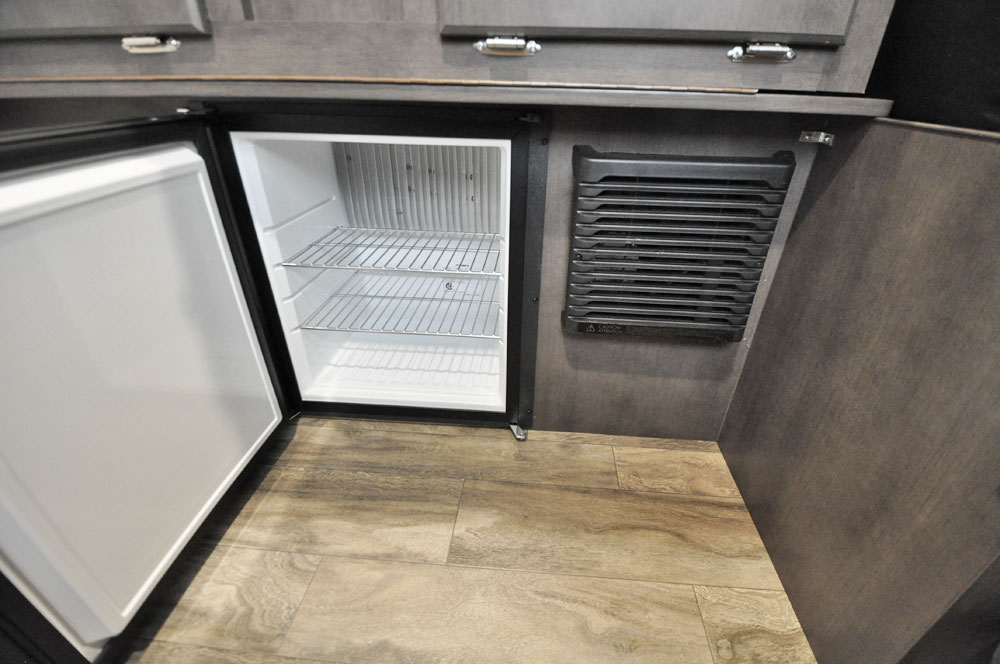

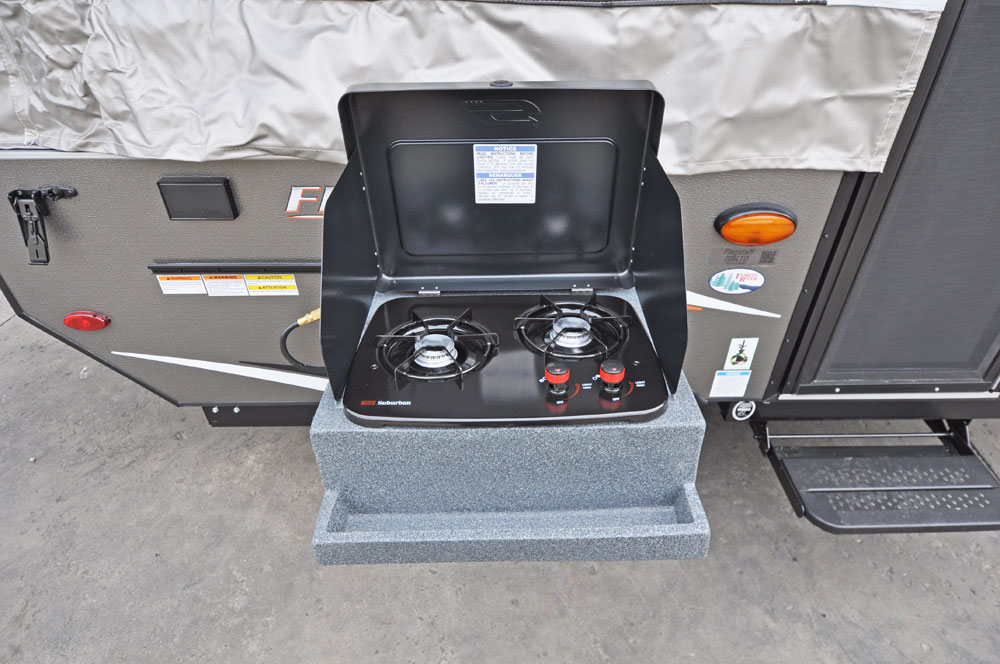

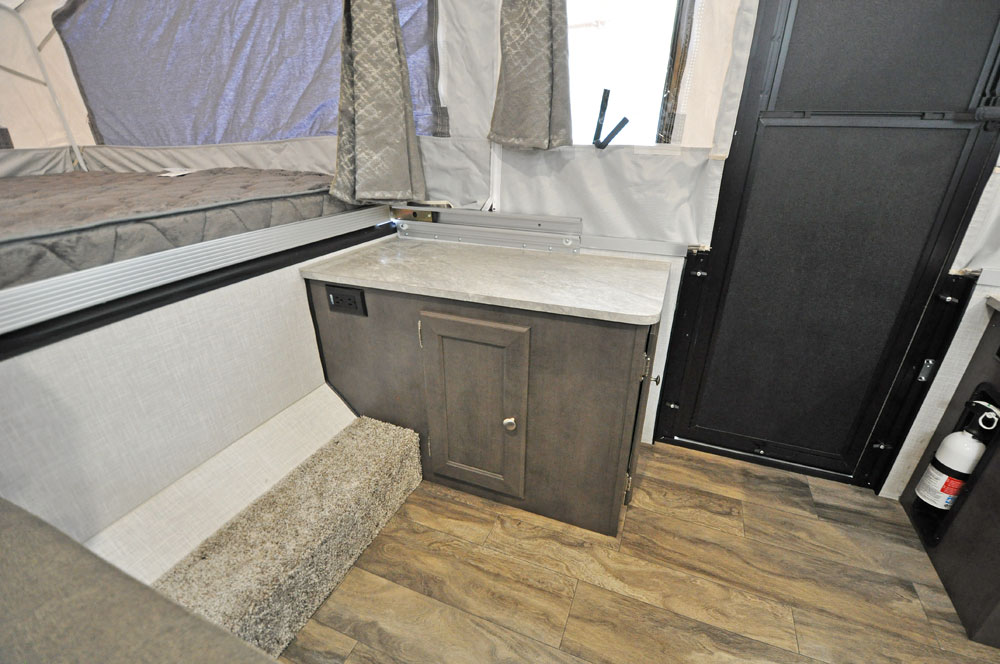

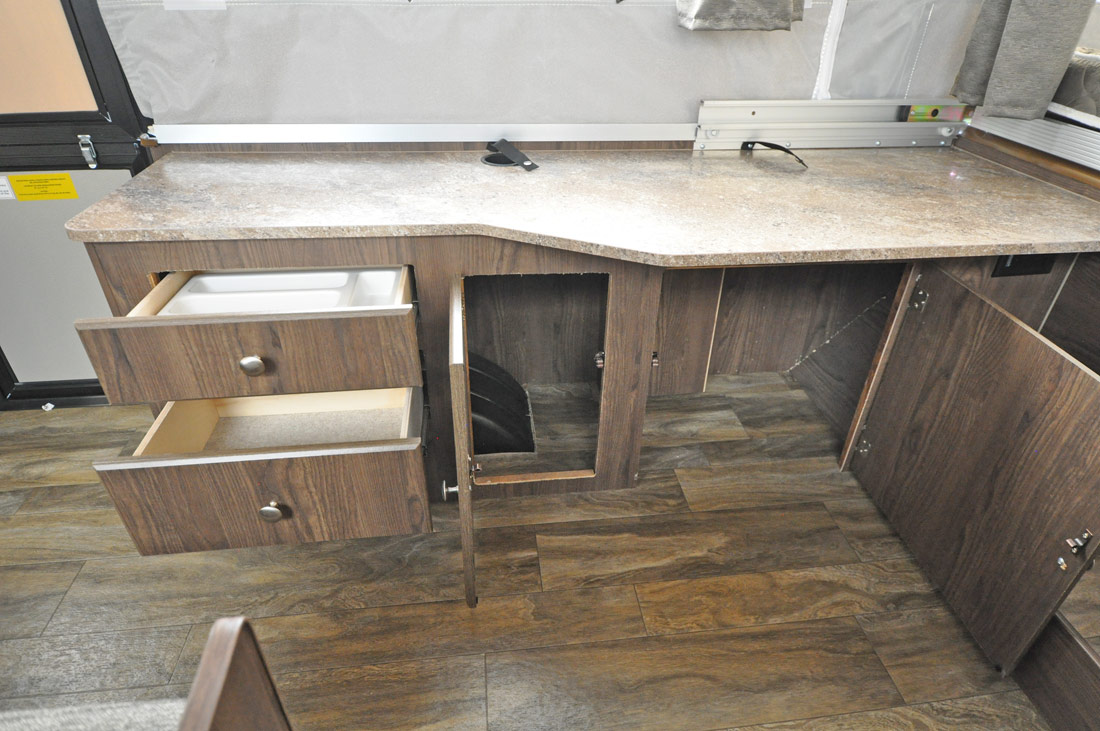

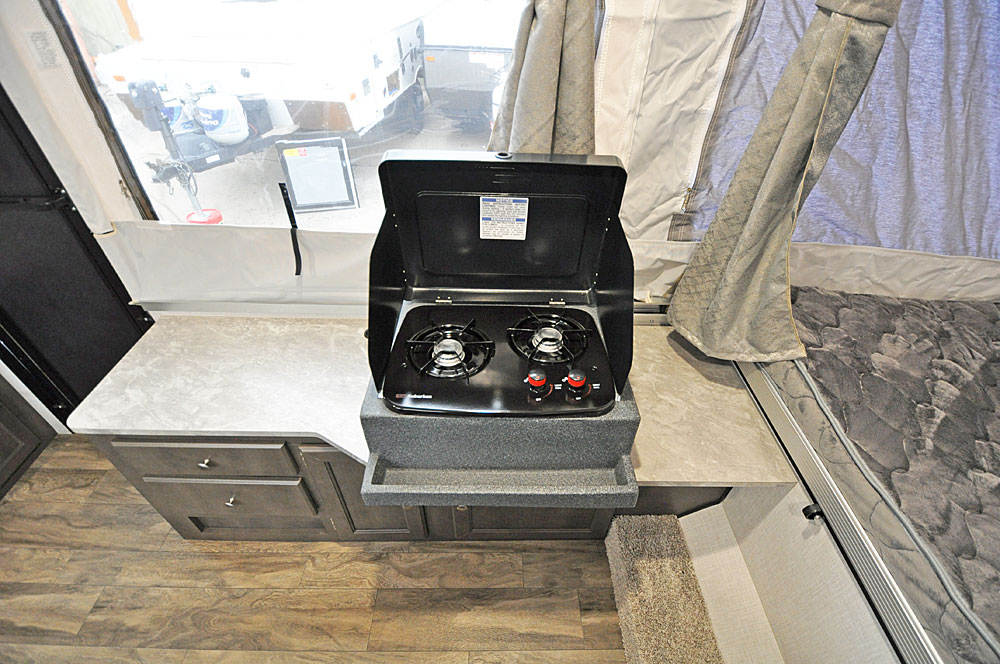

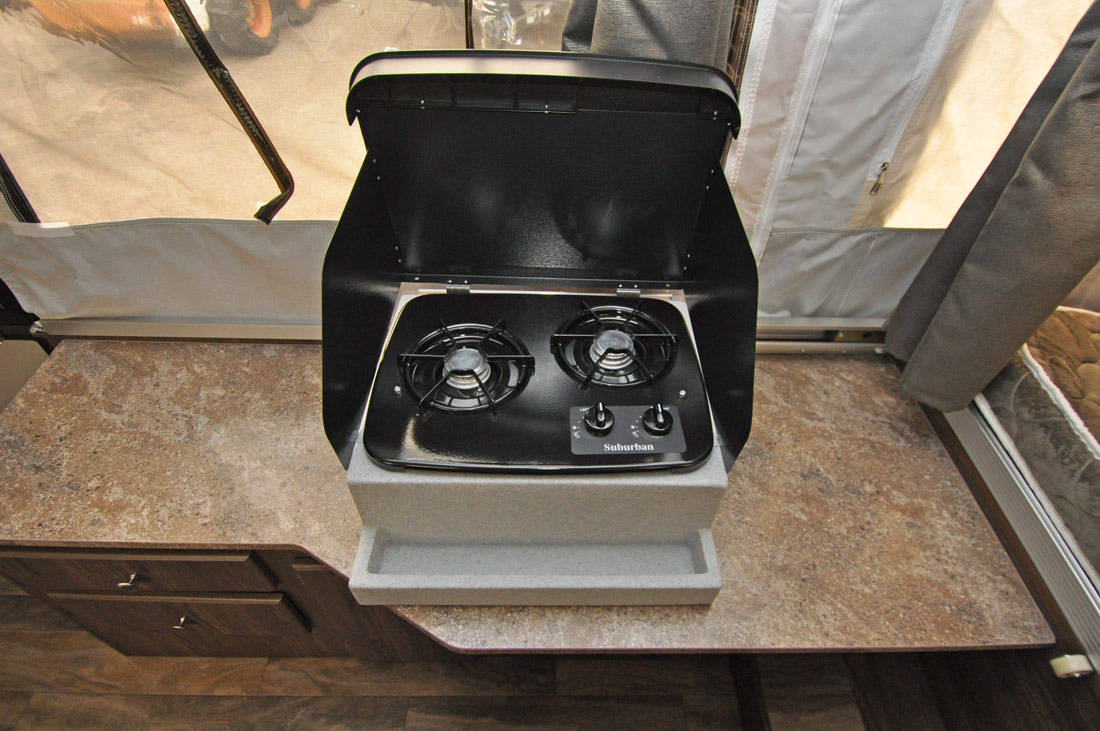

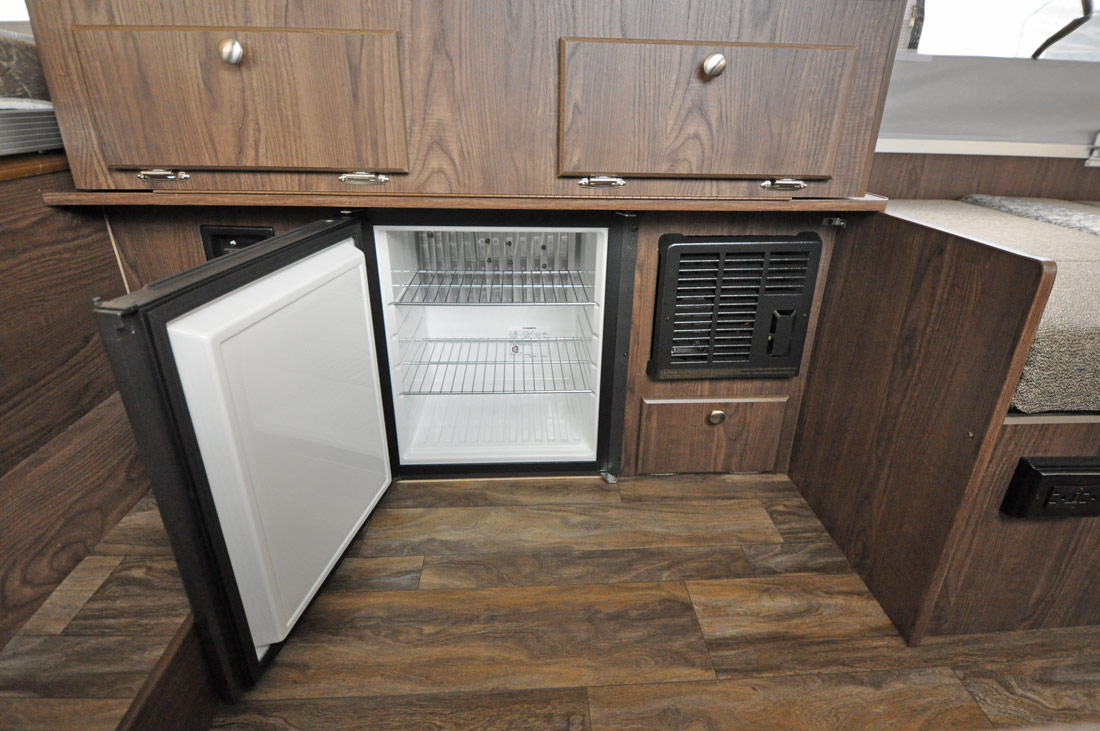

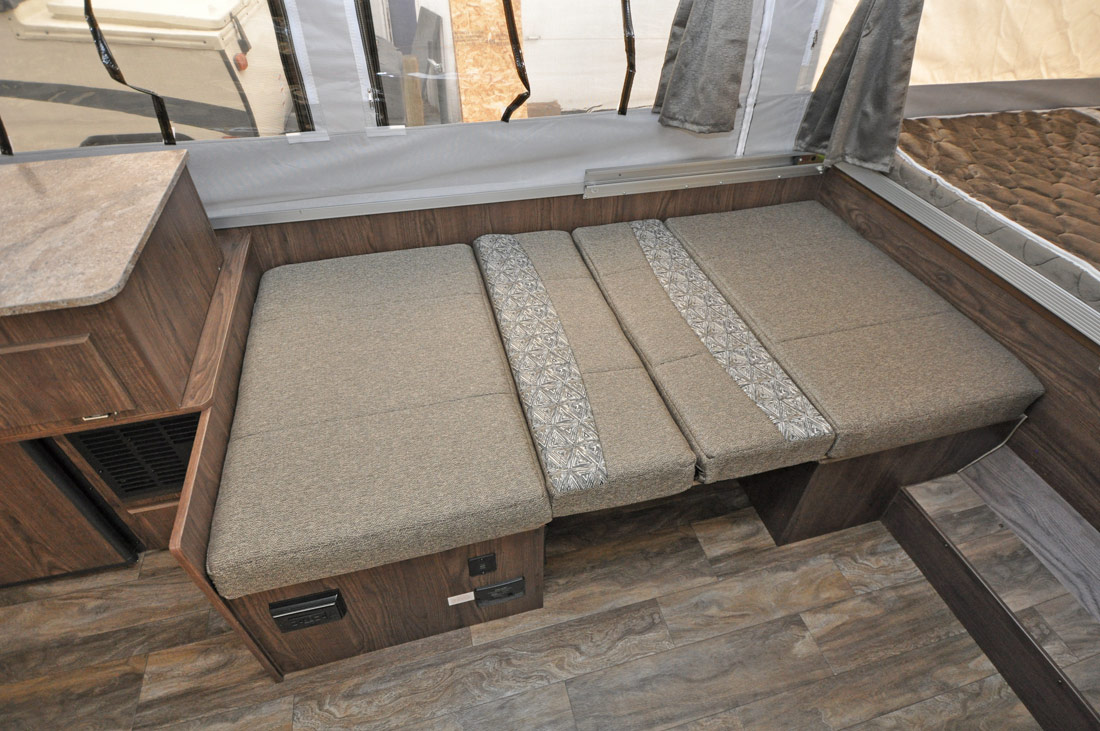

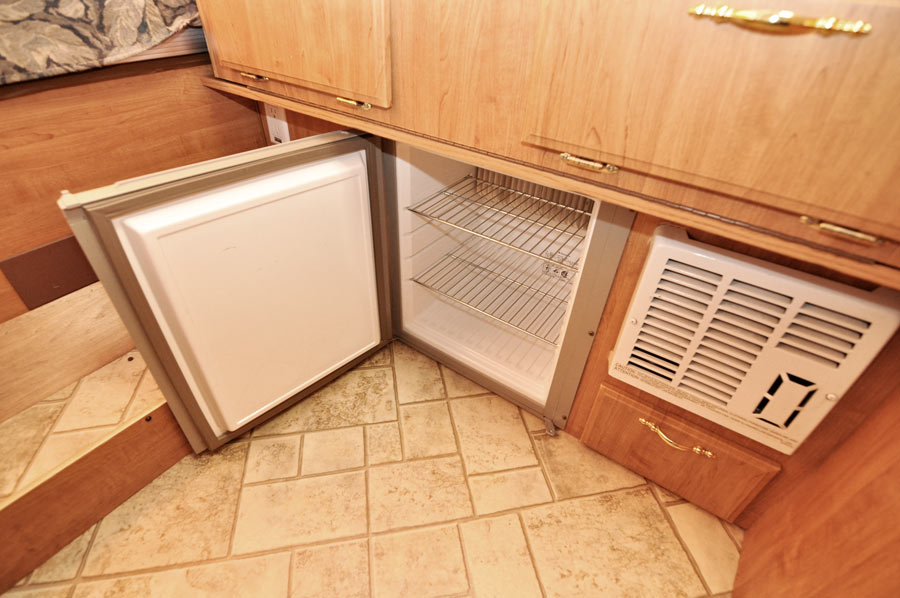

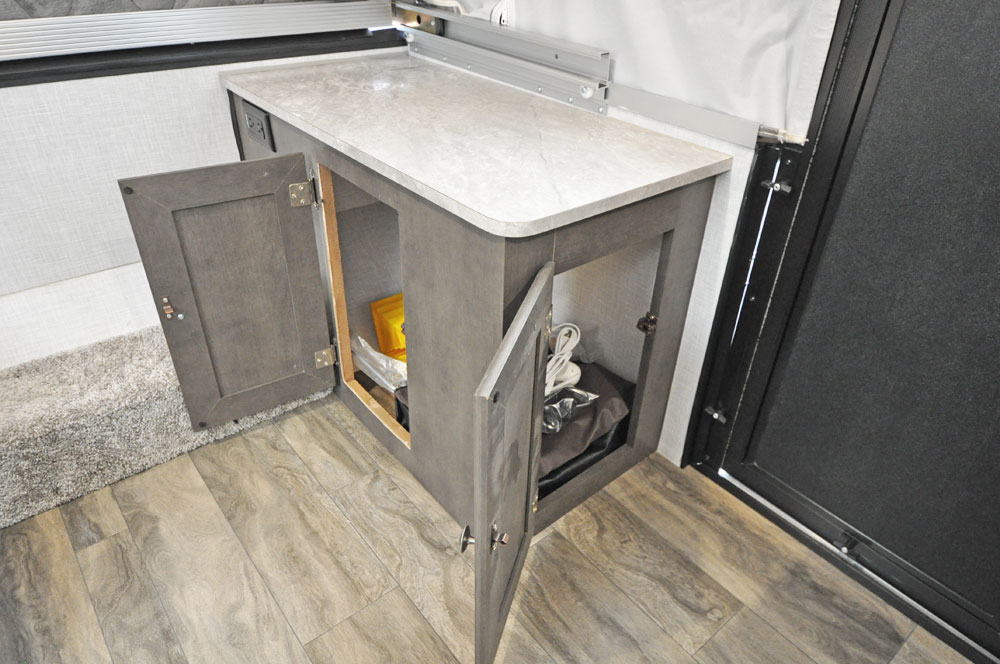

2018 Flagstaff 206LTD stove 2018 Flagstaff 206LTD fridge 2018 Flagstaff 206LTD storage 2018 Flagstaff 206LTD dinette as a bed

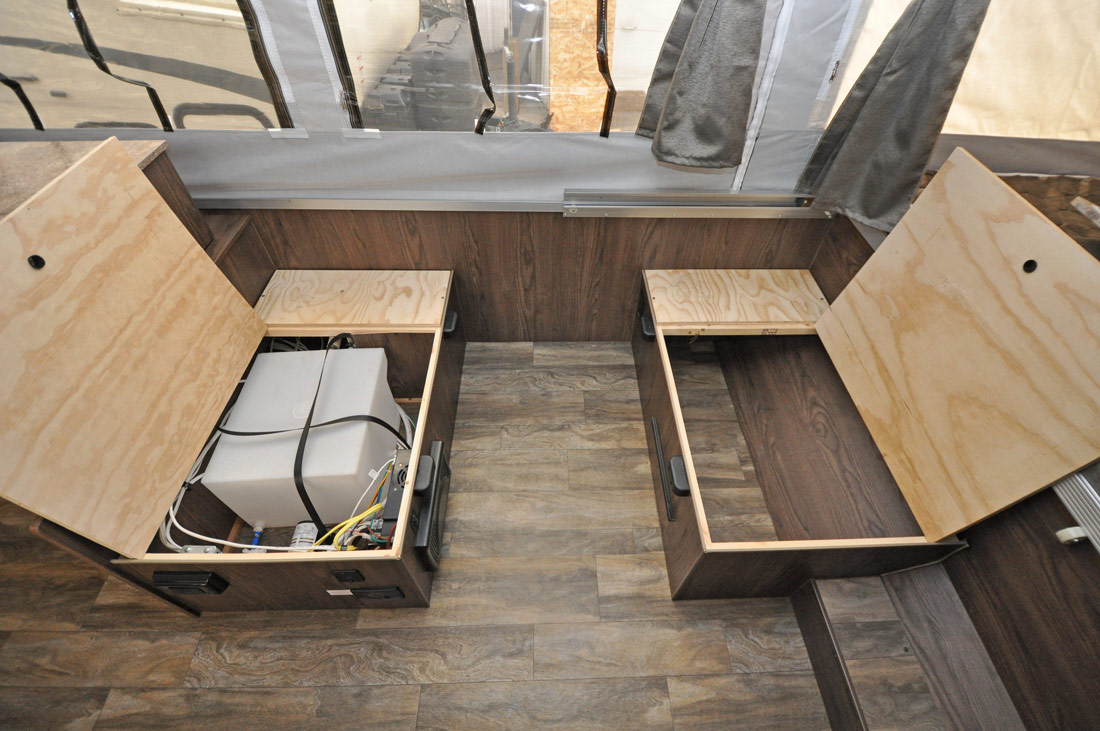

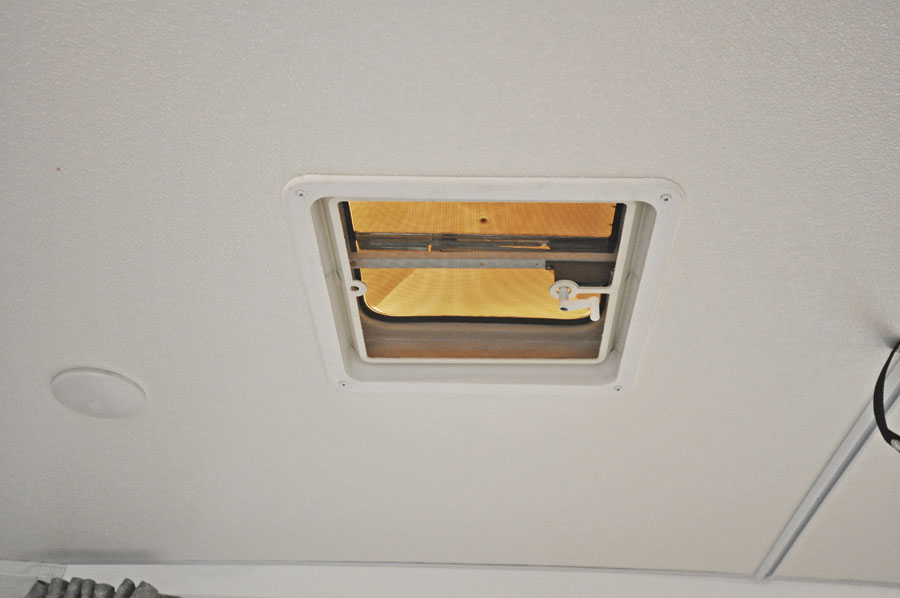

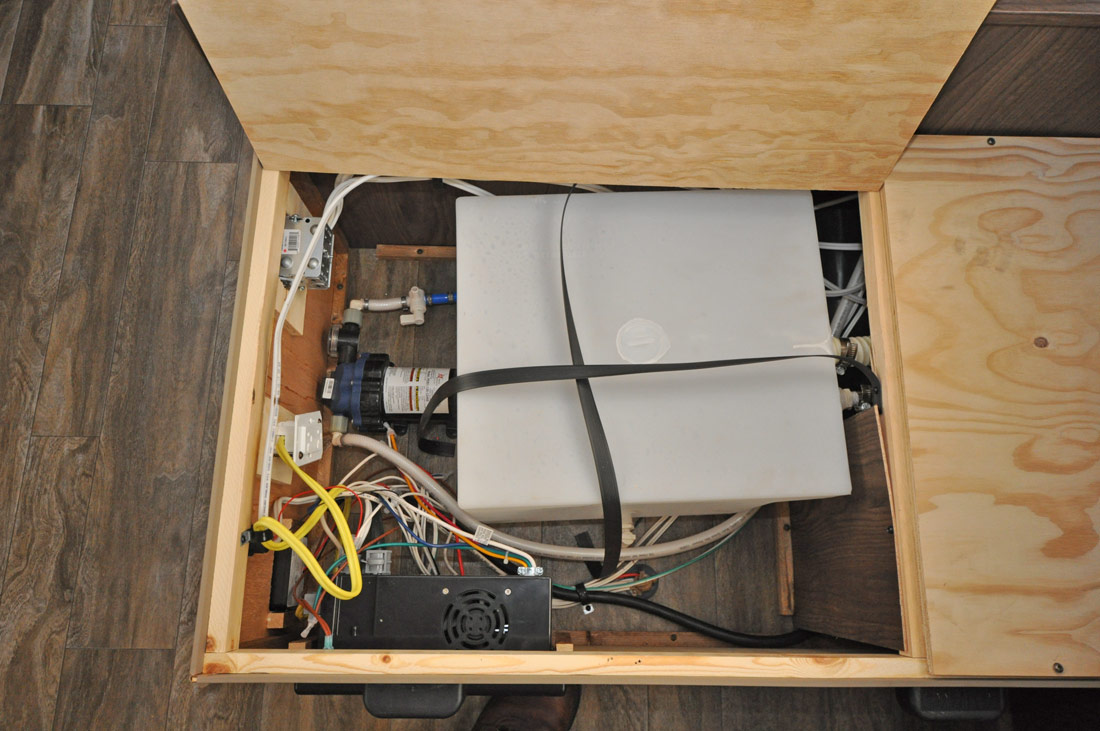

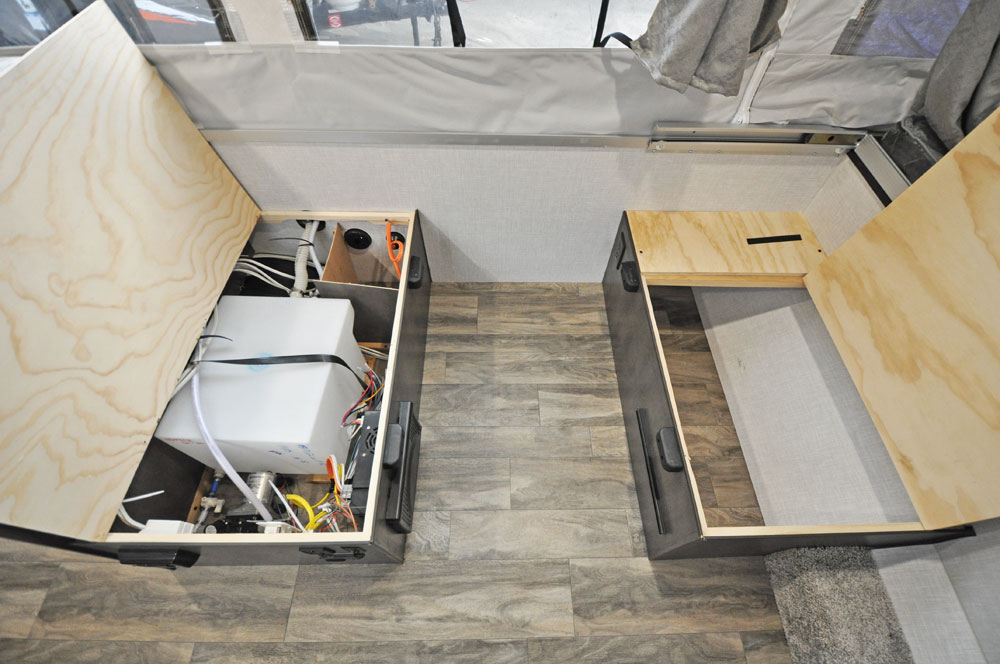

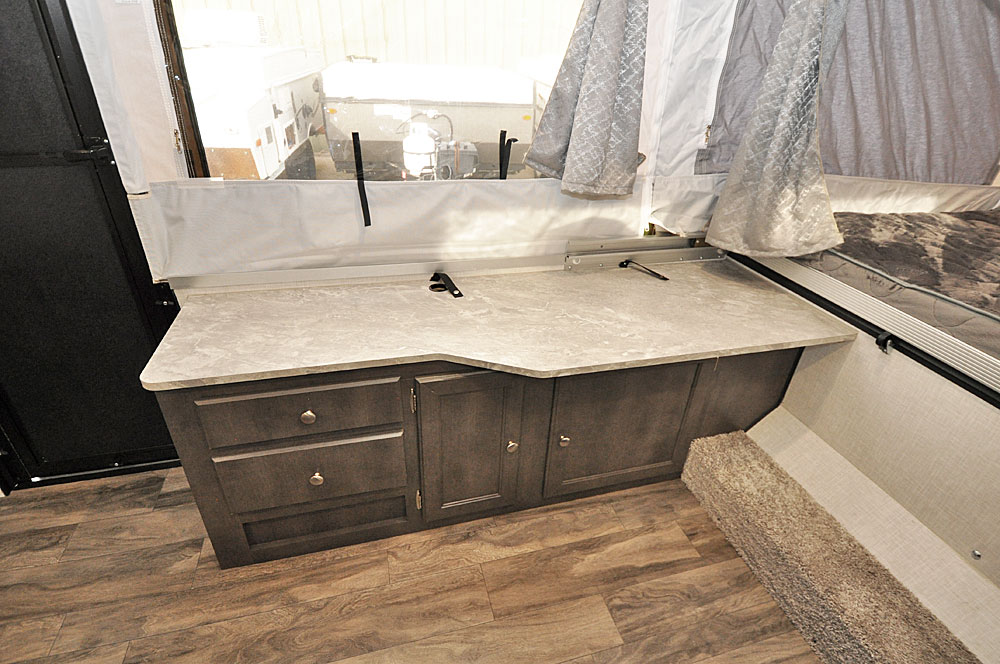

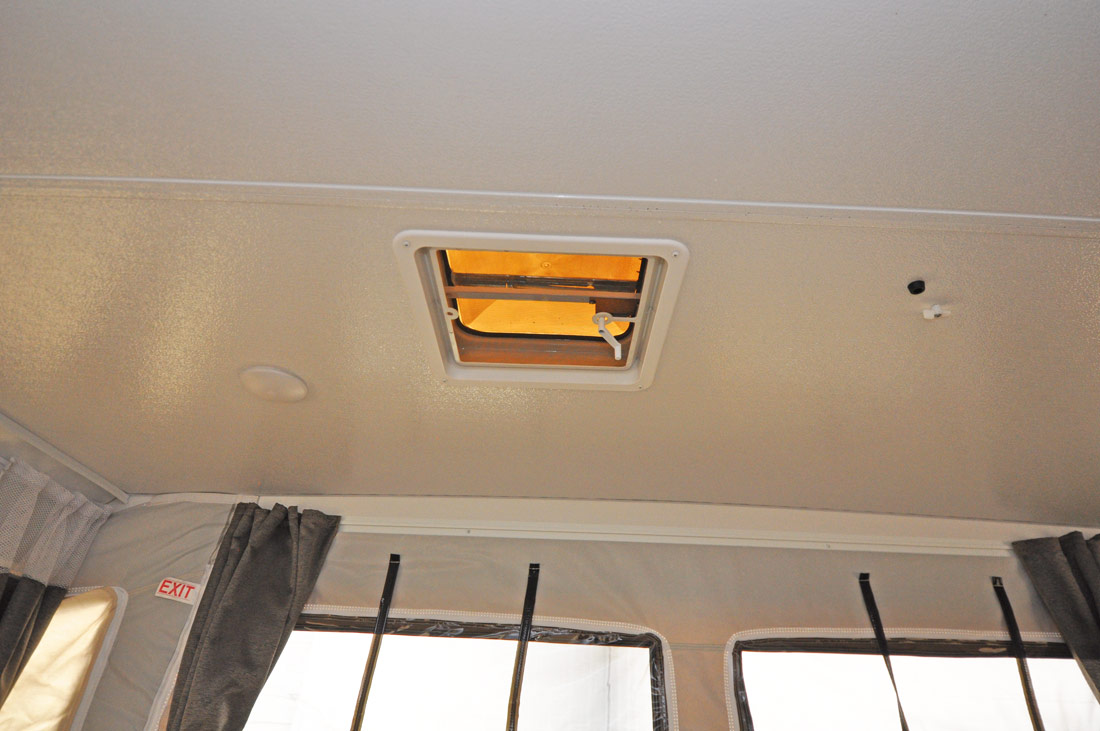

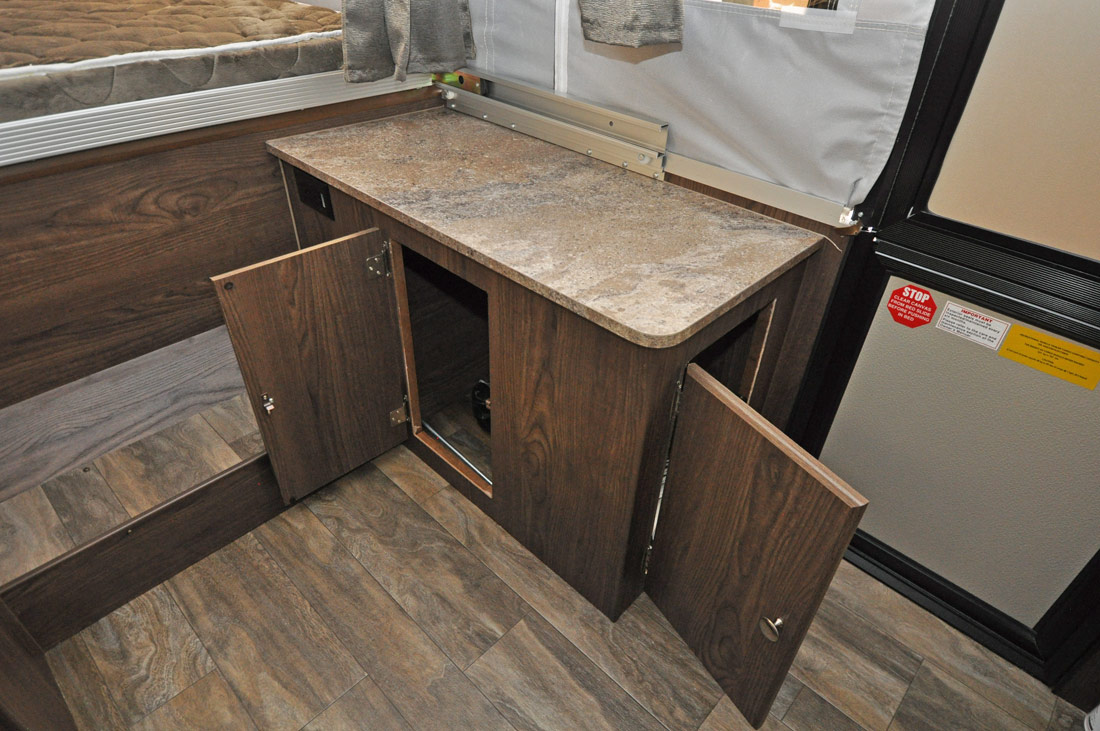

2018 Flagstaff 206LTD more storage 2018 Flagstaff 206LTD dinette storage area 2018 Flagstaff 206LTD water tank and pump 2018 Flagstaff 206LTD standard roof vent

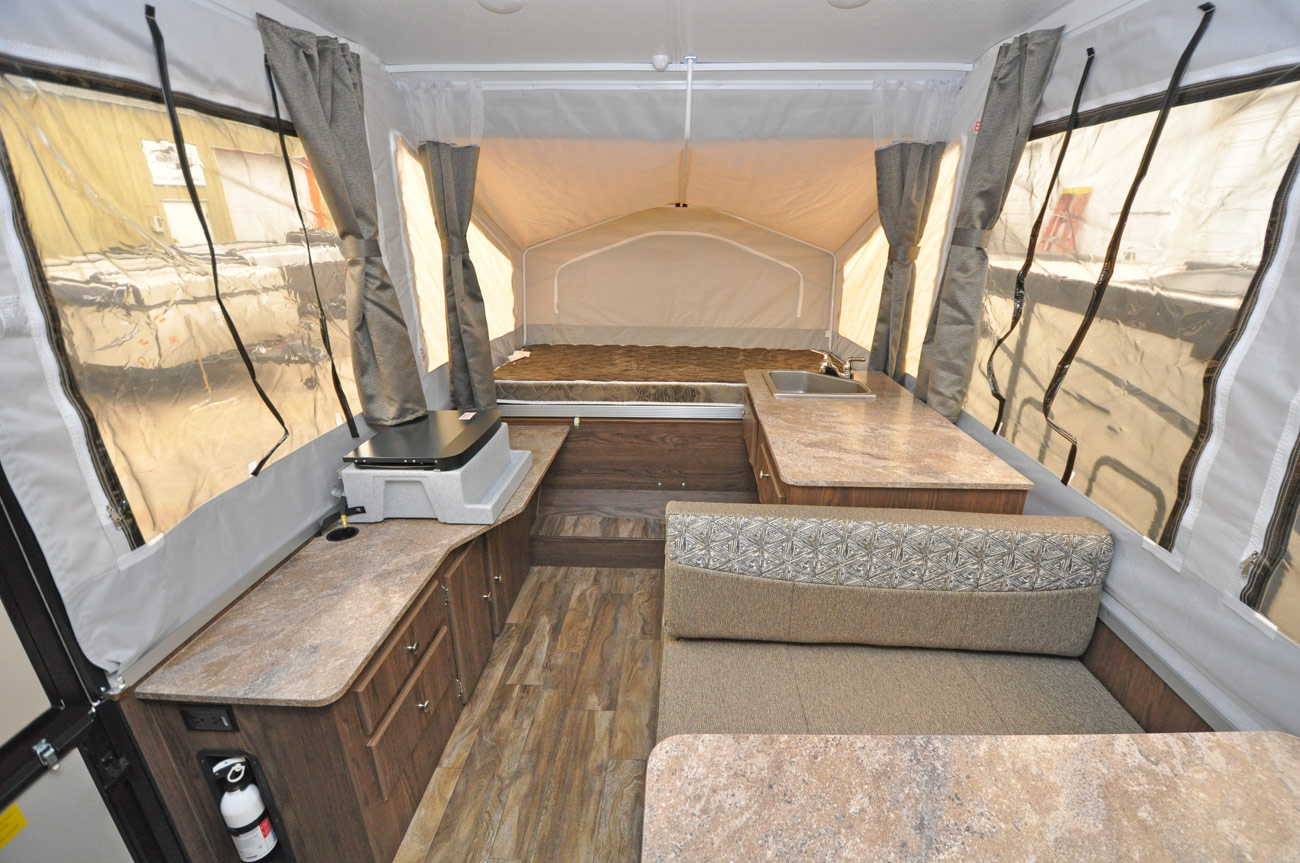

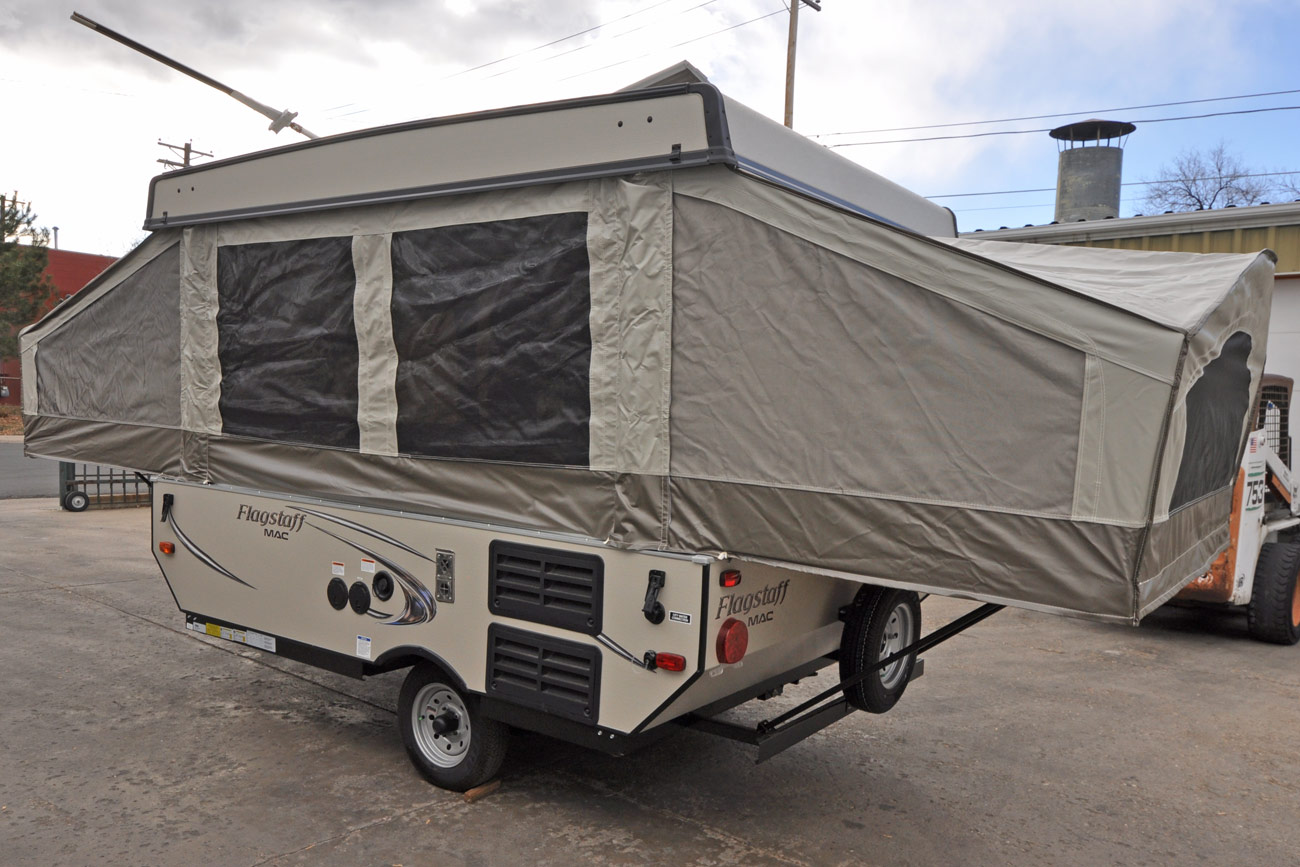

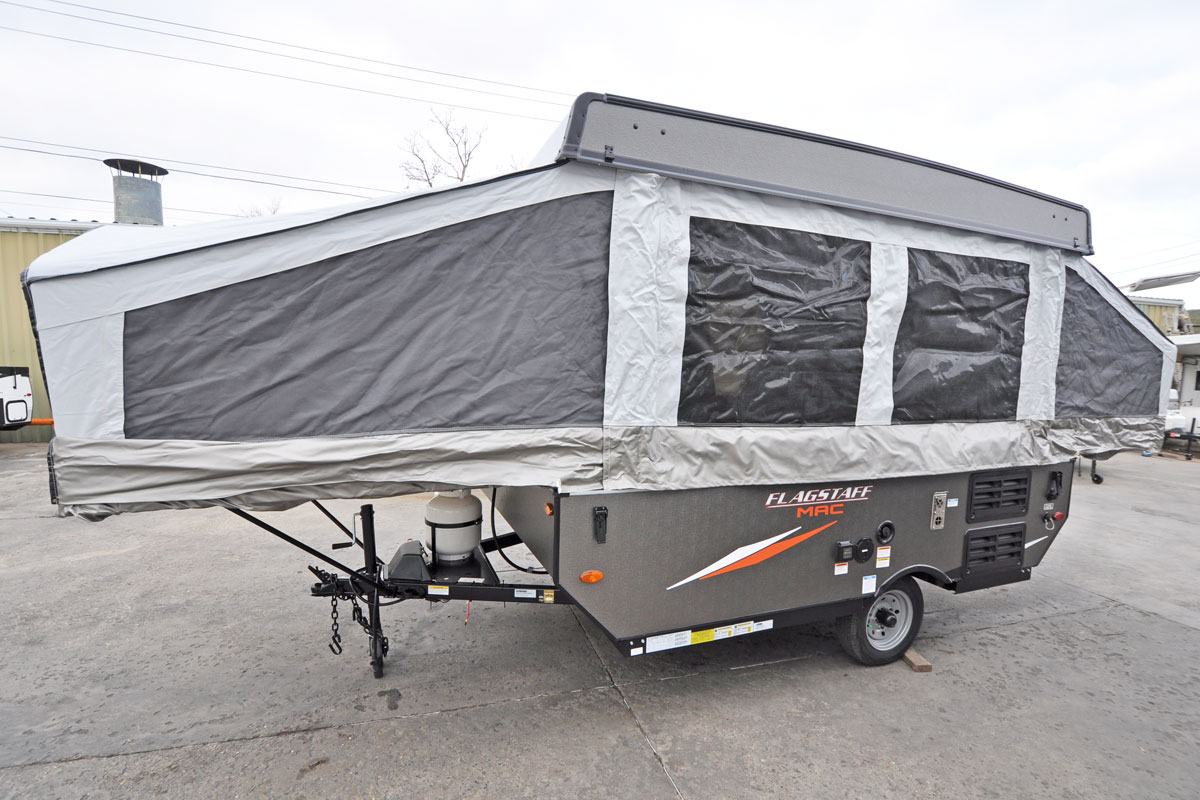

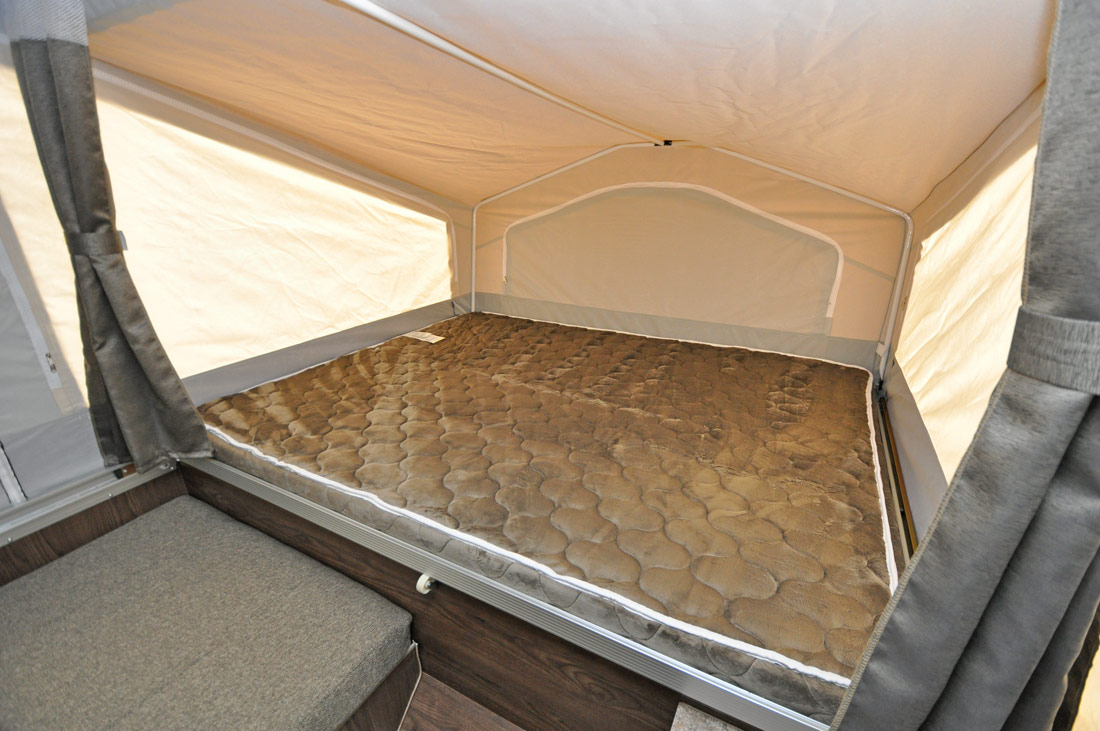

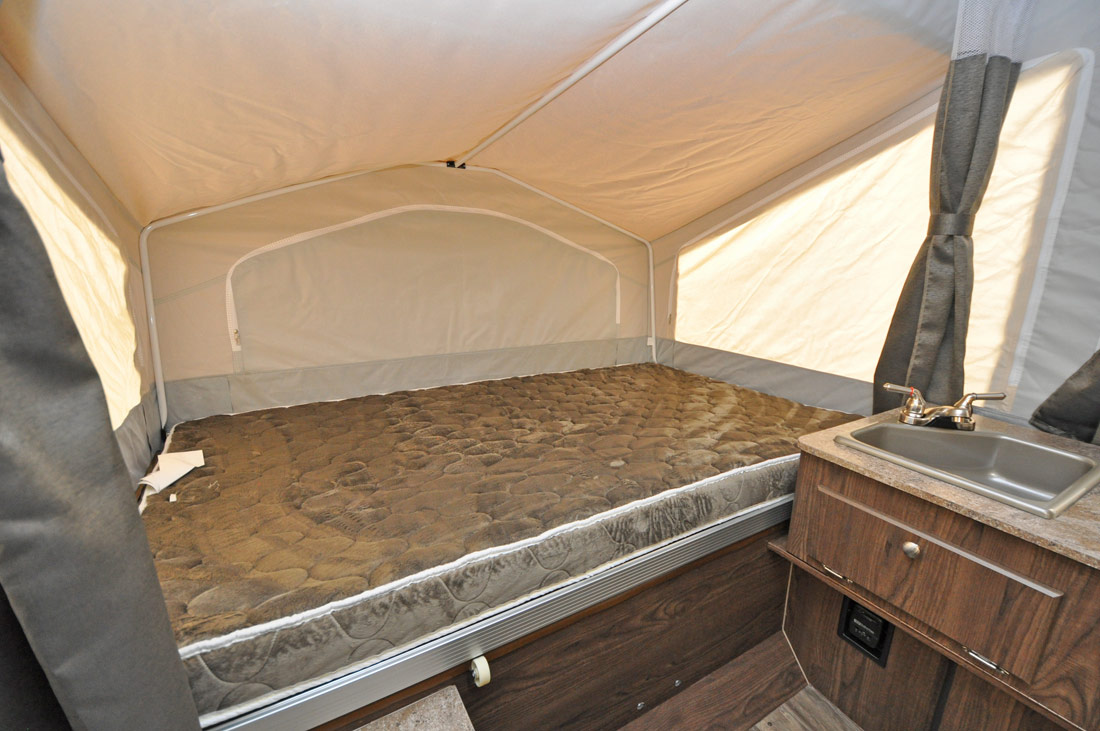

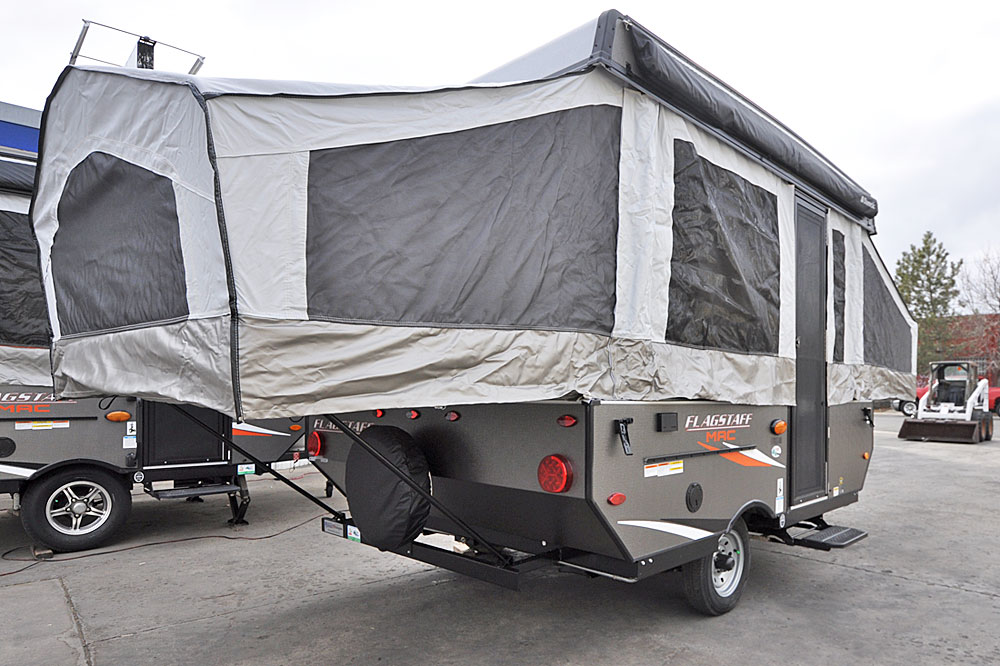

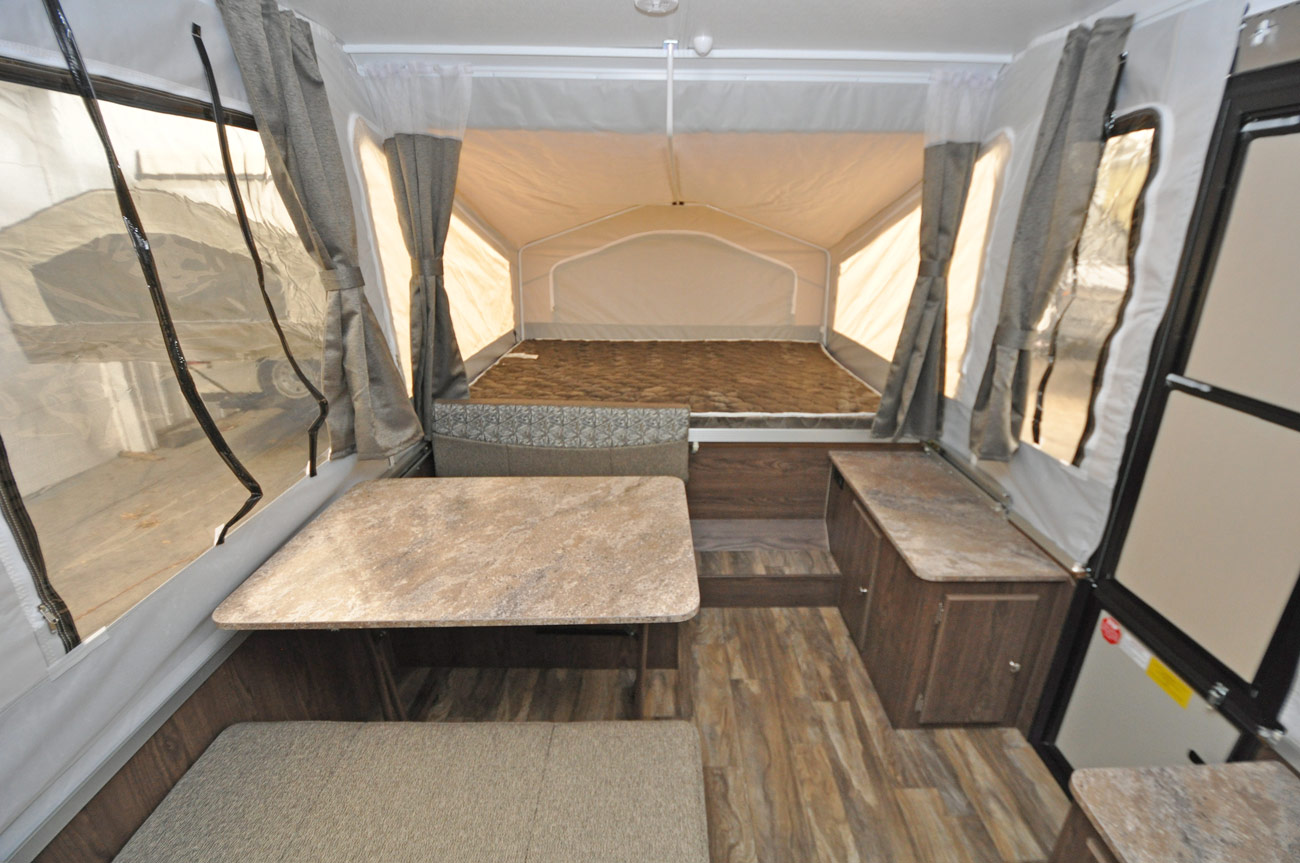

2018 Flagstaff 206LTD rear bed 2018 Flagstaff 206LTD front bed 2018 Flagstaff 206LTD back-side (2018 model year shown --[why an older model?])


  • Flagstaff's lightest 10' tent camper.
  • Includes a full walkway from front to back for easy access to both bed ends.
  • Lots of easy-access storage space and counter space.


  • Box Size: 10'
  • Open Length: 20' 1"
  • Travel Length: brochure says 14'; actual (with spare tire) - 14' 3"
  • Travel Width: 7' 6"
  • Dry Weight: 1608 lbs (brief weight explanation)
  • Hitch Weight: 195 lbs
  • GVWR: 2355 lbs
  • Coupler size: 2"
  • Sleeps: 6
  • Beds:
    1. 80" x 60"
    2. 80" x 48"
    3. 74" x 38"


  • Dometic 1.9 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior/Exterior 2-burner stove
  • 10-gallon water tank
  • Group 27 battery pack
  • 110V heated 3.5" foam mattresses
  • Privacy curtains
  • Standard roof vent
  • 2-piece door
  • Awning
  • 20# propane tank
  • 12" steel wheels
  • Spare tire

Comparable Models

  • 206LT - Identical layout but with a few upgraded features.
  • 176LTD - The only other LTD model, this 8' version has a smaller dinette and smaller end beds.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to LTD Series

Top of Page

Older Photos

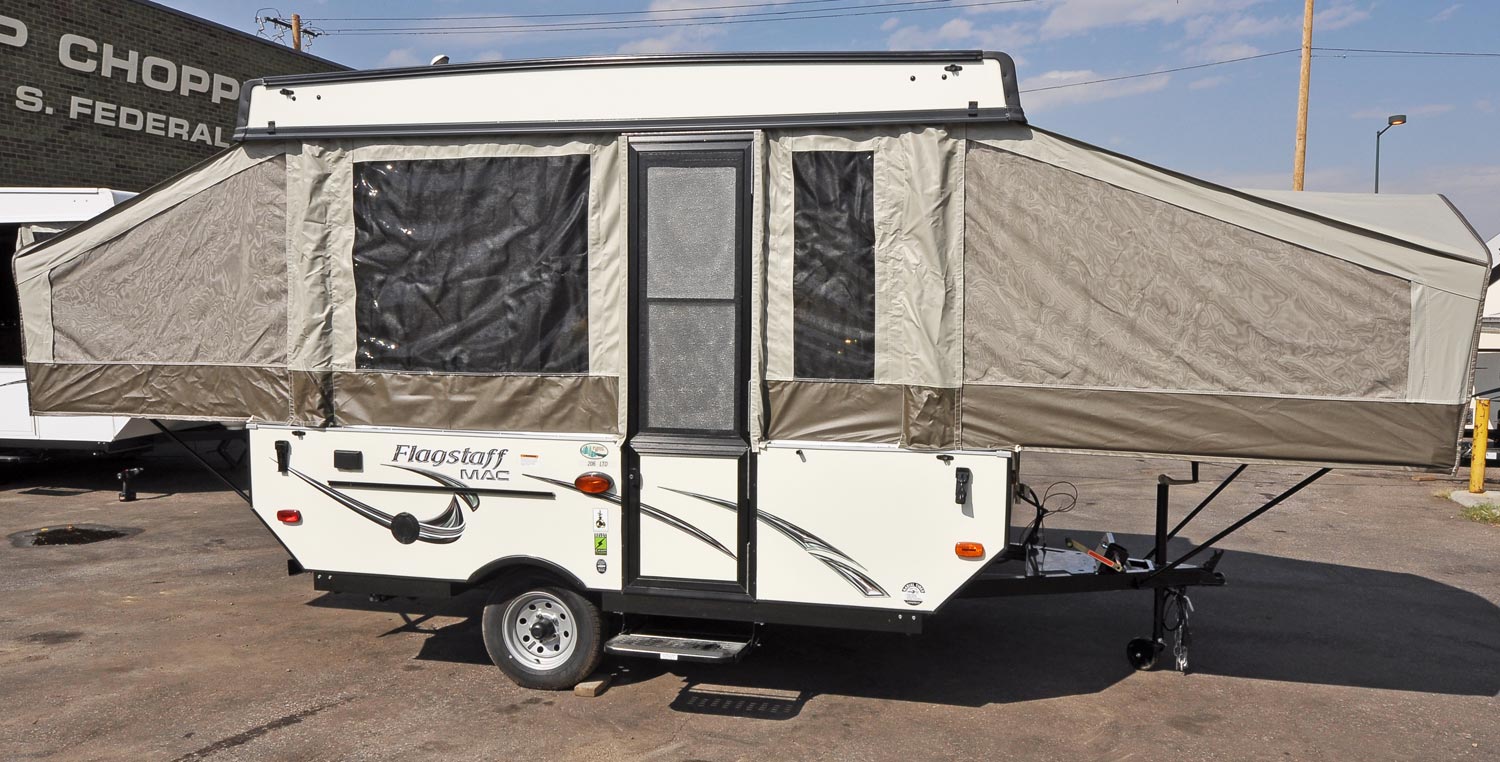

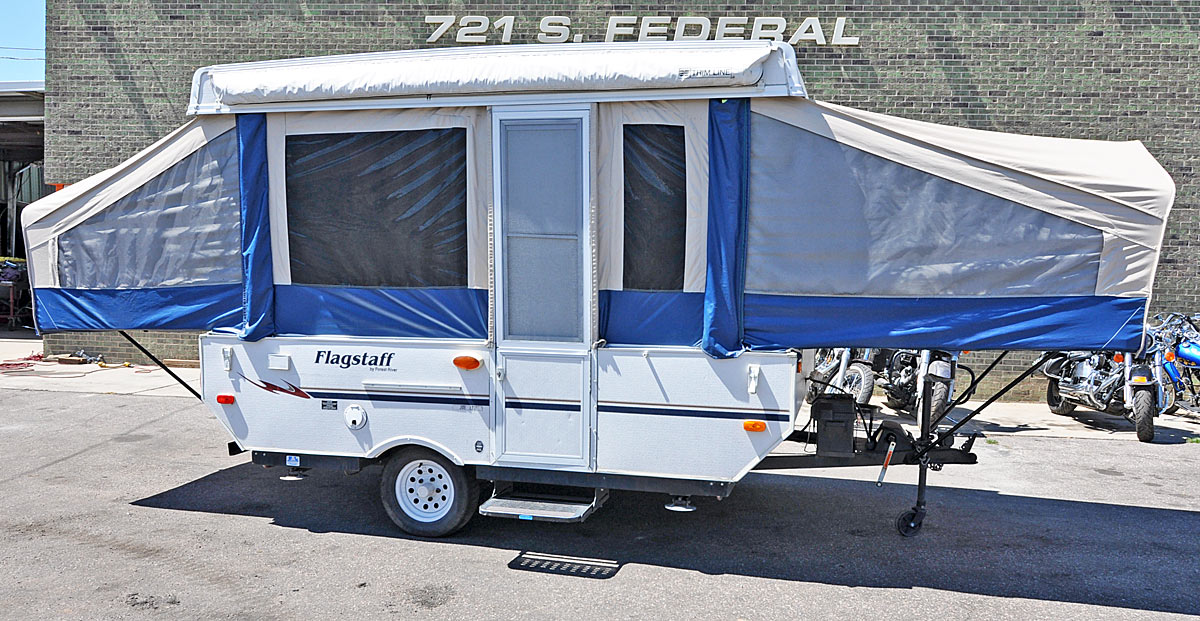

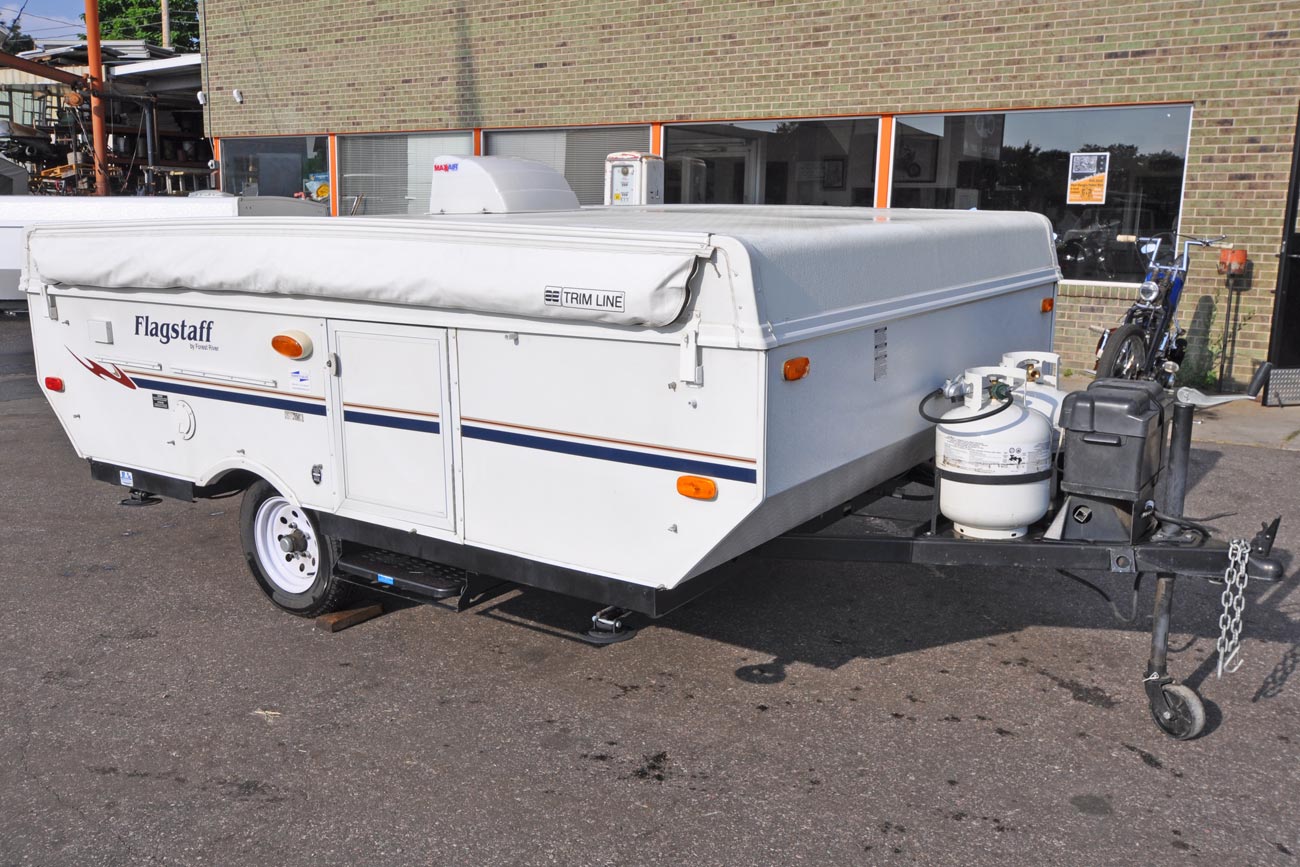

2016 Flagstaff 206LTD exterior

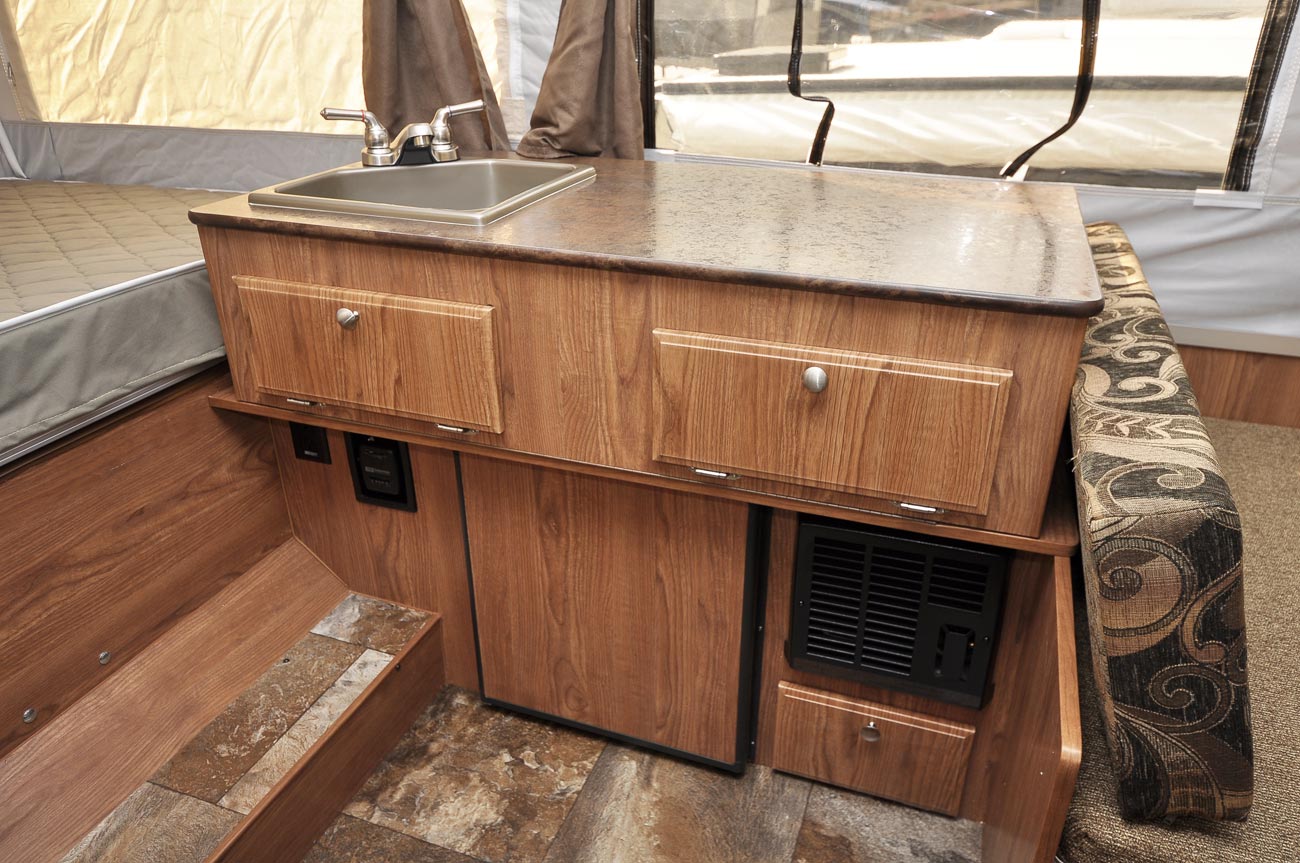

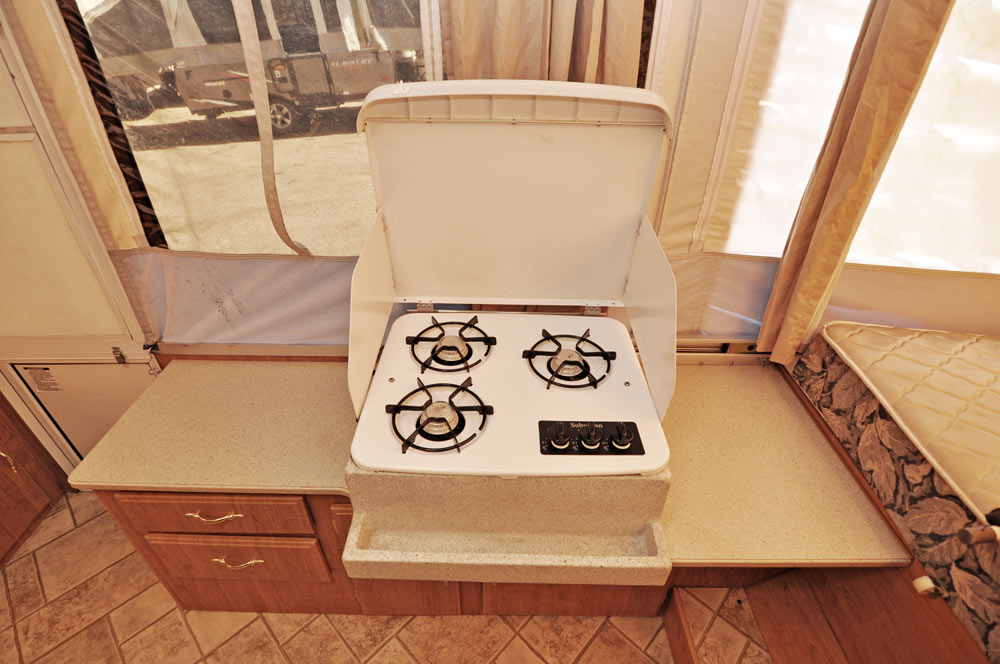

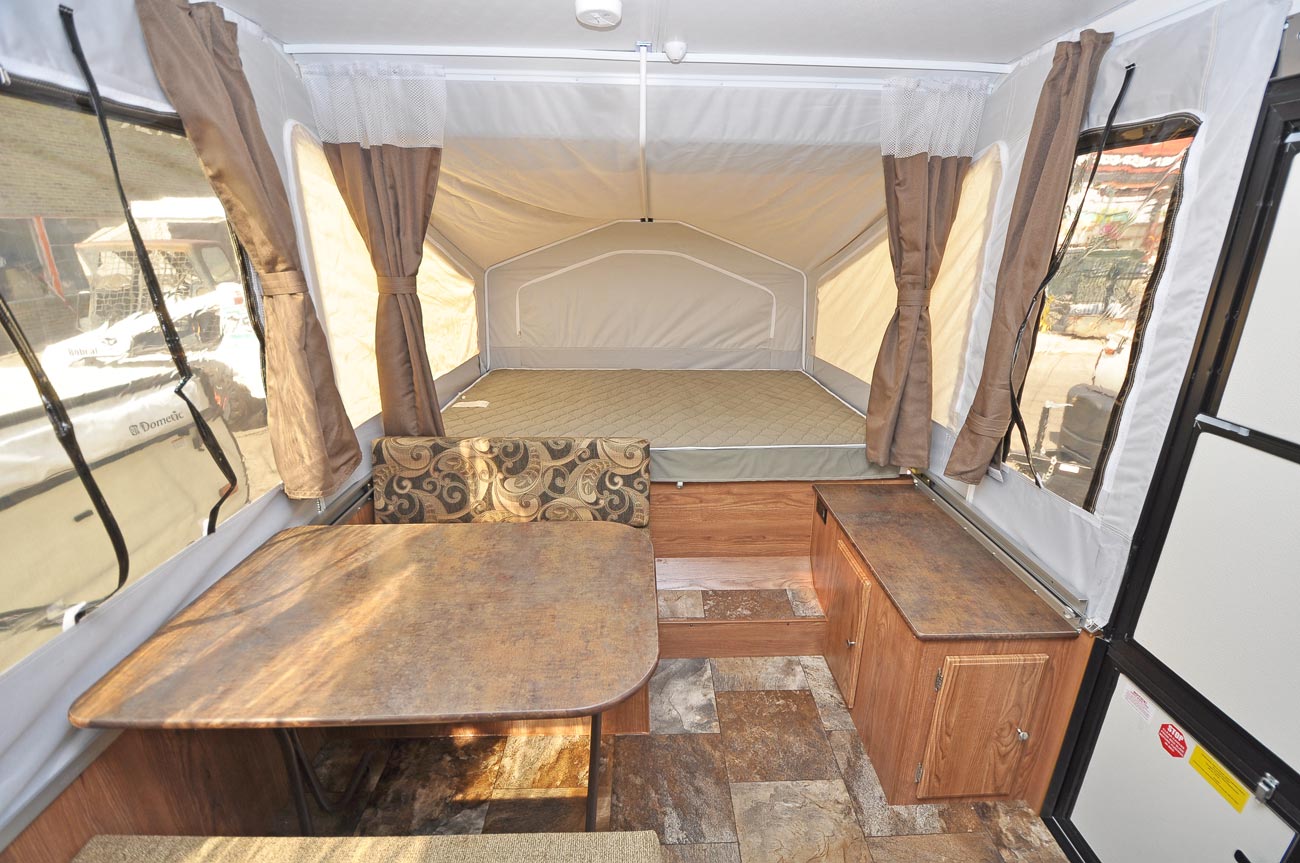

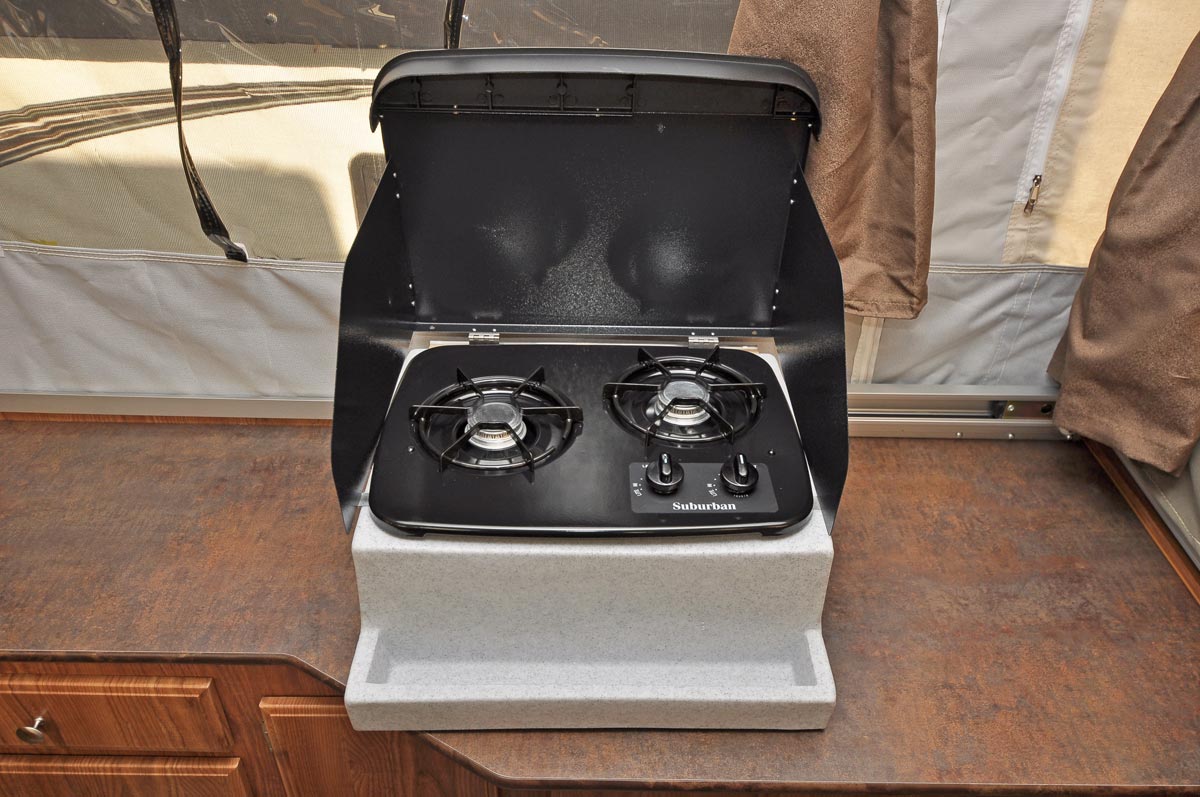

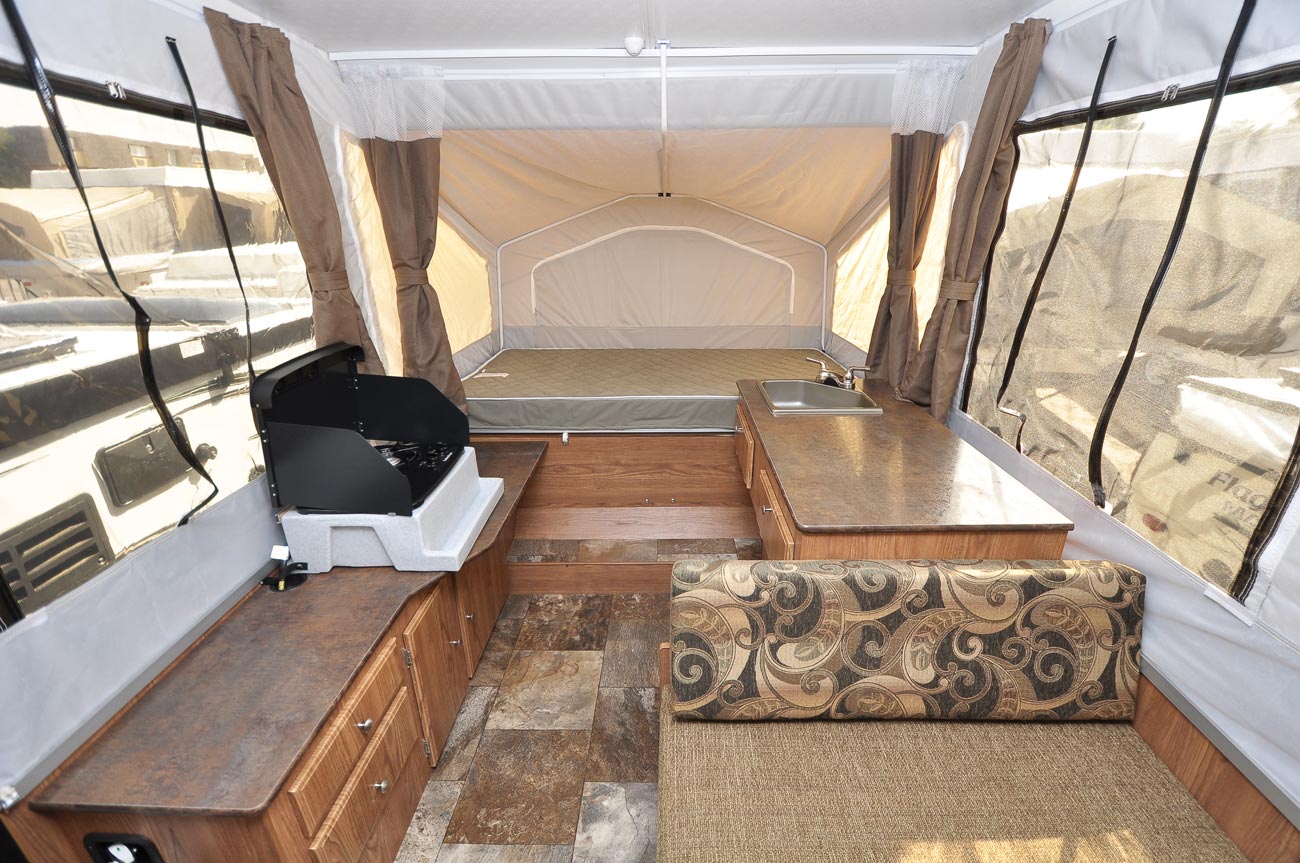

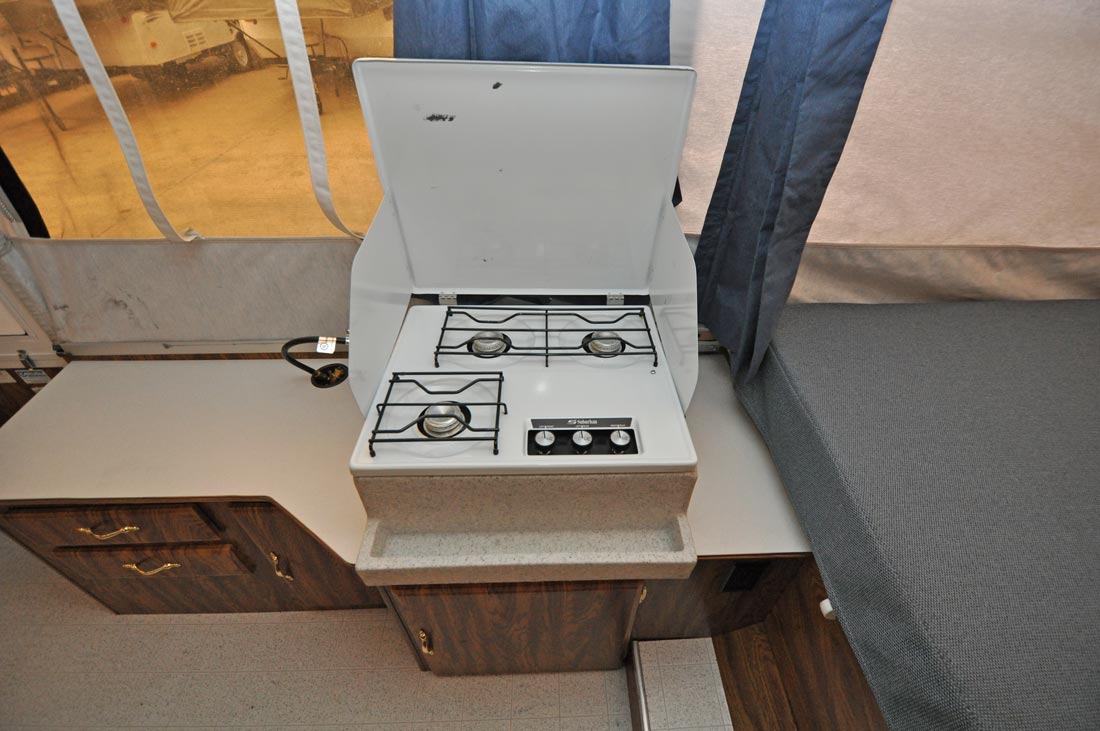

2016 Flagstaff 206LTD front view 2016 Flagstaff 206LTD rear view 2016 Flagstaff 206LTD galley 2016 Flagstaff 206LTD stove

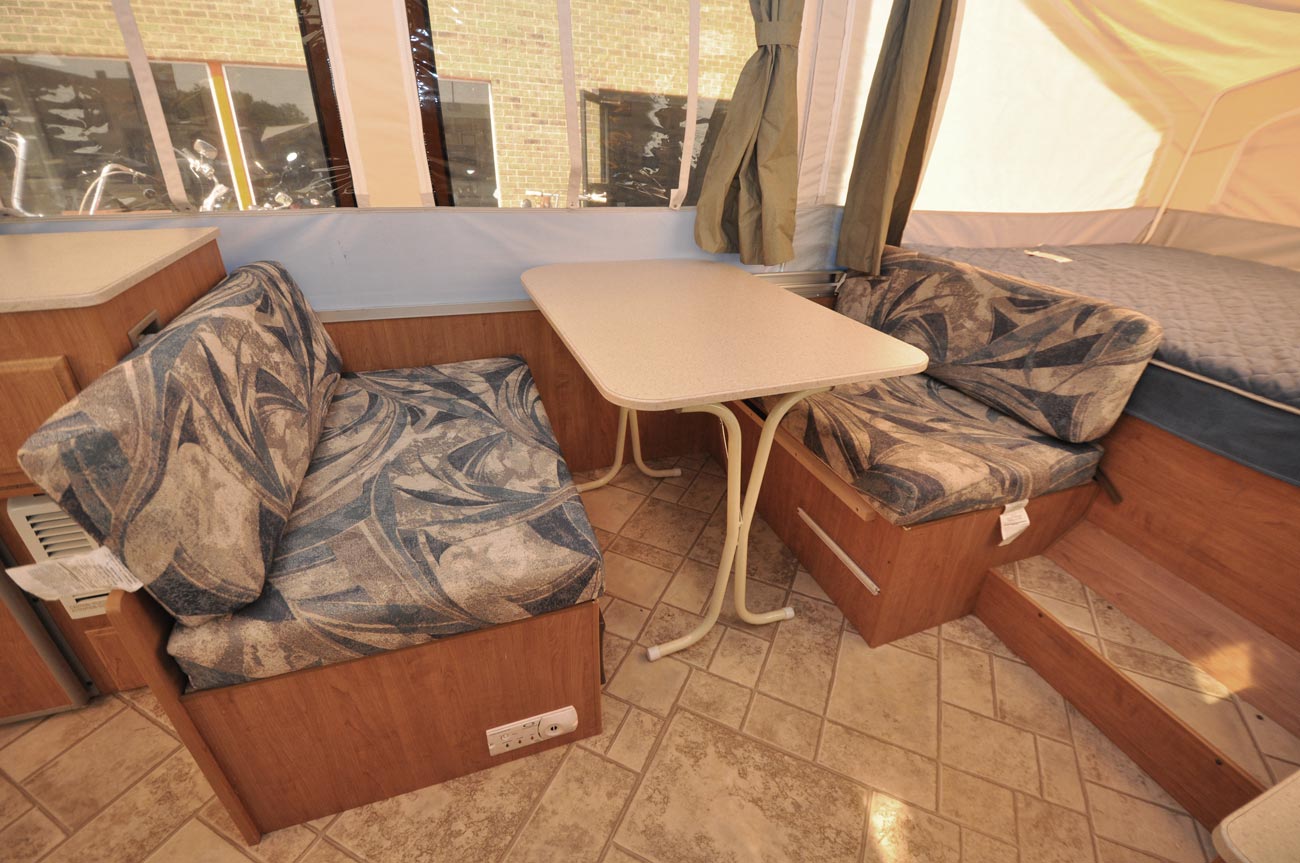

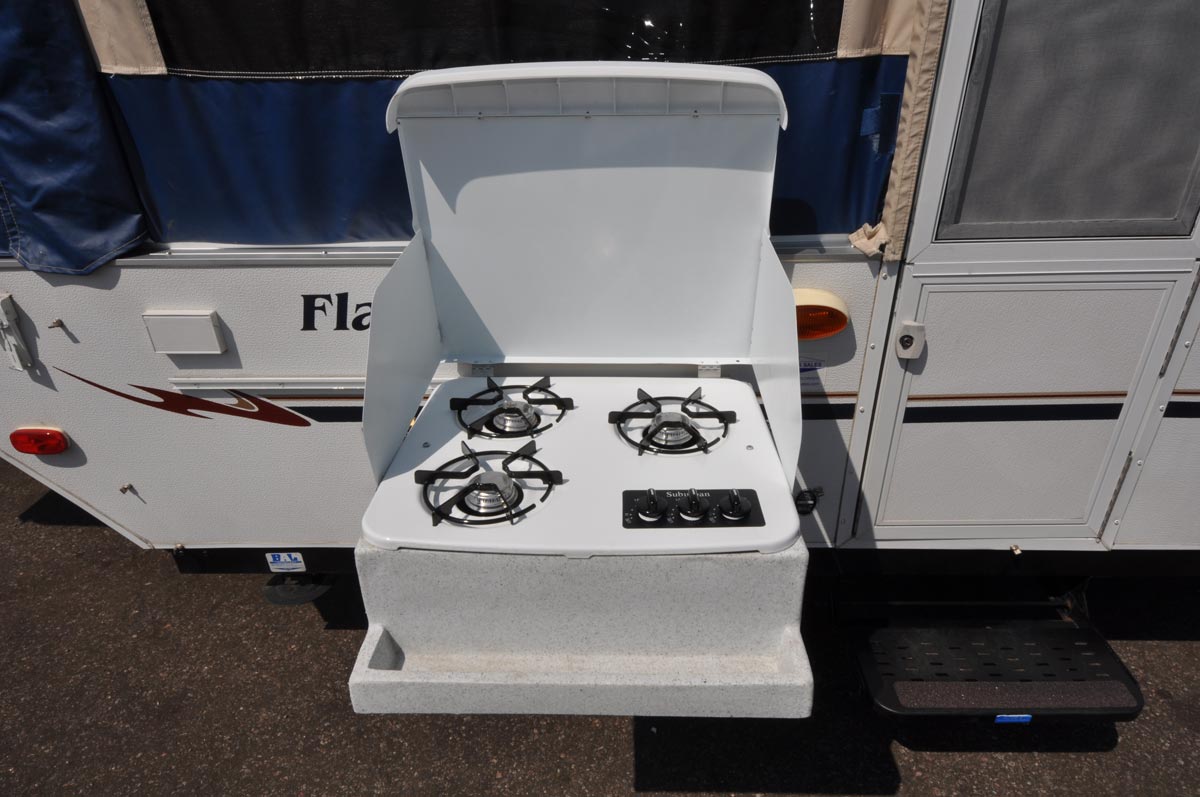

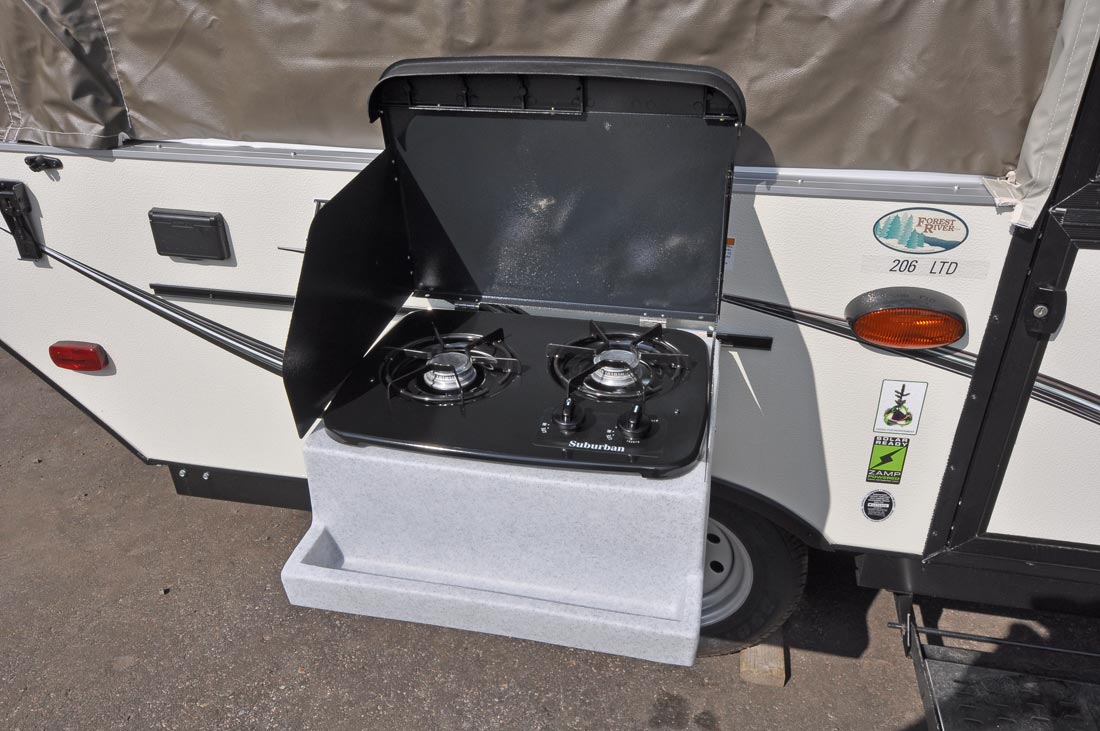

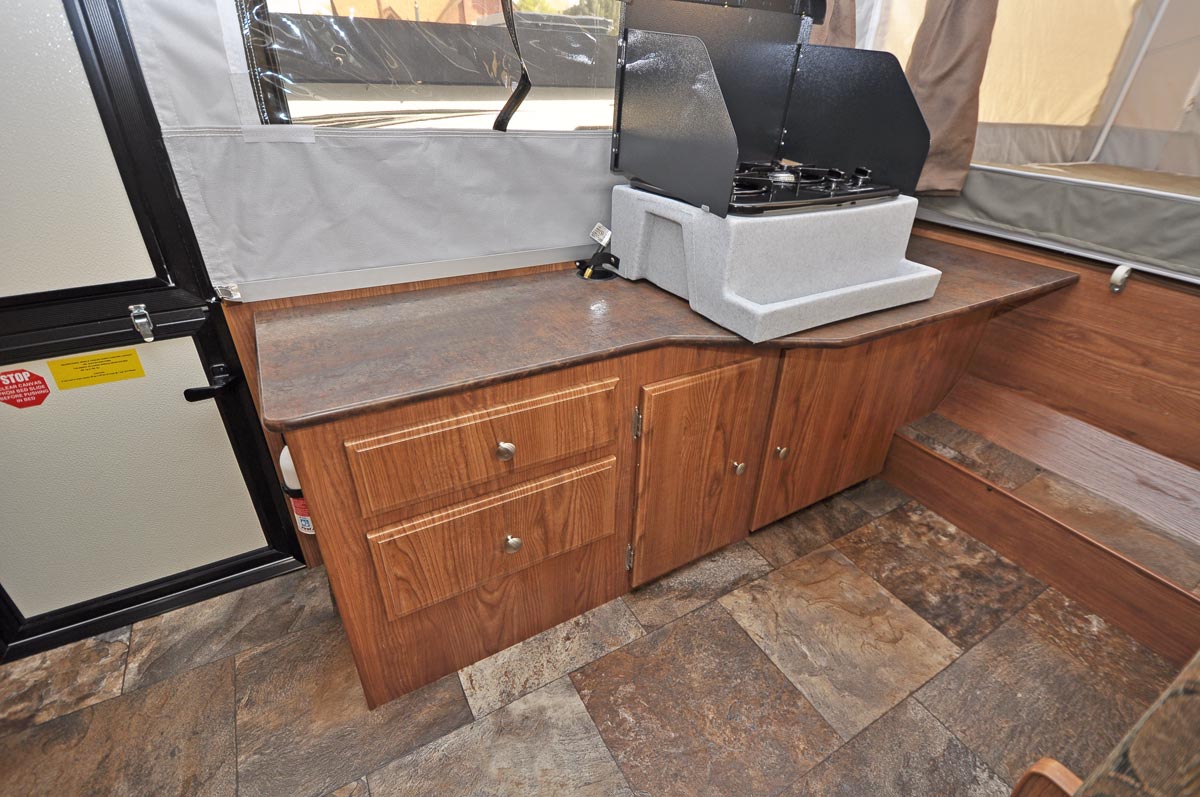

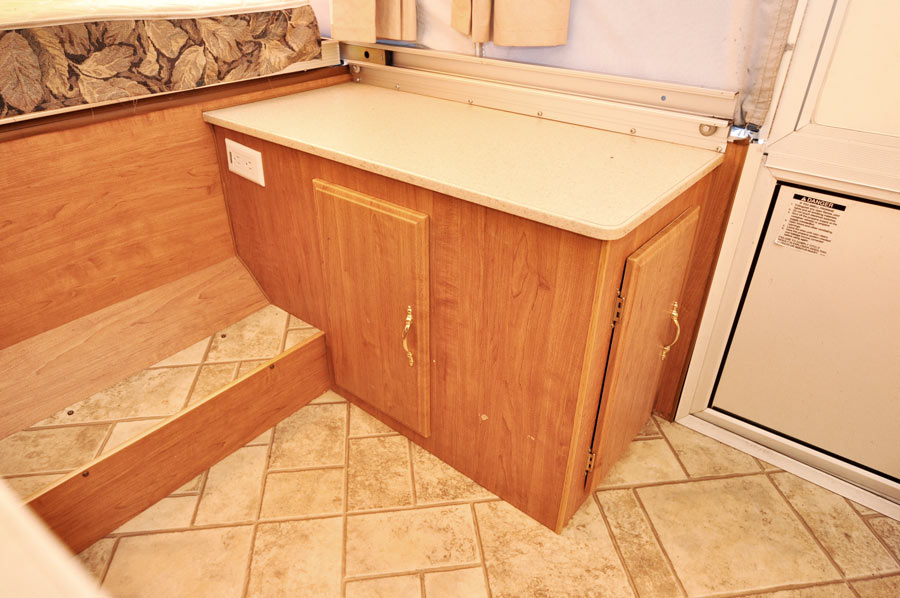

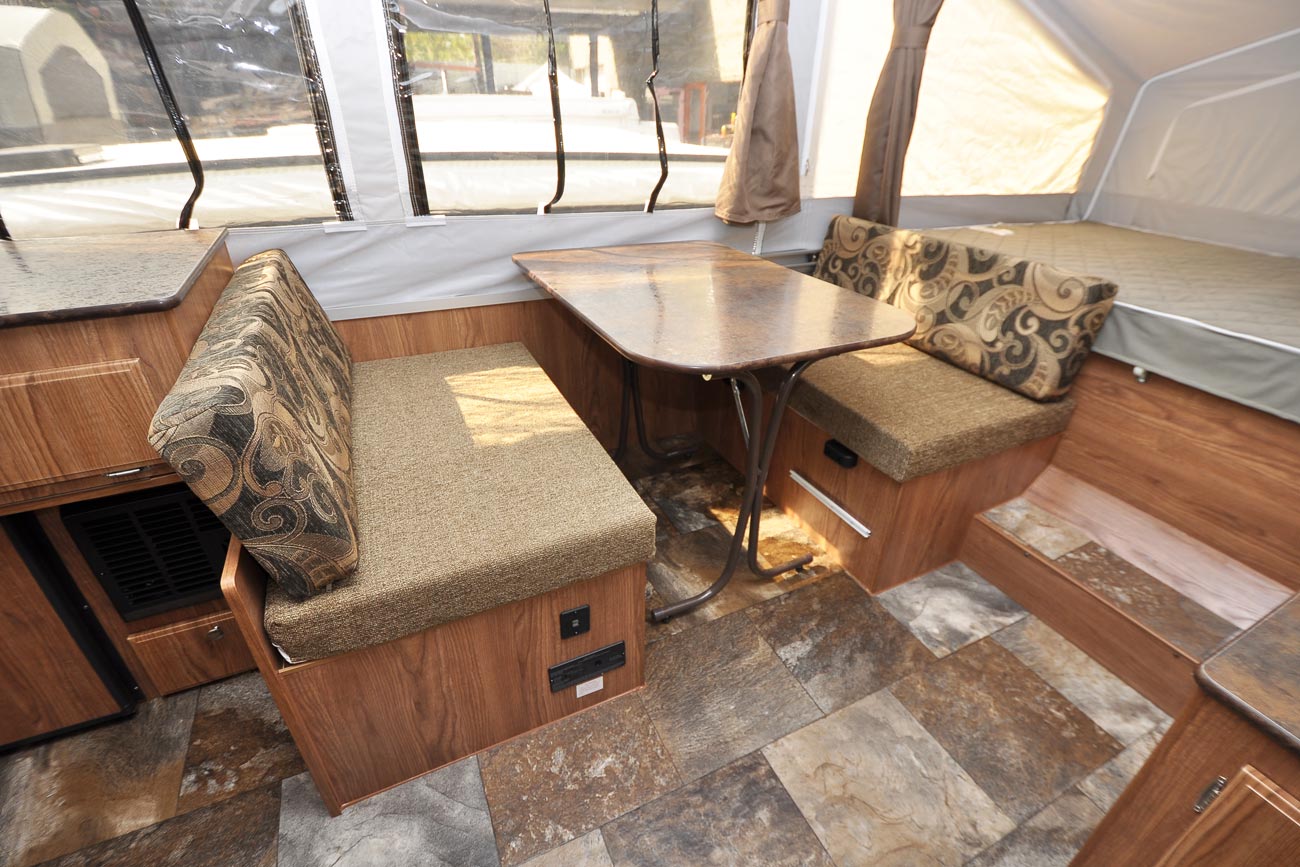

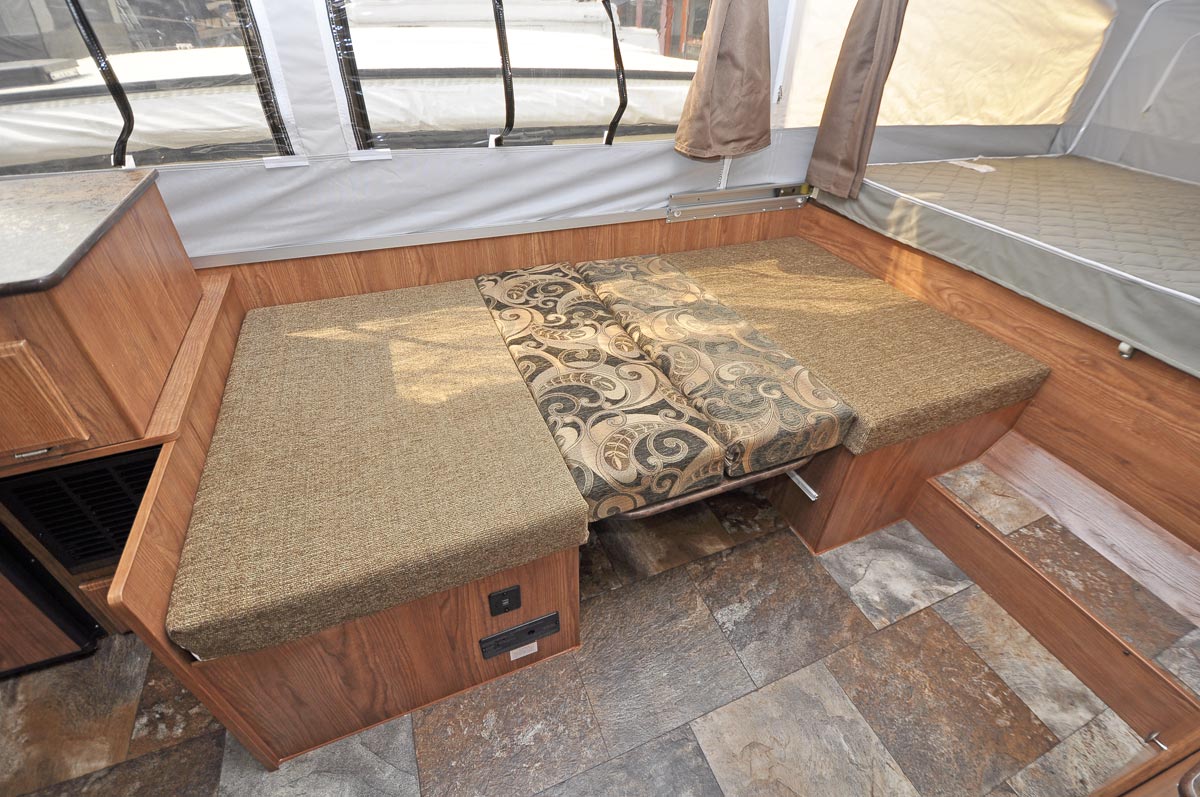

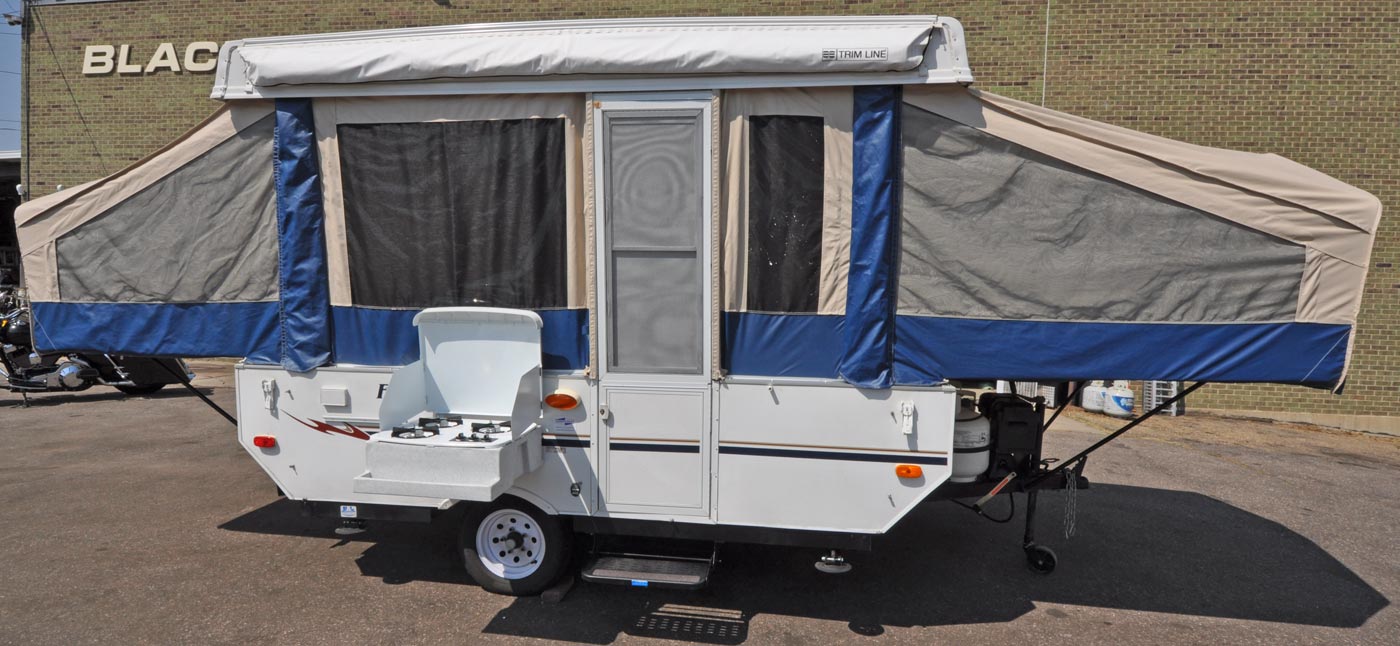

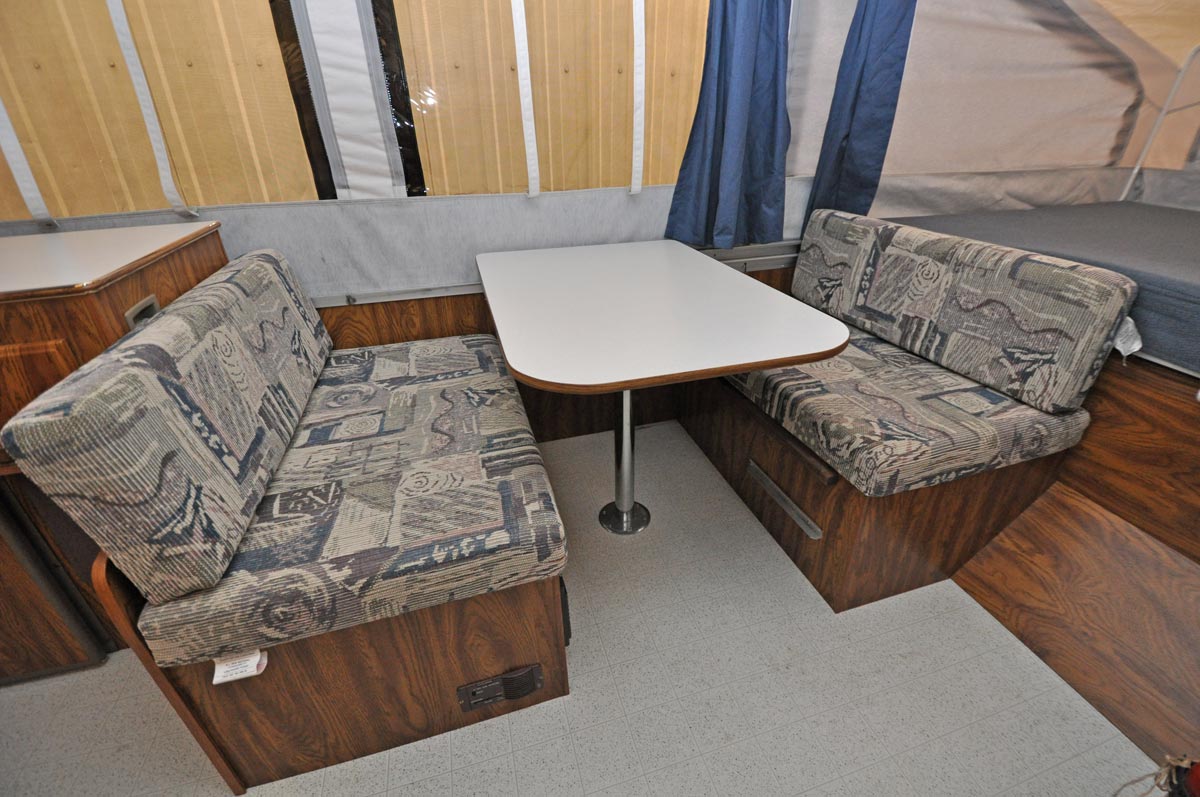

2016 Flagstaff 206LTD stove in outside position 2016 Flagstaff 206LTD dinette 2016 Flagstaff 206LTD dinette as bed 2016 Flagstaff 206LTD cabinets

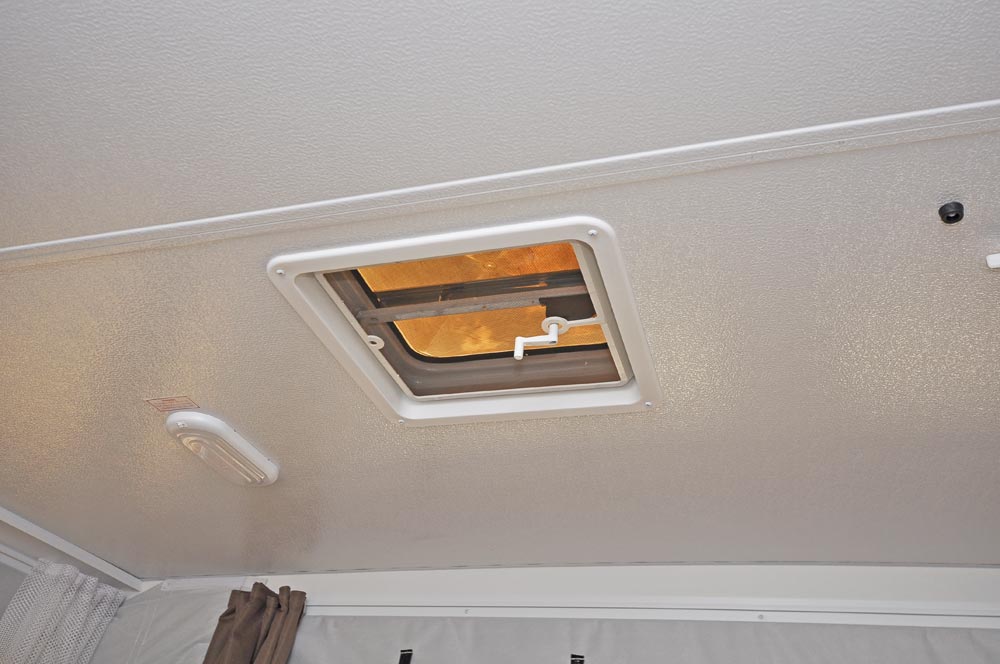

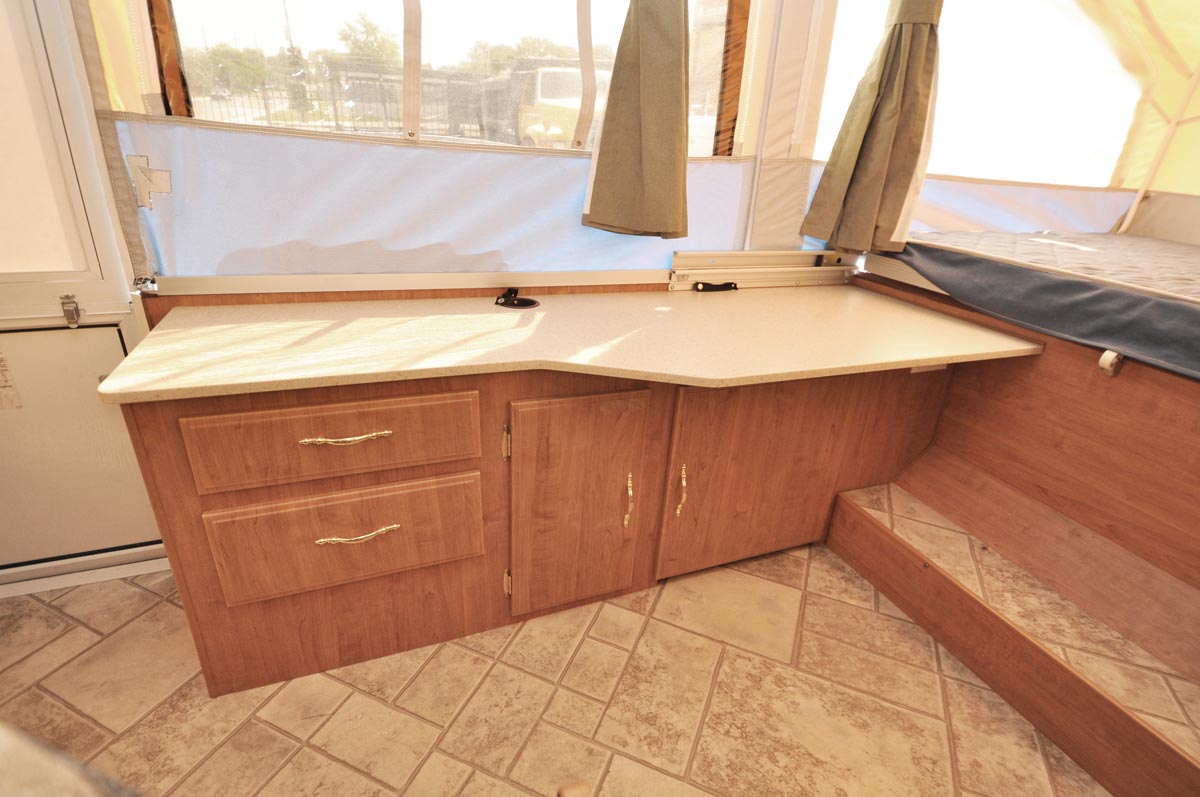

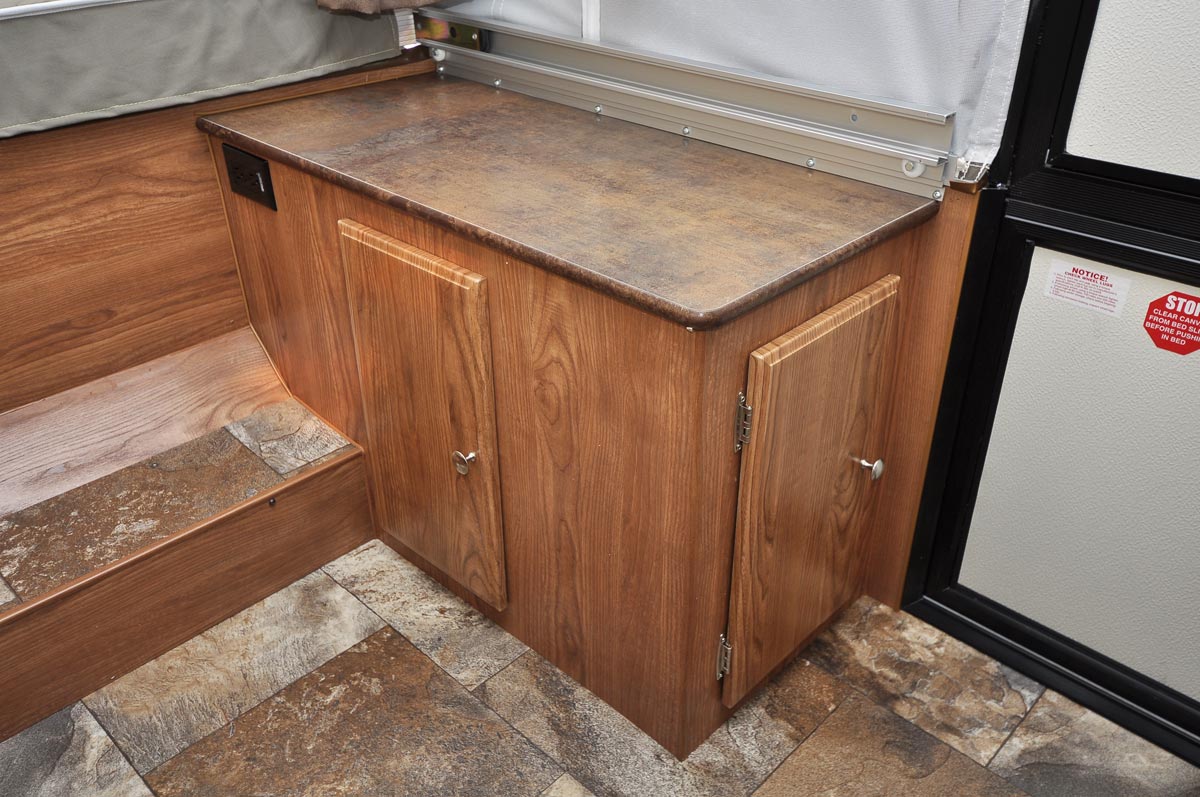

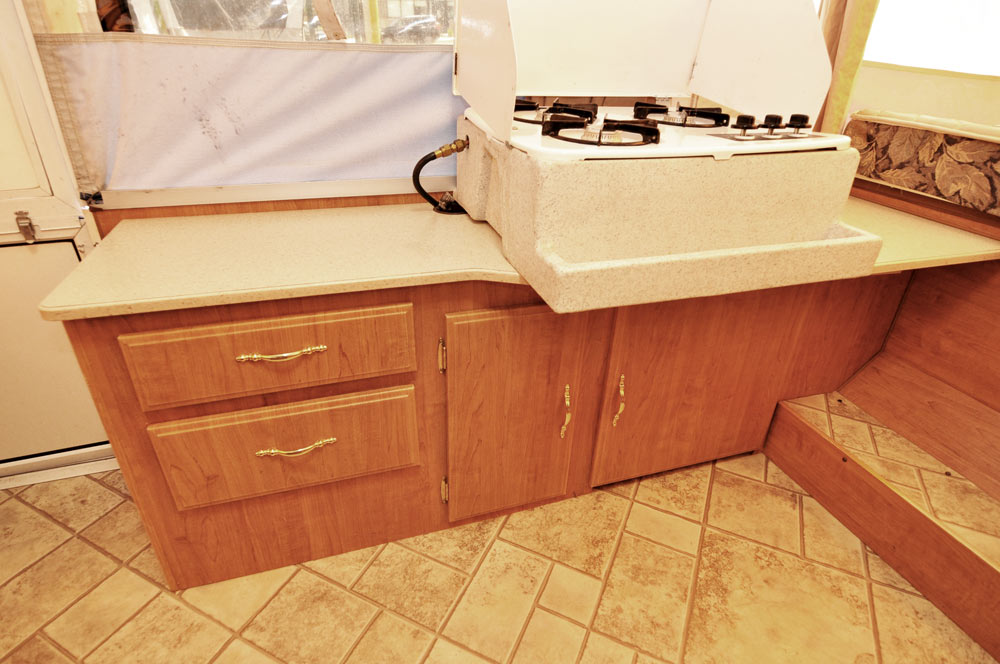

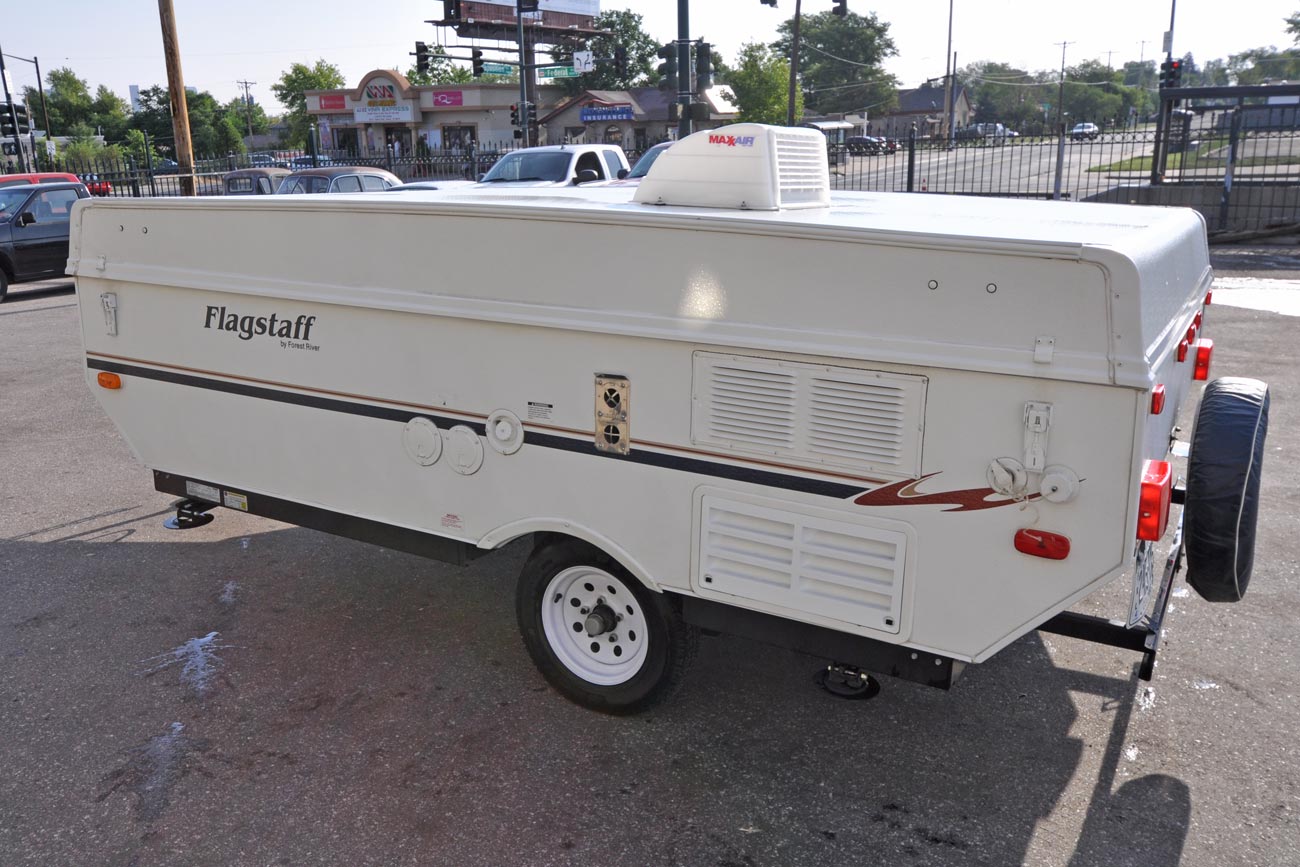

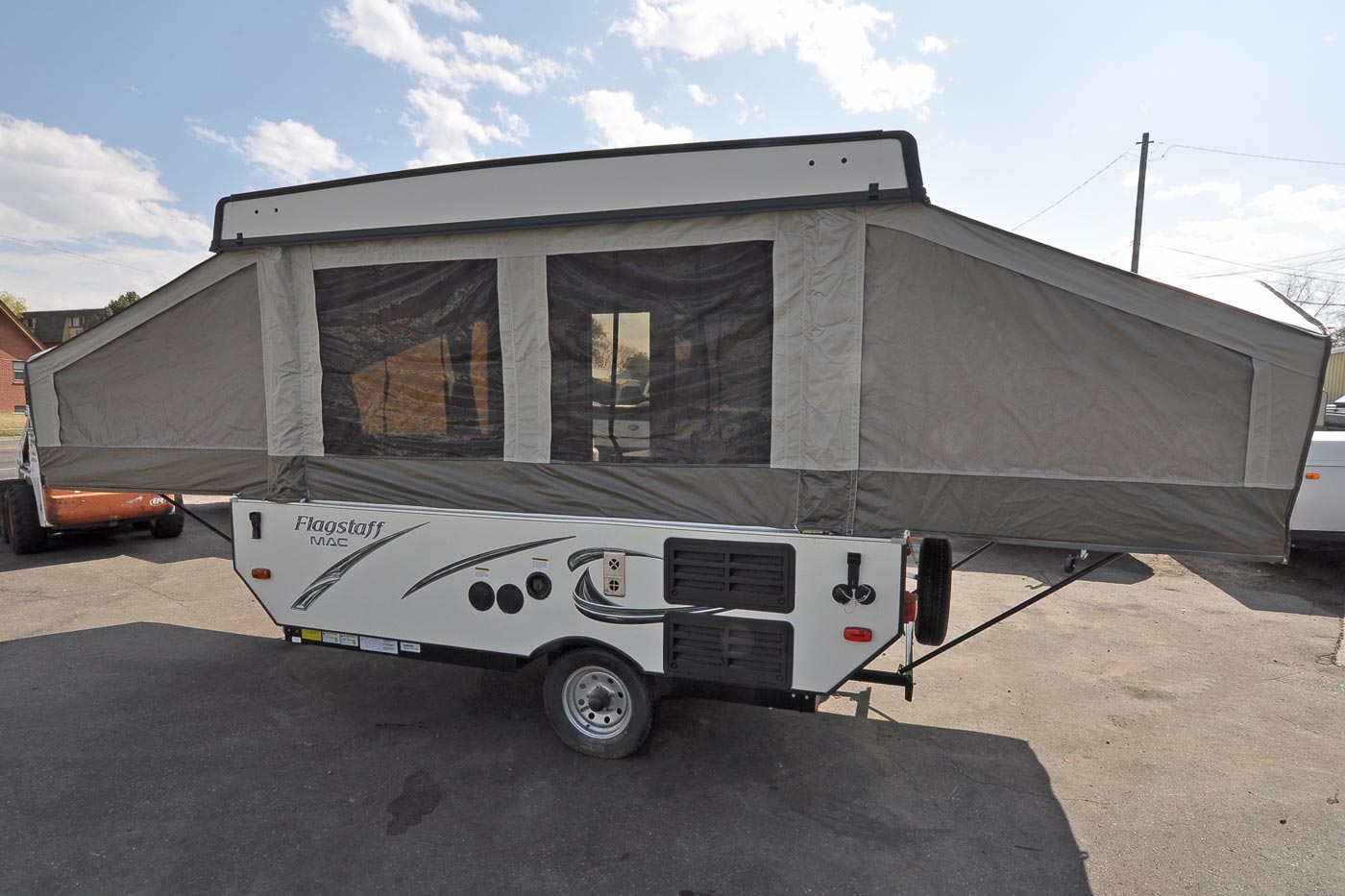

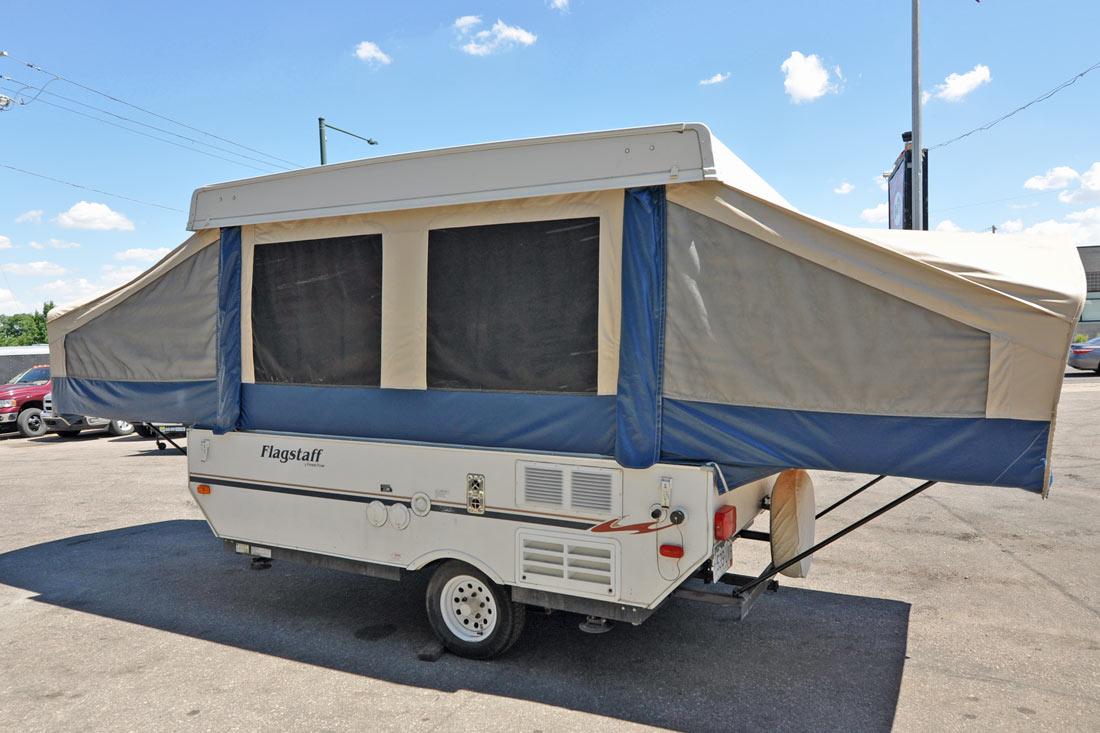

2016 Flagstaff 206LTD storage cabinet 2016 Flagstaff 206LTD standard roof vent 2016 Flagstaff 206LTD exterior back-side (2016 model year shown)

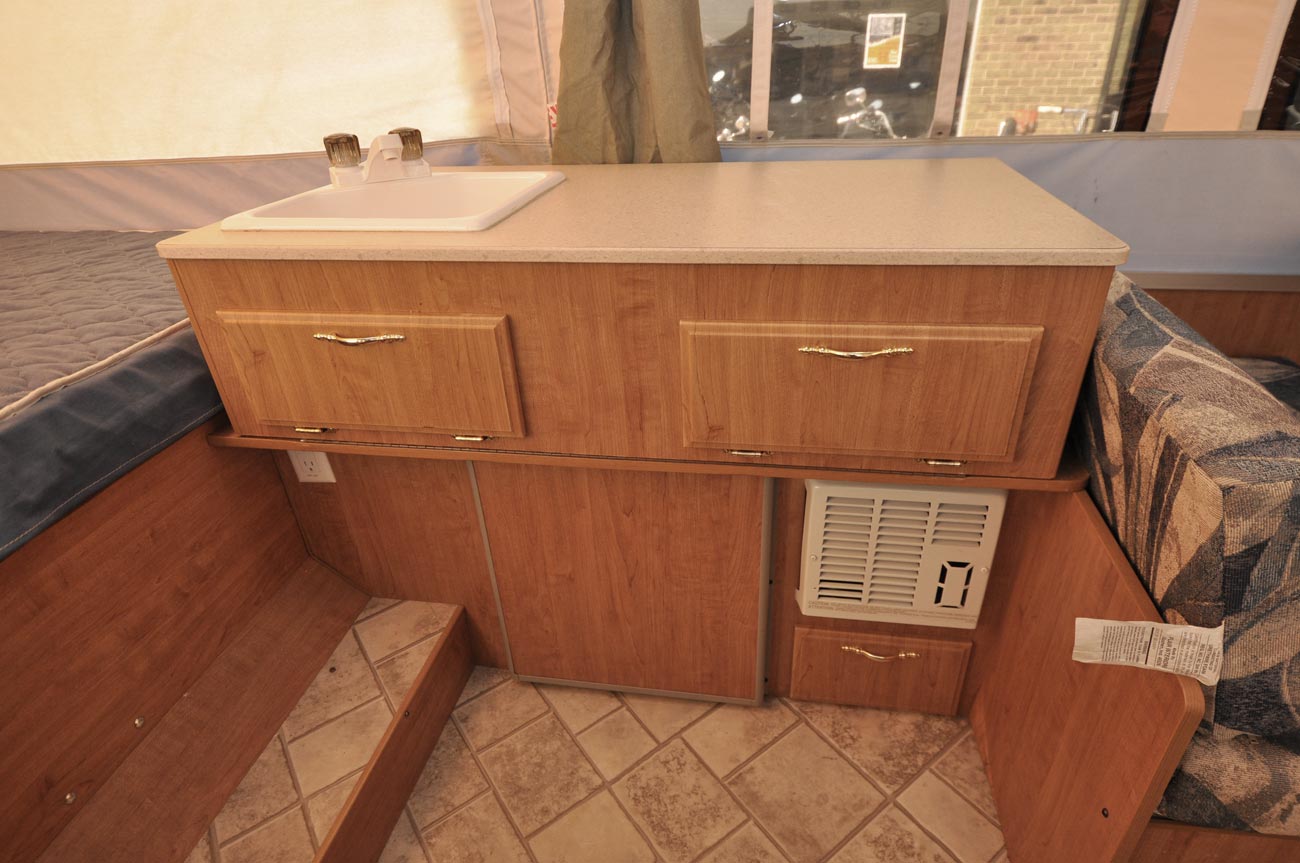

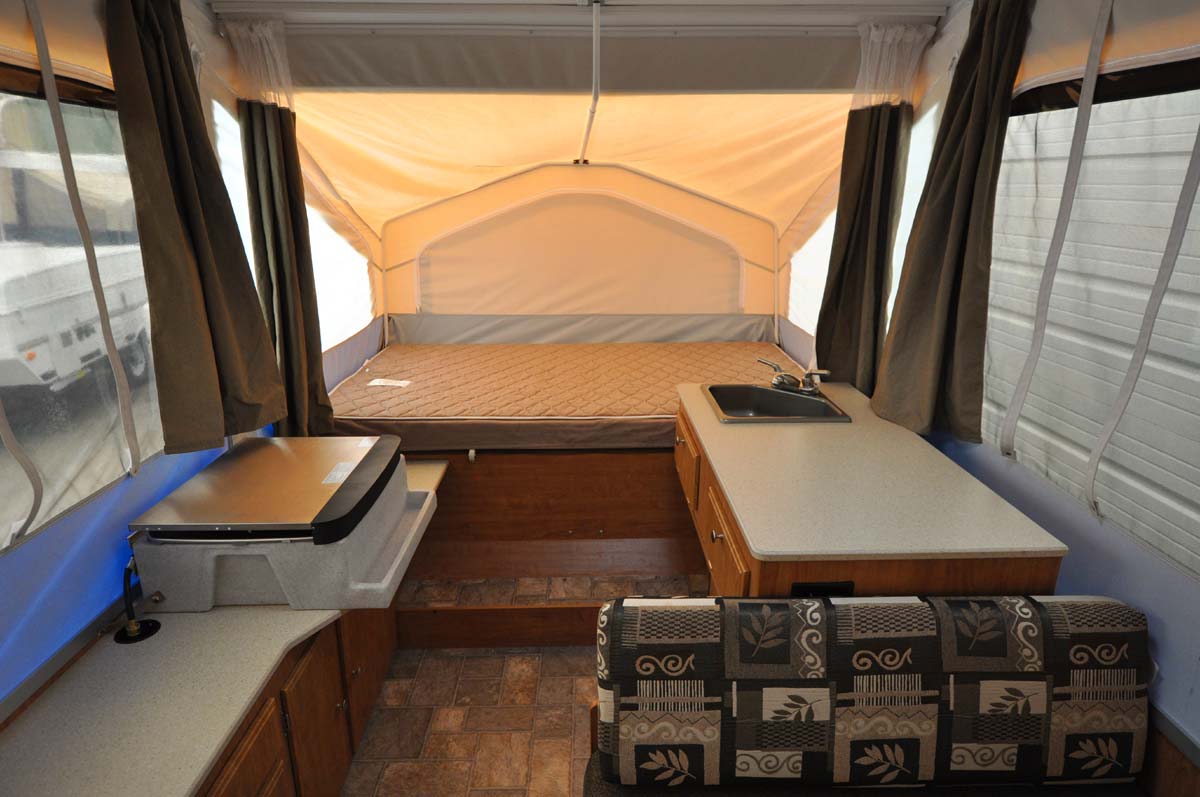

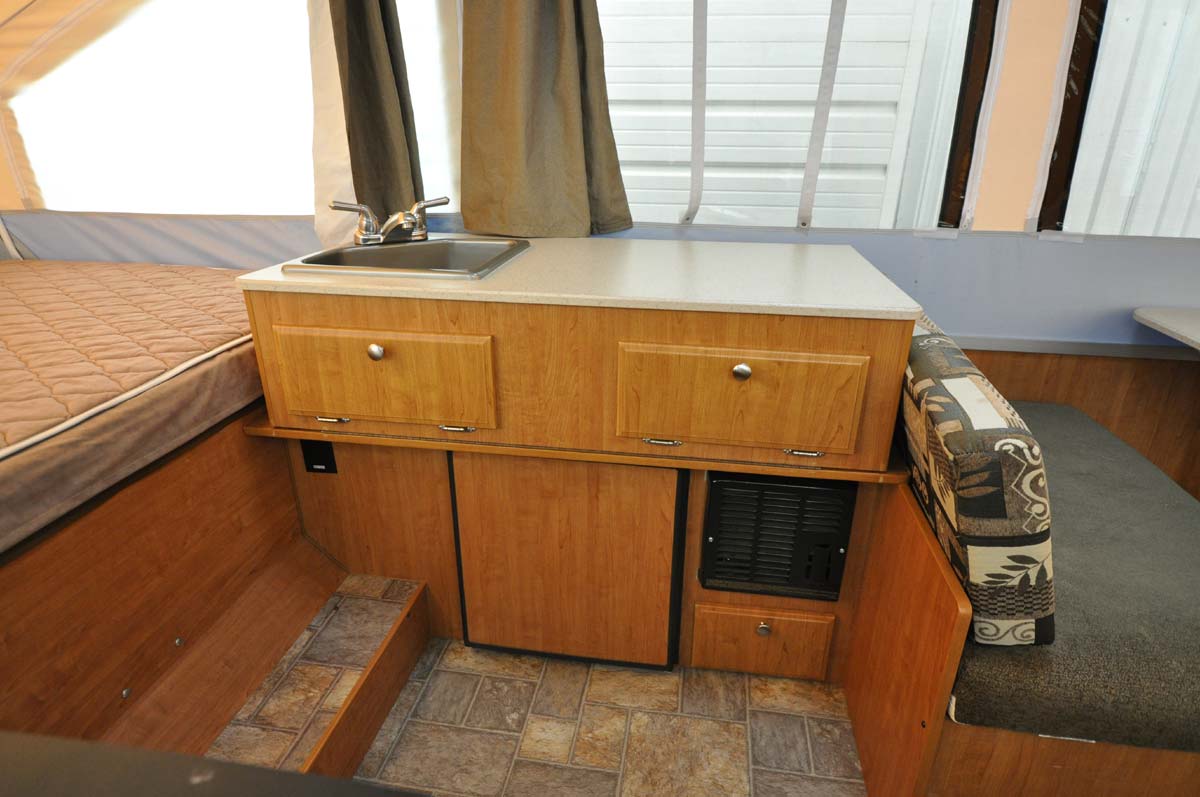

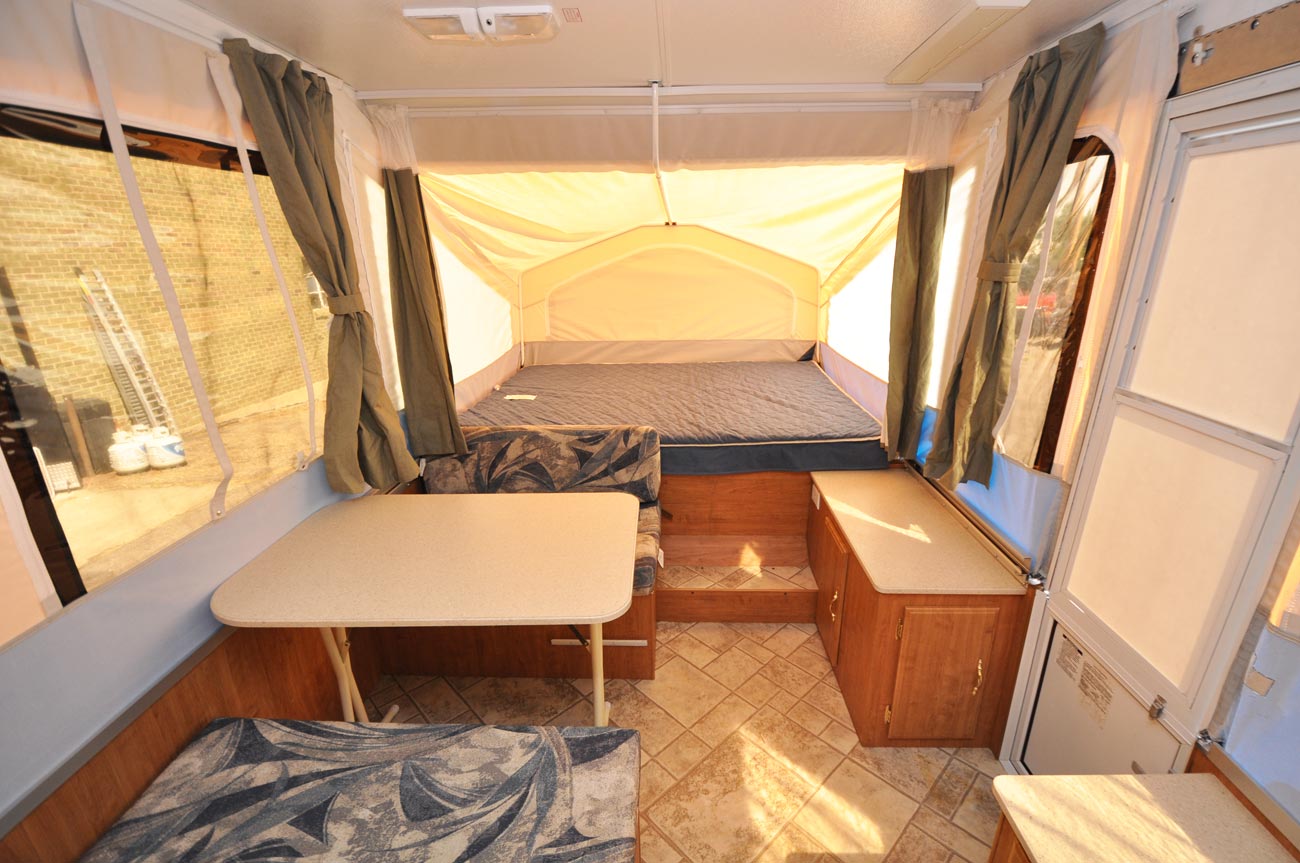

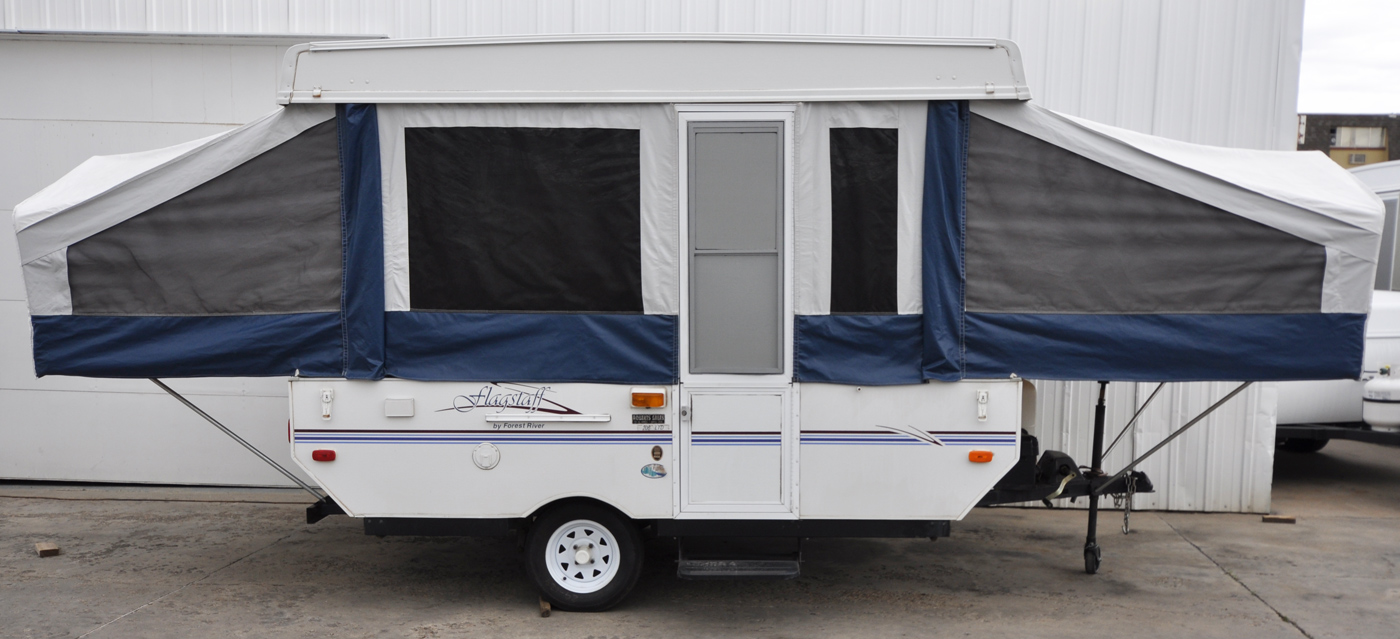

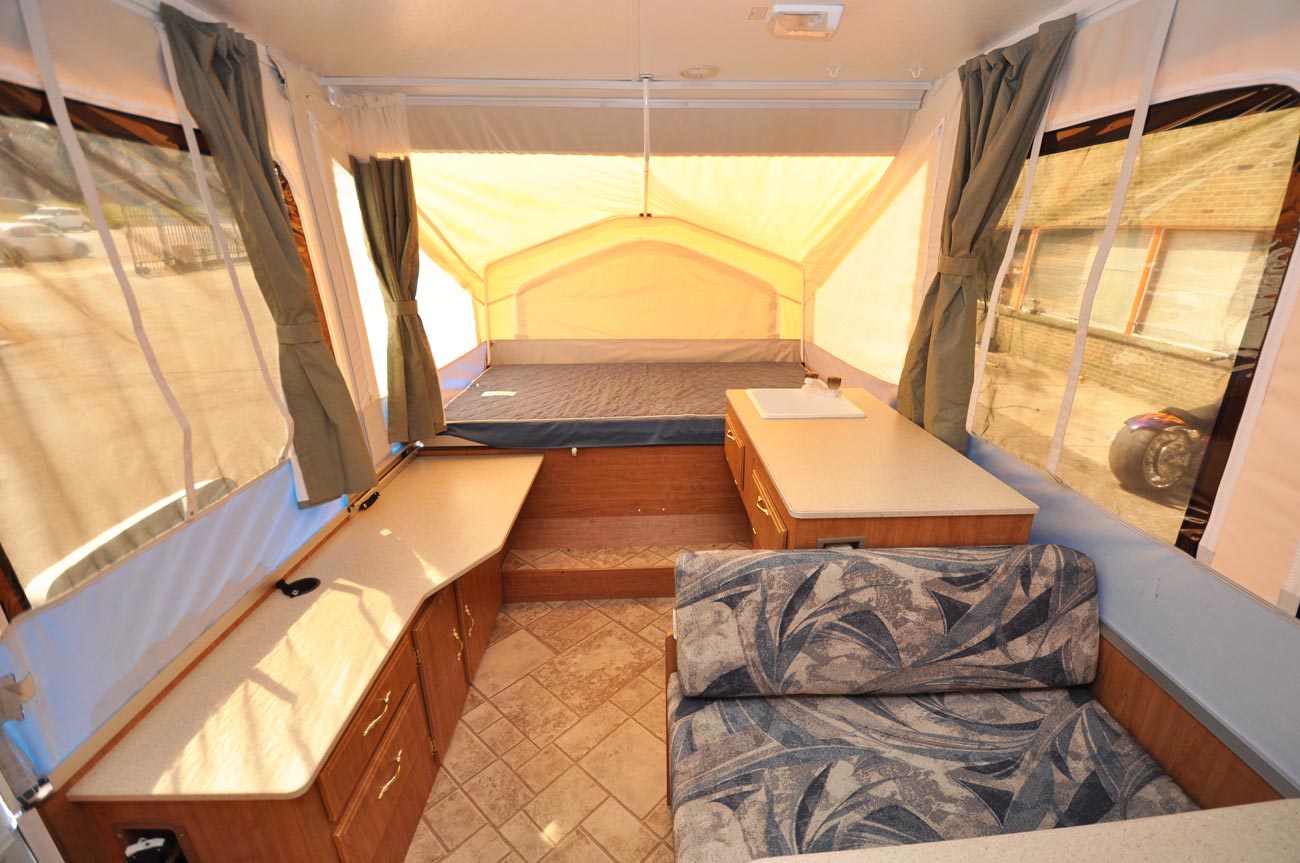

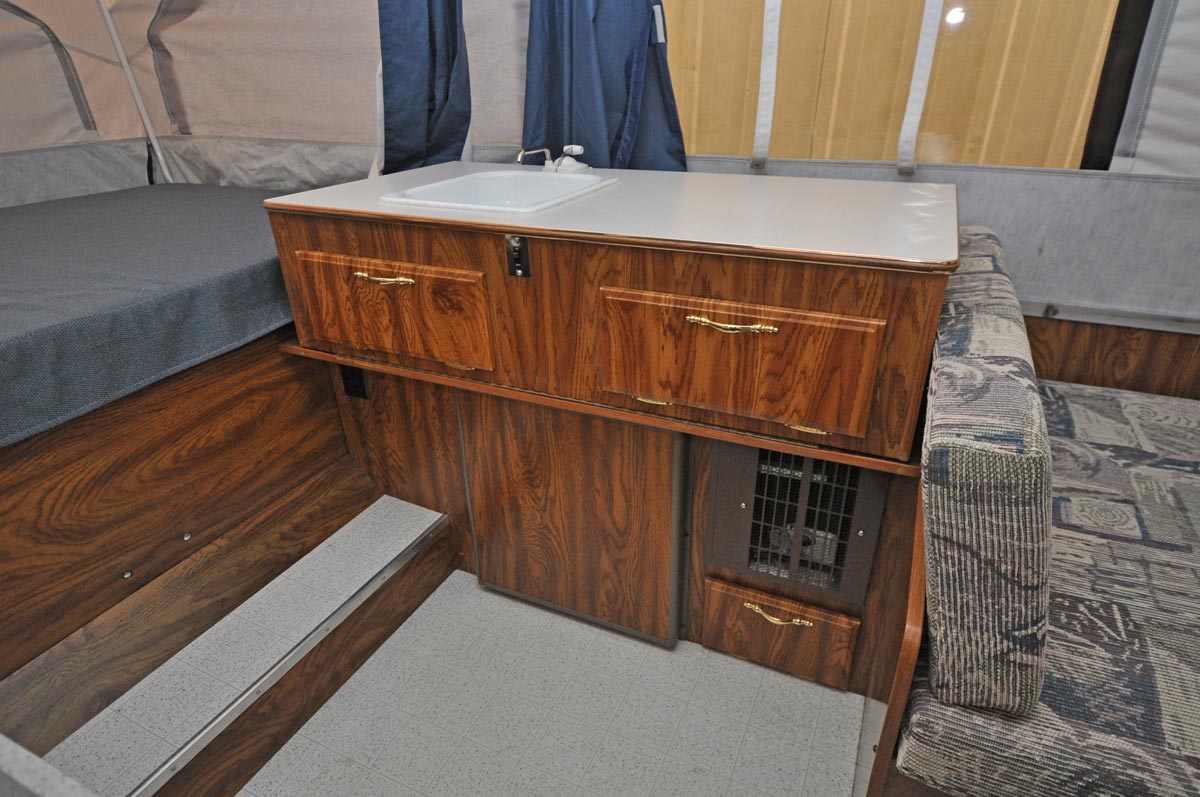

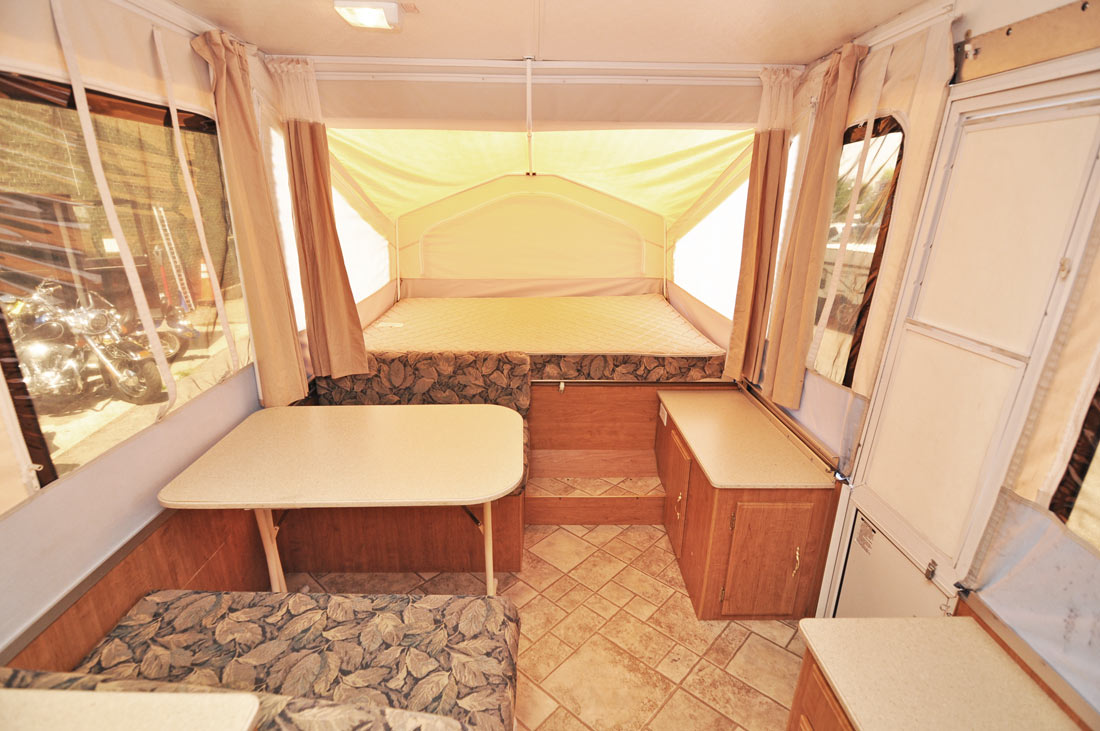

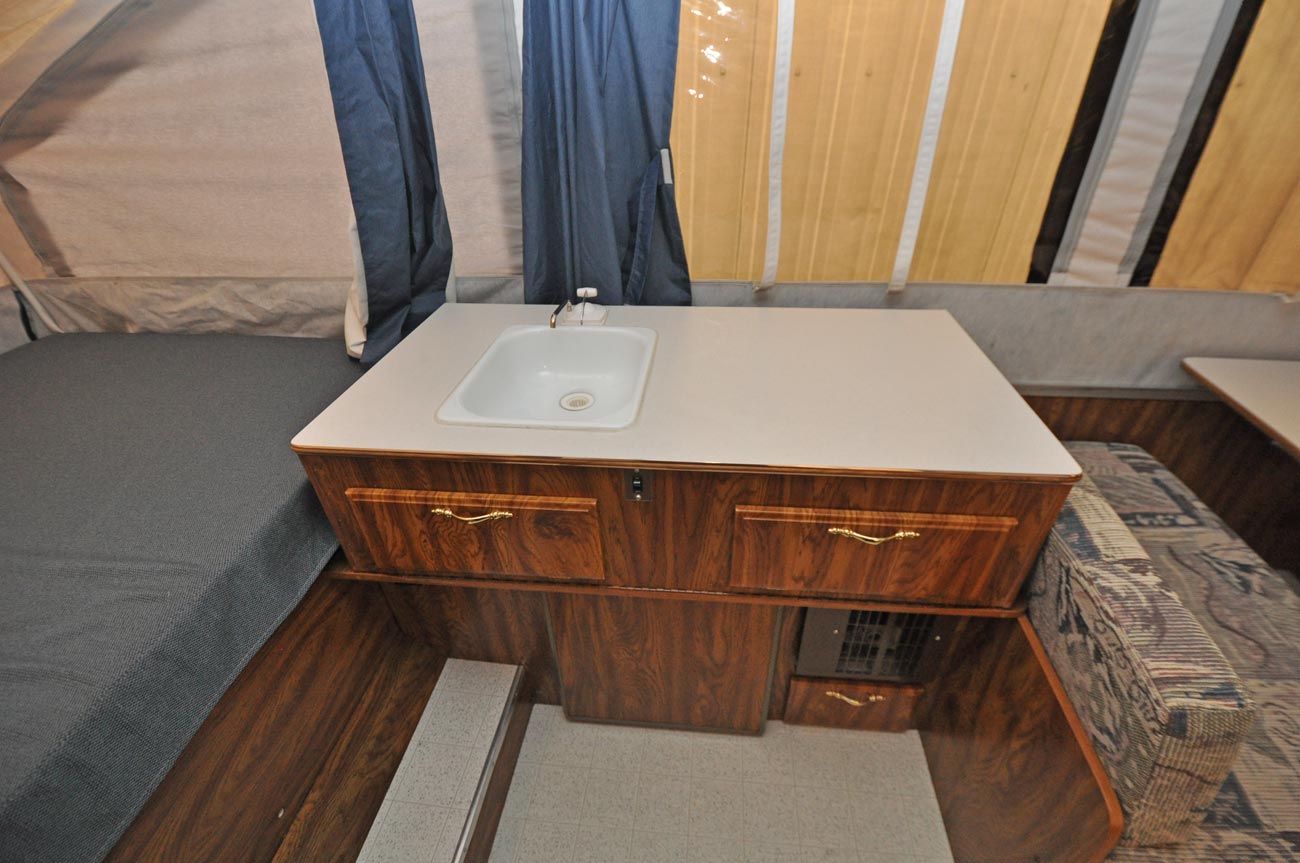

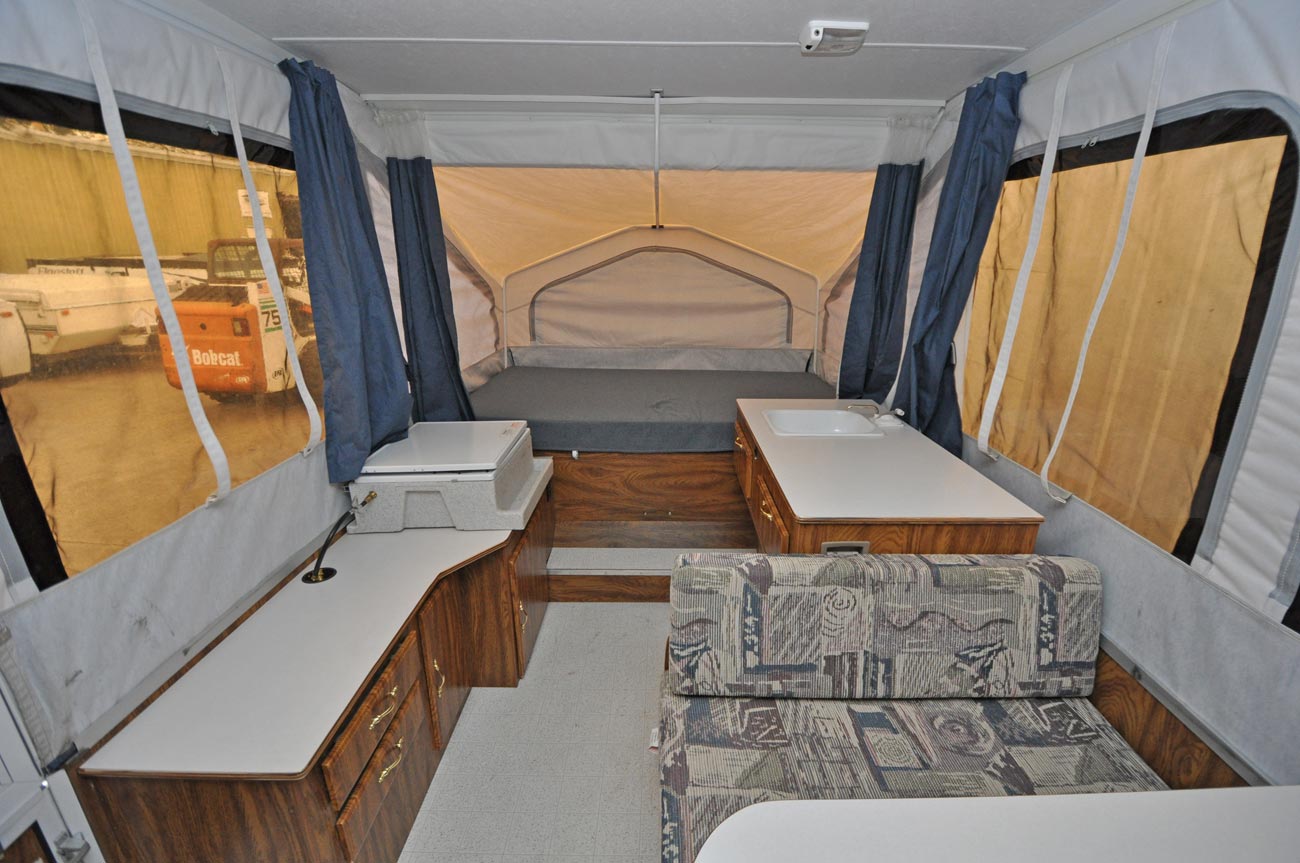

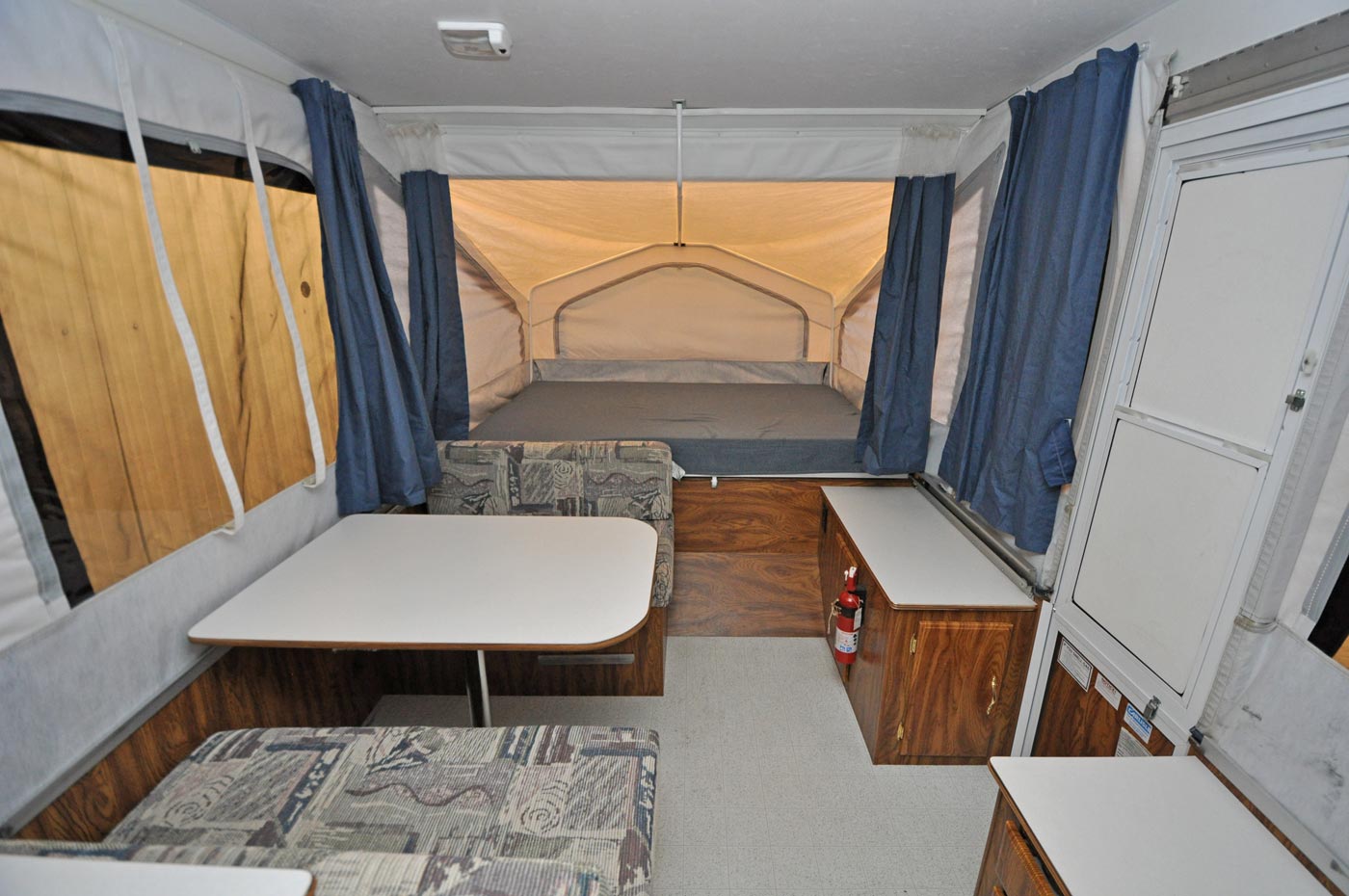

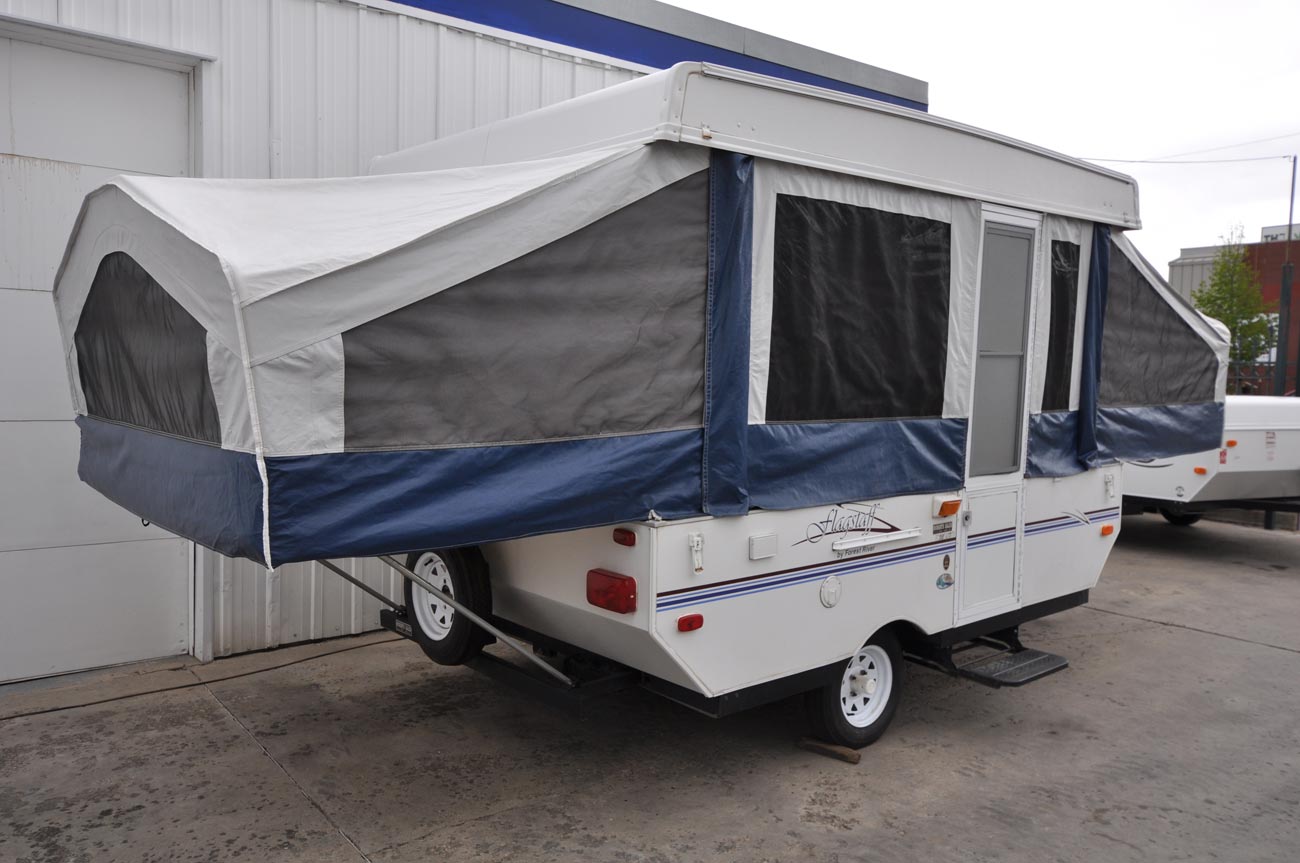

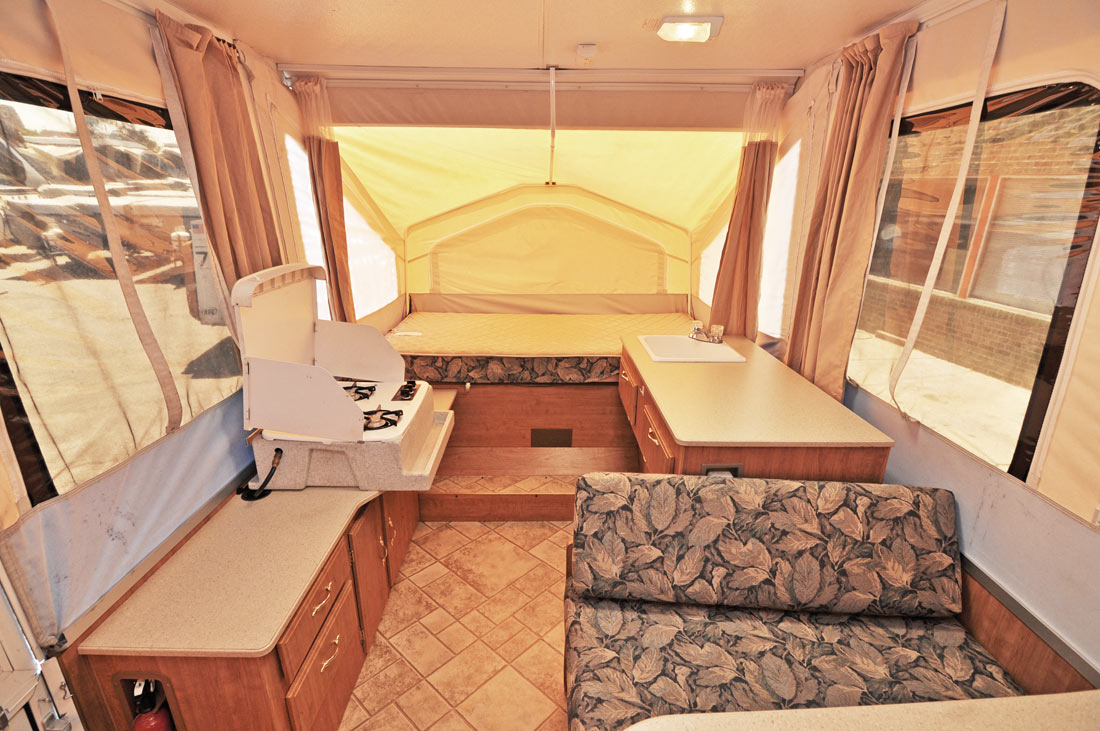

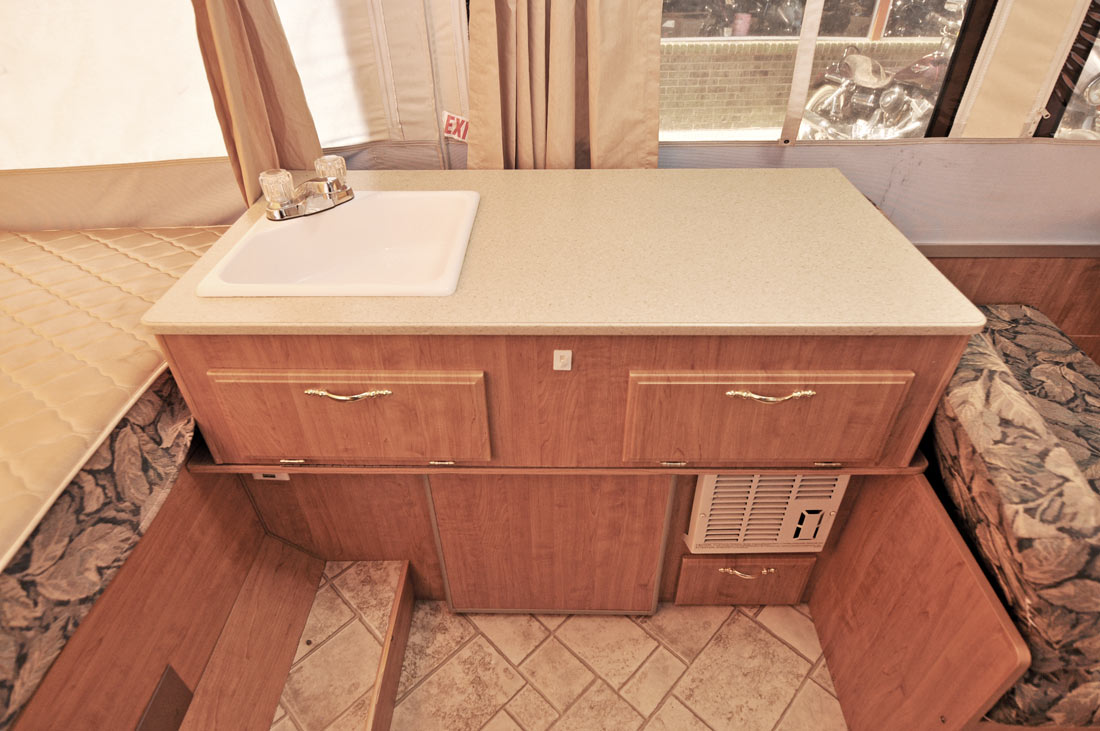

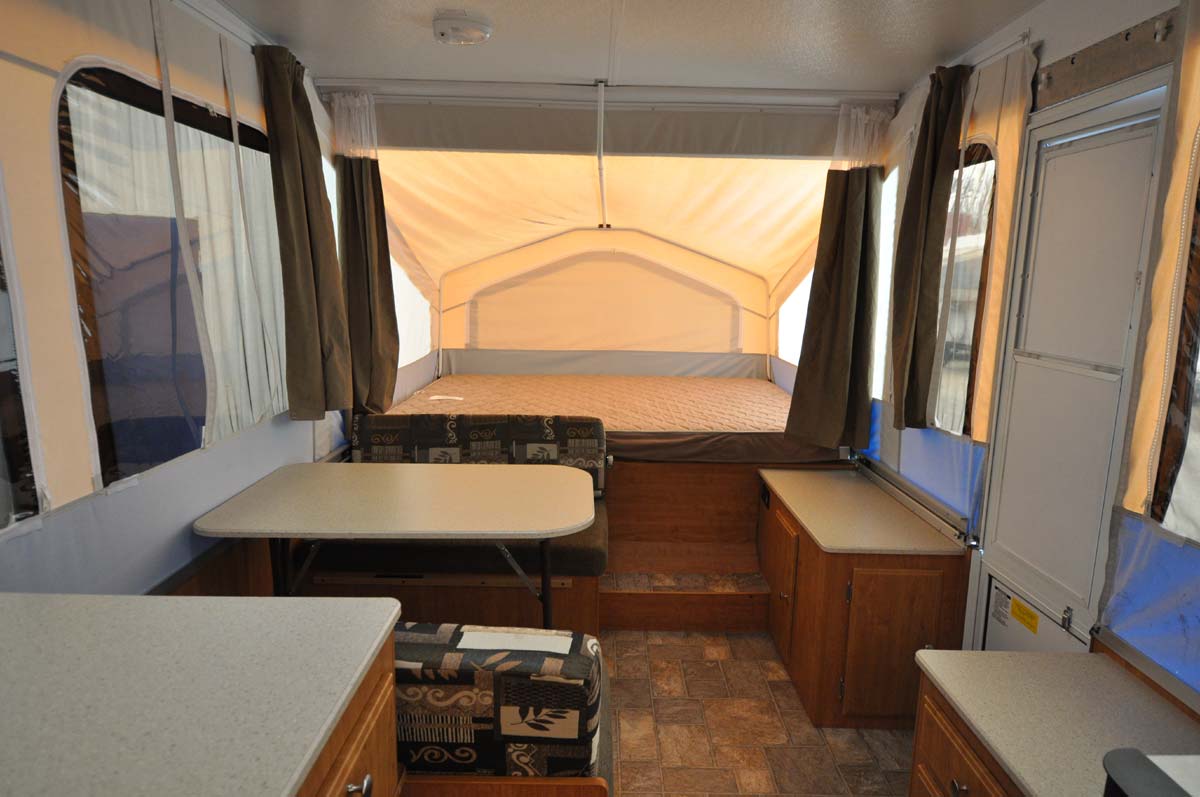

206LTD front view 206LTD rear view 206LTD galley

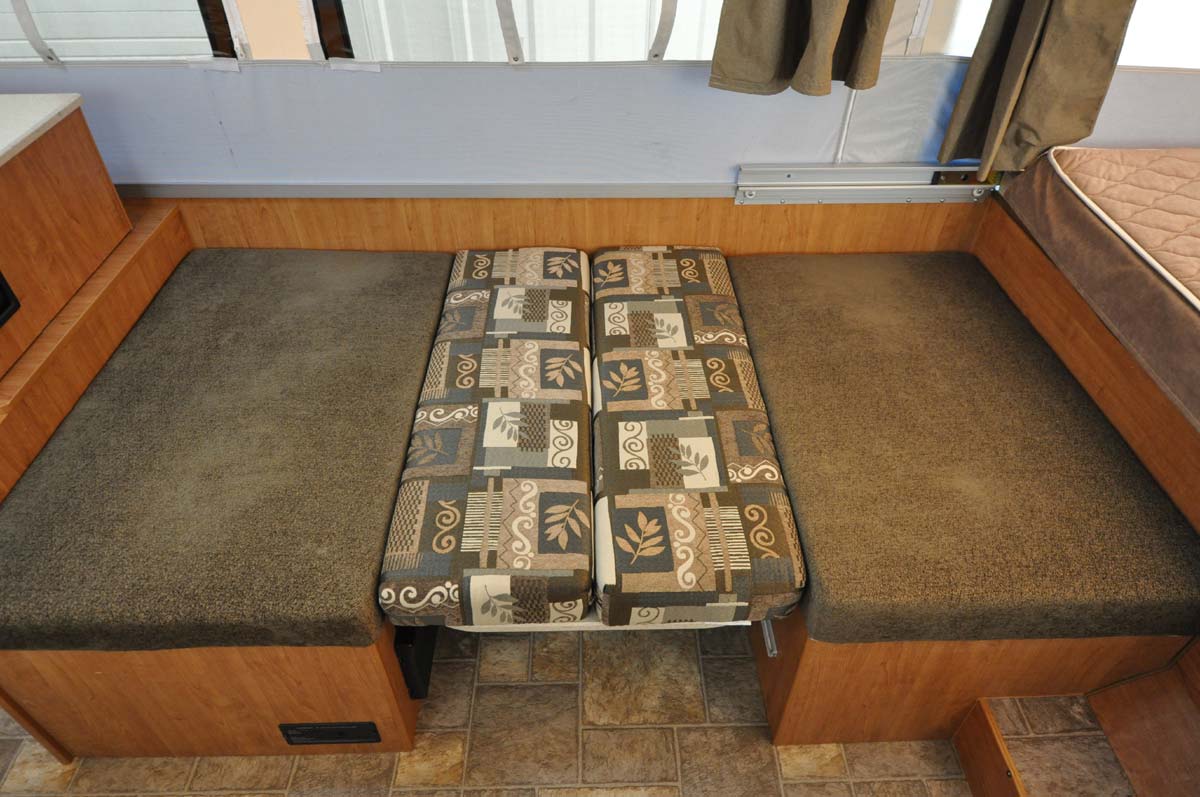

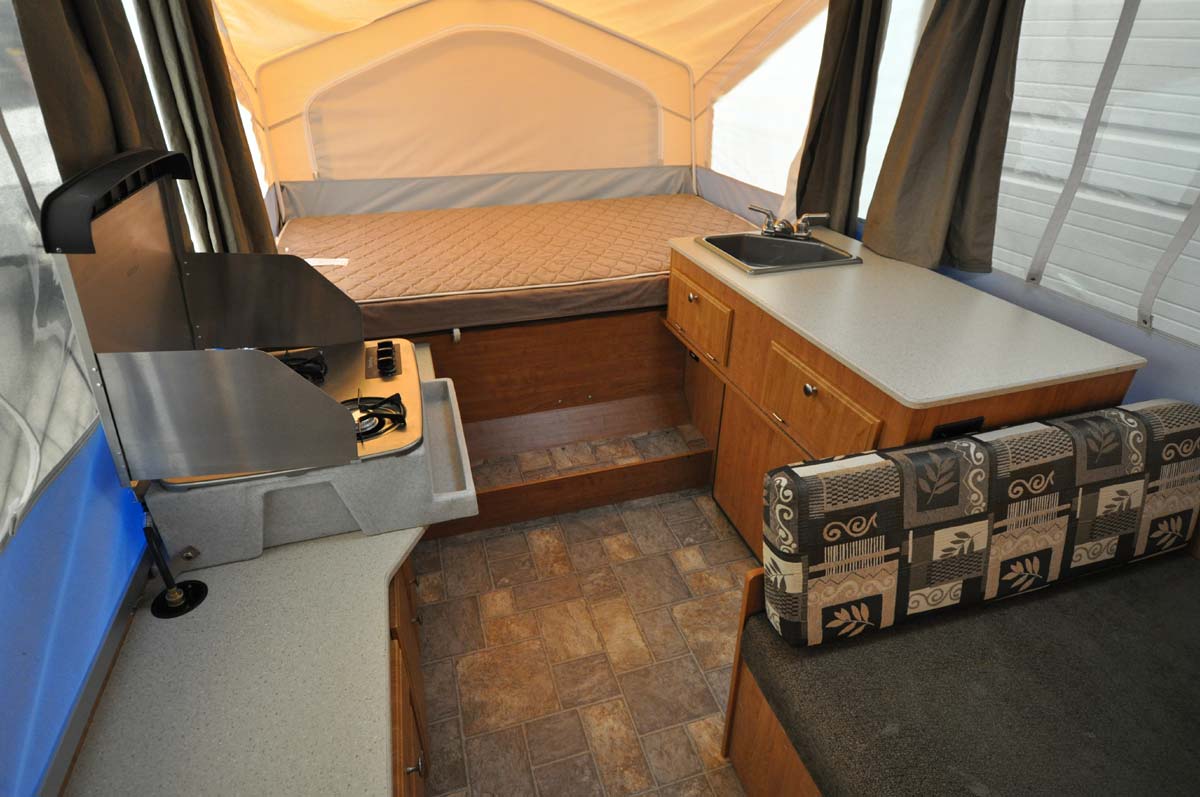

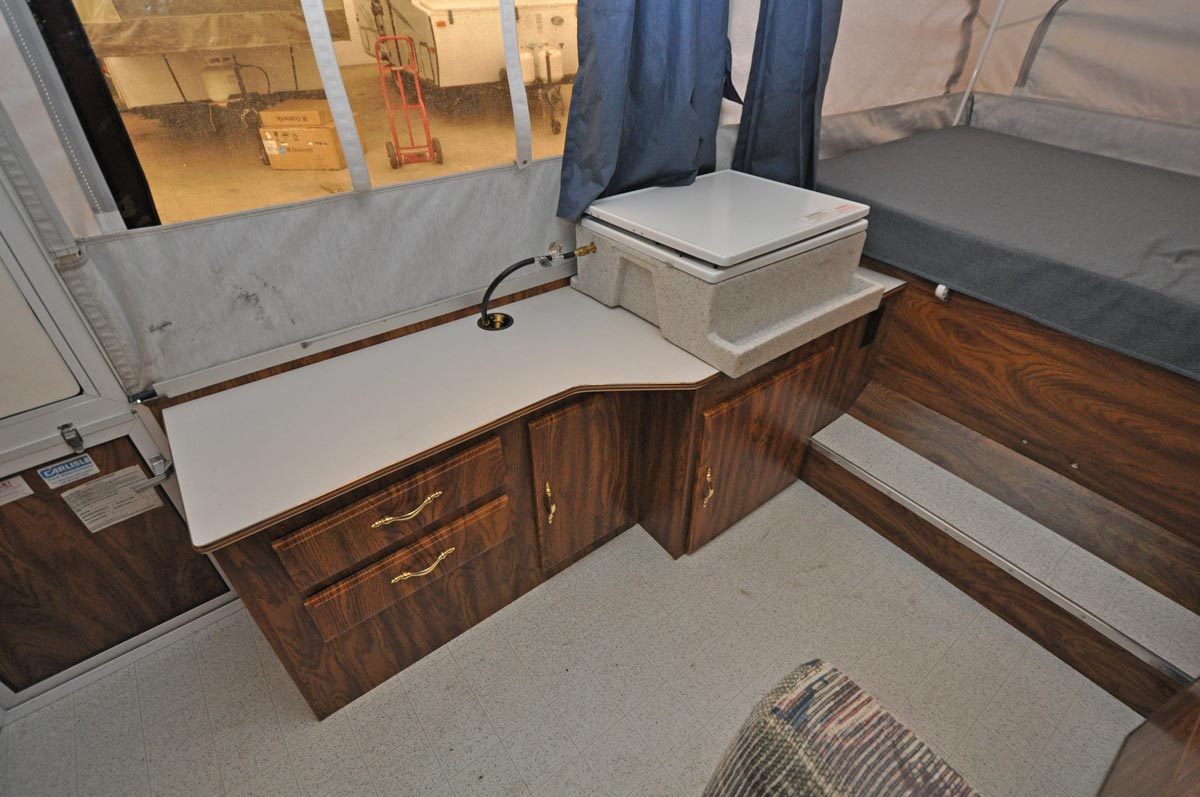

206LTD kitchen 206LTD dinette as bed (2010 shown)
