Flagstaff 823D (four beds)

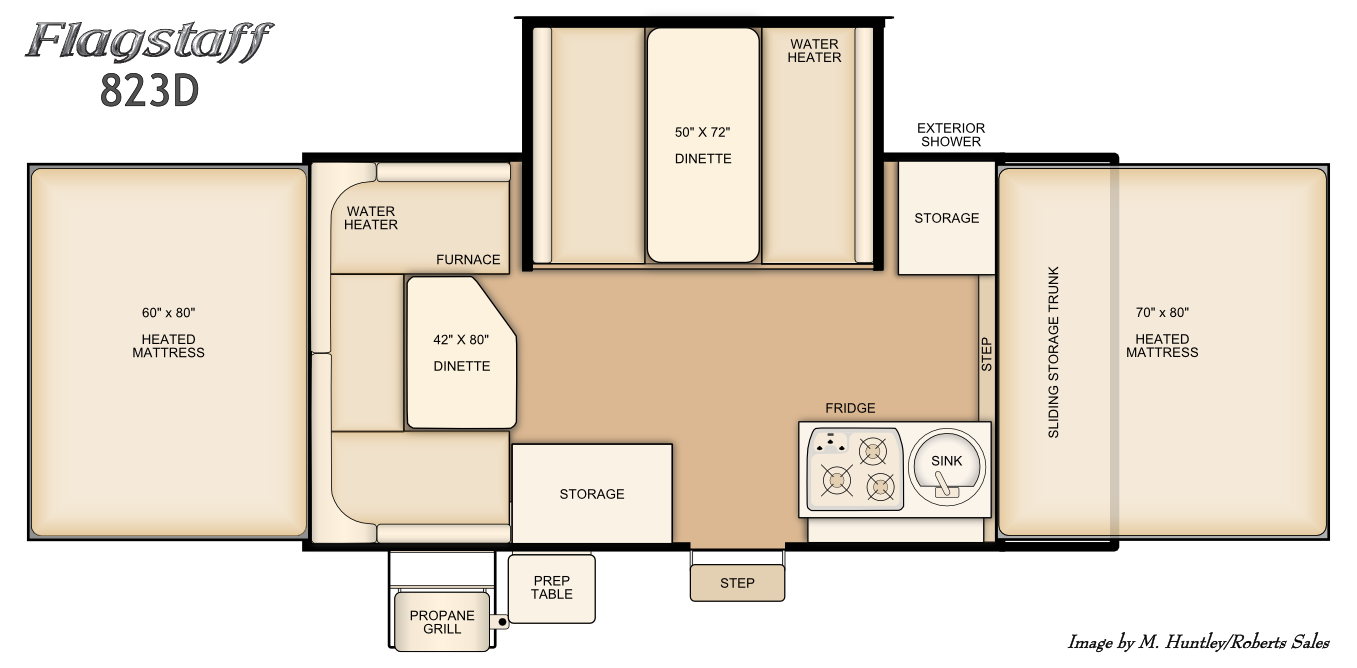

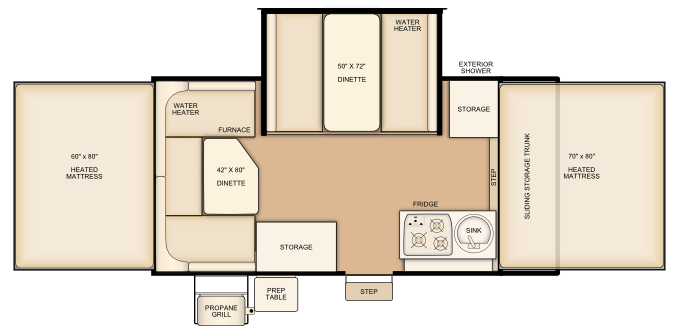

Flagstaff 823D floorplan

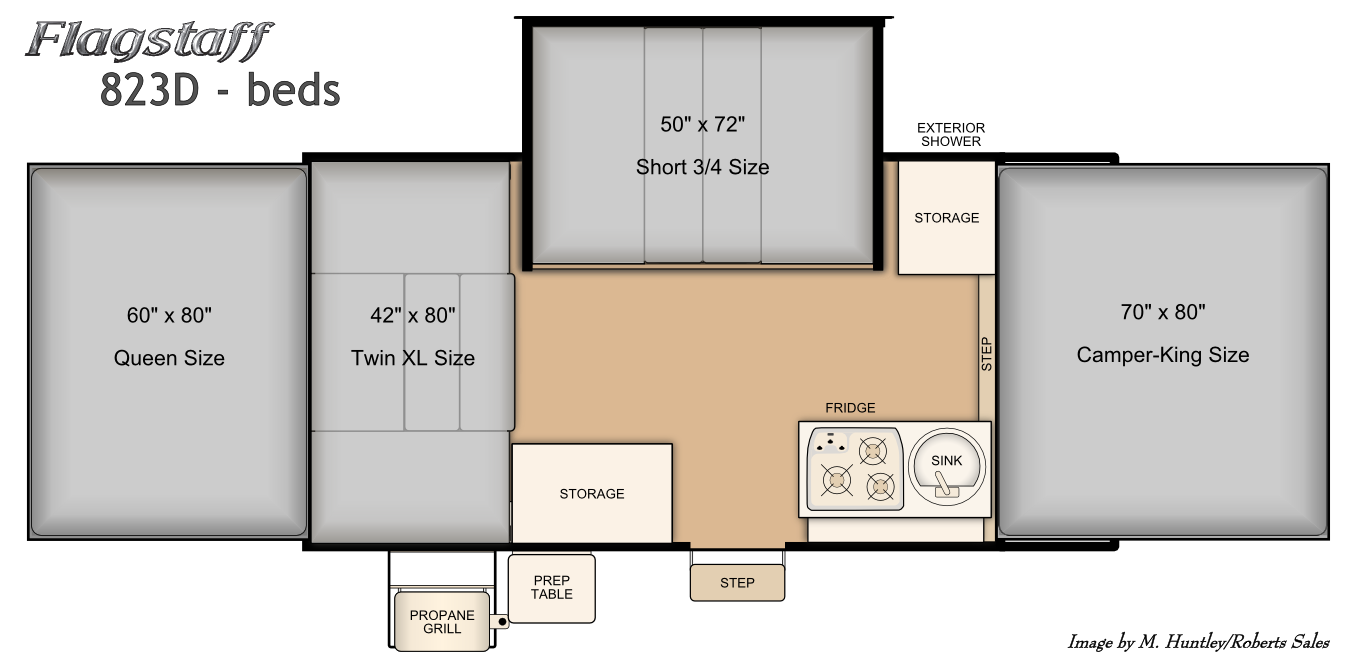

Bed Layout for this model

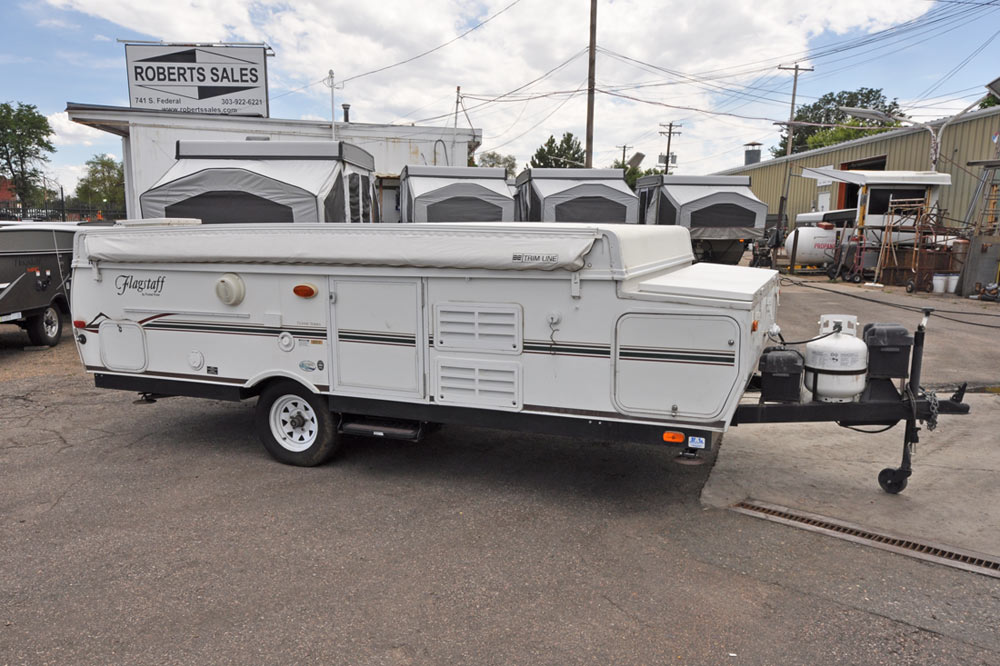

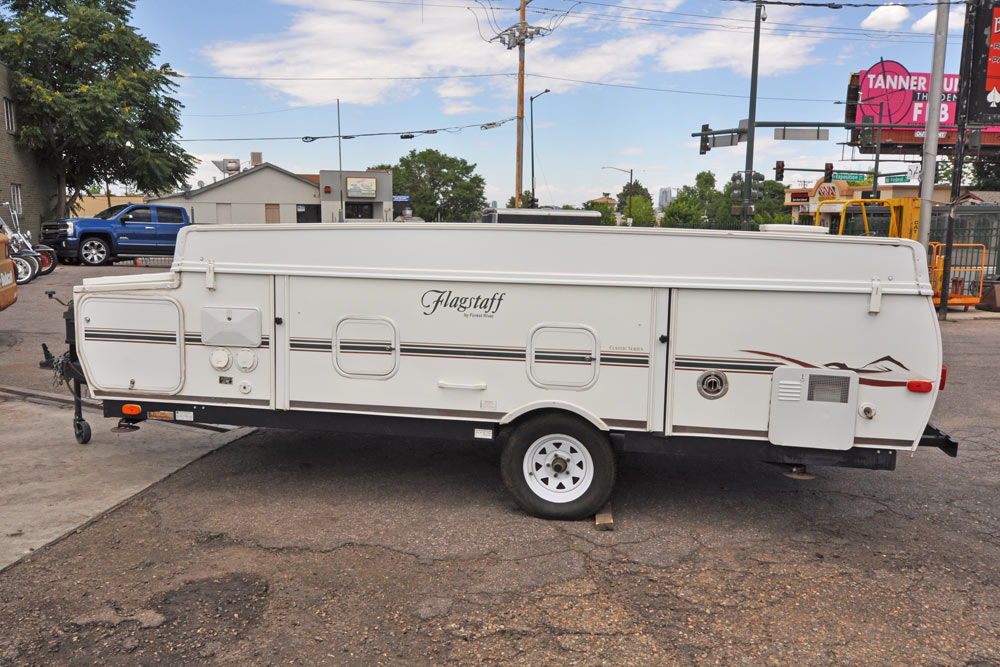

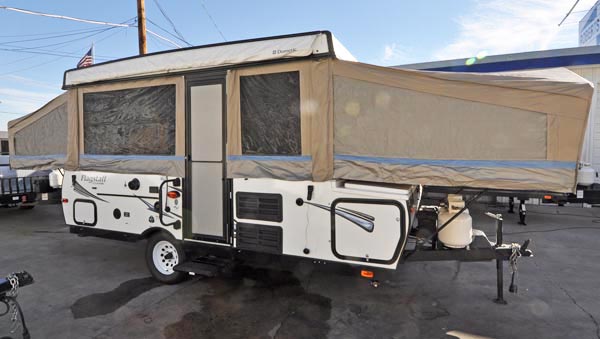

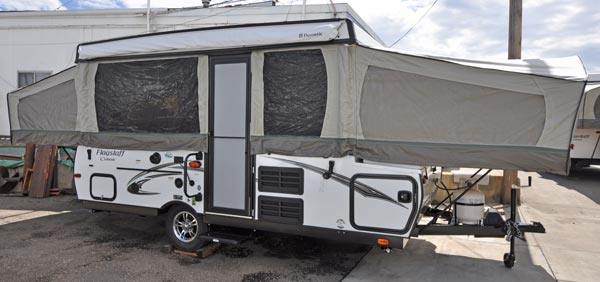

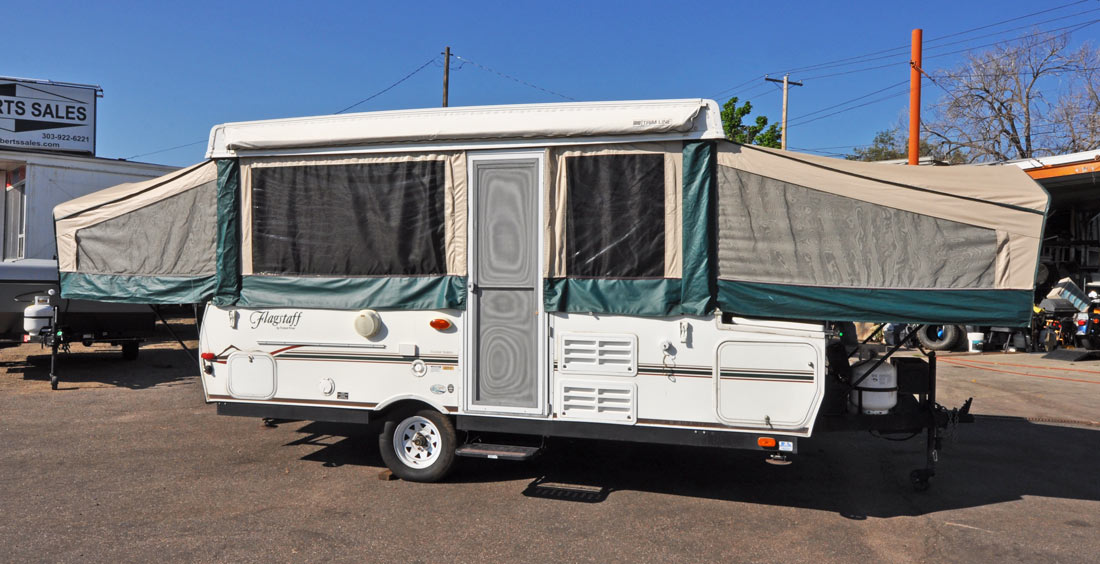

Early Model 2016 Flagstaff 823D exterior

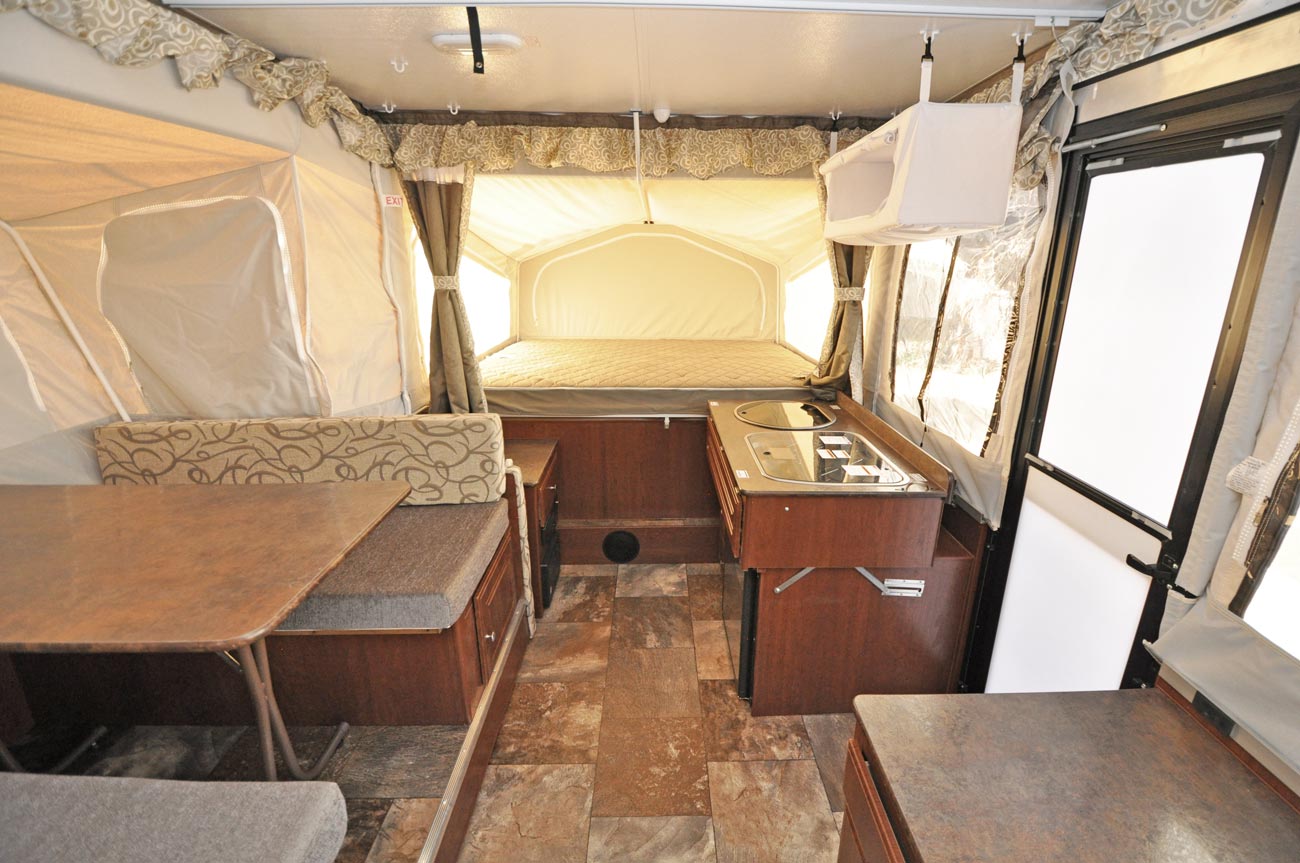

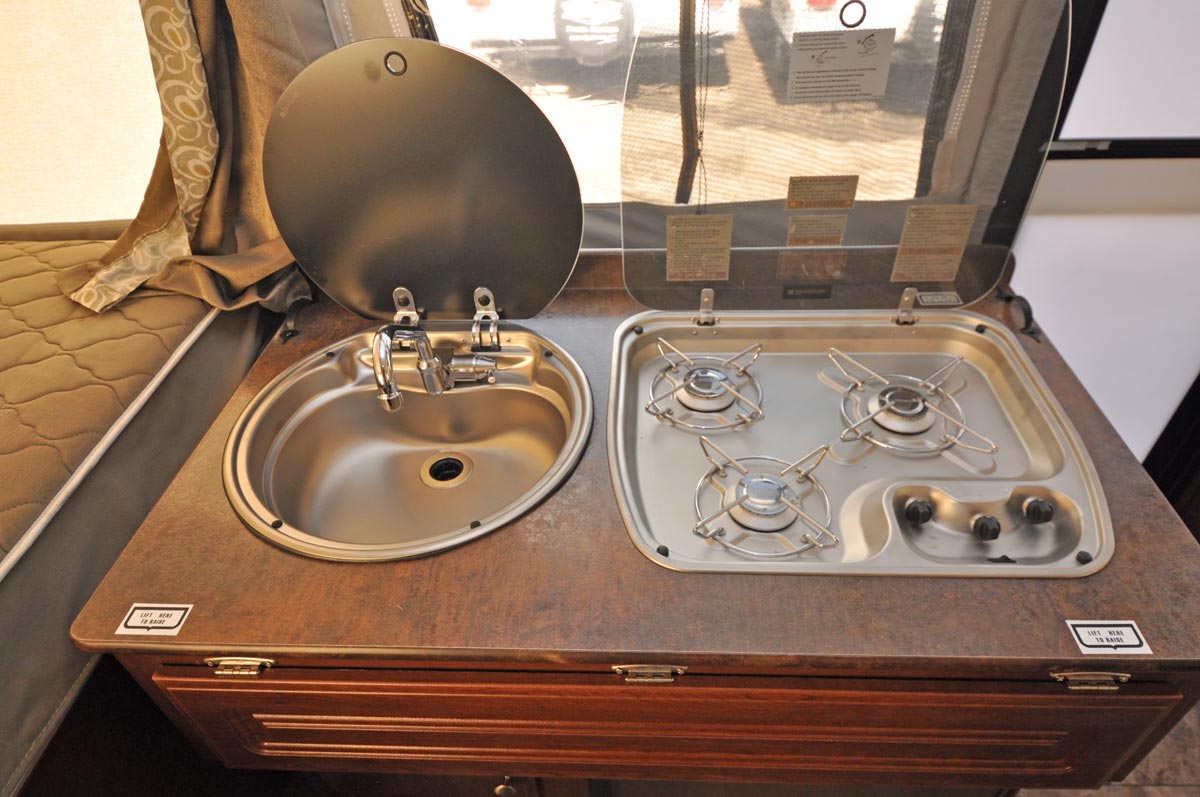

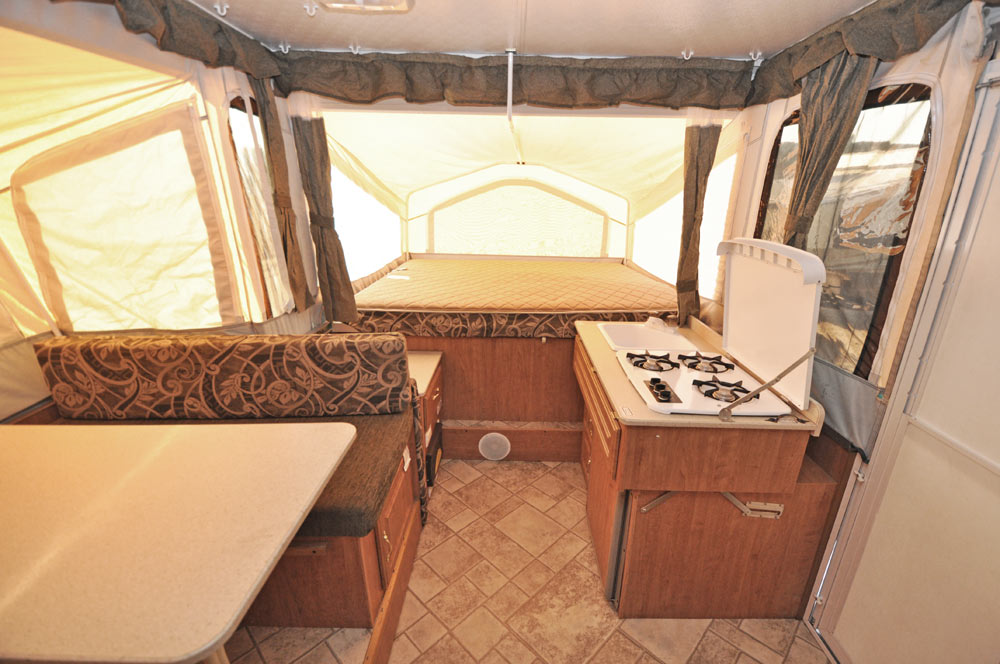

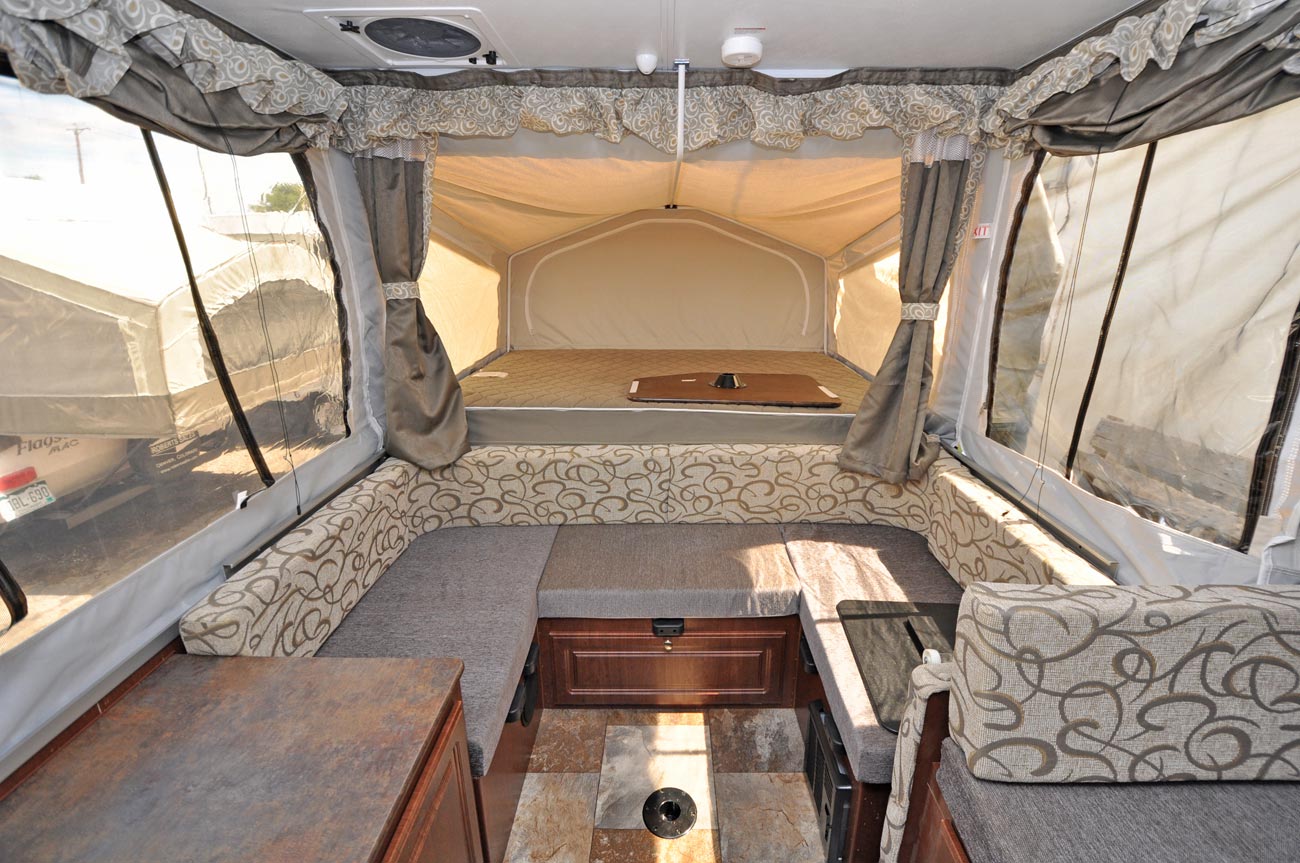

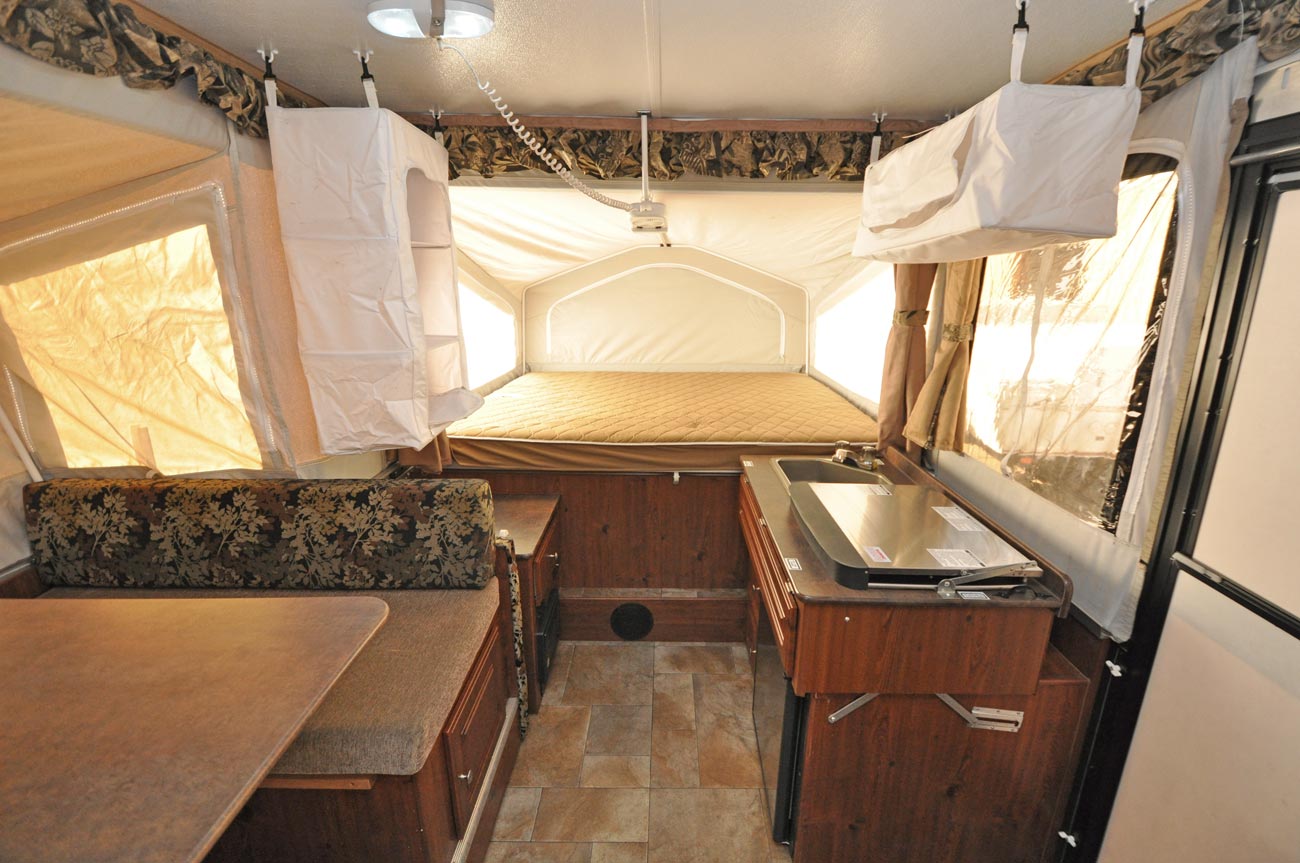

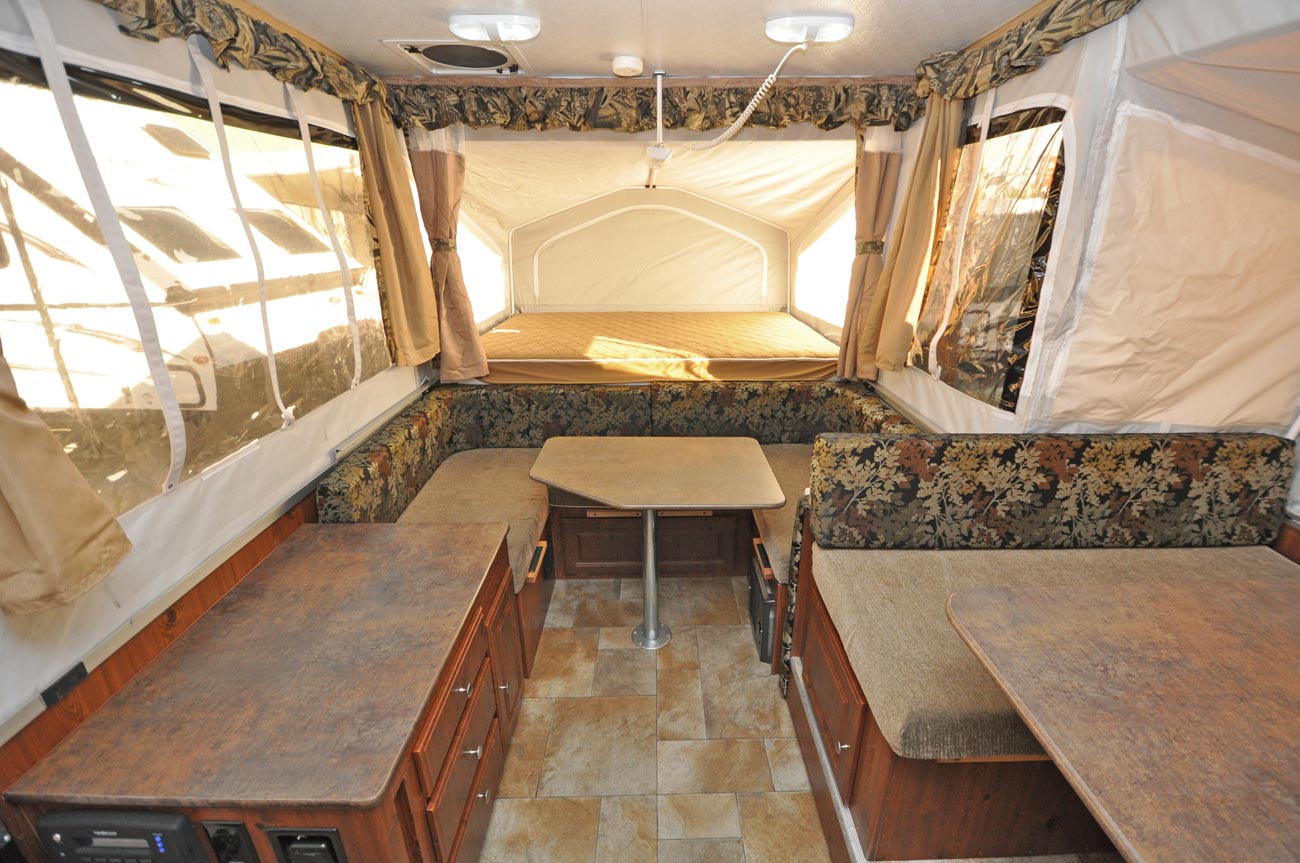

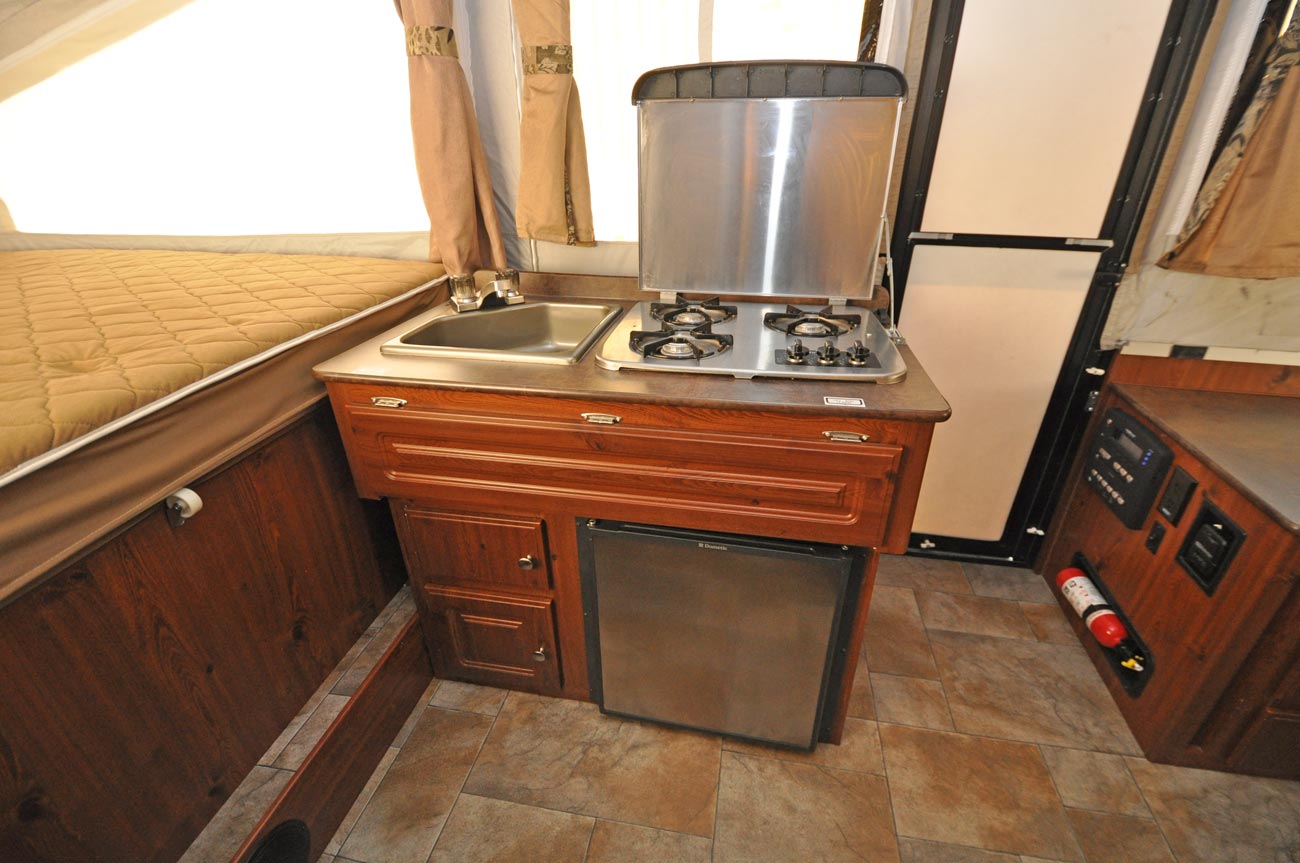

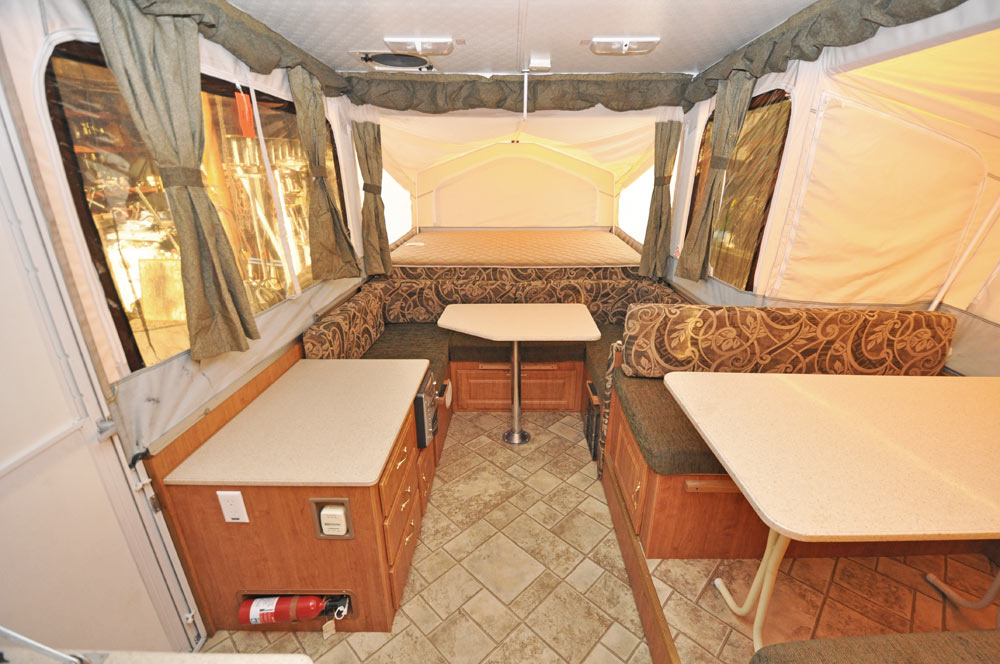

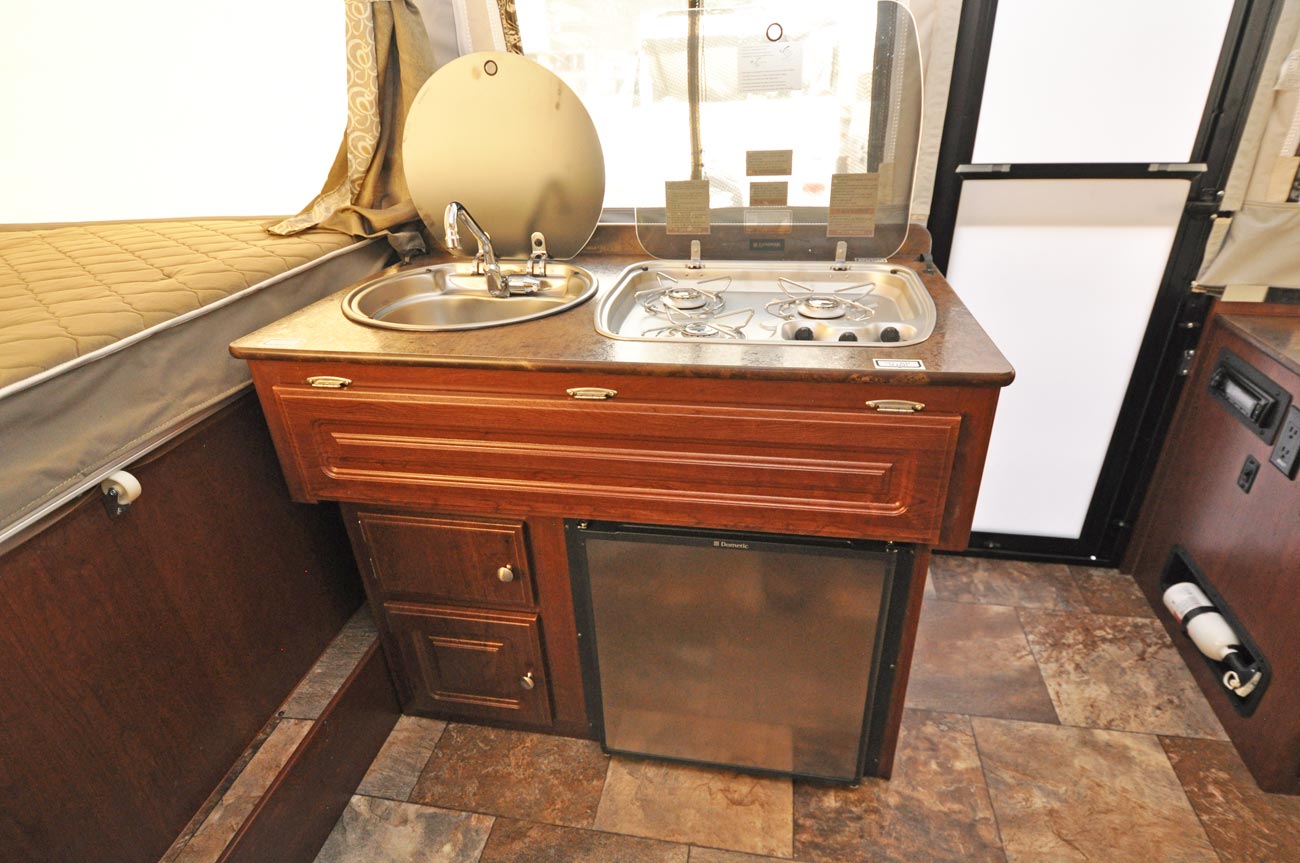

Early Model 2016 Flagstaff 823D front view Early Model 2016 Flagstaff 823D rear view Early Model 2016 Flagstaff 823D galley Early Model 2016 Flagstaff 823D sink and stove

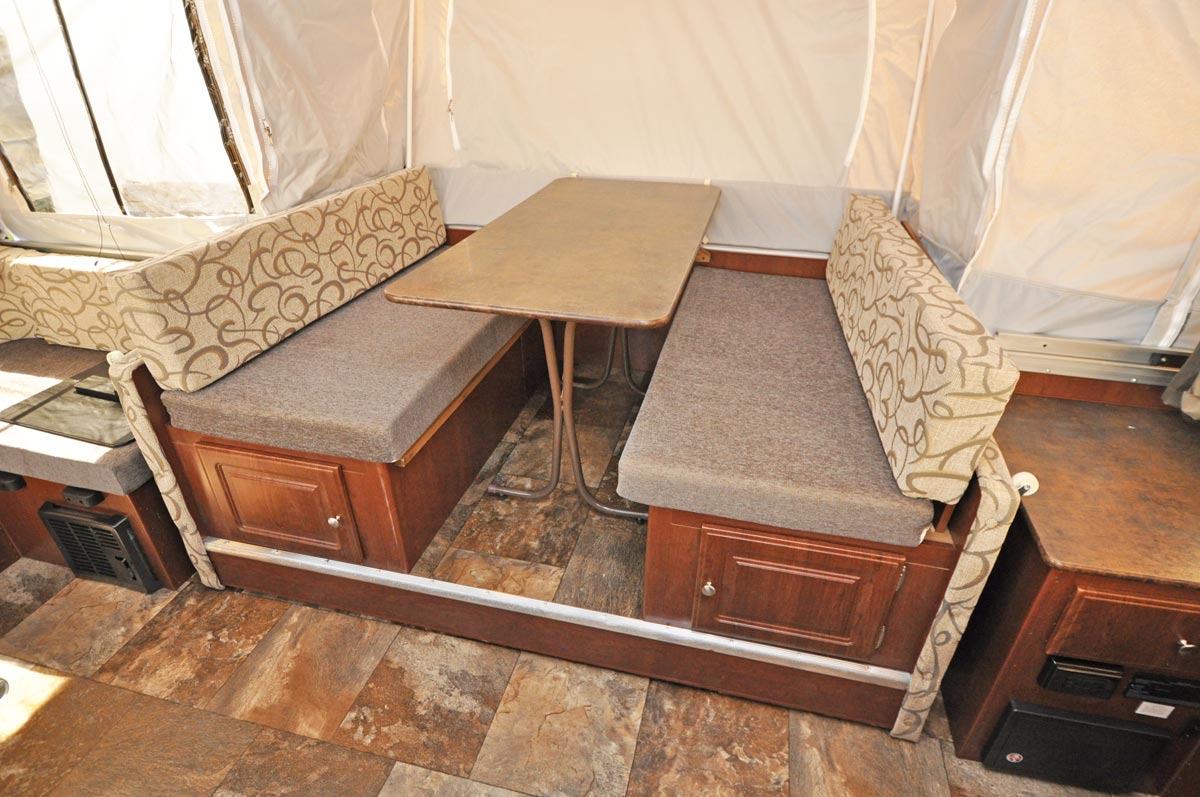

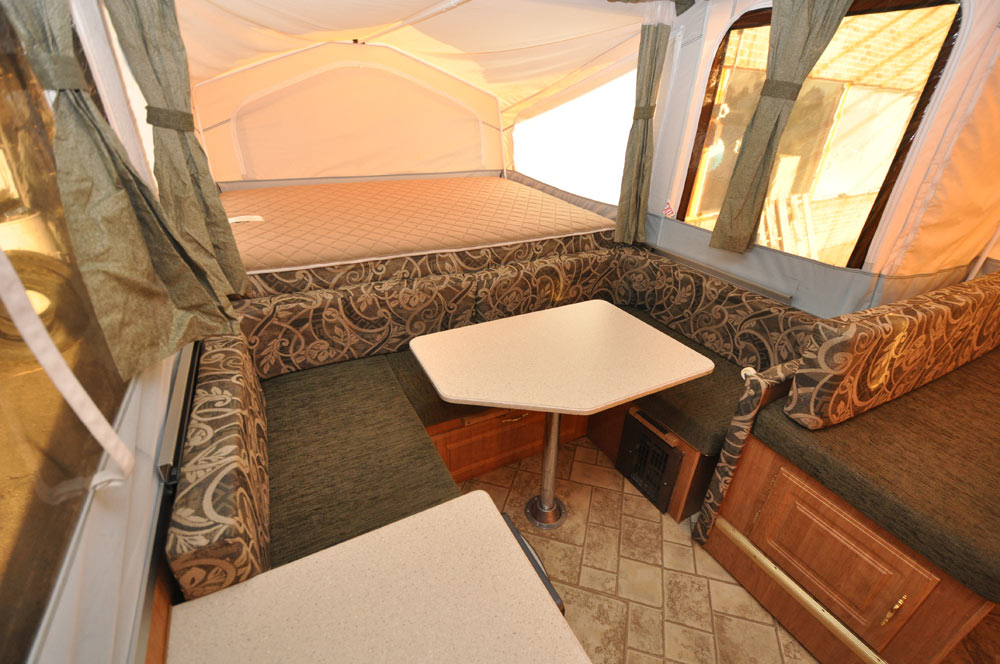

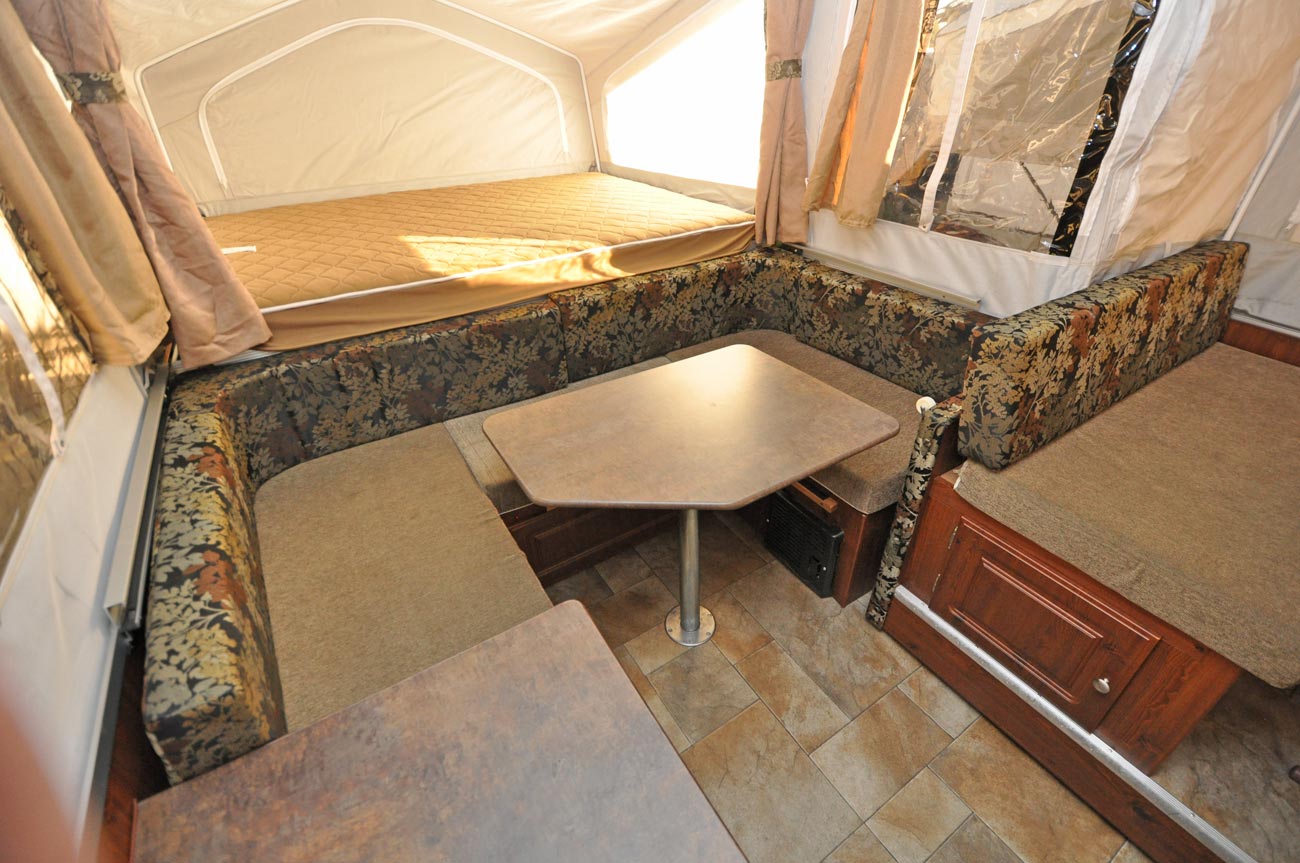

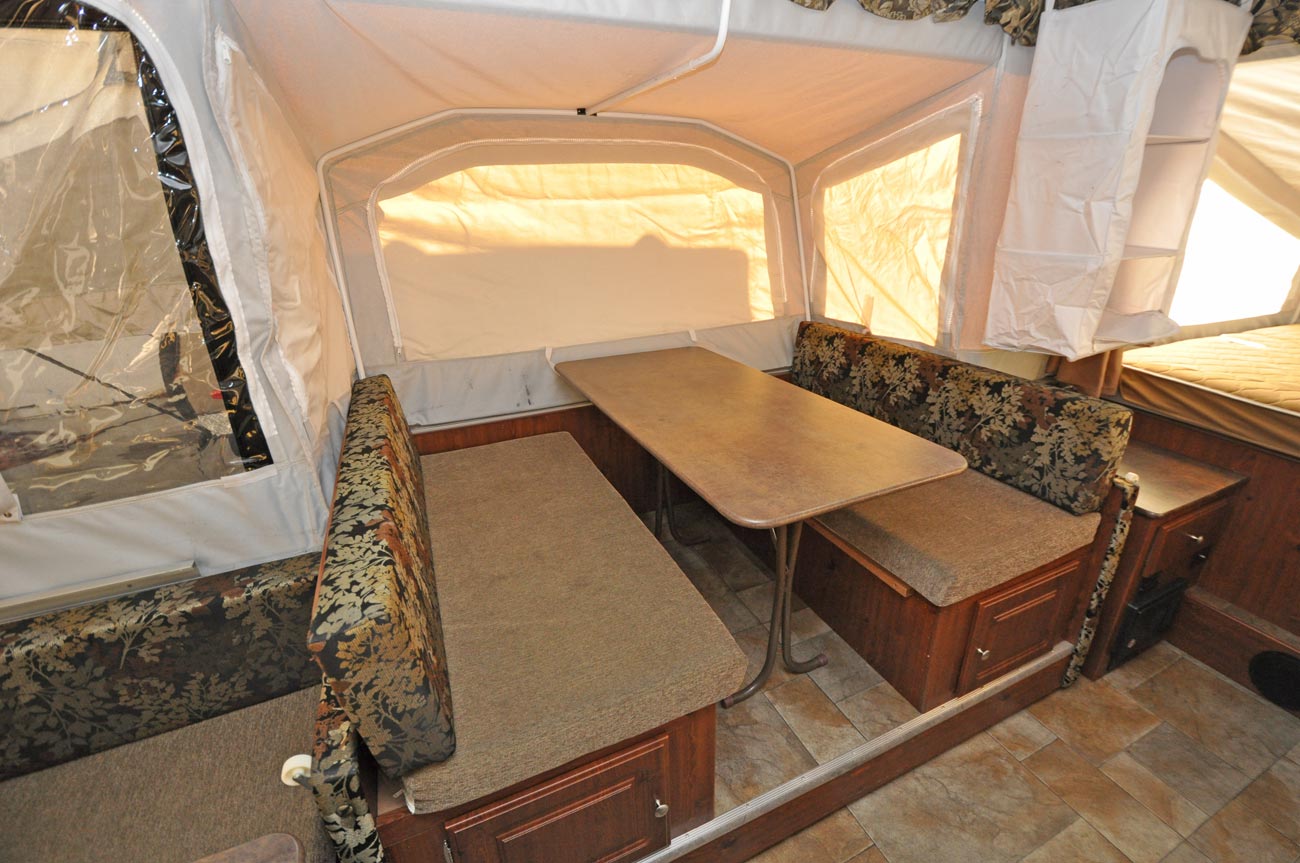

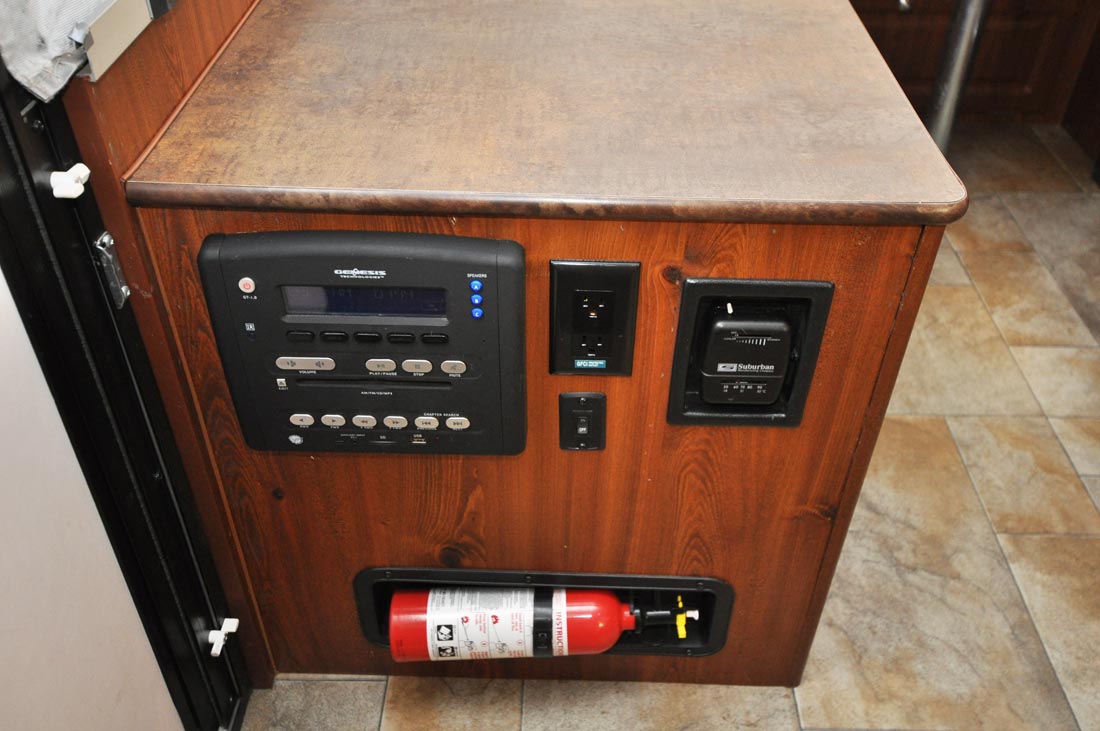

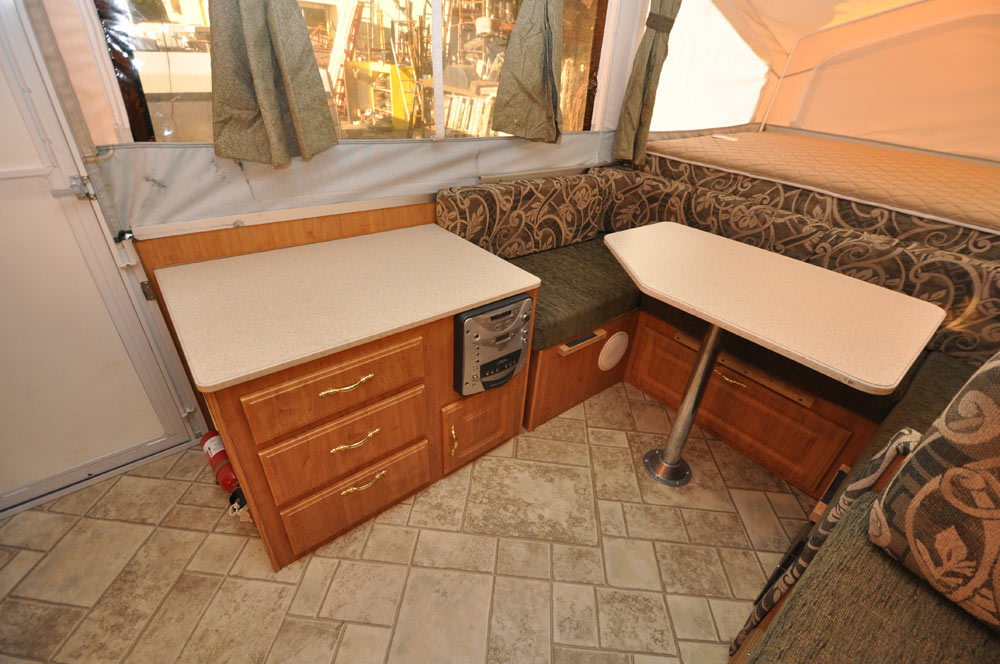

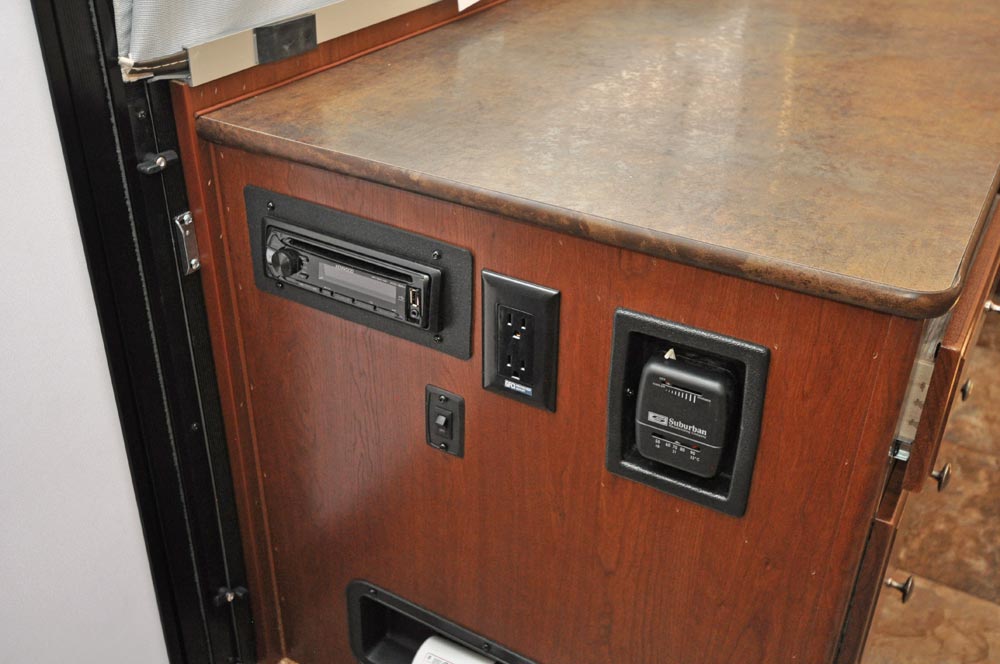

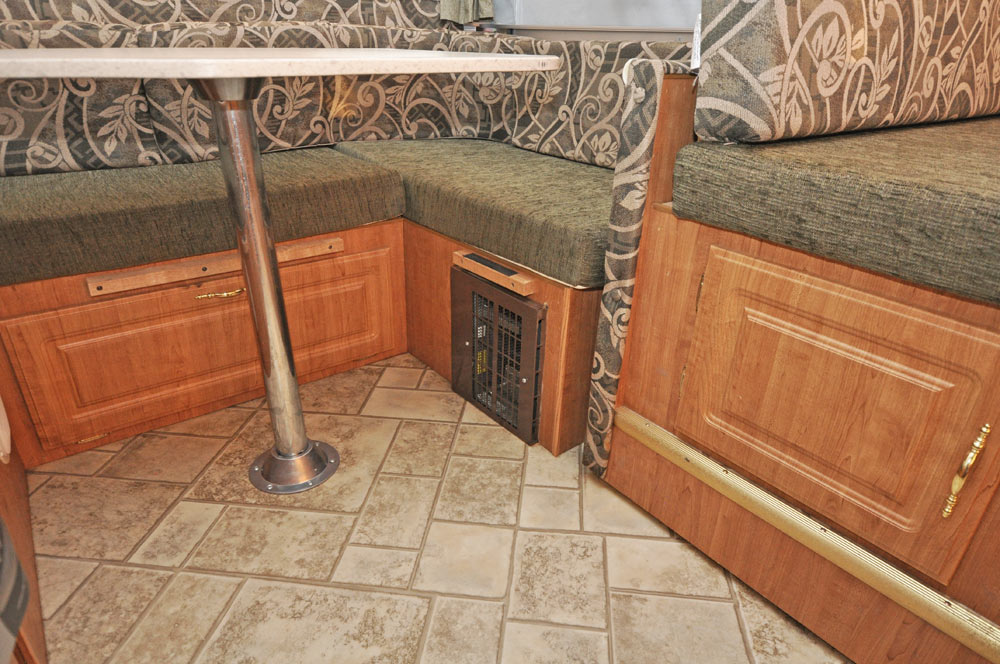

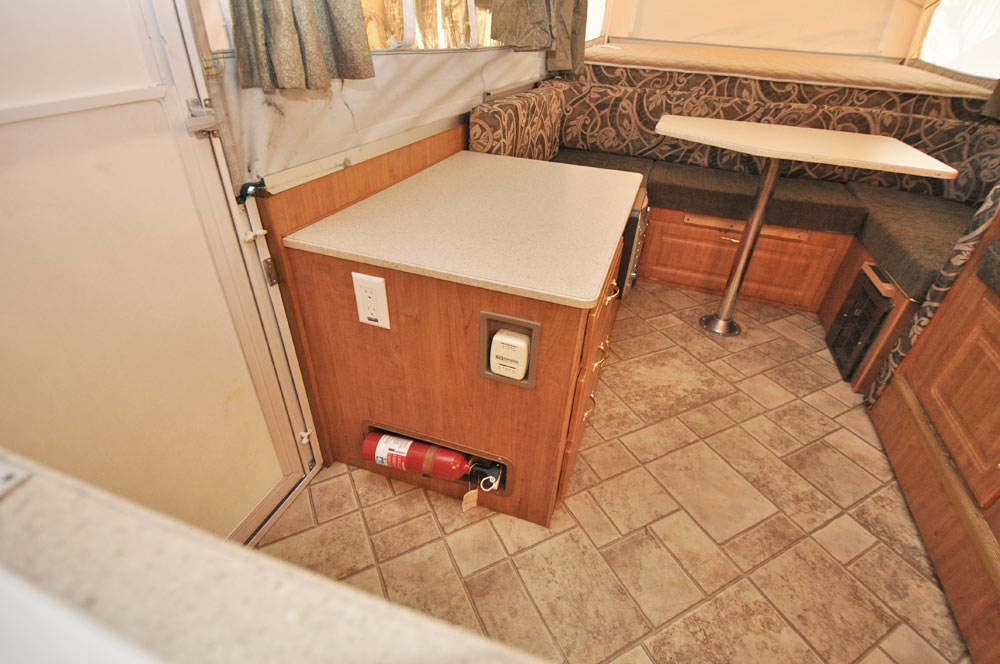

Early Model 2016 Flagstaff 823D dinette Early Model 2016 Flagstaff 823D stereo (early model 2016 shown)

New sink and stove for 2015

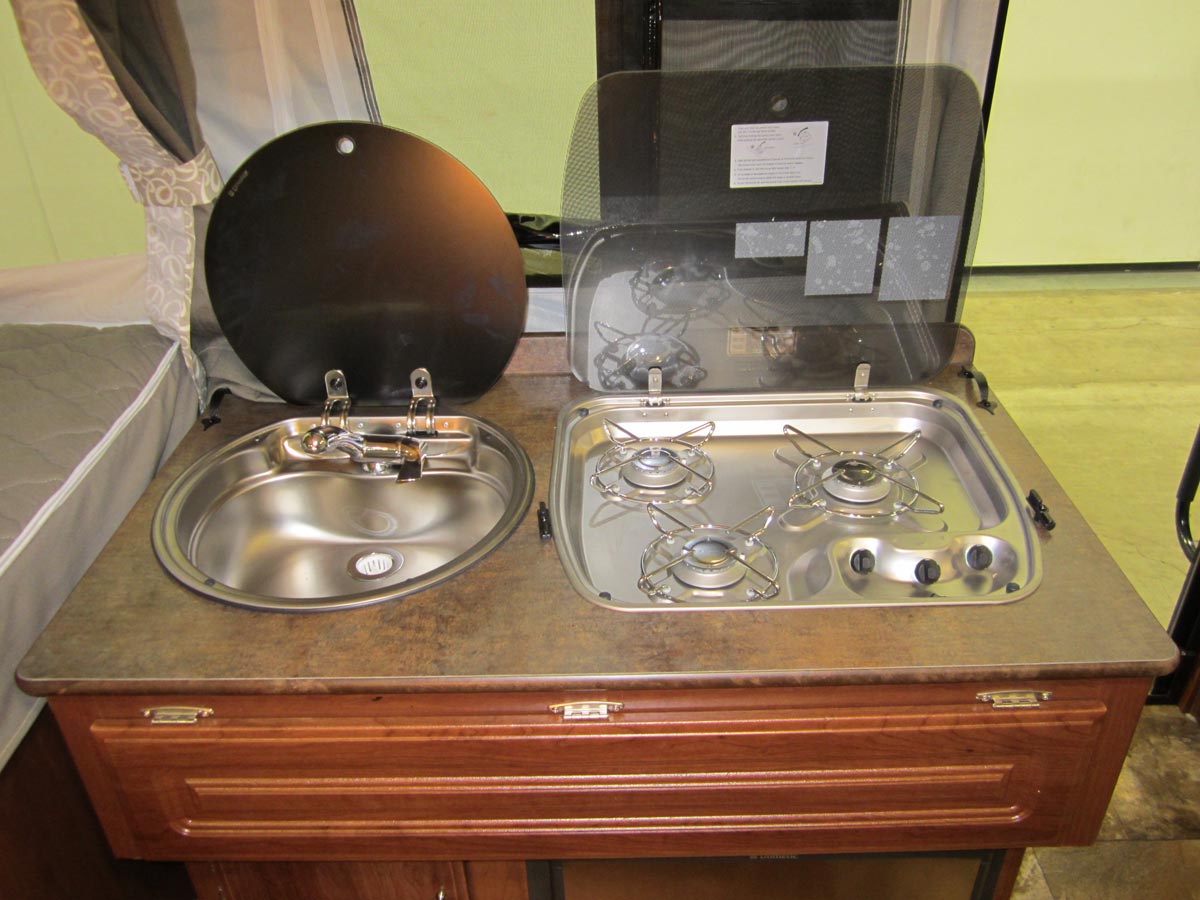

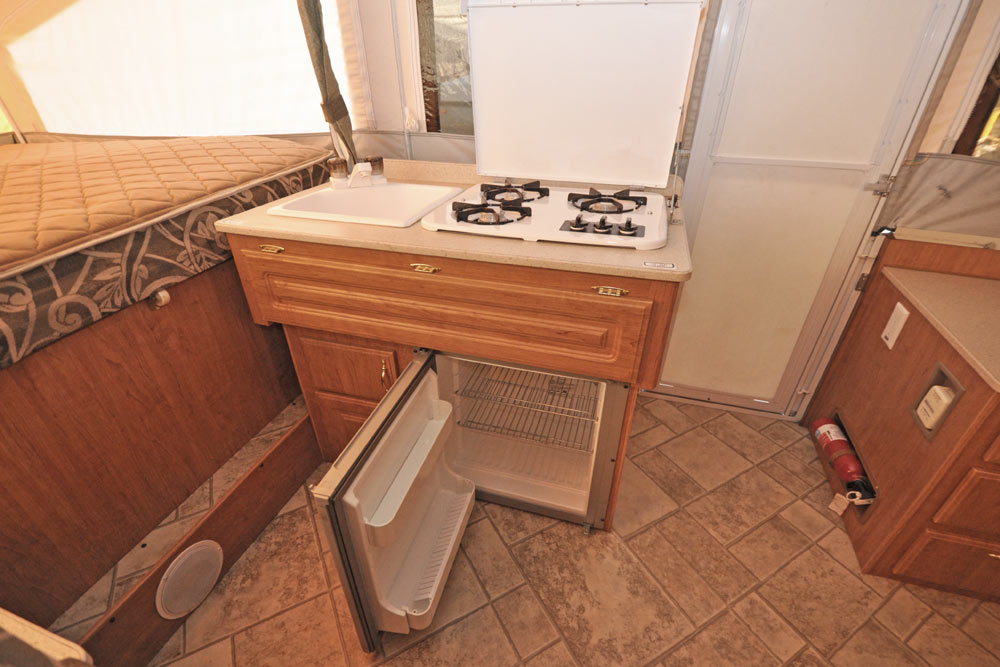

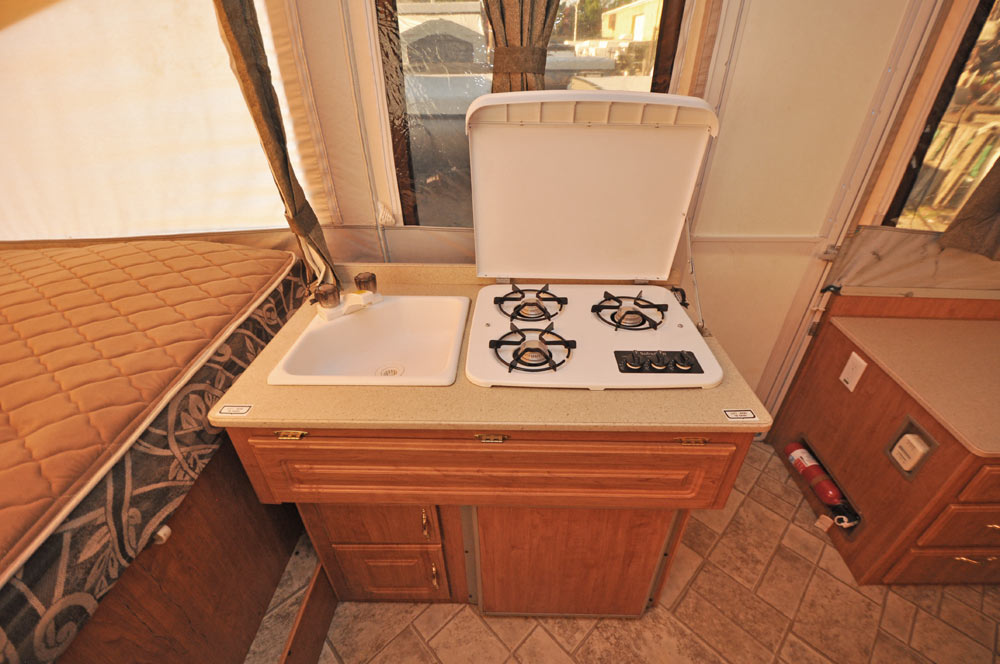

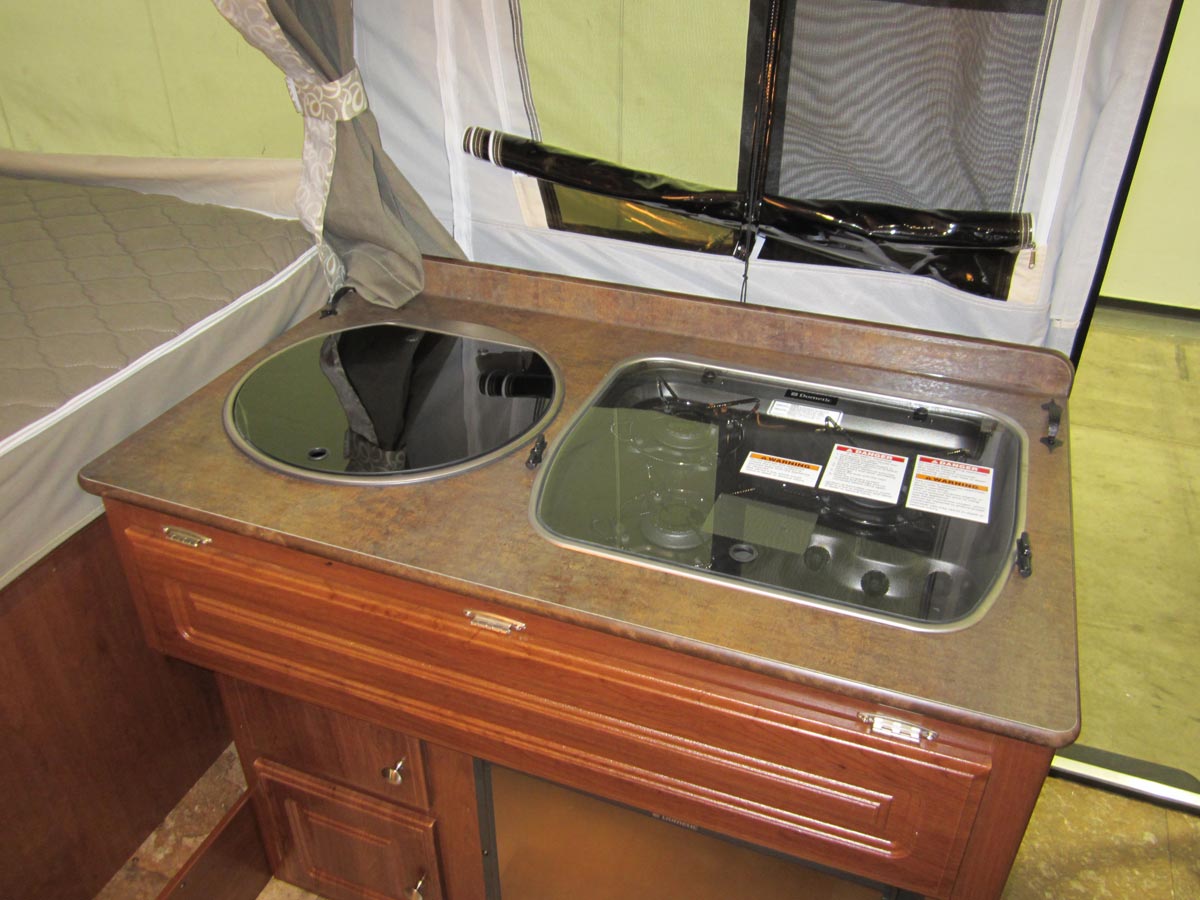

2015 Flagstaff 823D galley with glass tops 2015 Flagstaff 823D galley with glass tops open (2015 shown)


  • Two separate seating areas and four big beds in a low-wall Classic
  • One of only two Classic series Flagstaff campers with three 80" long beds (the 627D is the other)


  • Box Size: 12'
  • Open Length: 23' 9"
  • Travel Length: 19' 1"
  • Travel Width: 7' 6"
  • Dry Weight: 2610 lbs (brief weight explanation)
  • Hitch Weight: 340 lbs
  • GVWR: 3321 lbs
  • Coupler size: 2"
  • Sleeps: 8
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 80" x 42"
    4. 72" x 50"


  • Front storage trunk with sliding tray

...as well as these features standard with the Classic series:

  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Overhead cabinet

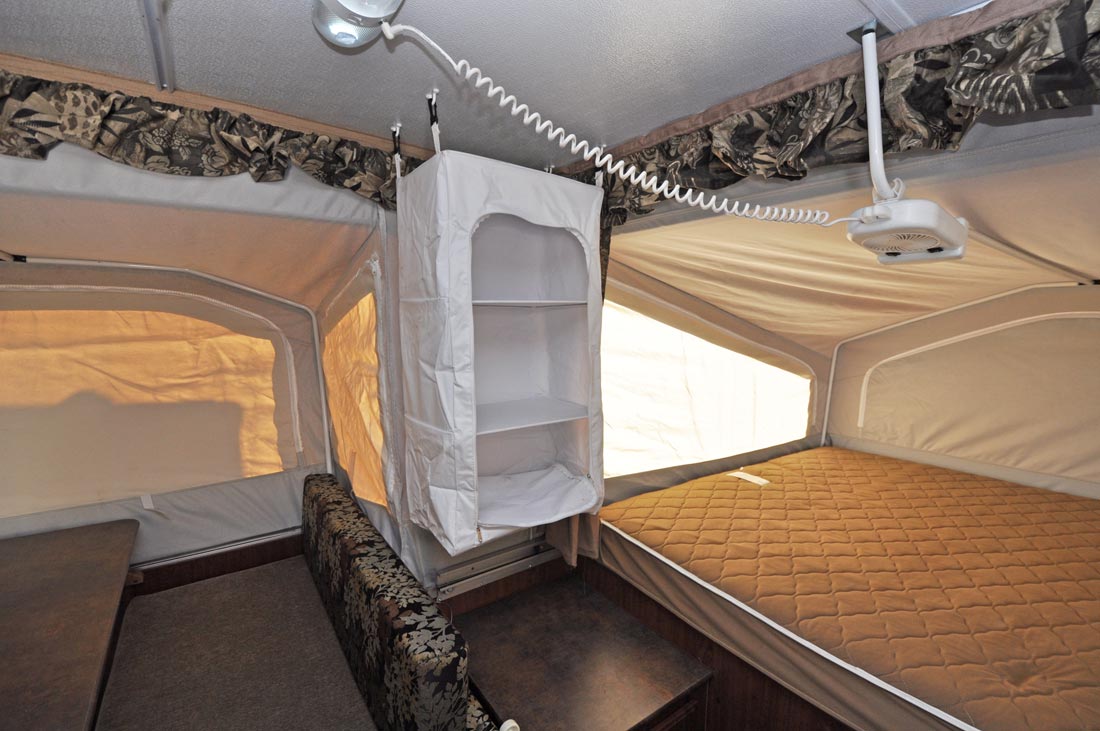

  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 425D - A seat and bay window replaces the wrap-around dinette; the 425D trades extra seating and sleeping area for increased storage and floor space.
  • 625D - The 625D has a sofa/bed instead of a wrap-around dinette. The 625D also has an interior shower/cassette toilet.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
