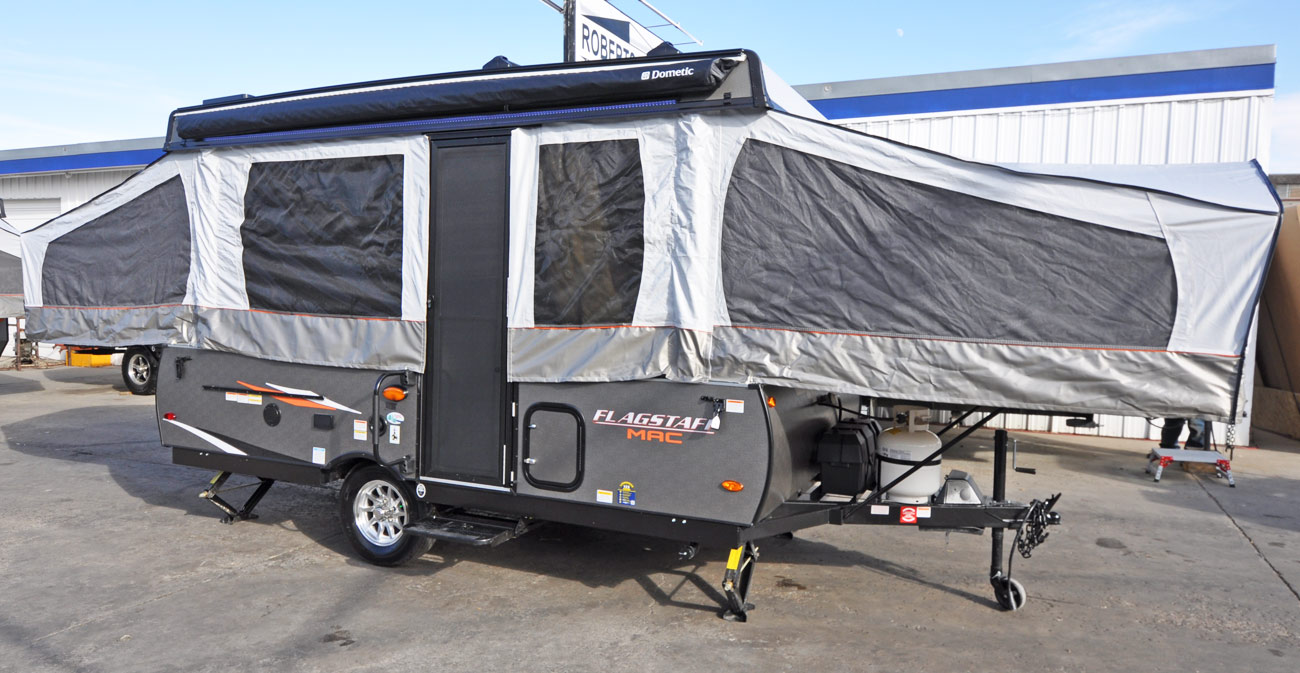

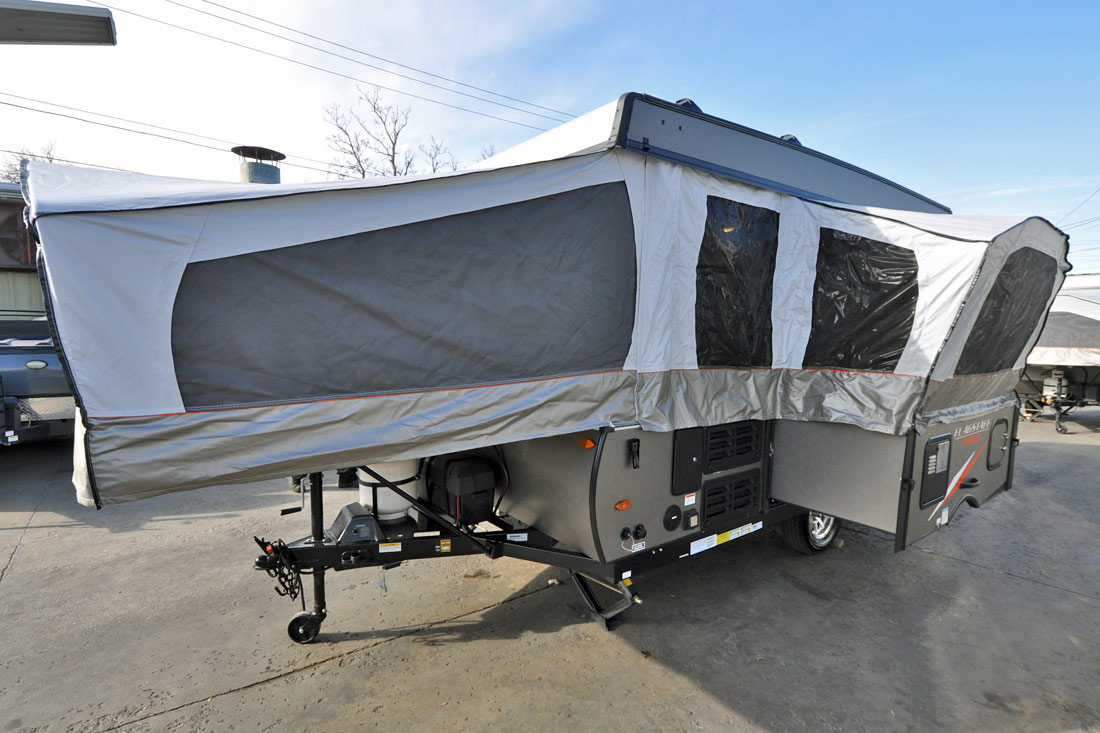

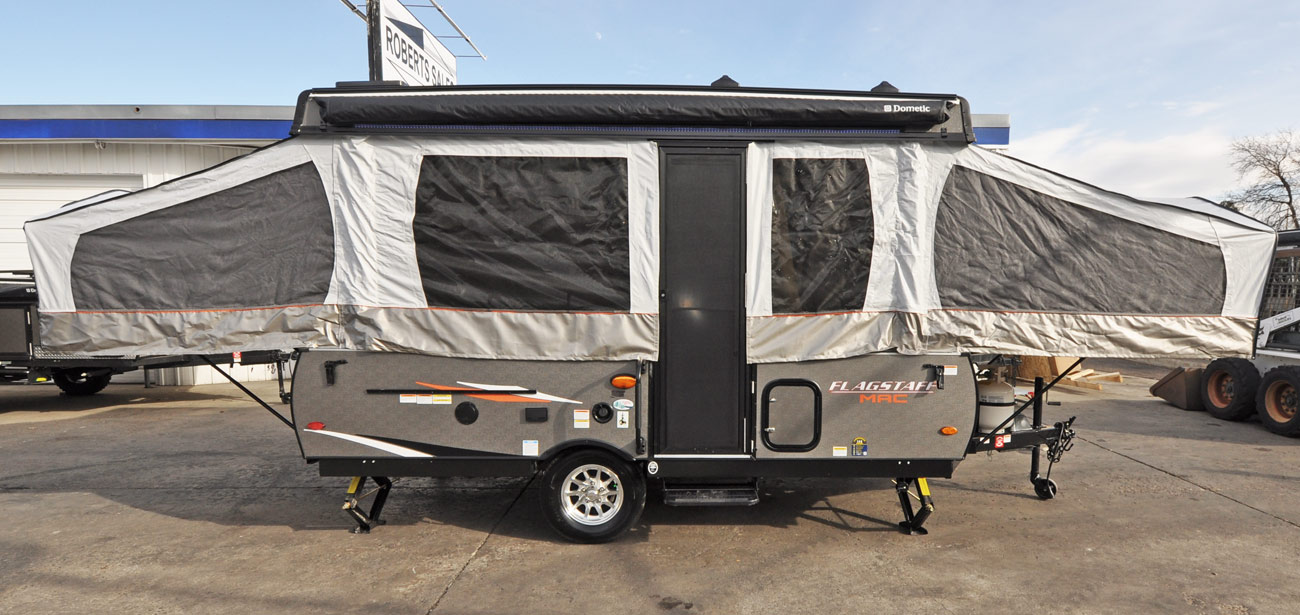

Flagstaff 228D with shower

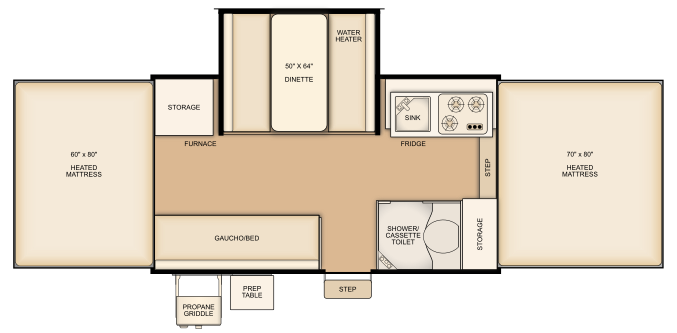

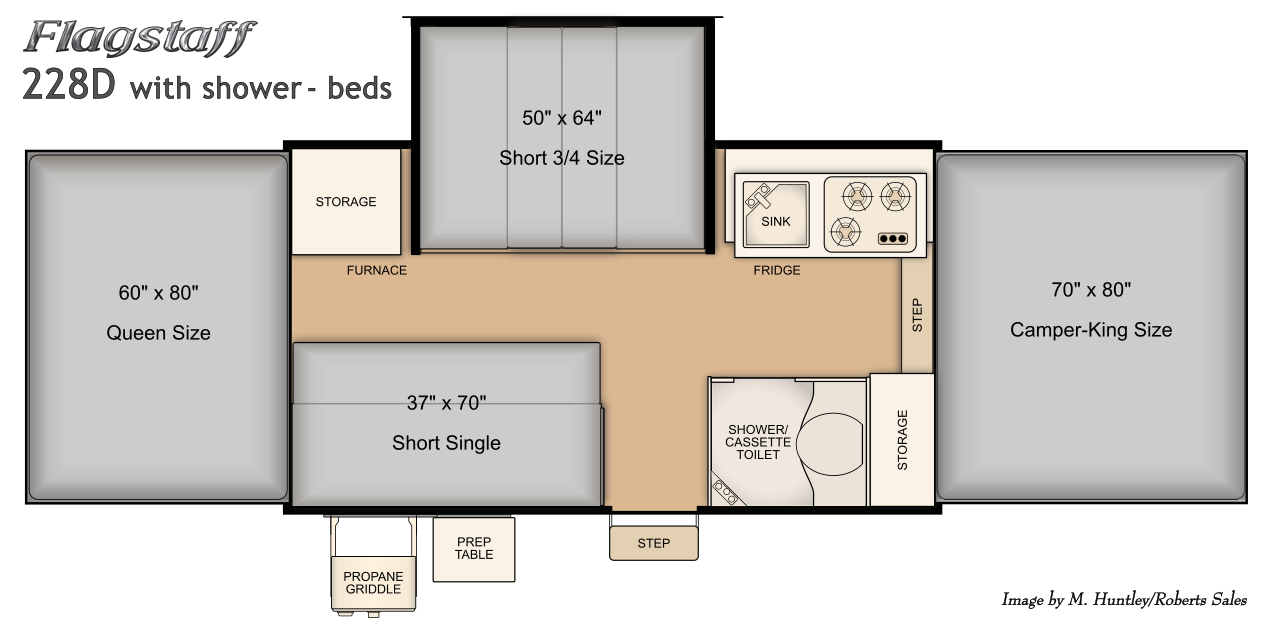

Flagstaff 228D floorplan
Bed Layout for this model Flagstaff 228D with shower travel length and width


  • The 228D layout with a shower/cassette toilet option installed

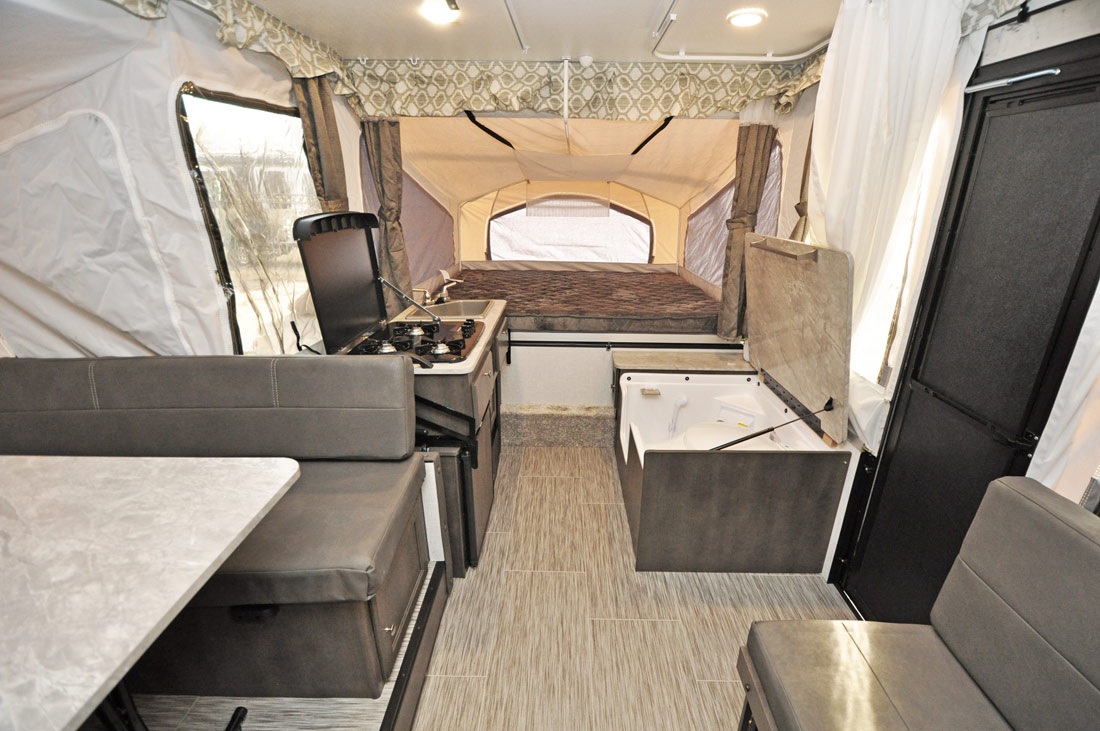

  • Full walkway from end to end makes getting to the beds easy
  • Four beds in all


  • Box Size: 12'
  • Open Length: 23' 10"
  • Travel Length: brochure says 17' 2 "; actual (with spare tire) - 17' 3 "
  • Travel Width: 7' 6"
  • Dry Weight: 2439 lbs (brief weight explanation)
  • Hitch Weight: 263 lbs
  • GVWR: 3263 lbs
  • Coupler size: 2"
  • Sleeps: 8

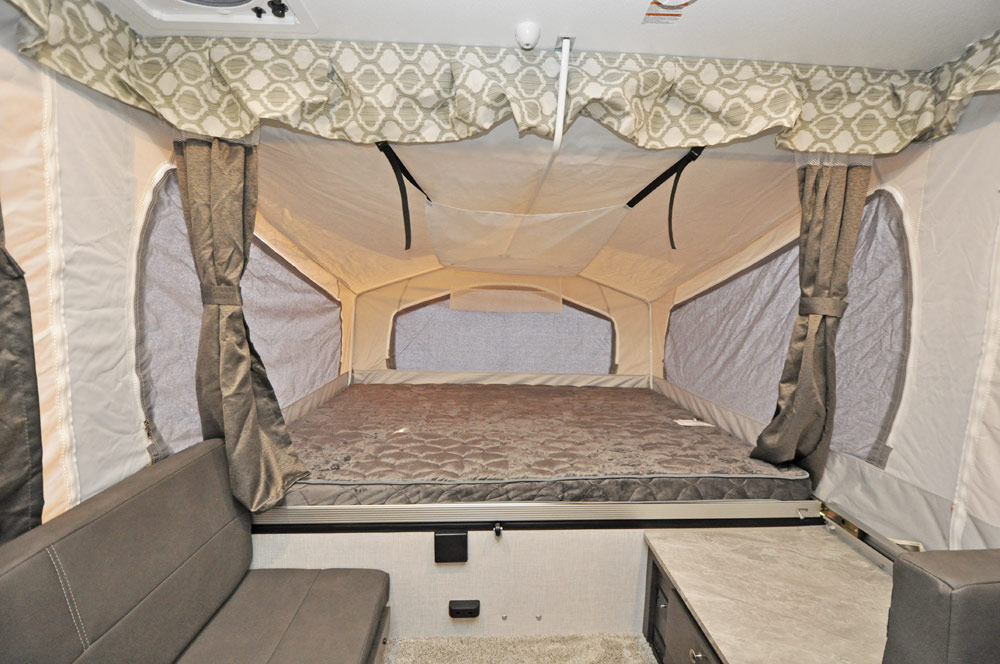

  • Beds:

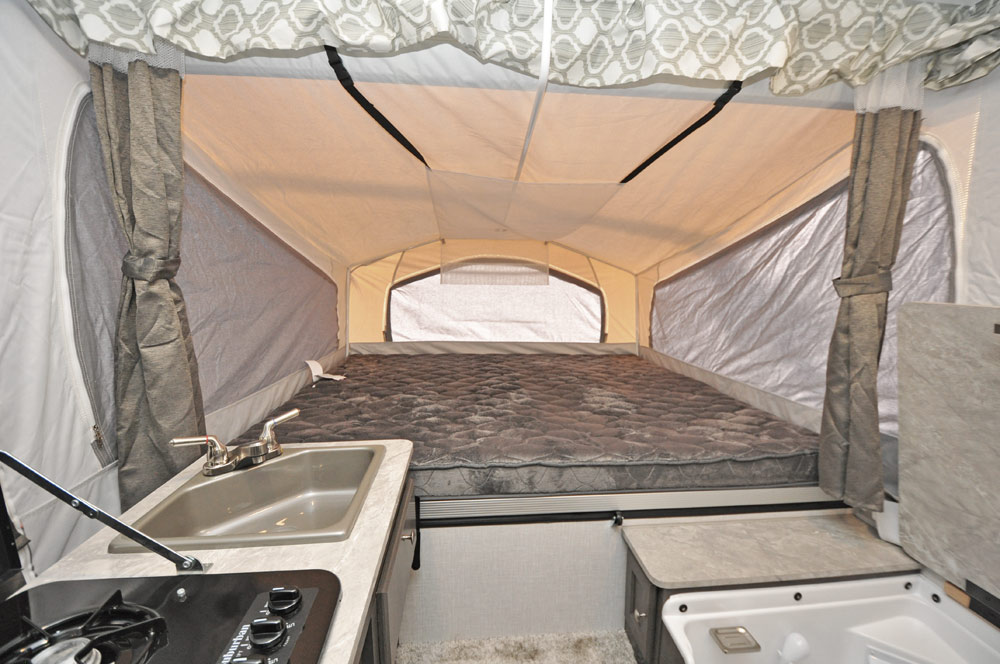

    1. 80" x 70"
    2. 80" x 60"
    3. 64" x 50"

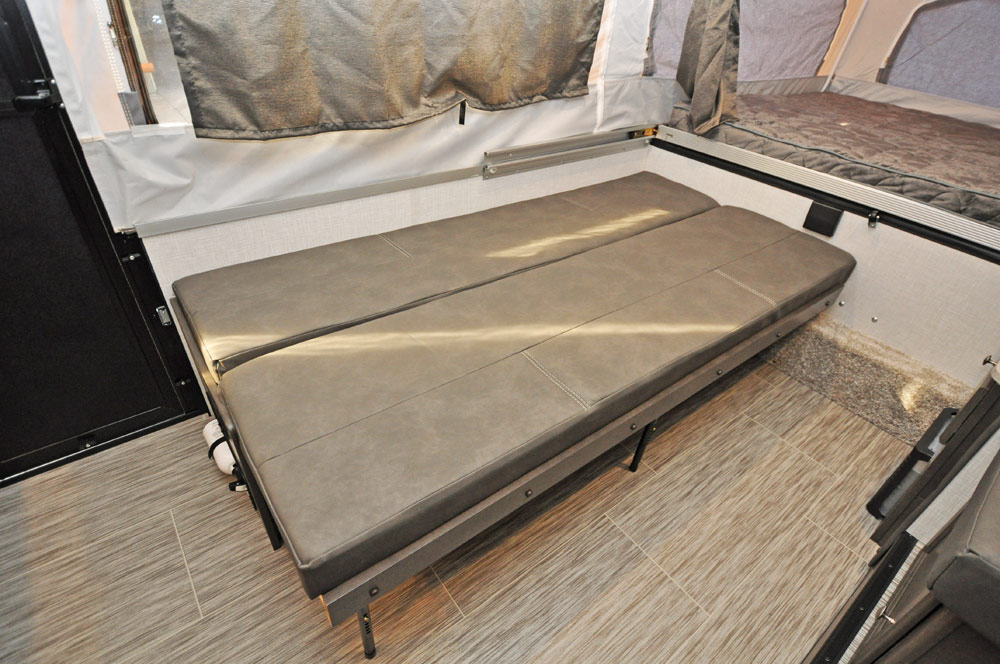

    4. 70" x 37"

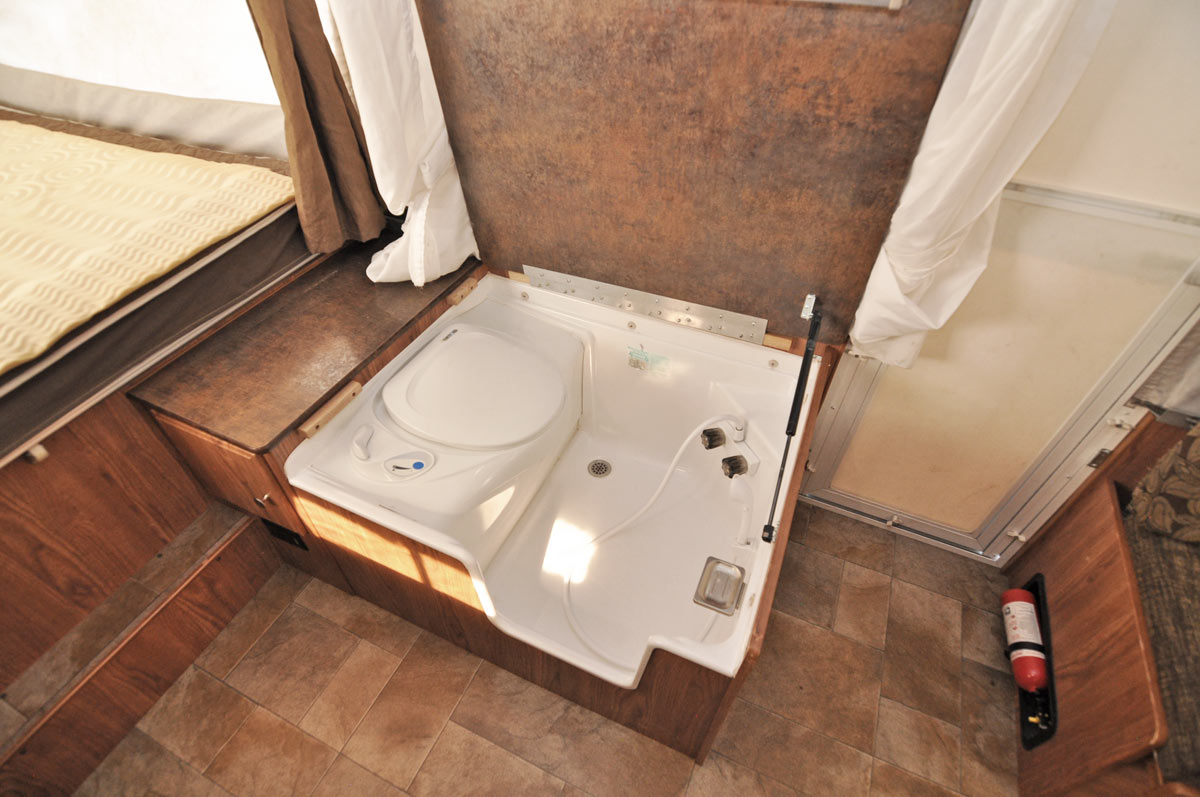

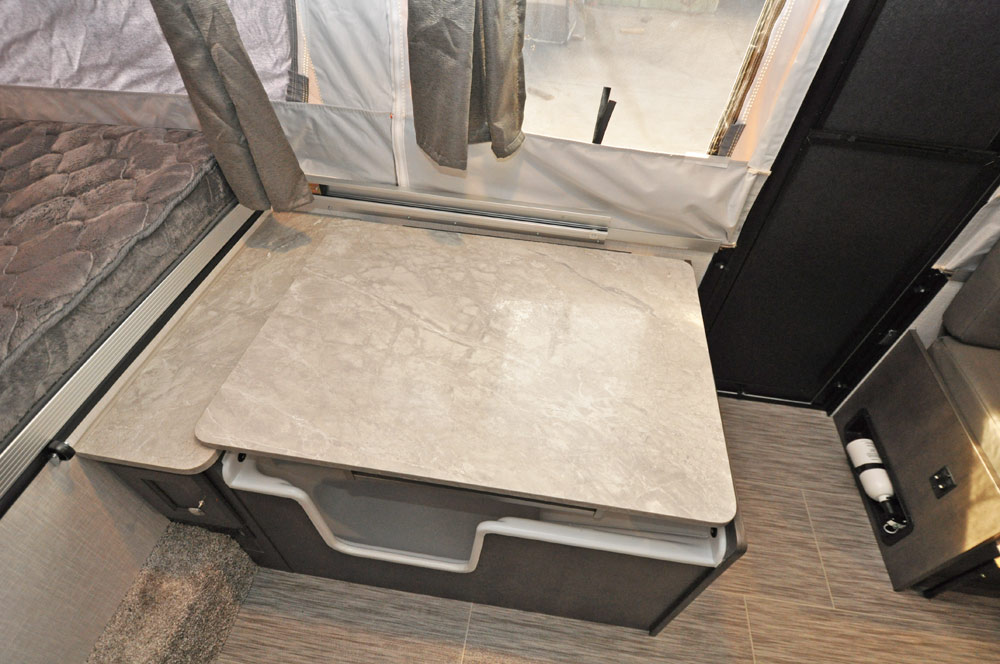

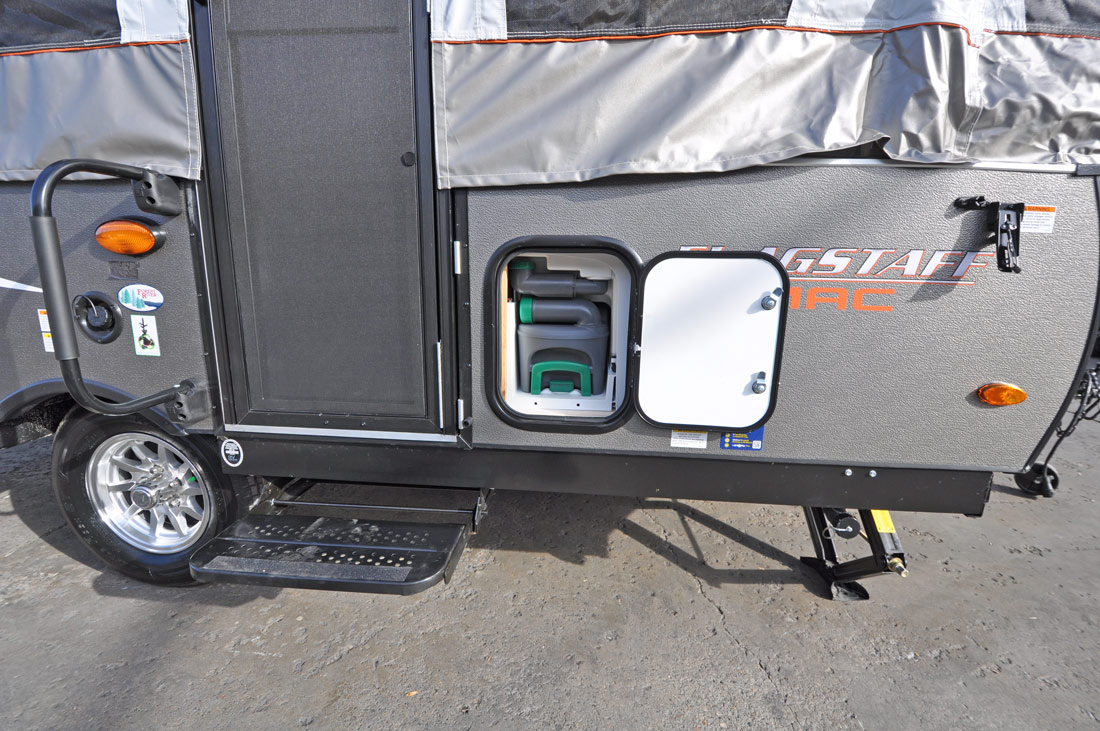

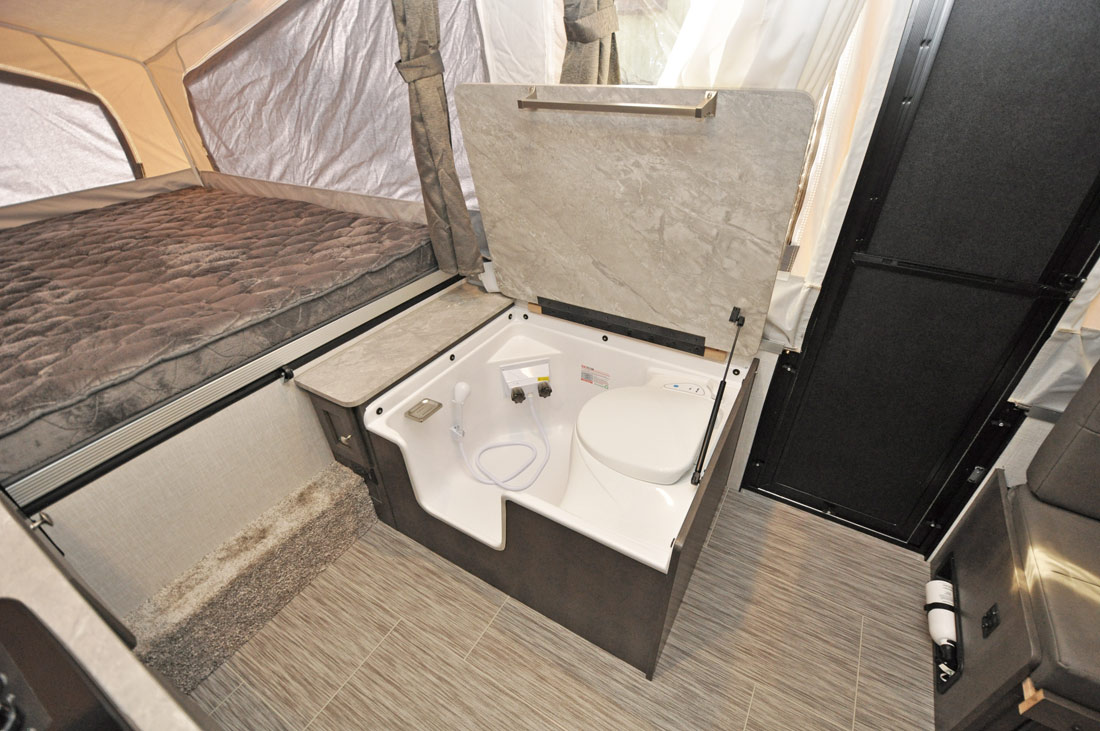

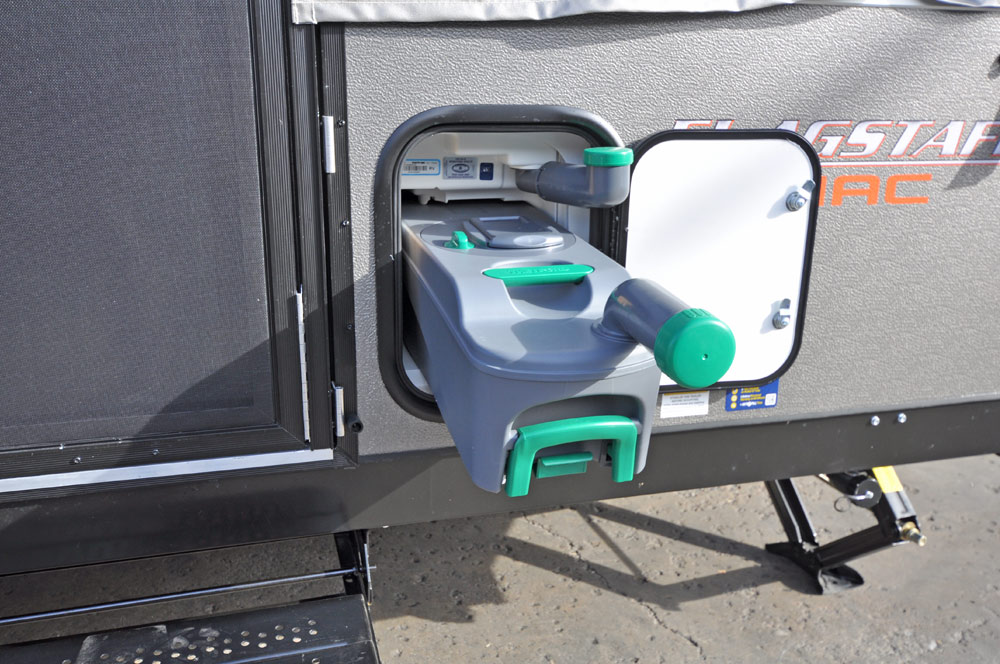

  • Interior shower/cassette toilet
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture

...as well as these features standard with the MAC series:

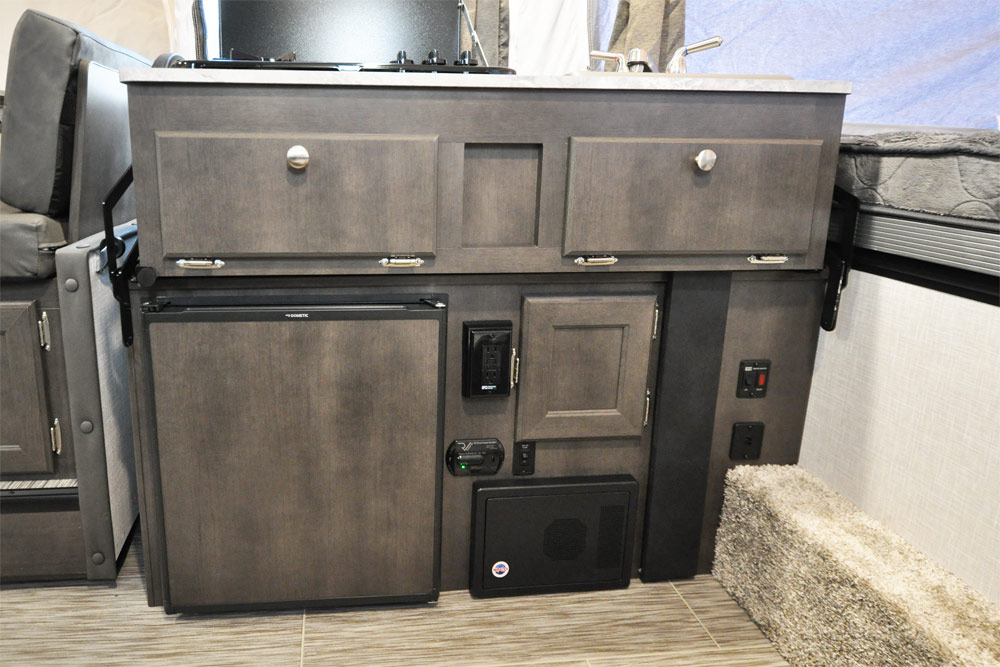

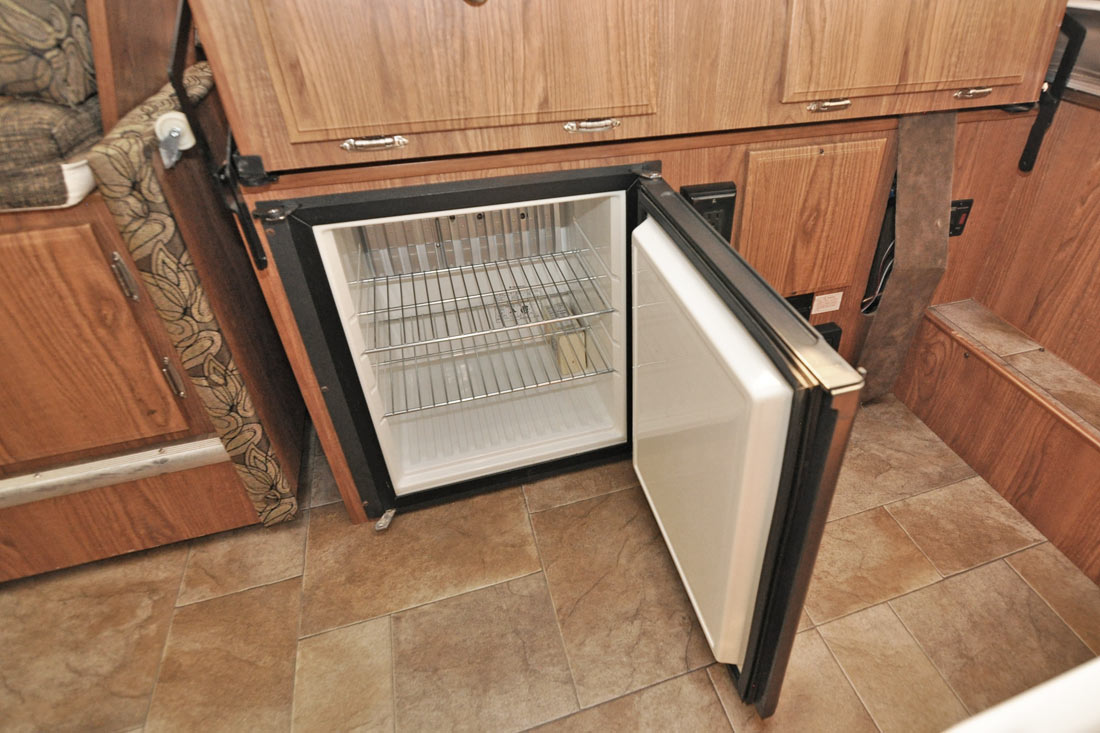

  • Dometic 1.9 cu. ft. 3-way refrigerator

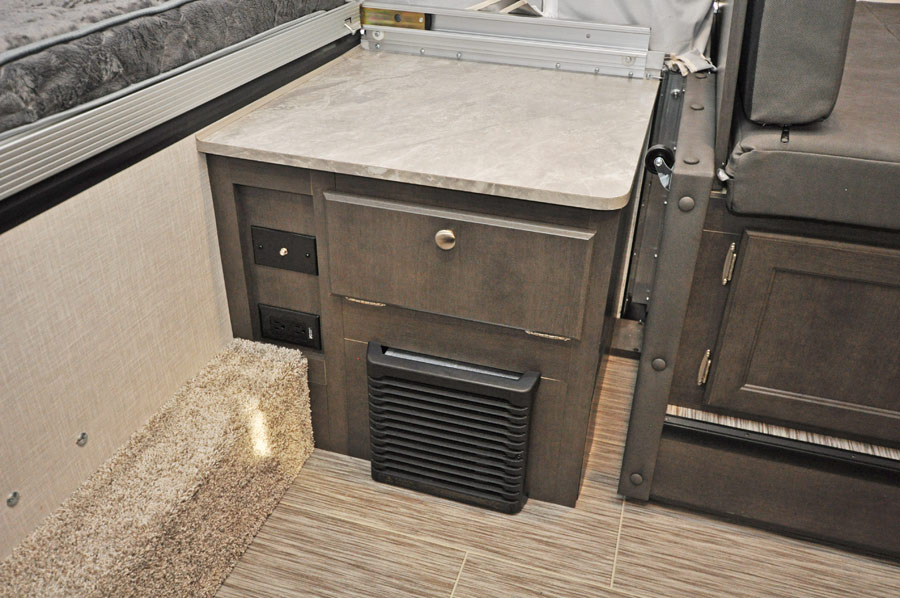

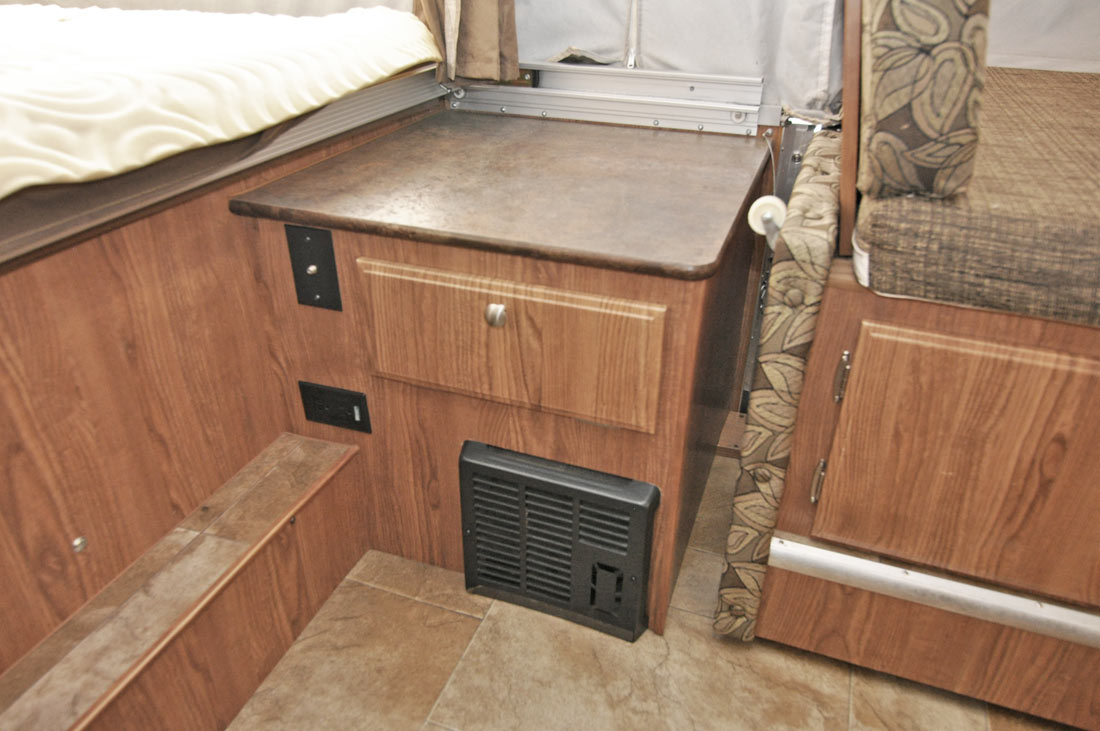

  • Suburban 19,000 BTU furnace with automatic ignition

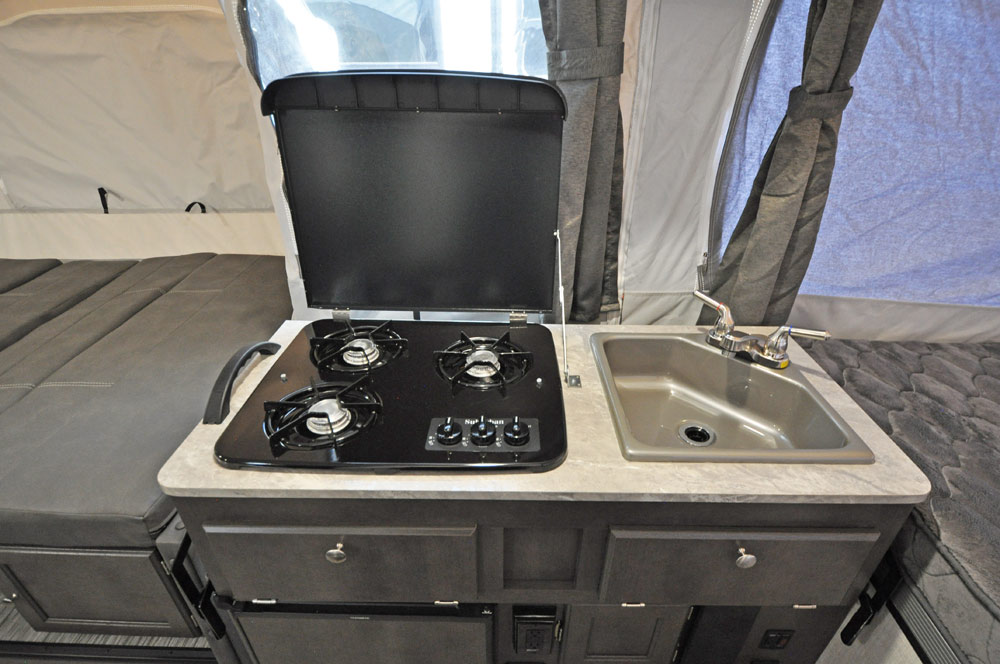

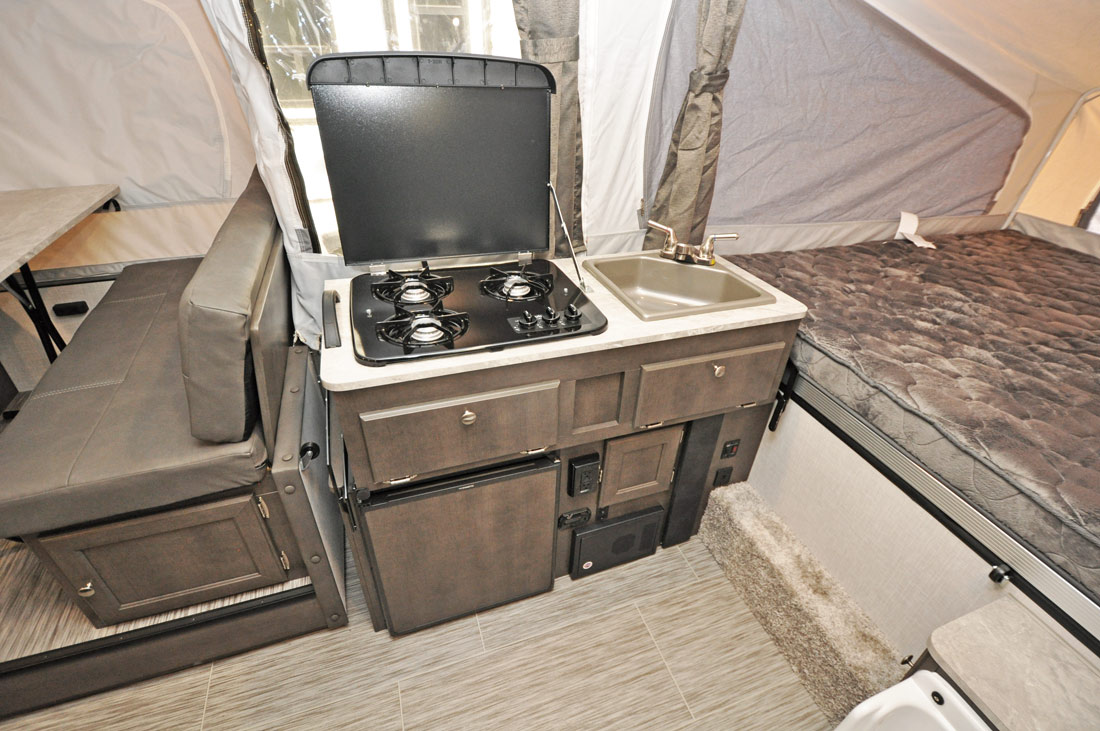

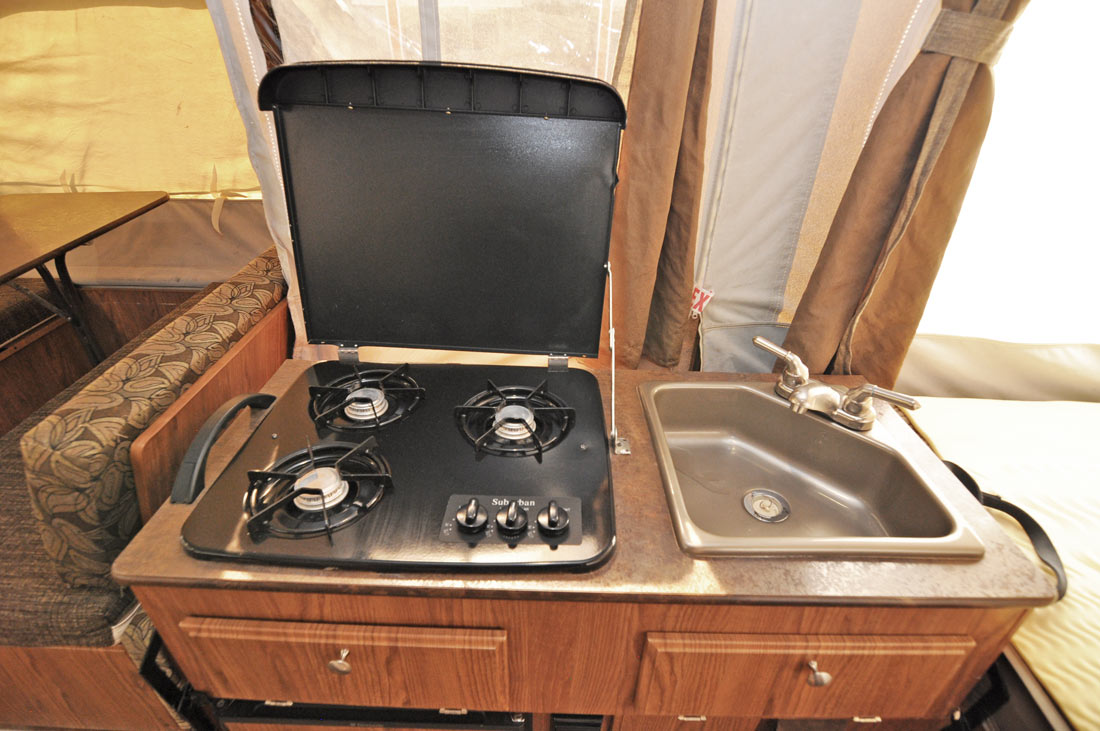

  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank

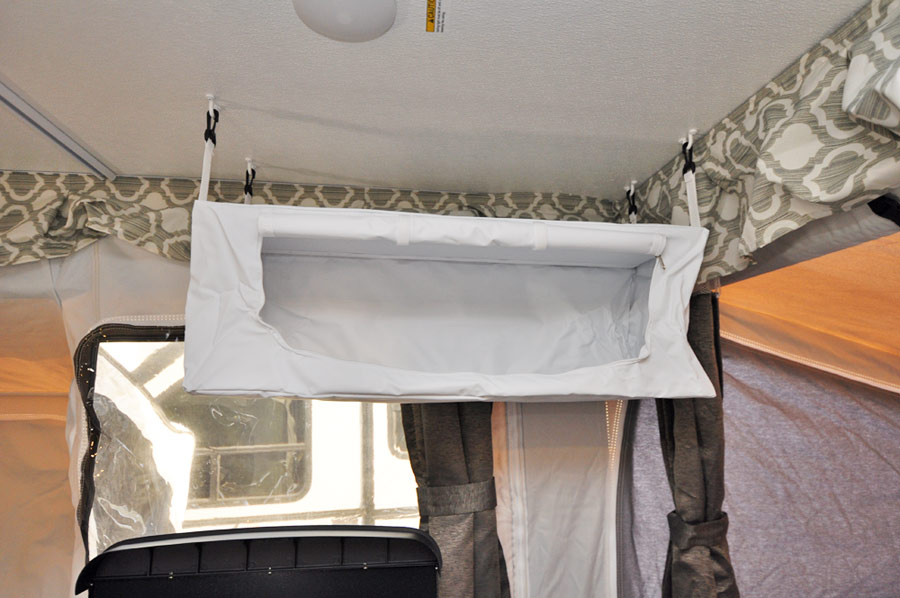

  • Overhead cabinet
  • Group 27 battery pack
  • 110V heated 3.5" foam mattresses

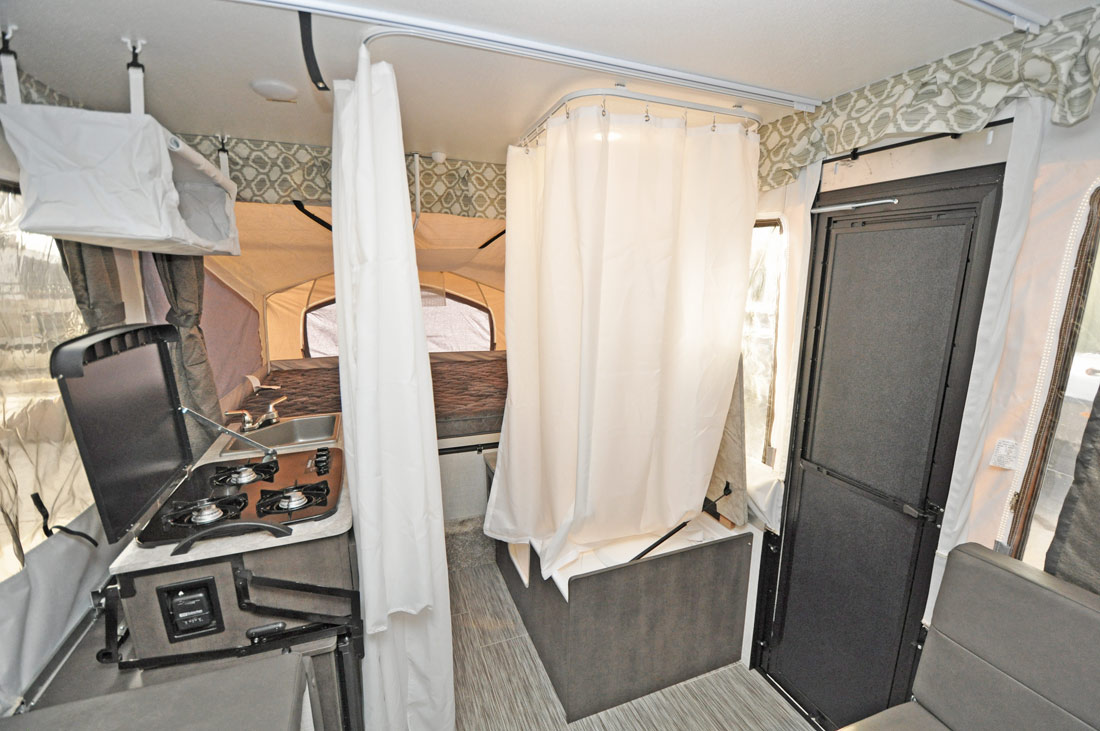

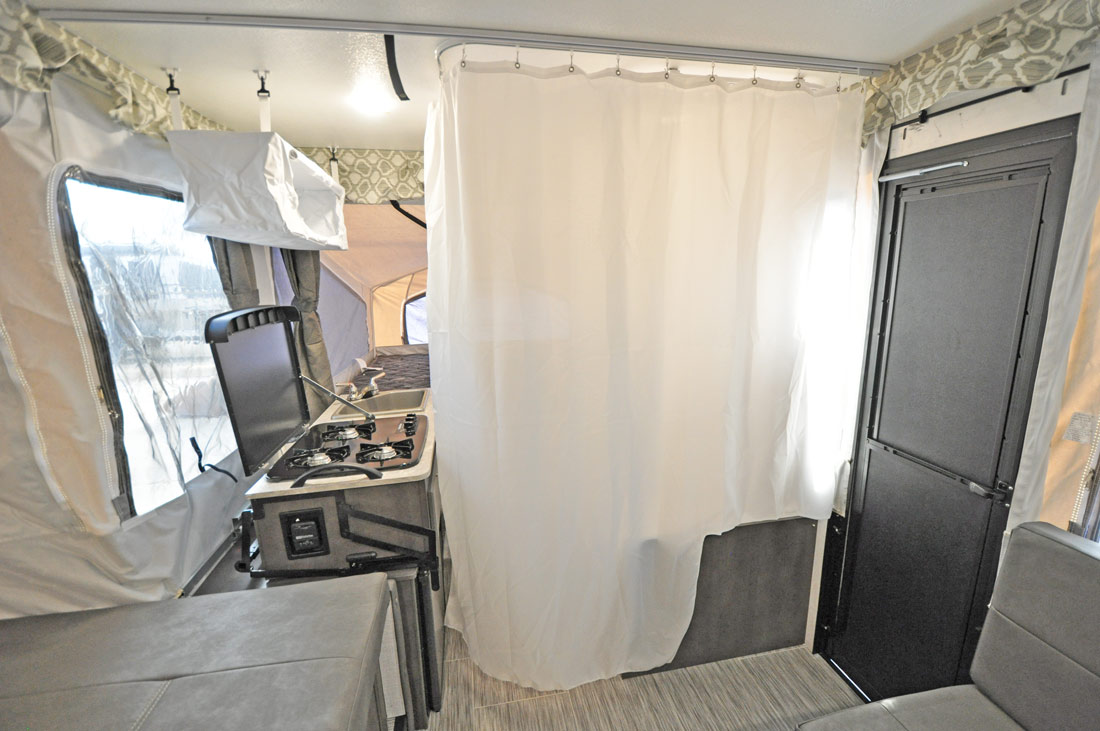

  • Privacy curtains

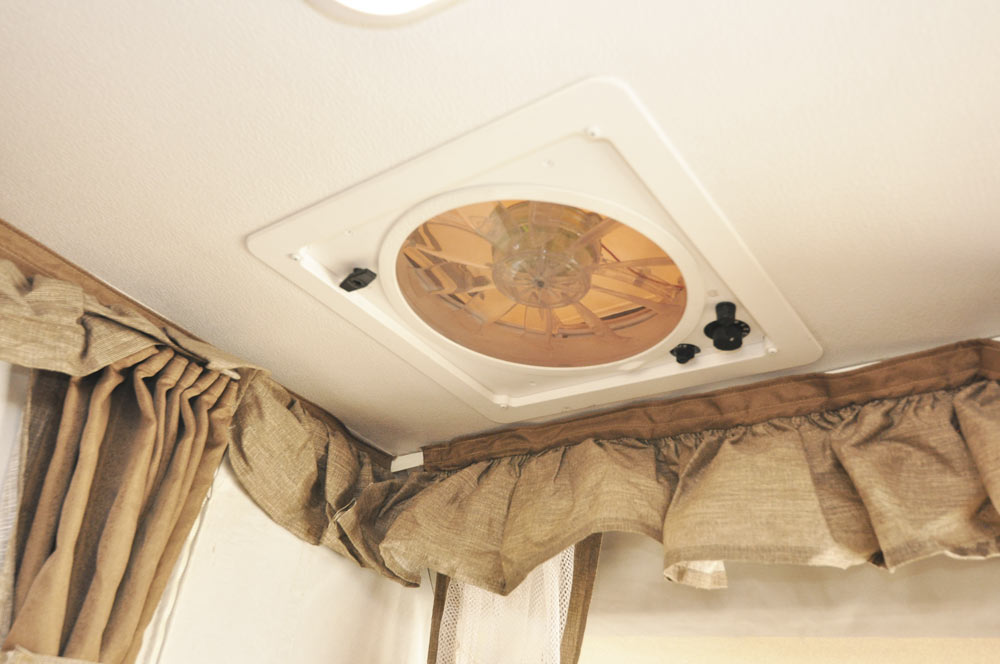

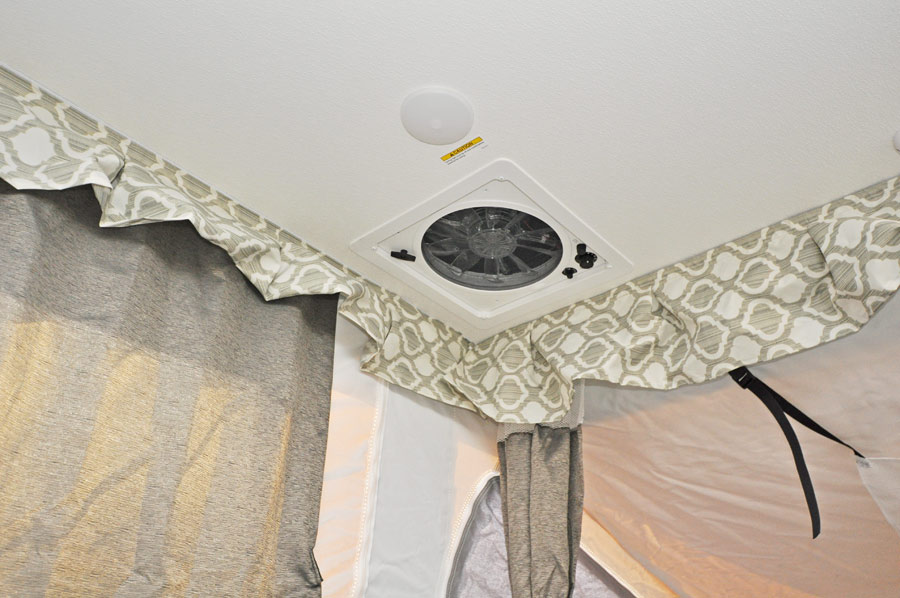

  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • Awning
  • Two ProRac Systems cross-bars permanently mounted on the roof
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 228BHSE with shower - The non-slide-out version of the 228D with shower but with a 2' bike hauler deck on the front and also in the Sports Enthusiast Series (raised frame, 15" wheels, stereo).
  • 425M - Similar slide-out dinette and 12' interior but with a bay window, storage trunk, and a seating area (with portable toilet underneath) instead of a fourth bed.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
