Flagstaff 23SCSE

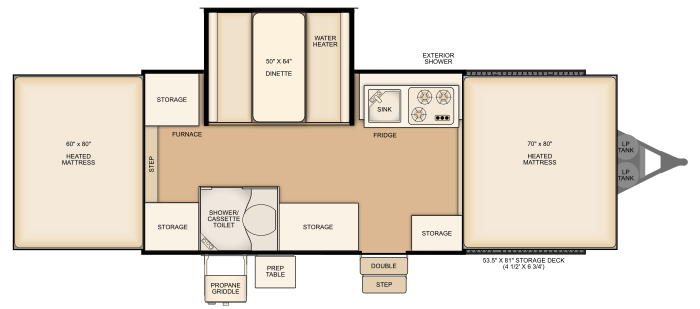

Flagstaff 23SCSE floorplan

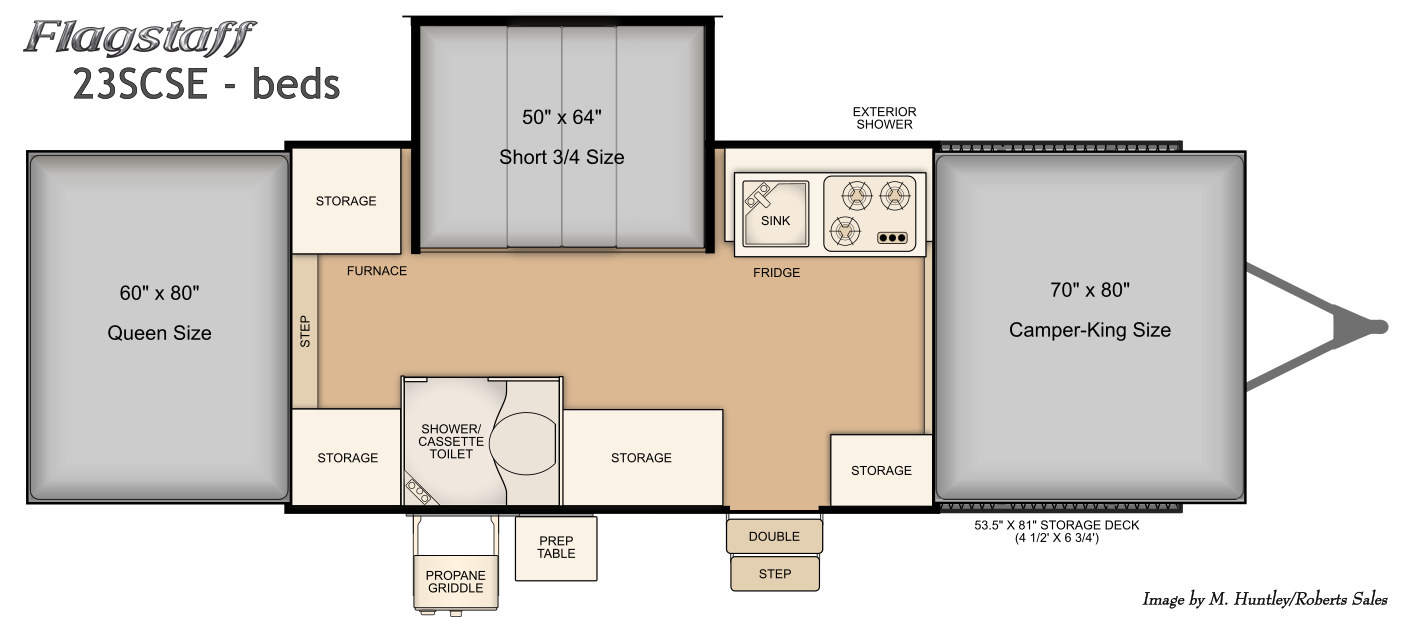

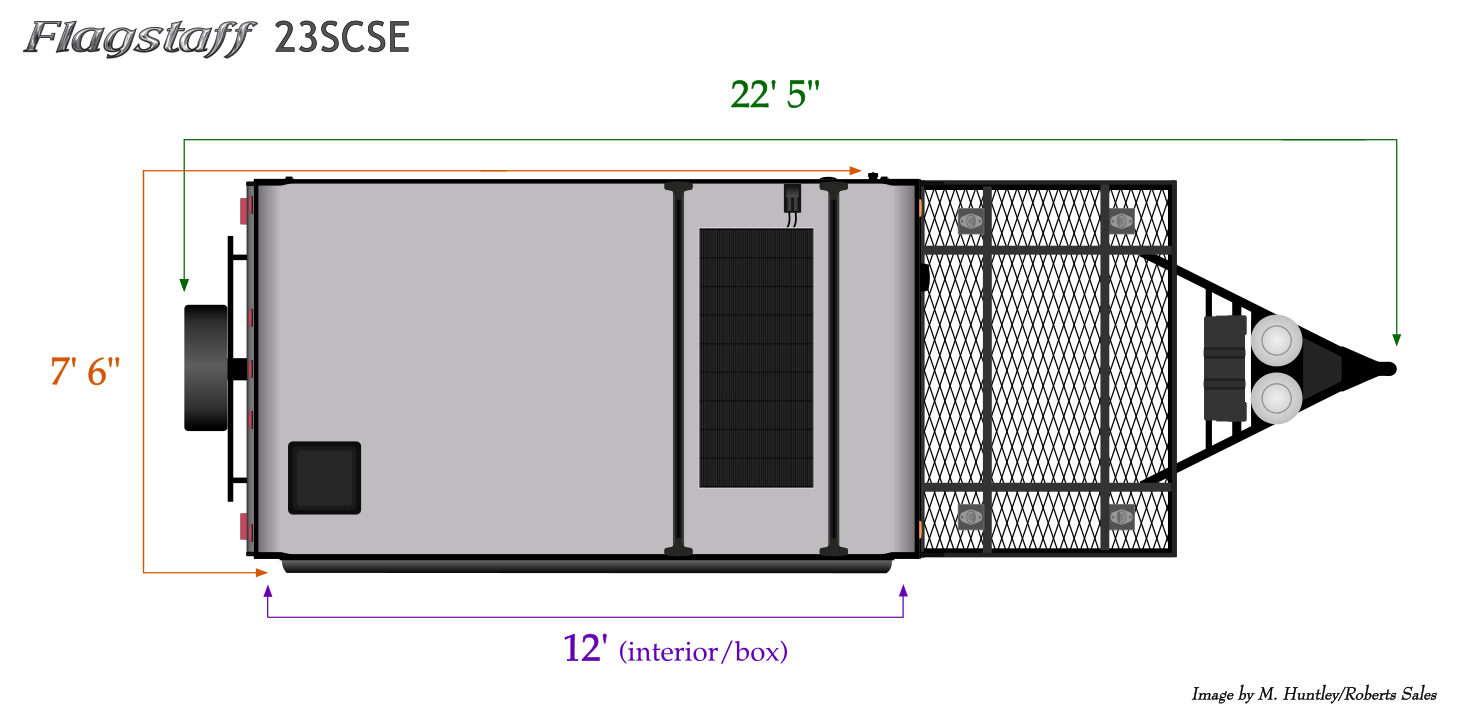

Bed Layout for this model Flagstaff 23SCSE length and width dimensions

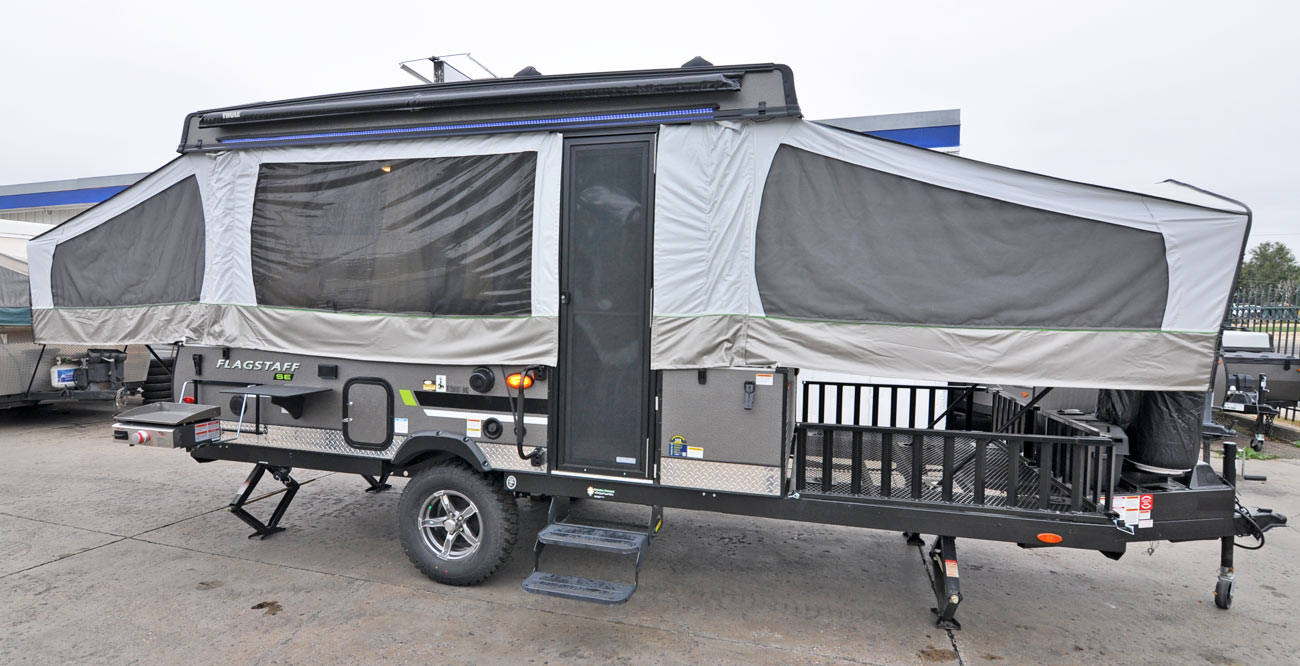

2022 Flagstaff 23SCSE exterior

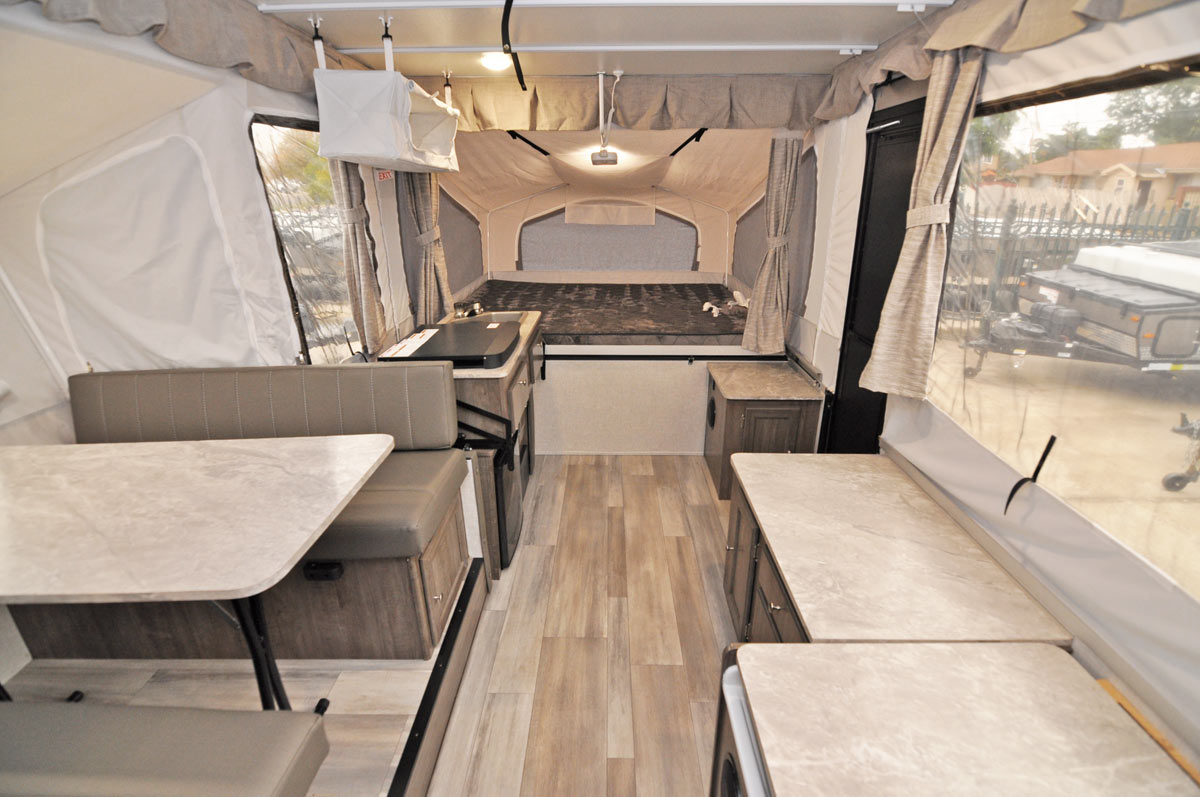

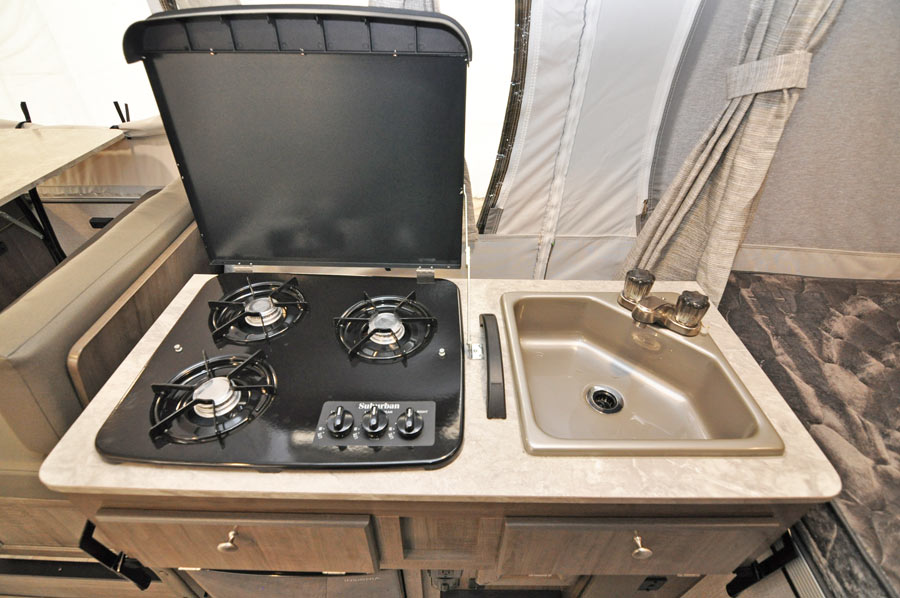

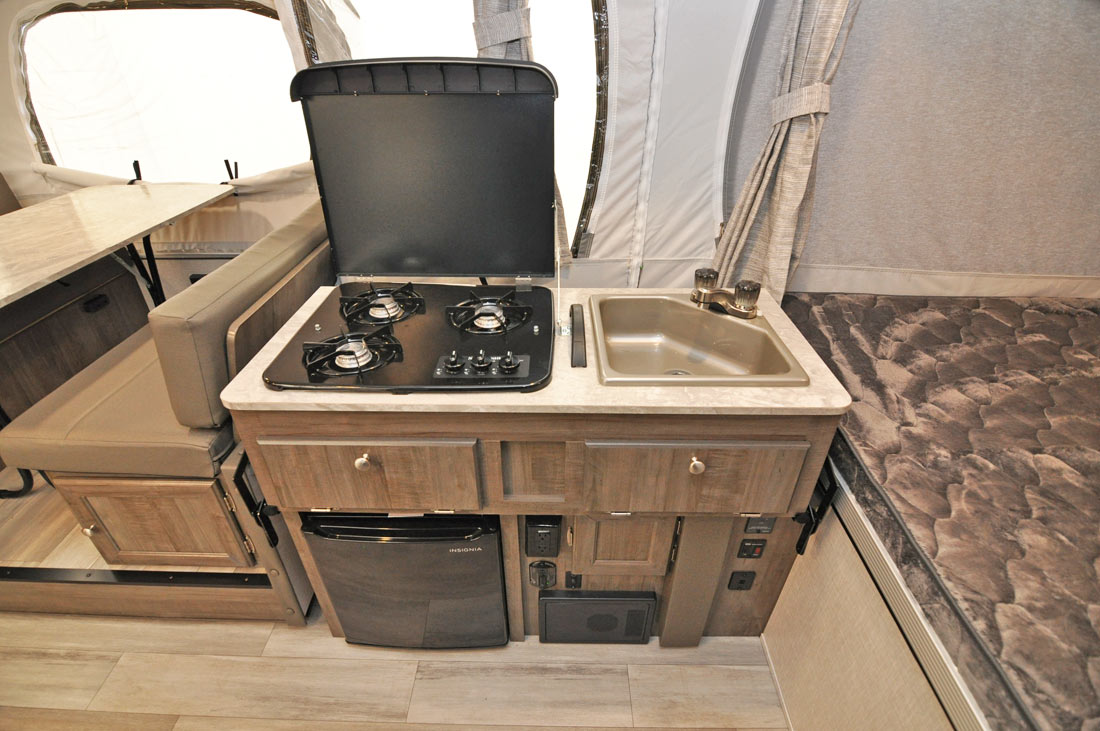

2022 Flagstaff 23SCSE front view 2022 Flagstaff 23SCSE rear view 2022 Flagstaff 23SCSE galley 2022 Flagstaff 23SCSE stove and sink

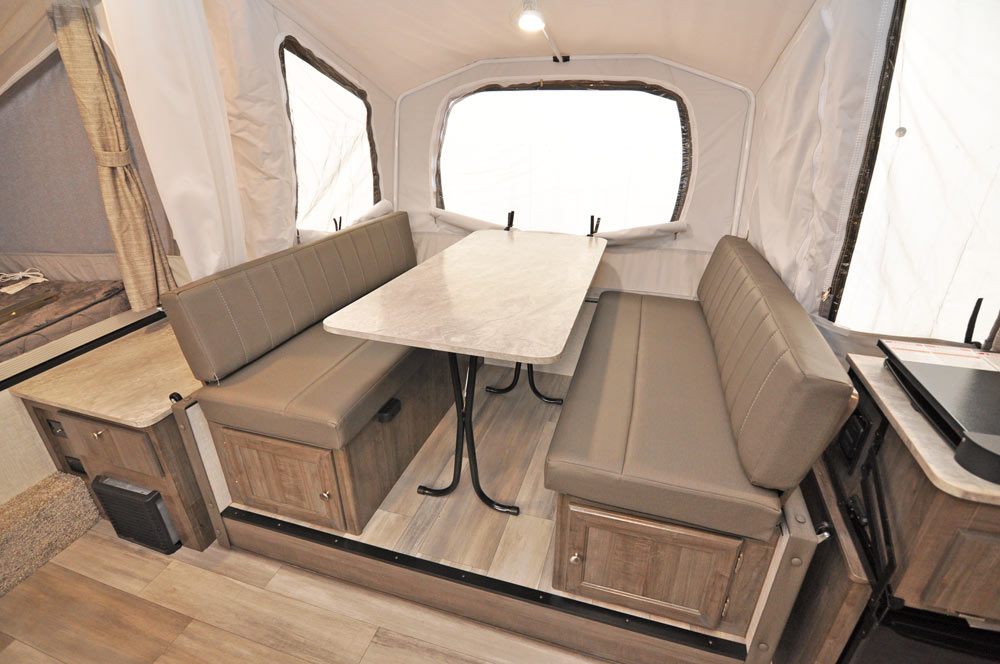

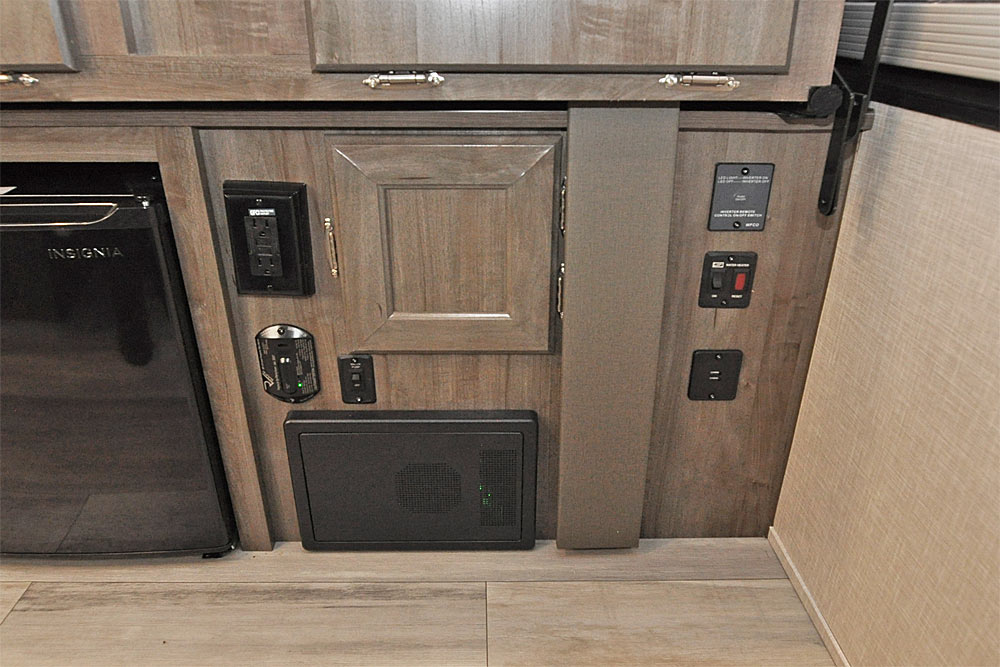

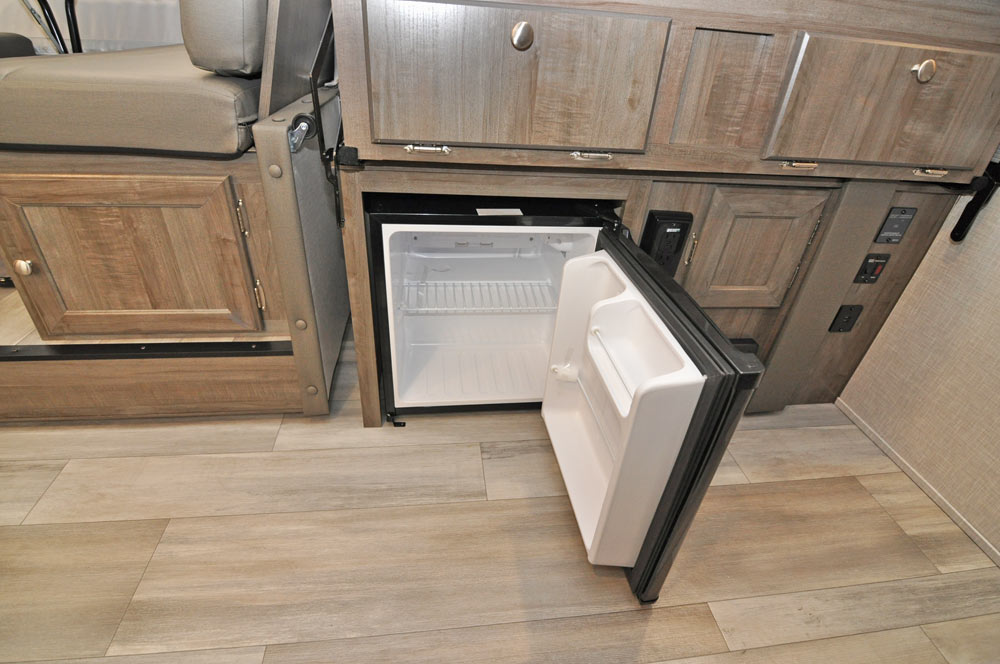

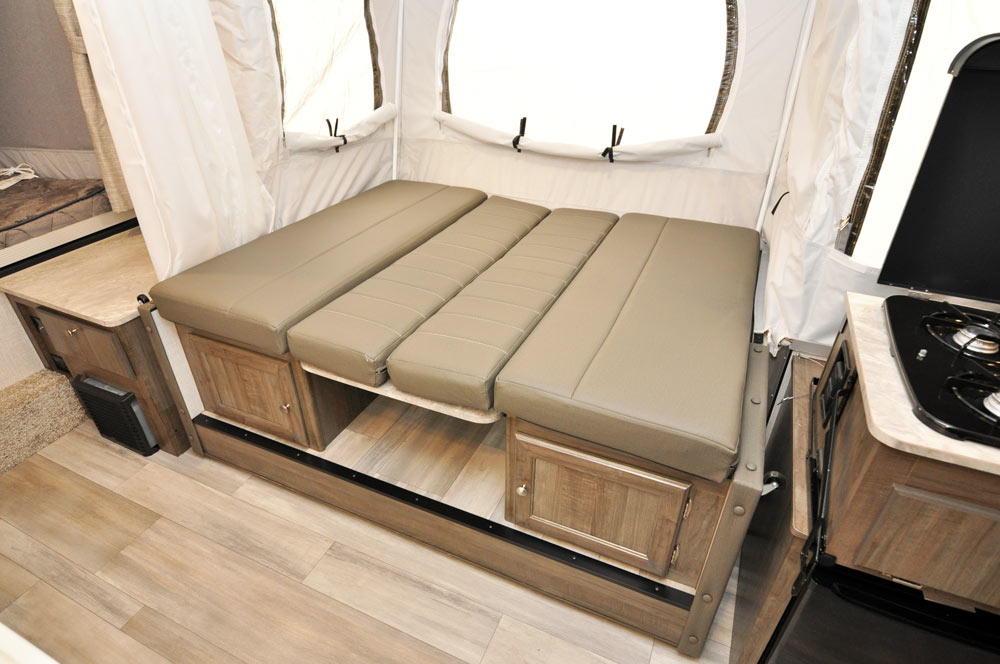

2022 Flagstaff 23SCSE dinette 2022 Flagstaff 23SCSE dinette as bed 2022 Flagstaff 23SCSE fridge 2022 Flagstaff 23SCSE power converter

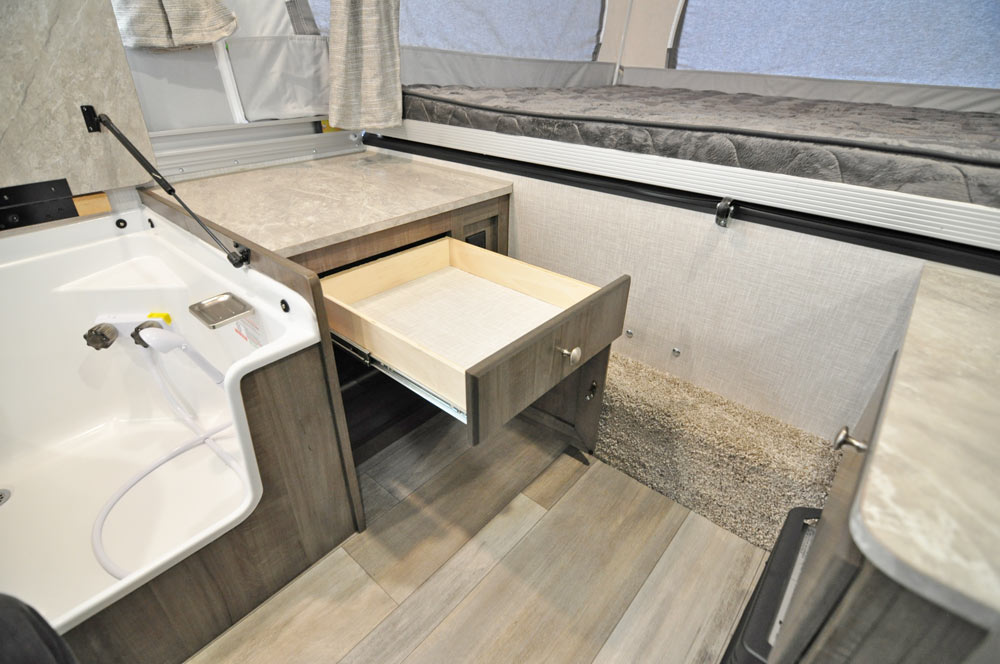

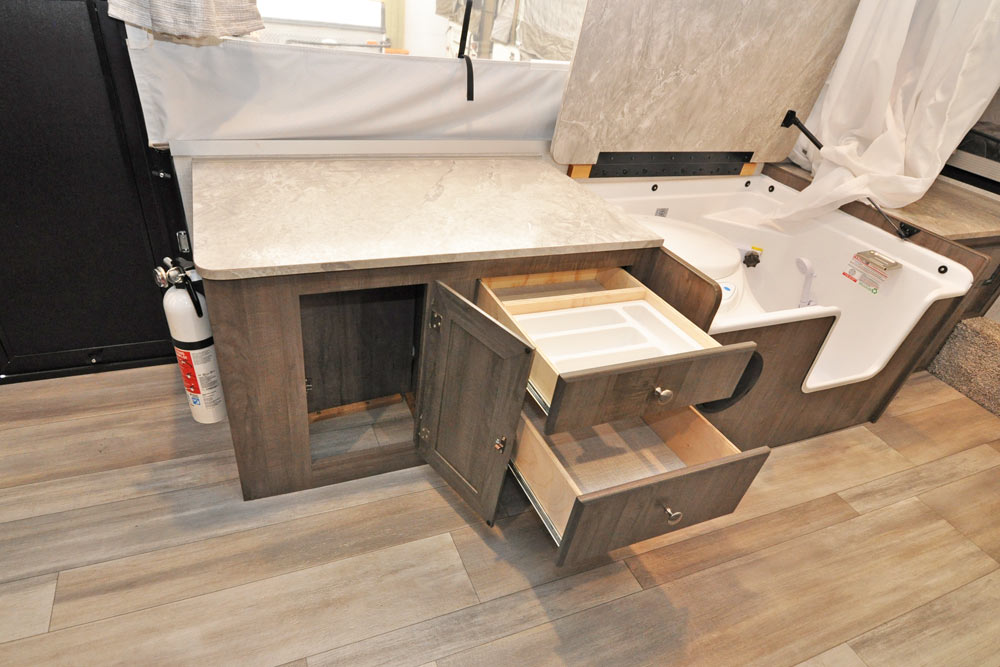

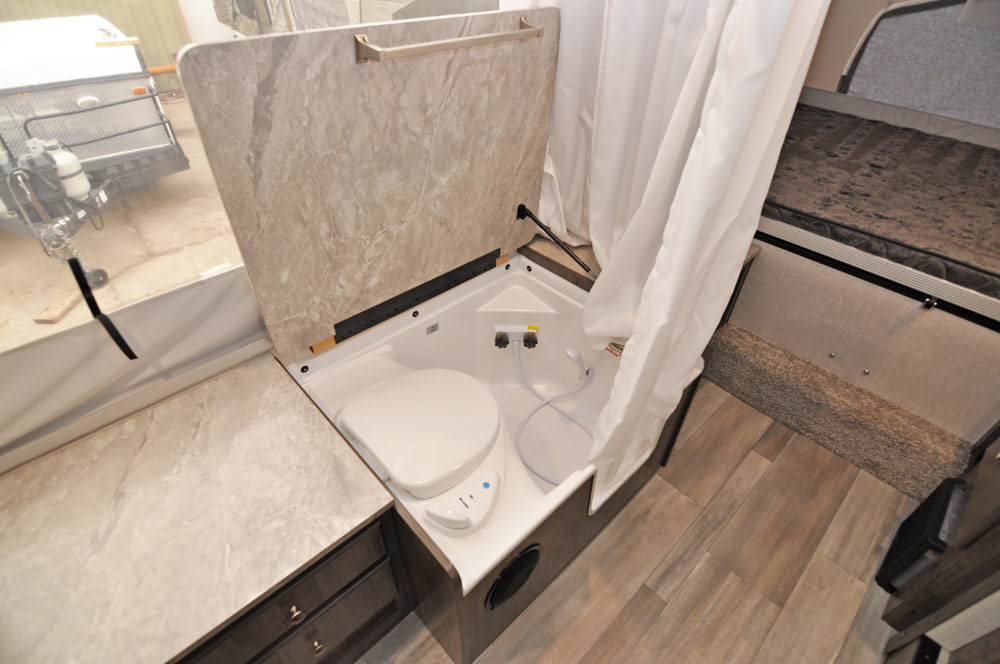

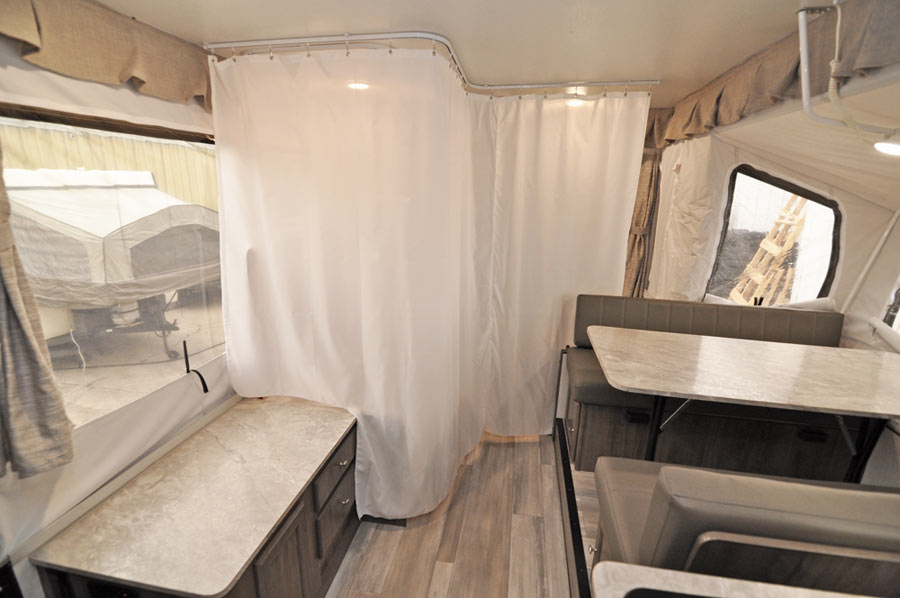

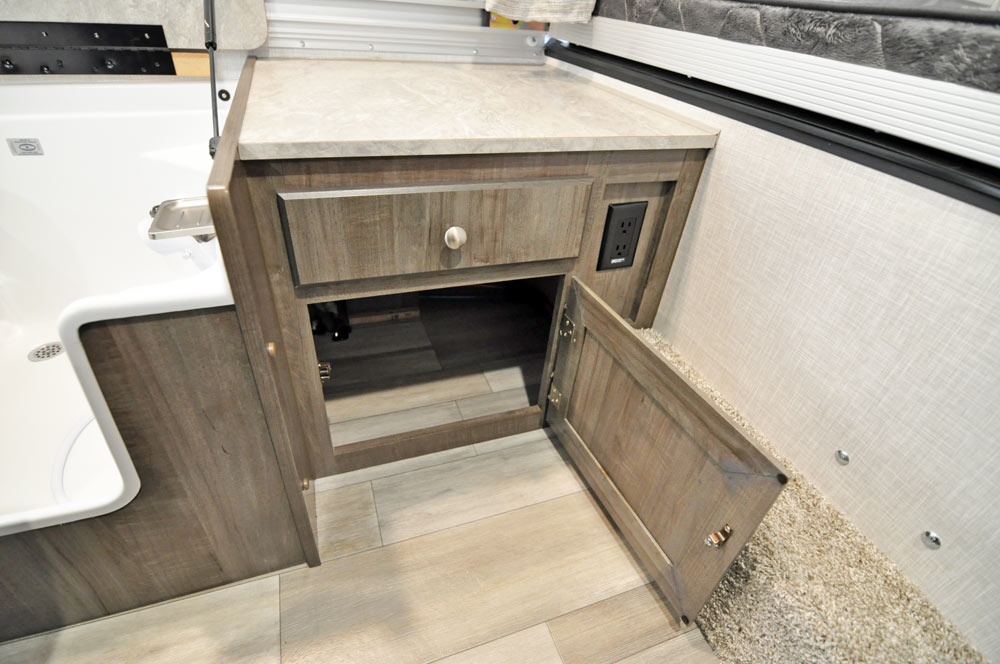

2022 Flagstaff 23SCSE interior shower/cassette toilet combo 2022 Flagstaff 23SCSE divider curtain 2022 Flagstaff 23SCSE drawer 2022 Flagstaff 23SCSE storage

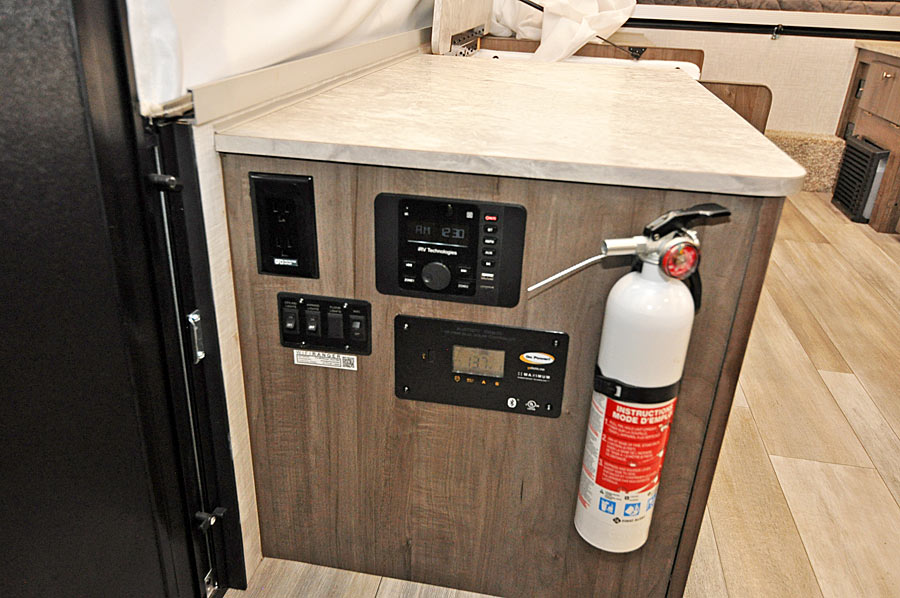

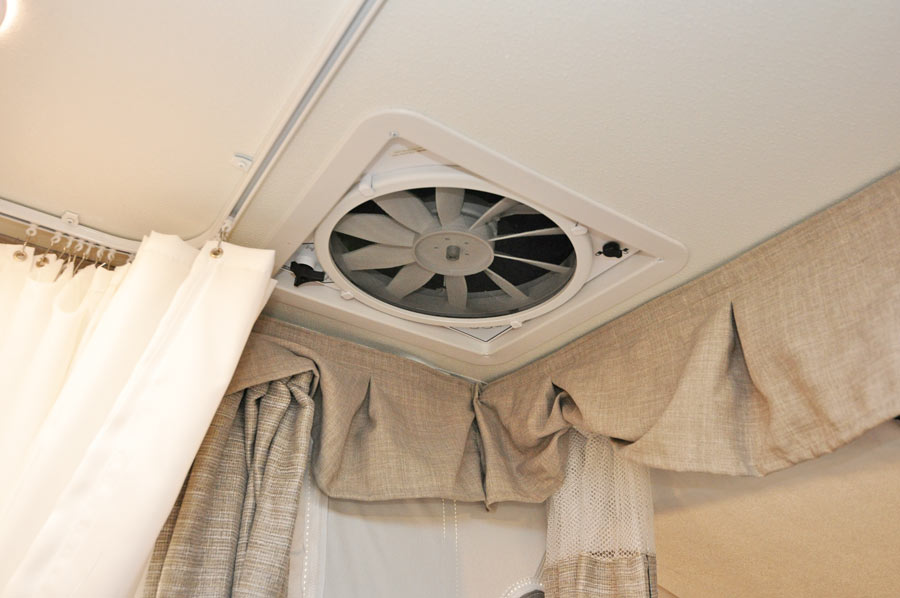

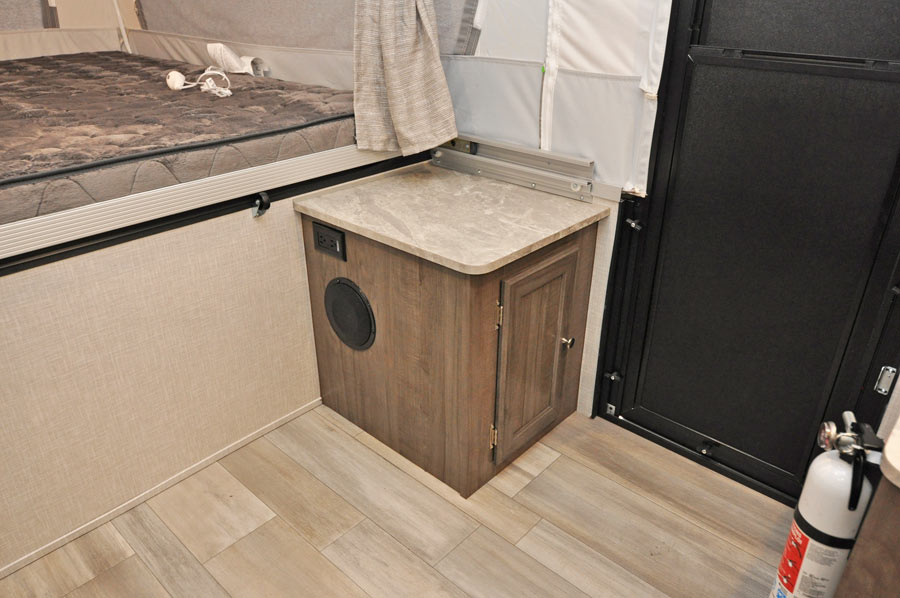

2022 Flagstaff 23SCSE cupboard 2022 Flagstaff 23SCSE thermostat and light controls 2022 Flagstaff 23SCSE more storage 2022 Flagstaff 23SCSE powered roof vent

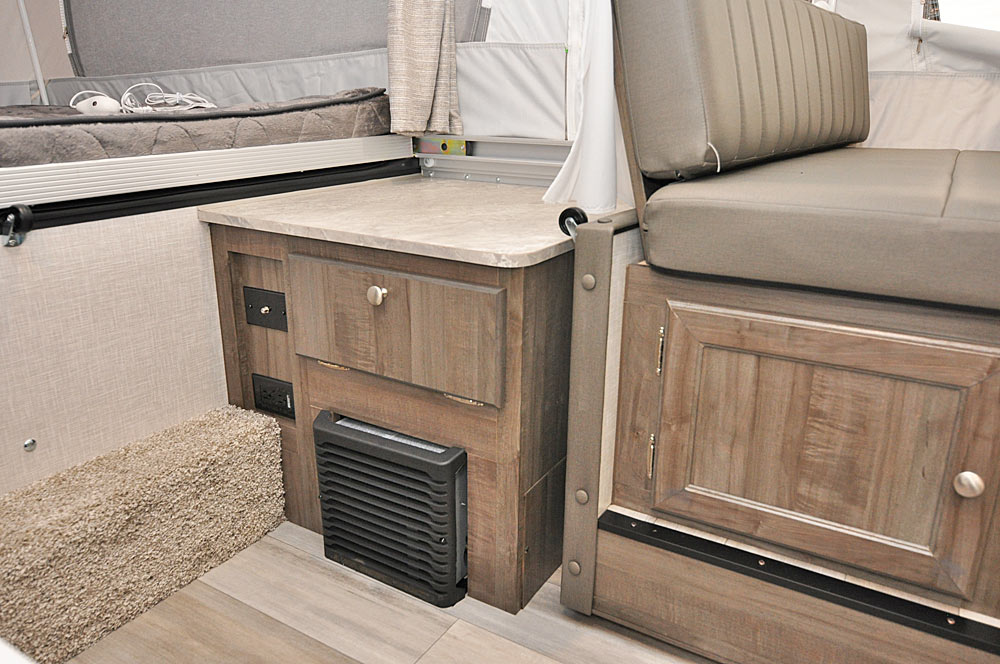

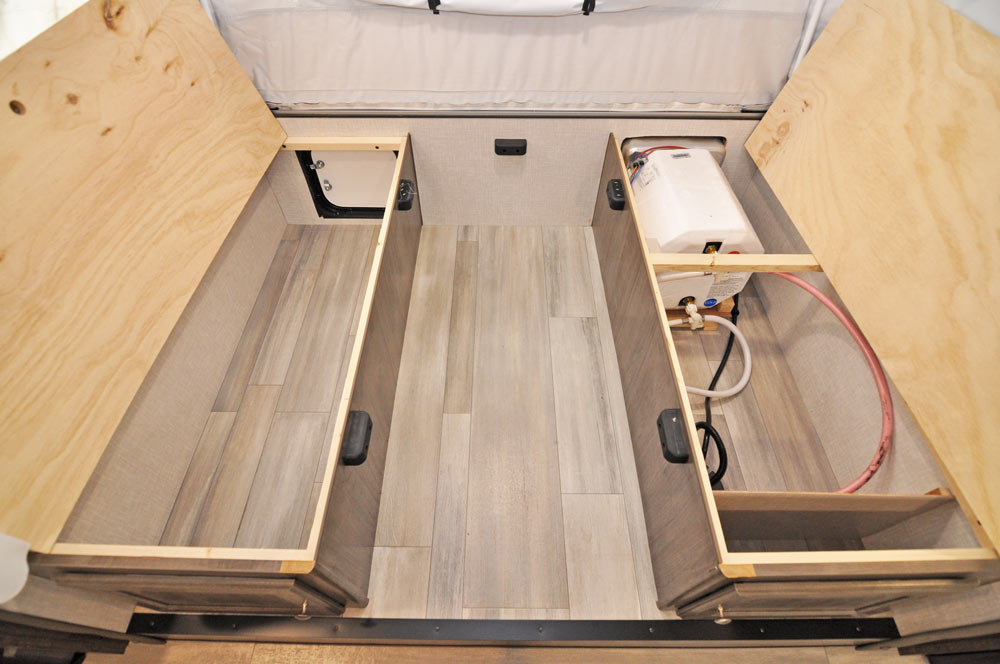

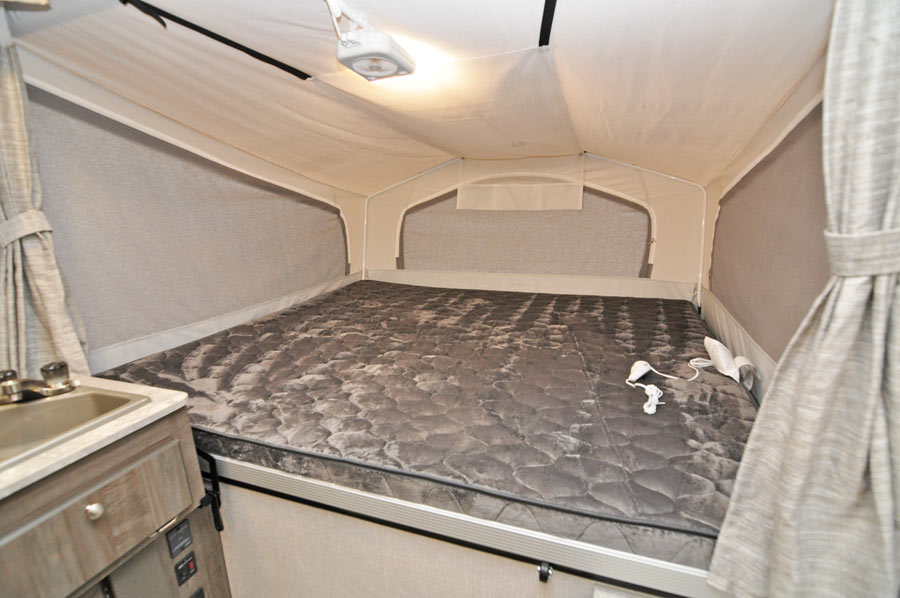

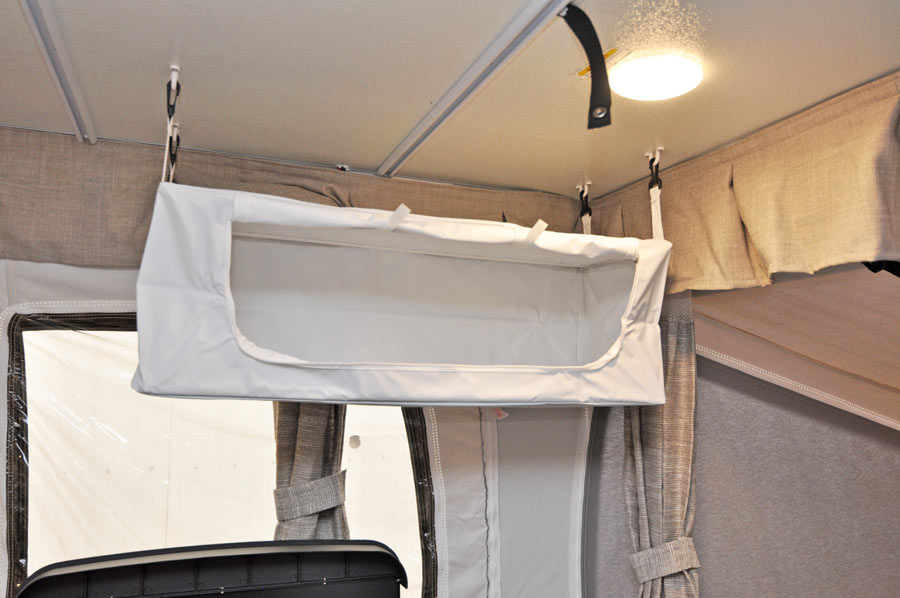

2022 Flagstaff 23SCSE under dinette storage 2022 Flagstaff 23SCSE overhead cabinet 2022 Flagstaff 23SCSE furnace 2022 Flagstaff 23SCSE front bunk

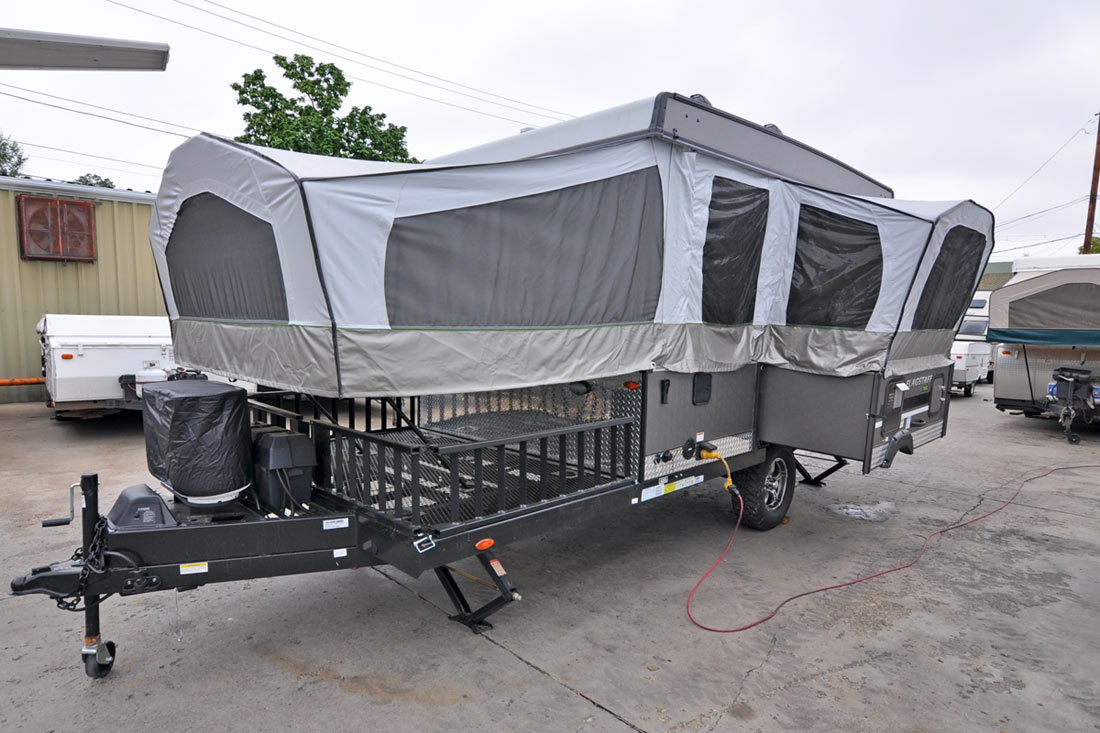

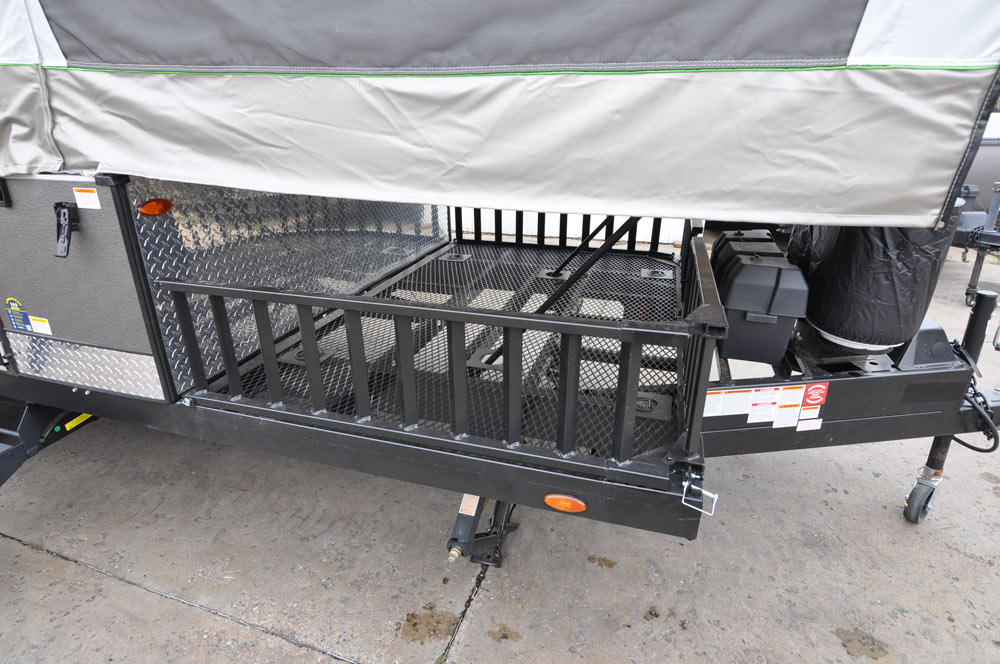

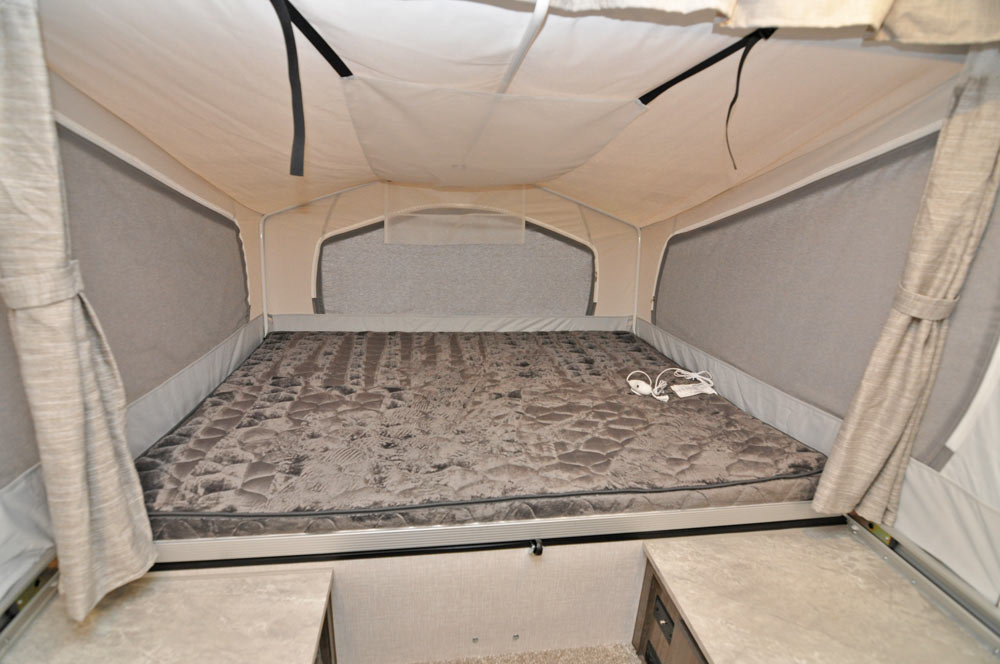

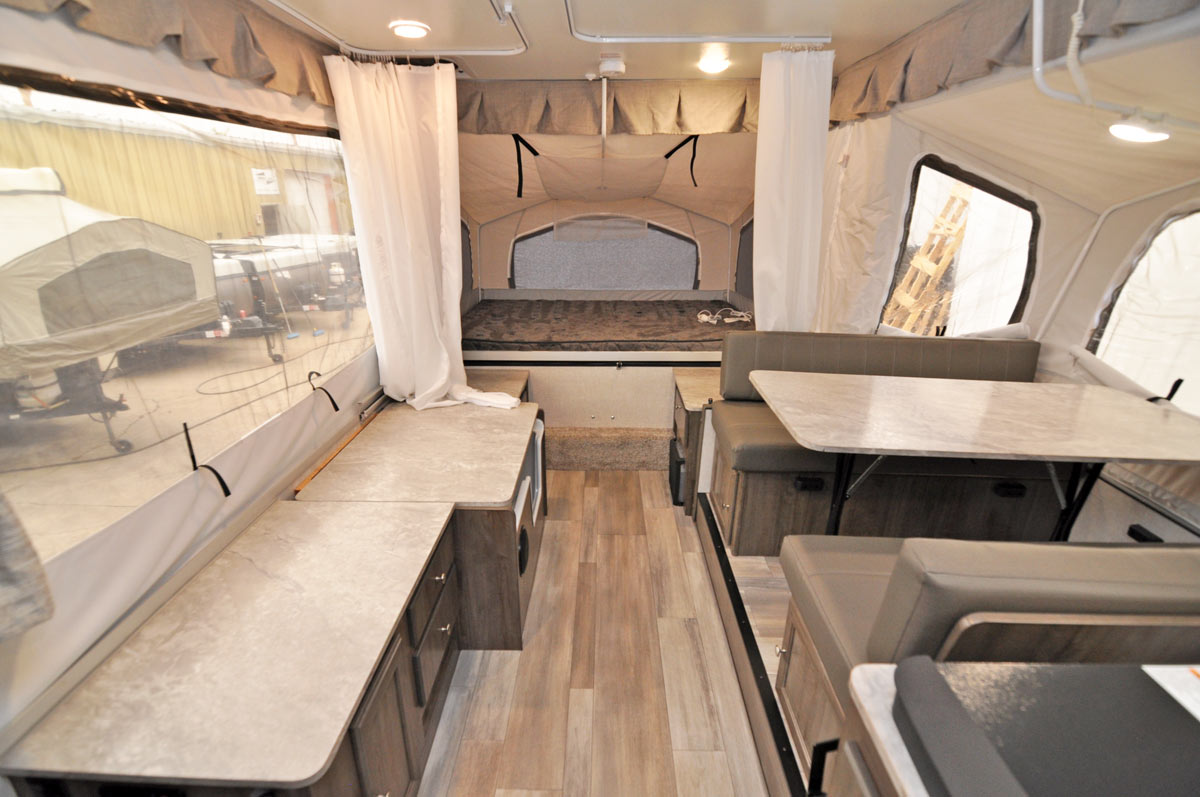

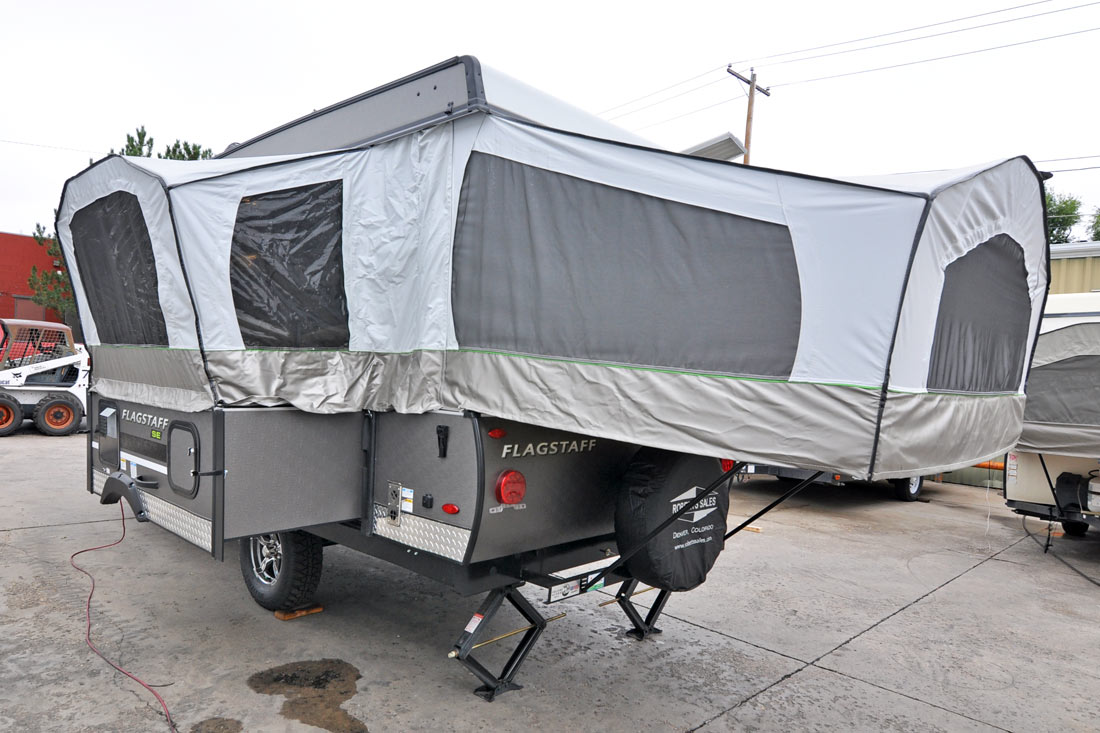

2022 Flagstaff 23SCSE rear bunk 2022 Flagstaff 23SCSE back-side view 2022 Flagstaff 23SCSE another back-side view 2022 Flagstaff 23SCSE storage deck

(2022 model year shown --[why an older model?])

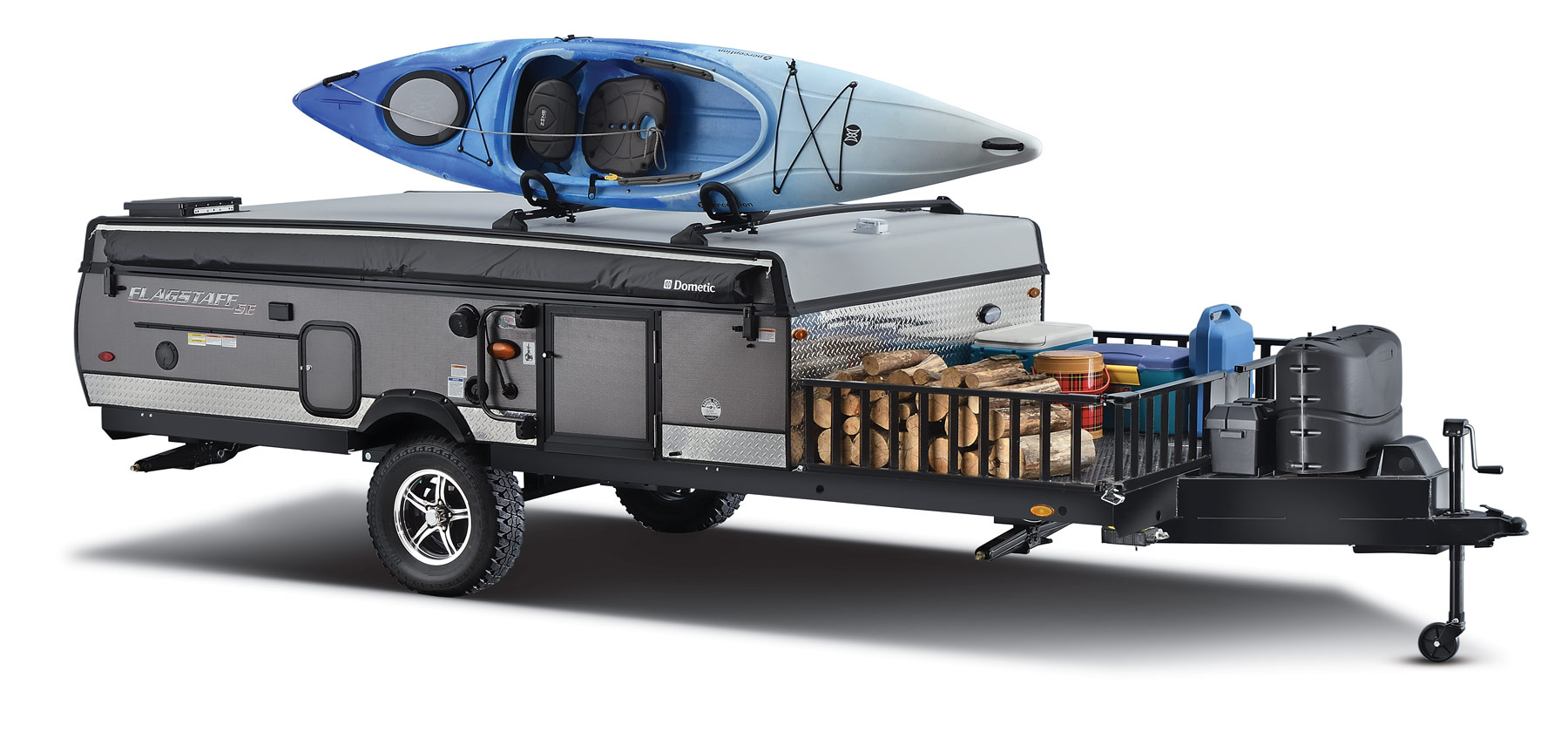

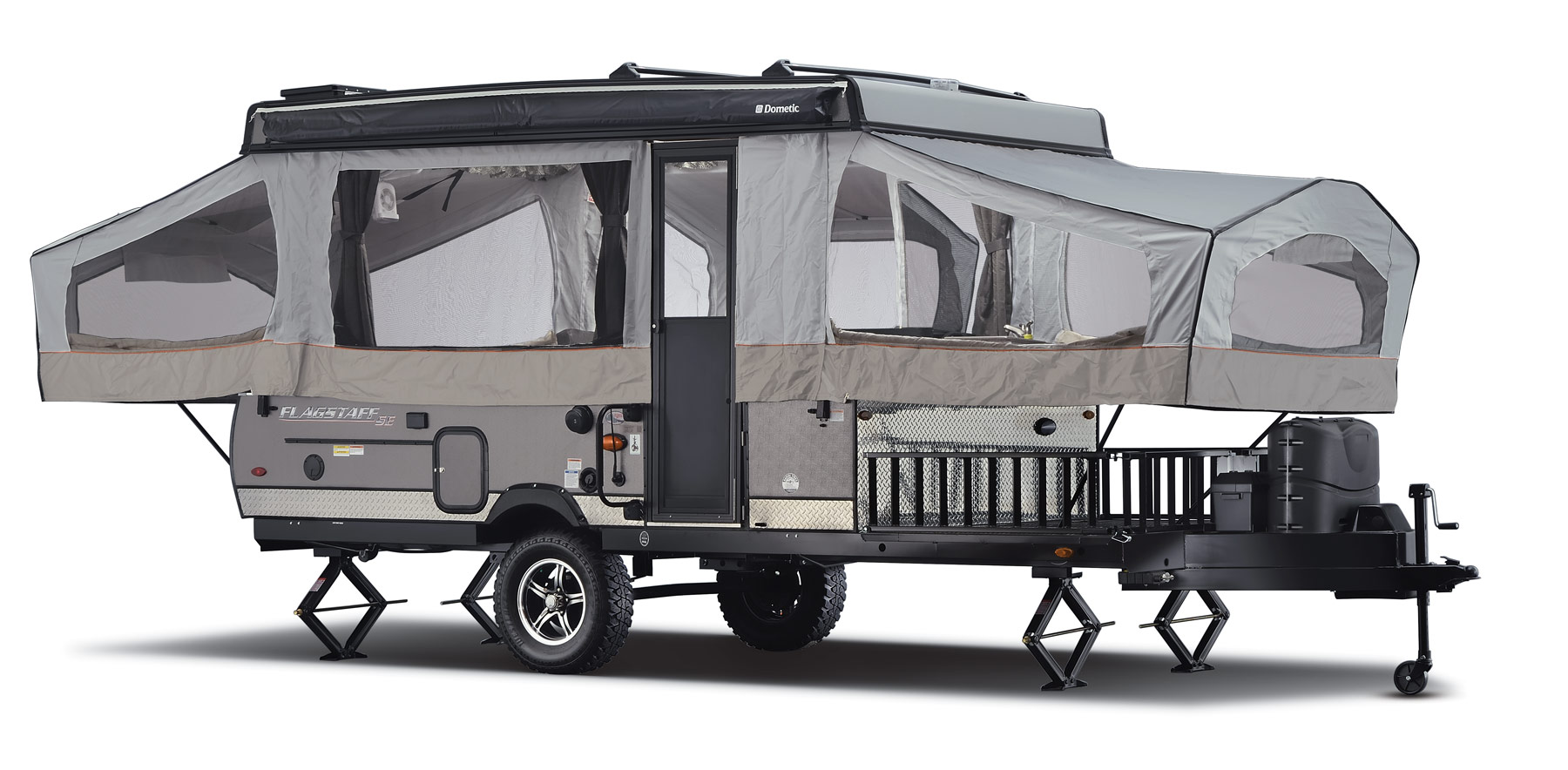

2019 Flagstaff 23SCSE exterior 2019 Flagstaff 23SCSE down

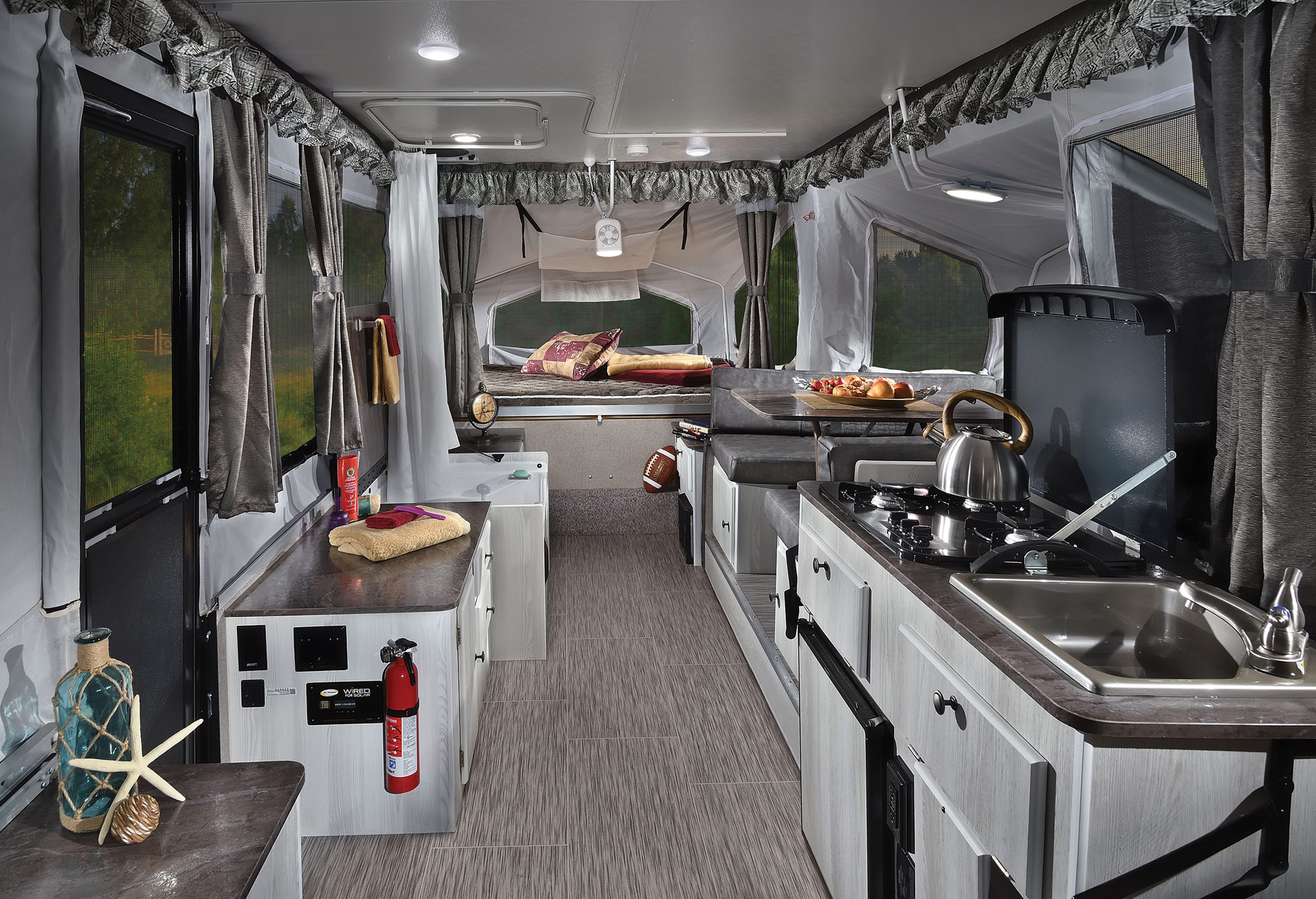

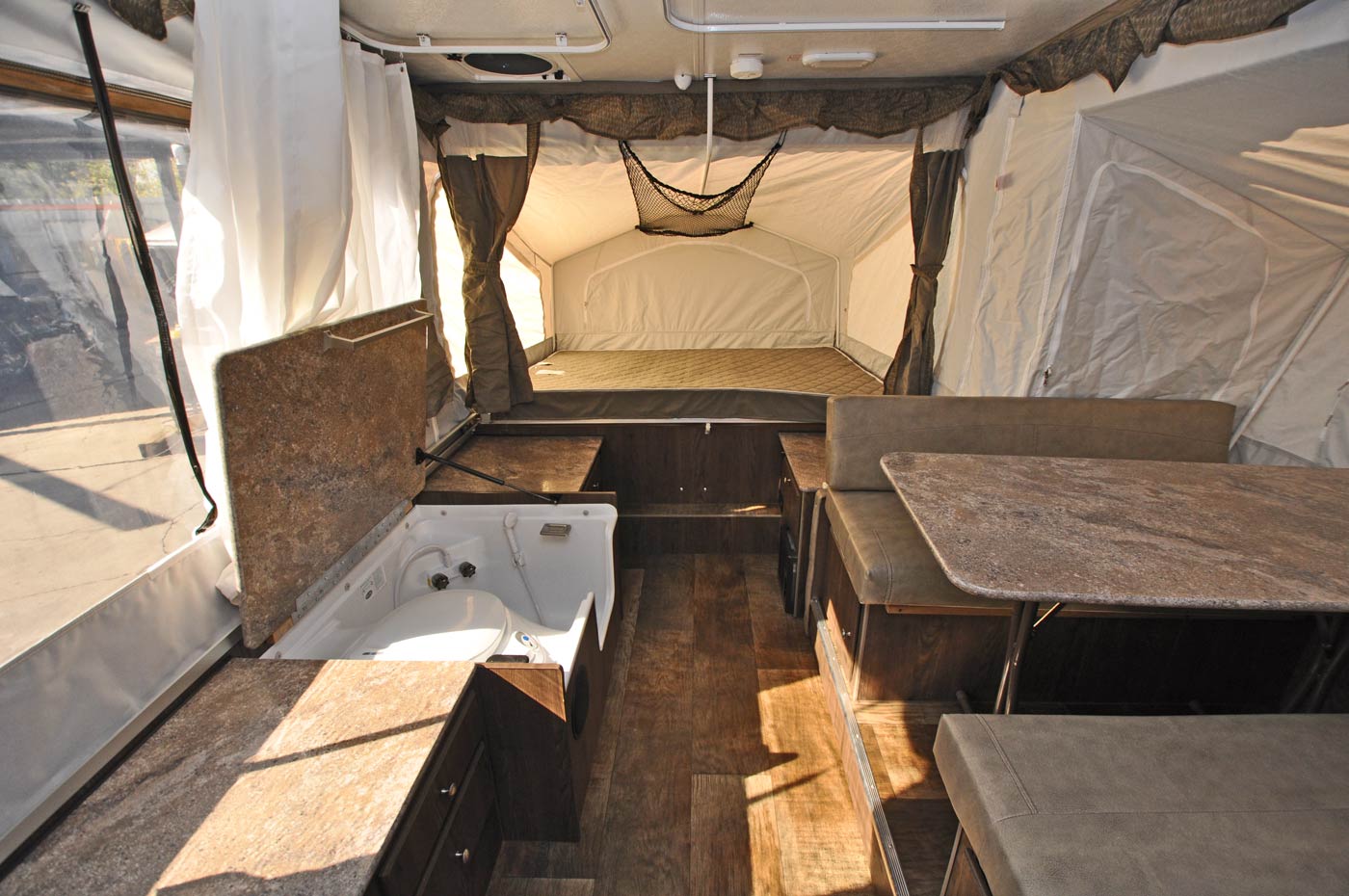

2019 Flagstaff 23SCSE interior (2019 model year shown)

Highlights

  • The front deck holds 650 pounds and the perimeter rails become loading ramps.
  • Most of the same features* as the (discontinued) 28TSCSE but with a 4 1/2' toy hauler storage deck (instead of an 8 1/2' storage deck)
  • The smaller deck and single axles saves ~400 lbs compared to the double-axle 28TSCSE.

Specifications

Features

  • Interior shower/cassette toilet
  • 4 1/2' metal deck on the front for hauling an ATV, dirt bikes, tools, firewood, generator, etc.

...as well as these features standard with the Sports Enthusiast series:

  • 1.7 cu. ft. 12V refrigerator (standard starting in 2023)
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane griddle
  • 20-gallon water tank
  • 6-gallon water heater with automatic ignition
  • Exterior shower fixture
  • Overhead cabinet
  • Group 27 battery pack
  • Powered roof-lift system
  • Digital media receiver with USB and auxiliary port
  • 110V heated 3.5" foam mattresses
  • Privacy curtains
  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • Thule awning
  • Two 20# propane tanks with automatic regulator
  • 15" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes
  • 200W solar panel with 1000W inverter (standard in 2023)

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 228BHSE - Same 12' box but with no slide-out dinette and only a 2' Bike Hauler on the front.
  • 228D with shower - If you don't need the Sports Enthusiast equipment (including the front storage deck), the 228D with shower has a very similar interior but in a MAC series camper.
  • 28TSCSE (Discontinued) - Almost all of the same amenities inside but with an 8 1/2' Toy Hauler deck instead of the 4 1/2' deck here. Also, the dinette is 8" longer.

Prior to the 2016 model year this layout was known as the BR23SC.

*The 28TSCSE has a seat by the cassette toilet while the 23SCSE does not and the 28TSCSE has a 72" long dinette while the 23SCSE has a 64" long dinette.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to SE Series

Top of Page

Older Photos

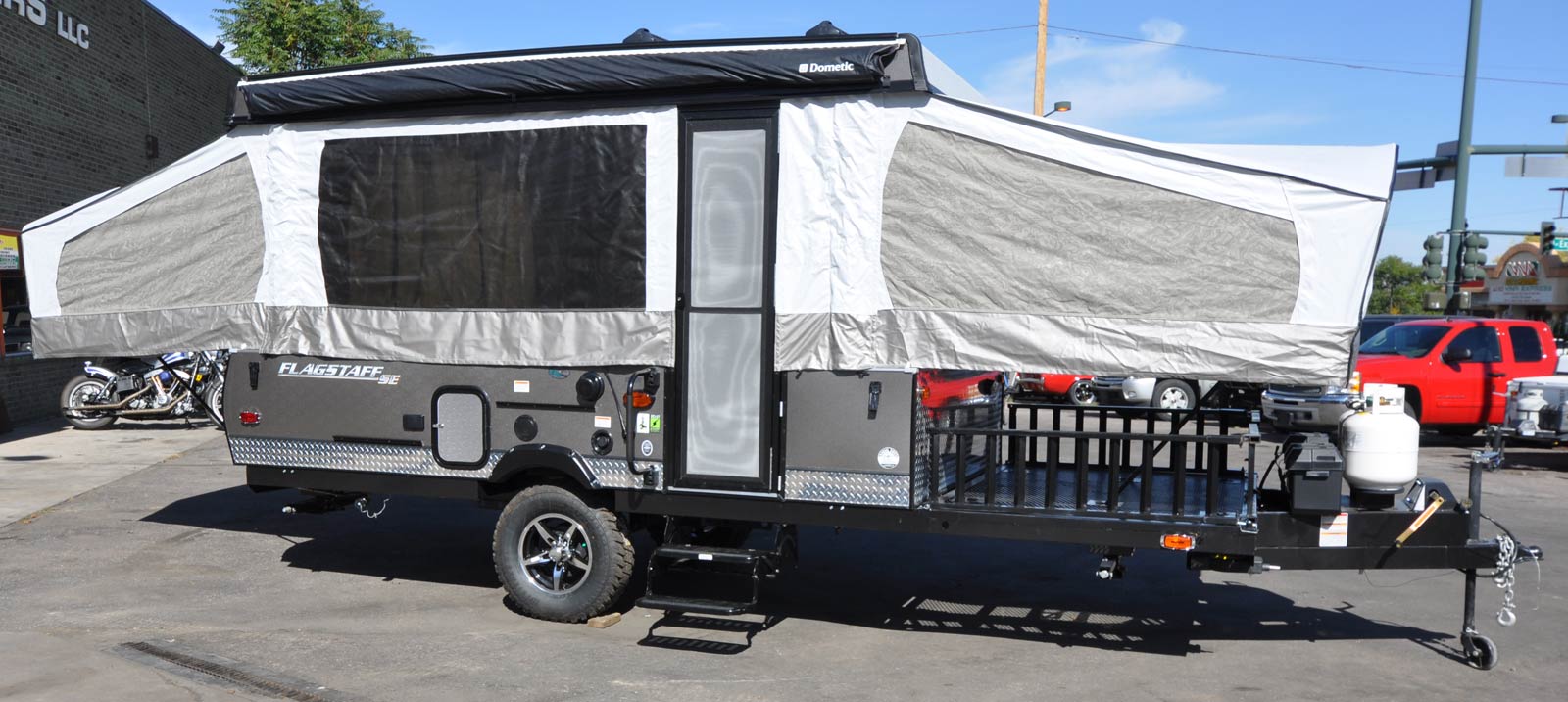

2016 Flagstaff 23SCSE exterior view

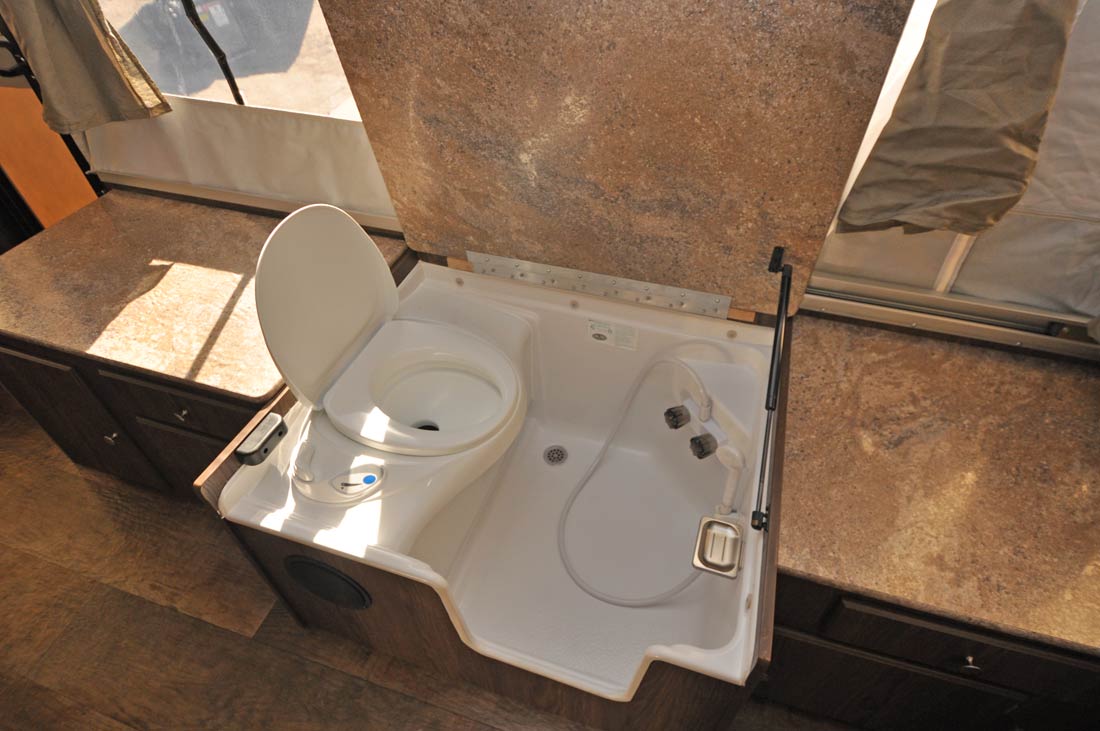

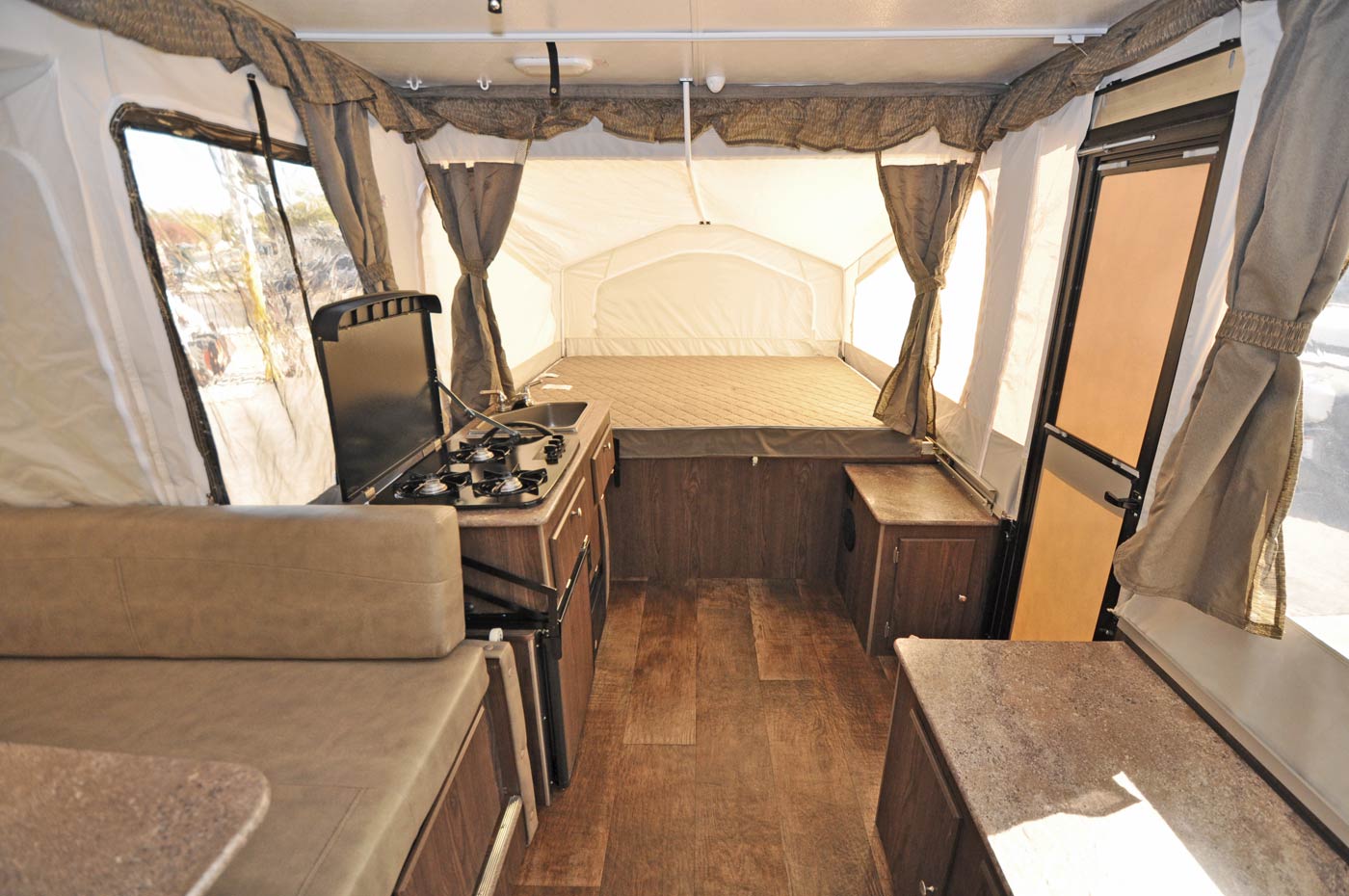

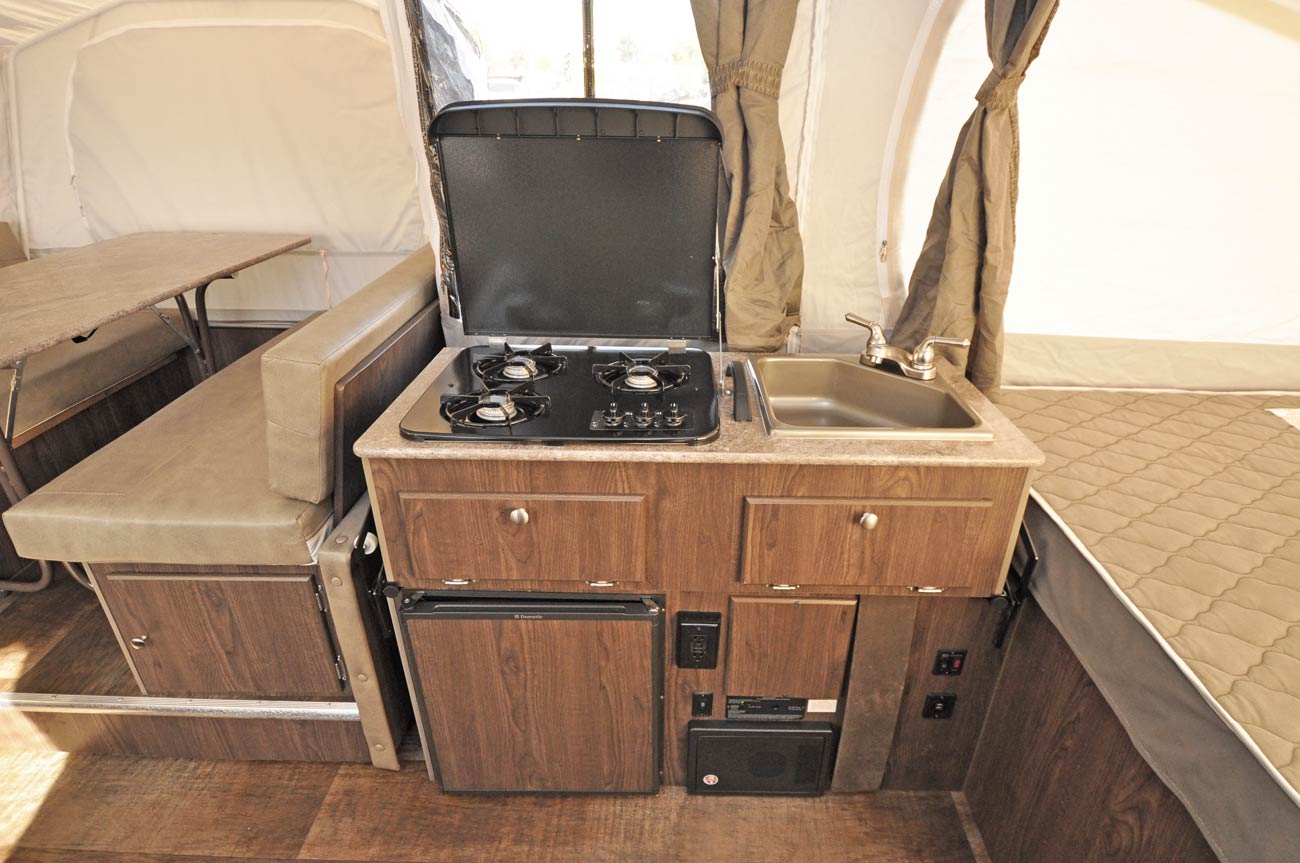

2016 Flagstaff 23SCSE front view 2016 Flagstaff 23SCSE rear view 2016 Flagstaff 23SCSE galley 2016 Flagstaff 23SCSE cassette toilet/shower combo

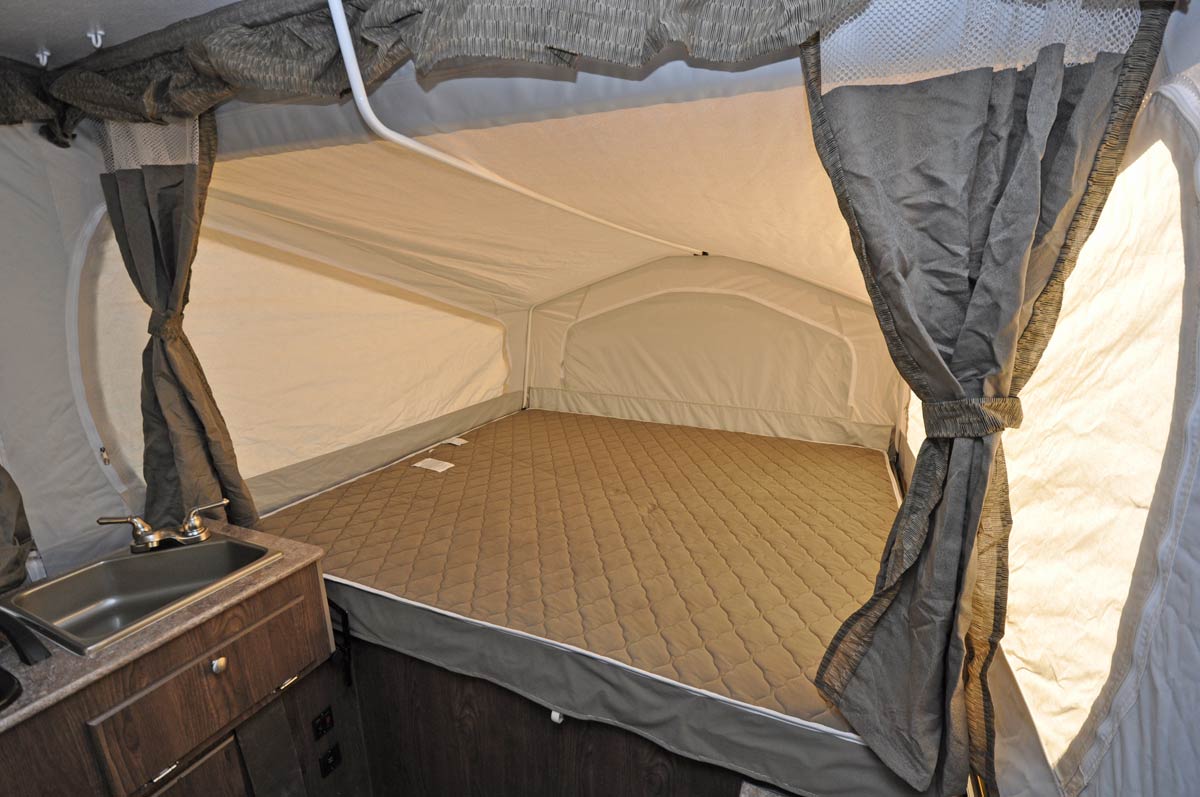

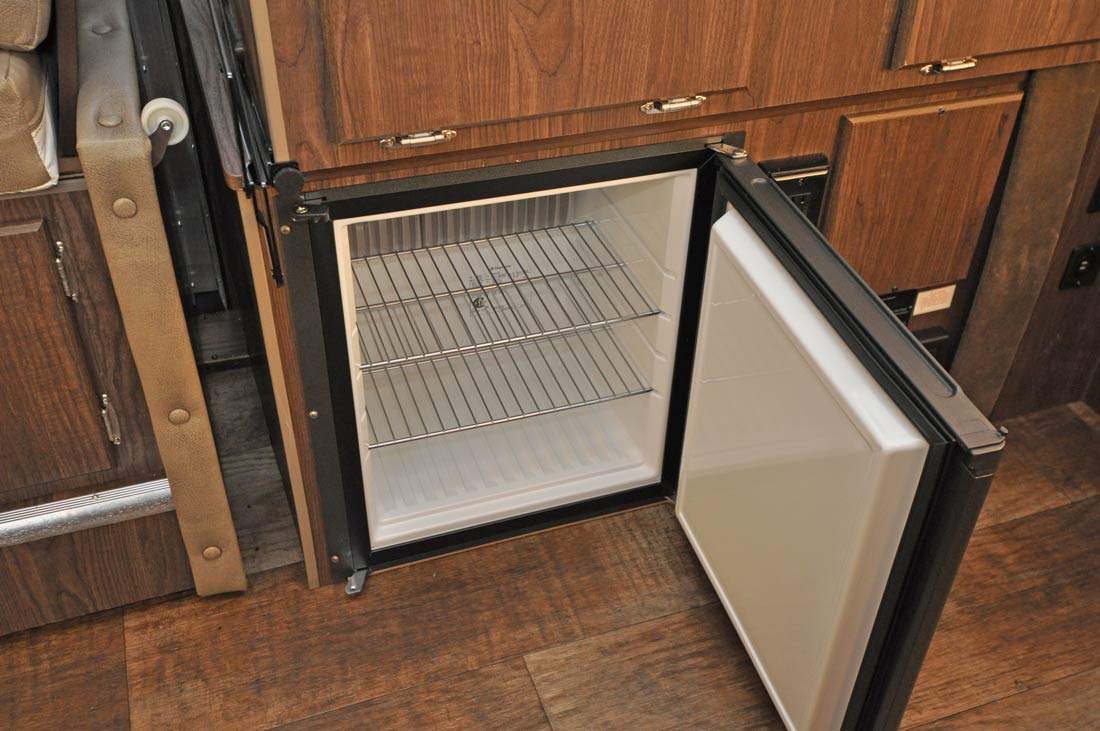

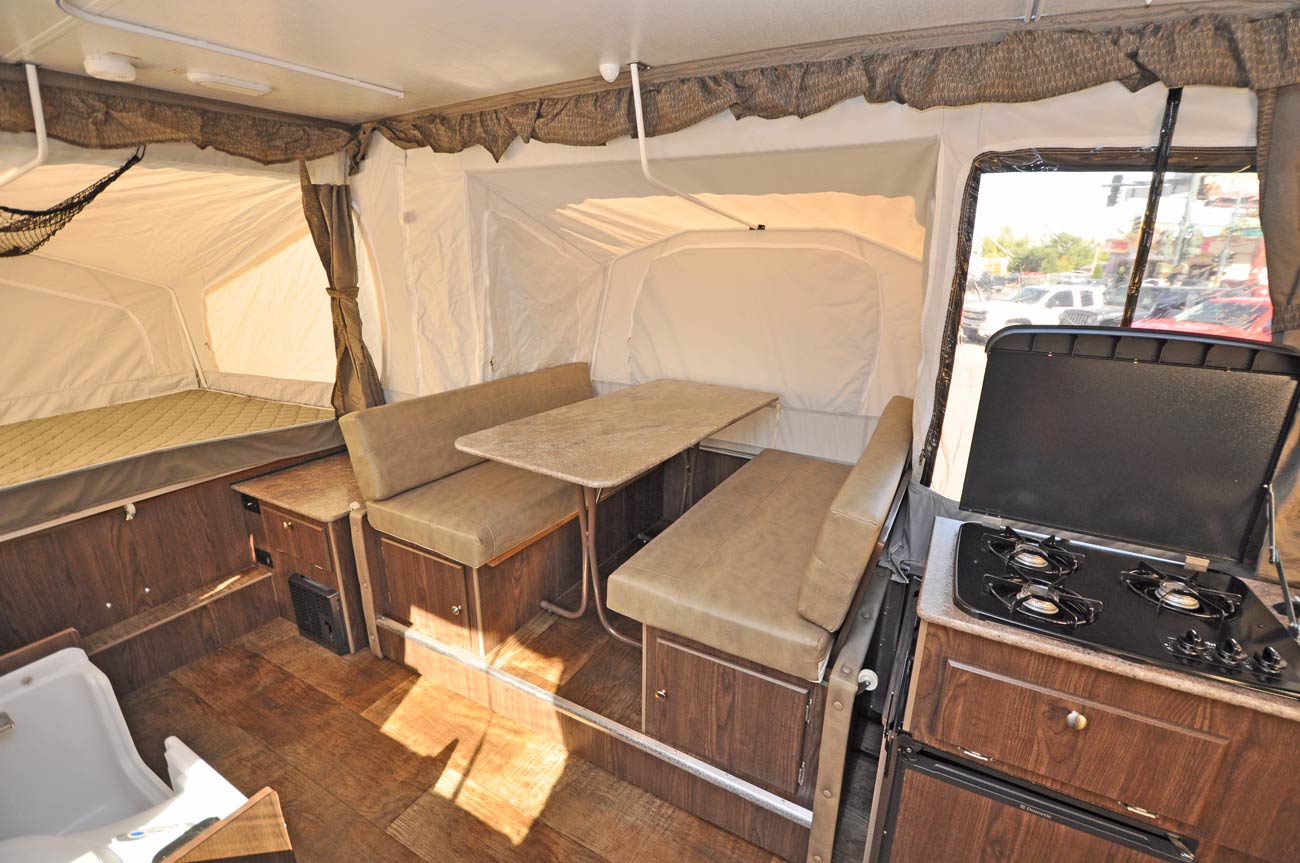

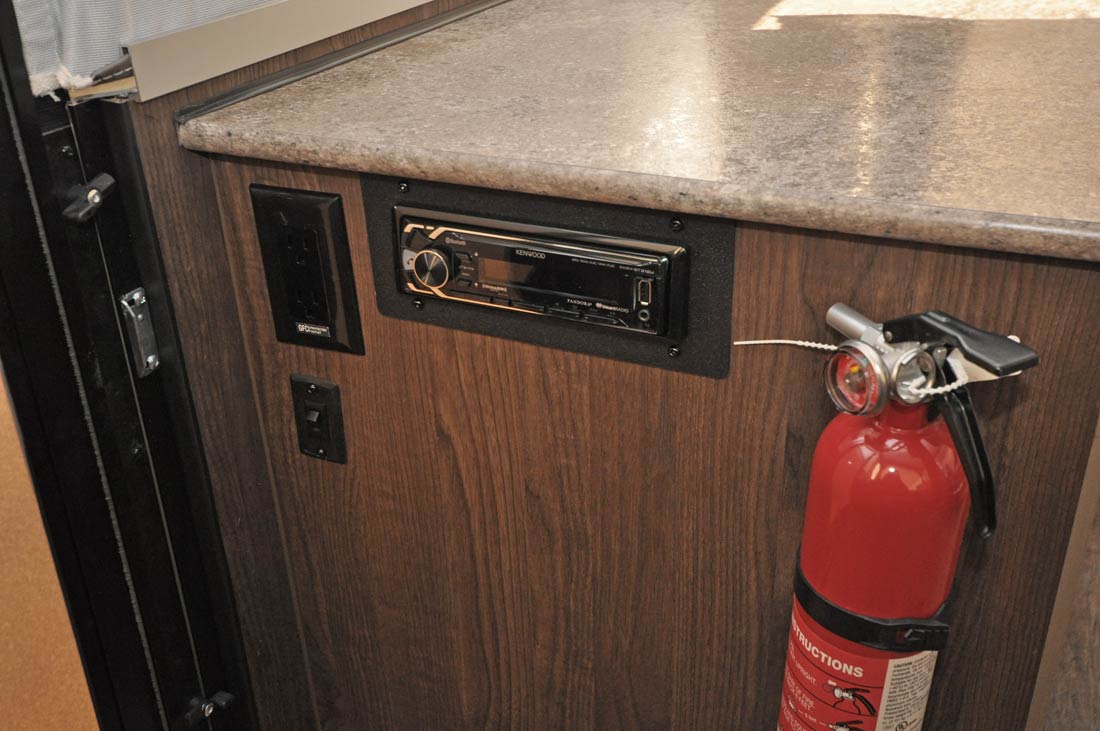

2016 Flagstaff 23SCSE dinette 2016 Flagstaff 23SCSE 1.9 cu. ft. fridge 2016 Flagstaff 23SCSE stereo 2016 Flagstaff 23SCSE front bed

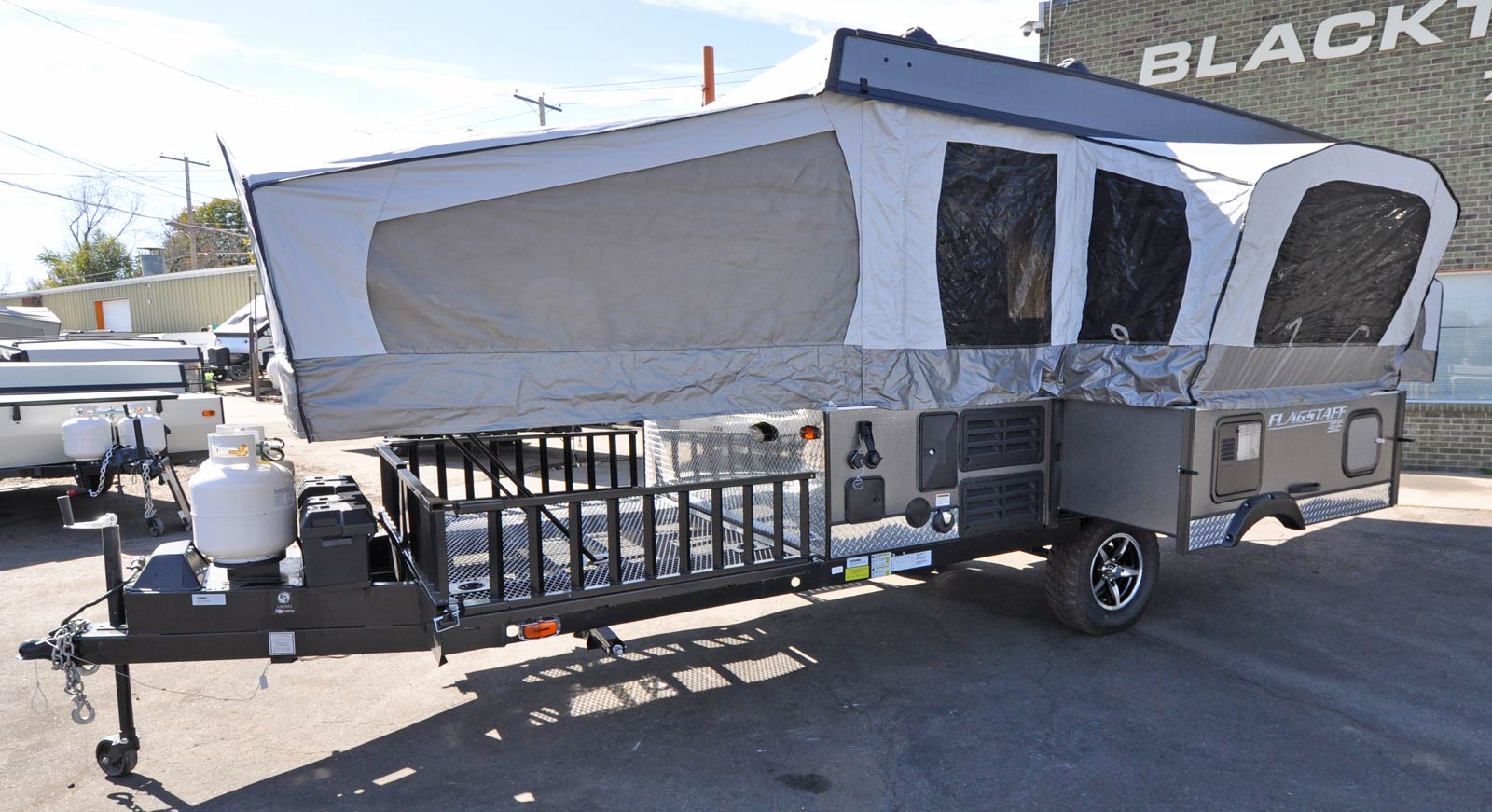

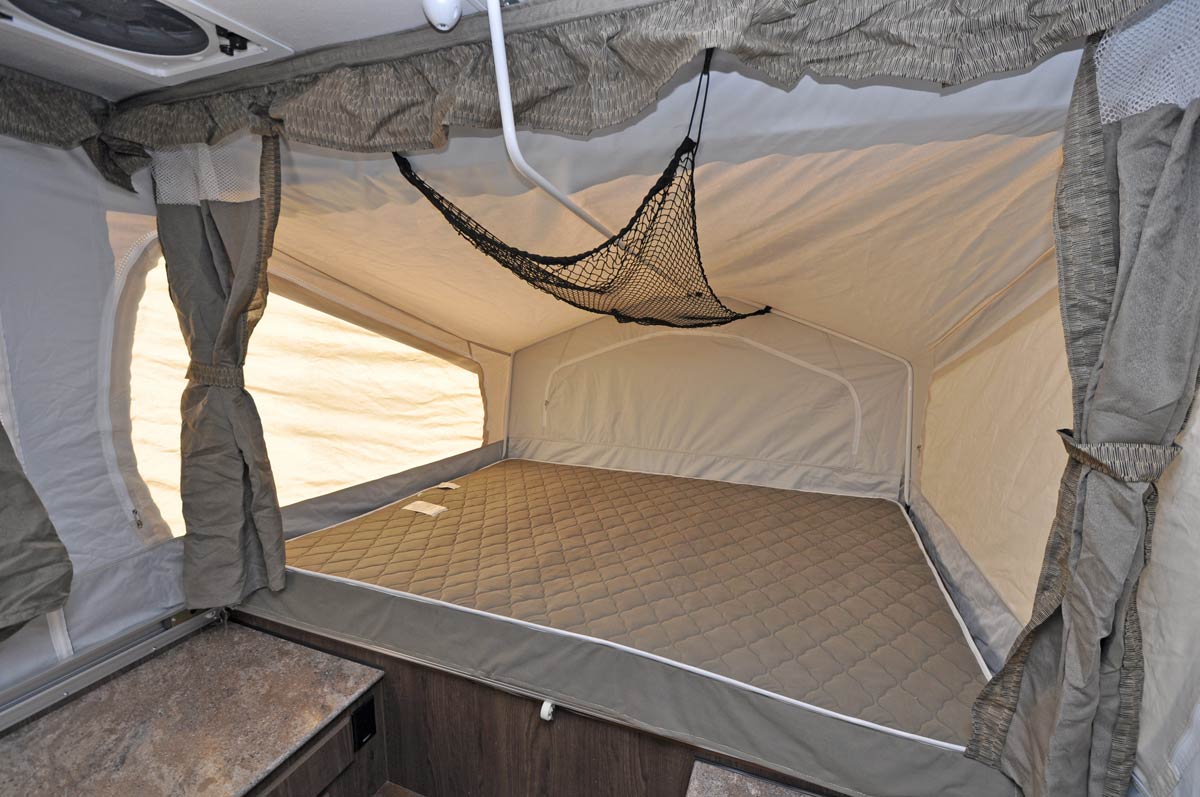

2016 Flagstaff 23SCSE rear bed 2016 Flagstaff 23SCSE back view (2016 model year shown)
